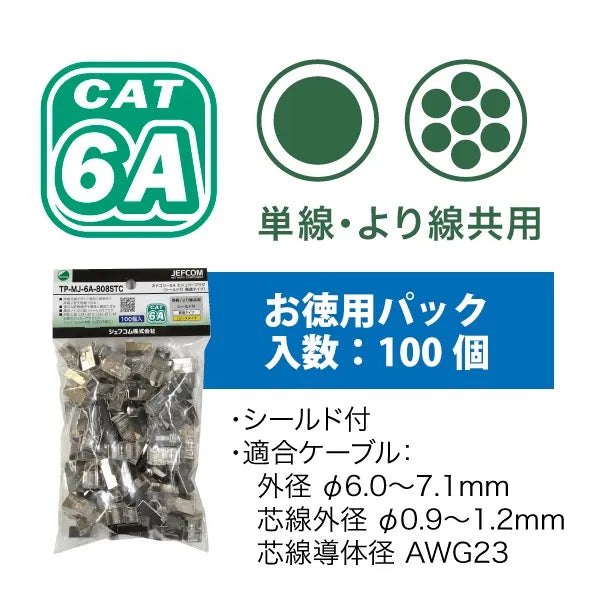

Category 6A Modular Plug (Shielded, Through-Type) TP-MJ-6A-808STC

【Product Features】
Economical pack of modular plugs (through-type) (100 pieces)
●Suitable for both solid and stranded wires, eliminating the need to choose based on the type of core wire
●Quantity: 100 pieces
●Category 6A compliant, compatible with 10Gbps
●Easy to check the correct wiring order
●For use with 8-core round cross-section cables
●Polycarbonate body that is resistant to breakage even when the latch is bent
●50μ (1.27um) gold plating
●RJ45 compliant
●Plug type: 8P8C
●Shielded plug resistant to electrical noise
●Through-type
●One-piece type
●Through-type dedicated tool (sold separately): LMJ-8TC, LMJ-8TC-M
*If a crimping tool other than the dedicated crimping tool (LMJ-8TC, LMJ-8TC-M) is used, the cable will not be cut.
Dedicated modular plug cover (sold separately): MJC-SPBL
*Caution
Do not use if the inside of the device's jack is made of metal.
This may cause a short circuit.
■Specifications
・Body size and weight: 12mm x 23mm x 11mm・2.3g
●Applicable cable
・Outer diameter: φ6.0～7.1mm
・Core wire: φ0.9～1.2mm
・Core wire conductor diameter: AWG23
*Since there are many types of wires, please be sure to check the applicable size.
・Material
Body: Polycarbonate, Terminal: Phosphor bronze (gold plated finish)
・Packaging specifications
Individual packaging: Header・Poly bag
Individual packaging size and weight: W120×D50×H200mm・240g
・1 package
・Country of origin: Taiwan
