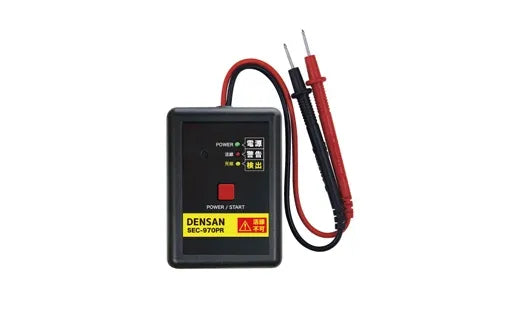

Circuit breaker wiring checker, dead wire receiver SEC-970PR

[Product Features]
When used in conjunction with separately sold transmitters (SEC-970, SEC-960), it can detect the wiring path of dead outlets and circuit breakers.
●Equipped with live wire confirmation function (dead wire receiver) *
(*A function that warns that it is a "live wire" if it is accidentally connected to a live wire)
●Not for use on live wires
■How to use

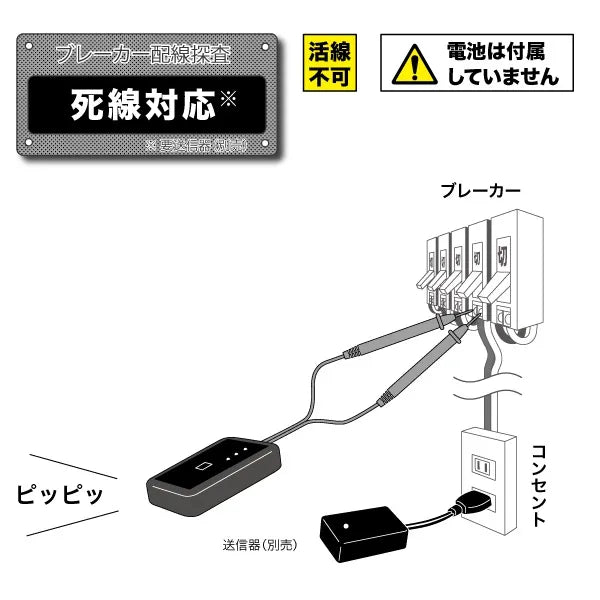

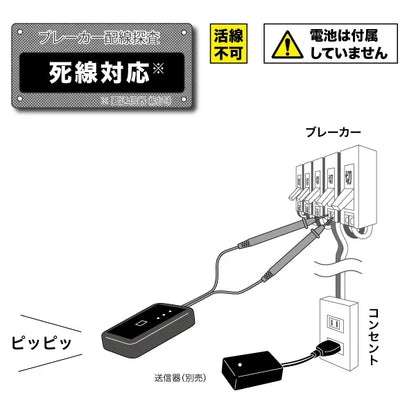

1. Set up the transmitter
2. Turn on the power. (Press and hold the power switch)
3. Place the tester on the circuit breaker terminal and briefly press the power switch.
4. If the detection LED blinks and the buzzer sounds, it is the corresponding circuit breaker.
5. If the warning LED lights up and the buzzer sounds, it is a live wire.
(Note: Live wire detection is not possible. Please turn off the circuit breaker.)
■ Specifications
■ Receiver for dead wires
● Circuit breaker detection function
・Detection conditions: Dead wires only
・Output: LED lamp flashing indicator, buzzer sounding
・Battery replacement indicator: Power LED flashes
・Operating distance: 300m
●Battery used: AA alkaline batteries x 2
※Batteries are not included
●Operating temperature range: 0°C to 40°C (80%RH or less)
●Dimensions: 105 x 75 x 26.4 mm (main unit only)
●Weight: 151g (including batteries)
・1 package
