Circuit breaker wiring checker SEC-970

【Product Features】

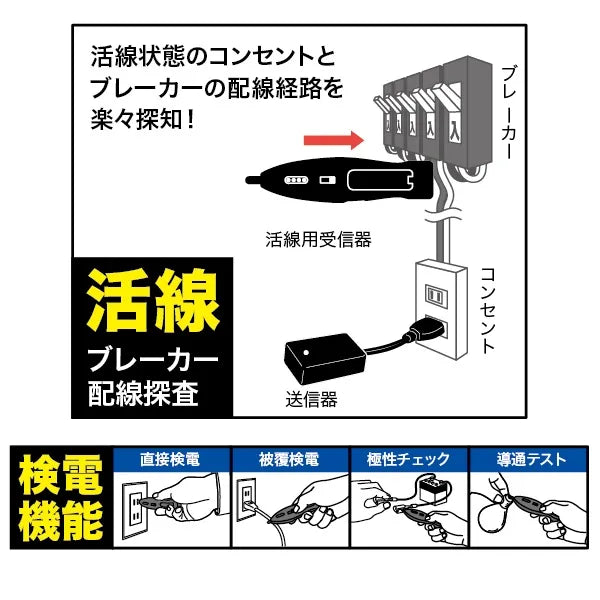

For searching live circuit breaker wiring!
●Compatible with slim circuit breakers (100V/200V)
●5 functions: direct voltage detection, insulated voltage detection, continuity, polarity, and circuit breaker detection
●Easy to understand with sound and light
●Sensitivity adjustment volume
●MADE IN JAPAN
●Set contents: live-wire receiver, transmitter, cord with clip, cord with AC plug
■ Specifications
●Live-wire receiver specifications
〇Voltage detection function
・Operating voltage range: Direct voltage detection/insulated voltage detection AC80V～300V 50/60Hz
・Continuity check: 10MΩ or less
・DC polarity check: 1.2V～24V
・Operation indicator: Red LED lights up, buzzer sounds
・Insulation withstand voltage: AC2000V 1 minute (between rubber voltage detector and grip)
〇 Breaker detection function
・Signal output format: Magnetic flux detection by signal current
・Output: 4 LED lamps light up, buzzer sounds
・Detection sensitivity: Sensitivity adjustment volume
・Operating distance: 300m
・Reference battery: Lithium battery CR2032 x 1 (battery not included)
・Dimensions: 142 x 35 x 19.5 mm
・Weight: 35g (including battery)
● Transmitter specifications
・Operating voltage range: DC/AC 15V~264V
・Scanning signal frequency: 5kHz
・Dimensions: 90×50×31mm
・Weight: 72g
・●Common specifications
・Operating temperature range: 0°C to 40°C (80%RH or less)
・Packaging specifications
Individual packaging: Case & sleeve
Individual package size and weight: W110×D45×H200mm・285g
・1 package
・Country of origin: Japan
