Ultra 4E Checker SEC-930CR
Ultra 4E Checker SEC-930CR
GTIN（JAN）：4937897056604
SKU：SEC-930CR
通常価格
¥9,818 JPY
通常価格
セール価格
¥9,818 JPY
（税込）
数量
受取状況を読み込めませんでした
重要：返品ポリシー
ご購入を完了する前に注文内容をよくご確認ください。お客様のご都合による返品・交換（サイズ違い、色違い、誤購入など）はお受けできません。
[Product Features]

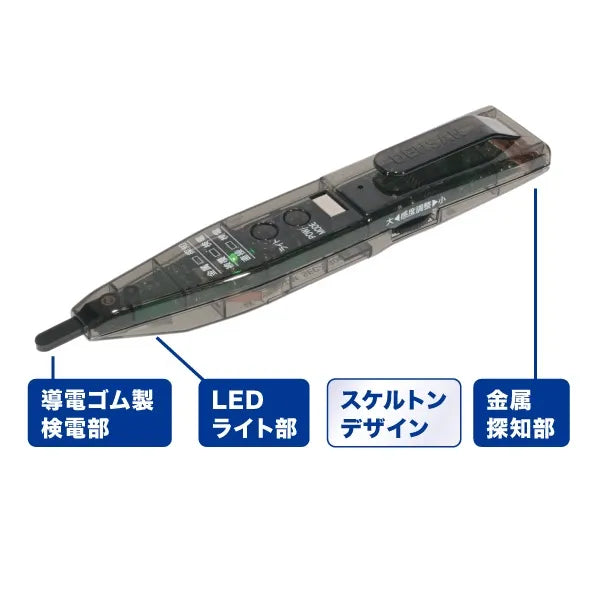

A new voltage detector with a conductive rubber detection section is now available!

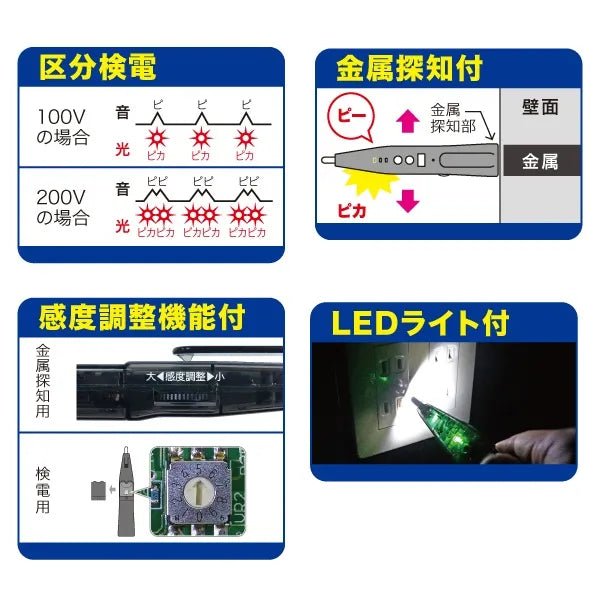

●Direct voltage detection (sectional voltage detection) and insulated voltage detection (for AC/low voltage)
●Metal detection (with sensitivity adjustment function)
●Easy to understand with sound and light

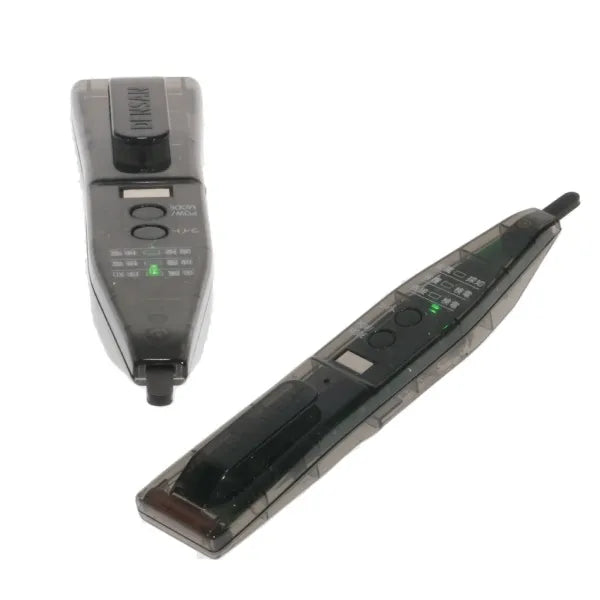

●Skeleton design
●LED light: lights up for about 20 seconds and then automatically turns off
●A voltage detector that can check the live state of AC voltage by contact or non-contact
●Direct voltage detection (sectional voltage detection): Allows voltage detection by directly contacting the charging part such as an outlet.
100V and 200V voltage detection possible
●Insulated cable detection: Simply touch the detection part to the cable's insulation to detect voltage
●Metal detection: Can detect metal pipes close to walls, ceilings, floors, etc.,
location of switch boxes, metal reinforcements, etc.
●Easy to understand with sound and light
●LED light: Lights up for about 20 seconds and then automatically turns off
●Battery replacement indicator: The indicator flashes when the battery voltage drops
●Sensitivity adjustment function (two types: for voltage detection and metal detection)
●Auto power off: Power turns off after about 4 minutes of inactivity
●Conductive rubber detection part
■Specifications
・Body size and weight: 152mm x 28mm x 20mm・30g
●Operating voltage range (direct detection/insulated cable detection)
Direct detection AC100V to ground voltage (80V-120V)
Direct detection AC200V Voltage to ground (160V to 600V)
Insulated metal detection AC (80V to 600V)
●Metal detection
Detection distance 25mm to 30mm
Target size φ20mm or larger
●Operation indicator Buzzer sounds, indicator (LED) lights up
●Withstand voltage AC2000V for 1 minute between detection part and clip
●Battery used Lithium battery CR2032 x 1
(Battery not included. Please prepare separately)
●Battery life Continuous operation for approximately 3 hours
●Operating temperature range 0°C to 40 degrees
Material
Case: PC, Tip: Natural rubber, Terminal: Phosphor bronze, Metal detection volume: ABS
Packaging specifications
Individual packaging: Blister pack and cardboard backing
Individual package size and weight: W85 x D25 x H225 mm, 50 g
1 package
Country of origin: Japan
