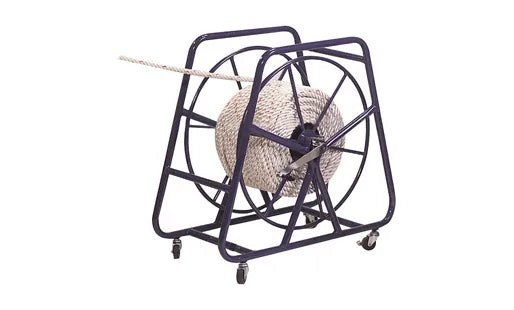

System Rope Reel RDS-600

[Product Features]
A reel equipped with rope storage function and a single drum stacking mechanism.
●Multiple drums can be swapped and used with one reel stand.
●Drums can be stacked and stored by size.
●Easy winding with a detachable handle.
●Easy movement with casters with stoppers.
Applications: Power, communications, internal and external wiring, cable installation, cable laying, factory use, ships, fisheries, forestry, construction, roads, facilities, bridges, tunnels.
●Drums can be swapped with one reel stand.
●Storable ropes*
・φ8mm×780m
・φ10mm×460m
・φ12mm×240m
・φ14mm×190m
・φ16mm×120m
・φ18mm×100m
*The catalog value and the actual measured value of the rope diameter may differ depending on the rope manufacturer.
■ Specifications
・Body size and weight: 800mm x 770mm x 340mm, 13.2kg
●Overall length: Width 800 x Depth 340 x Height 770mm
●Weight: 13.2kg
*Rope is not included
・Packaging specifications
Individual packaging:
Individual packaging size and weight: W820 x D450 x H820mm, 13.2kg
・1 package
・Country of origin: Japan
