Pokestar PS-220

【Product Features】
100V/200V voltage detection, small and lightweight
●Applications
・Low voltage detector

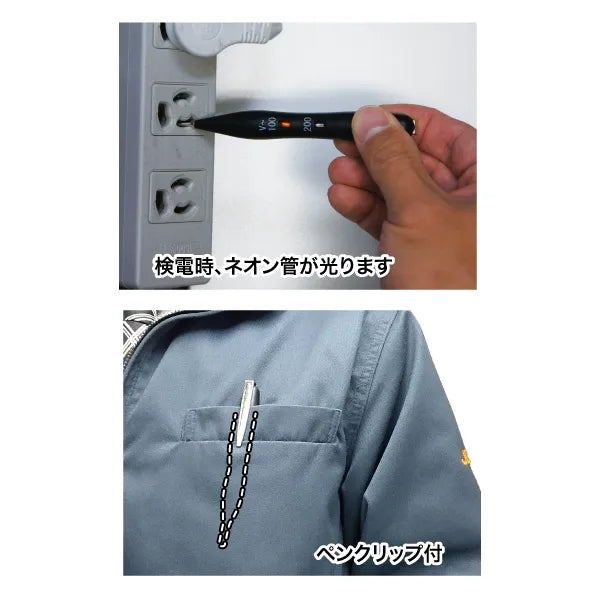

・Distinguishing between 100V and 200V (100V → 1 neon tube lights up / 200V → 2 neon tubes light up)
●Starting voltage for voltage detection: 80V±5V when detecting 100V / 175V±5V when detecting 200V (However, these are values ​​when the ground resistance is 0)
●Voltage detection
・The brightness of the neon tubes will vary depending on the usage conditions and individual differences. If it is difficult to determine whether they are lit, please grip the pen clip again.
●Direct voltage detection
・It may be difficult to determine if the surroundings are bright. Please check the light emission by covering the light-emitting part.
■ Specifications
・Operating voltage: AC75V~300V
・Frequency: 50/60Hz common
・Insulation resistance: 3MΩ or more
・Size: 121×16mm
・Weight: 11g
・Packaging specifications
Individual packaging: Blister pack and cardboard backing
Individual package size and weight: W48×D22×H172mm・20g
・1 package
・Country of origin: Taiwan
