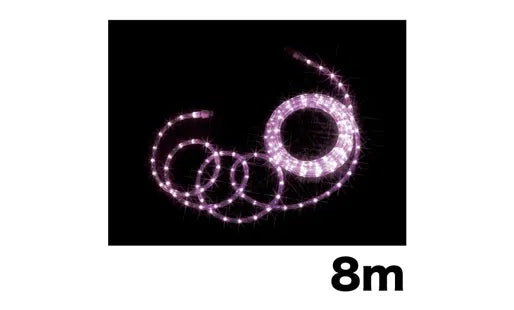

LED Soft Neon (40mm pitch, standard type) PR-E340-08VV

【Product Features】
New connector design for improved weather resistance and reliability
●Improved weather resistance and reliability, new colors available ●New connector design for improved weather resistance and reliability ●Wide variety of lengths and colors
●Controller allows switching between flashing patterns such as alternating flashing and all-on
●Color: Violet
●LED spacing: 40mm pitch
●Number of LEDs: 24 bulbs/m
●Alternating flashing/all-on
●Maximum usable length: 50m
■ Specifications
・Length: 8m
・Rated power consumption: 10W
・Input power (*1): 11VA
・Input current: 0.45A
・Weight: 1.4kg
・Rated voltage: AC100V 50/60Hz
・Rated input current: 60VA
・Secondary output voltage: 24V
・Number of control patterns: 8 patterns (including all lights on)
・LED illumination interval: 40mm alternating arrangement
・Operating environment conditions: -10~40 degrees Celsius, normal temperature
・Outdoor specifications: IP44
・Maximum connection length: up to 50m
・Maximum connection capacity: 60VA
・Rod diameter: φ13mm
・Rod material: PVC polyvinyl chloride resin
・Rod bending radius: up to a minimum radius of φ20mm
・Rod (LED) lifespan: 10,000 hours (may vary depending on operating conditions and environment)
(*1) Input power is the input capacity value of the AC-AC adapter. It differs depending on the color and wiring system.
・Material
Rod: PVC
・Packaging specifications
Individual packaging: Individual box and seal
Individual package size and weight: W270 x D60 x H270 mm, 1.37 kg
・1 package
・Country of origin: China
