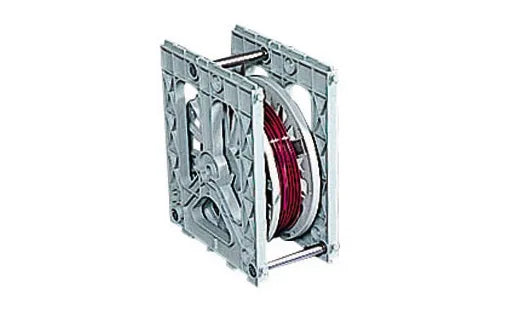

Plamagic Reel PM-SC1

【Product Features】
A system set can be assembled to suit the store or installation location! Ideal for storing and using multiple types of electrical wires!
●No need to rewind electrical wires onto a drum (can be installed as is, in bundles purchased from the electrical wire manufacturer)
●Easy storage and retrieval of multiple types of electrical wires
●Multiple reels can be lined up horizontally and installed along the line
●One reel can be used for tabletop work, and multiple reels can be stacked in narrow spaces, etc.
●Applications: Harness factories, low-voltage electrical factories, distribution board factories, home appliance shops, instrumentation work, electrical work, communication work, disaster prevention work, control panel factories, etc.
●Center roll type: A type that rotates around a shaft in the center of the reel
The reel rotates very easily, making it easy to pull out electrical wires, ideal for factories that use large quantities of wires
■ Specifications
・Body size and weight: 196mm x 380mm x 340mm, 3kg
・Size: Width 196 x Depth 340 x Height 380mm
・Weight: 3.0kg
・Maximum stacking layers: 5 layers
●Storable wire size (mm): Outer diameter φ320 or less, inner diameter φ110 or more, thickness 80 or less x 1
※Cable is not included
・Packaging specifications
Individual packaging:
Individual packaging size and weight: W196 x D340 x H380mm, 3kg
・1 package
・Country of origin: Japan
