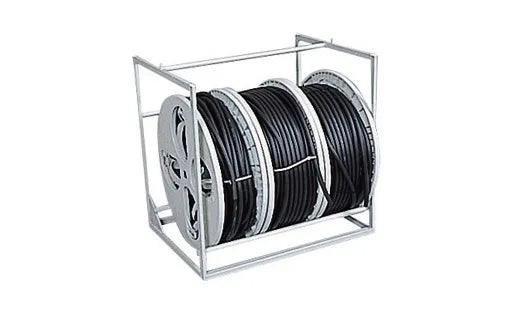

Plamagic Reel PM-LU3

【Product Features】
A system set can be assembled to suit the store or installation location! For storing and pulling out all kinds of wires, including thick diameter wires, IV, VVF, SV, cabtyre cables, coaxial cables, etc.!
●No need to rewind wires onto drums
No drum winding required (can be installed as is, bundled from the wire manufacturer)
●Easy storage and pulling out of multiple wires
●As a cable rack for DIY and stores
Applications: DIY, electrical supply stores, home appliance stores, electrical tool stores, wire handling stores, etc.
●For electrical construction sites and warehouses
Applications: Power construction, tunnel construction, indoor wiring work, disaster prevention work, communication work, underground burial work, road construction, construction sites, facilities, warehouses, etc.
●Under-roll type: A type where the reel is placed on a shaft at the bottom of the frame and rotates
Simple structure, inexpensive and economical, and allows for the installation of more reels compared to the center type
■ Specifications
・Body size and weight: 600mm x 595mm x 480mm・10.2kg
・Size: Width 600 x Depth 480 x Height 595mm
・Weight: 10.2kg
・Maximum stacking layers: 4 layers
●Storable wire bundle size (mm): Outer diameter φ480 or less, inner diameter φ60 or more, thickness 160 or less x 3
※Cables are not included
・Packaging specifications
Individual packaging:
Individual packaging size and weight: W620 x D520 x H650mm・10.2kg
・1 package
・Country of origin: Japan
