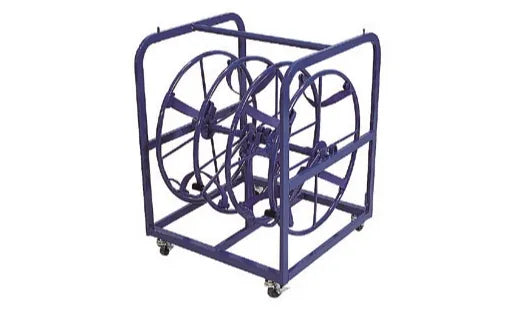

Magic Reel MRW-4801
Magic Reel MRW-4801
GTIN（JAN）：4937897026164
SKU：MRW-4801
通常価格
¥64,350 JPY
通常価格
セール価格
¥64,350 JPY
（税込）
数量
受取状況を読み込めませんでした
重要：返品ポリシー
ご購入を完了する前に注文内容をよくご確認ください。お客様のご都合による返品・交換（サイズ違い、色違い、誤購入など）はお受けできません。
[Product Features]
One frame can accommodate any number of drums!!
●Can be quickly and securely attached regardless of the inner diameter or width of the wire, and can be used cleanly until the end.
●Different wires can be attached to multiple drums and swapped out using one frame.
●Drums can be stacked for storage.
●Drawer fittings with an anti-slip brake that automatically applies the brake when the drawer is stopped.
■ Specifications
・Body size and weight: 500mm x 690mm x 500mm・11.2kg
・Size: Width 500 x Depth 500 x Height 690mm
・Weight: 11.2kg
・Maximum stacking layers: 3 layers
●Storable wires
VA wire: Up to 2.6 x 3 cores, up to 100m
IV wire: Up to 5.5mm? Up to 300m
●Storage capacity: Outer diameter φ450 x Inner diameter φ90 x Height 130mm
・Packaging specifications
Individual packaging:
Individual package size and weight: W530 x D520 x H710mm・11.2kg
・1 package
・Country of origin: Japan
One frame can accommodate any number of drums!!
●Can be quickly and securely attached regardless of the inner diameter or width of the wire, and can be used cleanly until the end.
●Different wires can be attached to multiple drums and swapped out using one frame.
●Drums can be stacked for storage.
●Drawer fittings with an anti-slip brake that automatically applies the brake when the drawer is stopped.
■ Specifications
・Body size and weight: 500mm x 690mm x 500mm・11.2kg
・Size: Width 500 x Depth 500 x Height 690mm
・Weight: 11.2kg
・Maximum stacking layers: 3 layers
●Storable wires
VA wire: Up to 2.6 x 3 cores, up to 100m
IV wire: Up to 5.5mm? Up to 300m
●Storage capacity: Outer diameter φ450 x Inner diameter φ90 x Height 130mm
・Packaging specifications
Individual packaging:
Individual package size and weight: W530 x D520 x H710mm・11.2kg
・1 package
・Country of origin: Japan
