Category 6A Modular Plug (Through-Hole Type) M6A-1P-865SDT

[Product Features]
Modular plug for thin diameter cables
●Suitable for both solid and stranded wires, eliminating the need to choose based on the type of core wire
●Category 6A compliant, supporting 10Gbps

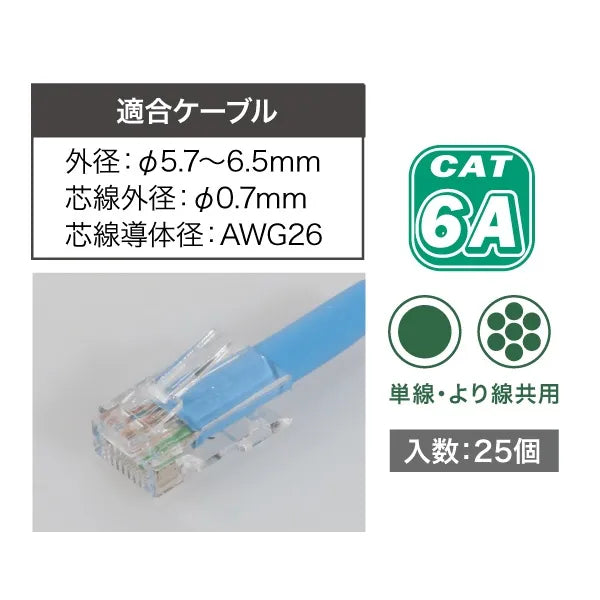

●Compatible cables
・Outer diameter: φ5.7～6.5mm
・Core wire: φ0.7mm
・Core wire conductor diameter: AWG26
●Quantity: 25 pieces
●Easy to check the correct wiring order
●For use with 8-core round cross section cables
●RJ45 compliant
●Plug type: 8P8C
●1-piece type
●50μ (1.27um) gold plating
●Through-hole type

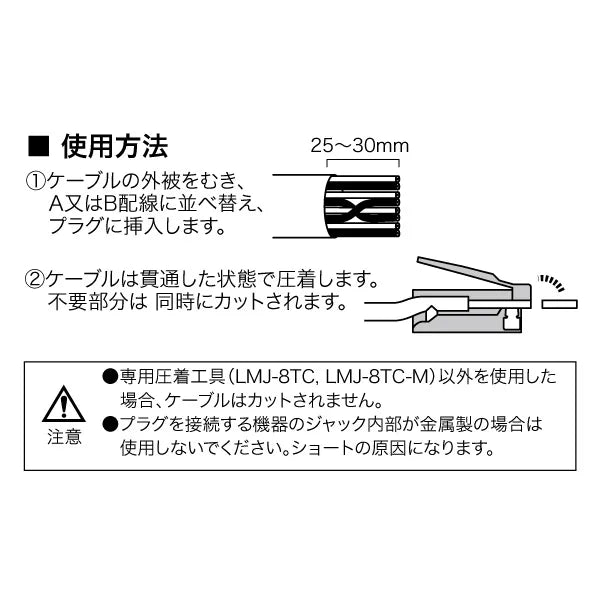

Through-hole type dedicated tool (sold separately): LMJ-8TC, LMJ-8TC-M
*If a crimping tool other than the dedicated crimping tool (LMJ-8TC, LMJ-8TC-M) is used,
the cable will not be cut.
※Caution
Do not use if the inside of the jack of the device to which the plug is connected is made of metal.
This may cause a short circuit.
■Specifications
・Body size and weight: 11.7mm x 22.4mm x 8mm・1.3g
・Material
Body: Polycarbonate, Terminals: Phosphor bronze (gold plated finish)
・Packaging specifications
Individual packaging: Header and poly bag
Individual package size and weight: W120 x D25 x H135mm・40g
・1 package
・Country of origin: Taiwan
