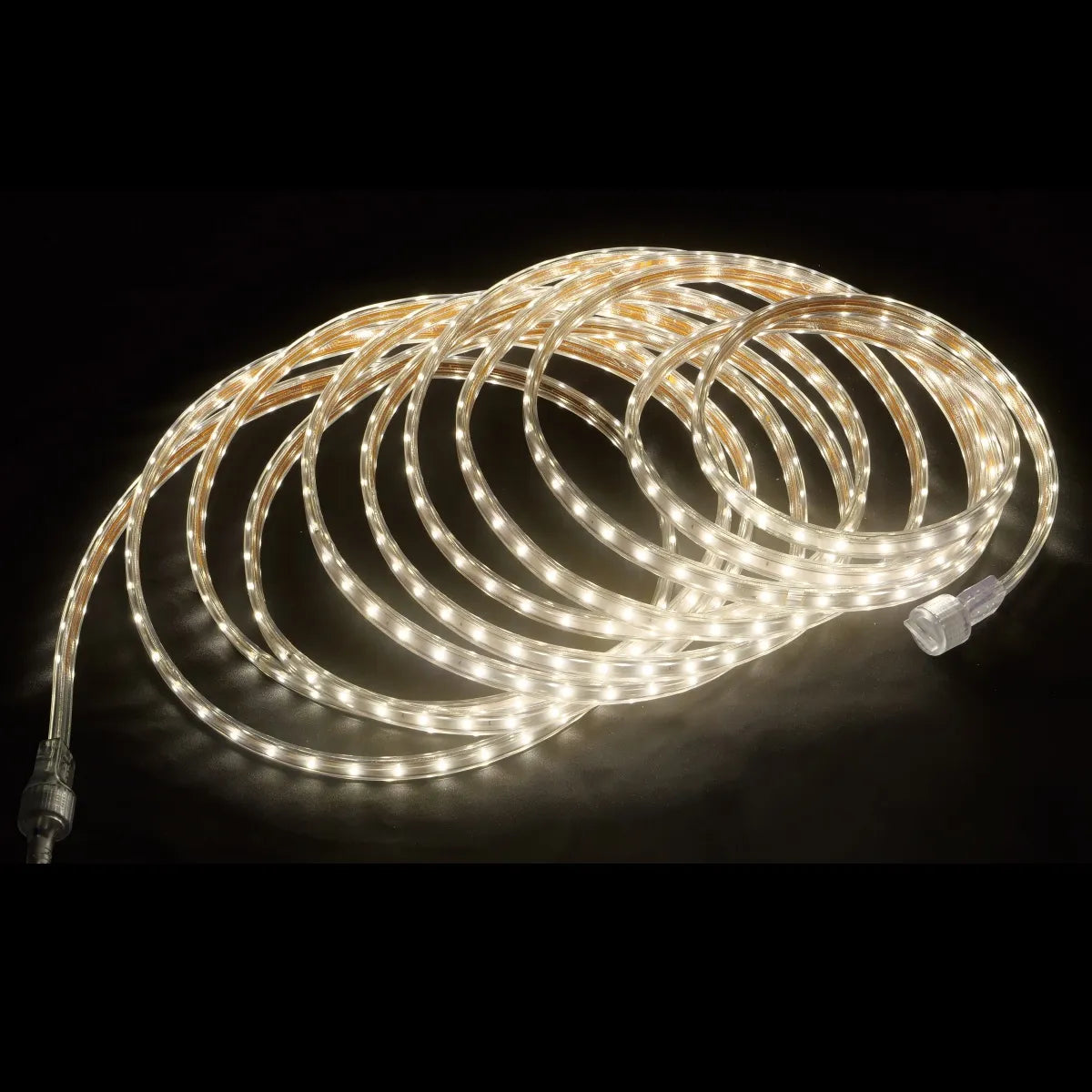

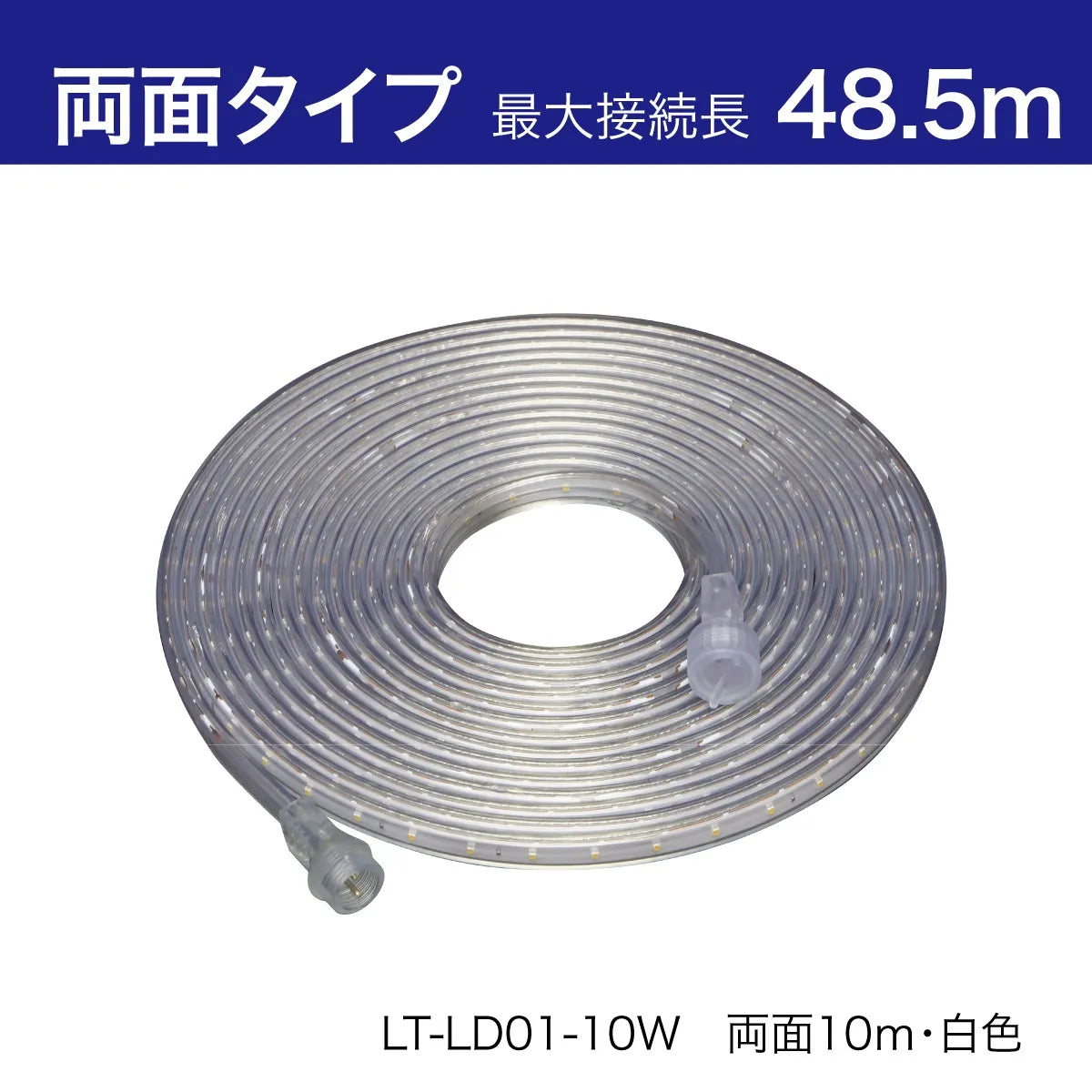

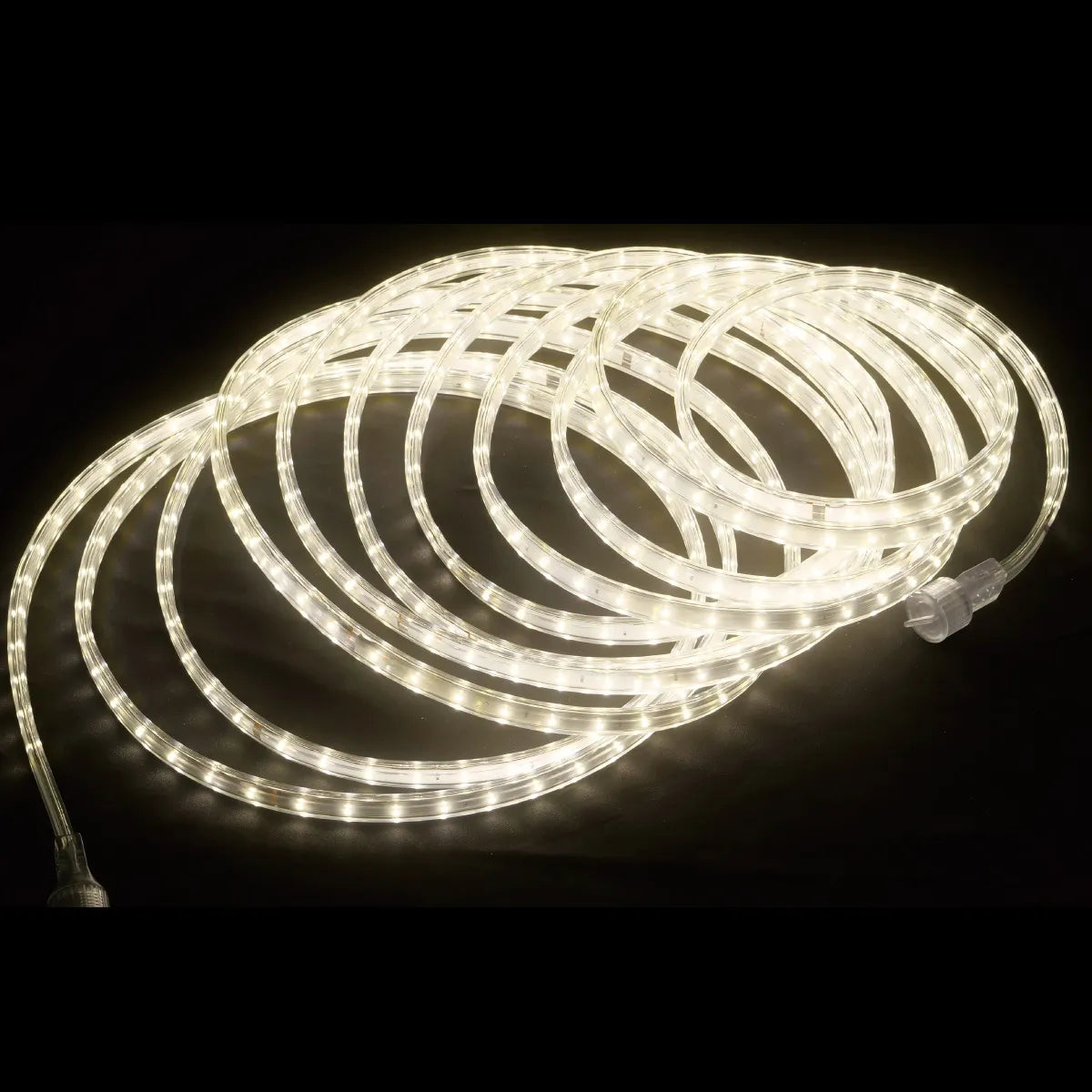

LED strip light (long type) LT-LD01-10W

[Product Features]
Long-length connecting tape light (double-sided type)
●Double-sided type that can be installed on fences etc. to illuminate the surroundings
・Maximum connection length 48.5m
●The main body is made of flexible resin and can be used in straight lines and curves
●Convenient for surrounding work areas to draw attention to a wide area
●Easy to install and remove
●For outdoor use (protection class IP64)
●About connection
・A maximum of 10 LT-LS01-10W (single-sided type) can be connected,
and a maximum of 5 LT-LD01-10W (double-sided type) can be connected.
※It is also possible to connect single-sided and double-sided types.
In that case, the number of connections will be "2 single-sided types" = "1 double-sided type".

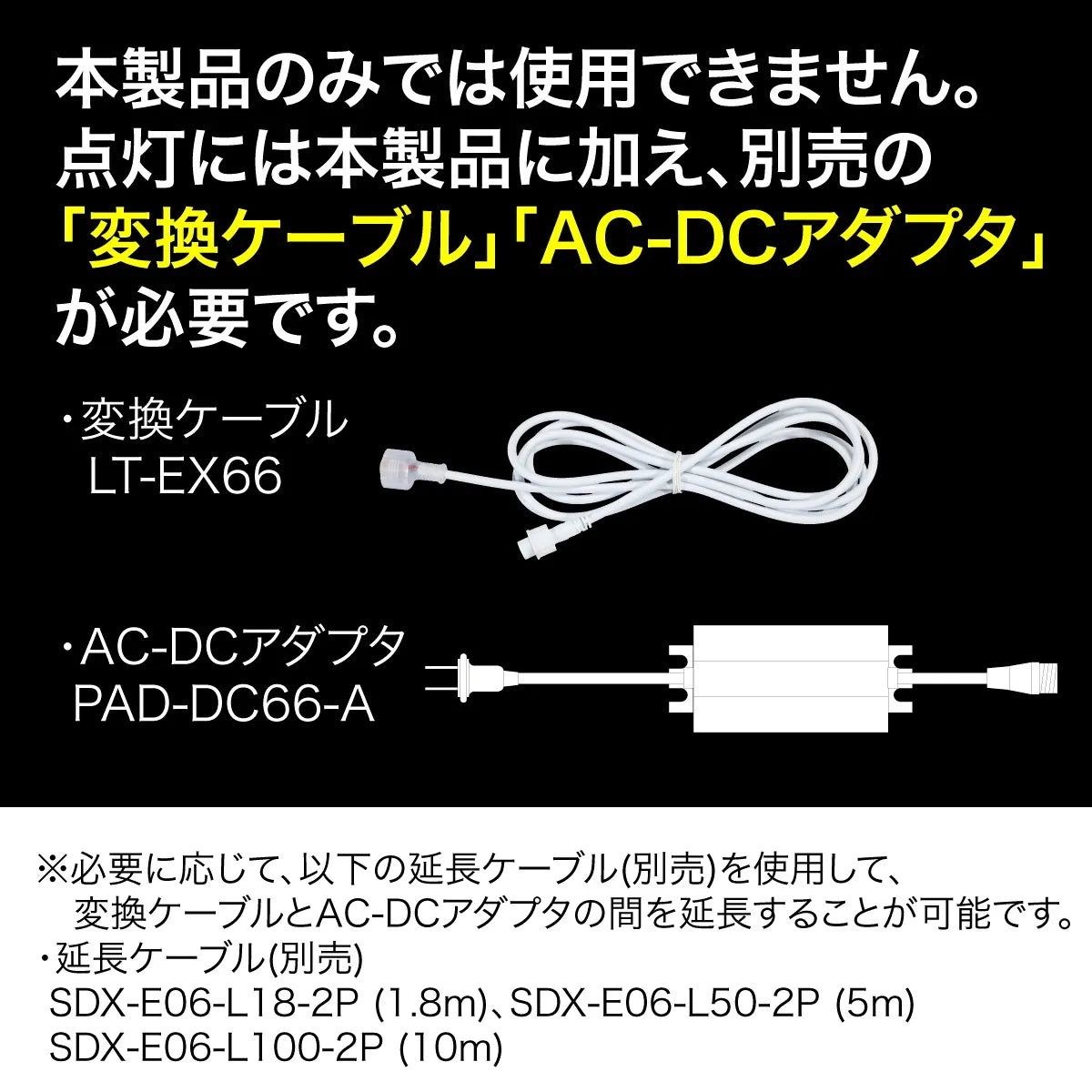

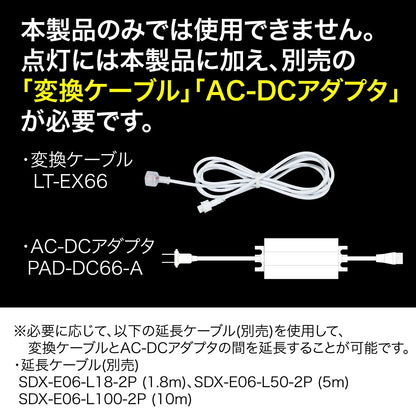

●A separately sold "conversion cable" and "AC-DC adapter" are required for lighting.
• Conversion cable LT-EX66
• AC-DC adapter PAD-DC66-A
●If necessary, you can extend the distance between the conversion cable and the AC-DC adapter using the following extension cable (sold separately).
・Extension cable (sold separately)
SDX-E06-L18-2P (1.8m)
SDX-E06-L50-2P (5m)
SDX-E06-L100-2P (10m)
■ Specifications
・Body size and weight (including reel): 16mm x 9700mm x 9mm・1.56kg
・Power consumption: 40W
・Input current: 0.76A
・Power supply voltage: DC66V
・LED arrangement: double-sided
・Number of LEDs: 798
・LED spacing: 23.8mm
・Color temperature: 4000K
・Color rendering index: Ra>80
・Total luminous flux: 1255 lm
・Irradiation angle: 240°
・Body cross-section size: 16×9mm
・Total length: 9700mm
・Maximum number of connected units: 5
・Protection class: IP64
・Material
PVC
・Packaging specifications
Individual packaging: Individual box and seal
Individual packaging size and weight: W270×D270×H105mm・1.745kg
Inner packaging:
Inner packaging size and weight: W280×D280×H230mm・3.85kg・1 carton
・Country of origin: China
