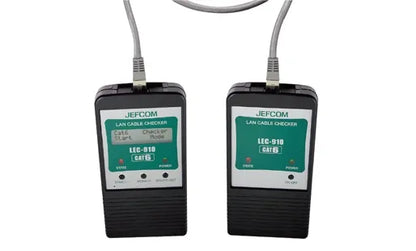

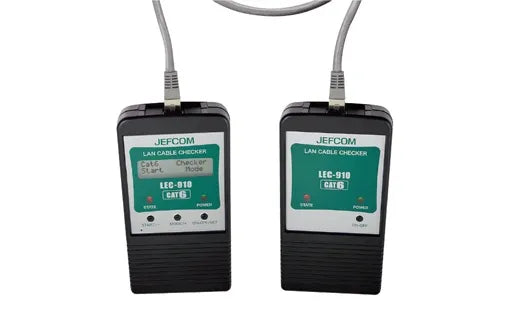

LAN Cable Checker LEC-910

[Product Features]
Drastically reduces installation defects! LAN wiring installation check!
● CAT6 compatible! High-performance LAN checker
● Determines the quality of LAN cable miswiring, cable length, attenuation, far-end leakage, and near-end leakage
● High-precision cable length measurement (±5%rdg. ±1m NVP value setting)
● Small and lightweight, quick and easy test diagnosis
● Crossover cable measurement is also possible (wire map only)
● Cable length measurement range 10m to 100m (displays in 10cm increments)
*Category 6A cables are supported for continuity and length measurement, but not for attenuation or leakage.
■ Specifications
Specifications
◇Receiver
・Display: LCD display
・Battery: 2 x AA alkaline batteries
・Battery life: Approximately 8 hours (alkaline batteries)
・Operating temperature range: 0 to 40 degrees Celsius (80% RH or less)
・Accuracy guaranteed temperature range: 23 ± 5 degrees Celsius (80% RH or less)
・Measurement standard: Our original database based on Cat5e and Cat6 standards. Cat6 undergoes testing to ensure it operates without practical problems.
・Auto power-off function: Automatically turns off after approximately 3 minutes.
・Battery replacement notification function: POWER LED (green) flashes.
◇Transmitter
・Output frequency: Multiple frequency system
・Battery used: 2 x AA alkaline batteries
・Battery life: Approximately 8 hours (alkaline batteries)
・Operating temperature range: 0 to 40 degrees Celsius (80% RH or less)
・Auto power-off function: Automatically turns off if there is no signal from the receiver for more than 20 minutes.
・Battery replacement notification function: POWER LED (green) flashes.
・Packaging specifications
Individual packaging: Individual box
Individual package size and weight: W140 x D75 x H225 mm, 570 g
・1 package
・Country of origin: Japan
