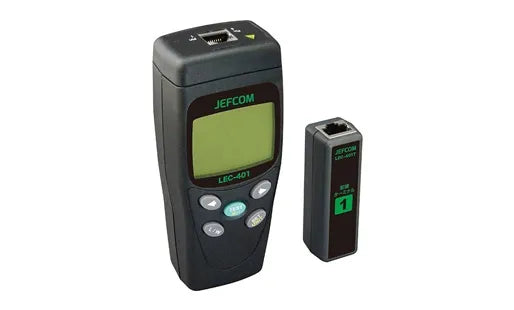

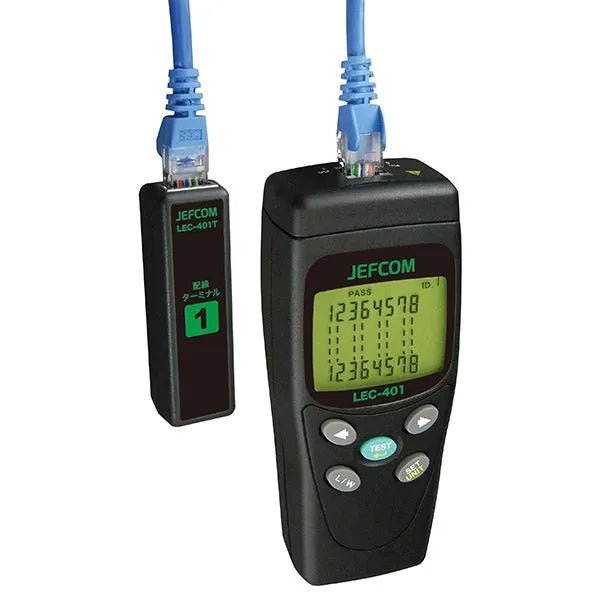

LAN Cable Checker LEC-401

[Product Features]
Continuity, length (each pair), and wire detection. Measurement starts with a single button! Easy operation! Clear results!

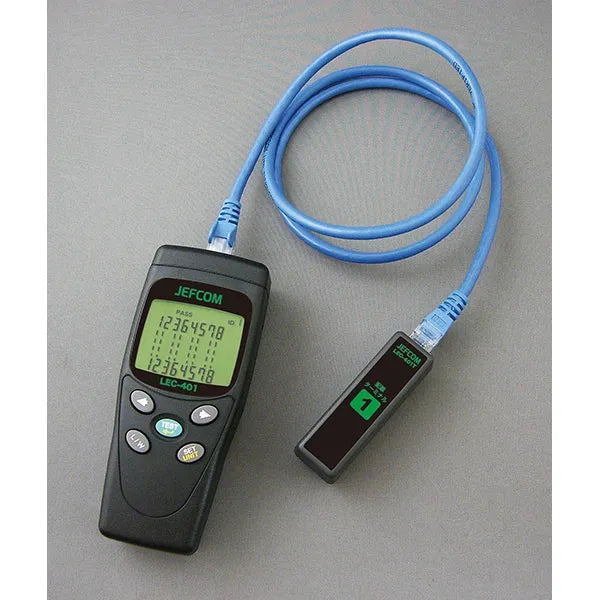

●Simply connect to the LAN wiring (LAN cable) and press the "TEST" button.
●Detects the location (length) of a broken wire.
●LCD backlight included.
●Auto power-off function.
●Battery replacement notification function.
●Small and lightweight.
●With optional accessories sold separately, you can check and detect the continuity of up to 8 wires by swapping the plug.
●CAT5/CAT6 compatible (RJ45 modular plug).
●Compatible cables: RJ45, Cat5/Cat6, UTP/STP cables, characteristic impedance 100Ω.
●Wire map: Open, short, miswiring, split pair (5m or more).
●Cable length measurement: Measurement length 5m to 255m, display resolution 0.1m, error ±10% + 1m.
●Display: LCD (with backlight).
●Battery used: 006P 9V Alkaline batteries recommended
●Battery life: Approximately 50 hours
●Auto power off: Automatically turns off after approximately 2 minutes of inactivity
●Operating temperature range: 5°C-40°C (80%RH or less)
●Compliant standards: EMC EN61326-1
●Body size: 130×56×38mm
●Body weight: 160g (including batteries)
●Wiring terminal size: 70×23×24mm
●Wiring terminal weight: 25g
■Specifications
・Packaging specifications
Individual packaging: Individual box
Individual packaging size and weight: W117×D60×H260mm・345g
・1 box
・Country of origin: Taiwan
