Green Laser Point Liner LBP-6GR2
Green Laser Point Liner LBP-6GR2
GTIN（JAN）：4937897058318
SKU：LBP-6GR2
通常価格
¥102,300 JPY
通常価格
セール価格
¥102,300 JPY
（税込）
数量
受取状況を読み込めませんでした
重要：返品ポリシー
ご購入を完了する前に注文内容をよくご確認ください。お客様のご都合による返品・交換（サイズ違い、色違い、誤購入など）はお受けできません。
[Product Features]
Green laser with laser brightness switching function
●Laser brightness switching (energy saving, normal, high brightness)

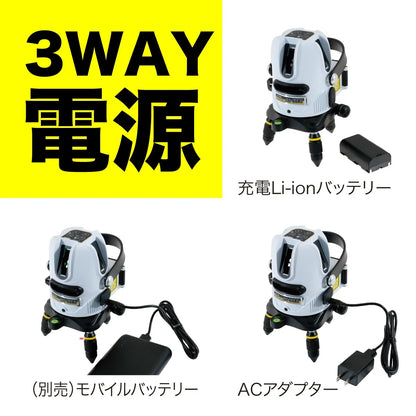

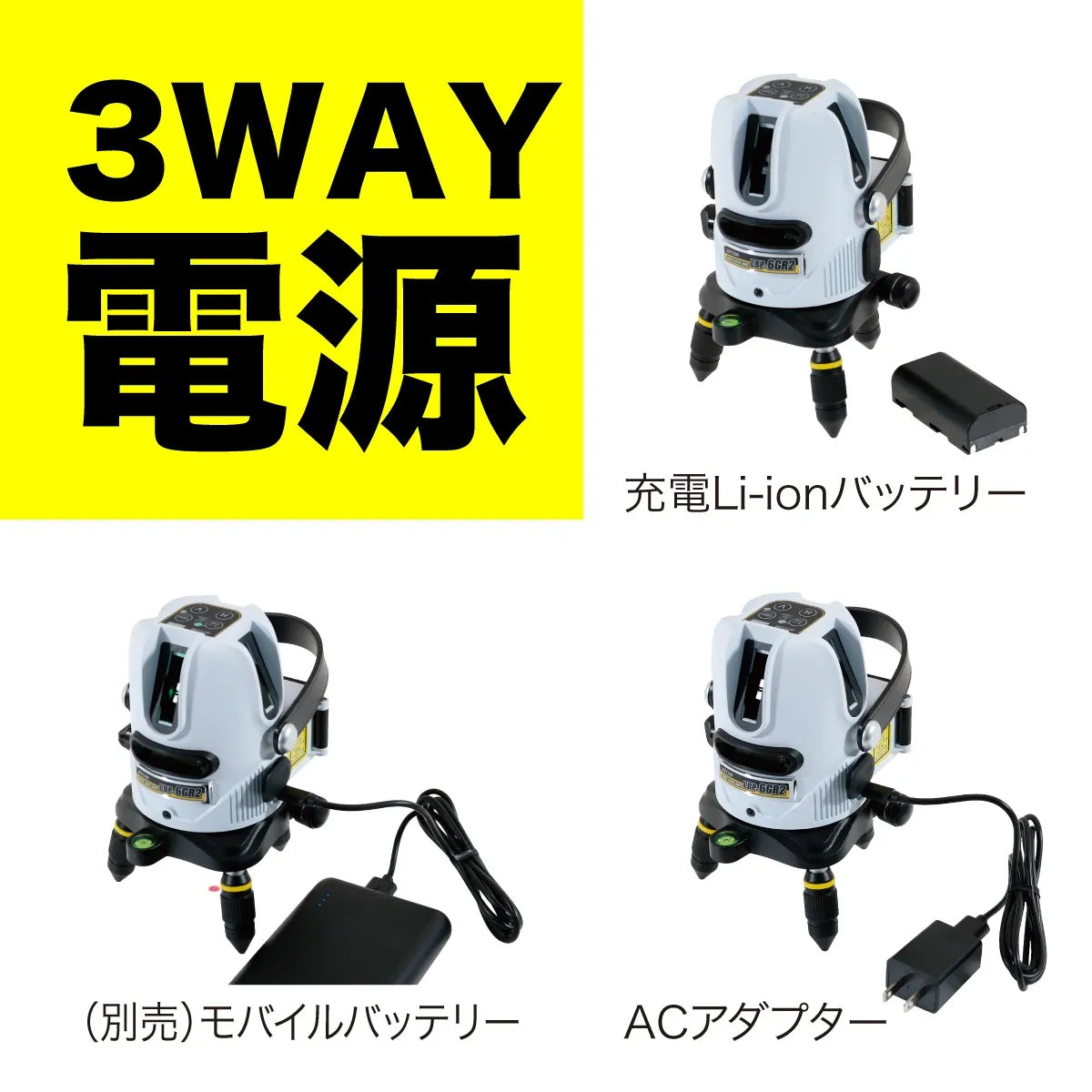

●3-way power supply (included rechargeable battery, included AC adapter, optional mobile battery)

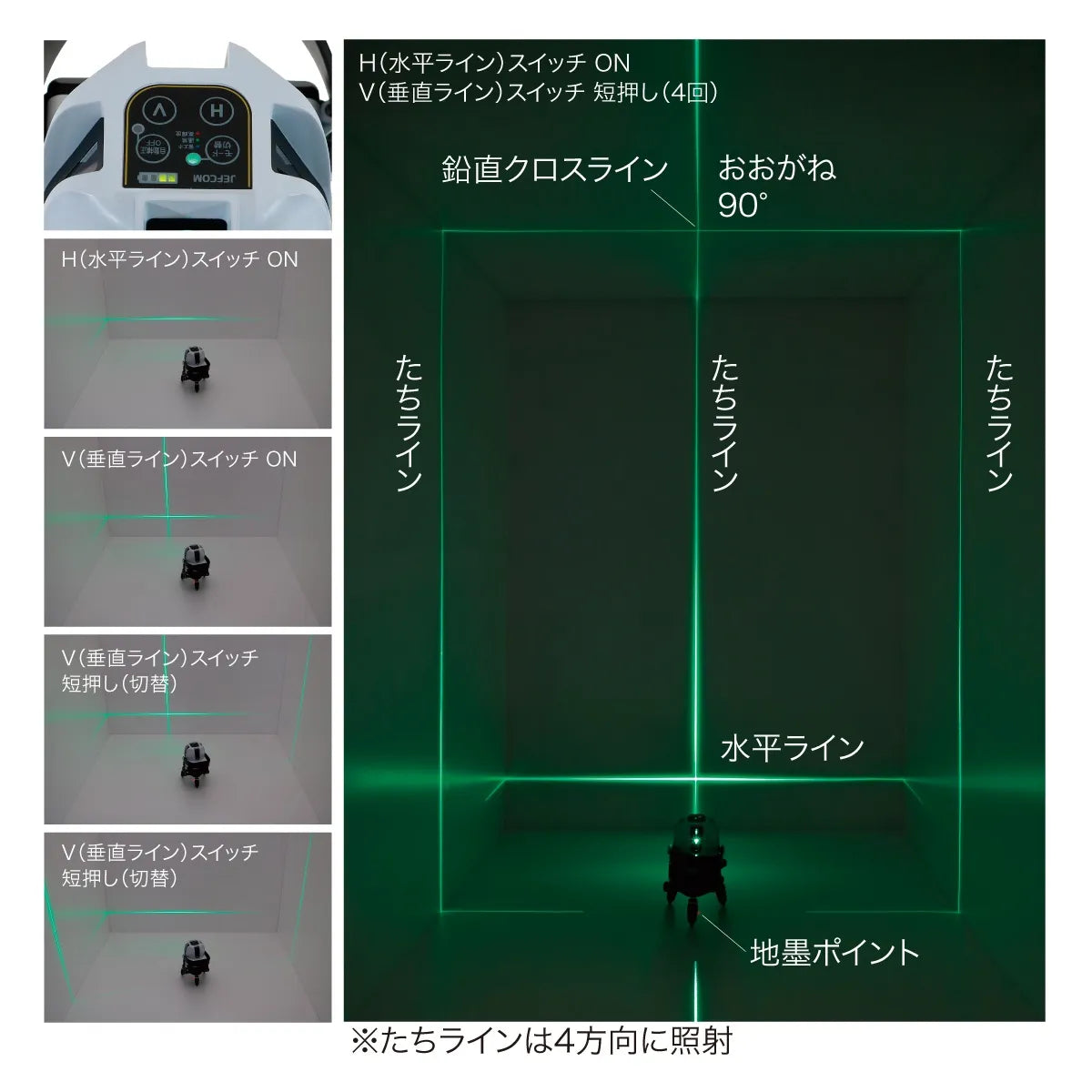

●Vertical: vertical line
●Horizontal: horizontal line
●Both vertical: 4-way vertical line (90°)
●Vertical: vertical cross line, plumb point
●Suitable for outdoor use
●Includes storage case

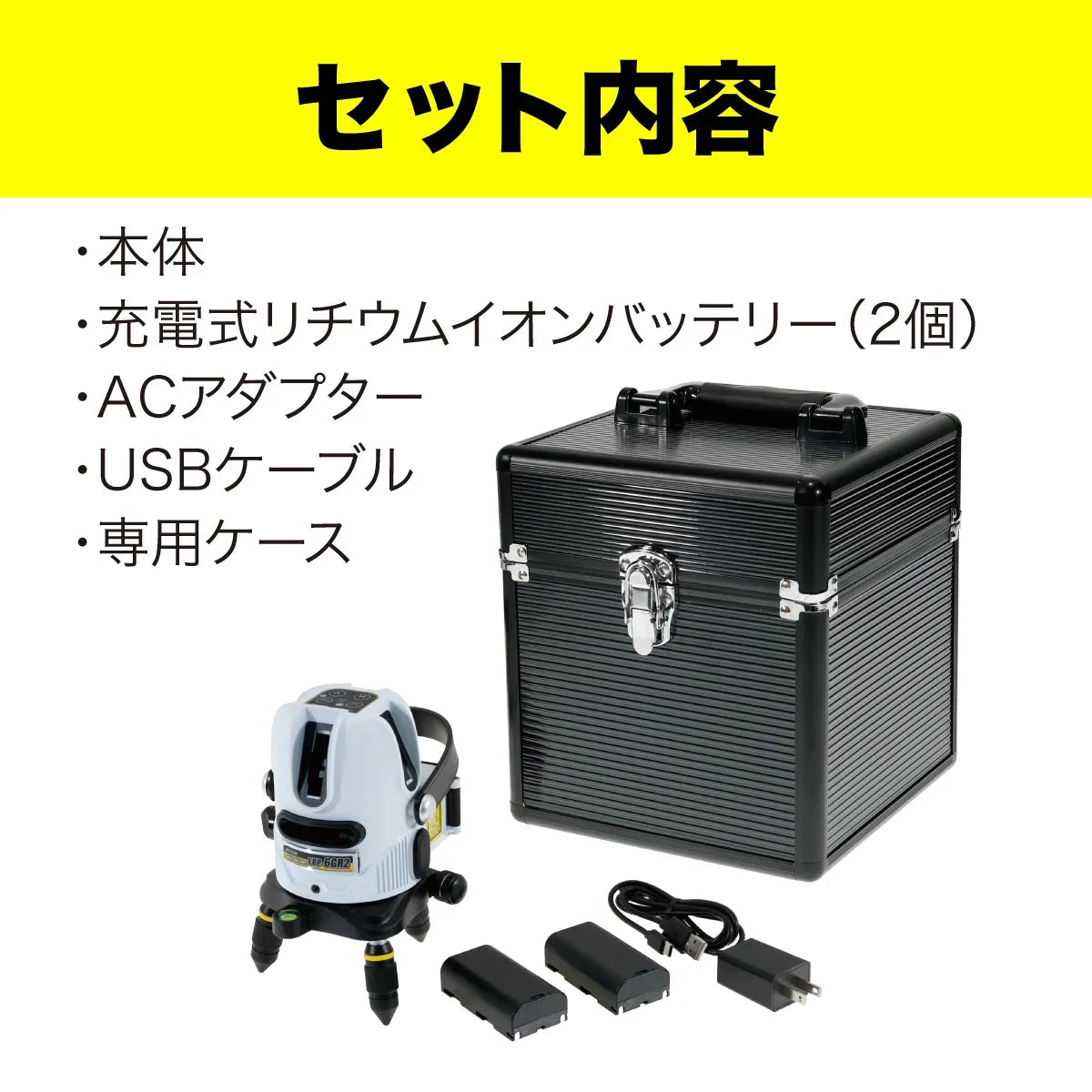

●Set contents
・Main unit x 1
・Rechargeable lithium-ion battery x 2
・AC adapter x 1
・Dedicated case x 1
■Specifications
・Main unit size and weight (including battery): 123mm x 115mm x 174mm・880g
●Light source
・515nm ±2% green semiconductor laser (line laser)
・650nm red semiconductor laser (plumb point laser)
●Light output
・7mW or less Class 2 (JIS C6802:2018)
●Pulse width/frequency
・50μs / 10kHz ±10% (normal mode)
・30μs / 10kHz ±10% (energy saving mode)
●Line width
・2mm/5m
●Accuracy
・Horizontal, vertical ±1mm/10m, vertical ±1mm/5m
●Automatic correction range
・±3°
●Tilt warning
・Yes, buzzer sounds when outside the correction range
●Automatic correction OFF function
・Yes
●Irradiation line memory function
・Yes
●Damping method
・Magnetic damping method
●Body rotation mechanism
・360°
●Rotation fine adjustment device
・Yes, endless full-circumference fine adjustment screw (located on both left and right sides)
●Battery level warning
・Yes Battery level indicator LED
●Power supply
・Rechargeable Li-ion battery pack (charging time: approx. 3.5 hours)
・AC100V (using the included USB-AC adapter and USB cable)
・Optional mobile battery (using the included USB cable)
●Continuous use time
・Full illumination: approx. 12 hours (normal mode)
●Operating temperature range
・-10°C to +40°C
●Dustproof and waterproof
・Yes, equivalent to IP54
●Tripod mounting part
・5/8 inch

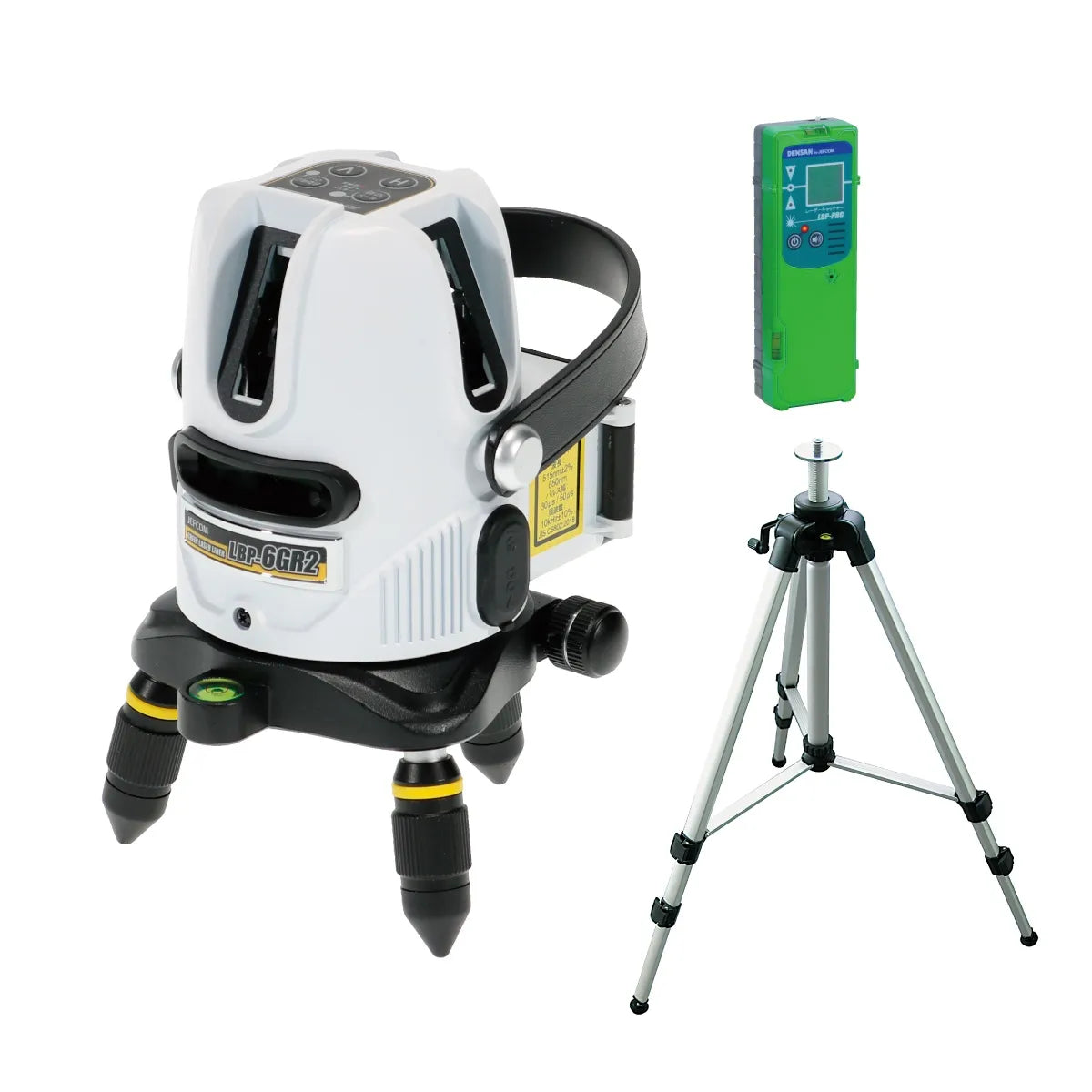

●Receiver compatibility
・Compatible, using optional LBP-PRG
●Maximum outdoor range
・Approx. 30m (When using the separately sold LBP-PRG, it may vary depending on the usage environment)
・Packaging specifications
Individual packaging: Individual box and seal
Individual package size and weight: W237×D237×H280mm・2.34kg
・1 package
・Country of origin: China
Green laser with laser brightness switching function
●Laser brightness switching (energy saving, normal, high brightness)
●3-way power supply (included rechargeable battery, included AC adapter, optional mobile battery)
●Vertical: vertical line
●Horizontal: horizontal line
●Both vertical: 4-way vertical line (90°)
●Vertical: vertical cross line, plumb point
●Suitable for outdoor use
●Includes storage case
●Set contents
・Main unit x 1
・Rechargeable lithium-ion battery x 2
・AC adapter x 1
・Dedicated case x 1
■Specifications
・Main unit size and weight (including battery): 123mm x 115mm x 174mm・880g
●Light source
・515nm ±2% green semiconductor laser (line laser)
・650nm red semiconductor laser (plumb point laser)
●Light output
・7mW or less Class 2 (JIS C6802:2018)
●Pulse width/frequency
・50μs / 10kHz ±10% (normal mode)
・30μs / 10kHz ±10% (energy saving mode)
●Line width
・2mm/5m
●Accuracy
・Horizontal, vertical ±1mm/10m, vertical ±1mm/5m
●Automatic correction range
・±3°
●Tilt warning
・Yes, buzzer sounds when outside the correction range
●Automatic correction OFF function
・Yes
●Irradiation line memory function
・Yes
●Damping method
・Magnetic damping method
●Body rotation mechanism
・360°
●Rotation fine adjustment device
・Yes, endless full-circumference fine adjustment screw (located on both left and right sides)
●Battery level warning
・Yes Battery level indicator LED
●Power supply
・Rechargeable Li-ion battery pack (charging time: approx. 3.5 hours)
・AC100V (using the included USB-AC adapter and USB cable)
・Optional mobile battery (using the included USB cable)
●Continuous use time
・Full illumination: approx. 12 hours (normal mode)
●Operating temperature range
・-10°C to +40°C
●Dustproof and waterproof
・Yes, equivalent to IP54
●Tripod mounting part
・5/8 inch
●Receiver compatibility
・Compatible, using optional LBP-PRG
●Maximum outdoor range
・Approx. 30m (When using the separately sold LBP-PRG, it may vary depending on the usage environment)
・Packaging specifications
Individual packaging: Individual box and seal
Individual package size and weight: W237×D237×H280mm・2.34kg
・1 package
・Country of origin: China
