Pad Anchor (without bolts) AP-9N

[Product Features]
For mounting fixtures and piping to hollow walls
●For hollow walls
●Can be installed on lightweight steel studs in building interiors without damaging the wall surface

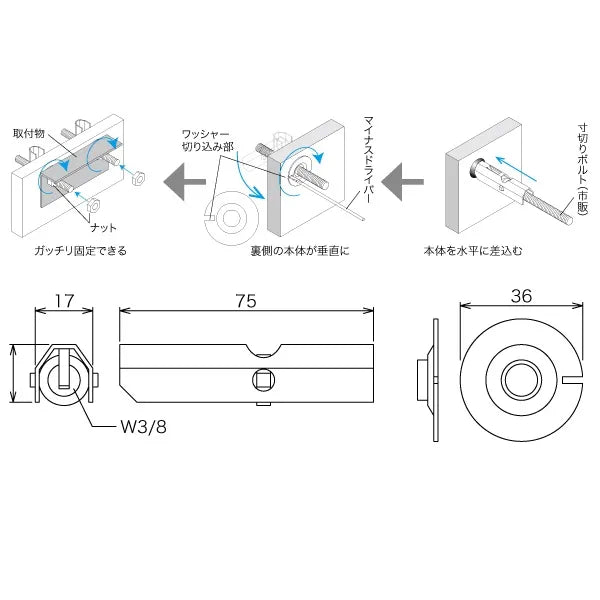

●Insert horizontally through a pilot hole, and the main body on the back of the wall stands vertically, securely fixing the wall surface and the object to be mounted.
●Can also be used with threaded rods
*Bolts and nuts are not included. Please purchase them separately.
●Applications
・Water supply and drainage/gas work:Support for sanitary fixtures, gas oil pipes, etc.
・Heating and cooling work:Support for air conditioners and ductwork, etc.
・Electrical work:Collective meter panels, meter panels, meter boxes, lighting fixtures, VE moldings, metallic molding boxes, etc.
・Building work:Interior partitions, accordion rail installation, installation of handrails for passages and stairs, etc.
●AP-9N Set Contents (10 of each)
・Pad anchor
・Washer
■ Specifications
・Material: Steel
■When using threaded rods (commercially available)

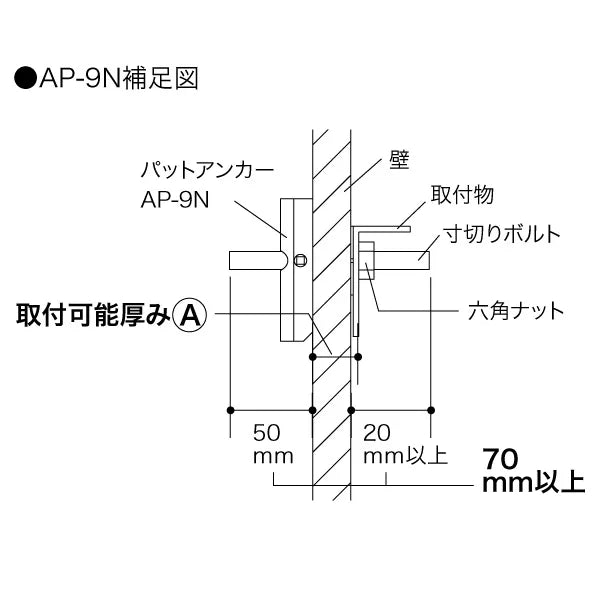

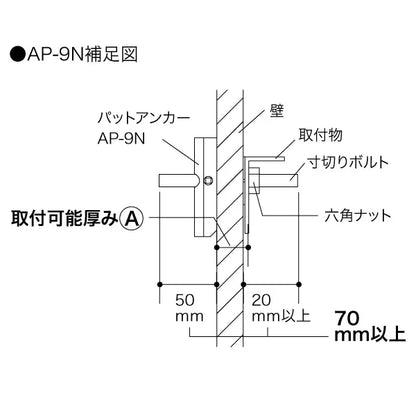

・Installable thickness (wall + object to be installed): 50mm or less (recommended)
・Bolt size: W3/8 (installable thickness + 70mm or more)
・Drill diameter (pilot hole): φ22
・Maximum pull-out strength (*): 1.08kN (110kgf)
*Maximum pull-out strength varies depending on the materials and installation conditions. Please note that this is not a guaranteed load.
・Material
Body and washer: SPHC (trivalent chromate)
・Packaging specifications
Individual packaging: Plastic case and seal
Individual packaging size and weight: W95×D40×H190mm・450g
・1 package
・Country of origin: China
