Pad Anchor AP-5

[Product Features]
For mounting fixtures and piping to hollow walls
AP-5_6
●Can be installed on lightweight steel studs in building interiors without damaging the wall surface

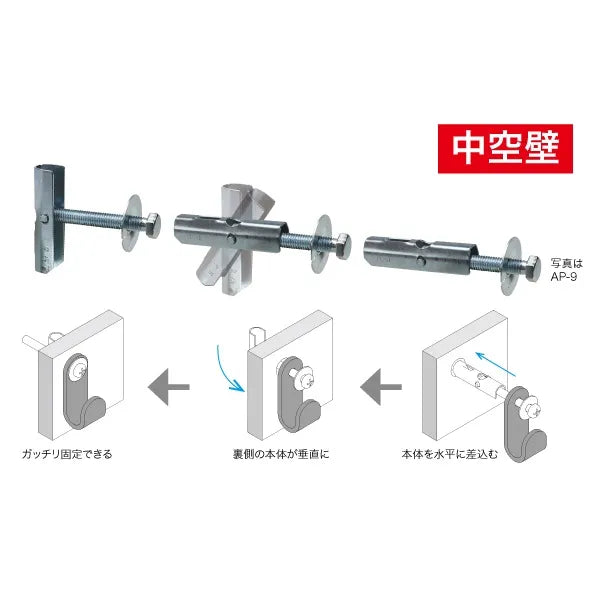

●Insert horizontally through a pilot hole, and the main body on the back of the wall stands vertically, securely fixing the wall surface and the object to be mounted
●Applications
・Water supply and drainage/gas work:Support for sanitary fixtures and gas oil supply pipes, etc.
・Heating and cooling work:Support for air conditioners and ductwork, etc.
・Electrical work:Collective meter panels, meter panels, meter boxes, lighting fixtures, VE moldings, metallic molding boxes, etc.
・Building work:Interior partitions, accordion rail installation, installation of handrails for passages and stairs, etc.
●AP-5 Set Contents (10 of each)
・Pad anchor
・Pan head screw M5 x 75mm
・Washer
■ Specifications
・Included screws: Pan head machine screws
・Bolt size: M5 x 75mm

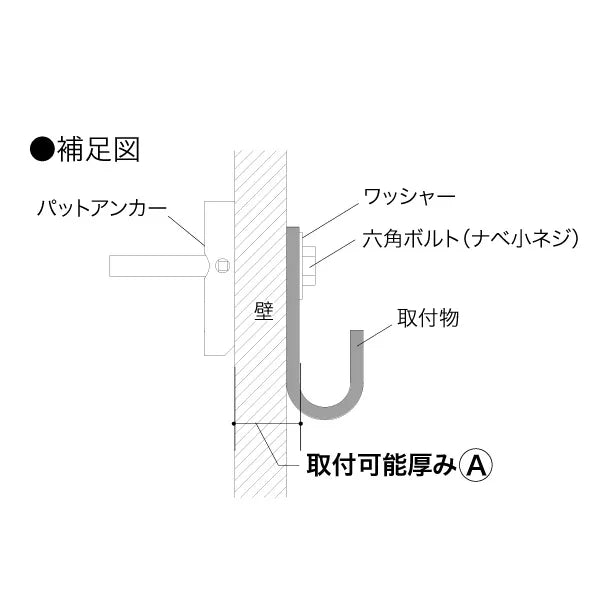

・Applicable thickness (wall + object to be attached): 20mm or less
・Drill diameter (pilot hole): φ12mm
・Maximum pull-out strength (*): 343N (35kgf)
・Body size A x B x C (mm): 7.5 x 9 x 47
・Washer diameter: φ17mm
・Quantity: 10
・Material: Steel
*Maximum pull-out strength may vary depending on the materials used and installation conditions. Please note that this is not a guaranteed load.
・Material
Body and washer: SPHC (trivalent chromate), Hex bolt: SWCH (trivalent chromate)
・Packaging specifications
Individual packaging: Transparent pack and seal
Individual package size and weight: W100 x D35 x H150 mm, 200 g
・1 package
・Country of origin: China
