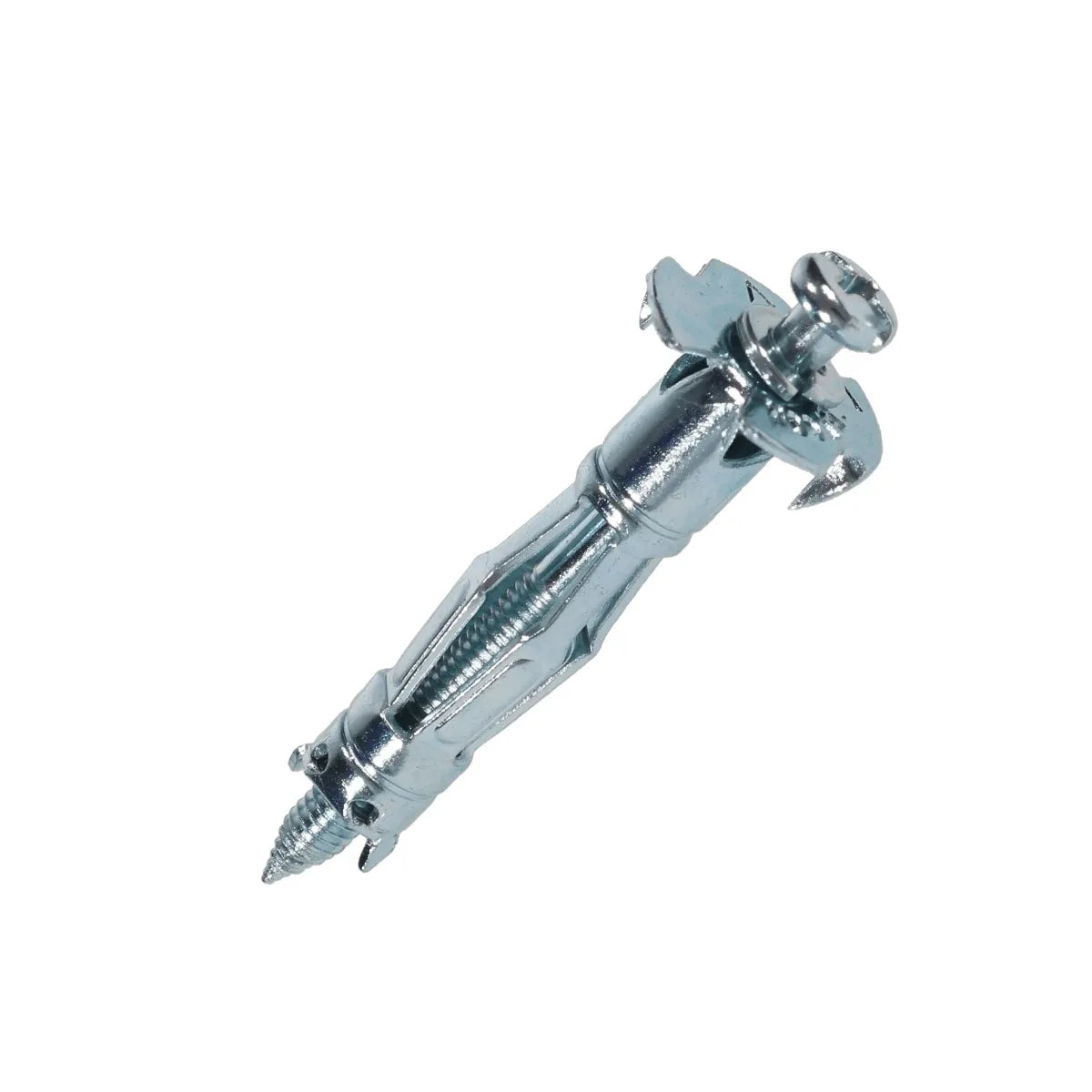

Board anchor with drill bit (partially threaded type) A-412GDM

[Product Features]

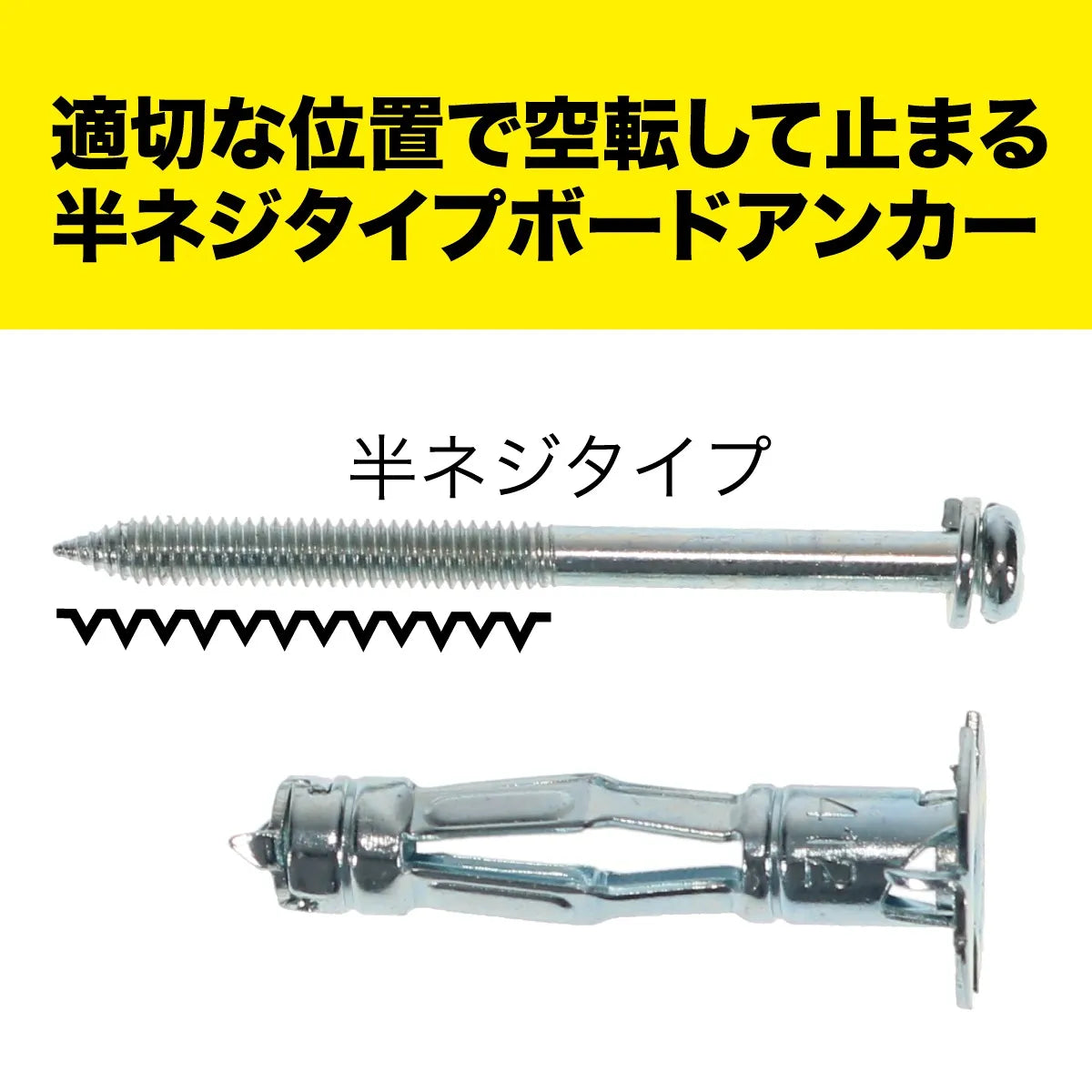

Half-threaded board anchor that spins freely and stops at the appropriate position
●Prevents over-screwing or under-screwing, reducing installation errors
●For attaching fixtures to gypsum board (gypsum board only)
●No pilot hole required for installation (for regular type gypsum board)

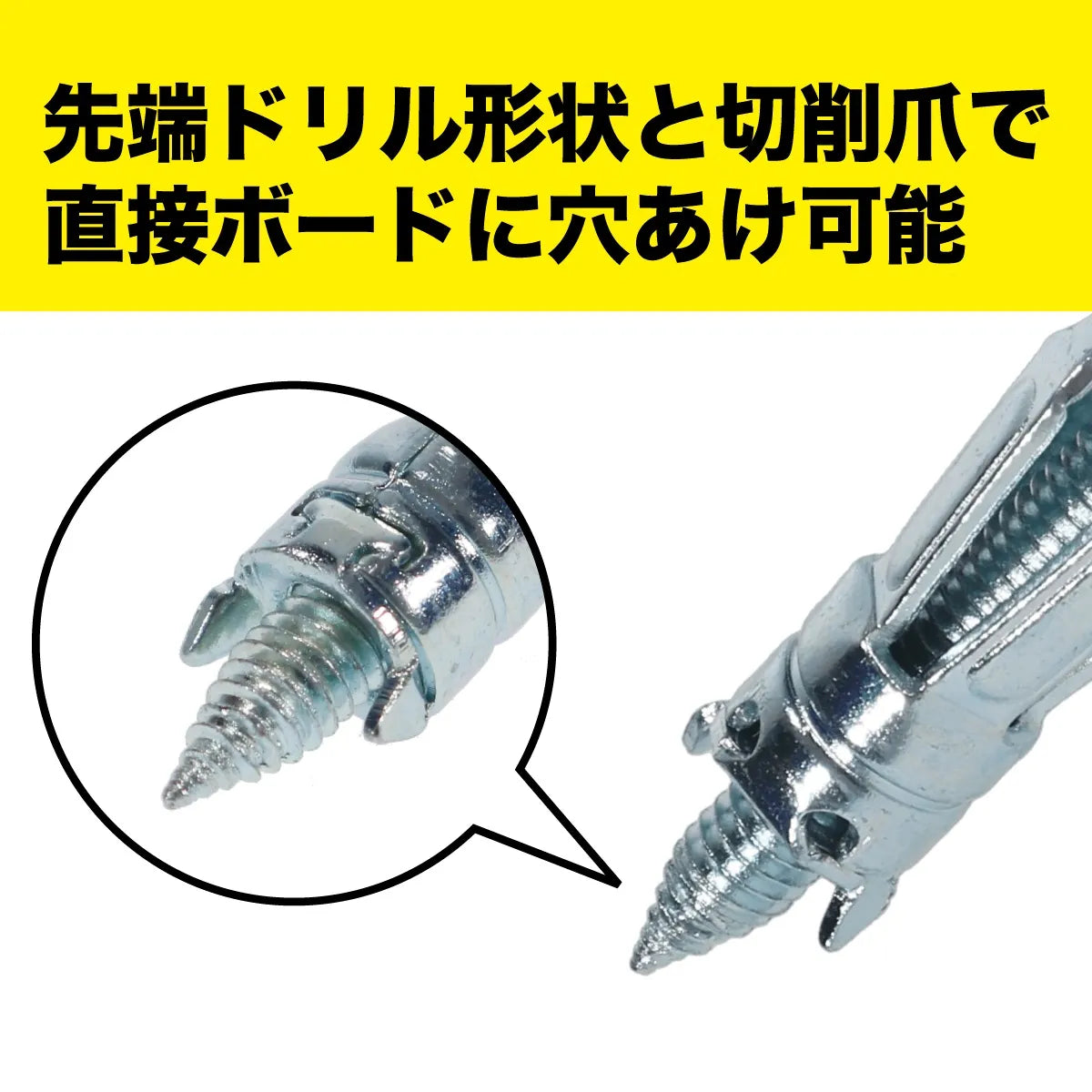

●The tip drill shape and cutting claws allow for direct drilling into the board
●Applications: Installation of indoor air conditioner units, communication equipment, distribution boards, switch boards, shelf brackets, etc.
■ Specifications
・Body size and weight (per piece): 16mm x 16mm x 52mm・8g
・Applicable board thickness: 11-12.5mm
・Screw diameter: M4
・Material: 12.5mm thick gypsum board
・Maximum pull-out strength (*): 61.8N (6.3kgf)
・Type: P pack
・Quantity: 40 pieces
*Maximum pull-out strength varies depending on the material and installation conditions.
Please note that this is not a guaranteed load.
*If installed with a board thickness other than the applicable thickness, it may not be installed correctly.
・Material
Body and screws: Steel
・Packaging specifications
Individual packaging: Transparent pack and seal
Individual packaging size and weight: W82 x D46 x H140 mm, 338 g
Inner packaging: Inner box (5 pieces) and seal
Inner packaging size and weight: W155 x D260 x H95 mm, 1.79 kg, 1 box
・Country of origin: China
