JEFCOM
Board anchor with drill bit A-409GDP
Board anchor with drill bit A-409GDP
GTIN(JAN):4937897041464
SKU:A-409GDP
通常価格
¥2,063 JPY
通常価格
セール価格
¥2,063 JPY
(税込)
数量
受取状況を読み込めませんでした
重要:返品ポリシー
ご購入を完了する前に注文内容をよくご確認ください。お客様のご都合による返品・交換(サイズ違い、色違い、誤購入など)はお受けできません。
[Product Features]
For mounting fixtures to gypsum board walls (hollow walls)! No drilling (pilot holes) required!
●No drilling (pilot holes) required
●Can be used with a screwdriver for everything from drilling holes to anchor fixing

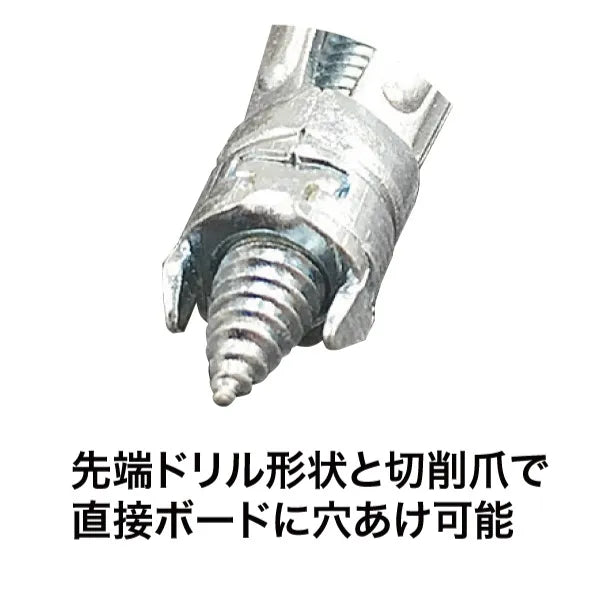

●The drill tip shape and cutting claws allow for direct drilling into the board
●Applications
・Mounting of indoor air conditioner units, communication equipment, distribution boards, switchboards, shelf brackets, etc.
■ Specifications
・Applicable board thickness: 3~9.5mm
・Screw diameter: M4
・Drill diameter (pilot hole): φ9.0mm
・Material: 9.5mm thick gypsum board
・Maximum pull-out strength (*): 33.3N (3.4kgf)
・Type: P pack
・Quantity: 40
・Material
Body and screws: Steel
・Packaging specifications
Individual packaging: Transparent pack (P)
Individual packaging size and weight: W70×D35×H140mm・410g
Inner packaging: Cardboard box
Inner packaging size and weight: W190×D150×H90mm・2.13kg・1 box
・Country of origin: China
【Notes】
*Please note that we will be changing the specifications sequentially starting with shipments from January 2026.
Please note that we cannot accept requests for specific specifications, including those from our existing stock.
*Changes: The head shape will be changed from "truss head" to "pan head".
For mounting fixtures to gypsum board walls (hollow walls)! No drilling (pilot holes) required!
●No drilling (pilot holes) required
●Can be used with a screwdriver for everything from drilling holes to anchor fixing
●The drill tip shape and cutting claws allow for direct drilling into the board
●Applications
・Mounting of indoor air conditioner units, communication equipment, distribution boards, switchboards, shelf brackets, etc.
■ Specifications
・Applicable board thickness: 3~9.5mm
・Screw diameter: M4
・Drill diameter (pilot hole): φ9.0mm
・Material: 9.5mm thick gypsum board
・Maximum pull-out strength (*): 33.3N (3.4kgf)
・Type: P pack
・Quantity: 40
・Material
Body and screws: Steel
・Packaging specifications
Individual packaging: Transparent pack (P)
Individual packaging size and weight: W70×D35×H140mm・410g
Inner packaging: Cardboard box
Inner packaging size and weight: W190×D150×H90mm・2.13kg・1 box
・Country of origin: China
【Notes】
*Please note that we will be changing the specifications sequentially starting with shipments from January 2026.
Please note that we cannot accept requests for specific specifications, including those from our existing stock.
*Changes: The head shape will be changed from "truss head" to "pan head".
