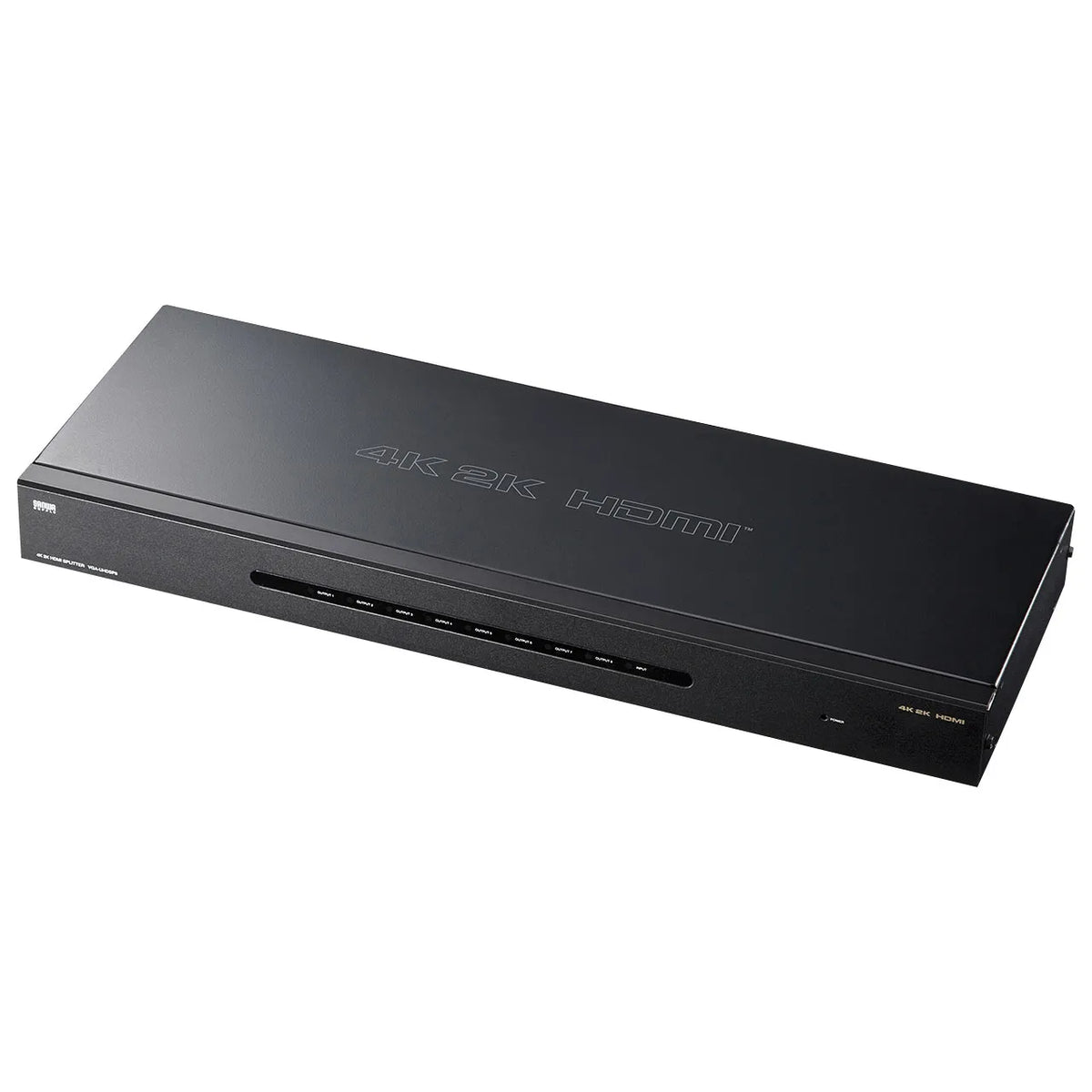

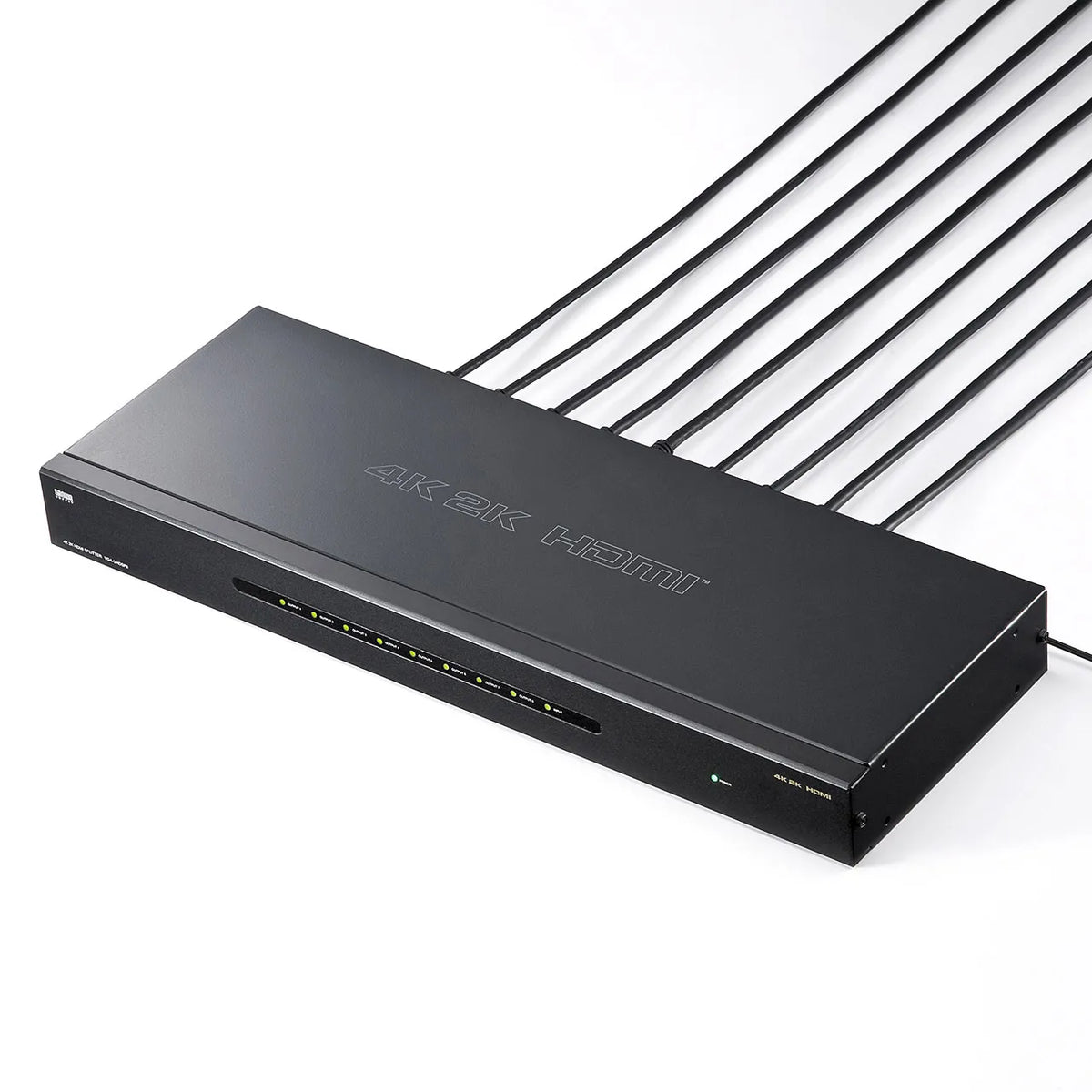

4K2K compatible HDMI splitter (8-way) VGA-UHDSP8

[HDMI 2-way splitter supporting HDMI output at a maximum resolution of 4K2K (4096x2160) at 60Hz.]

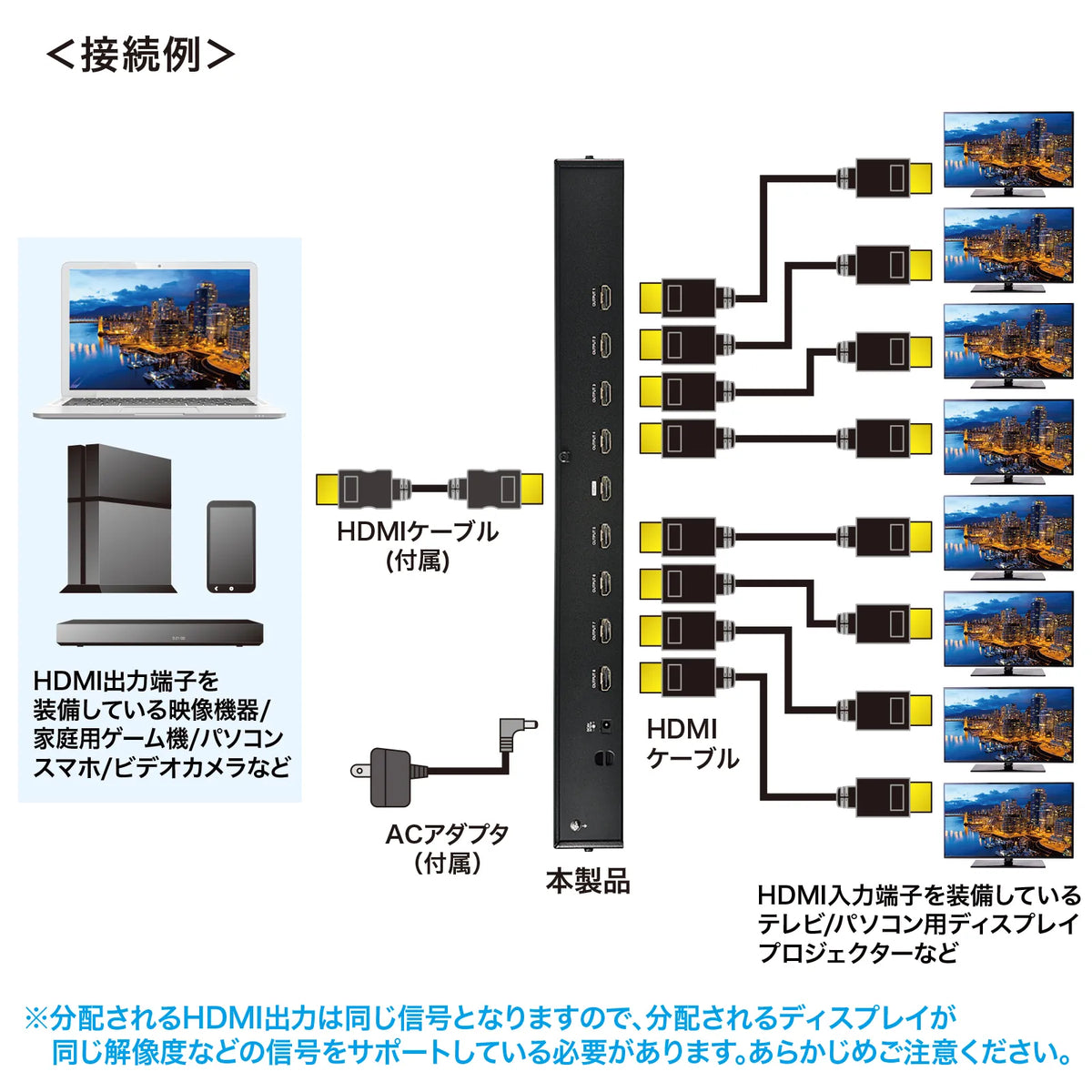

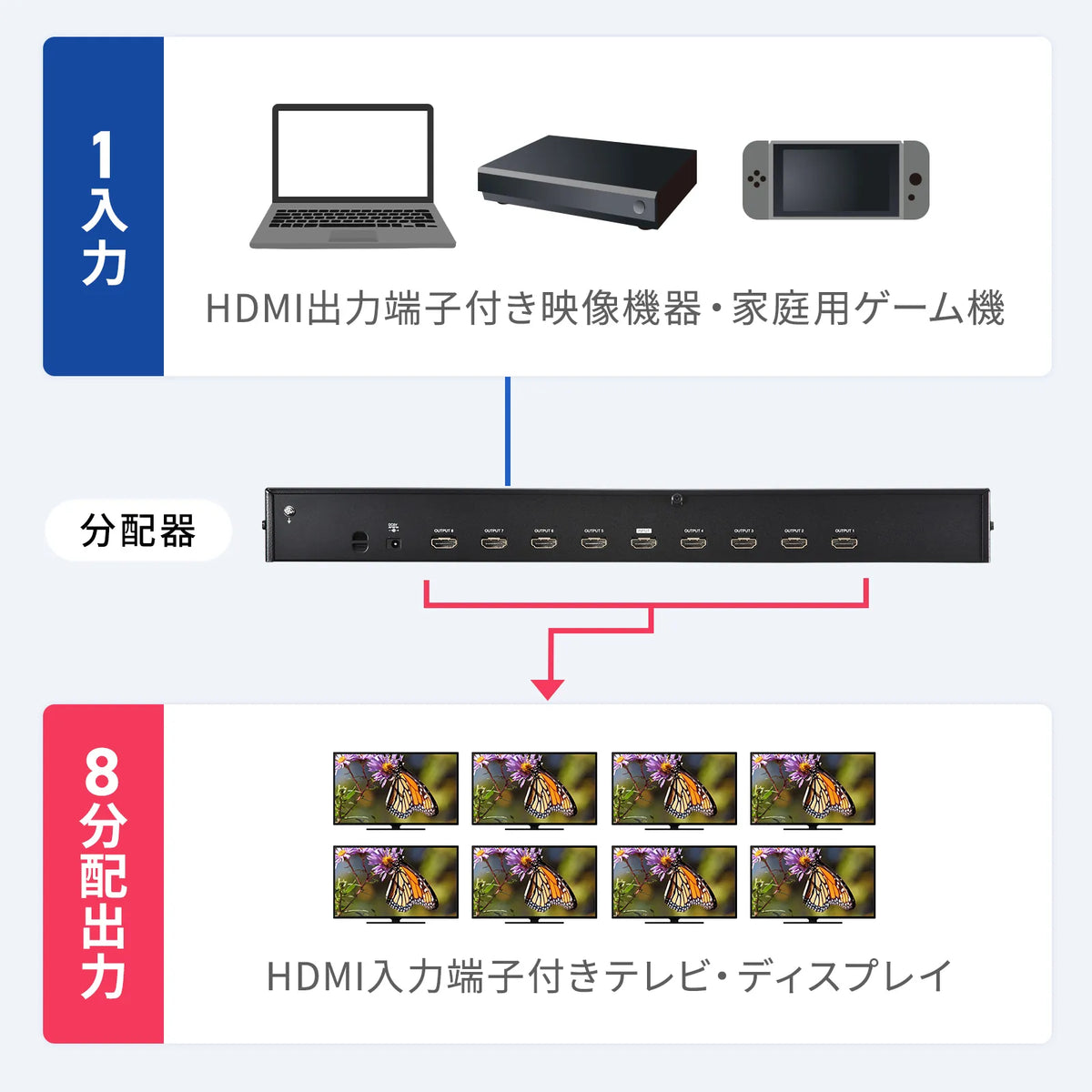

●Distributes the signal from one HDMI device to eight HDMI input devices (displays, projectors, etc.) simultaneously while maintaining high image and sound quality.
●Supports 4K2K (4096x2160) 60Hz resolution, allowing for the output of beautiful, high-definition HDMI signals.
*4K2K resolution output is only supported for the following resolutions, frequencies, and color formats.
4096x2160 60Hz (4:2:0)
4096x2160 30Hz (4:4:4)
3840x2160 60Hz (4:2:0)
3840x2160 30Hz (4:4:4)
●This method transmits the EDID information of the display connected to port 1 to the video input device (such as a PC).
●Also supports Dolby True HD and DTS HD Master Audio.
●HDCP (High-bandwidth Digital Content Protection) 1.4 compliant product.
●All HDMI terminals are gold-plated. This makes them resistant to rust and prevents signal degradation.
●One HDMI cable (1.8m) is included.
＜Caution＞
※The distributed HDMI output will be the same signal, so the displays to which the signal is distributed must support the same resolution and other signals. Please be aware of this in advance.

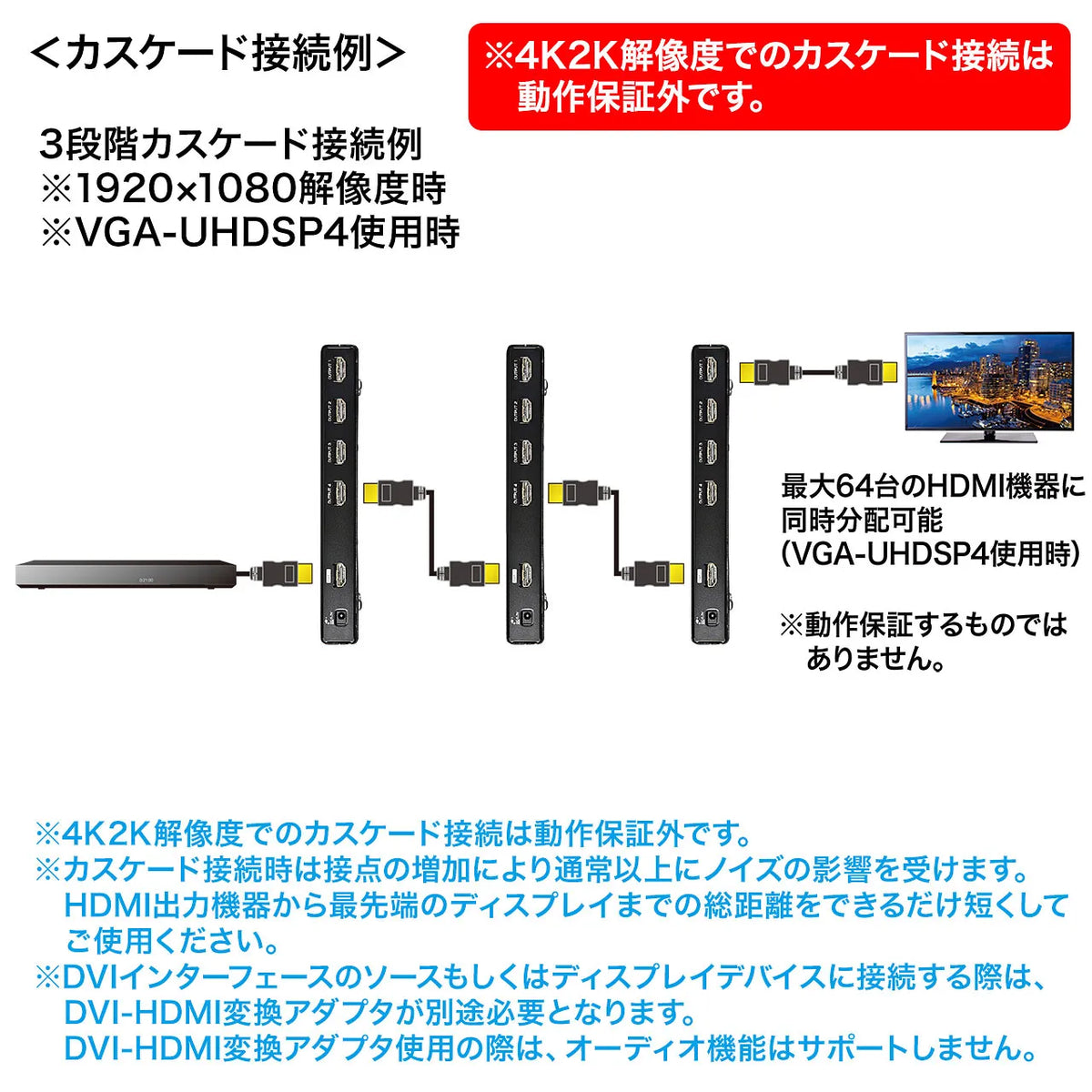

*When cascading, the increased number of contacts will make it more susceptible to noise than usual. Please use it with the shortest possible total distance from the HDMI output device to the furthest display.
*When connecting to a DVI interface source or display device, a DVI-HDMI conversion adapter is required separately. Audio functionality is not supported when using a DVI-HDMI conversion adapter.
*Not compatible with the SkyPerfecTV 4K compatible premium service tuner FMP-X7A. (Because it does not meet both the HDMI 2.0 standard and HDCP 2.2 requirements for using the FMP-X7A)
*Although this product is an HDMI splitter that supports 4K output, it does not support 4K signal distribution output from all devices.

■Distribution: 8 distributions
■Maximum display resolution: 4K2K (4096x2160)
■Main supported resolutions:
4096x2160 60Hz (4:2:0)
4096x2160 30Hz (4:4:4)
3840x2160 60Hz (4:2:0)
3840x2160 30Hz (4:4:4)
1920x1200 60Hz
1920x1080 60Hz
■Data rate (maximum): 3.4Gbit/s
■Pixel clock (maximum): 340MHz
■Input DDC signal: 5V
■HDCP: HDCP1.4 compatible
*The display must also be HDCP compatible.
■3D Video: Supported

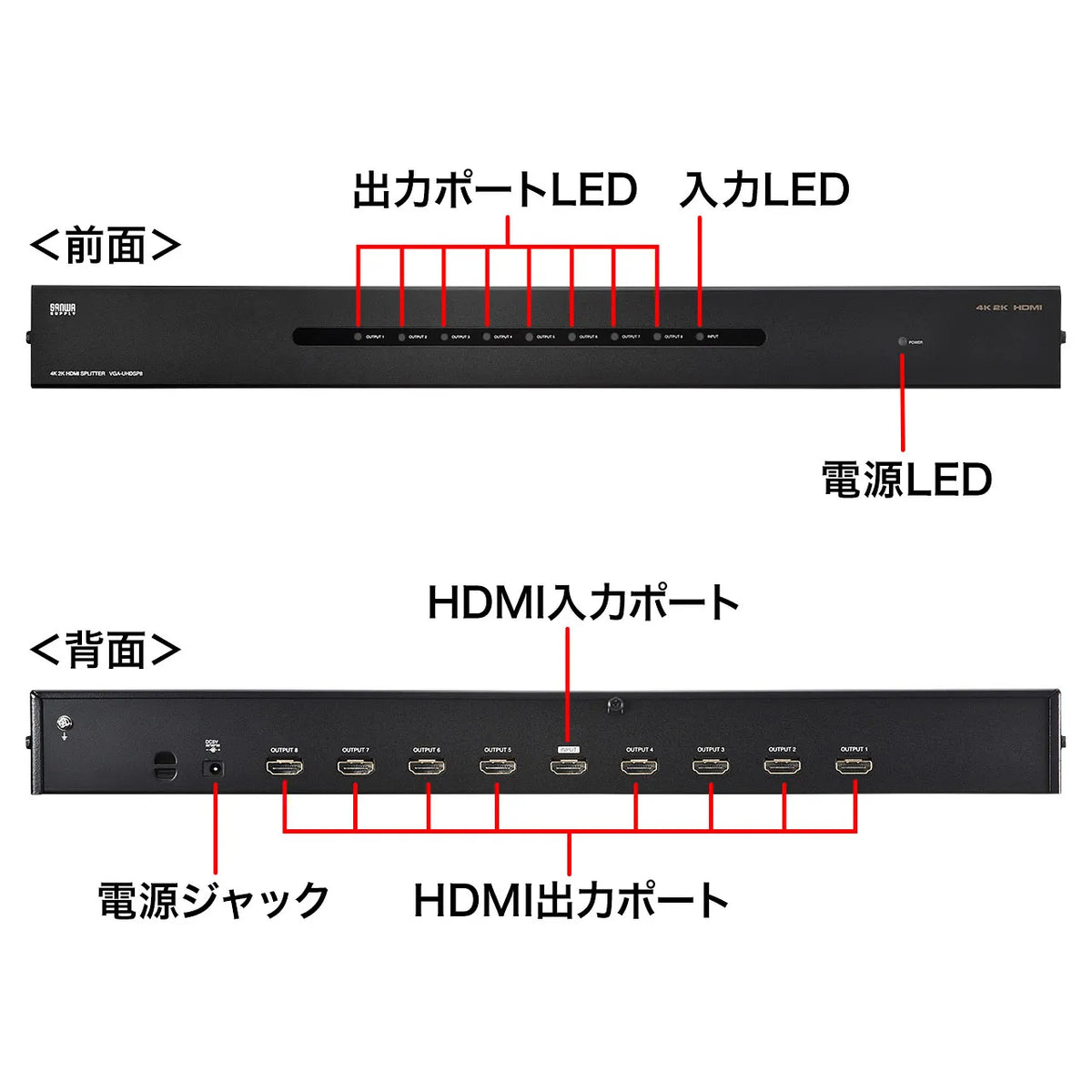

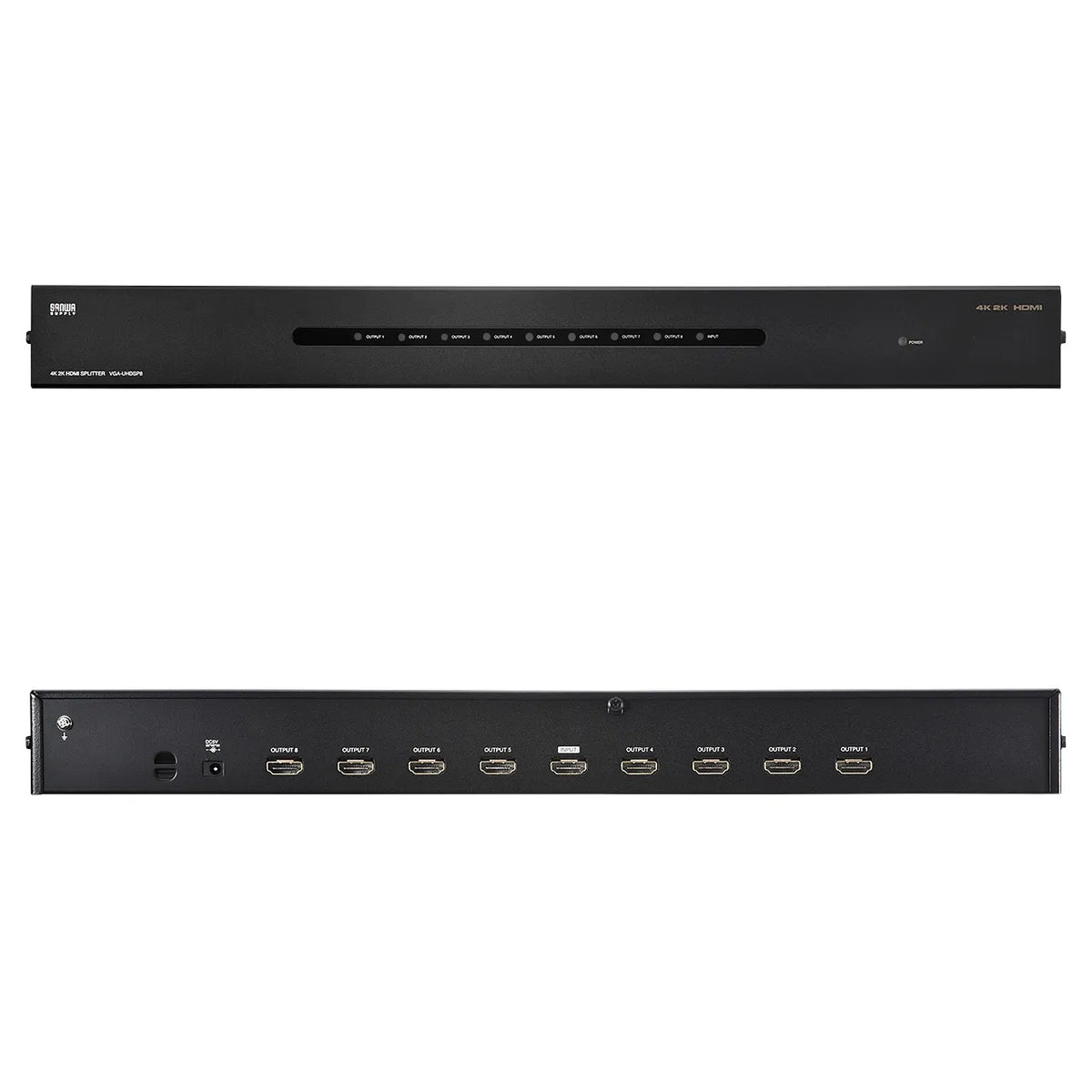

■Interface:
Input: HDMI Type A (19-pin) Female x1
Output: HDMI Type A (19-pin) Female x8
■Power Consumption: 14.84W
■Environmental Conditions: Operating temperature 0 to 50 degrees Celsius, operating humidity 80% or less (non-condensing)
Storage temperature -20 to 60 degrees Celsius, storage humidity 80% or less (non-condensing)
■Material: Steel
■Signal Method: TMDS Single Link
■Dimensions: W432.4 x D154 x H44 mm
■Weight: 2178g

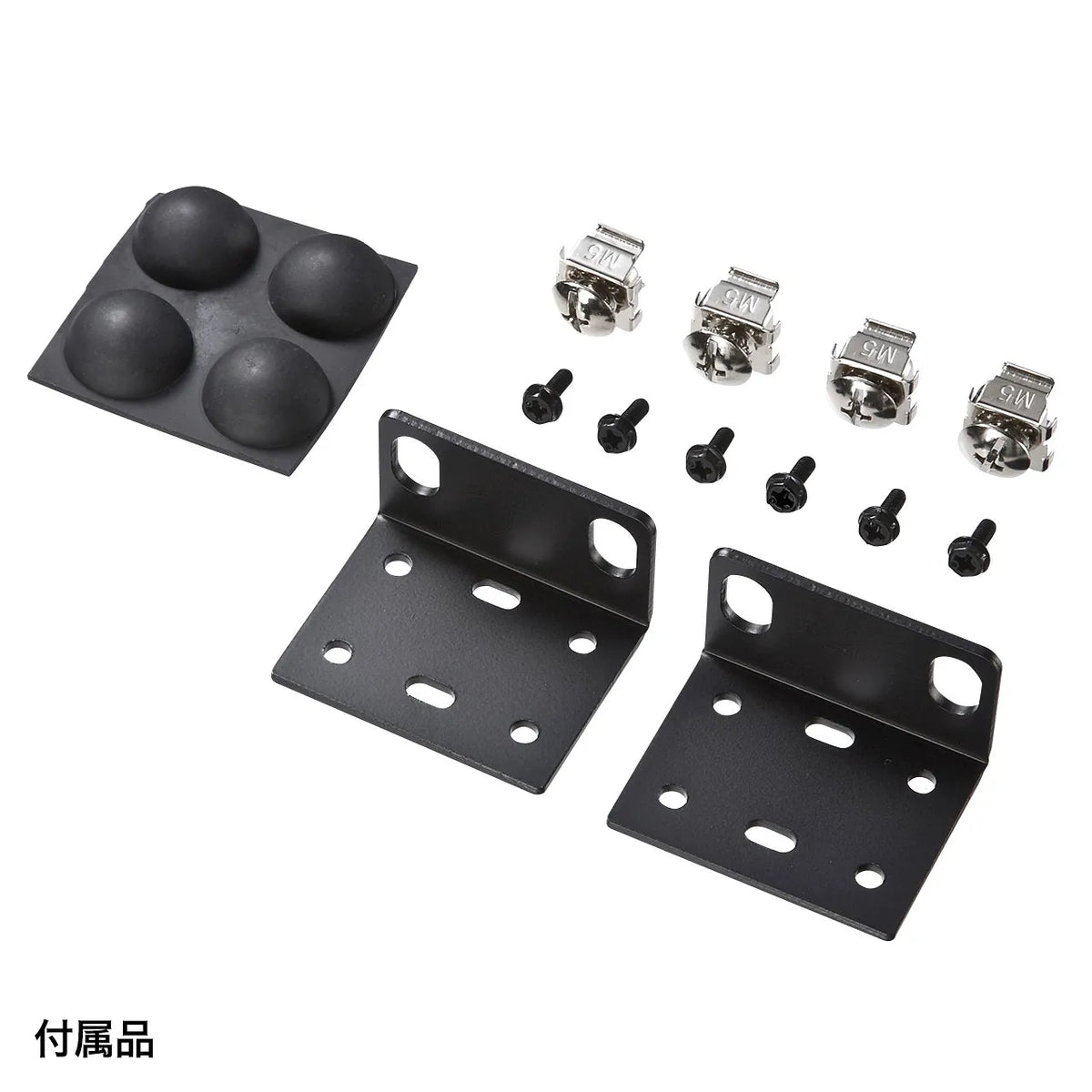

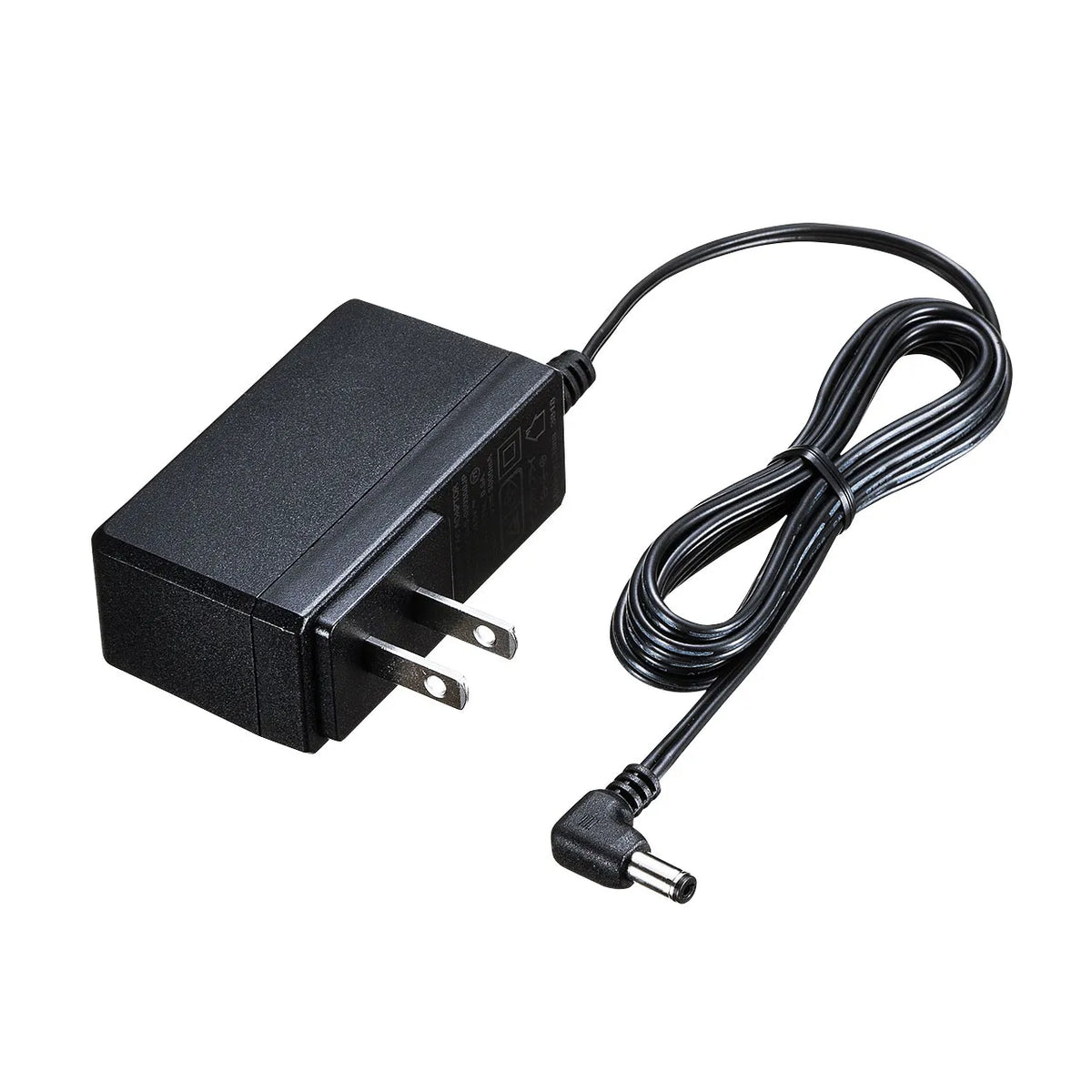

■Accessories: AC adapter (DC 5V/3A), HDMI cable (1.8m) x1, server rack mounting hardware (set), rubber feet, instruction manual, warranty card
