SANWA SUPPLY

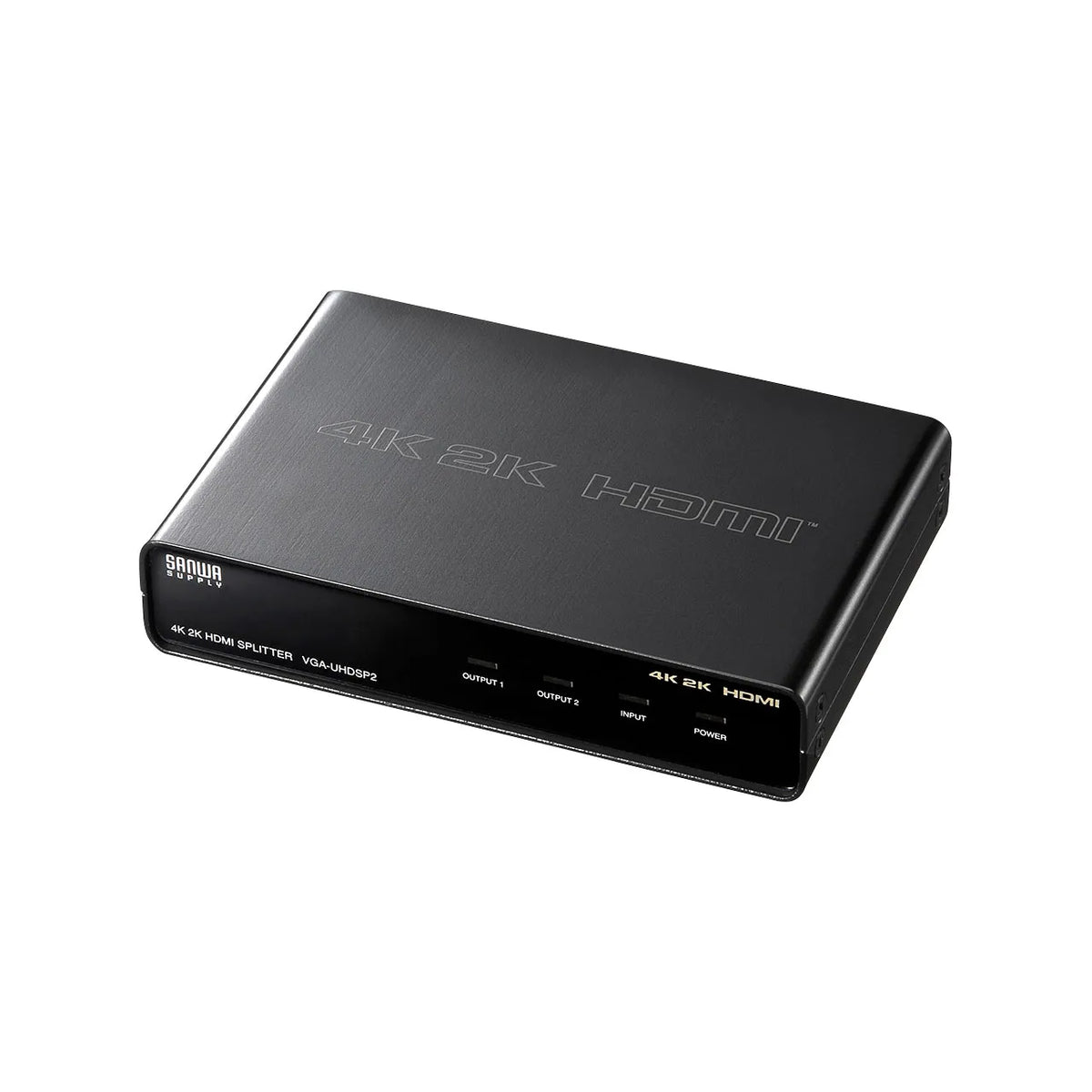

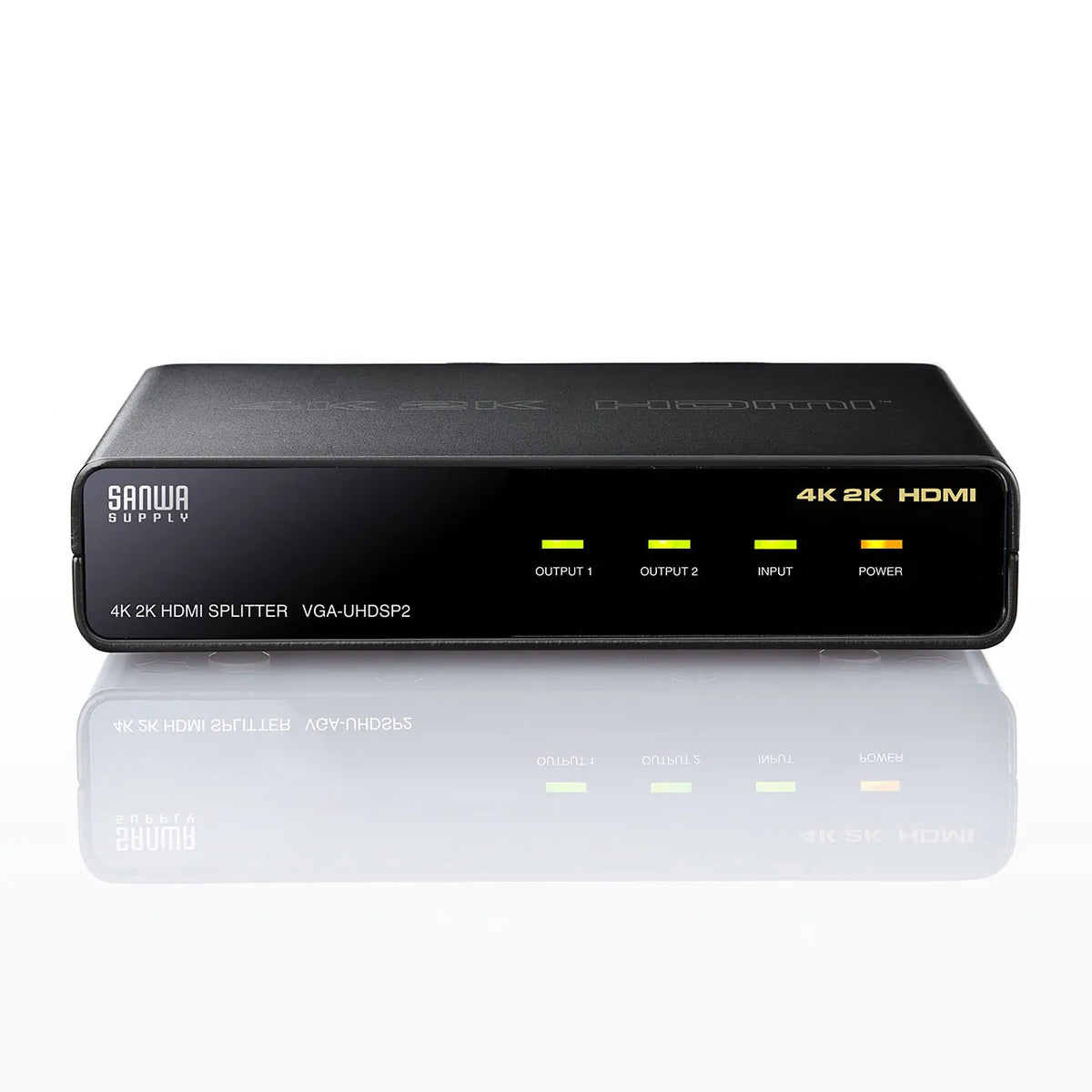

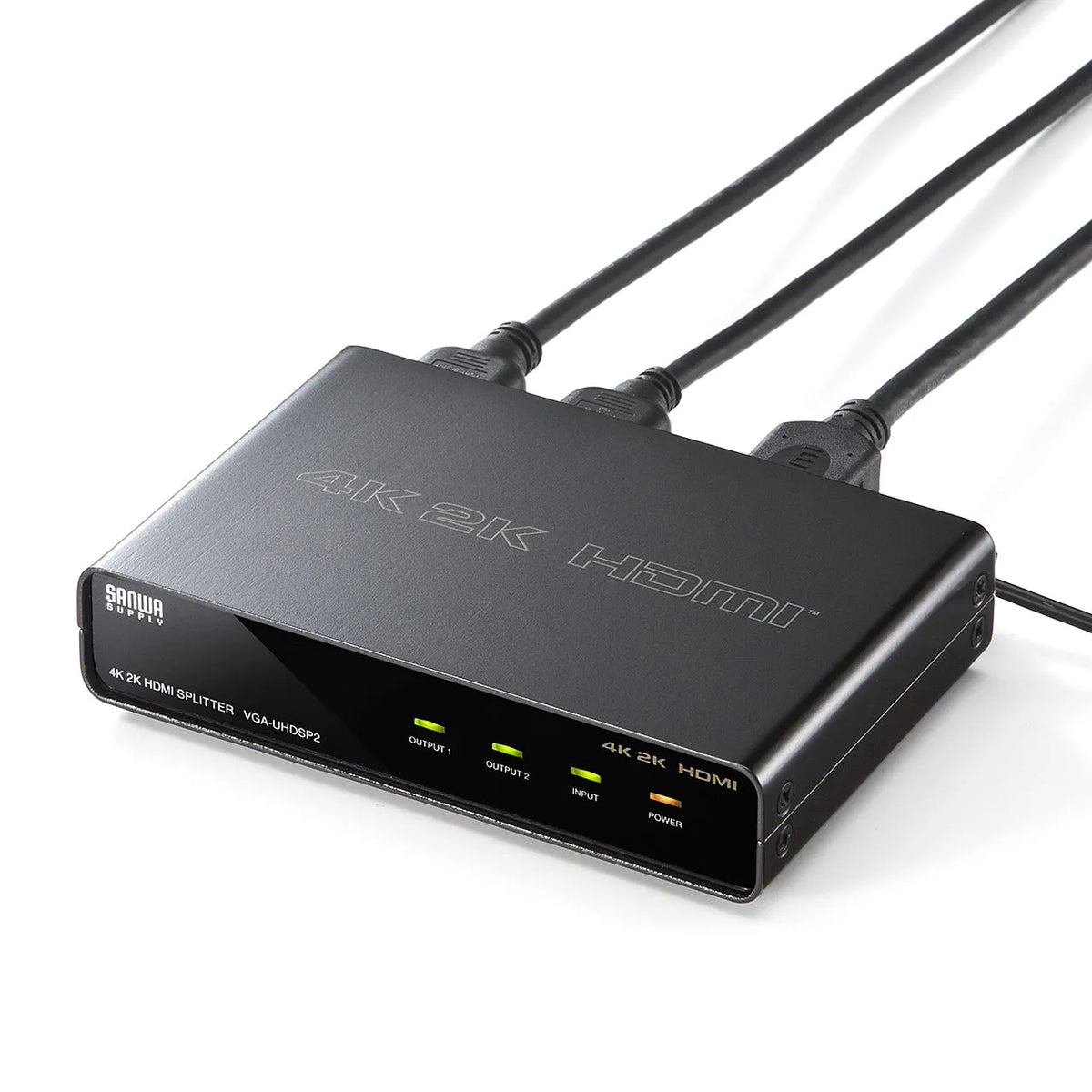

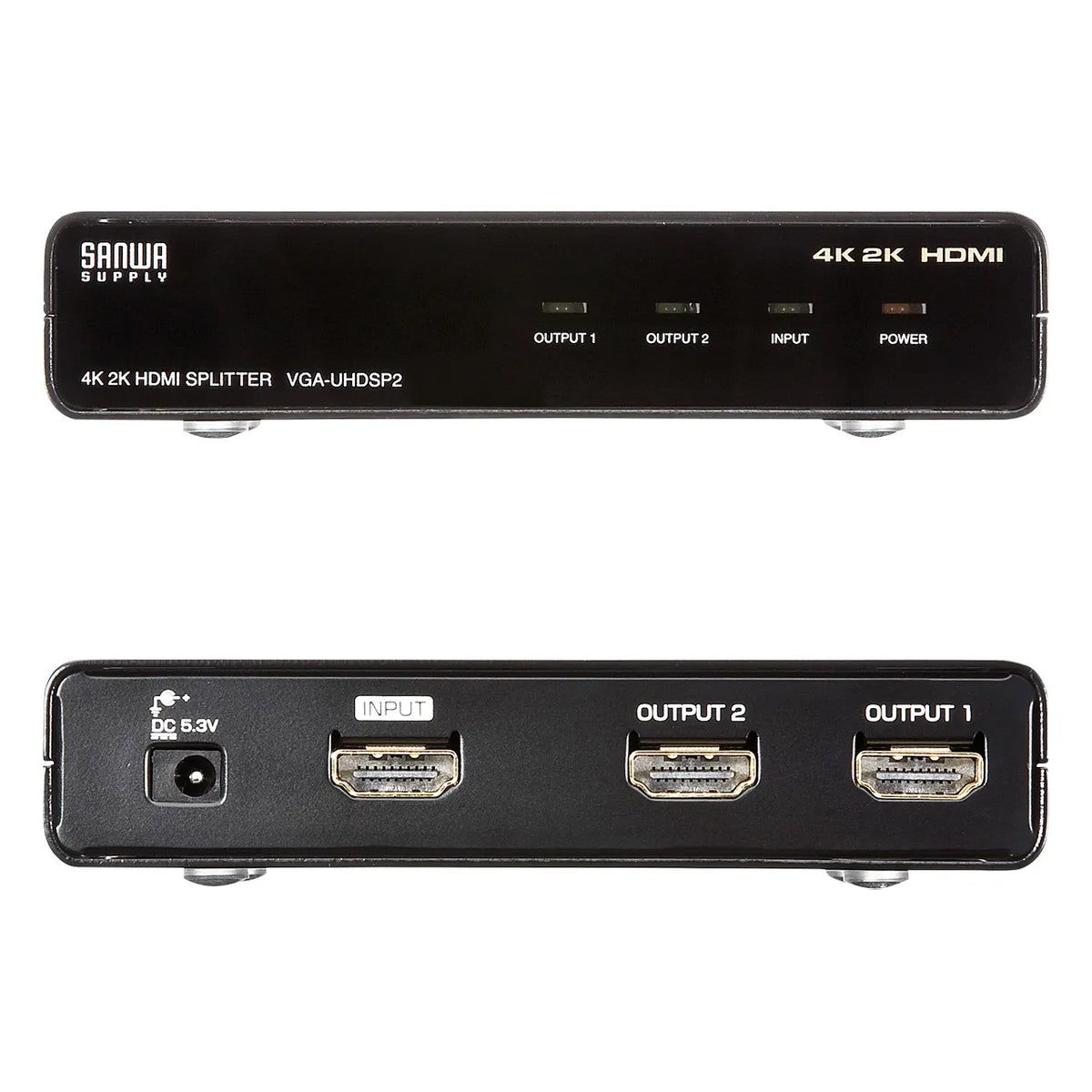

4K2K compatible HDMI splitter (2-way) VGA-UHDSP2
4K2K compatible HDMI splitter (2-way) VGA-UHDSP2
GTIN（JAN）：4969887593080
SKU：VGA-UHDSP2
Regular price
¥18,150 JPY
Regular price
Sale price
¥18,150 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[HDMI 2-way splitter supporting HDMI output at a maximum resolution of 4K2K (4096x2160) at 60Hz.]

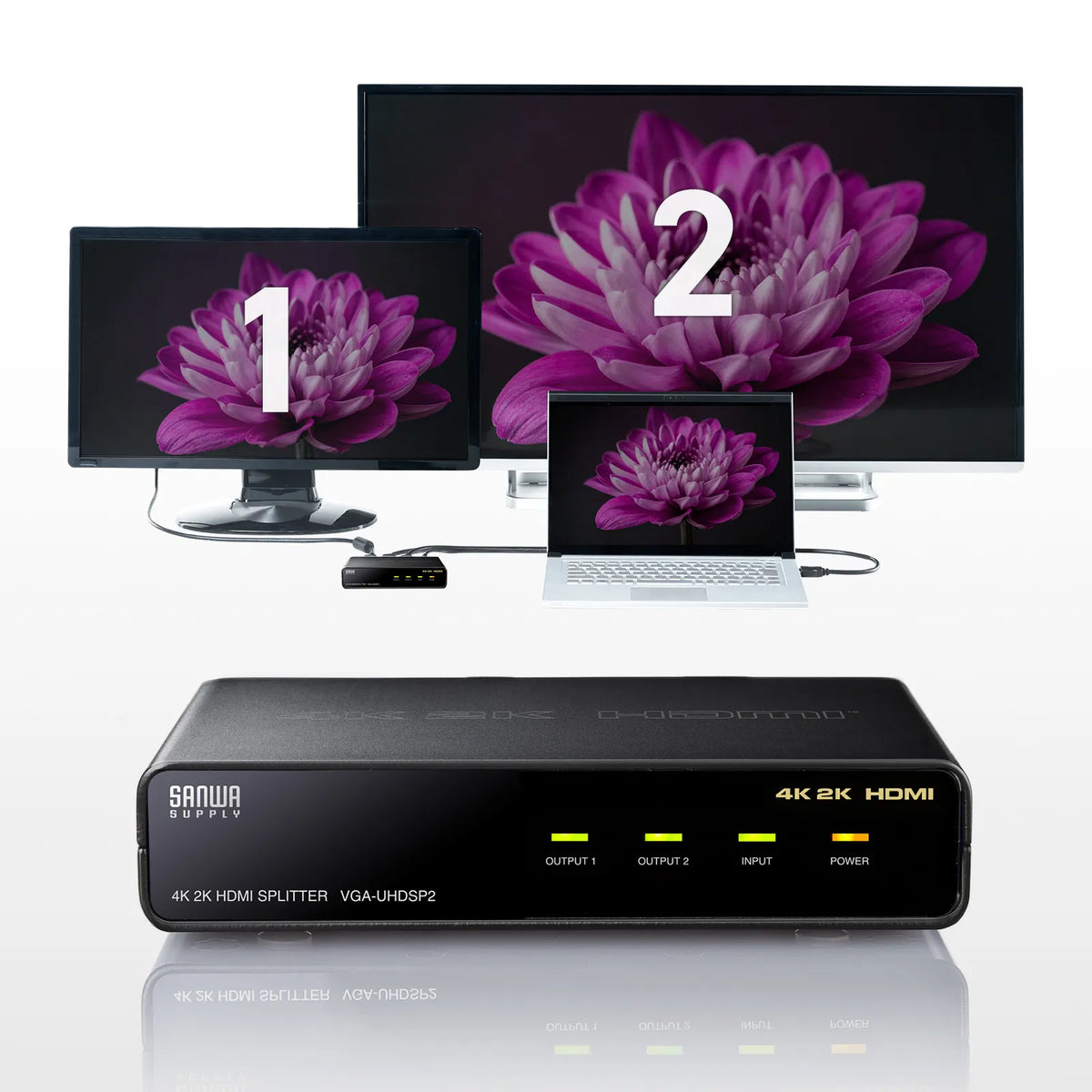

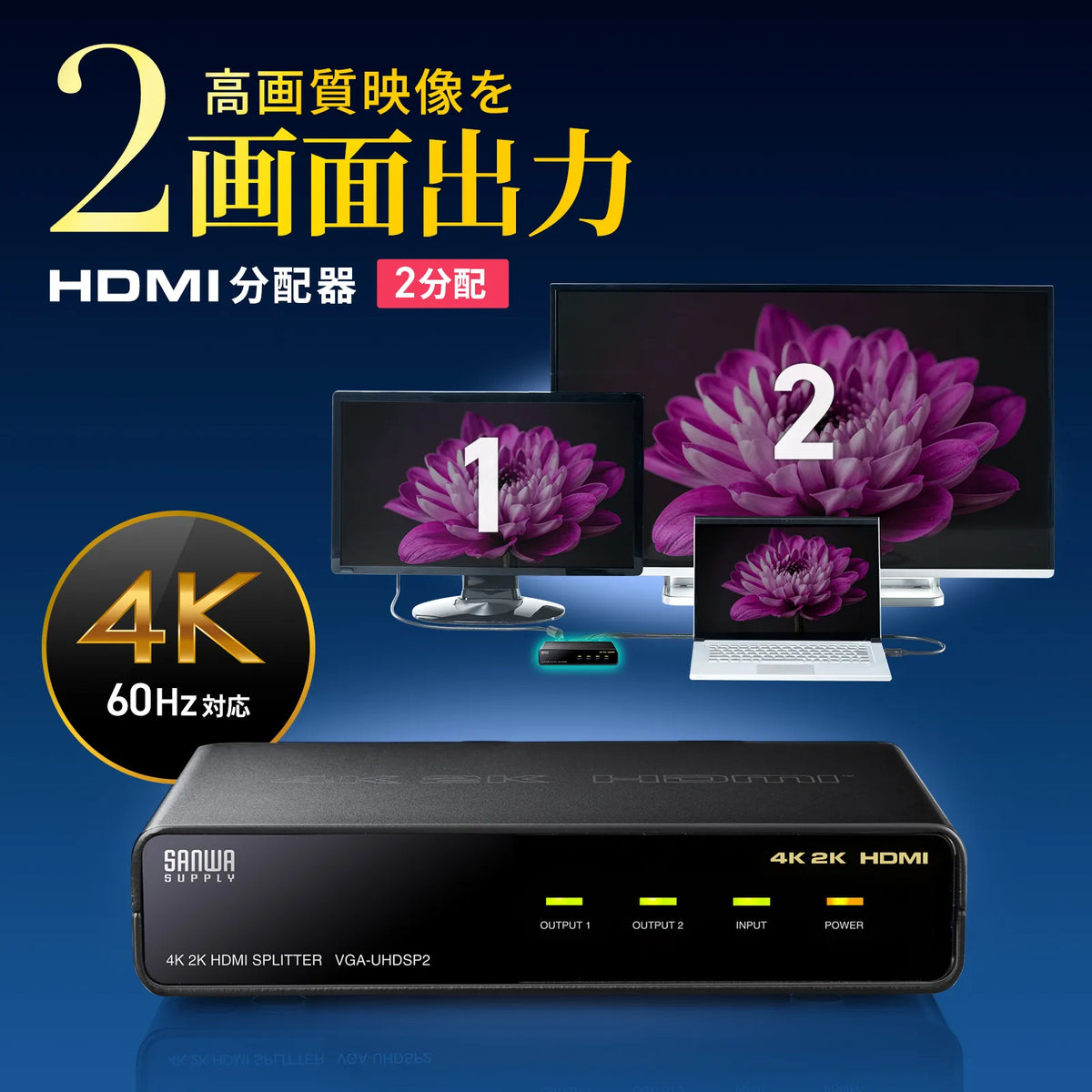

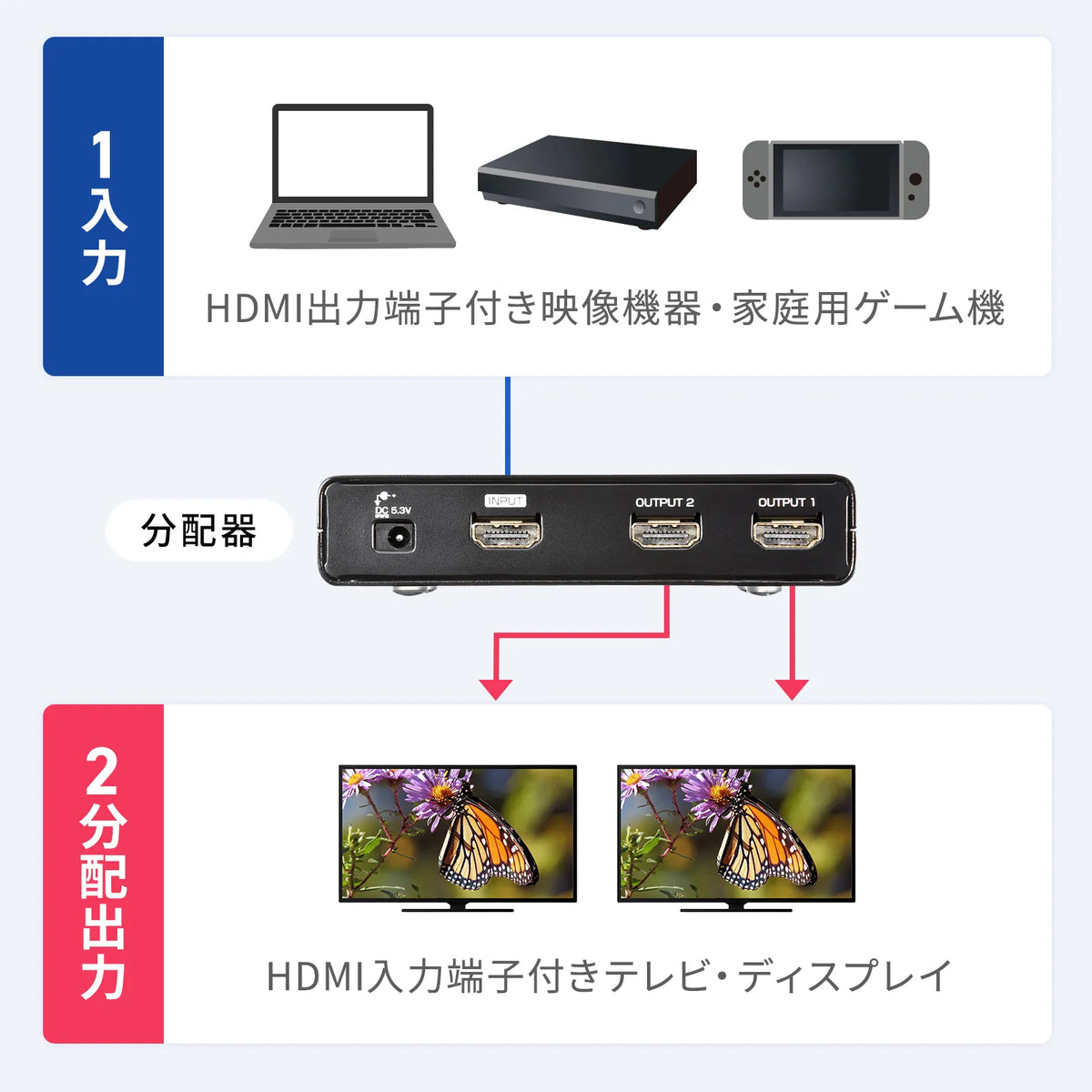

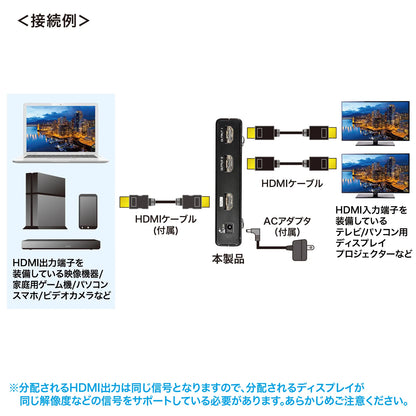

●Can simultaneously distribute the signal from one HDMI device to two devices with HDMI input terminals (displays, projectors, etc.) while maintaining high image and sound quality.
●Supports 4K2K (4096x2160) 60Hz resolution, allowing for the output of beautiful, high-definition HDMI signals.
*4K2K resolution output is only supported for the following resolutions, frequencies, and color formats.
4096x2160 60Hz (4:2:0)
4096x2160 30Hz (4:4:4)
3840x2160 60Hz (4:2:0)
3840x2160 30Hz (4:4:4)
●This method transmits the EDID information of the display connected to port 1 to the video input device (PC, etc.).
●Supports Dolby True HD and DTS HD Master Audio.
●HDCP (High-bandwidth Digital Content Protection) 1.4 compliant product.
●All HDMI terminals are gold-plated. Resistant to rust and prevents signal degradation.
●One HDMI cable (1.8m) is included.
＜Caution＞

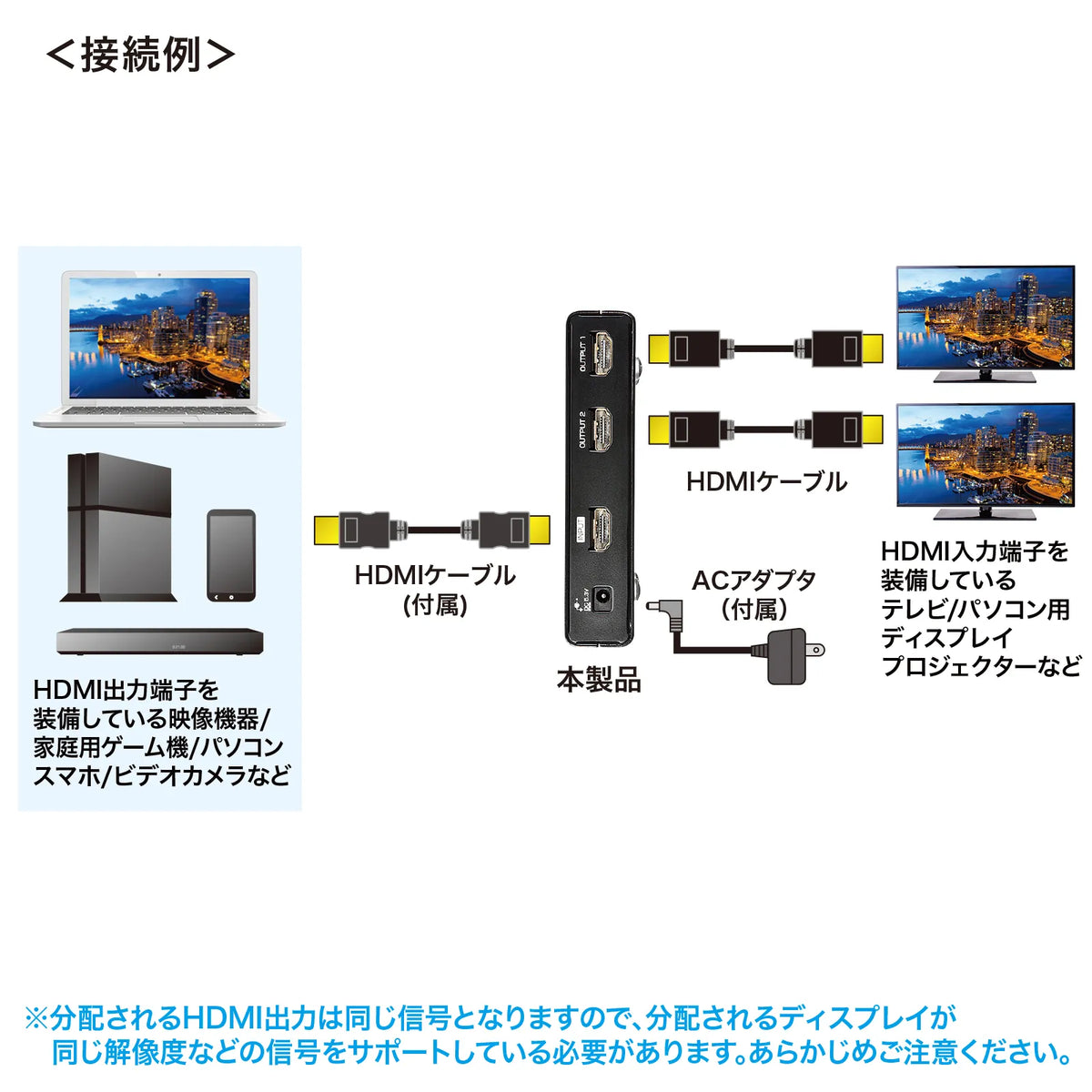

※The distributed HDMI output will be the same signal, so the displays to which it is distributed must support the same resolution and other signals. Please be aware of this in advance.

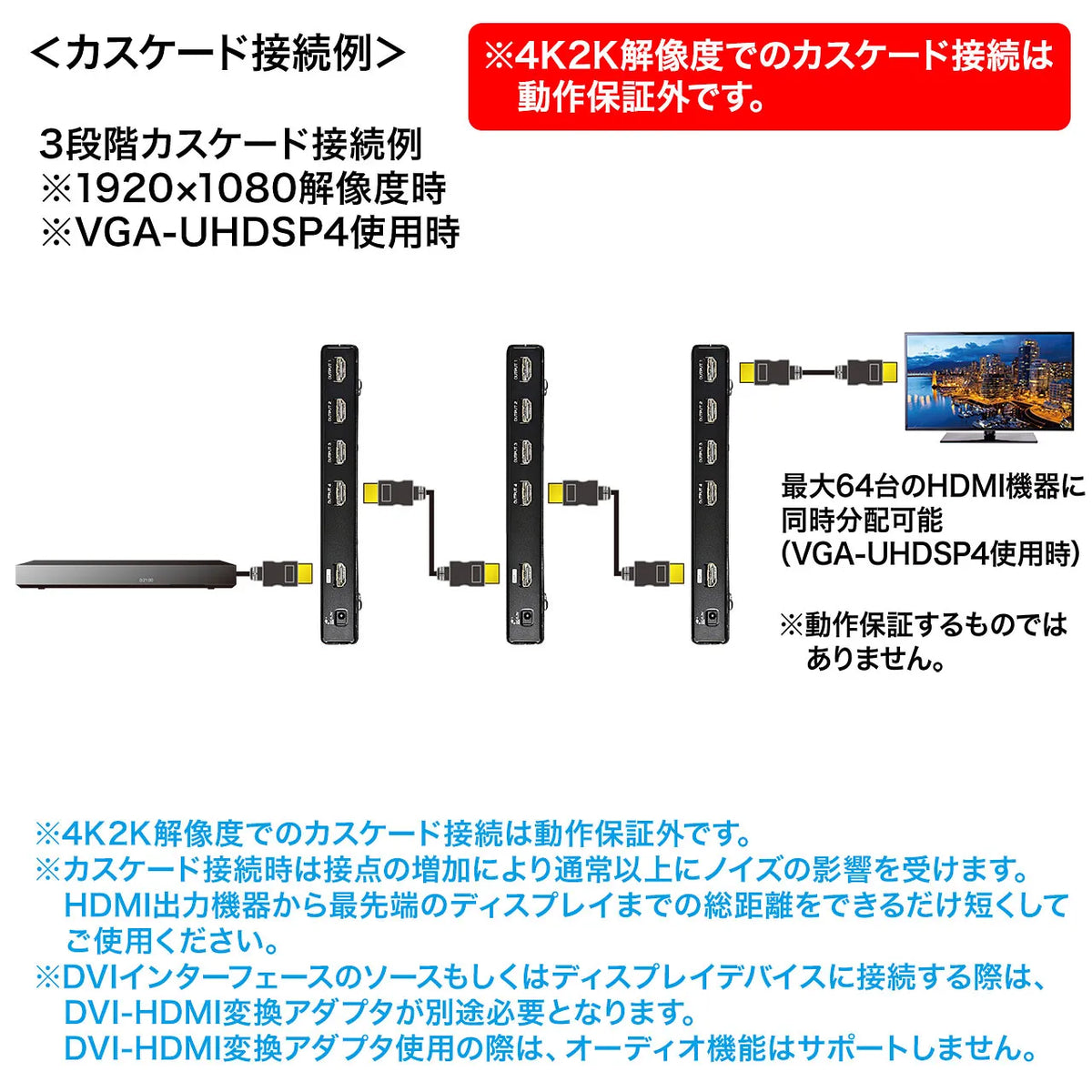

※When cascading, the increased number of contacts will make it more susceptible to noise than usual. Please use it with the total distance from the HDMI output device to the furthest display as short as possible.
※When connecting to a DVI interface source or display device, a DVI-HDMI conversion adapter is required separately. Audio functions are not supported when using a DVI-HDMI conversion adapter.
※Not compatible with the SkyPerfecTV 4K compatible premium service tuner FMP-X7A. (This is because it does not meet both the HDMI 2.0 standard and HDCP 2.2 requirements for using the FMP-X7A.)
*Although this product is an HDMI splitter that supports 4K output, it does not support 4K signal distribution output from all devices.
■Distribution details: 2 distribution
■Maximum display resolution: 4K2K (4096x2160)
■Main supported resolutions:
4096x2160 60Hz (4:2:0)
4096x2160 30Hz (4:4:4)
3840x2160 60Hz (4:2:0)
3840x2160 30Hz (4:4:4)
1920x1200 60Hz
1920x1080 60Hz
■Data rate (maximum): 3.4Gbit/s
■Pixel clock (maximum): 340MHz
■Input DDC signal: 5V
■HDCP: HDCP1.4 compatible
*The display must also be HDCP compatible.
■3D Video: Supported

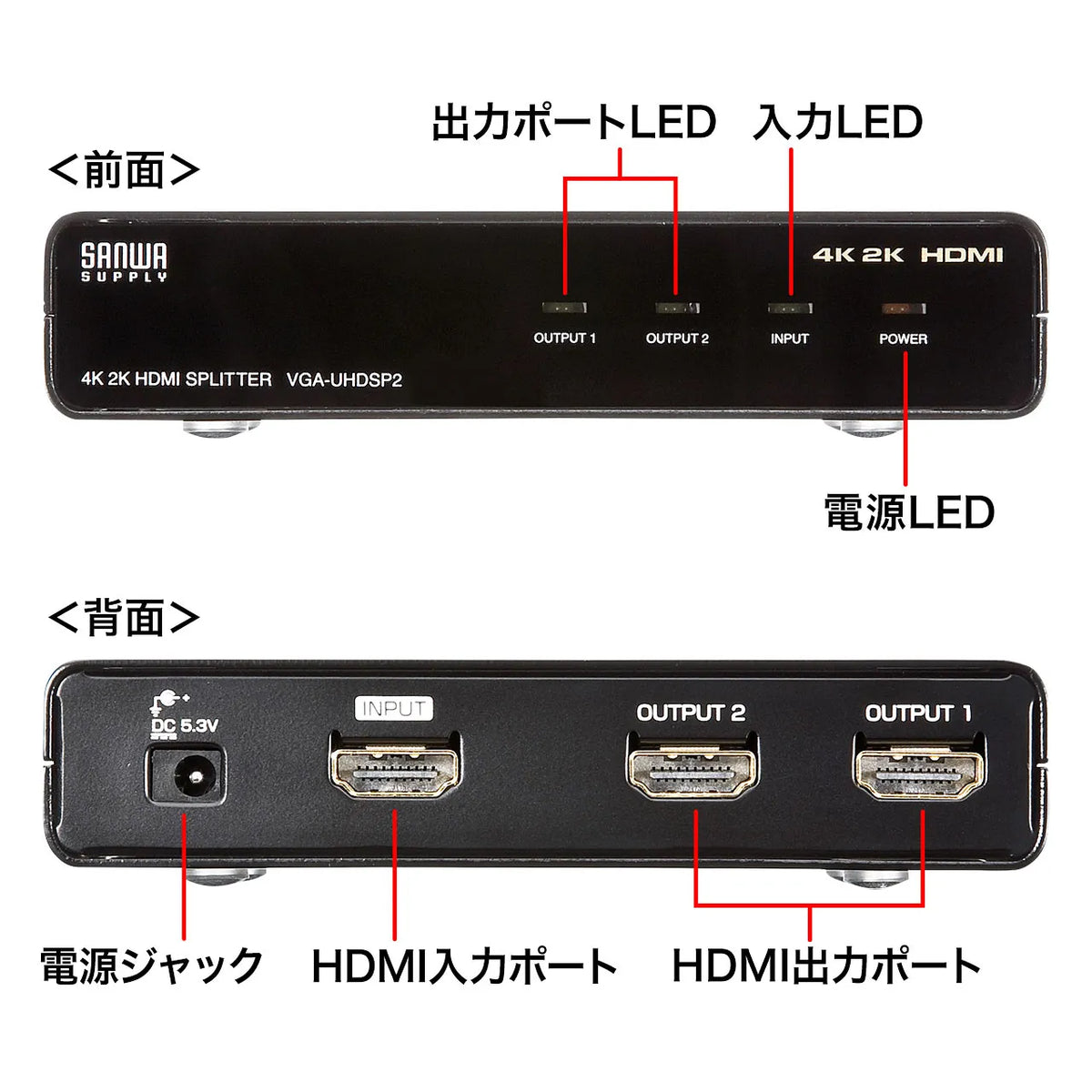

■Interface:
Input: HDMI Type A (19pin) Female x1
Output: HDMI Type A (19pin) Female x2
■Power Consumption: 2W
■Environmental Conditions: Operating temperature 0 to 50 degrees Celsius, operating humidity 80% or less (non-condensing)
Storage temperature -20 to 60 degrees Celsius, storage humidity 80% or less (non-condensing)
■Material: Steel
■Signal Method: TMDS Single Link
■Dimensions: W120 x D80 x H25 mm
■Weight: 360g

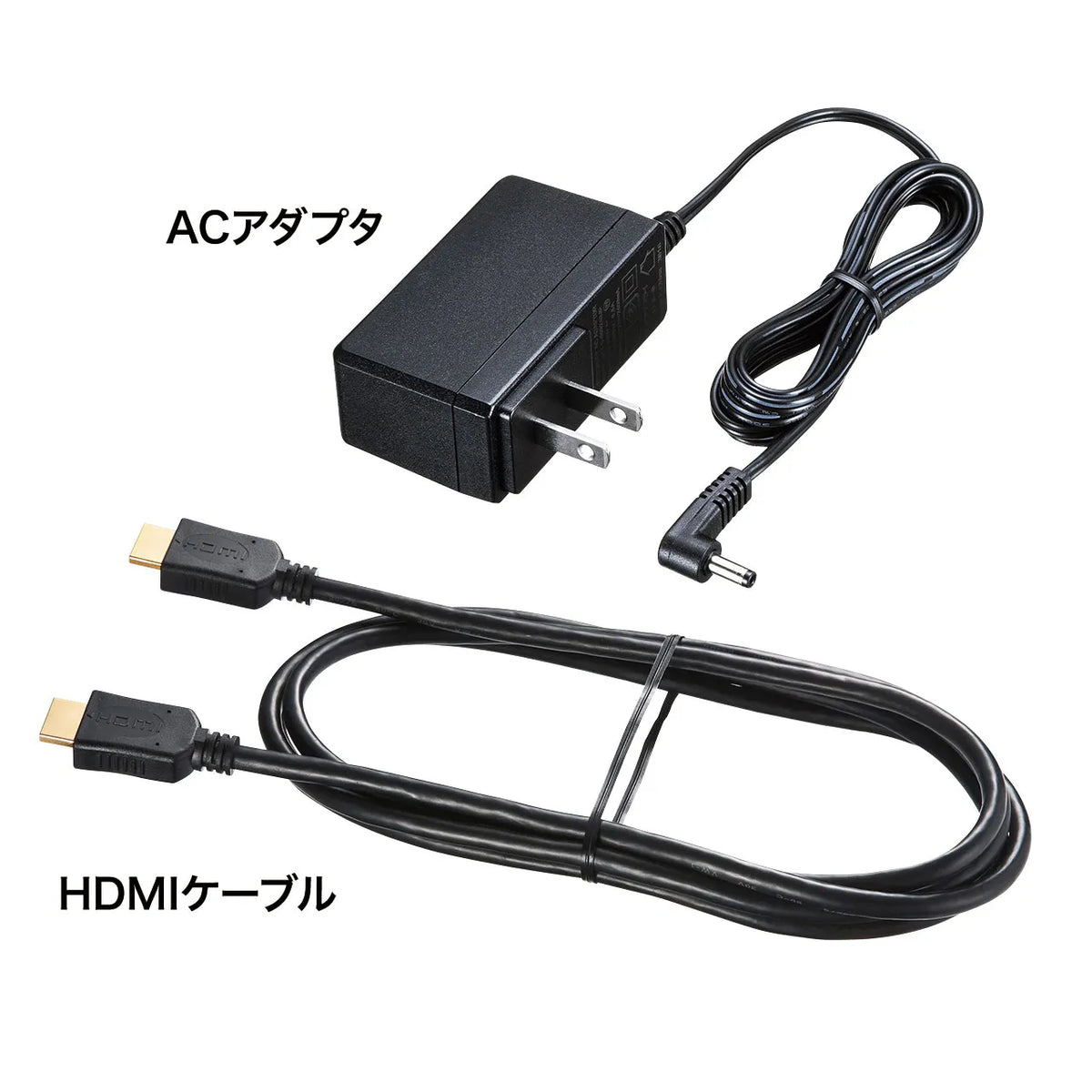

■Accessories: AC adapter (DC 5.3V/2.4A), HDMI cable (1.8m) x1, instruction manual, warranty card
