SANWA SUPPLY

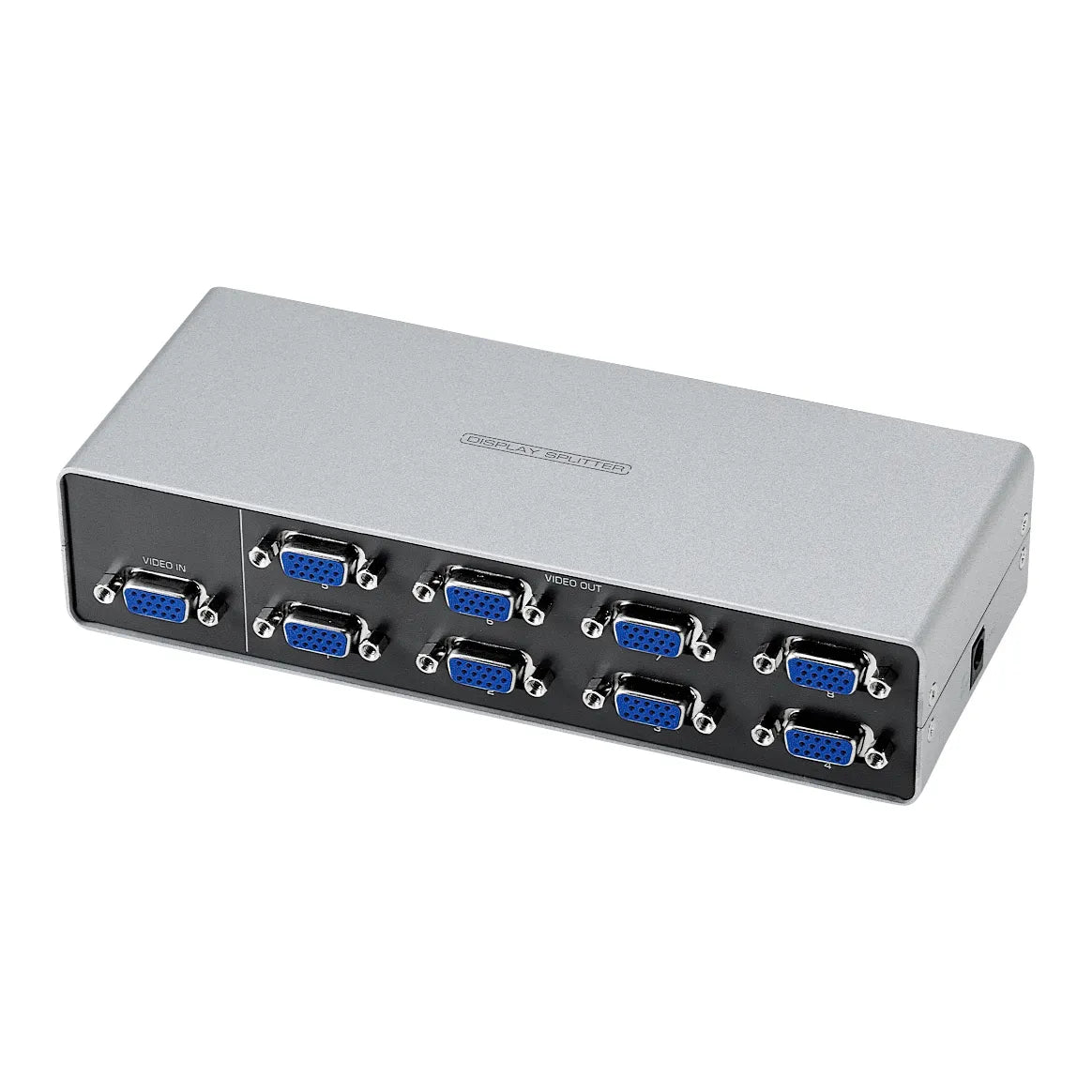

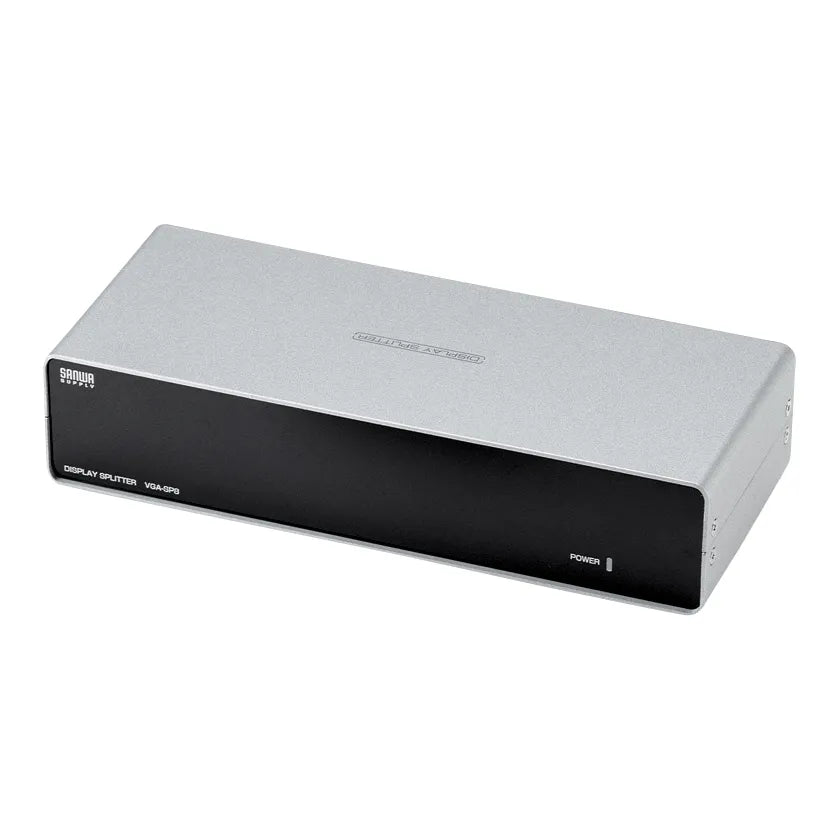

High-performance display splitter (8-way) VGA-SP8
High-performance display splitter (8-way) VGA-SP8
GTIN（JAN）：4969887592205
SKU：VGA-SP8
Regular price
¥15,972 JPY
Regular price
Sale price
¥15,972 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[High-performance distributor with significantly reduced noise due to IC control of signal amplification and stabilization processing]

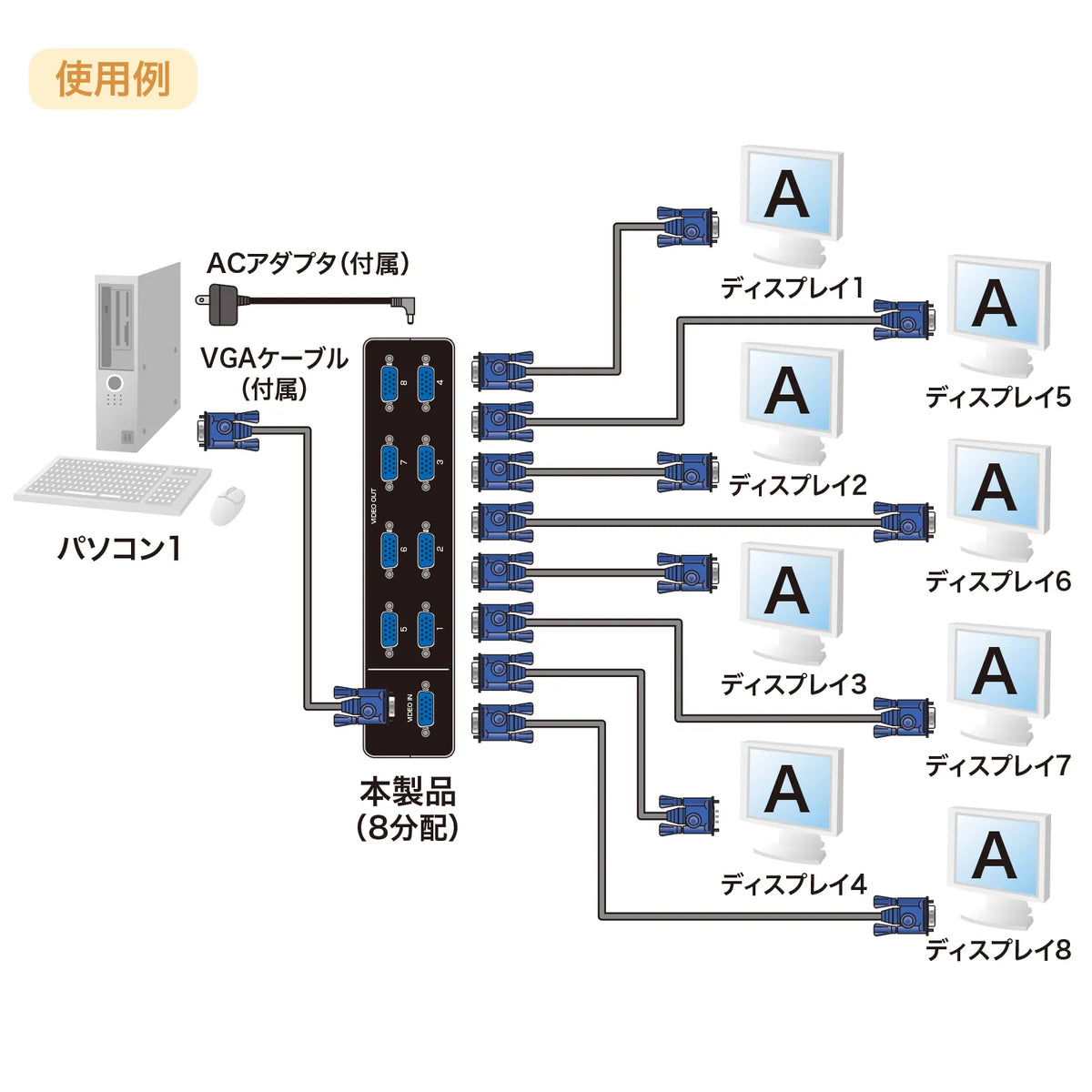

●Distributes analog RGB signals from one PC to eight displays.
●Significantly reduces noise by quickly stabilizing waveform distortion during signal amplification, which is a source of noise, using IC control.
●Has a built-in signal amplification circuit and can output images to displays up to 65m away.
*Image signals experience significant signal loss on cables, and the degree of degradation is greatly affected by the quality of the cable.
Image quality may degrade in some cases during long-distance transmission.
●Supports high resolutions up to 2048x1536 dots.
●Supports ultra-high resolution bandwidth of 300MHz.
●Also supports widescreen display.
●Supports DDC, DDC2, and DDC2B (port 1 only).
●Supports cascading up to 3 stages.
*When cascading, the increased number of contacts makes it more susceptible to noise than usual. Please use it with the total distance from the PC to the furthest display as short as possible.
＜Caution＞
*This product supports video signal transmission distances up to 65m total distance between the PC, the splitter, and the display.
*Display cables longer than 30m can be made to order. For details, please contact Sanwa Supply sales.
*Regarding image signal degradation, it varies greatly depending on the usage environment, equipment used, and the grade of other cables, so we cannot guarantee it. The video level when the PC and display are directly connected will be the video level that can be displayed even when the splitter is inserted.
*Mini D-sub (HD) 15pin = HD (3WAY) 15pin.
■Maximum display resolution: 2048x1536 dots (60Hz compatible)
■Video frequency bandwidth (-3db): 300MHz

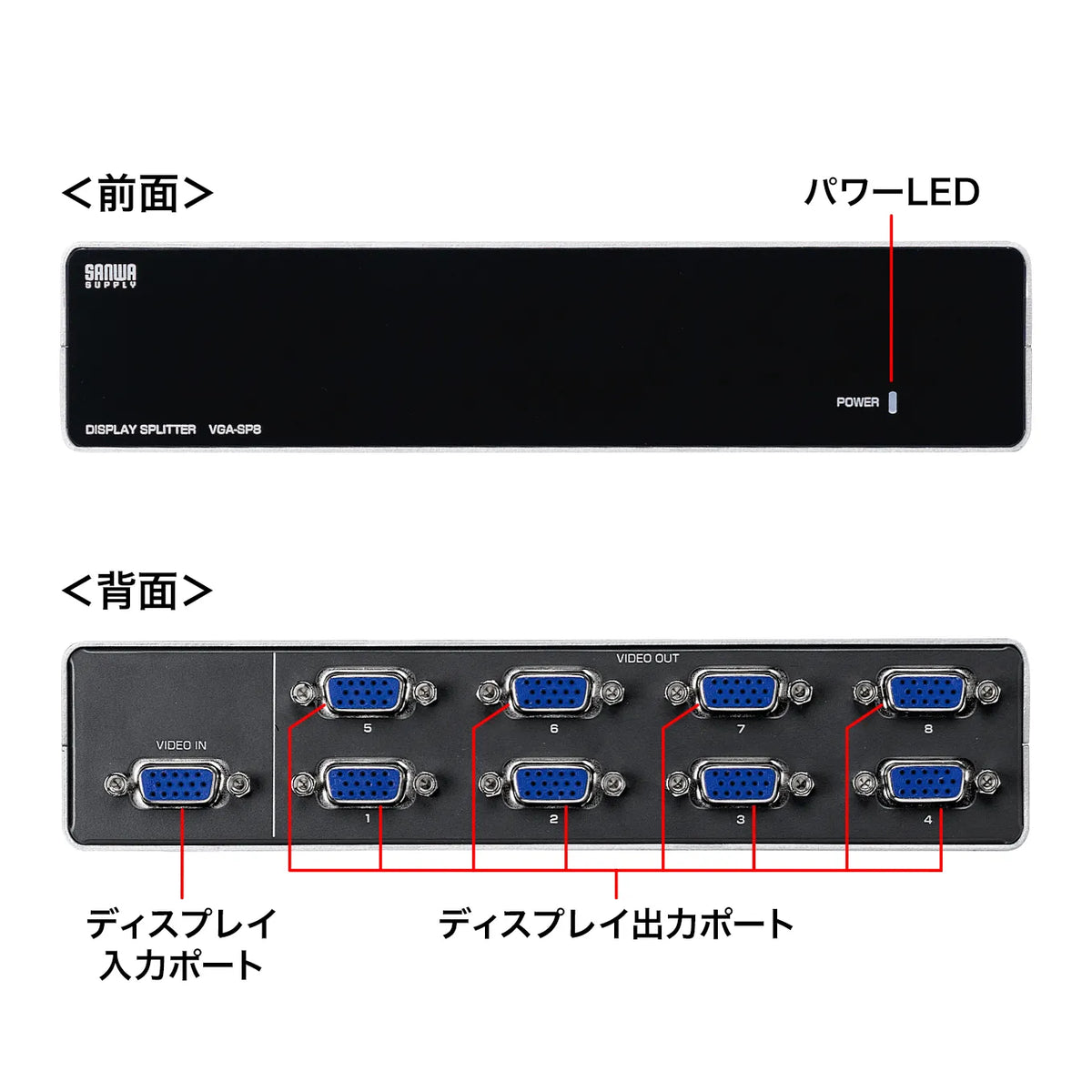

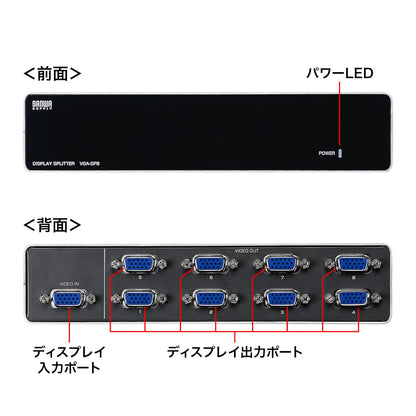

■Interface:
Input: Mini D-sub (HD) 15-pin female x 1
Output: Mini D-sub (HD) 15-pin female x 8
■Distribution: 8-way
■Current consumption: 285mA
■Power consumption: 2.76W
■Operating temperature: 5 to 40 degrees Celsius
■Storage temperature: -20 to 60 degrees Celsius
■Humidity: 0 to 80% (non-condensing)
■Material: Steel
■Dimensions: W197xD80xH43mm
■Weight: 770g

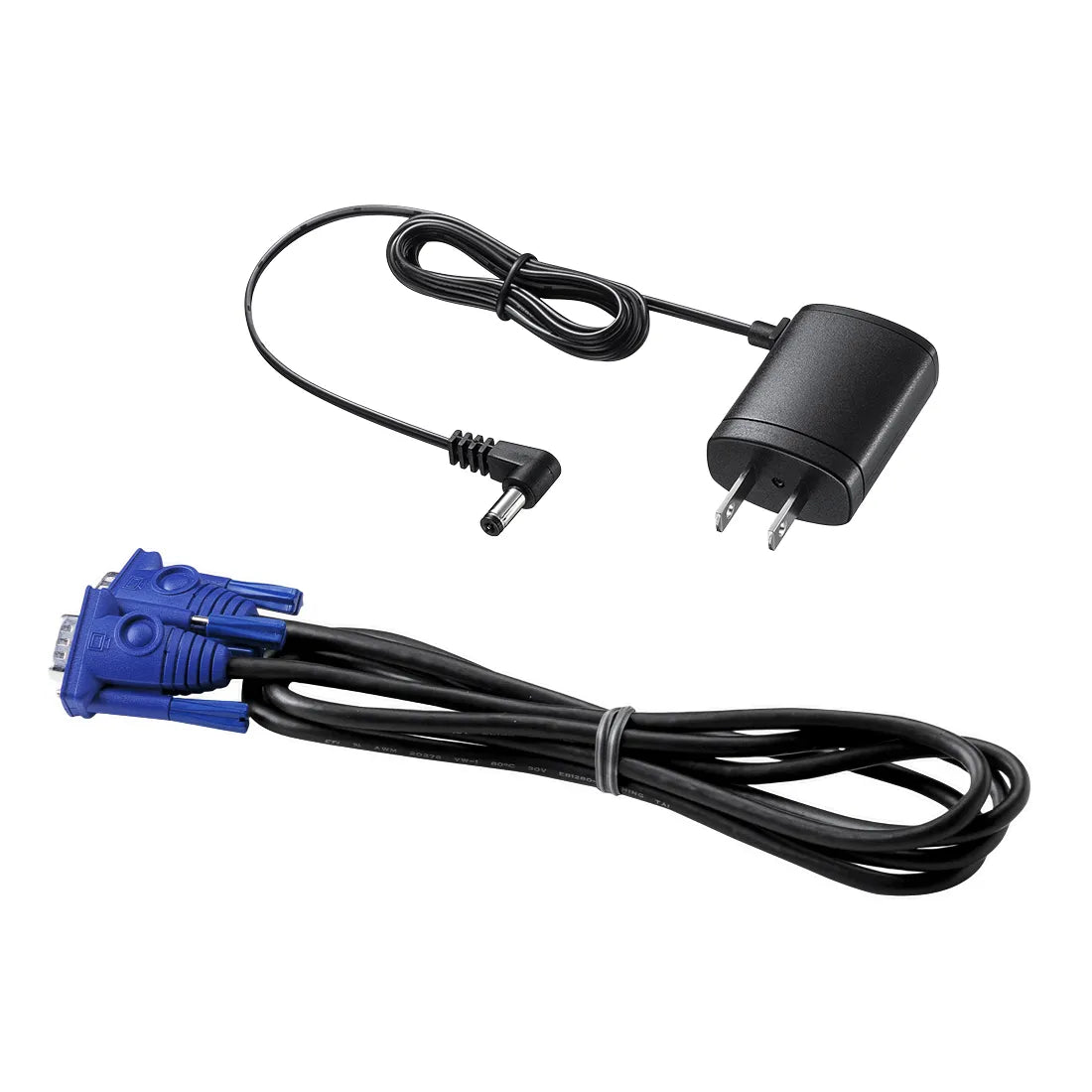

■Accessories: Mini D-sub (HD) 15-pin male-to-male straight full-connection cable 1.8m x 1,
AC adapter (DC9V 600mA), instruction manual, warranty card
