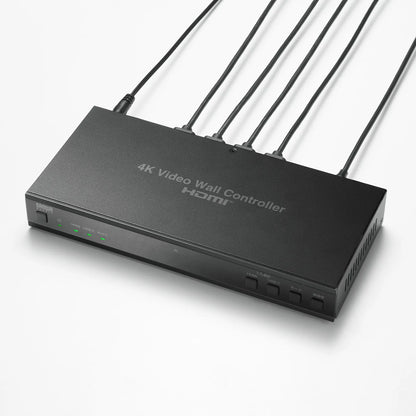

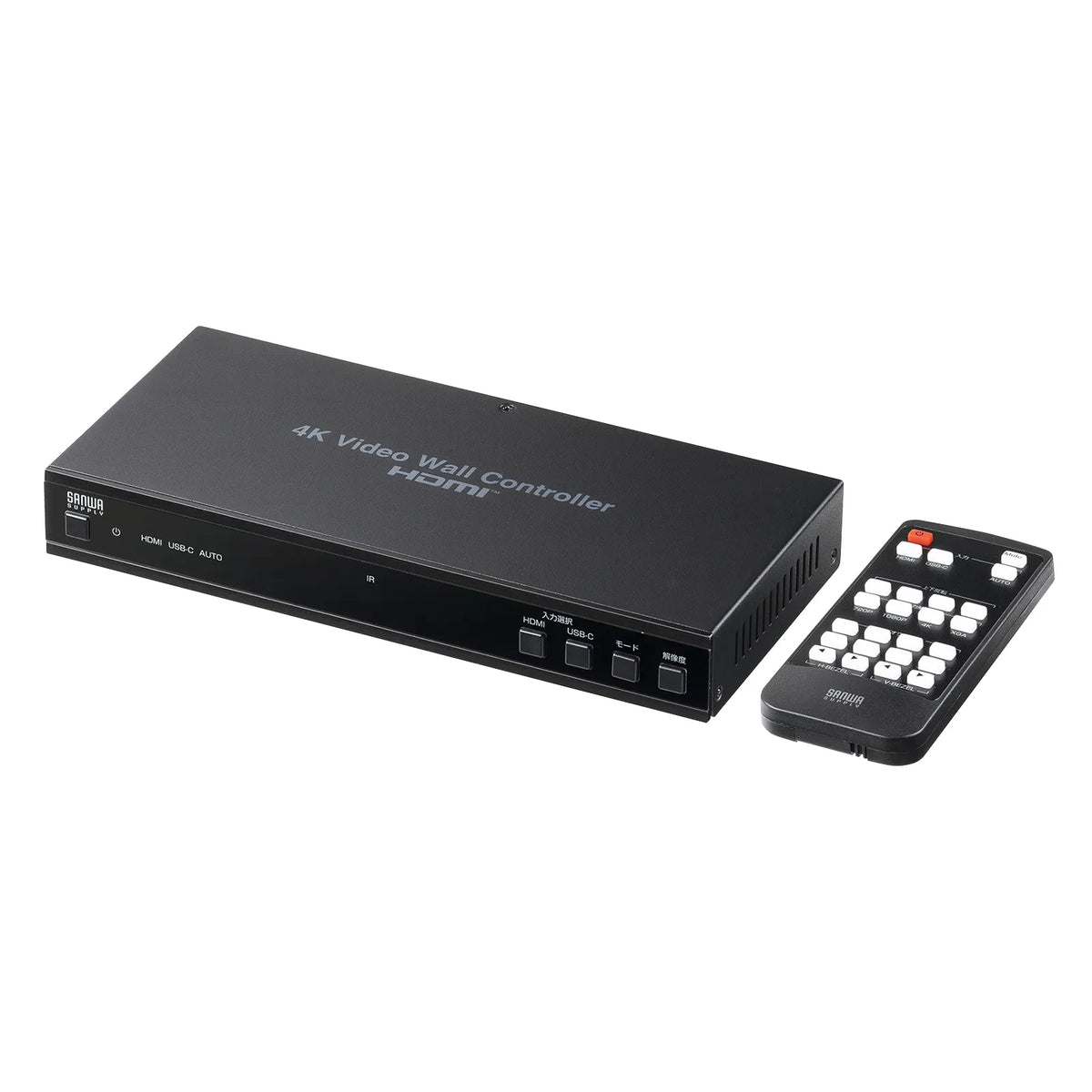

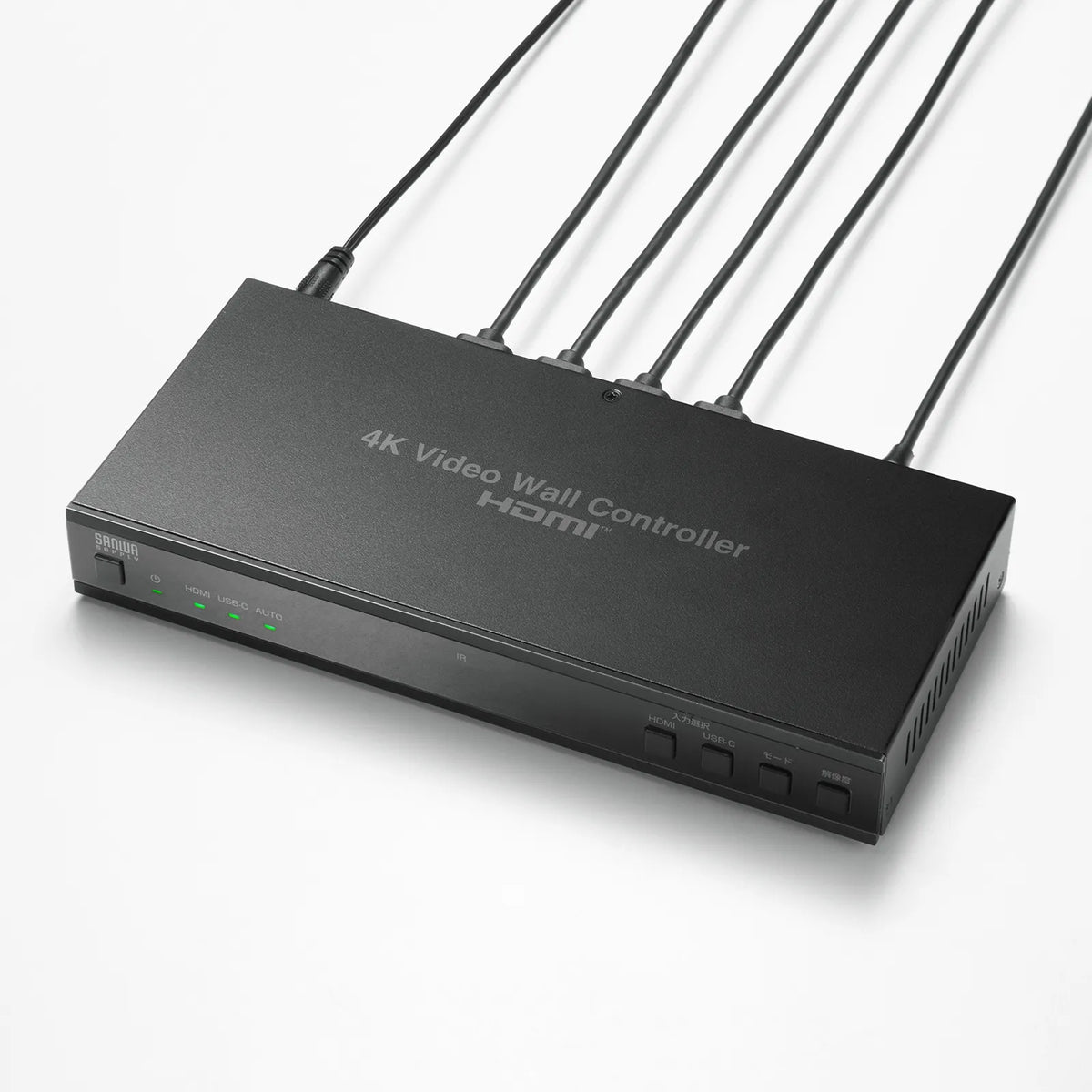

4-screen video wall controller (4K compatible) VGA-PHD4VWC

[A controller that allows you to split a single HDMI video signal across up to four displays to create a large-screen video wall. No software is required; simply connect to enable video wall display.]

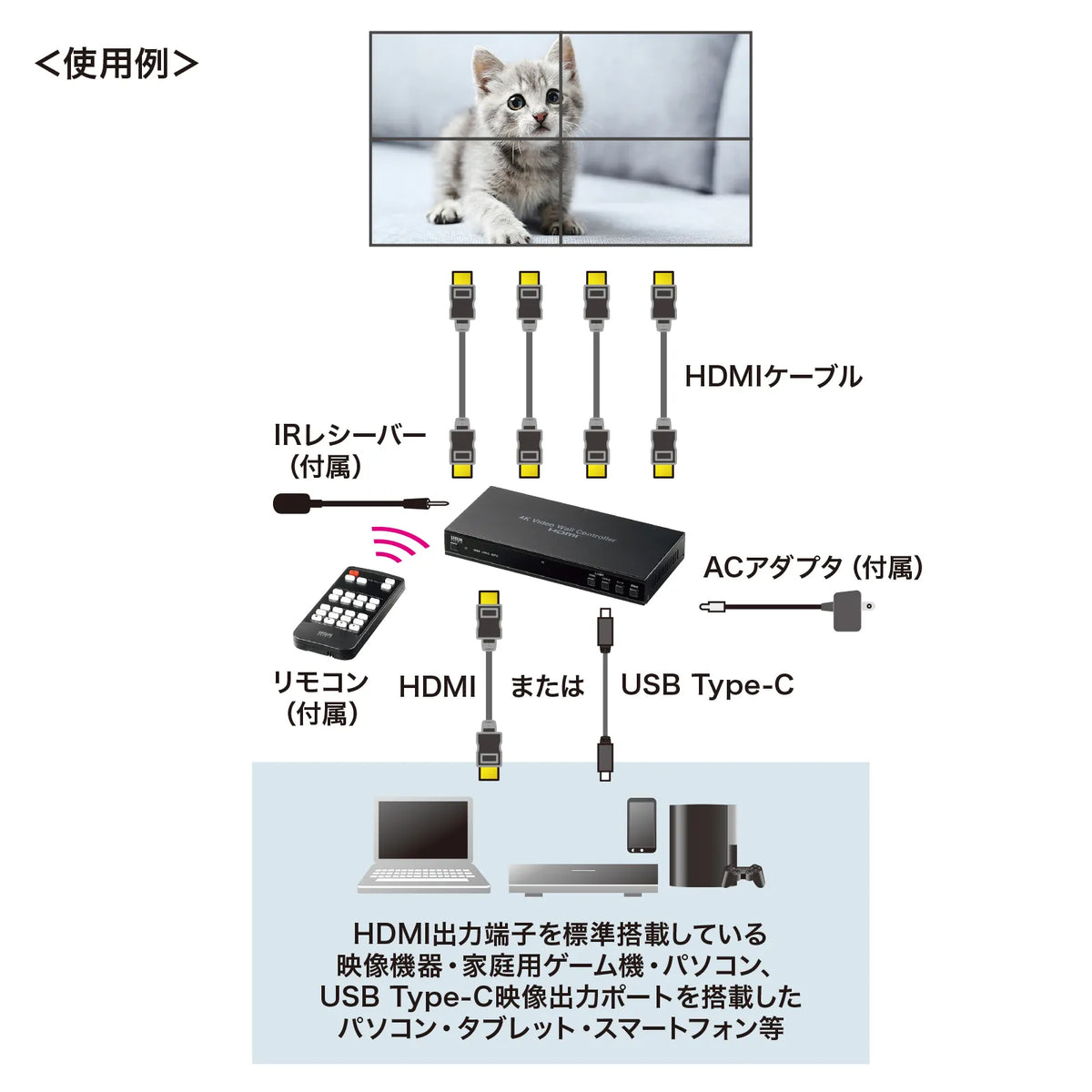

●This video wall controller allows you to split a single HDMI video signal across up to four displays for a large-screen display.
●Supports eight types of display configurations, including the common grid arrangement and four displays placed side-by-side.
●Supports USB Type-C connection, enabling video wall output from devices compatible with "DisplayPort Alternate Mode" with just one USB Type-C cable.
●Supports both mirror mode output (displaying the same image as the computer screen) and extended mode output (displaying a different screen).
●No software installation is required; simply connect to this product to easily create a four-screen video wall.
●Supports input resolutions up to 4K/60Hz and output resolutions up to 4K/30Hz. High-definition video output is possible on up to four screens.
●Vertical and horizontal adjustments are possible for each screen, allowing for image display adjustments that take bezel width into consideration.
●Audio signals can be extracted from the input HDMI signal and output via optical digital or 3.5m stereo mini.
●Supports 180-degree screen rotation.


■Compatible devices:
Video equipment, home game consoles, and PCs equipped with standard HDMI output terminals
PCs, tablets, smartphones, etc. equipped with a DisplayPort Altmode compatible USB Type-C video output port
■Compatible output devices: TVs, PC displays, projectors, etc. equipped with standard HDMI input terminals
*EIZO monitors are not covered by the warranty.
■Supported Input Signals: Type-C, HDMI
■Supported Output Signals: HDMI

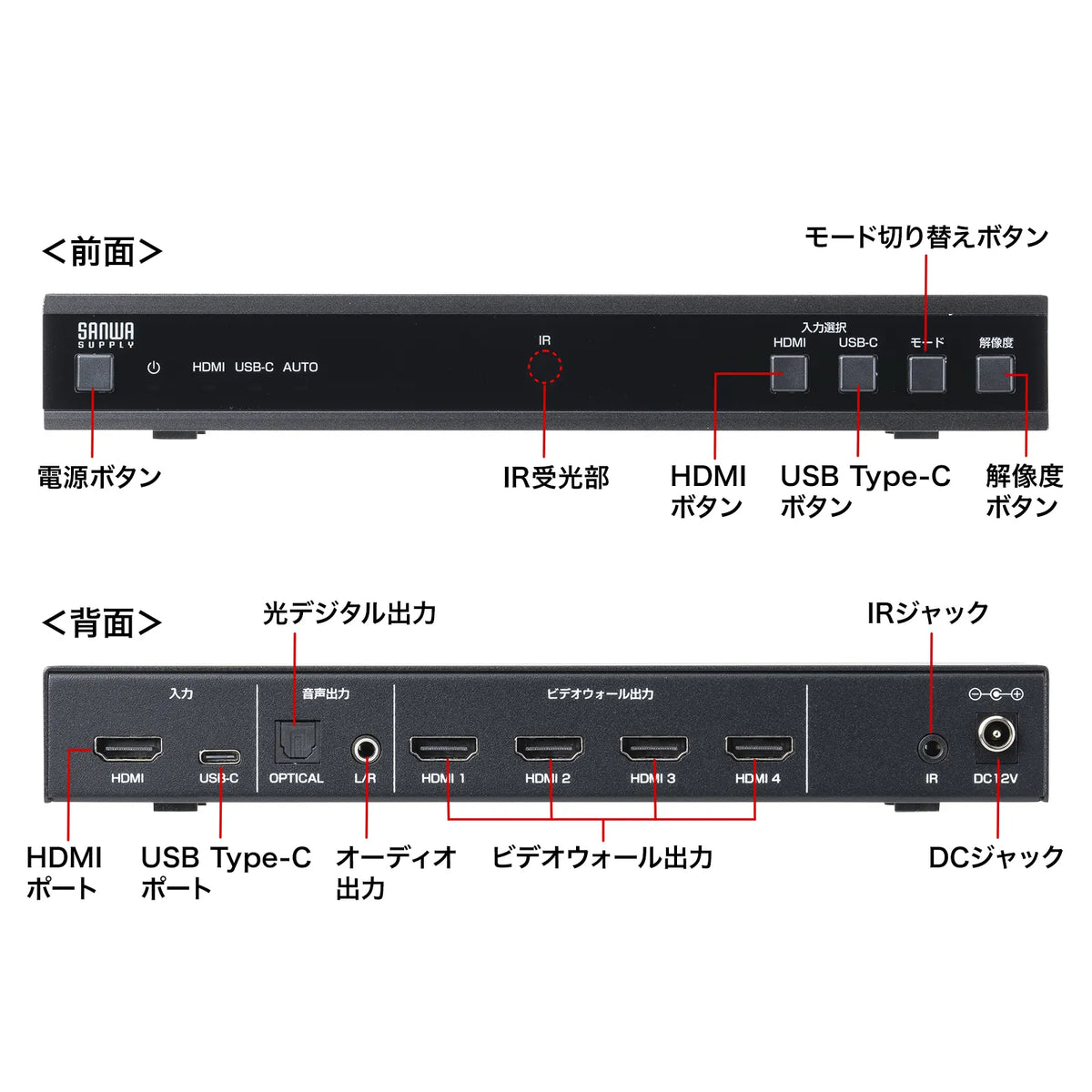

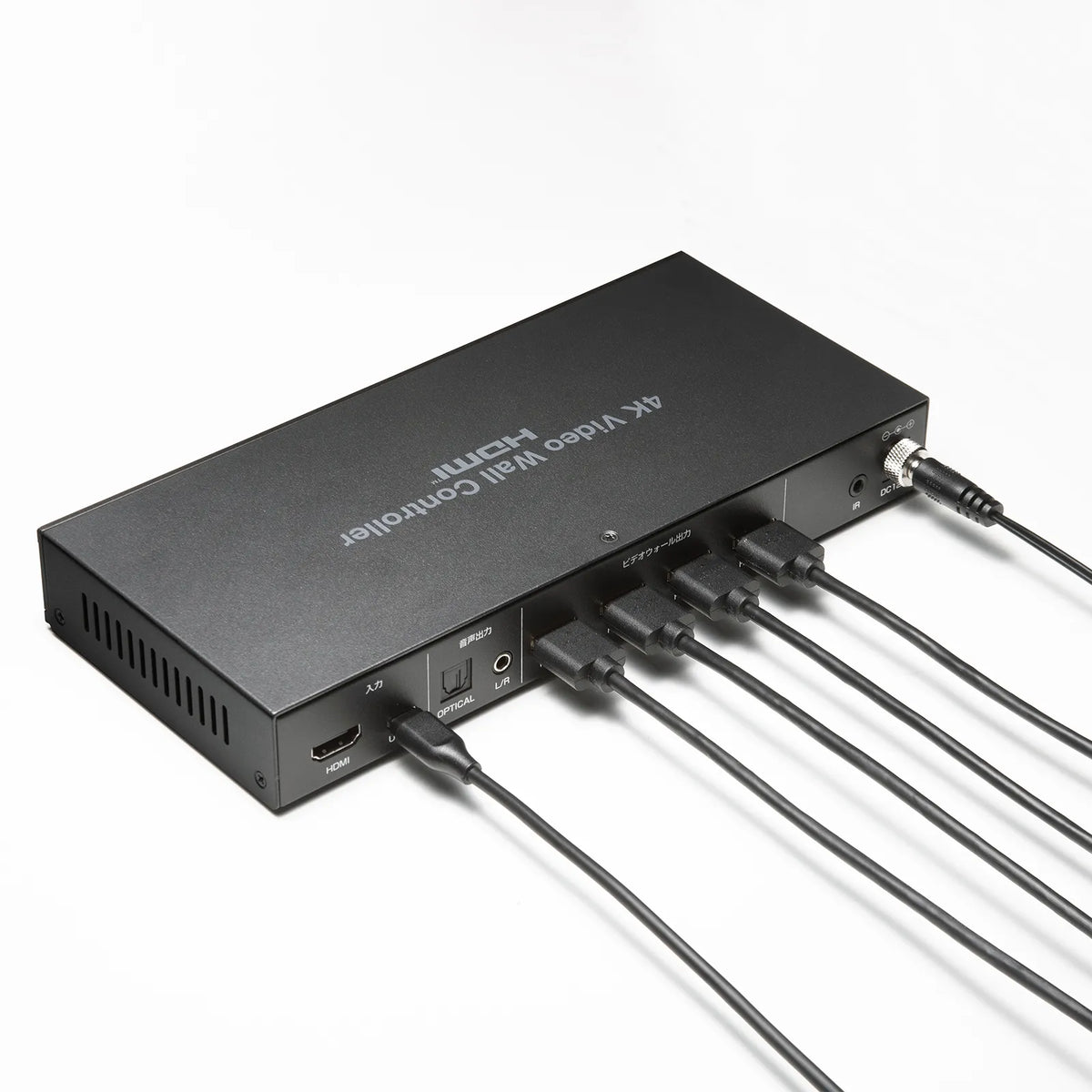

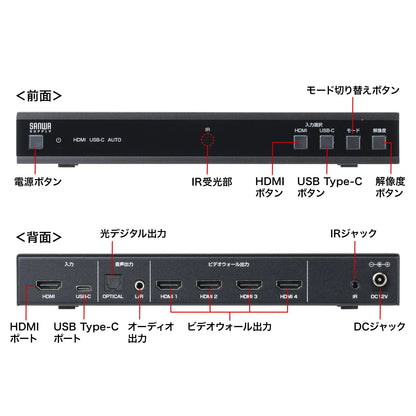

■Interface:
Input: HDMI Type A (19PIN) Female x1
USB Type-C Female x1
Output: HDMI Type A (19PIN) Female x4
Audio Output: Toslink x1, 3.5mm Stereo Mini Jack x1
Infrared Remote Control: IR Jack x1
■Maximum Resolution: 4K/60Hz
■Data Rate (Max): 18Gbit/s
■HDMI Standard: HDMI Ver2.0b
■HDCP: HDCP1.4, HDCP2.2
■CEC (Connected Electronic Control): Not Supported
■Power Consumption (Max): 5.5
■Operating Temperature: 0 to 40 degrees
■Storage Temperature: -20 to 60 degrees
■Operating Humidity: 20 to 90% or less (no condensation)
■Storage humidity: 20 to 90% or less
(no condensation)

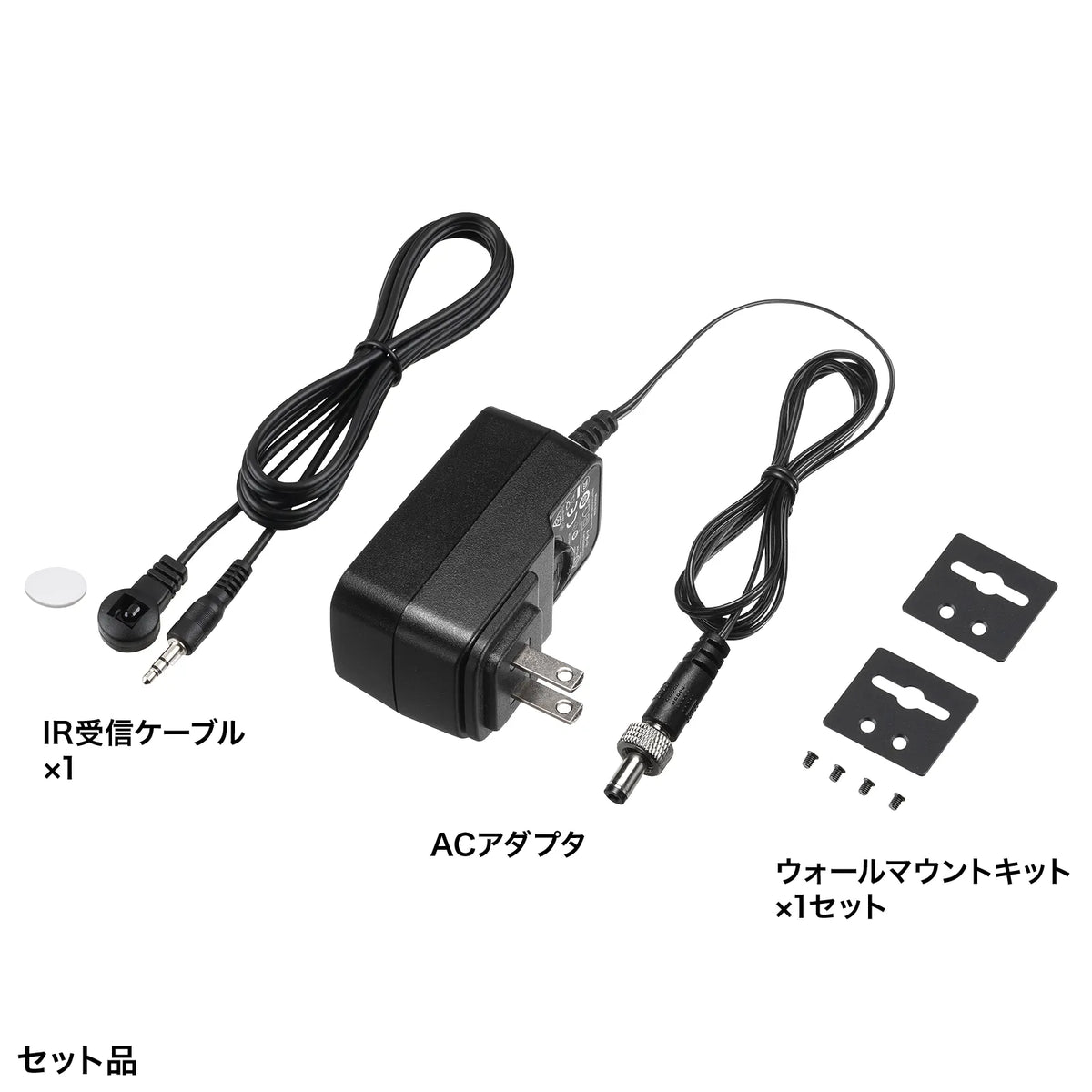

■Set contents:
Switch (main unit) x1, instruction manual, AC adapter (12V 1A), remote control (battery included: CR2025),

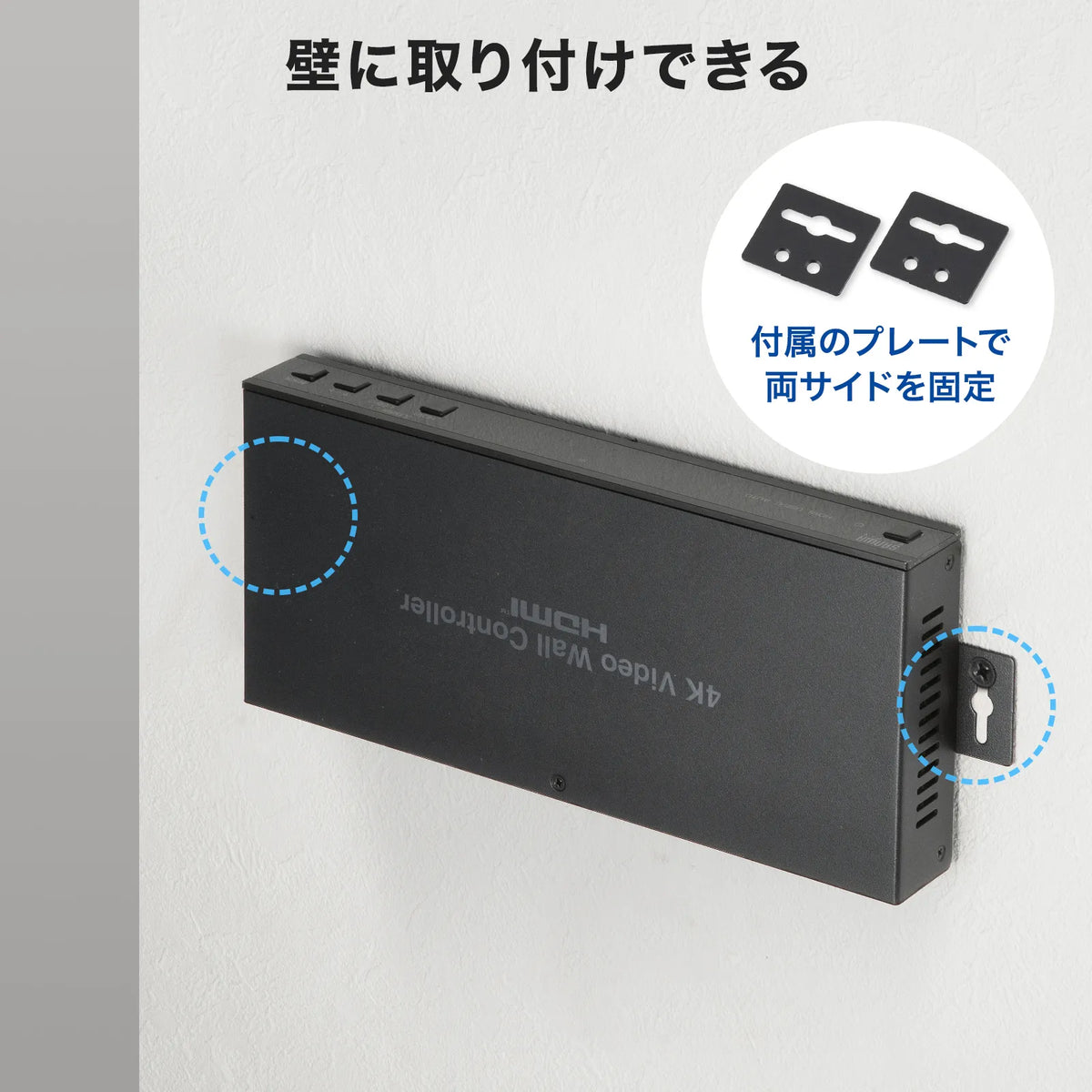

Wall mount kit x1 set, IR receiver cable x1
■Input/output contents:
Input HDMI x1 or USB Type-C x1
Output HDMI x 4

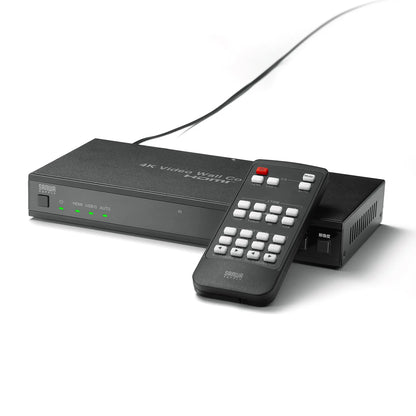

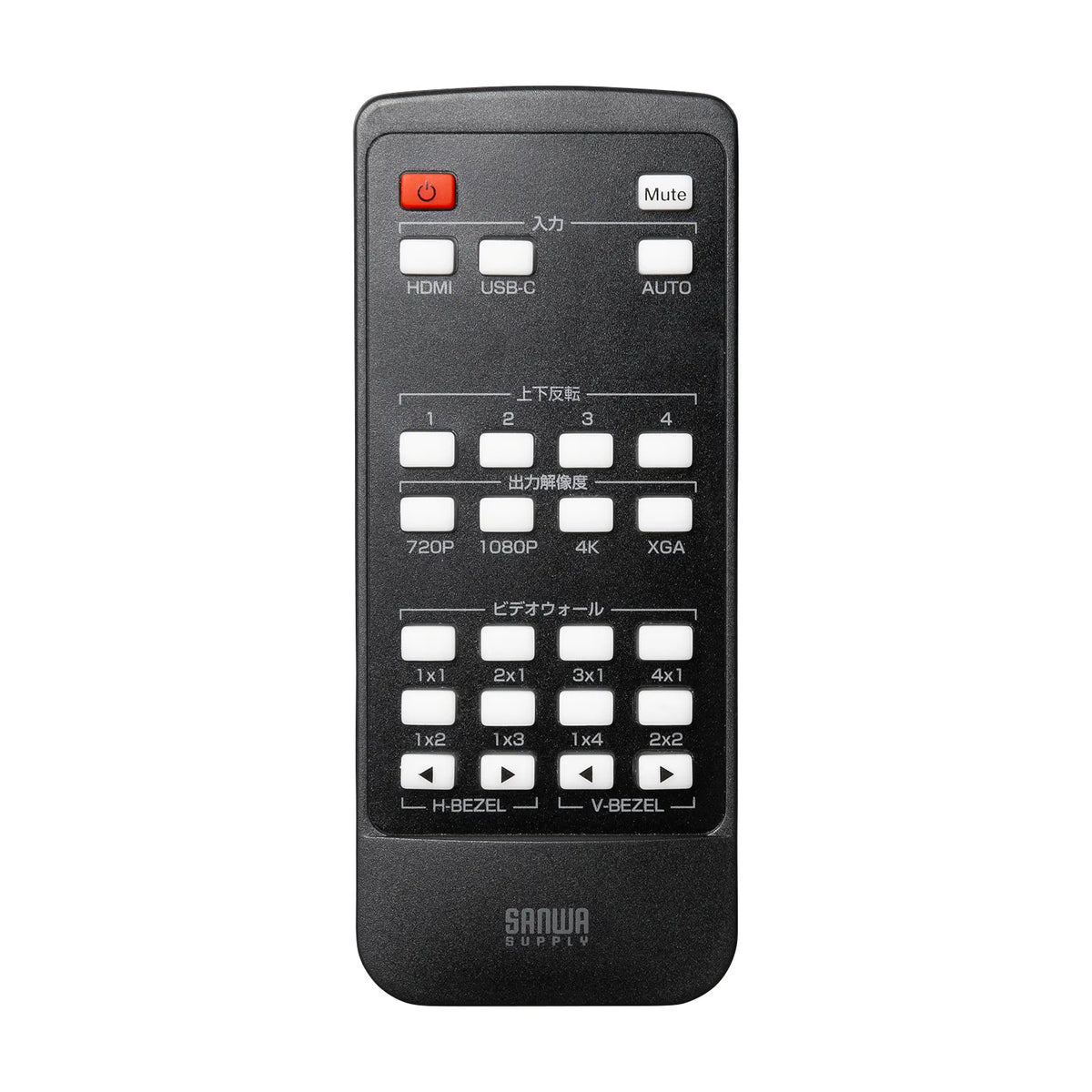

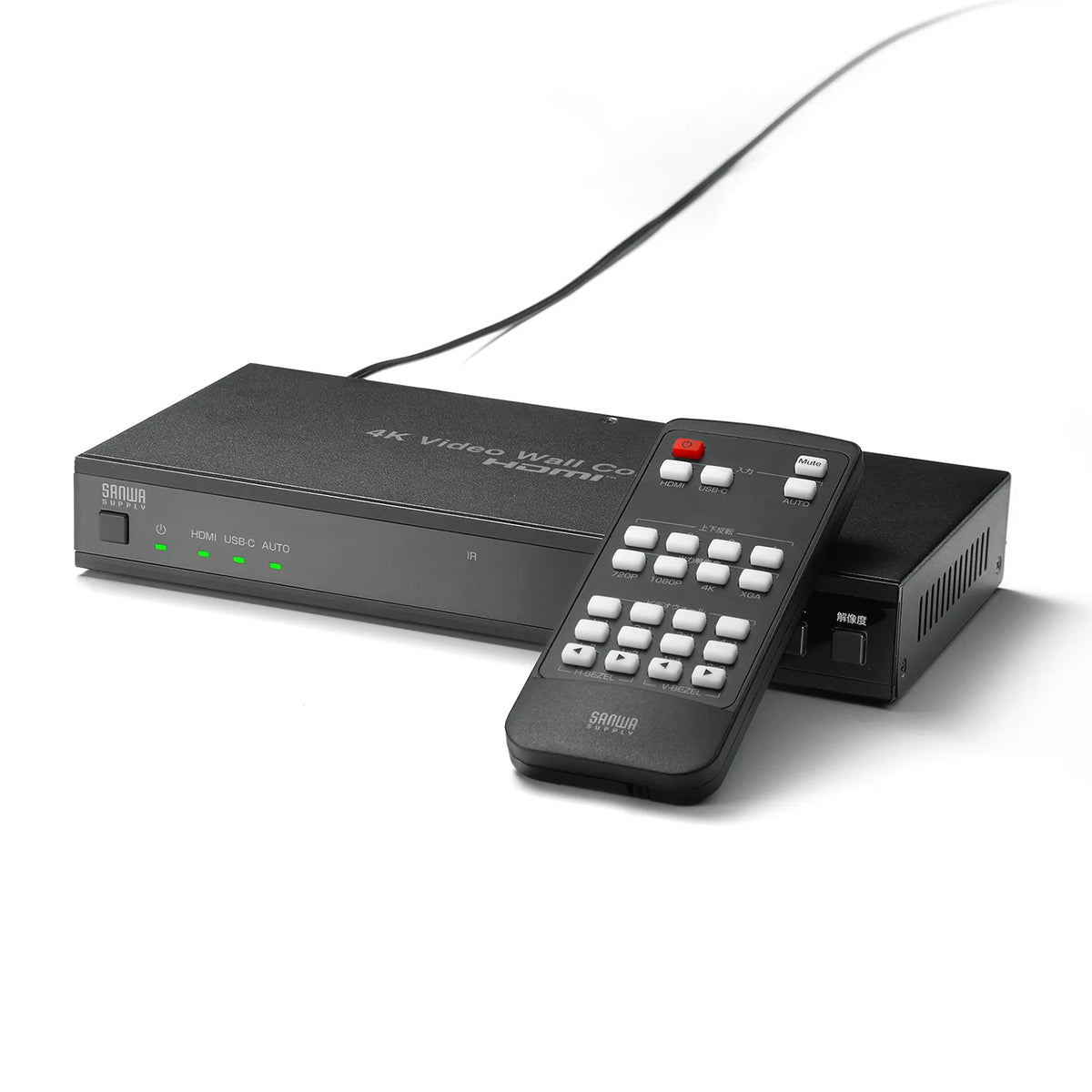

■ Operation method: Main unit buttons, remote control
■ Main supported input resolutions:
4096x2160 (30/60Hz)
3840x2160 (30/60Hz)
1920x1200 (60Hz)
1920x1080 (60Hz)
1280x720 (60Hz)
1024x768 (60Hz)
1360x768 (60Hz)
1280x800 (60Hz)
■ Supported output resolutions:
3840x2160 (30Hz)
1920x1080 (60Hz)
1280x720 (60Hz)
1024x768 (60Hz)
■Supported audio formats:
HDMI input/output: LPCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24
Optical digital output: Dolby Digital, Dolby Digital plus, DTS 5.1, PCM 2.0
Analog output: LPCM 2ch (24bit/48kHz)
