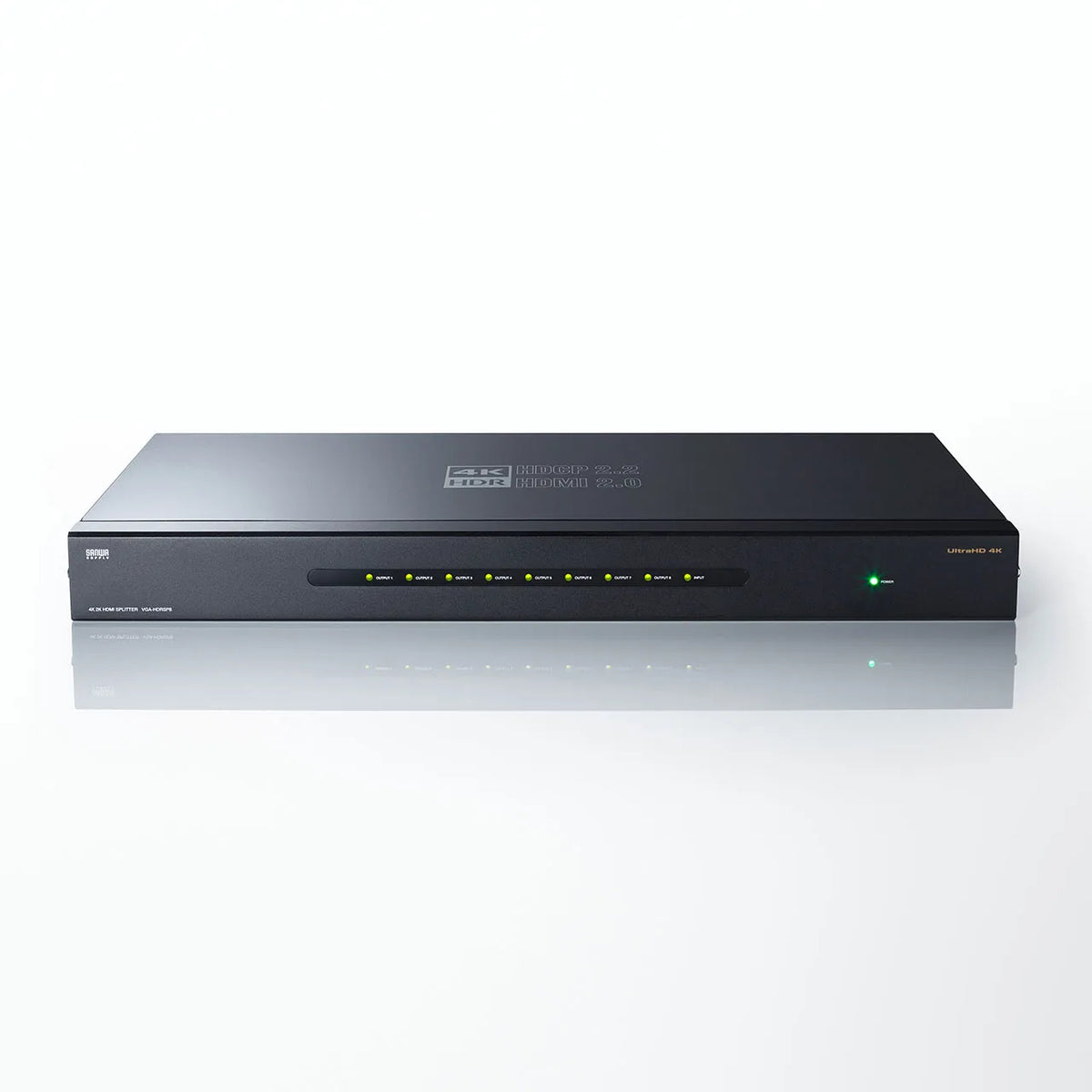

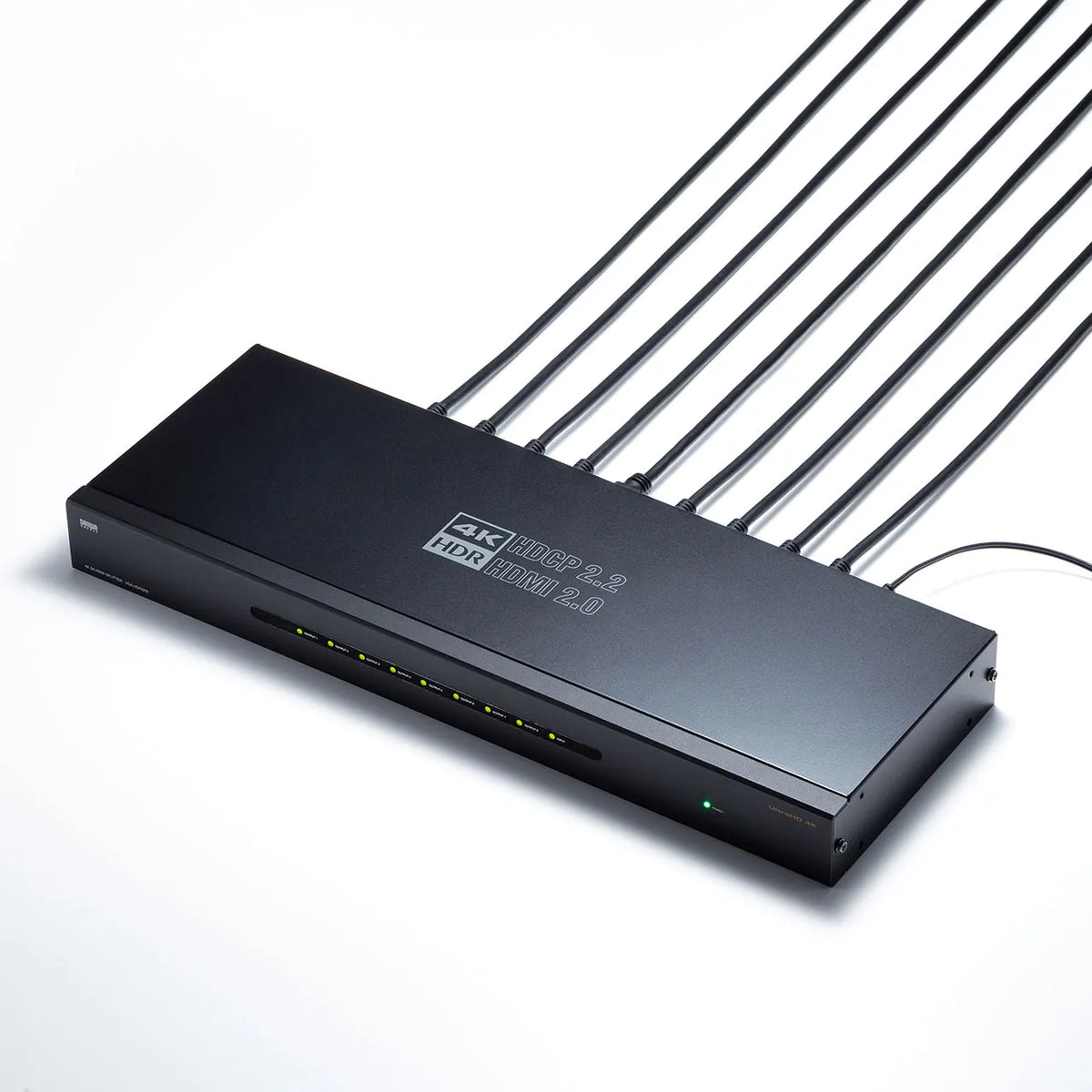

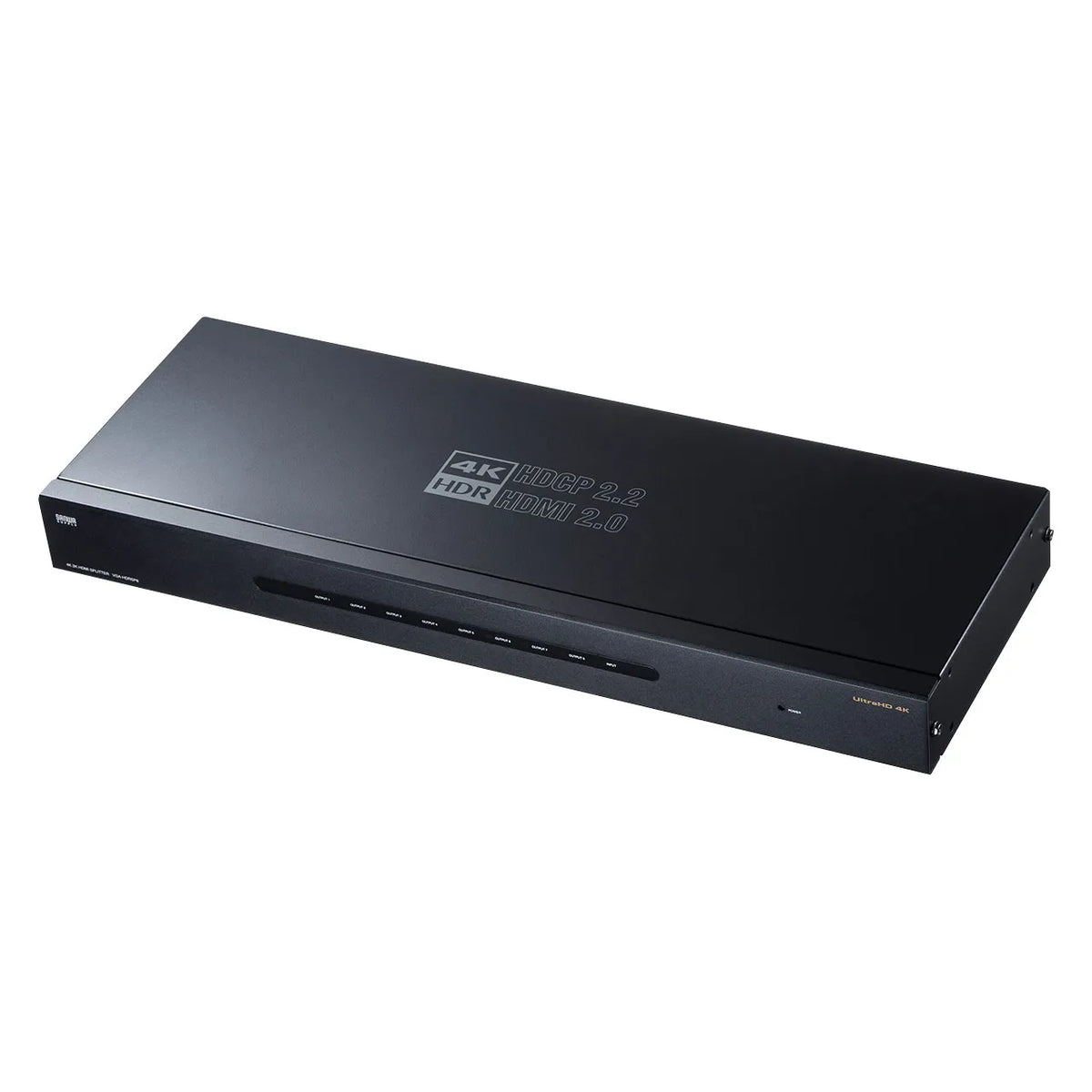

[An HDMI splitter that supports up to 4K/60Hz output, HDR video signals, and HDCP2.2.]

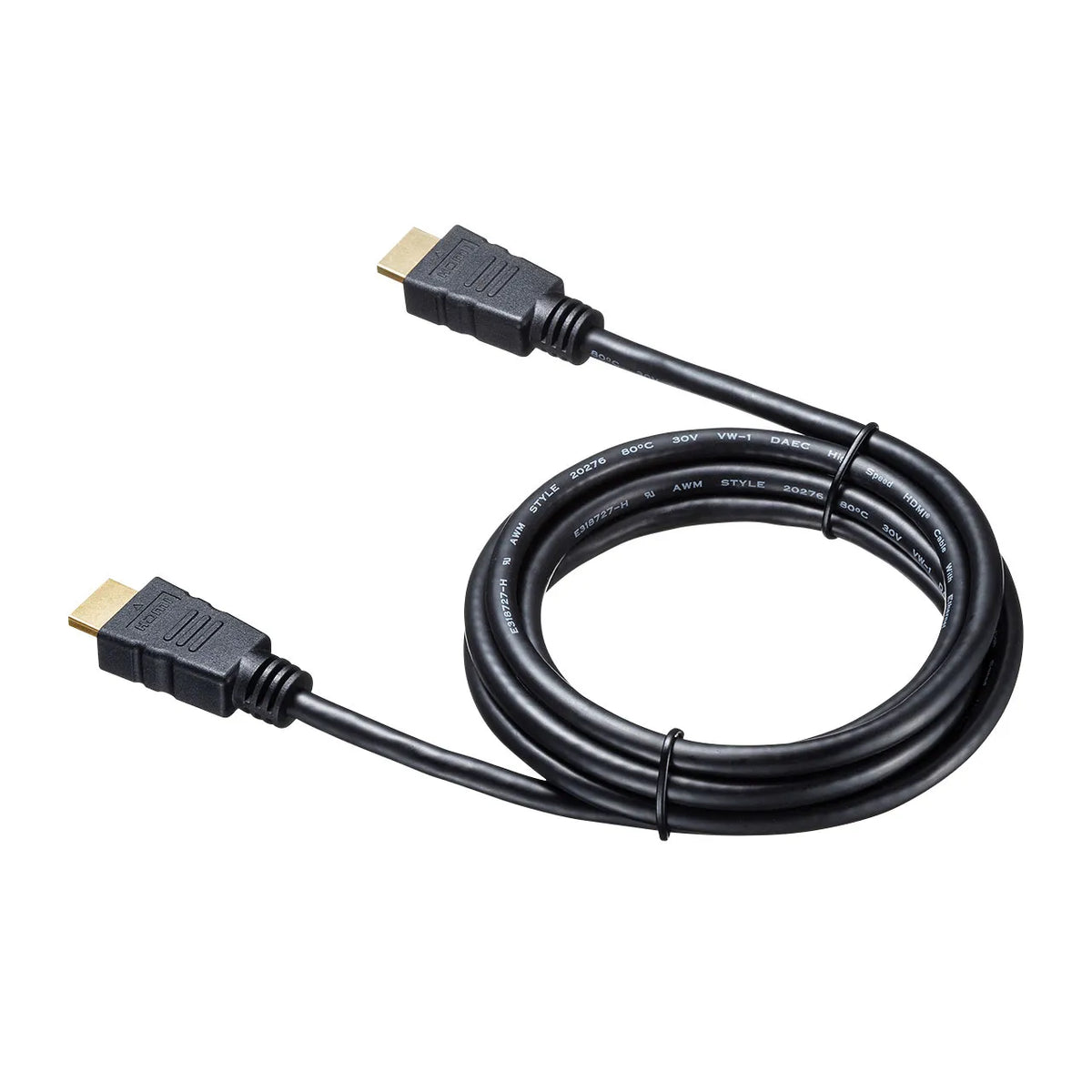

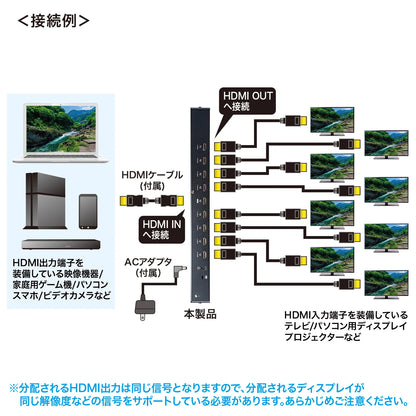

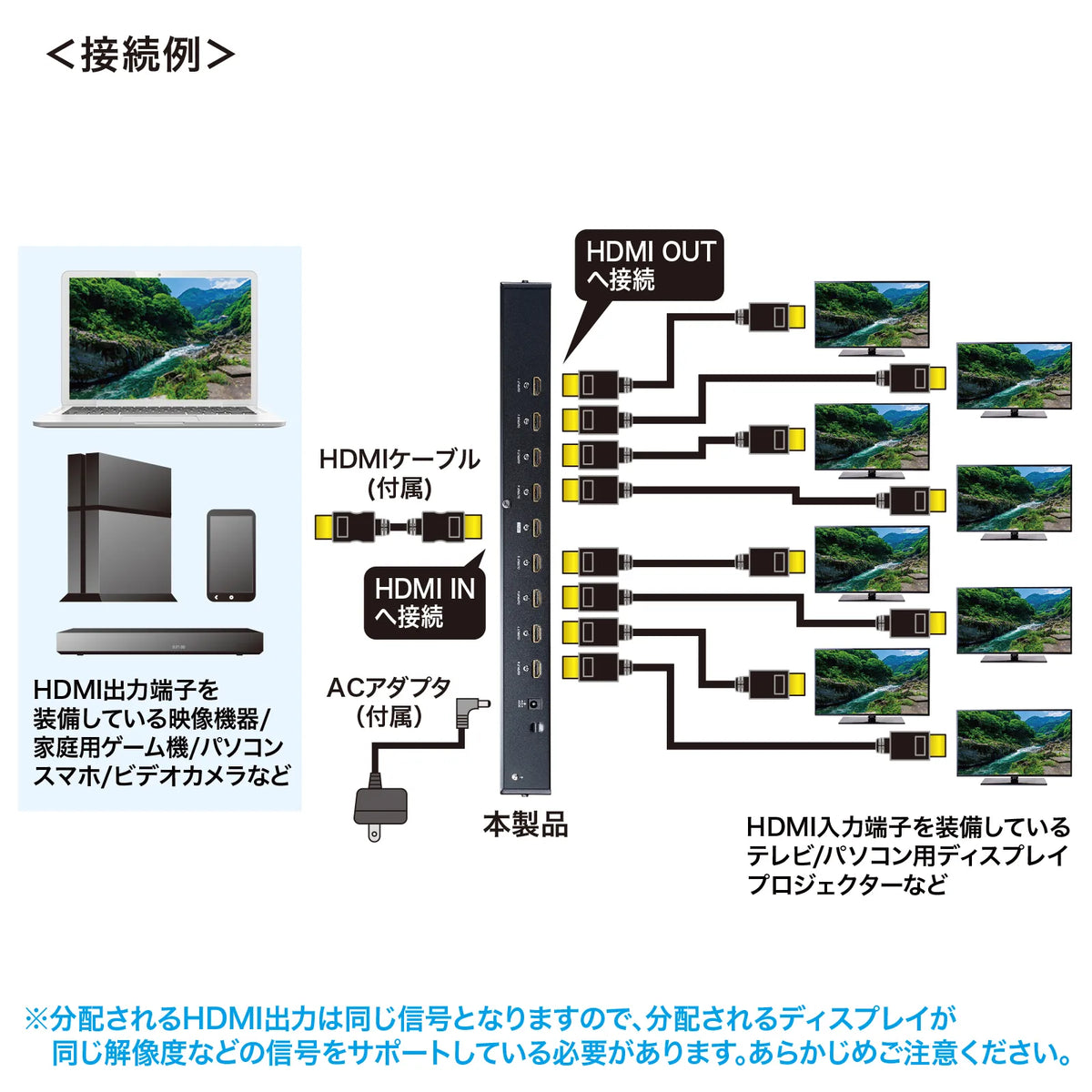

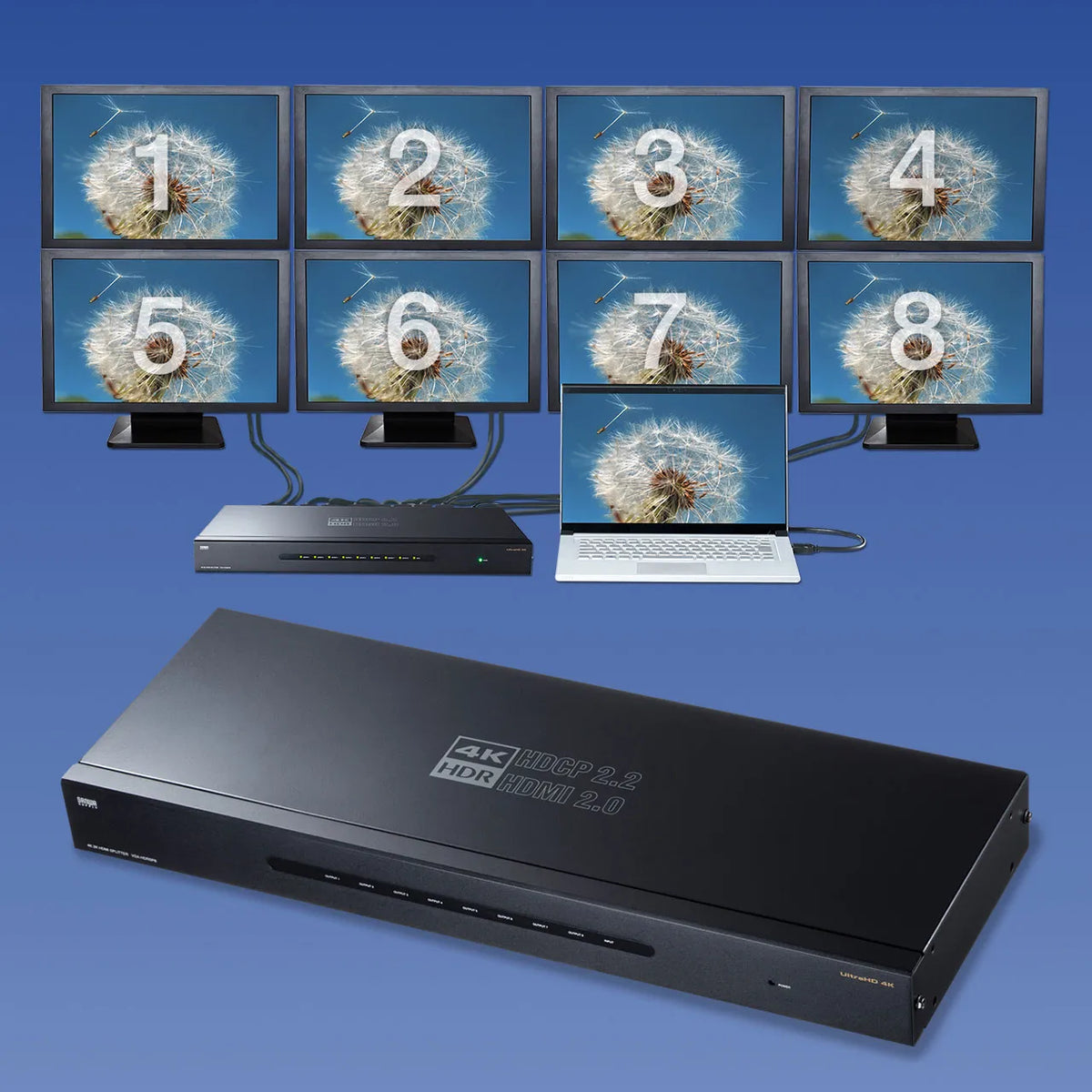

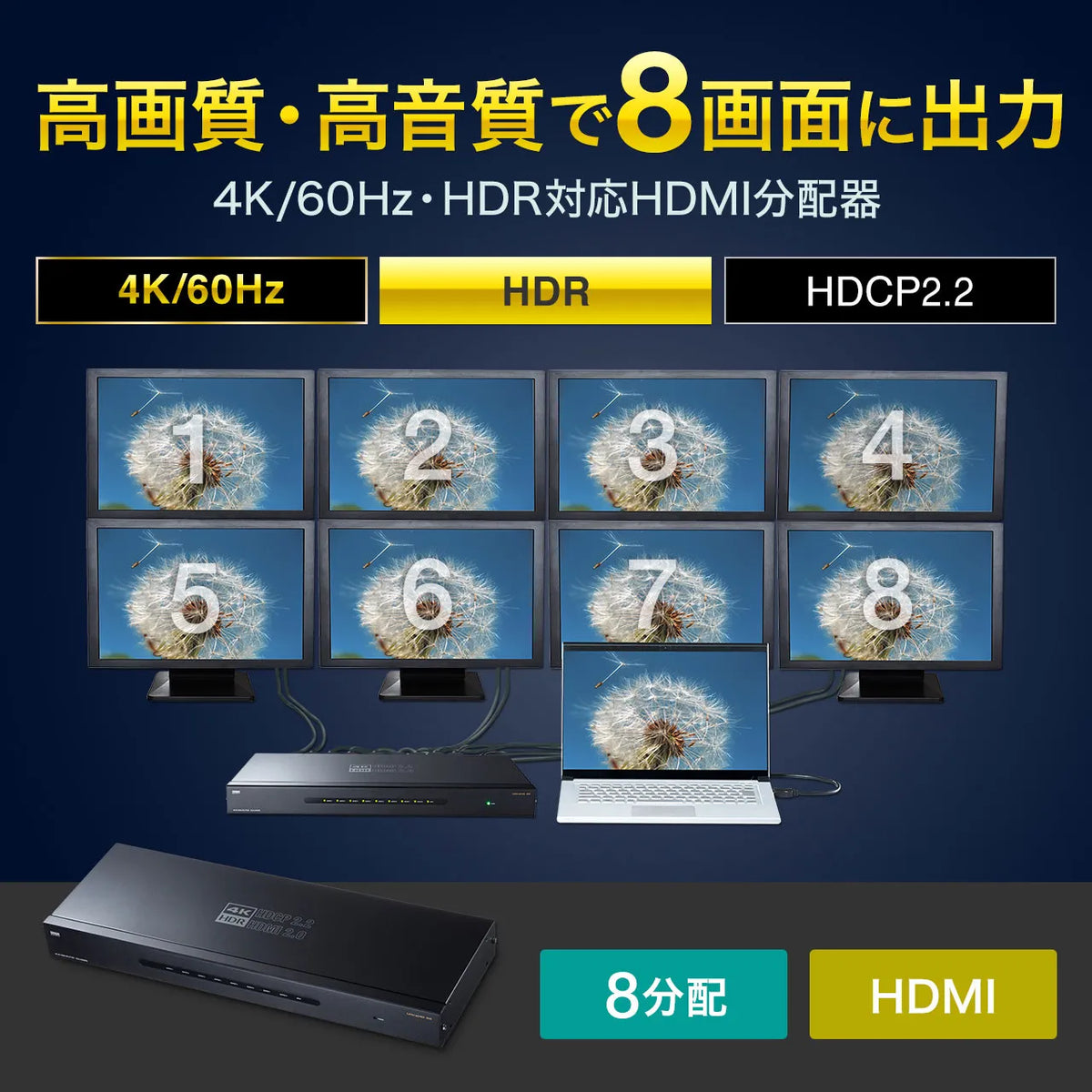

●Can simultaneously distribute the signal from one HDMI device to eight HDMI input devices (displays, projectors, etc.) while maintaining high image and sound quality. ●Supports 4K2K (4096x2160) 60Hz resolution, allowing for the output of beautiful, high-definition HDMI signals. *Please note that the distributed HDMI output will be the same signal, so the displays to which the signal is distributed must support the same resolution and other signals. ●Supports high-brightness HDR (High Dynamic Range) video and is compatible with HDCP2.2. ●Transmits the EDID information of the display connected to port 1 to the video input device (PC, etc.). ●Also supports Dolby True HD and DTS HD Master Audio. ●All HDMI terminals are gold-plated. This makes them resistant to rust and prevents signal degradation. ●One HDMI cable (1.8m) is included.

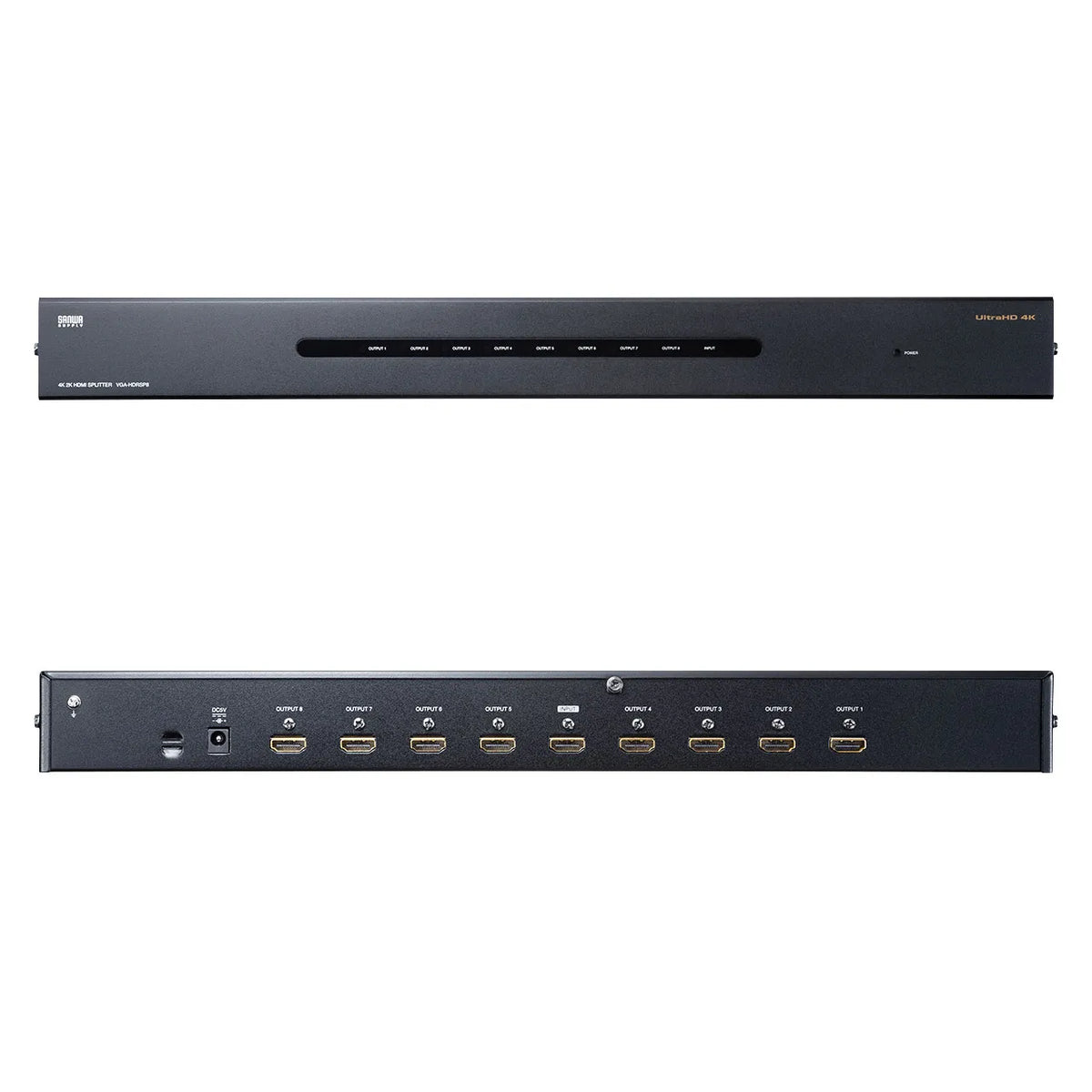

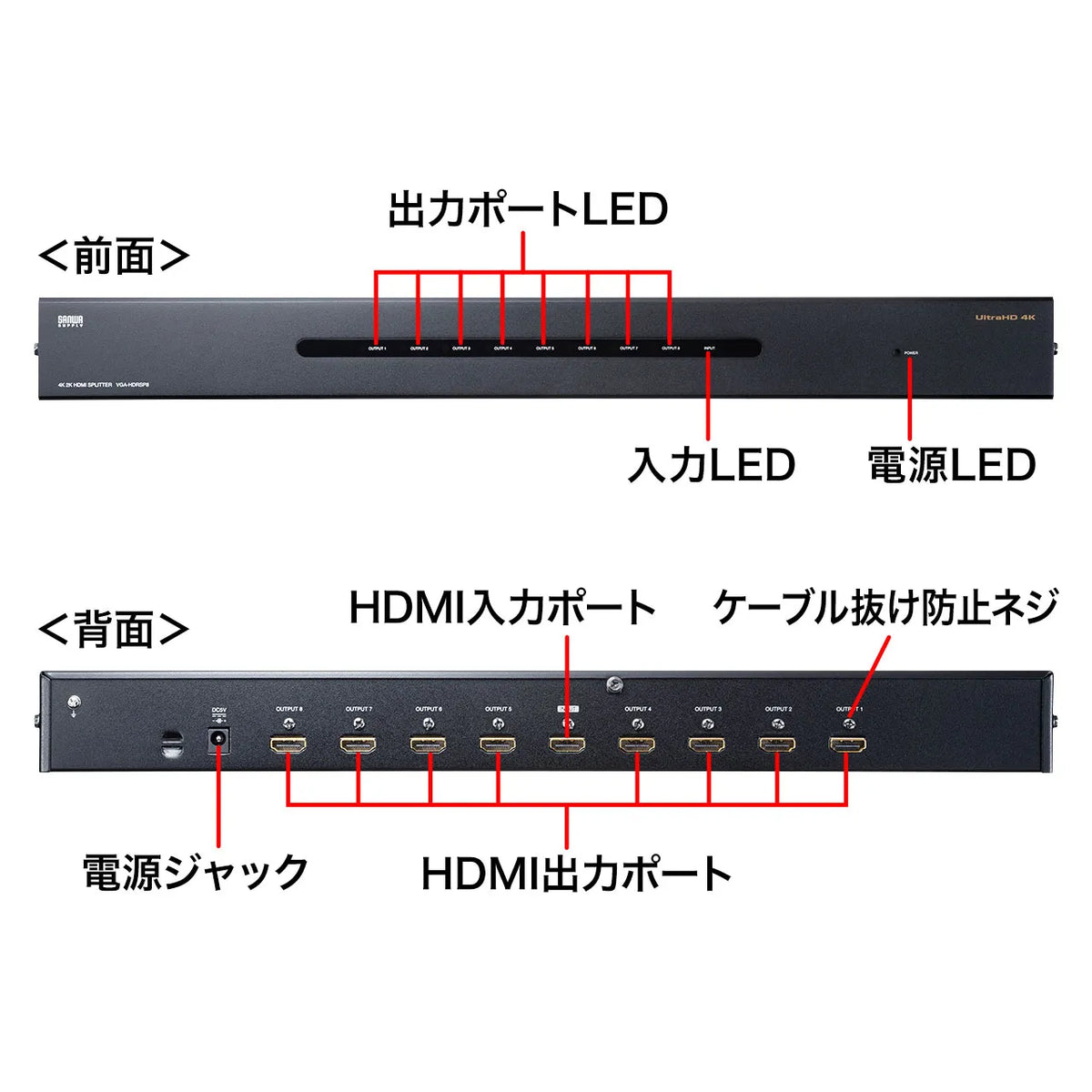

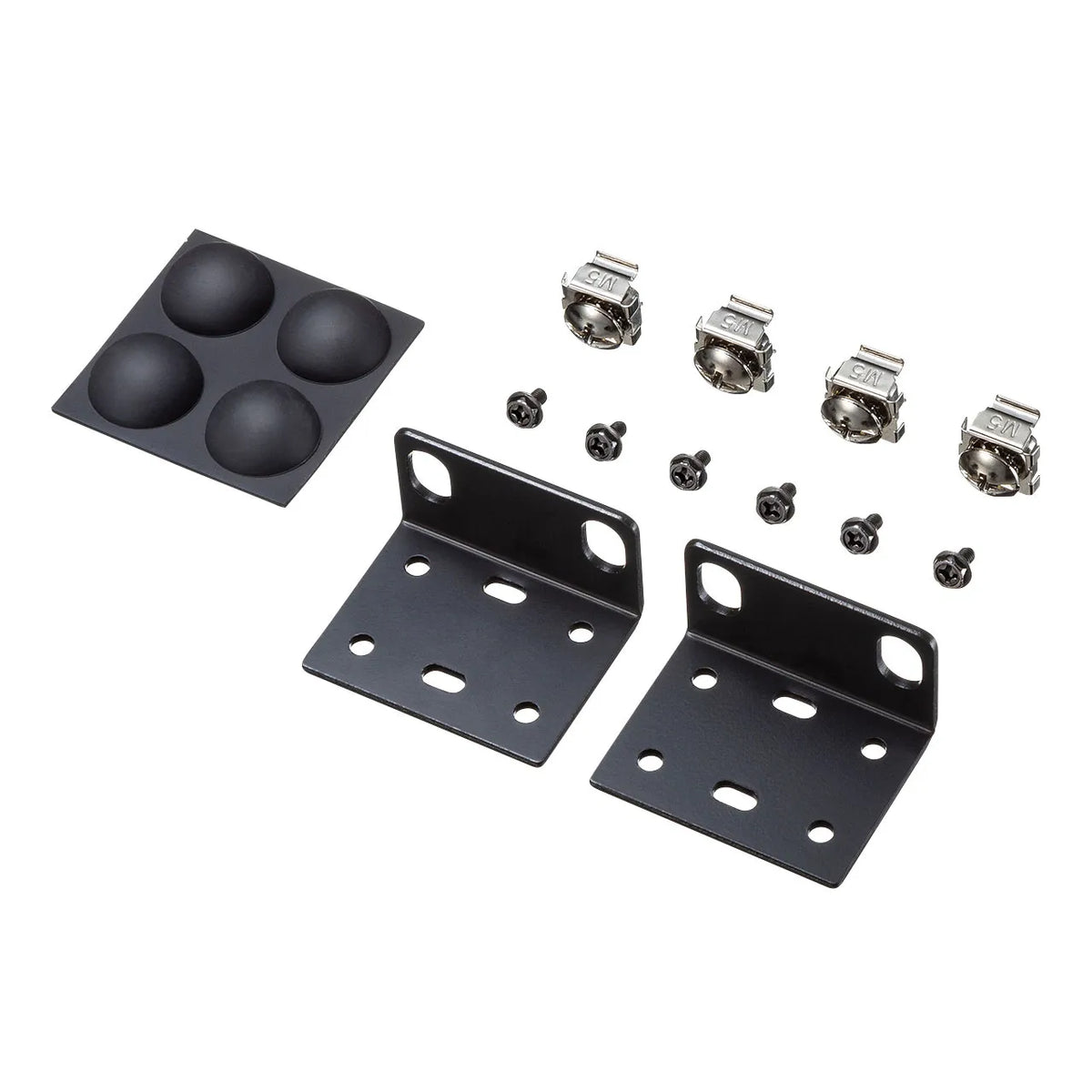

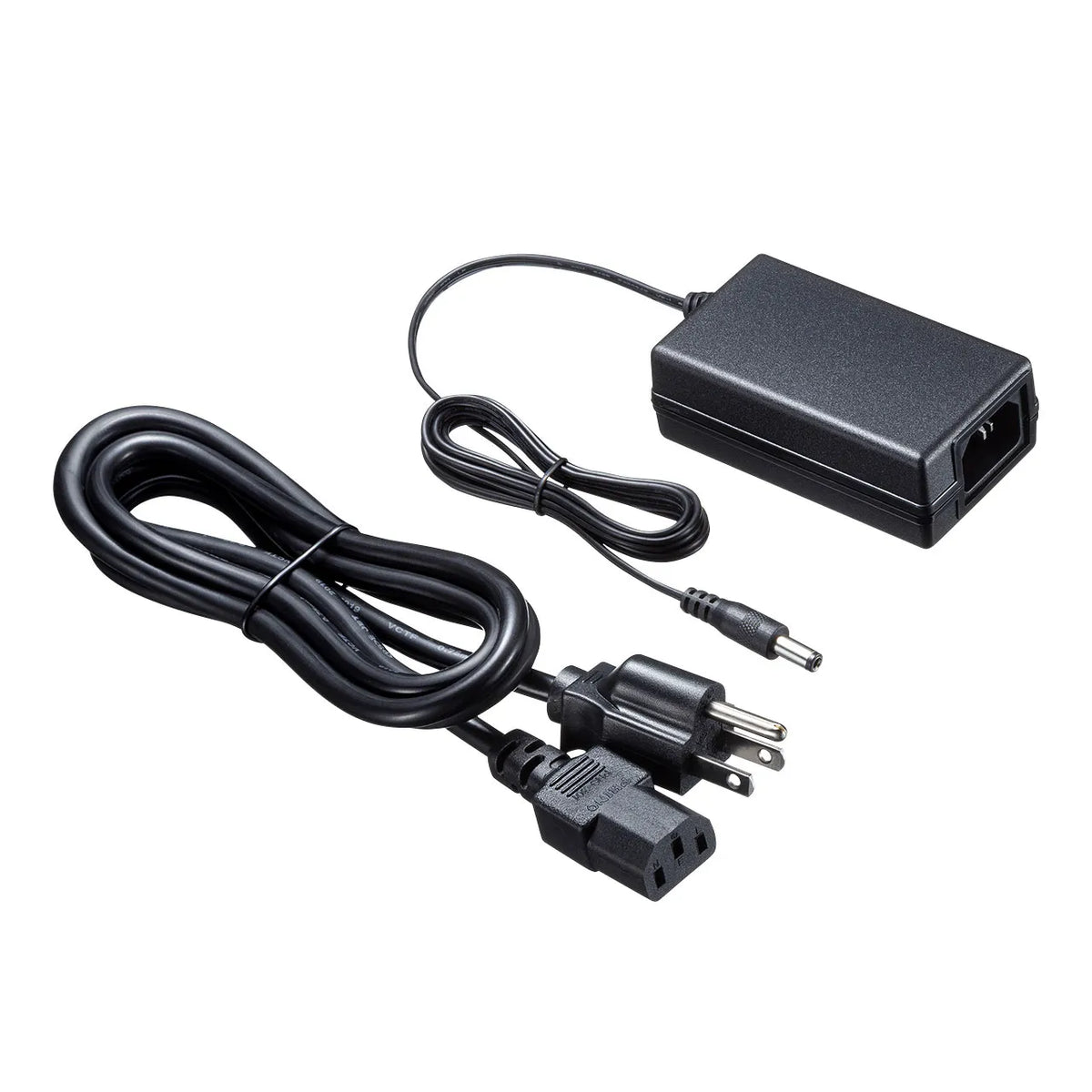

■Distribution: 8-way distribution ■Maximum display resolution: 4K2K (4096x2160) ■Main supported resolutions: 4096x2160 60Hz (4:4:4) 4096x2160 60Hz (4:2:0) 3840x2160 60Hz (4:4:4) 3840x2160 60Hz (4:2:0) 1920x1200 60Hz 1920x1080 60Hz ■Data rate (maximum): 6.0Gbit/s ■Pixel clock (maximum): 600MHz ■Input DDC signal: 5V ■HDCP: HDCP2.2, HDCP1.4 compatible *The display must also be HDCP compatible. ■CEC (Connected Electronic Control): Supported ■Interface: Input: HDMI Type A (19-pin) female x1 Output: HDMI Type A (19-pin) female x8 ■Power Consumption: 11.95W ■Material: Steel ■Environmental Conditions: Operating: 0 to 50 degrees Celsius, humidity 80% or less (non-condensing) Storage: -20 to 60 degrees Celsius, humidity 80% or less (non-condensing) ■Recommended Cable Length Between Devices: Maximum 5 to 10m ■Dimensions: W432.4 x D154 x H44mm ■Weight: 2.2kg ■Accessories: AC adapter (DC 5V/4A), HDMI cable (1.8m) x1, AC cord (for adapter) , rubber feet, server rack mounting brackets, instruction manual, warranty card ≪Caution≫ *When cascading, the increased number of contacts will make it more susceptible to noise than usual. Please use it with the total distance from the HDMI output device to the furthest display as short as possible. *When connecting to a DVI interface source or display device, a DVI-HDMI conversion adapter is required separately. Audio functionality is not supported when using a DVI-HDMI conversion adapter.
