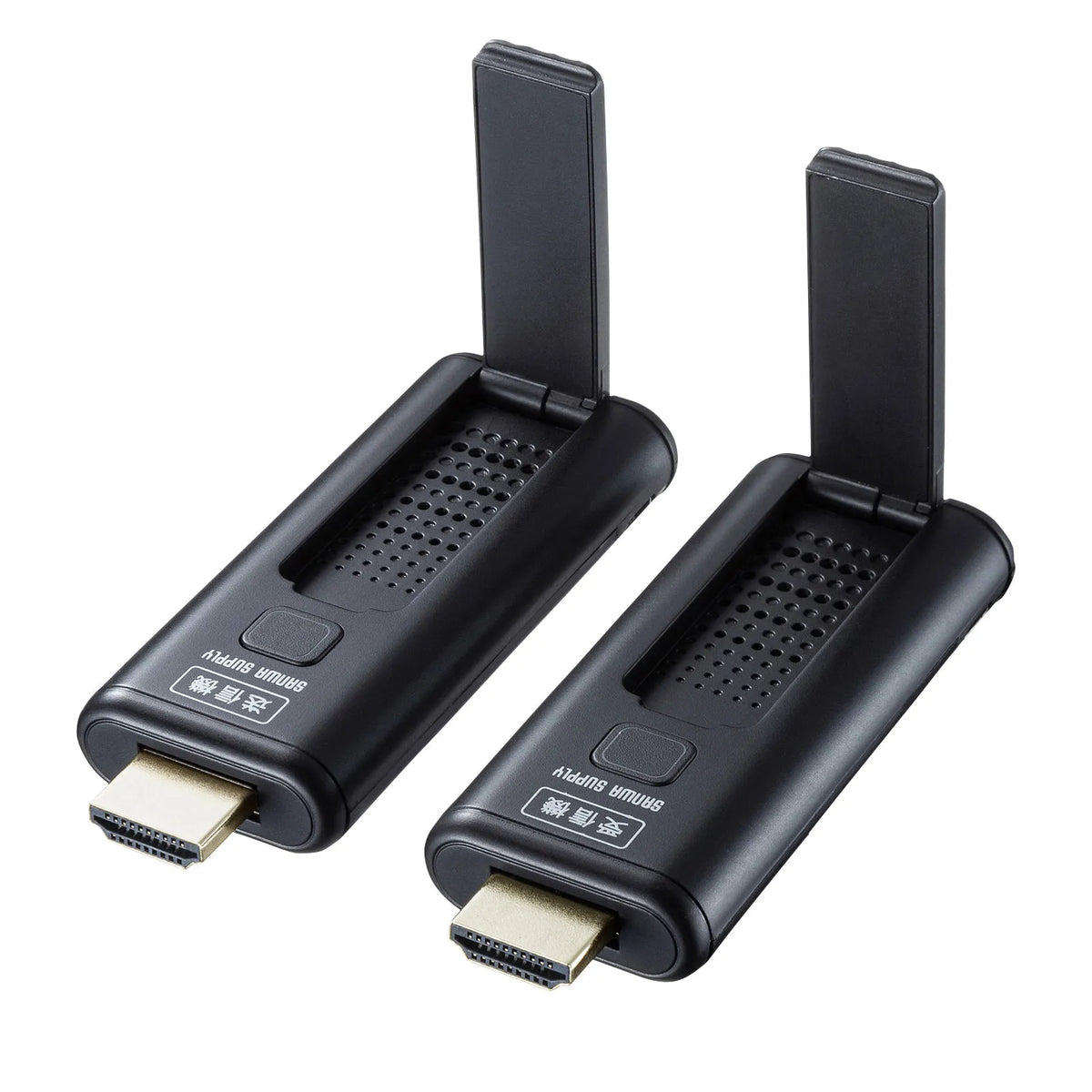

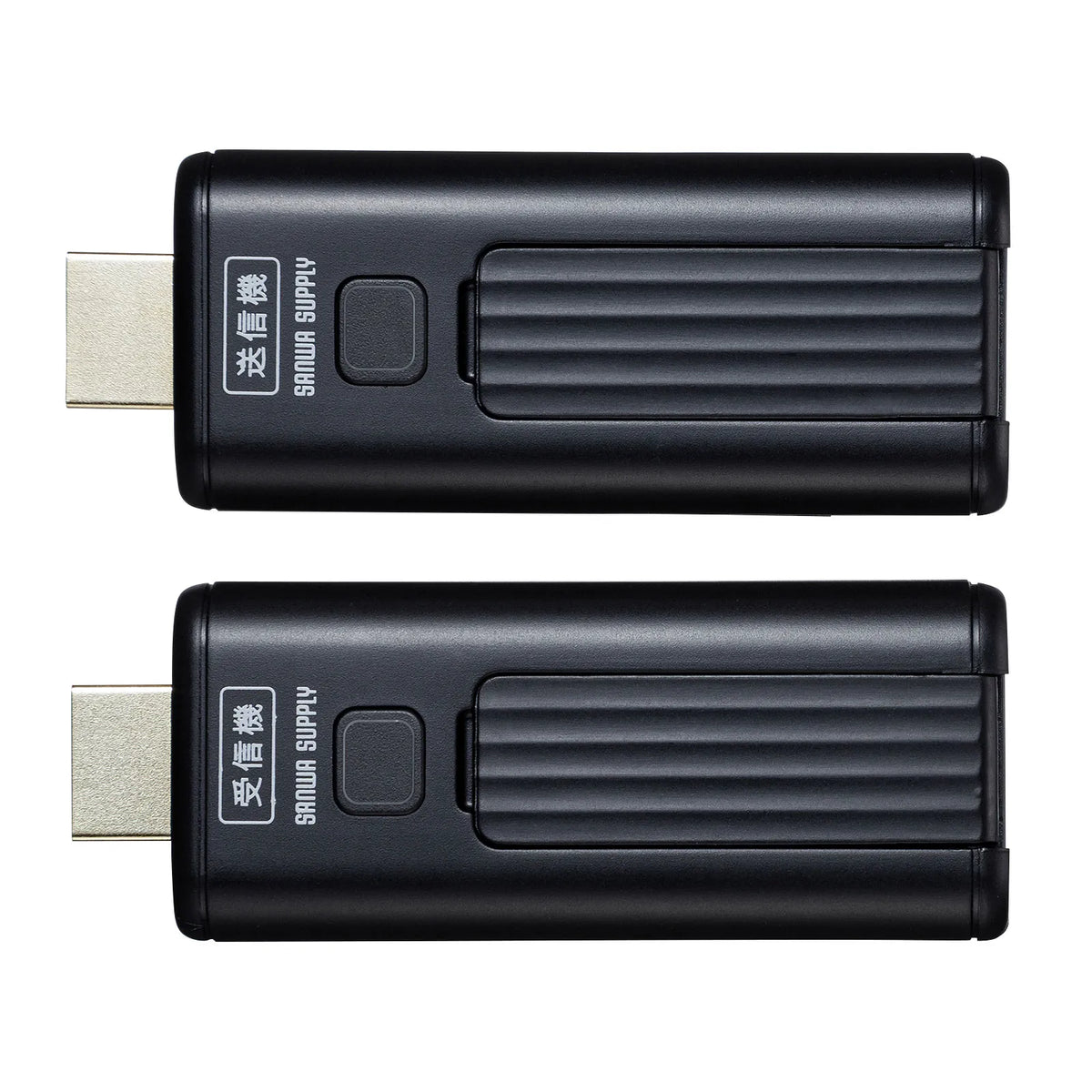

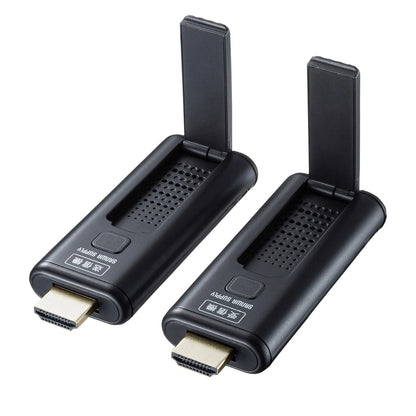

Wireless HDMI Extender VGA-EXWHD9

[This wireless HDMI transmitter/receiver set allows you to wirelessly transmit HDMI signals and output them to LCD TVs and projectors located at a distance! Up to 20 transmitters can be added, and switching between outputs is instantaneous with a single button.]

● HDMI signals can be wirelessly extended up to 15m in Full HD (1920x1080 pixels) resolution.

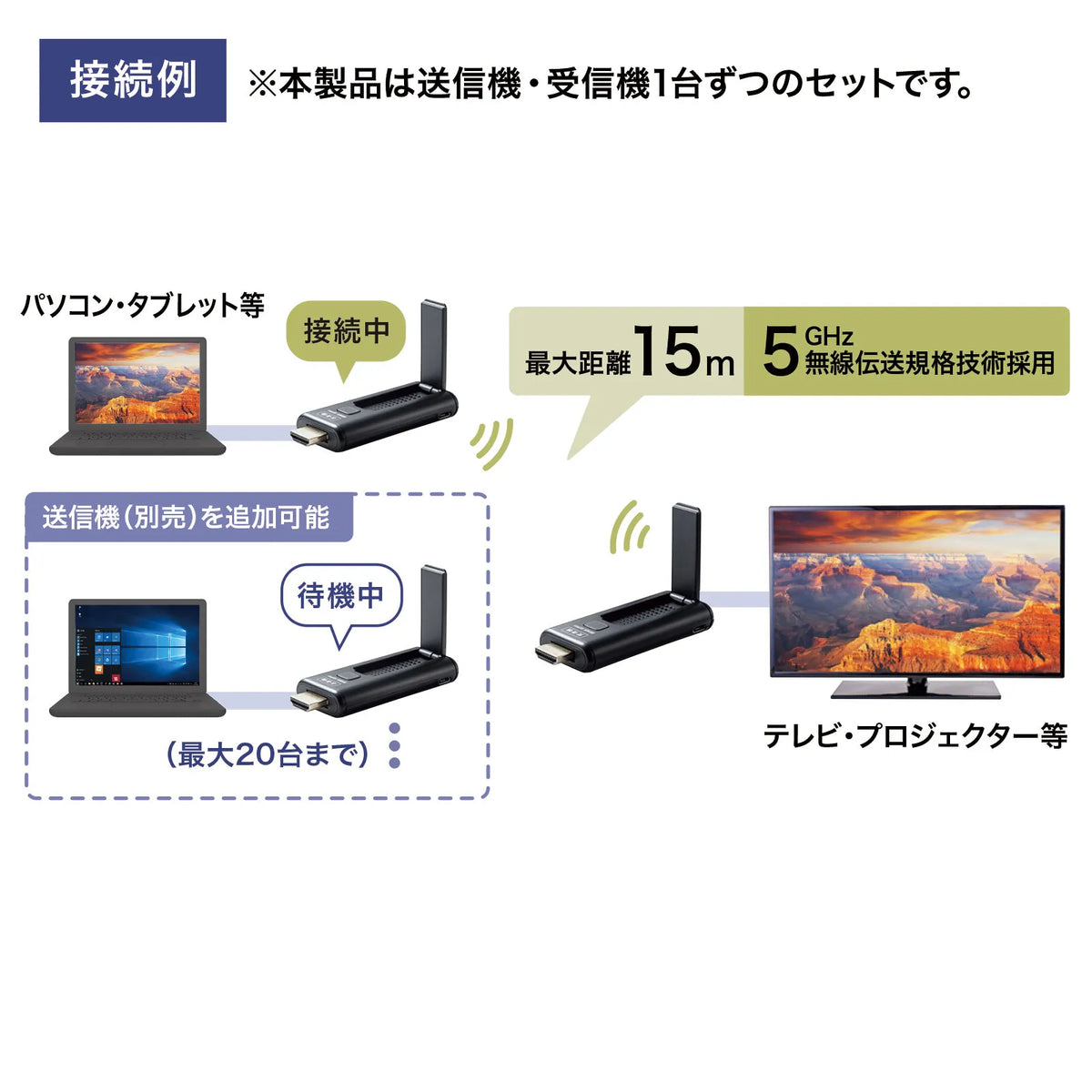

*May vary depending on the environment. ● Simply connect the transmitter to the HDMI-equipped computer, document camera, or other video output device, and the receiver to the LCD TV or projector to instantly create a wireless setup.
● The transmitter and receiver are pre-paired, so they will start linking automatically upon connection. No complicated software settings are required.

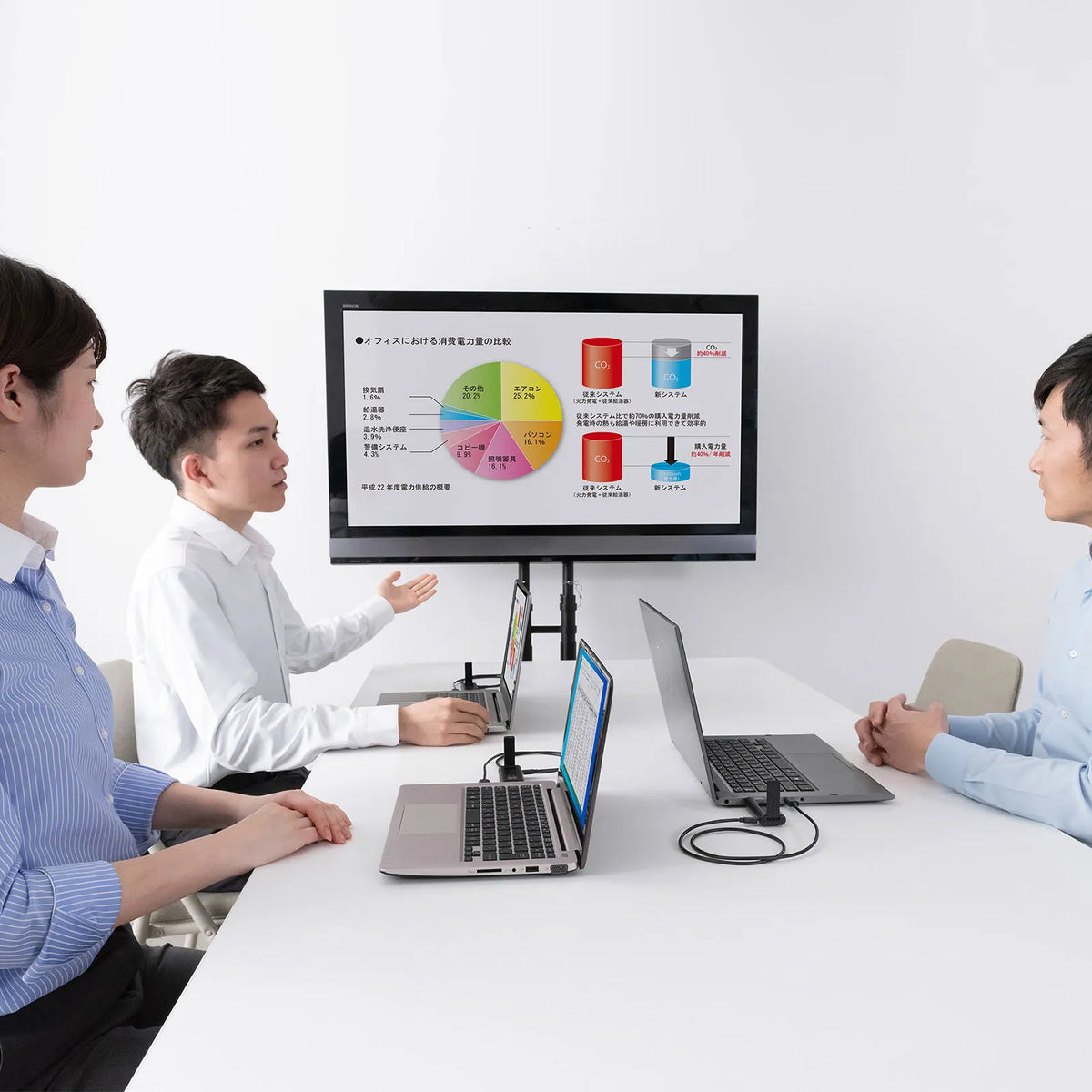

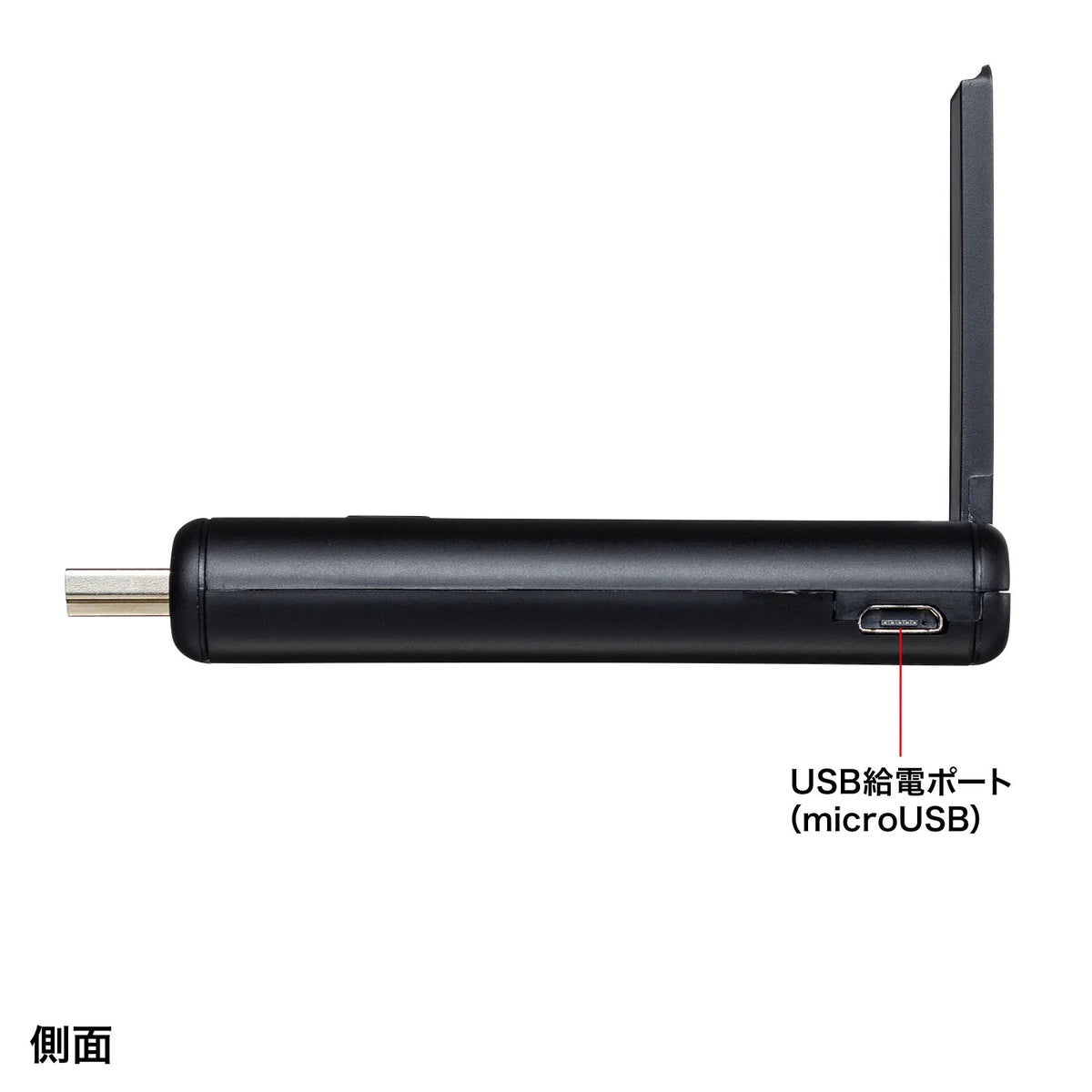

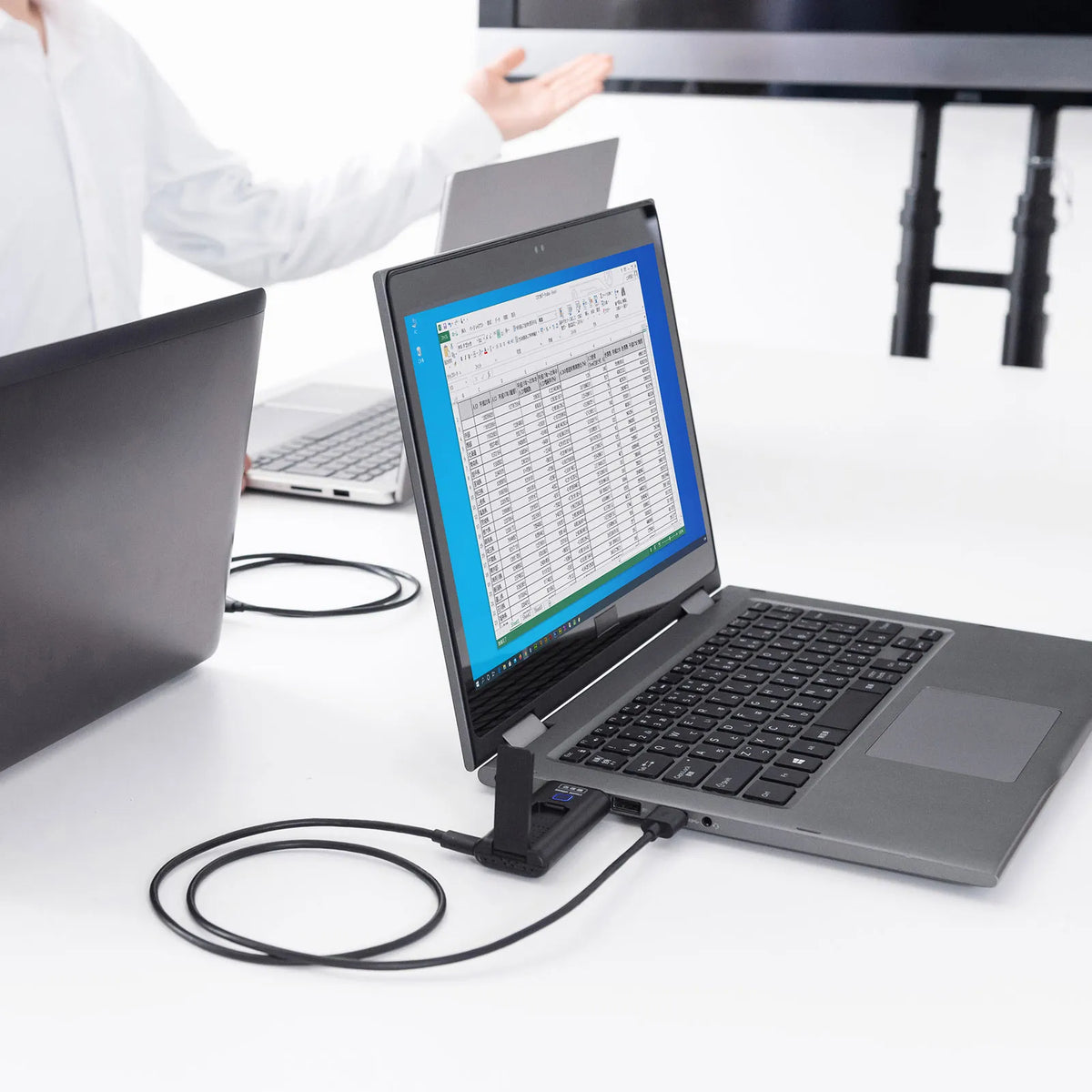

● Operates on USB power, making it ideal for conference systems and presentation environments using laptops and tablets.

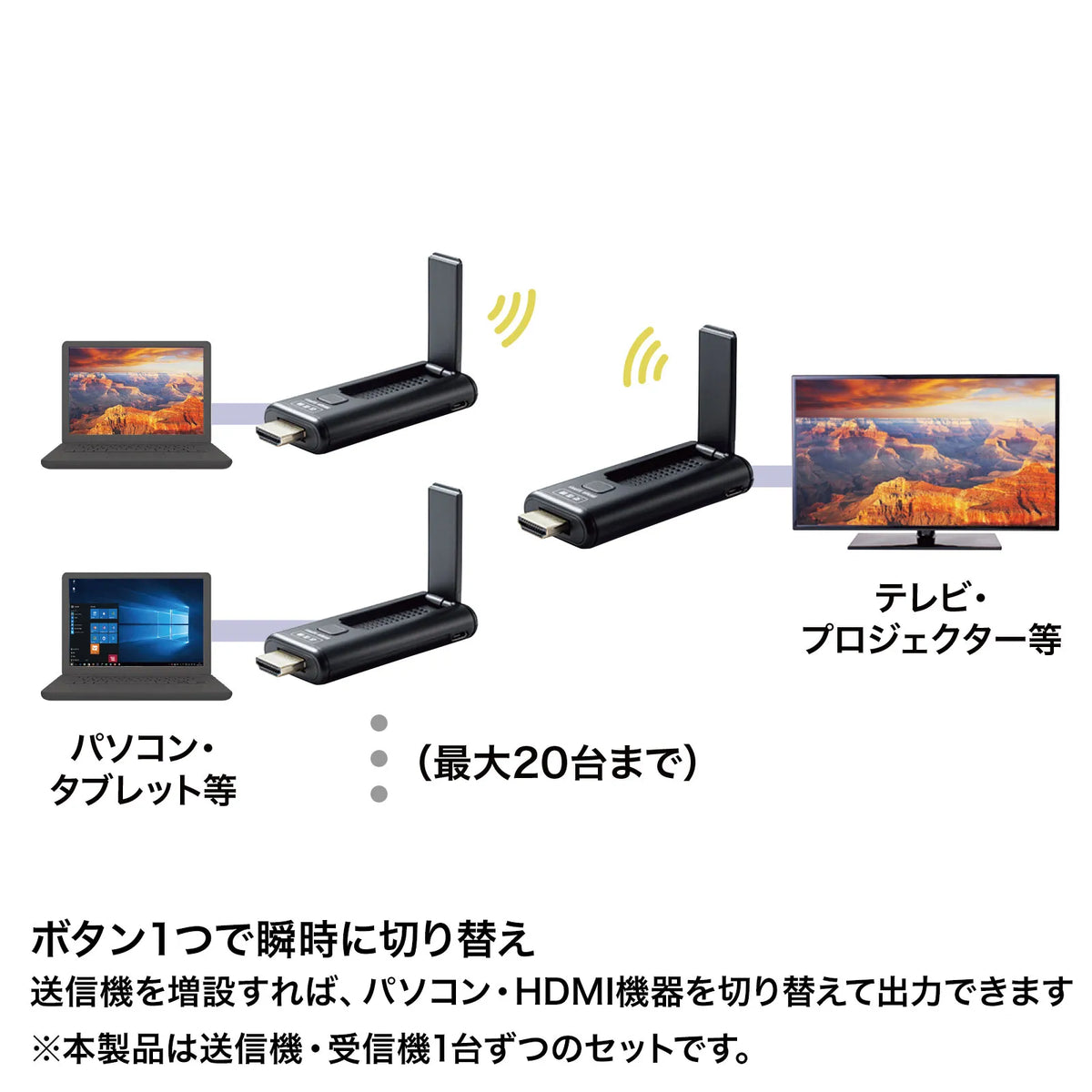

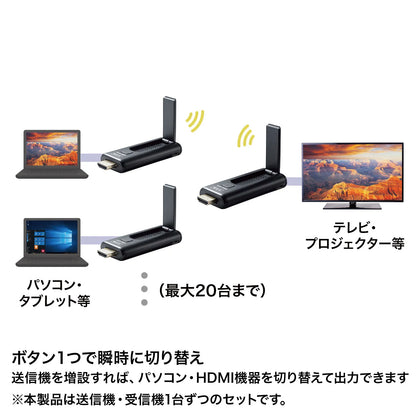

● Up to 20 additional transmitters (sold separately) can be added with simple pairing. Multiple HDMI devices can be switched and wirelessly output one after another with a single button.

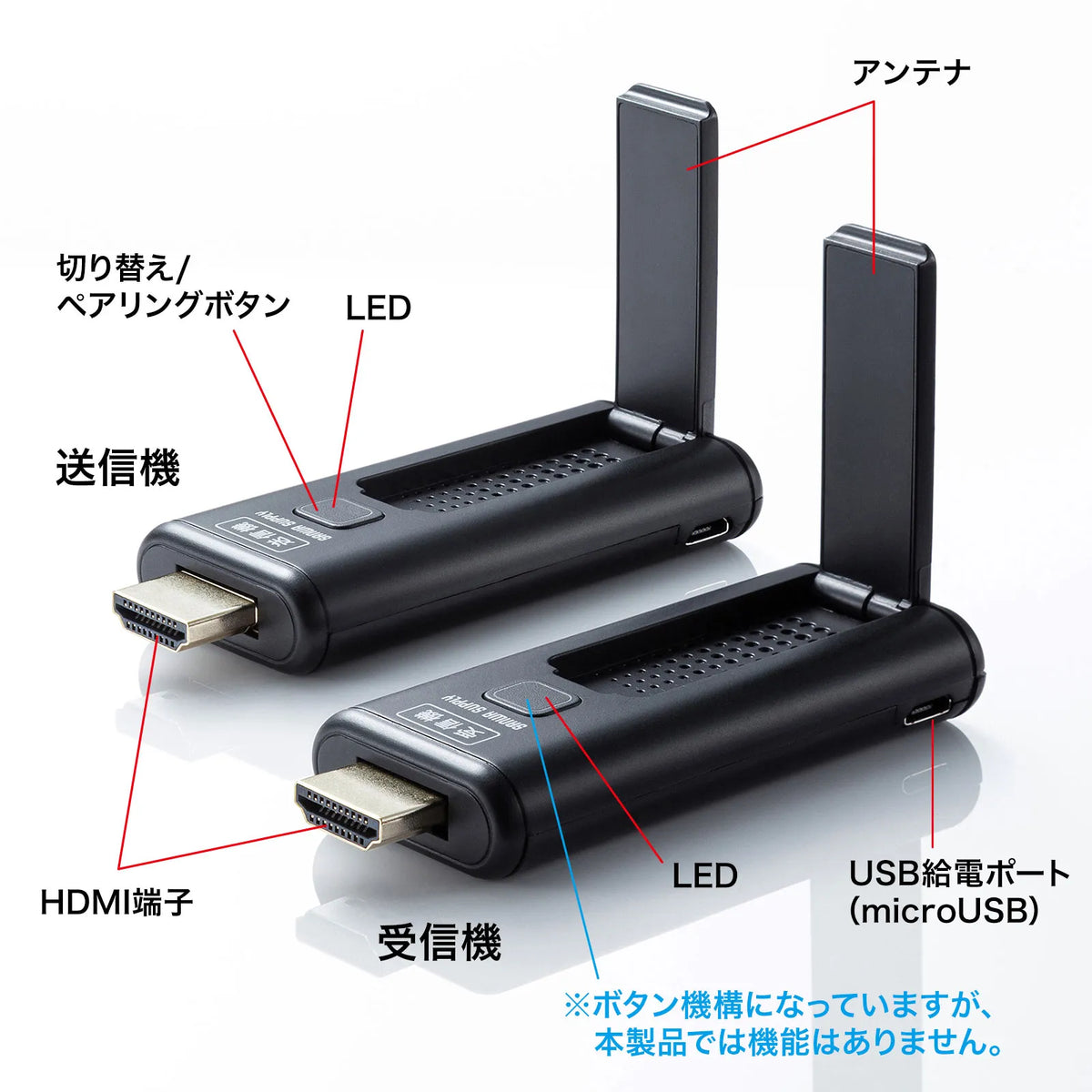

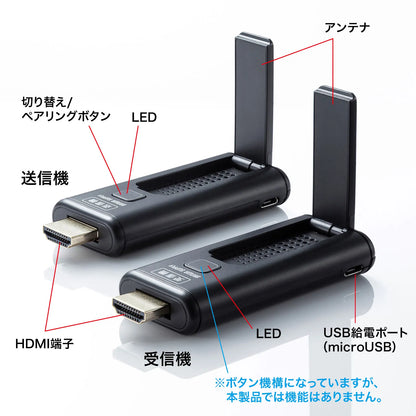

● The transmitter has a function to temporarily turn off the extended output display with a button press. It is equipped with a convenient function for when you don't want to display unnecessary information, such as during a presentation.
*When the display is OFF, the default screen of this product will be displayed on the TV/projector.
●High-quality audio signals can be wirelessly extended simultaneously with high-quality HDMI video signals.
●Technical standards conformity certification (TELEC certification) for use in Japan has been obtained.

■Supported resolutions: 1920x1080 (1080p), 1280x720 (720p), 720x576 (576p), 720x480 (480p)
■Transmission distance: Up to 15m (without obstacles)
*May vary depending on the usage environment.
■HDCP: HDCP1.3 compatible
■Operating frequency band: 5.1GHz to 5.25GHz
■Interface: HDMI Type A (19pin) male x1
■Device control: CEC not supported
■Supported audio format: PCM
■Video delay: within 100ms
■Environmental conditions:
Operating: 0 to 40 degrees Celsius, humidity 10% to 80% or less (non-condensing)
Storage: -10 to 60 degrees Celsius, humidity 5% to 90% or less (no condensation)
■Power consumption: Maximum 2.5W
■Size: W32xD83xH13mm
■Weight: Approx. 27g
■HDMI standard: HDMI1.4
■Number of additional units: Up to 20 units (Up to 20 transmitters can be added to one receiver)
■Number of units usable in the same space: 4 units
Up to 4 sets in 200 square meters
*Operation not guaranteed.
■Set contents: Transmitter x1, Receiver x1, USB power supply cable (approx. 70cm x2), HDMI extension cable (approx. 10cm x2), Instruction manual x1
≪Caution≫
*This product has the capability to use up to 4 sets simultaneously in the same space (approx. 200 square meters), but the operating results vary greatly depending on the connected equipment and radio wave environment. Operation is not guaranteed when using multiple sets simultaneously.
*If this product is used in adjacent rooms, it may not function properly if the radio waves are within the interference range. In that case, please stop using one of the products.
*Since the transmitter and receiver of this product are individually paired, there will be no interference with unpaired devices.
*The connection time between the transmitter and receiver, and the time until the video is displayed, varies from approximately 20 to 50 seconds depending on the equipment environment and radio wave environment.
*Operation is not guaranteed with all devices.
