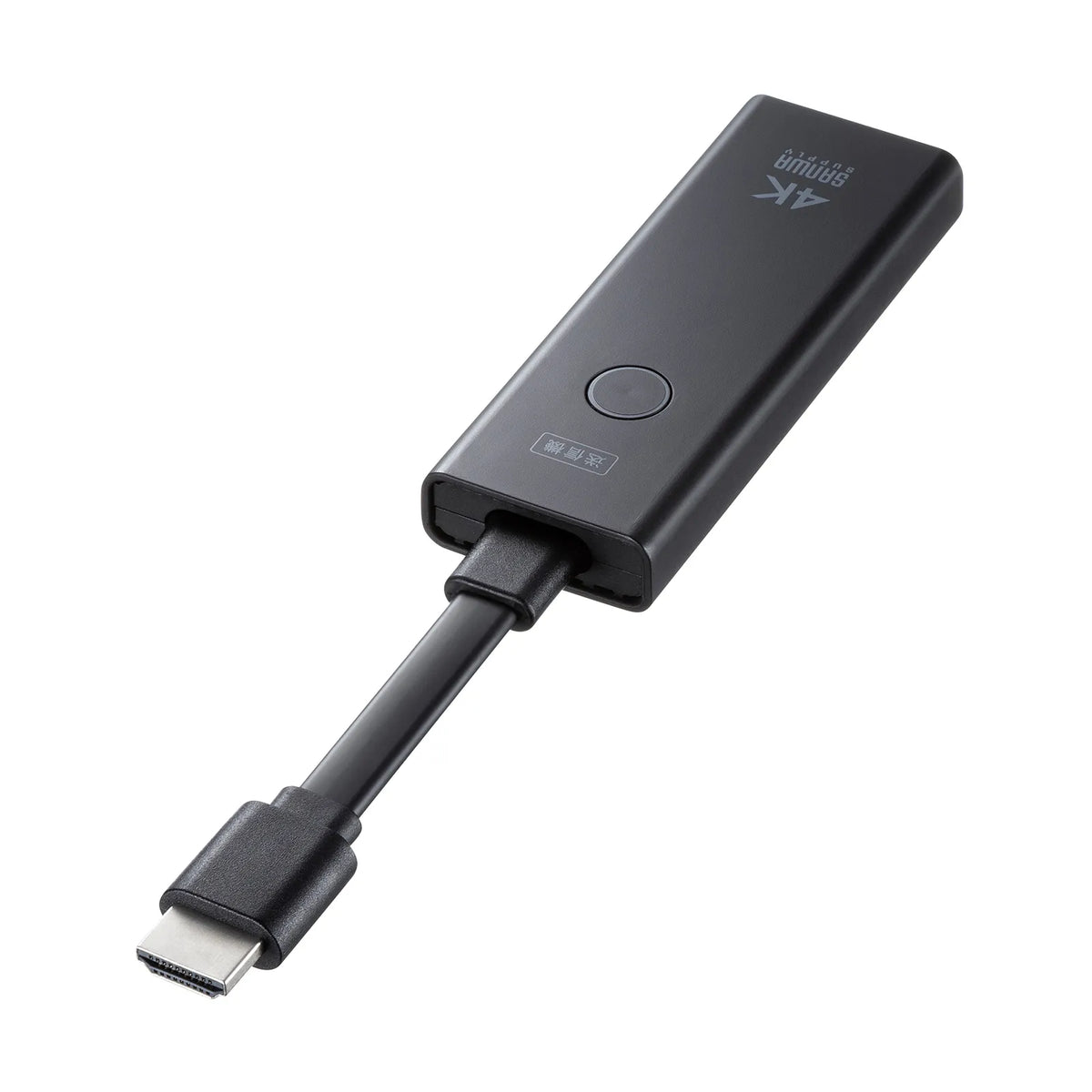

4K-compatible wireless HDMI extender (transmitter only) VGA-EXWHD12TX

[This wireless HDMI transmitter and receiver set allows you to wirelessly transmit HDMI signals and upscale them to 4K/60Hz resolution for display on large TVs and other displays! Up to 20 transmitters can be added, and switching between them is instantaneous with the touch of a button. ]

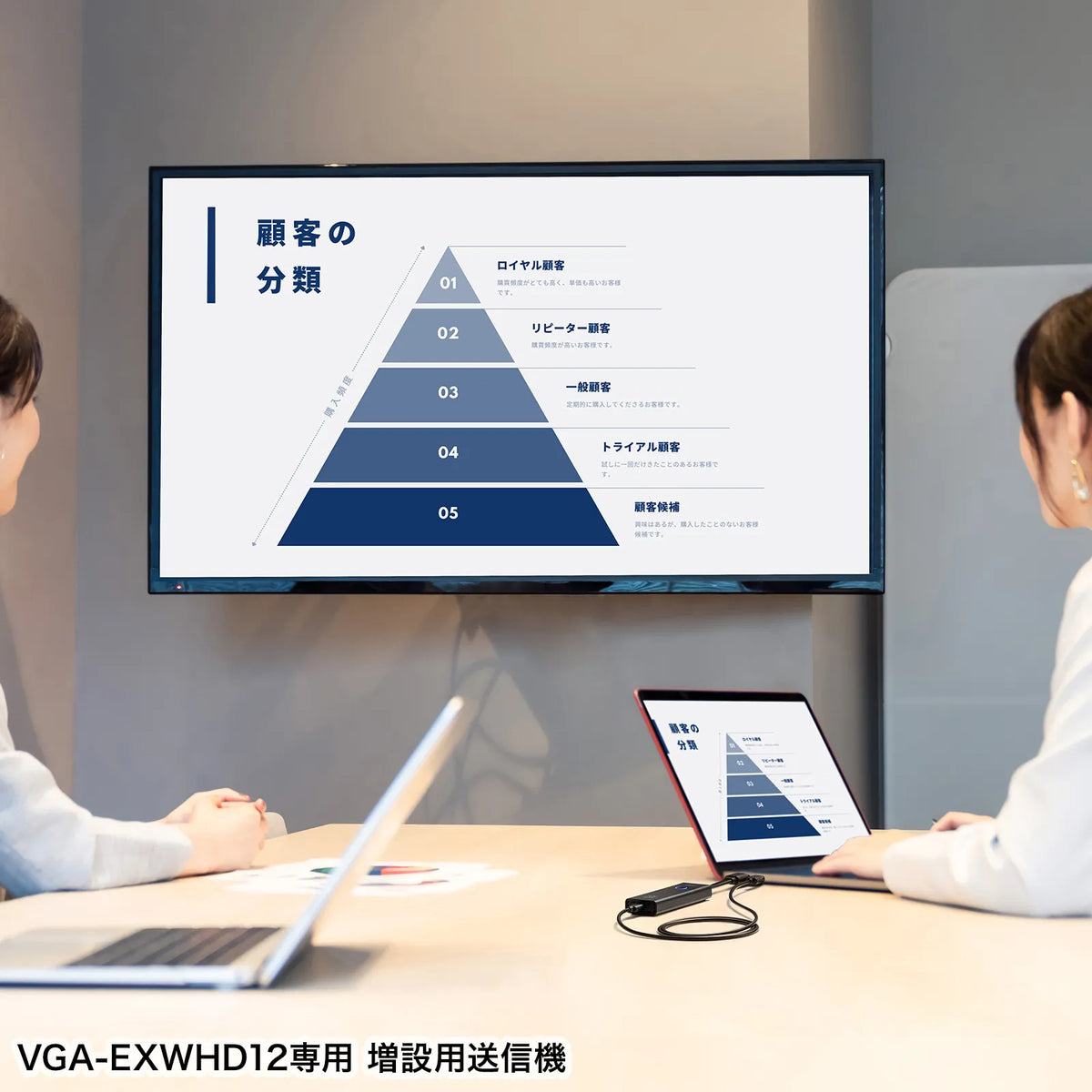

●This is a transmitter (standalone) that can be added to or expanded from the Wireless HDMI Extender VGA-EXWHD12/12C.

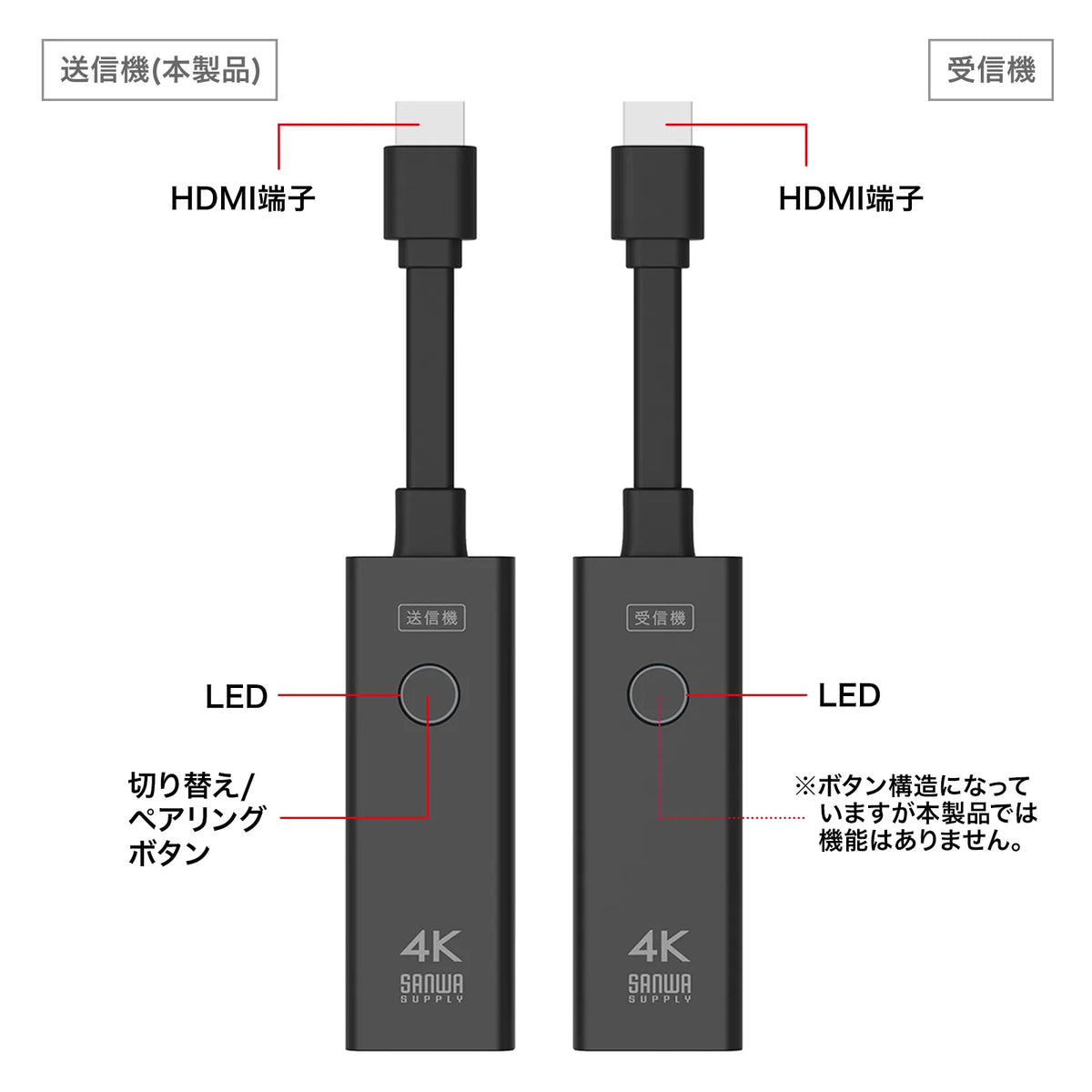

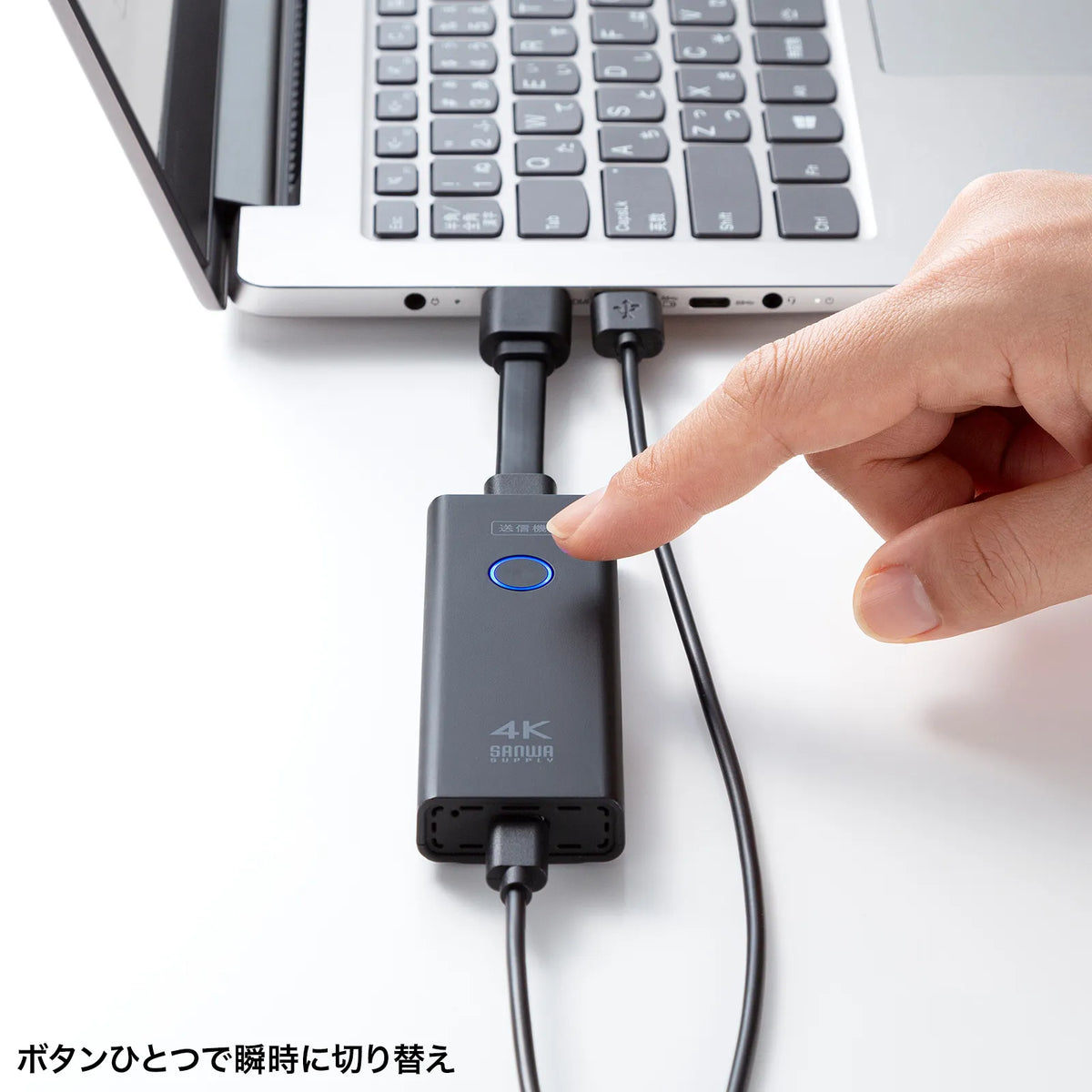

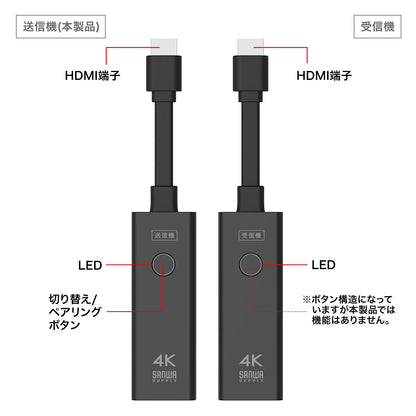

●It can be added to or expanded from an existing VGA-EXWHD12/12C environment with simple pairing. Multiple HDMI devices can be switched with the touch of a button and wirelessly output one after another.

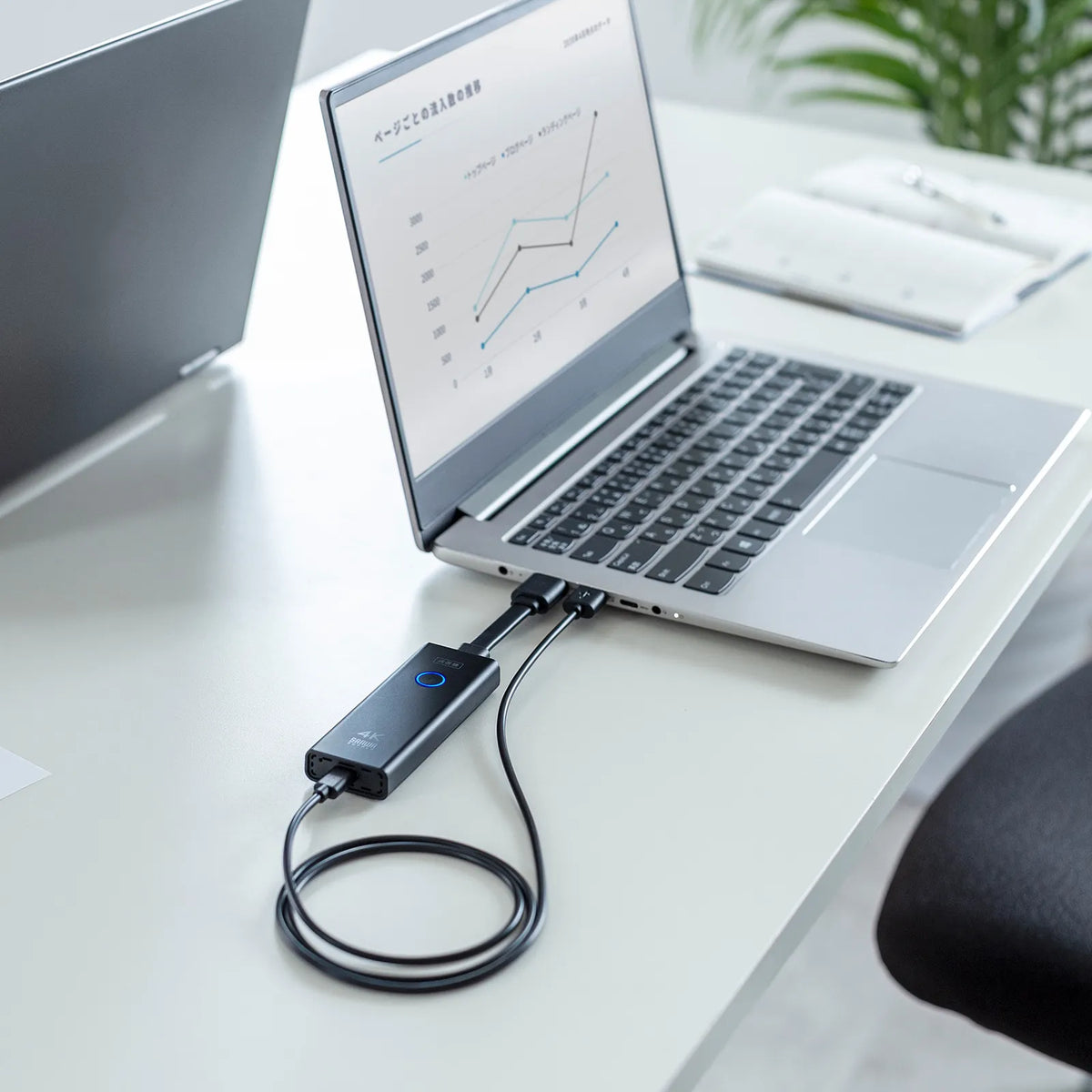

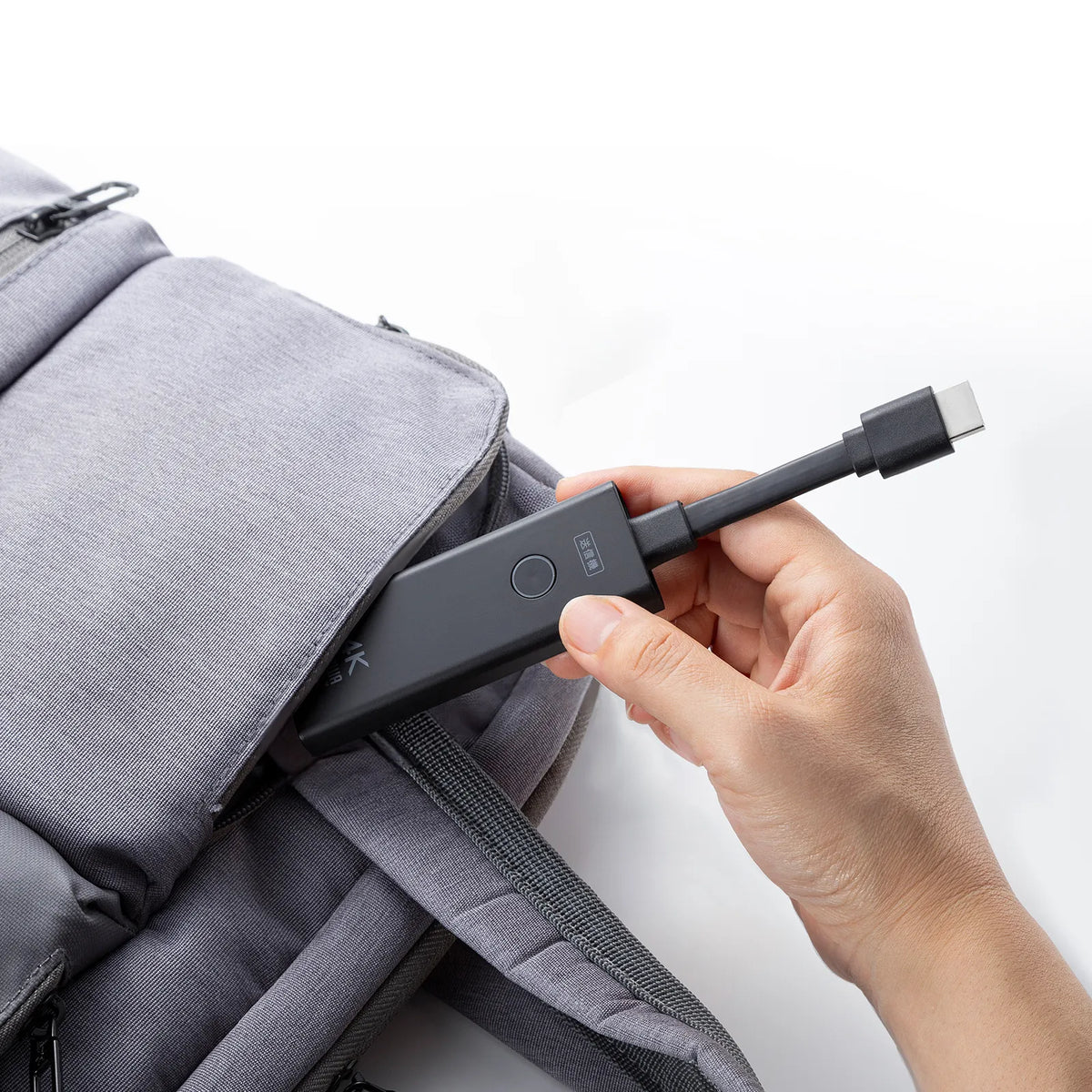

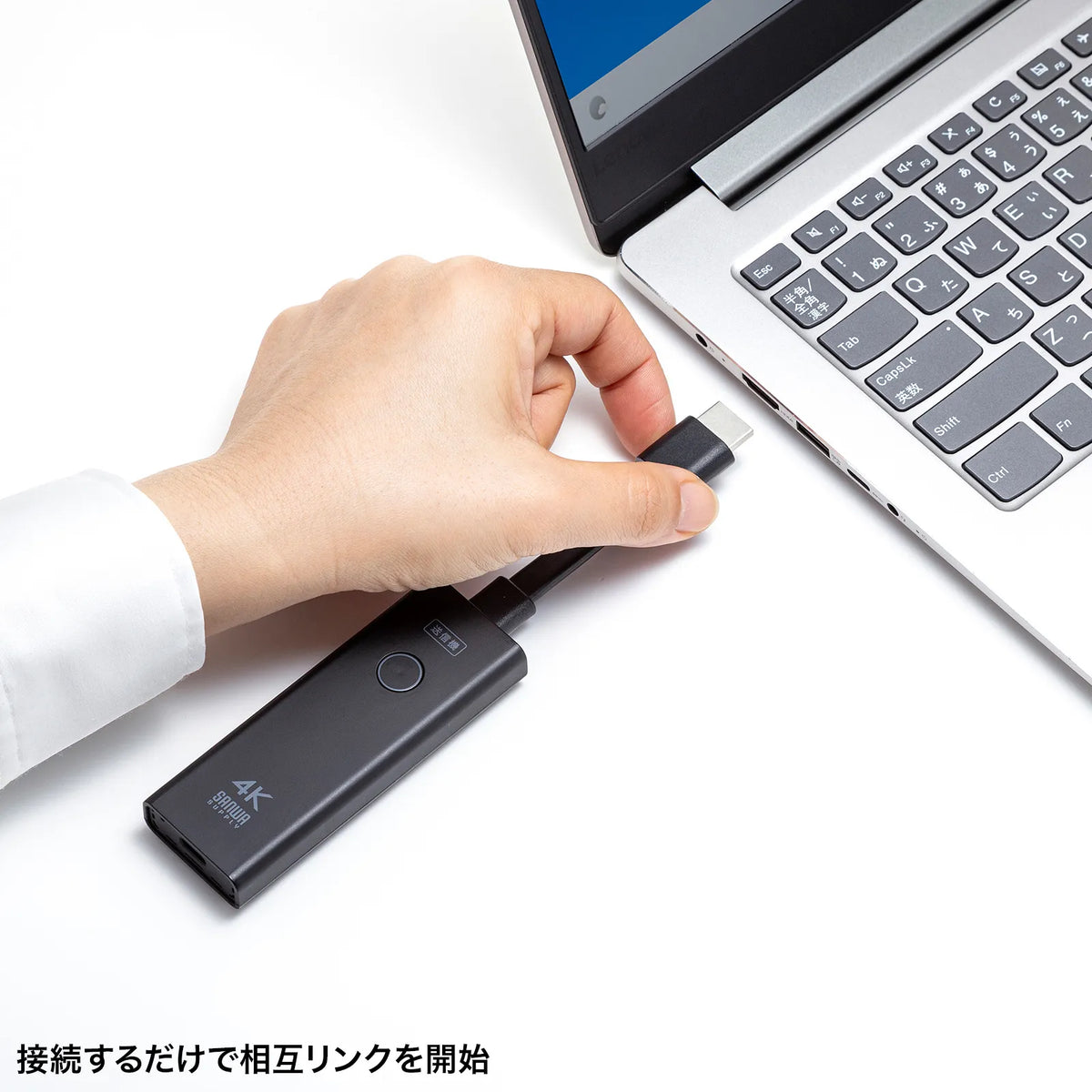

●It operates on USB power, making it ideal for conference systems and presentation environments using laptops and tablets.
●High-quality audio signals can be wirelessly extended simultaneously with HDMI video signals.
●It has obtained technical standards conformity certification (TELEC certification) for use in Japan.




■Compatible devices: Video equipment, PCs, document cameras, etc. that have a standard HDMI output terminal
■Compatible input signal: HDMI
■Interface: HDMI Type A (19pin) male x1
■Transmission distance: Up to 15m (without obstacles)
*May vary depending on the environment in which you are using it.
■Operating frequency band: 5.1GHz to 5.25GHz
■HDMI standard: HDMI Ver1.4
■HDCP: HDCP1.4
■Video delay: within approximately 100ms
■CEC (Custom Electronic Control): Not supported
■Supported audio format: PCM
■Power consumption (maximum): 4.5W
5V/0.9A

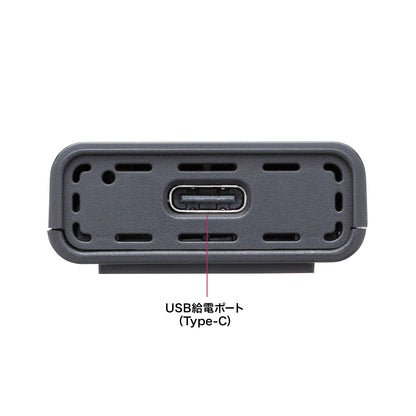

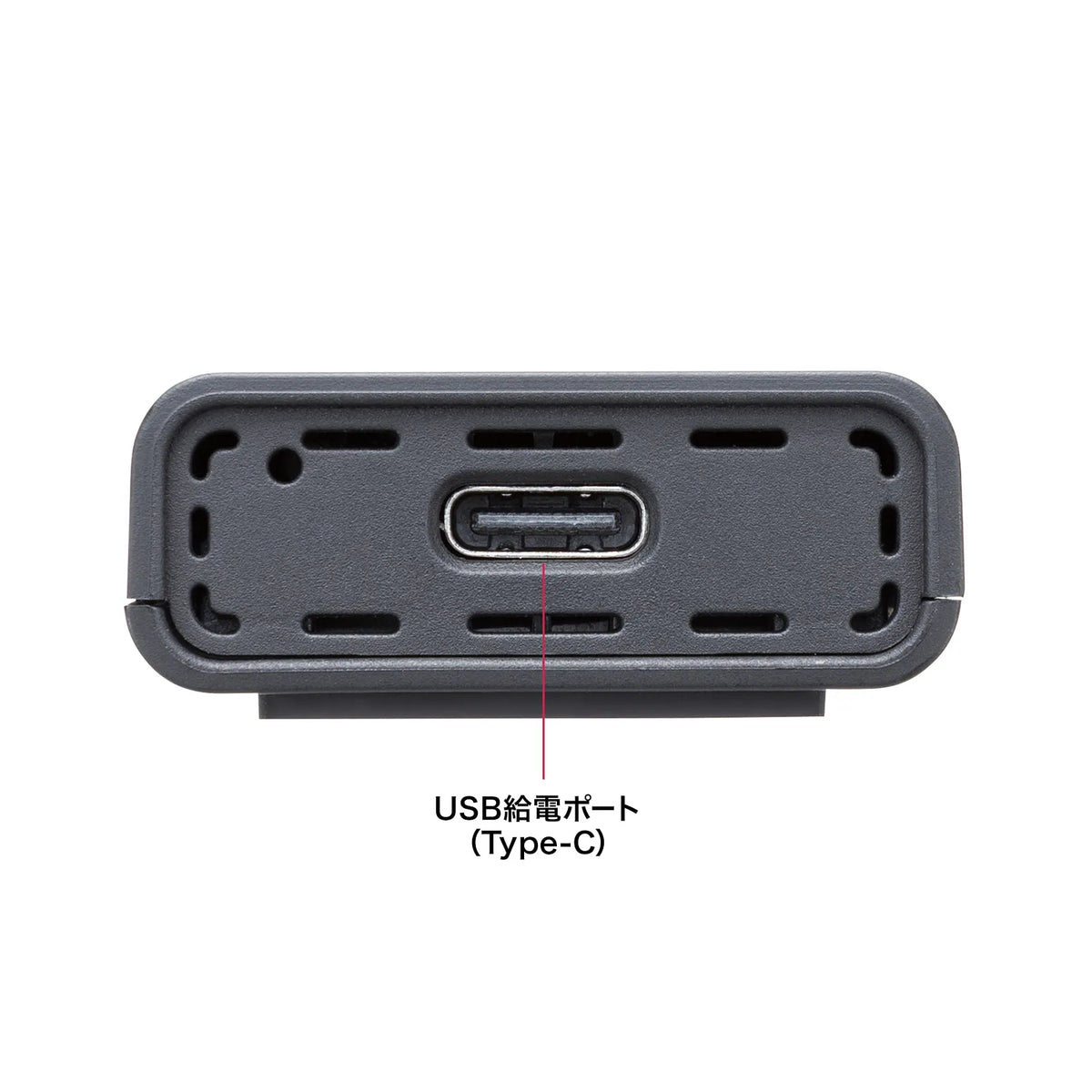

*Power supply from a USB 5Gbps (USB3.2 Gen1/USB3.1 Gen2) compliant port or a USB-AC adapter with an output of 5V/1A or higher is recommended
■Operating temperature: 0 to 40 degrees
■Storage temperature: -10 to 60 degrees
■Operating humidity: 10% to 80% or less
(non-condensing)
■Storage humidity: 5% to 90% or less
(non-condensing)
■Set contents:
Transmitter x1,

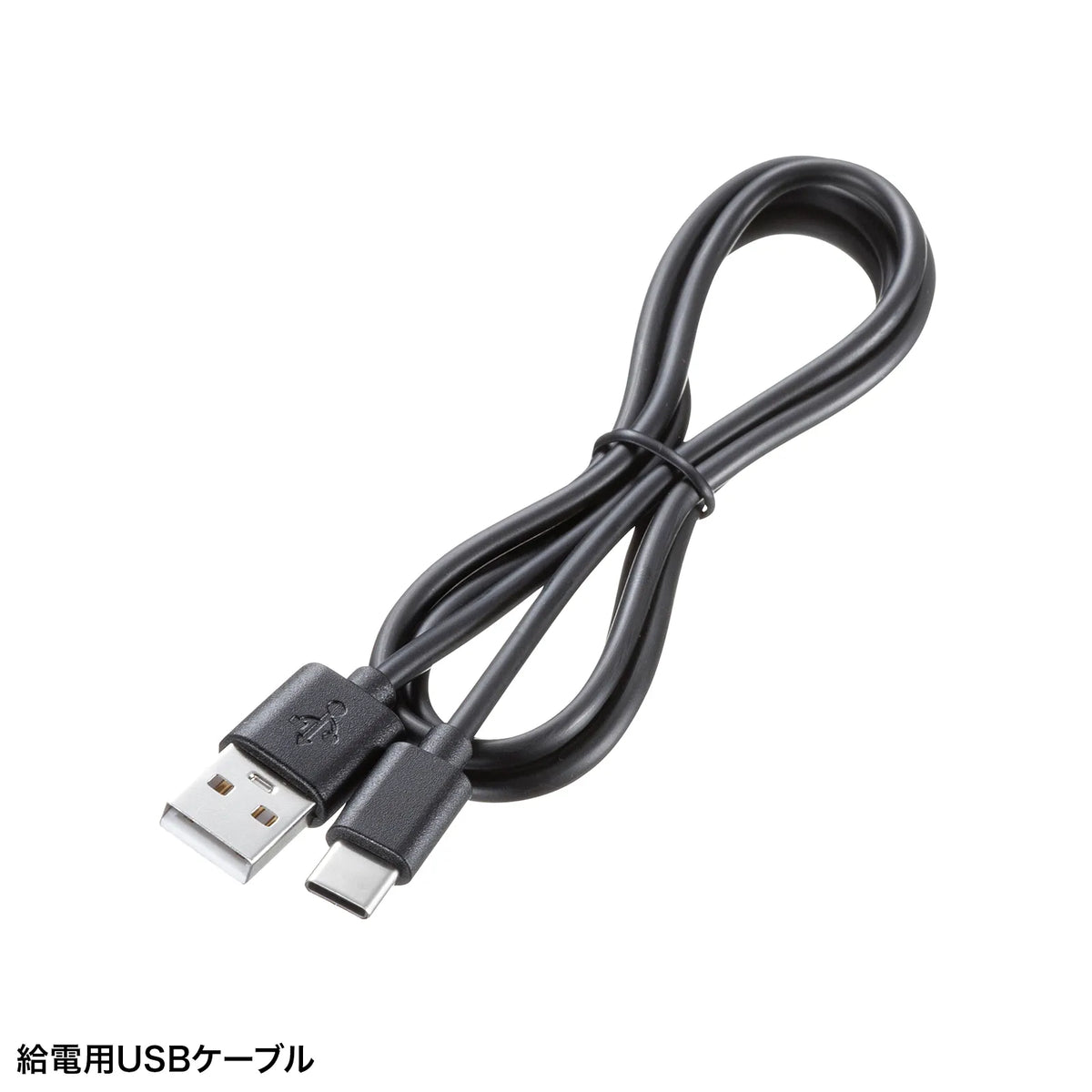

Power supply Type-C cable (approx. 1m x 1)
Instruction manual x 1
■Compatible products: VGA-EXWHD12C, VGA-EXWHD12

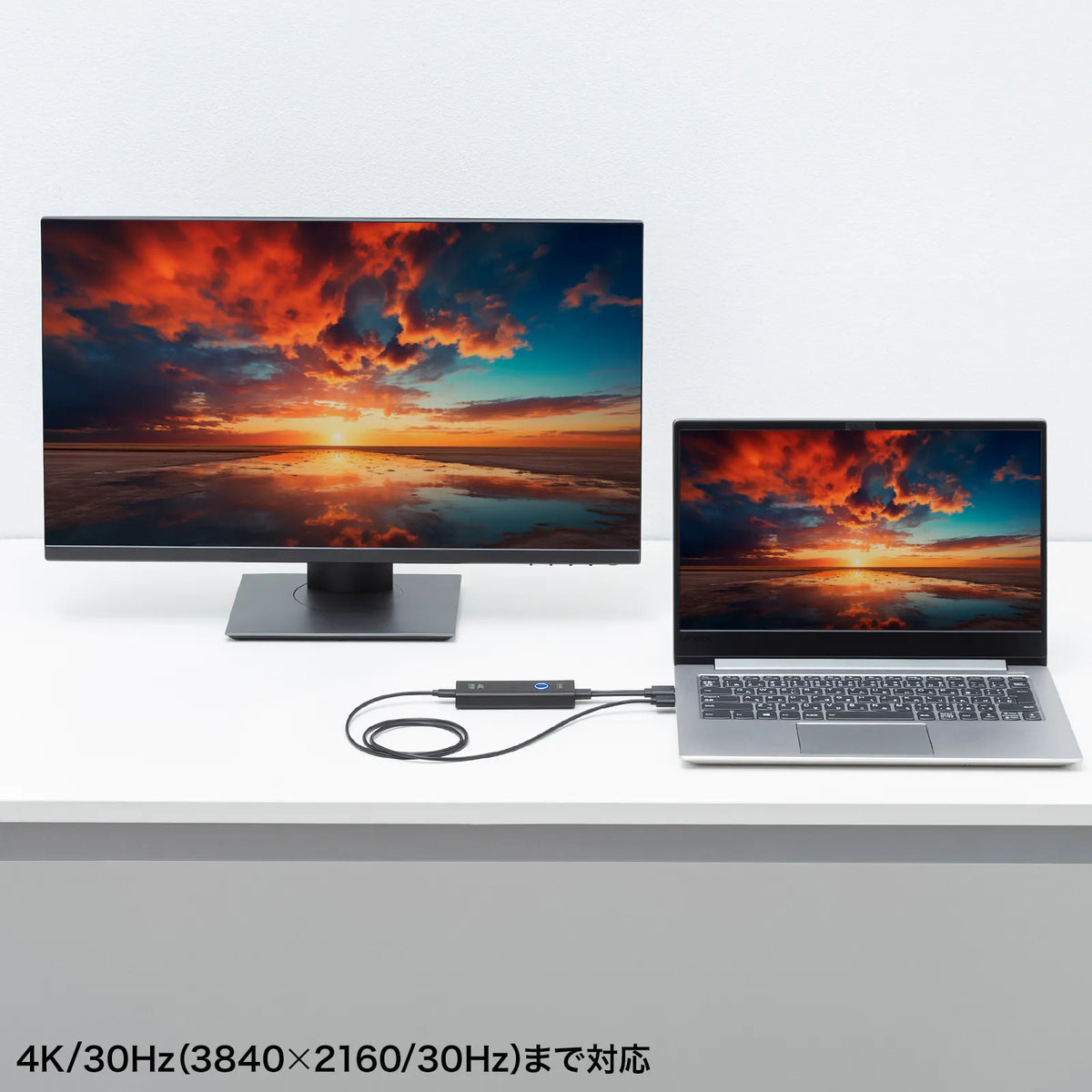

■Supported input resolution: Maximum 3840x2160 (30Hz)
■Installation conditions: Indoor use only

■【Caution】
*This product is a transmitter only. This product alone cannot transmit HDMI signals wirelessly.
Please use it in conjunction with our wireless HDMI extender VGA-EXWHD12/12C.
*If this product is used in adjacent rooms, it may not function properly if the radio waves are within the interference range.
In that case, please stop using one of the products.
*Operation is not guaranteed with all devices.
