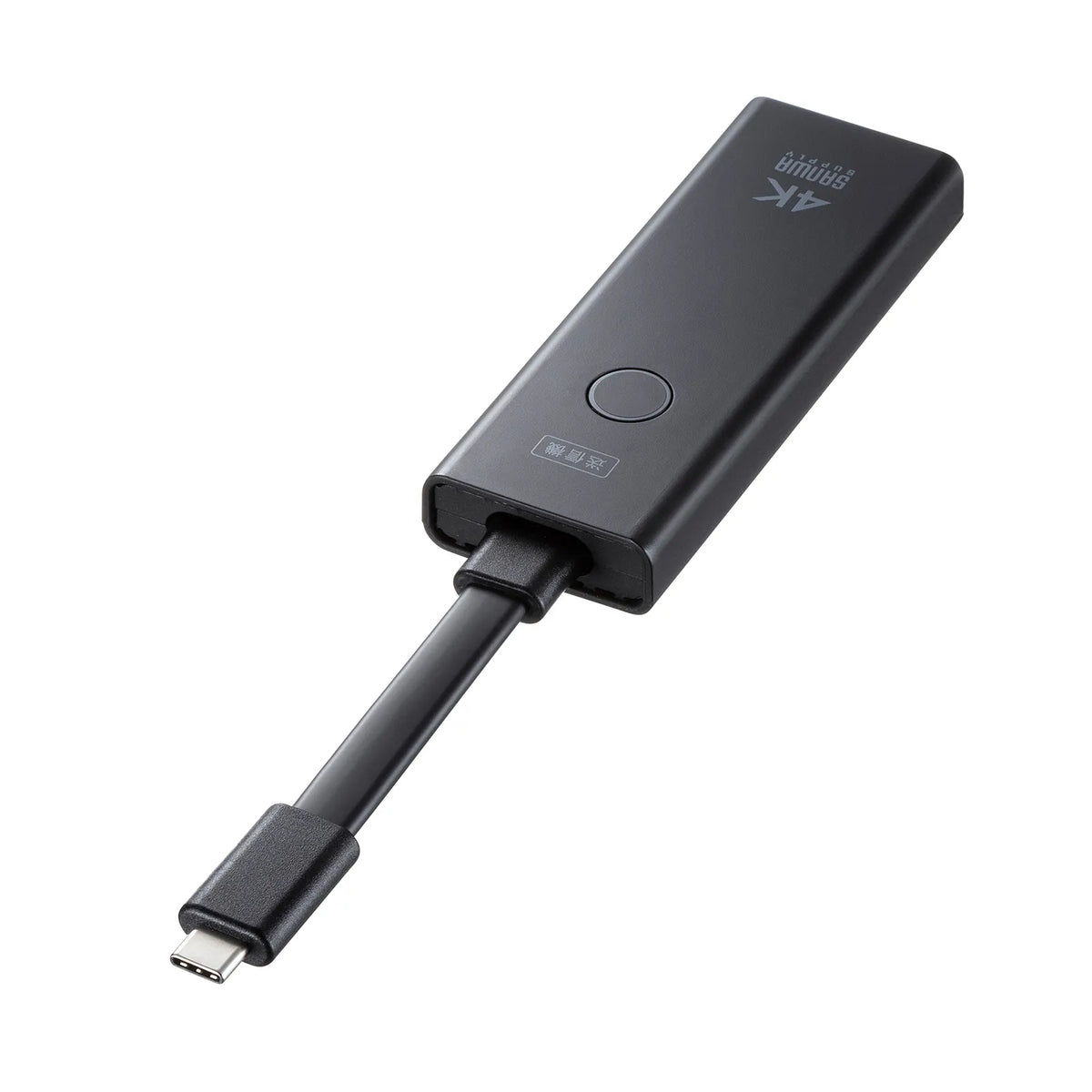

4K-compatible wireless HDMI extender (Type-C connection, transmitter only) VGA-EXWHD12CTX

[This wireless HDMI transmitter and receiver set allows you to wirelessly transmit video and audio signals from a Type-C port and upscale them to 4K/60Hz resolution for display on large TVs via HDMI output! Up to 20 transmitters can be added, and switching between them is instantaneous with a single button.]

●This is a transmitter (standalone) that can be added to or expanded from the Wireless HDMI Extender VGA-EXWHD12/12C.

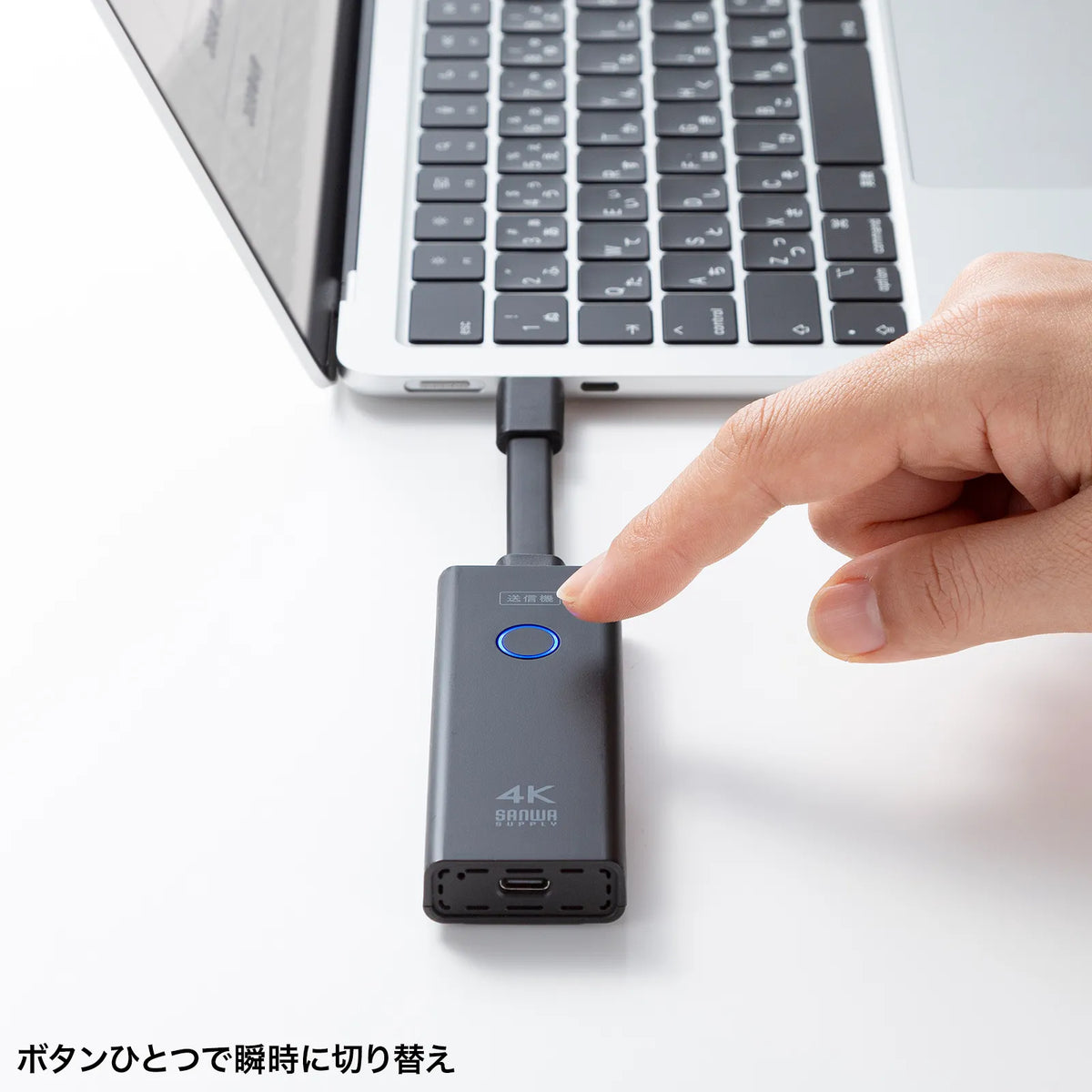

●It can be added to or expanded from an existing VGA-EXWHD12/12C environment with simple pairing. Multiple HDMI devices can be switched with a single button and wirelessly output one after another.

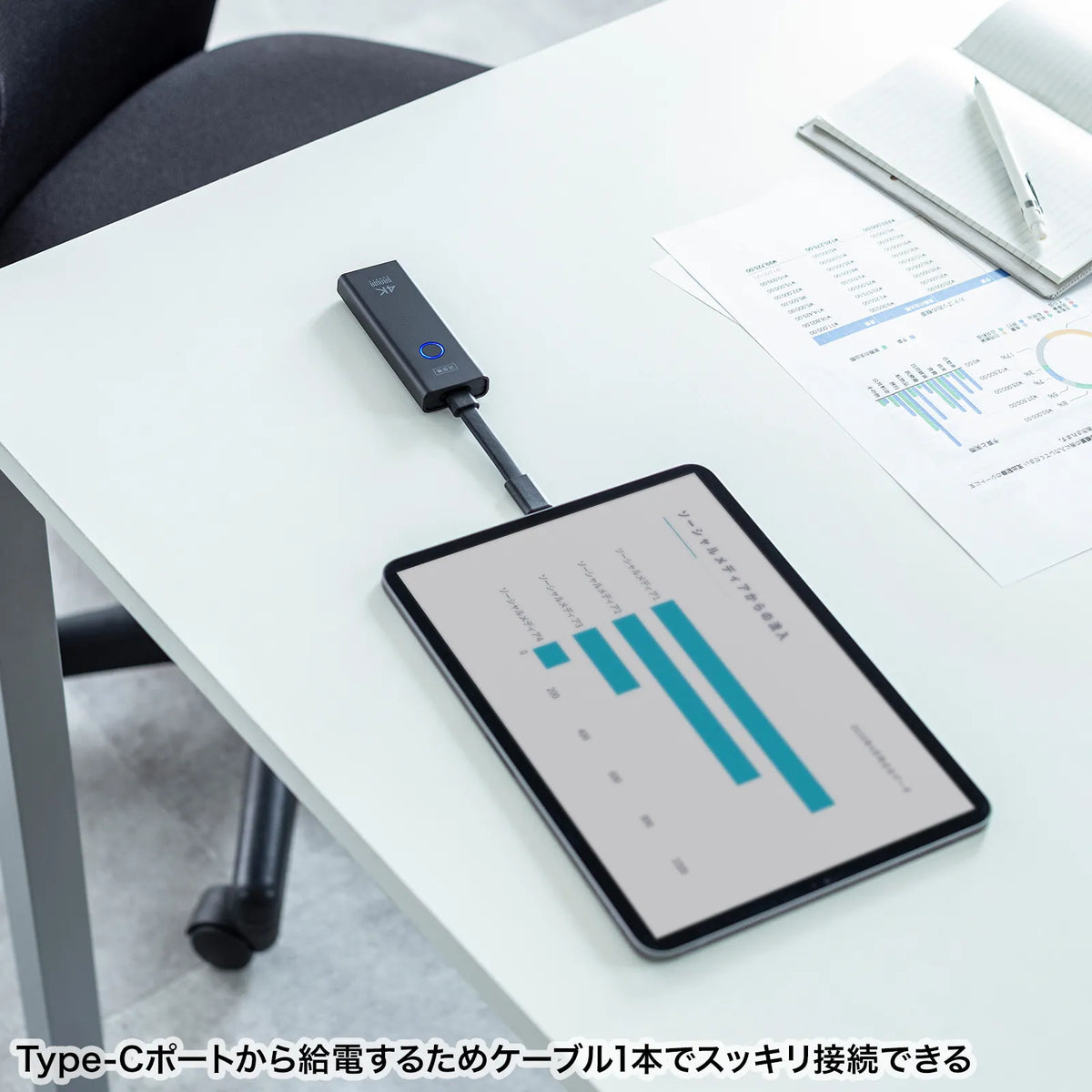

●It operates on USB power supplied from the Type-C port, so it can be connected with a single cable, making it ideal for conference systems and presentation environments using laptops and tablets.

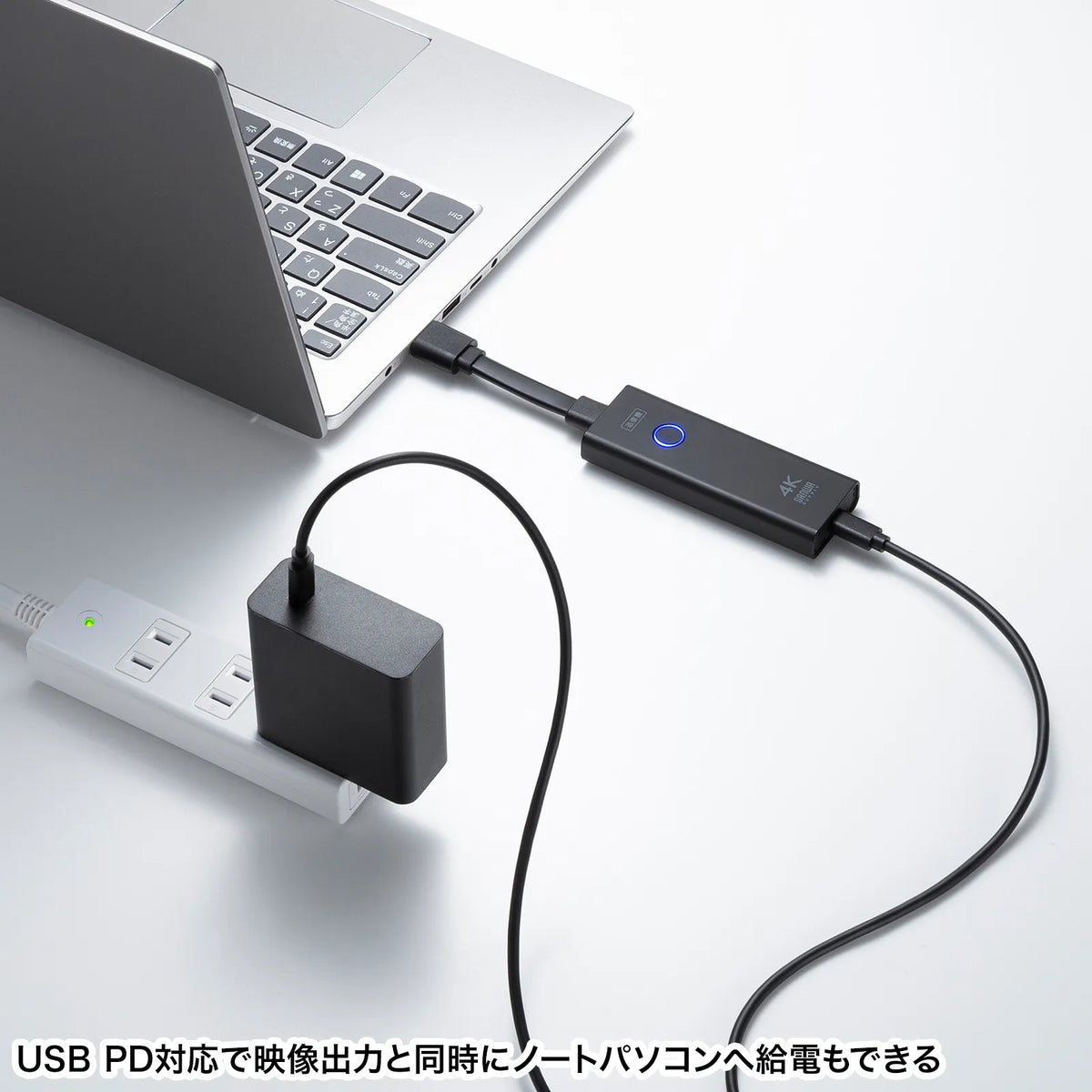

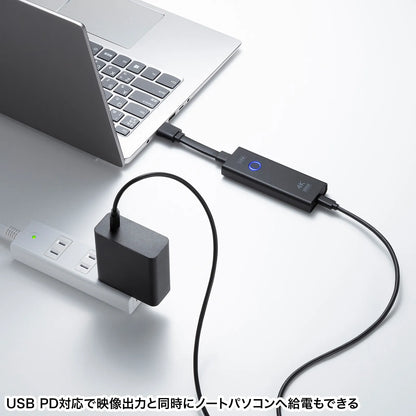

●It supports PD adapter input up to 60W of the USB Power Delivery (USB PD) standard, and by connecting a separate USB PD compatible AC adapter, you can wirelessly output video from this product while simultaneously supplying power to a connected laptop.
●High-quality audio signals can be wirelessly extended simultaneously with HDMI video signals from the Type-C output.
●Technical standards conformity certification (TELEC certification) has been obtained for use in Japan.


■Compatible devices: Windows (DOS/V) PCs, Apple Mac series, tablets, smartphones, etc. equipped with a standard USB Type-C connector and supporting DisplayPort Alternate Mode (DP1.4 or higher, with DSC)
※Nintendo Switch is not supported
■Supported input signal: Type-C

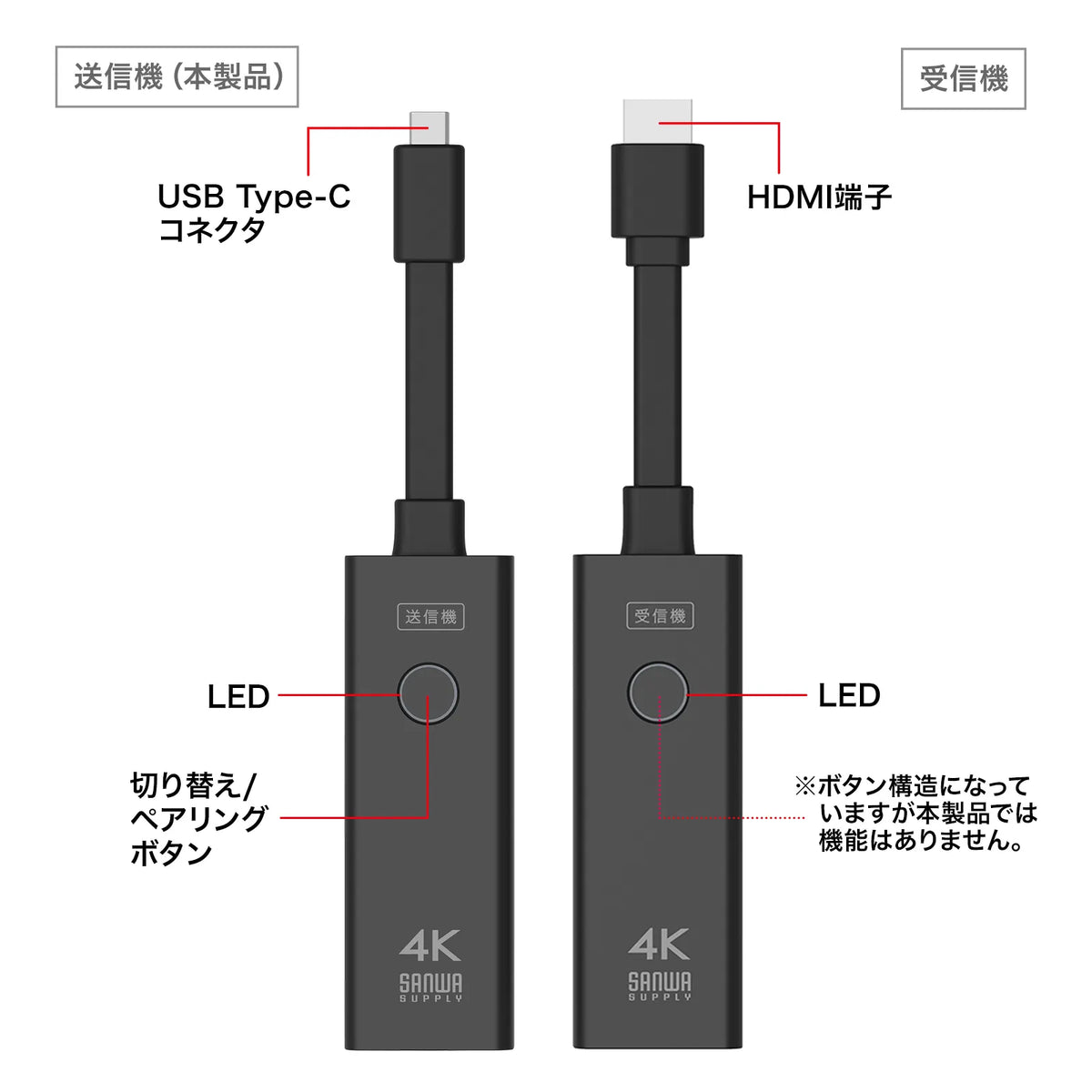

■Interface:
Input: USB Type-C male x1

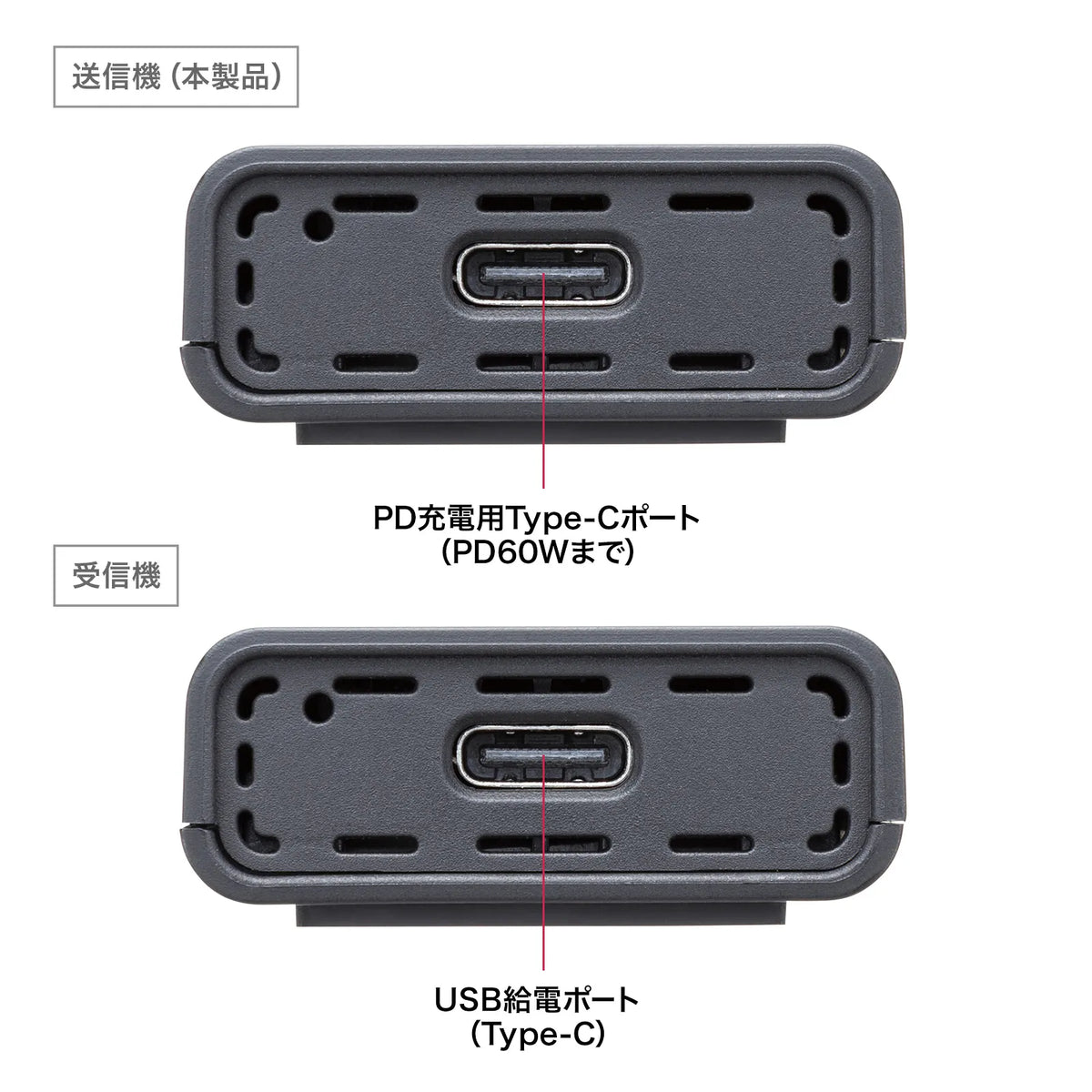

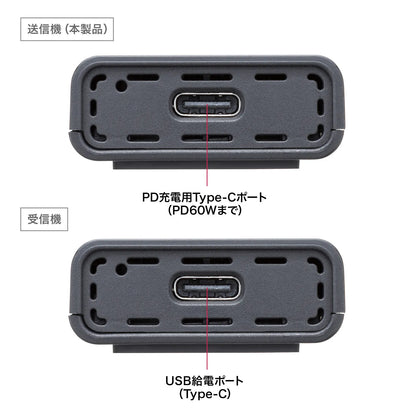

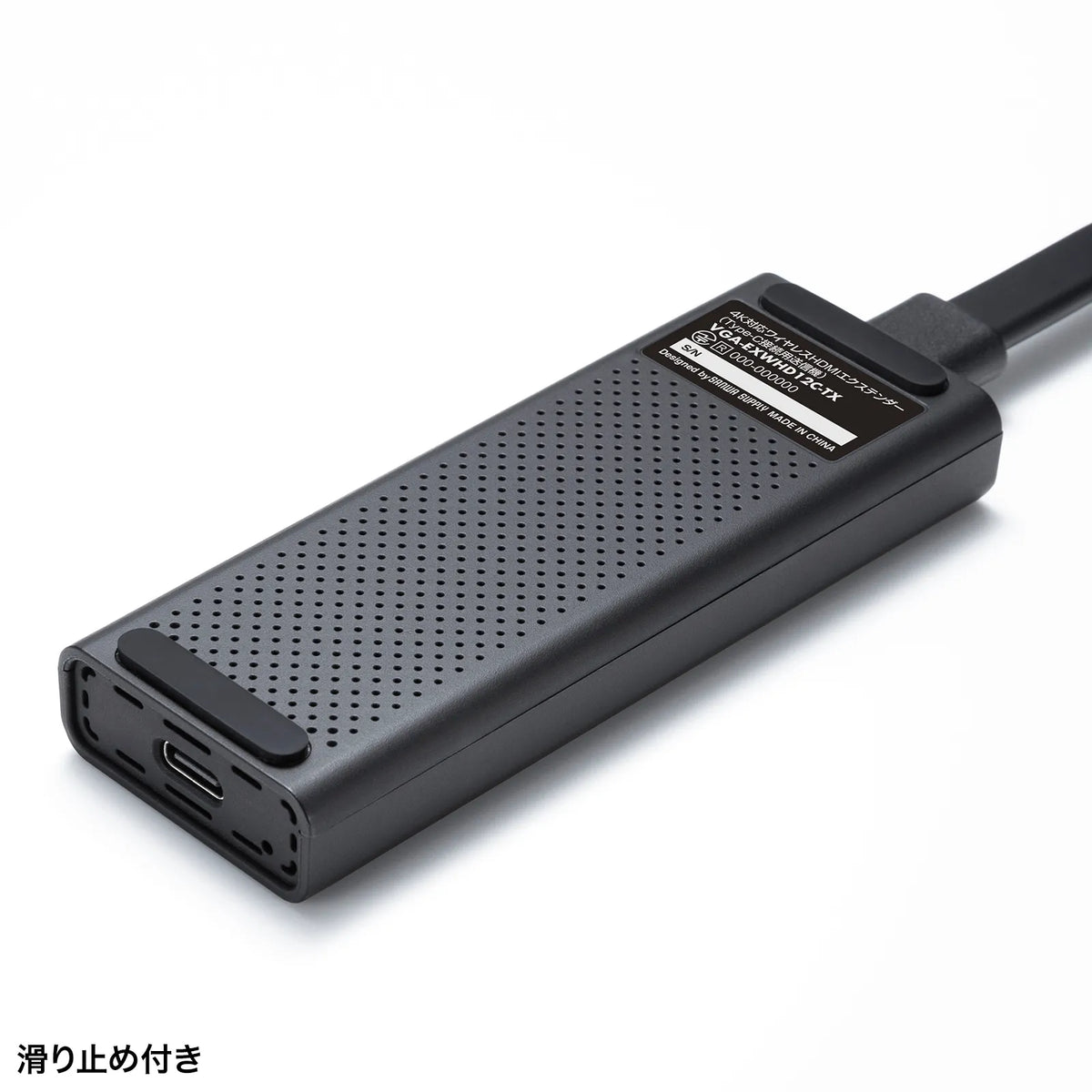

USB Type-C female x1 (PD power reception only)
■Transmission distance: Up to 15m (without obstacles)
※May vary depending on the usage environment.
■Operating frequency band: 5.1GHz to 5.25GHz
■HDMI standard: HDMI Ver1.4
■HDCP: HDCP1.4
■Video delay: within approximately 100ms
■CEC (Customer Electronic Control): Not supported
■Supported audio format: PCM
■Power consumption (maximum): 4.5W
5V/0.9A
*Power supply from a USB 5Gbps (USB3.2 Gen1/USB3.1 Gen2) compliant port or a USB-AC adapter with an output of 5V/1A or higher is recommended
■Operating temperature: 0 to 40 degrees
■Storage temperature: -10 to 60 degrees
■Operating humidity: 10% to 80% or less
(non-condensing)
■Storage humidity: 5% to 90% or less (no condensation)
■Set contents:
Transmitter x1,
Instruction manual x1
■Compatible products: VGA-EXWHD12C, VGA-EXWHD12

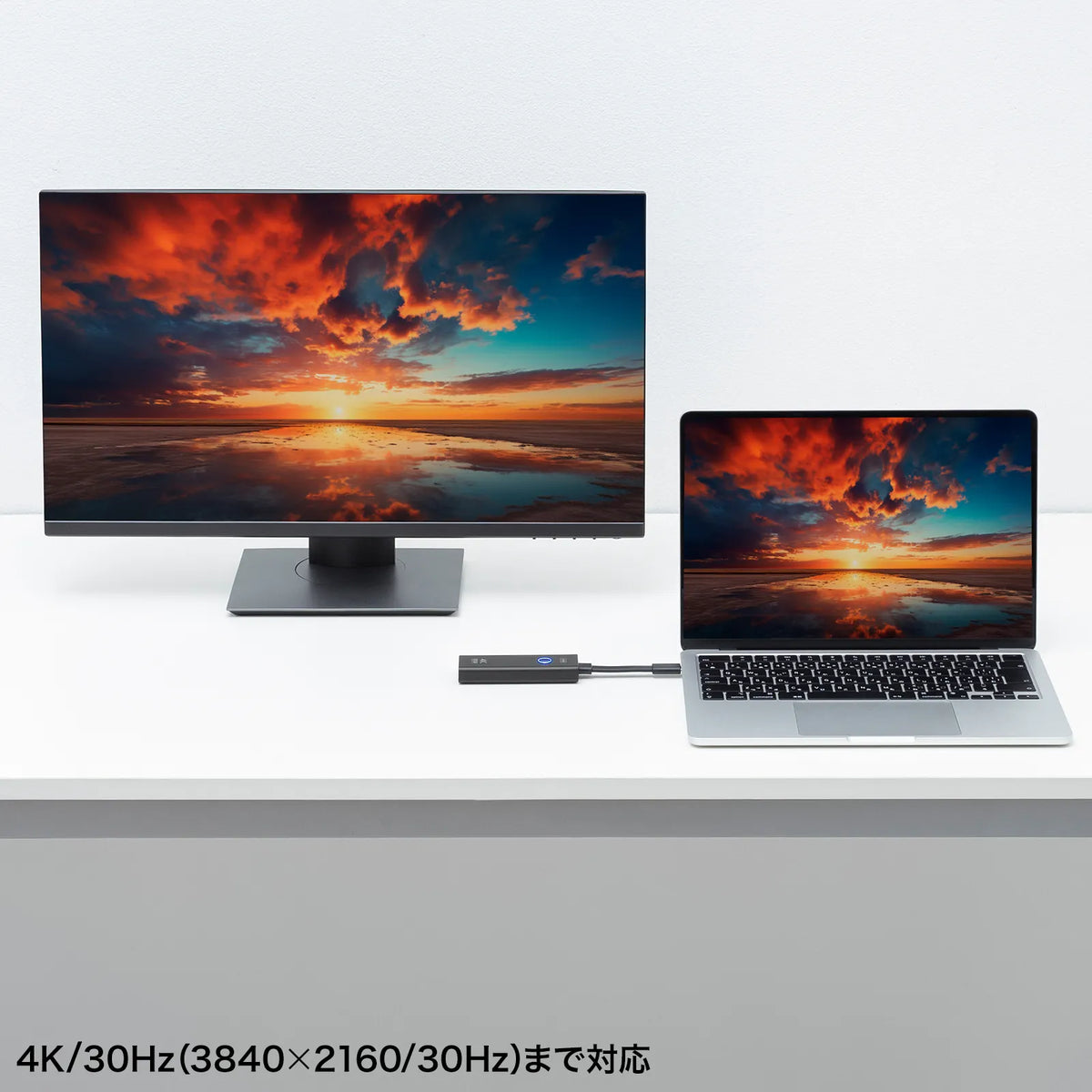

■Supported input resolution: Maximum 3840x2160 (30Hz)
■USB PD input port: Yes (transmitter side)
■Supported input power (USB PD): Maximum 60W
■PC maximum power supply (USB PD standard): 55.5W
■Cable length: Approx. 15cm
■Installation conditions: Indoor use only

■[Caution]
*This product is a transmitter only. This product alone cannot transmit HDMI signals wirelessly.
Please use it in conjunction with our wireless HDMI extender VGA-EXWHD12/12C.
*If this product is used in adjacent rooms, it may not function properly if the distance range is within which radio waves interfere.
In that case, please stop using one of the products.
*Operation is not guaranteed on all devices.
