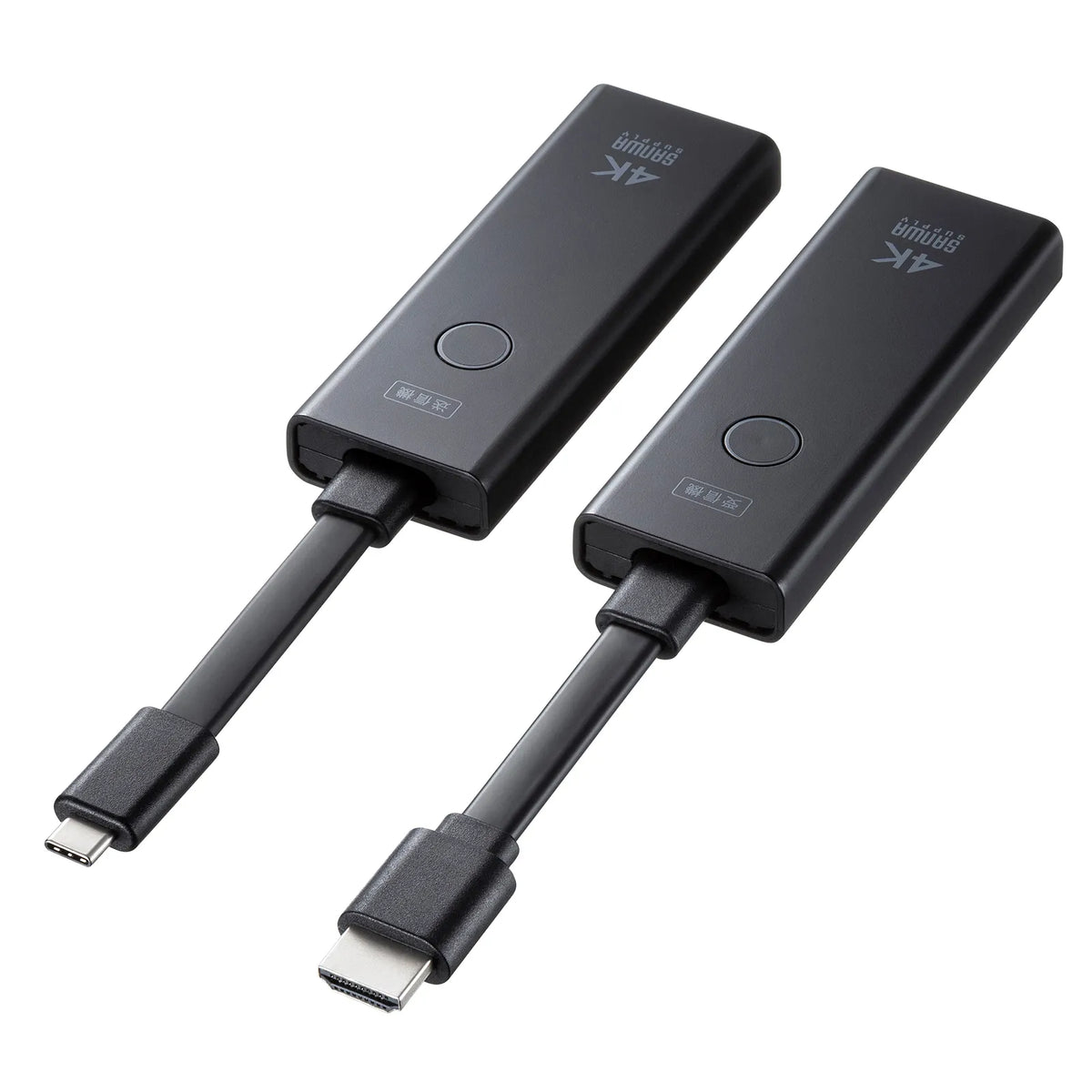

4K-compatible wireless HDMI extender (for Type-C connection) VGA-EXWHD12C

[This wireless HDMI transmitter/receiver set allows you to wirelessly transmit video and audio signals from a Type-C port and upscale them to 4K/60Hz resolution for display on large TVs via HDMI output! Up to 20 transmitters can be added, and switching between them is instantaneous with a single button.]

●Wirelessly transmits video and audio signals from a DisplayPort Alternate Mode-compatible Type-C port and outputs them to large TVs via HDMI output.

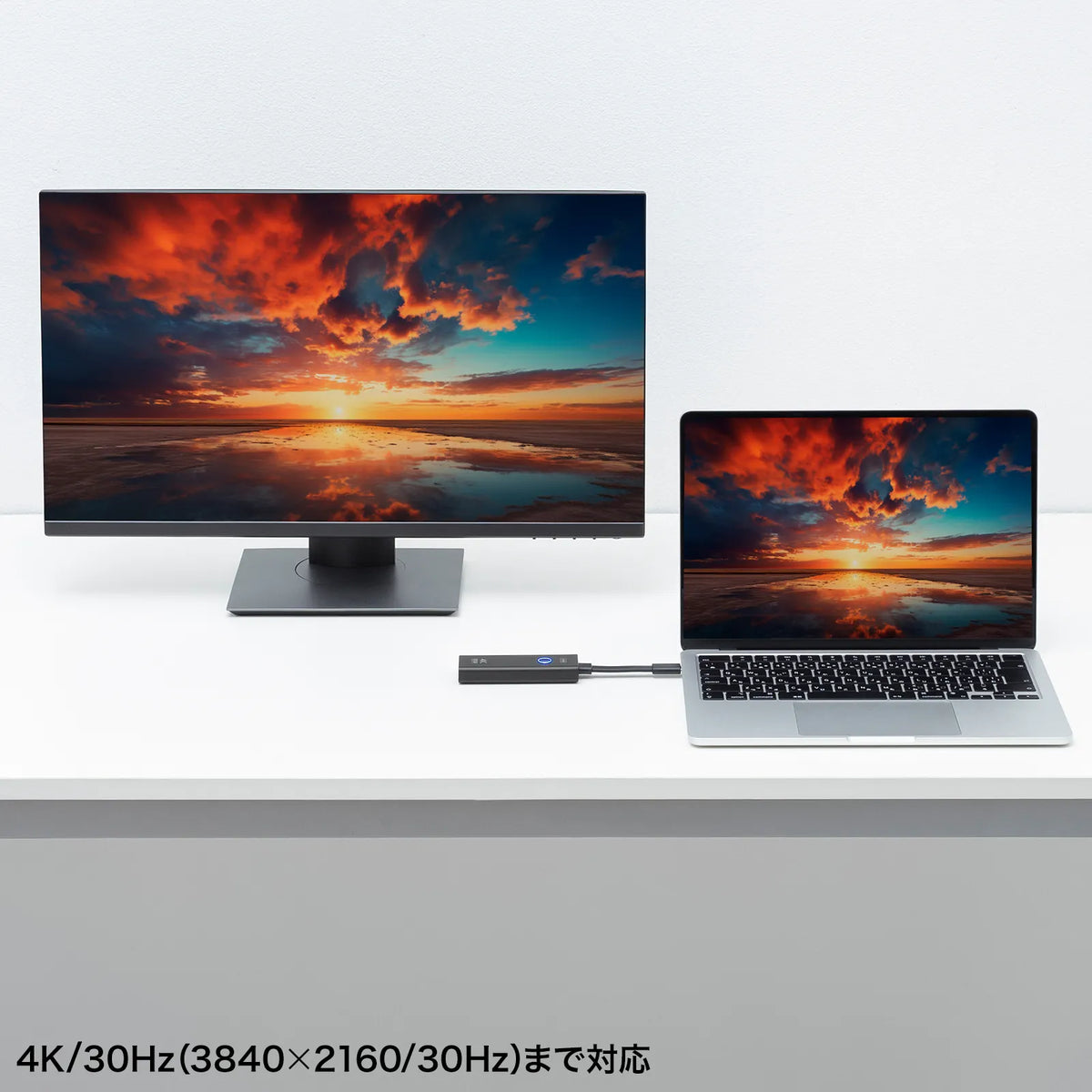

●Supports input signals up to 4K/30Hz (3840x2160/30Hz). If the connected TV supports 4K/60Hz, it can automatically upscale to 4K/60Hz (3840x2160/60Hz) resolution for display on large TVs.
*The computer's video output must be set to 4K/30Hz, and the TV must support 4K/60Hz video input.
*The EDID information of the connected TV/display is determined, and the resolution is automatically upscaled/downscaled to the appropriate resolution.
●When connected to a Full HD TV (1080p), it can automatically downscale to 1080p resolution (1920x1080/60Hz) for display.
●Simply connect the transmitter to a computer with a DisplayPort Alternate Mode-compatible Type-C port and the receiver to an LCD TV or projector to instantly create a wireless setup.

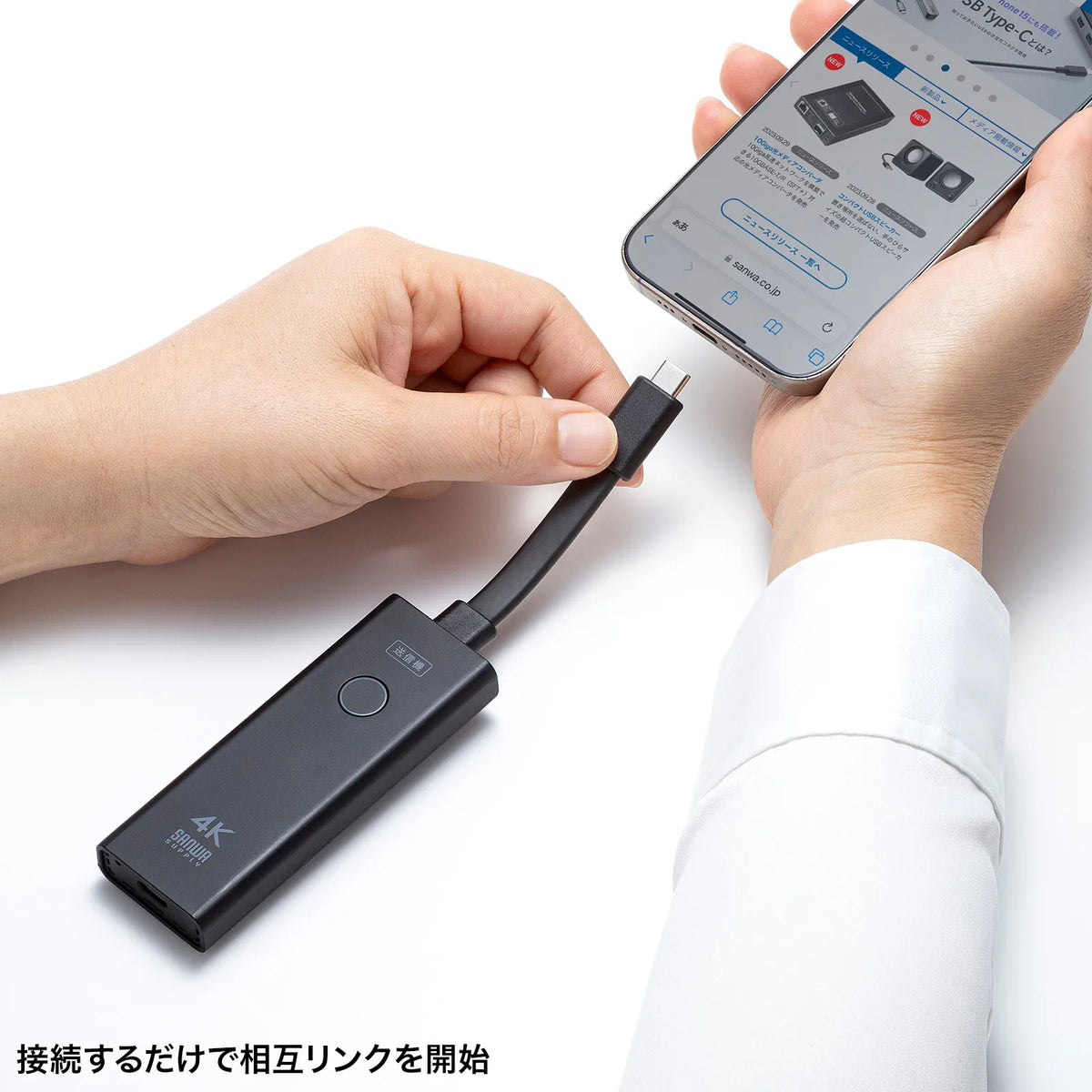

●The transmitter and receiver are pre-paired, so they will start linking together as soon as they are connected. No complicated software settings are required.

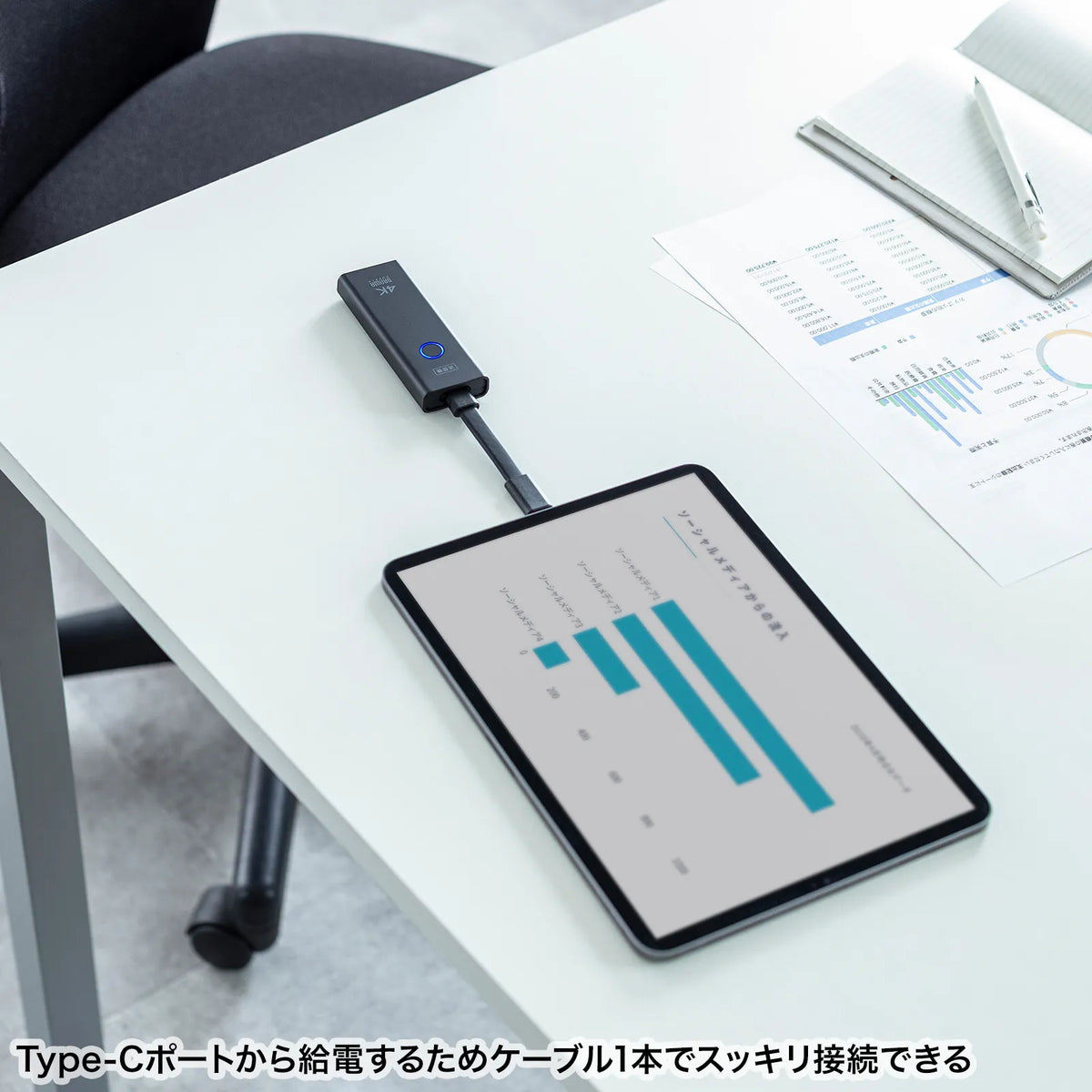

●It operates on USB power supplied from the Type-C port, so it can be connected with a single cable, making it ideal for conference systems and presentation environments using laptops and tablets.

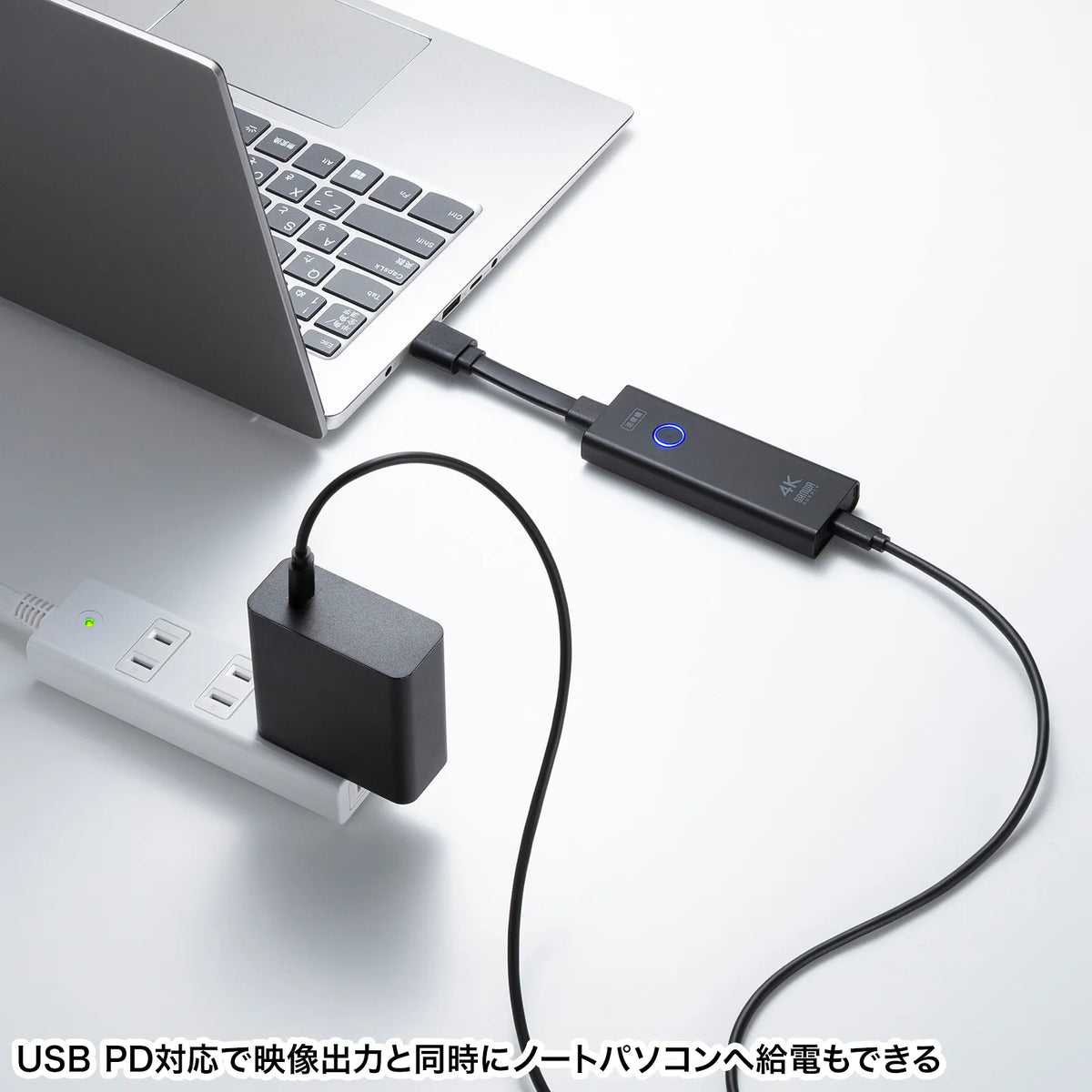

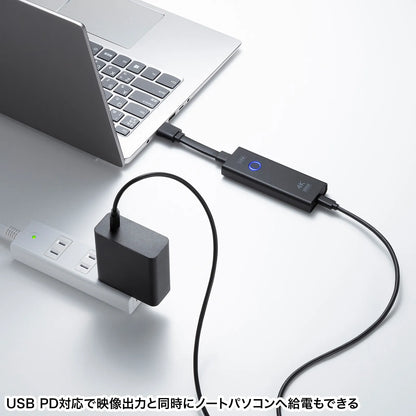

●It supports PD adapter input up to 60W of the USB Power Delivery (USB PD) standard, and by connecting a separate USB PD-compatible AC adapter, you can wirelessly output video from this product while simultaneously powering your laptop.

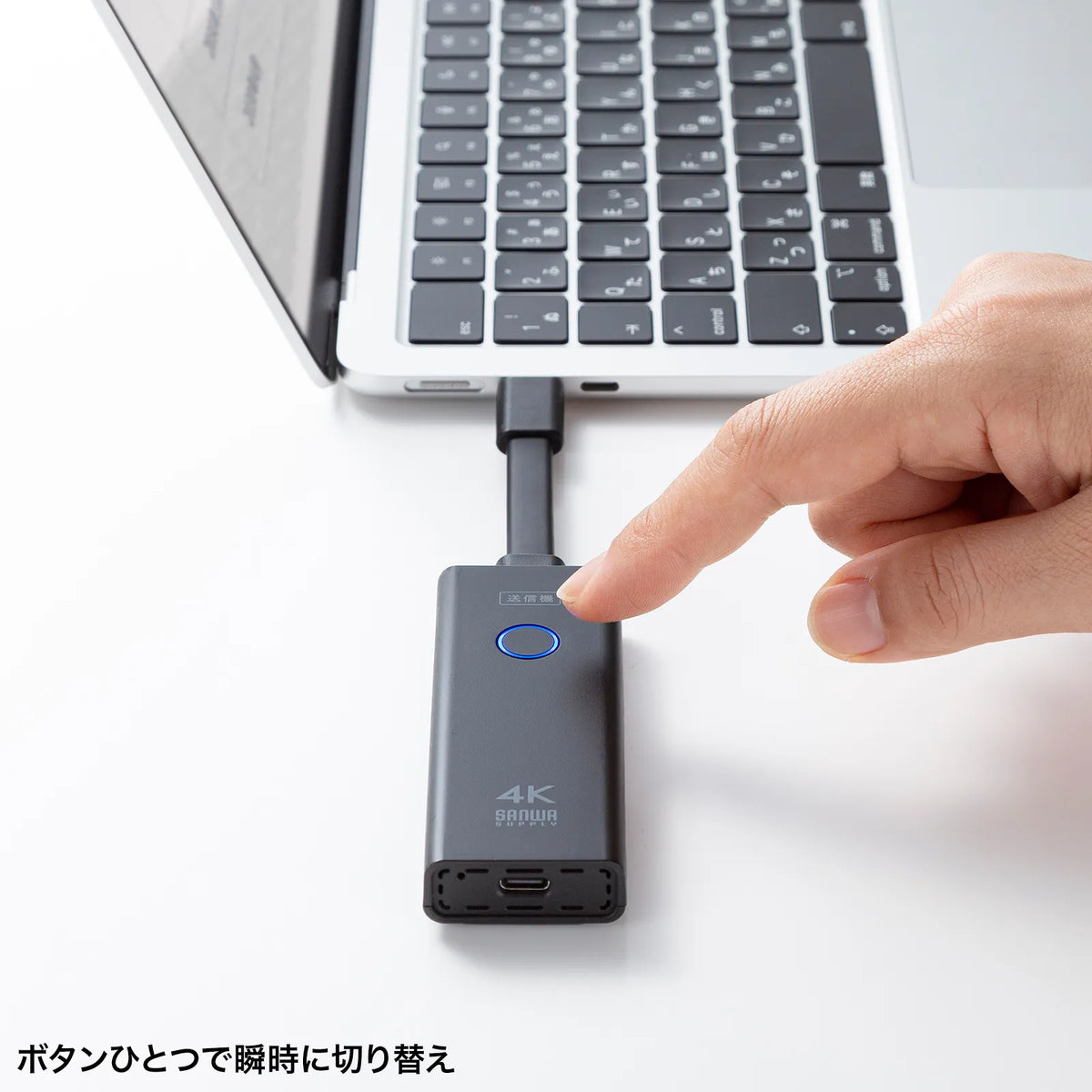

●Up to 20 separately sold transmitters can be added with a simple pairing operation. You can switch between multiple HDMI devices with a single button and wirelessly output one after another.
●Equipped with a function to temporarily turn off the extended output display by operating a button on the transmitter. This is a convenient function for when you don't want to display unnecessary information, such as during a presentation. *4
●High-quality audio signals can be transmitted wirelessly simultaneously with high-definition 4K resolution HDMI signals.
*When the video output of the HDMI device is turned off, the default screen of this product will be displayed on the TV/projector.
●Technical standards conformity certification (TELEC certification) has been obtained for use in Japan.

＜Caution＞
Although this product supports 4K/60Hz high-resolution video output, due to the characteristics of wireless video transmission, it cannot display at the same level of high image quality as a wired connection.
Please understand in advance that the image quality will be lower compared to a wired connection.

■Compatible devices: Windows-based (DOS/V) PCs, Apple Mac series, tablets, smartphones, etc. that have a USB Type-C connector as standard and support DisplayPort Alternate Mode (DP1.4 or higher, with DSC)
*Nintendo Switch is not supported
■Compatible output devices: TVs, PC displays, projectors, etc. that have an HDMI input terminal as standard
■Supported input signal: Type-C
■Supported output signal: HDMI

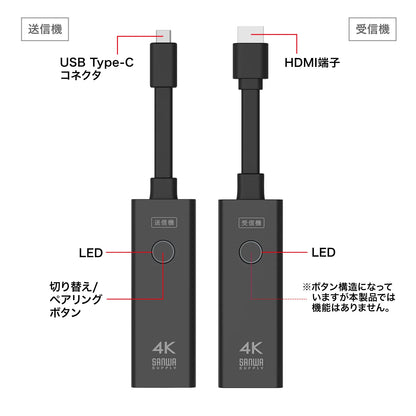

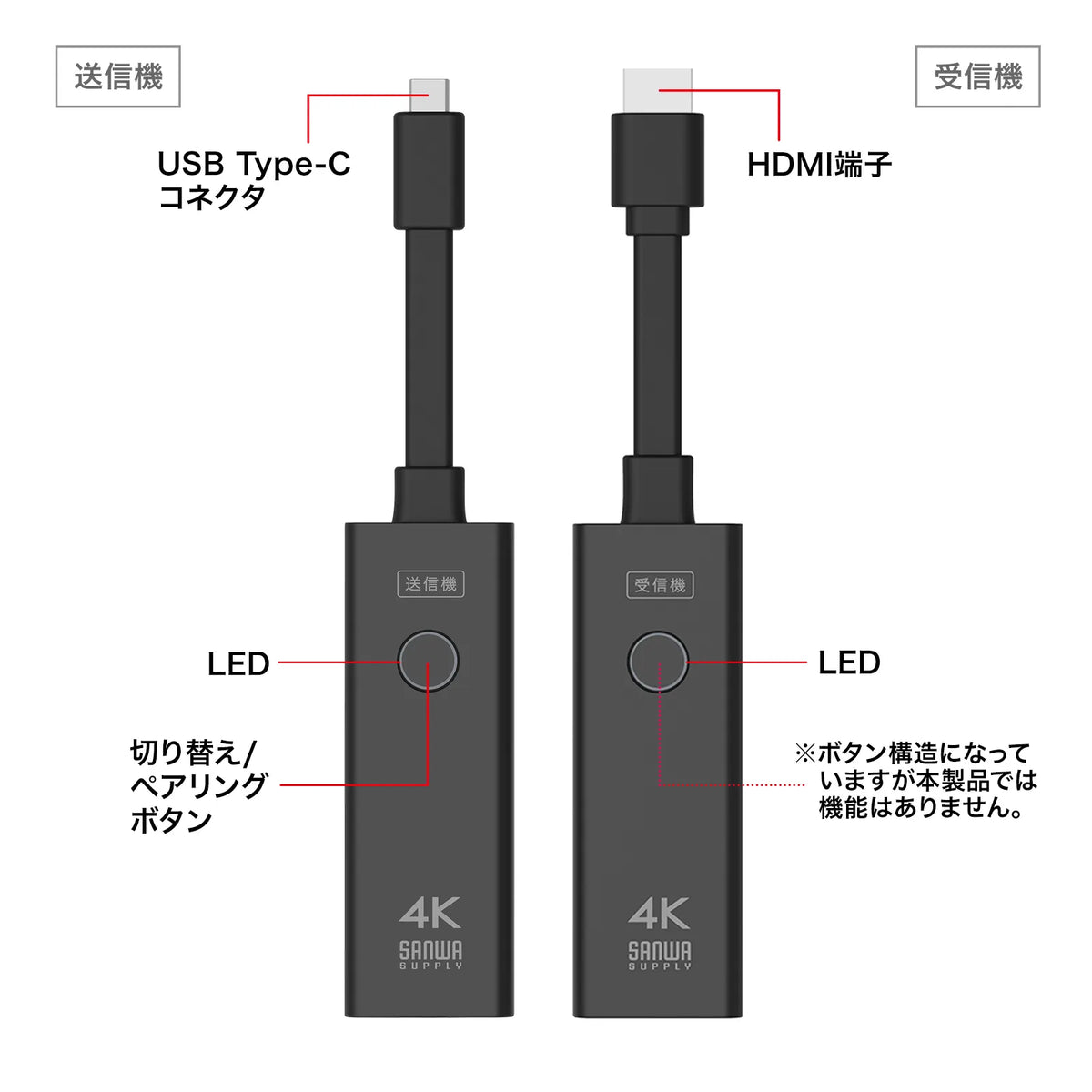

■Interface:
Input: USB Type-C male x1

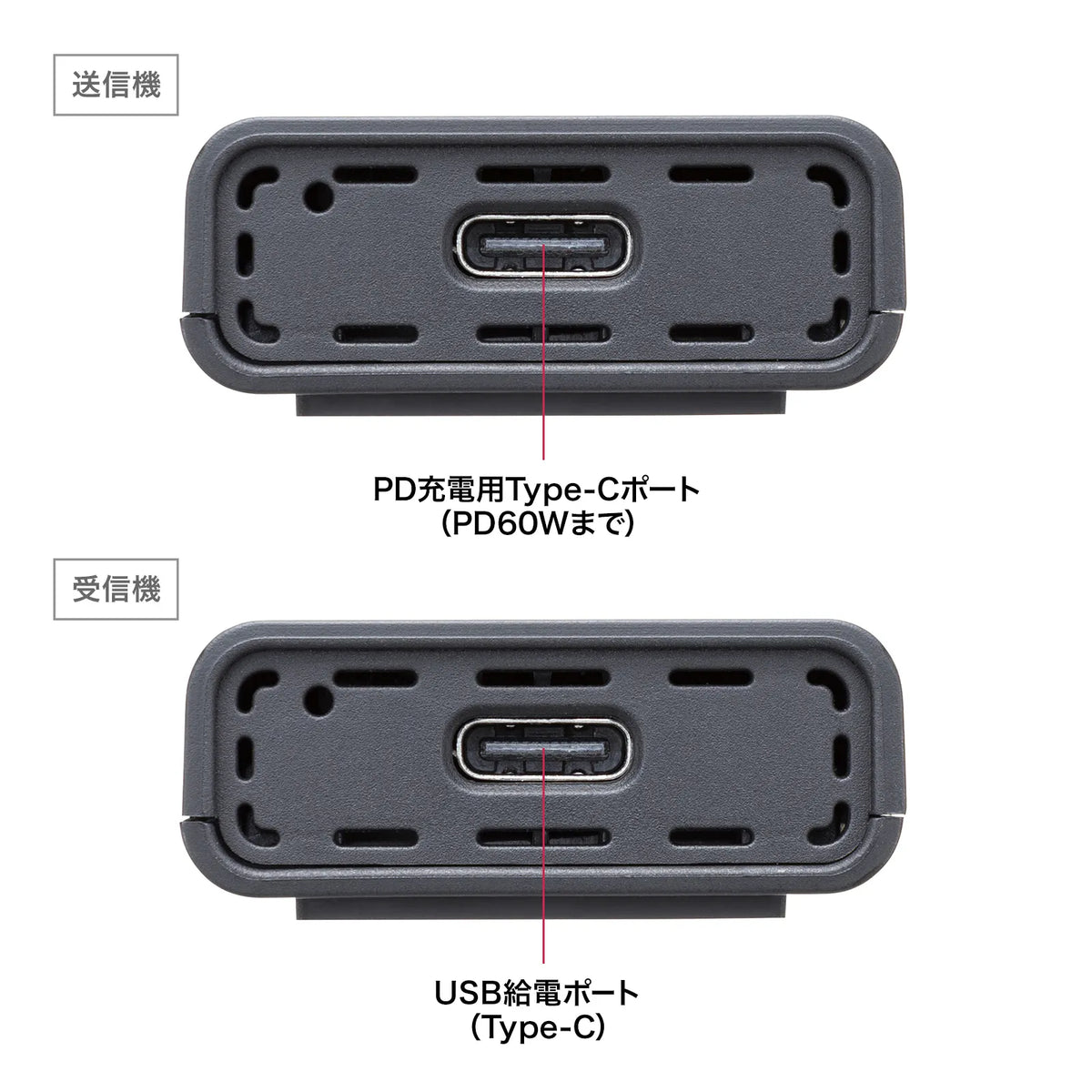

USB Type-C female x1 (PD power reception only)
Output: HDMI Type A (19pin) male x1
■Transmission distance: Up to 15m (without obstacles)
*May vary depending on the environment in which you are using it.
■Operating frequency band: 5.1GHz to 5.25GHz
■HDMI standard: HDMI Ver1.4
■HDCP: HDCP1.4
■Video delay: within approximately 100ms
■Number of expandable units: Up to 20 units (Up to 20 transmitters can be added to one receiver)
■Number of units usable in the same space: 4 sets
Up to 4 sets in 200 square meters (※Operation not guaranteed)
■CEC (Custom Electronic Control): Not supported
■Supported audio format: PCM
■Power consumption (maximum): 4.5W
5V/0.9A
*Power supply from a USB 5Gbps (USB3.2 Gen1/USB3.1 Gen2) compliant port or a USB-AC adapter with an output of 5V/1A or higher is recommended
■Operating temperature: 0 to 40 degrees
■Storage temperature: -10 to 60 degrees
■Operating humidity: 10% to 80% or less
(non-condensing)
■Storage humidity: 5% to 90% or less
(non-condensing)
■Set contents:

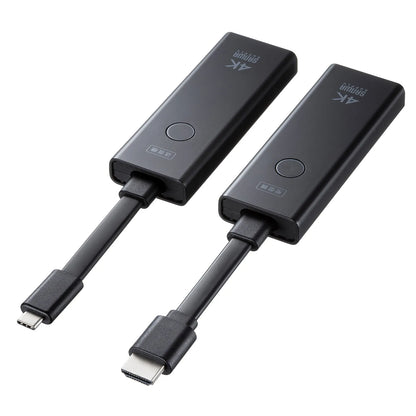

Transmitter x1, receiver x1
Power supply Type-C cable (approx. 1m x1)
Instruction manual x1
■Supported input resolution: Maximum 3840x2160 (30Hz)
■Supported output resolution: Maximum 3840x2160 (60Hz) *Displayed after upscaling
■USB PD input port: Yes (transmitter side)
■Supported input power (USB PD): Maximum 60W
■Maximum PC power supply (USB PD Standard): 55.5W
■Cable Length: Approx. 15cm
■Installation Conditions: Indoor Use Only

■【Caution】
*This product has the capability to use up to 4 sets simultaneously in the same space (approx. 200mm2),
however, the operating results will vary greatly depending on the connected equipment and radio wave environment. Simultaneous use of multiple sets is not guaranteed.
*If this product is used in adjacent rooms, it may not function properly if the radio waves are within the interference range.
In that case, please stop using one of the products.
*Since the transmitter and receiver of this product are individually paired, there will be no interference with unpaired devices.
*Operation with all devices is not guaranteed.
