SANWA SUPPLY

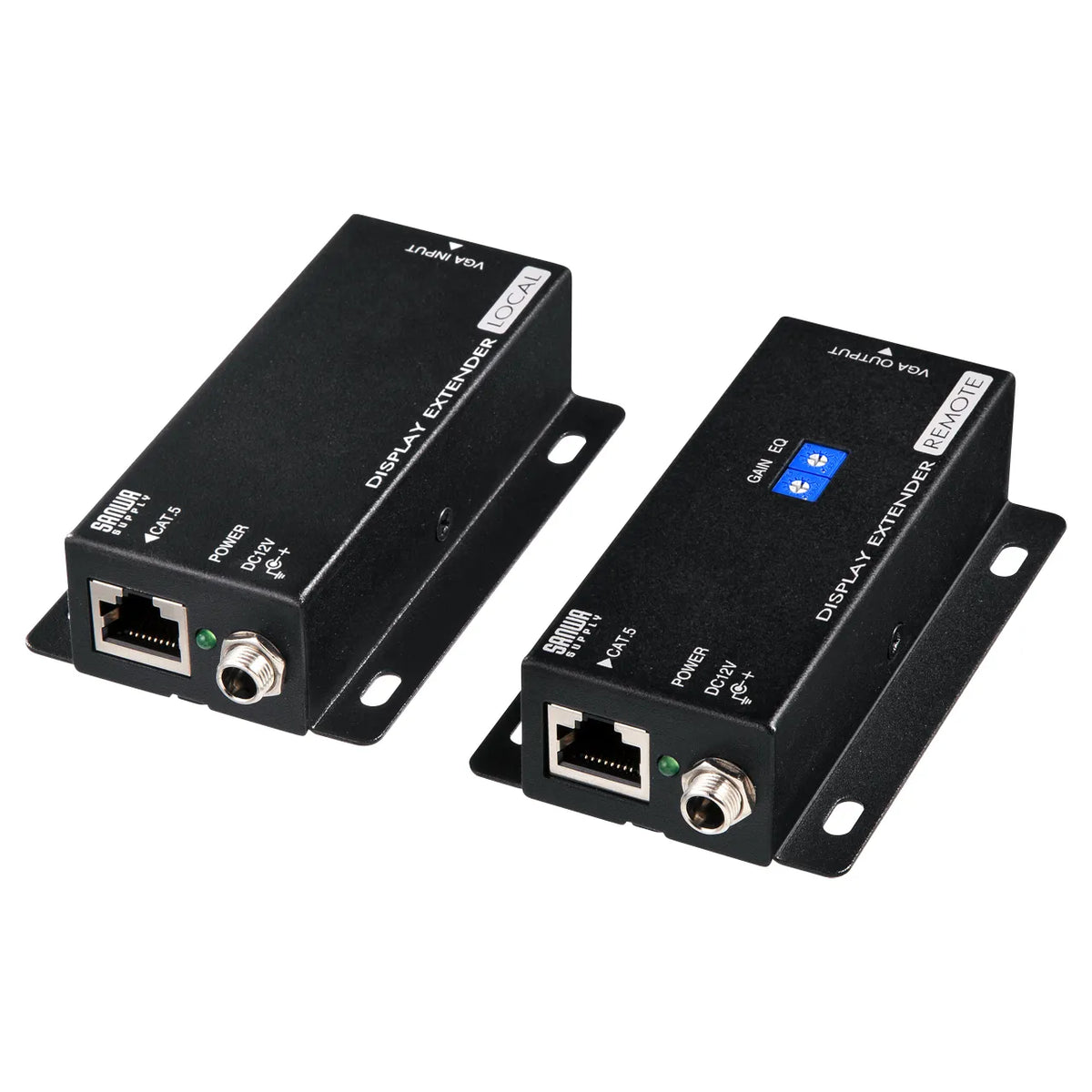

Display Extender (Receiver Power Supply Not Required, Set Model) VGA-EXSET3
Display Extender (Receiver Power Supply Not Required, Set Model) VGA-EXSET3
GTIN（JAN）：4969887592793
SKU：VGA-EXSET3
Regular price
¥28,314 JPY
Regular price
Sale price
¥28,314 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

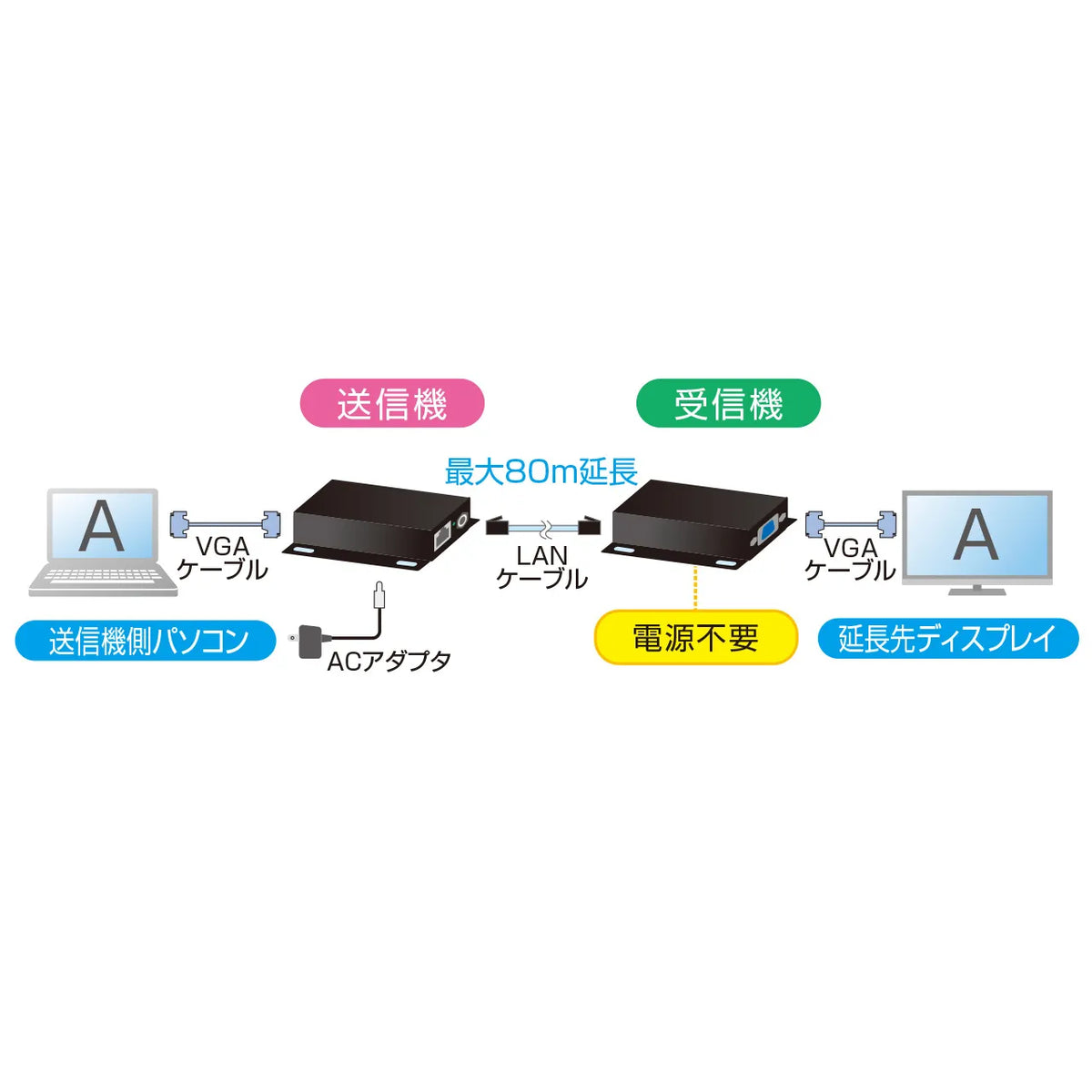

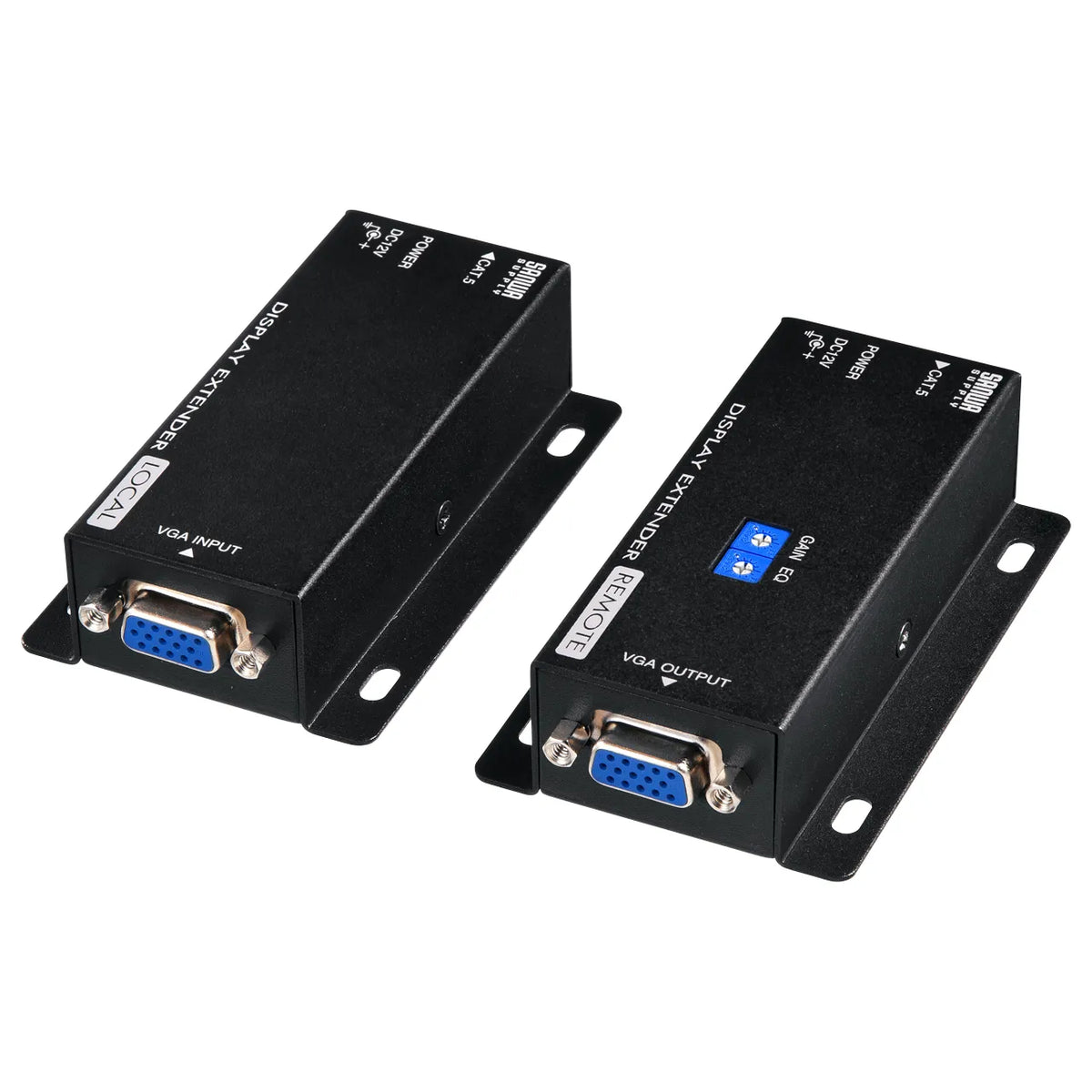

[A display extender that extends video signals using a LAN cable, requiring no power supply on the receiver side and easy to install]
●Since the receiver side does not require a power supply, this display extender is easy to install even in environments where it is difficult to secure a power source, such as ceiling-mounted displays.
●It can extend and output analog display signals to displays up to 80m away.
●It consists of a transmitter and a receiver set, and the units can be extended using UTP/STP Category 5e/5 straight cables.
●Because it uses Category 5e/5 cables, it is easier to handle and more cost-effective than regular display cables.

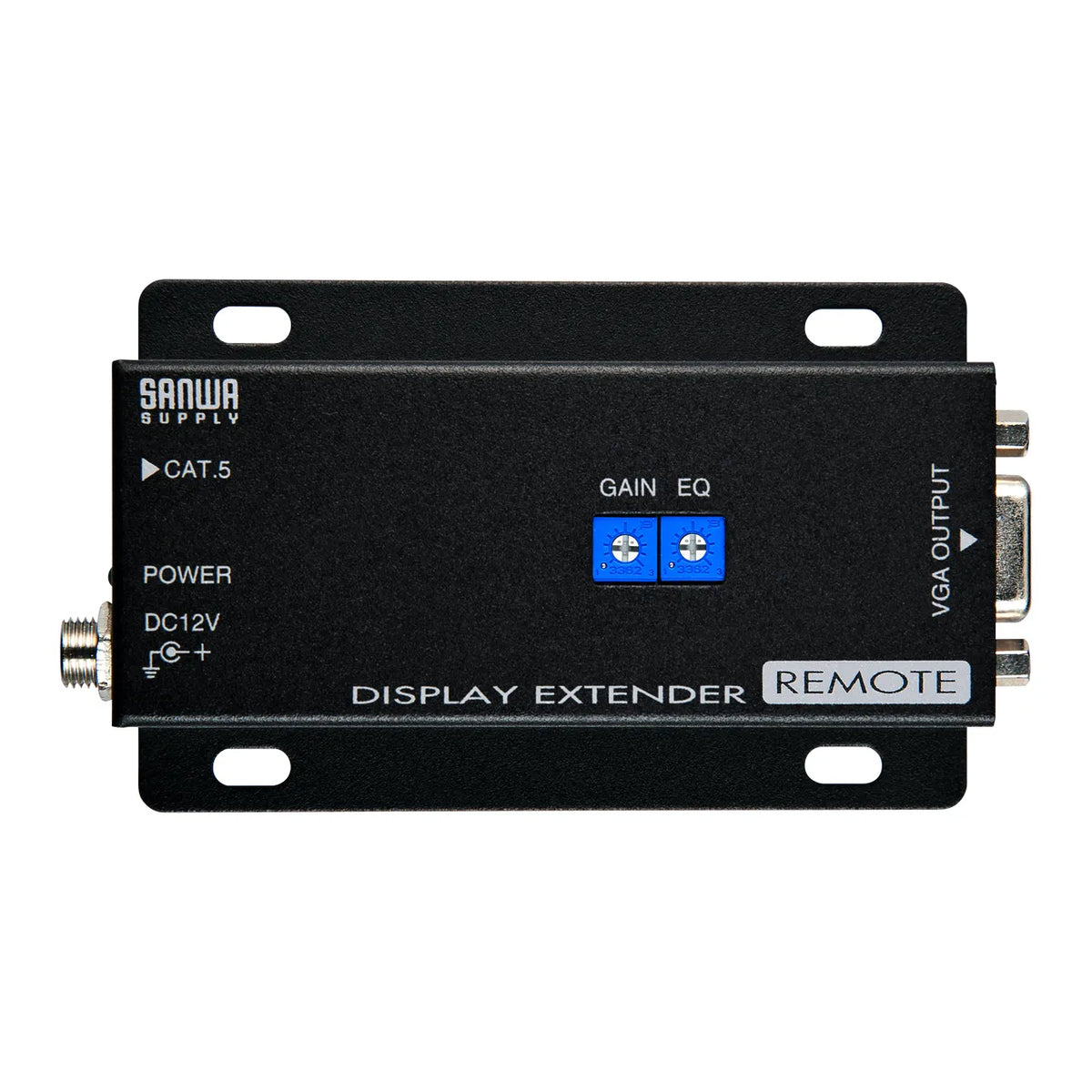

●The receiver unit is equipped with an image quality adjustment function, allowing for easy adjustment of the image signal.
●The AC adapter used on the transmitter side is secured with a screw to prevent accidental detachment.
＜Caution＞
※This product is powered by a LAN cable and operates on the receiver side, but it is not a PoE standard product.
※This product uses one UTP/STP Category 5e/5 straight cable. Please purchase separately.
*Although the receiver also has an AC adapter connection jack, it is not normally used. Depending on the quality of the LAN cable, power may not be supplied properly even at extension distances of up to 80m. In that case, please purchase the separately sold AC adapter (P-VGA-AC3).
*Mini D-sub (HD) 15pin = HD (3WAY) 15pin.
The power supply may not be sufficient depending on the quality of the LAN cable in your environment.
Please try a different LAN cable, or connect the separately sold AC adapter to the receiver to supply power.
*In this case, the receiver side will need to be connected to the AC adapter and will need to have a power source.
Optional AC adapter: Sanwa Supply P-VGA-AC3
■Maximum display resolution:
1920x1200 dots (WUXGA) *Extendable up to 50m
1920x1080 dots (Full HD/1080p) *Extendable up to 50m
1280x720 dots (720p) *Extendable up to 80m
■Extension cable length: 80m (maximum)
*Extendable distance varies depending on the resolution.
■VGA Bandwidth: 150MHz

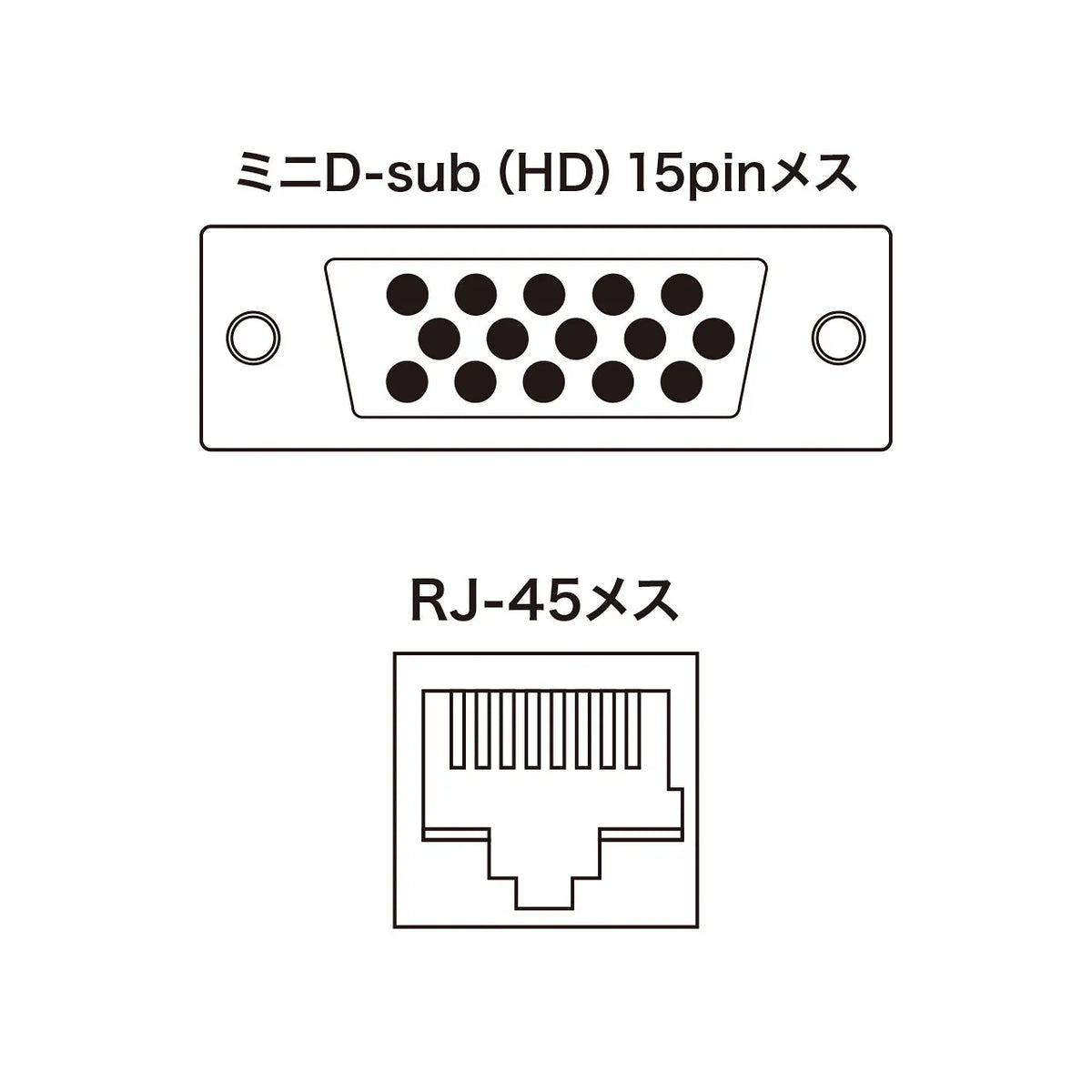

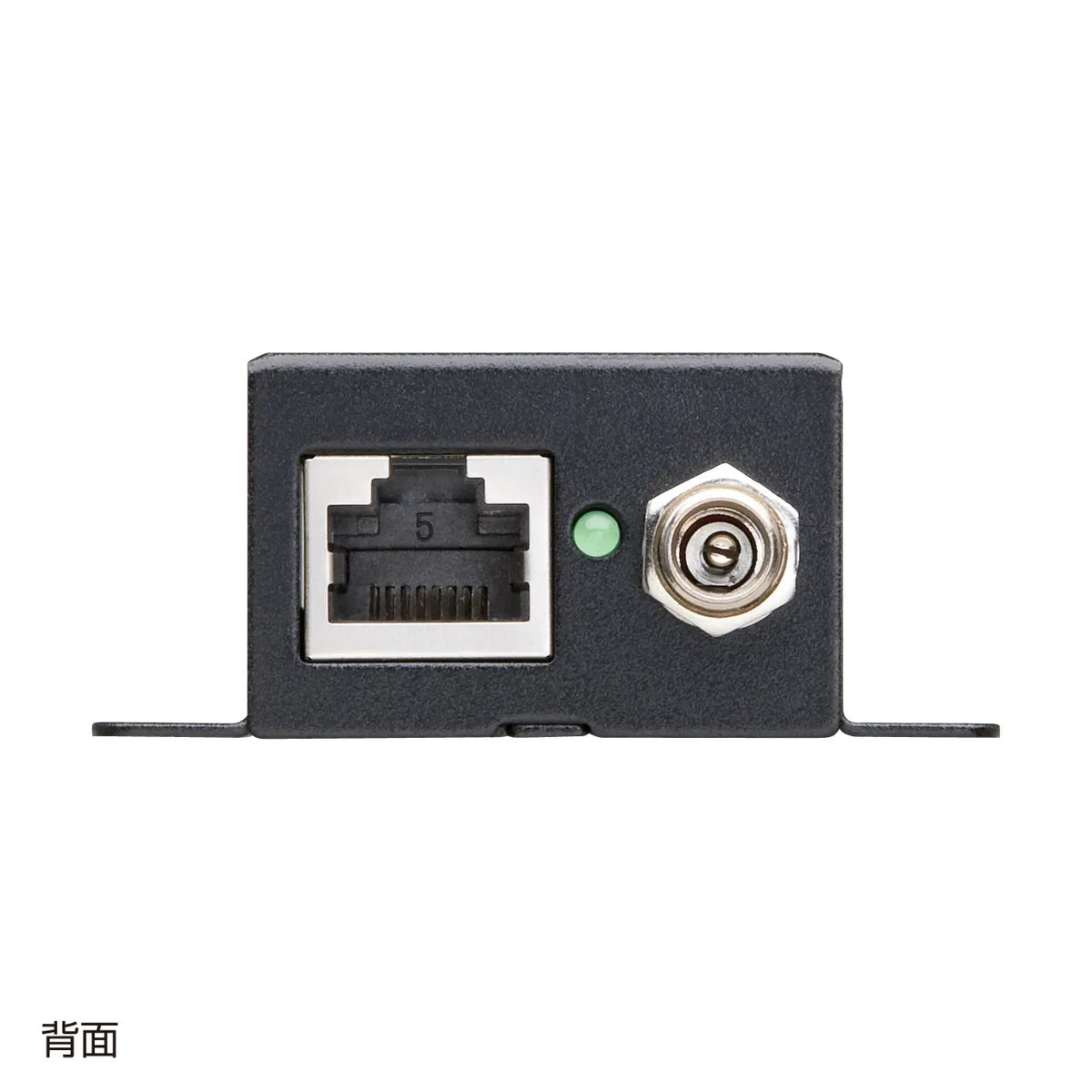

■Interface:

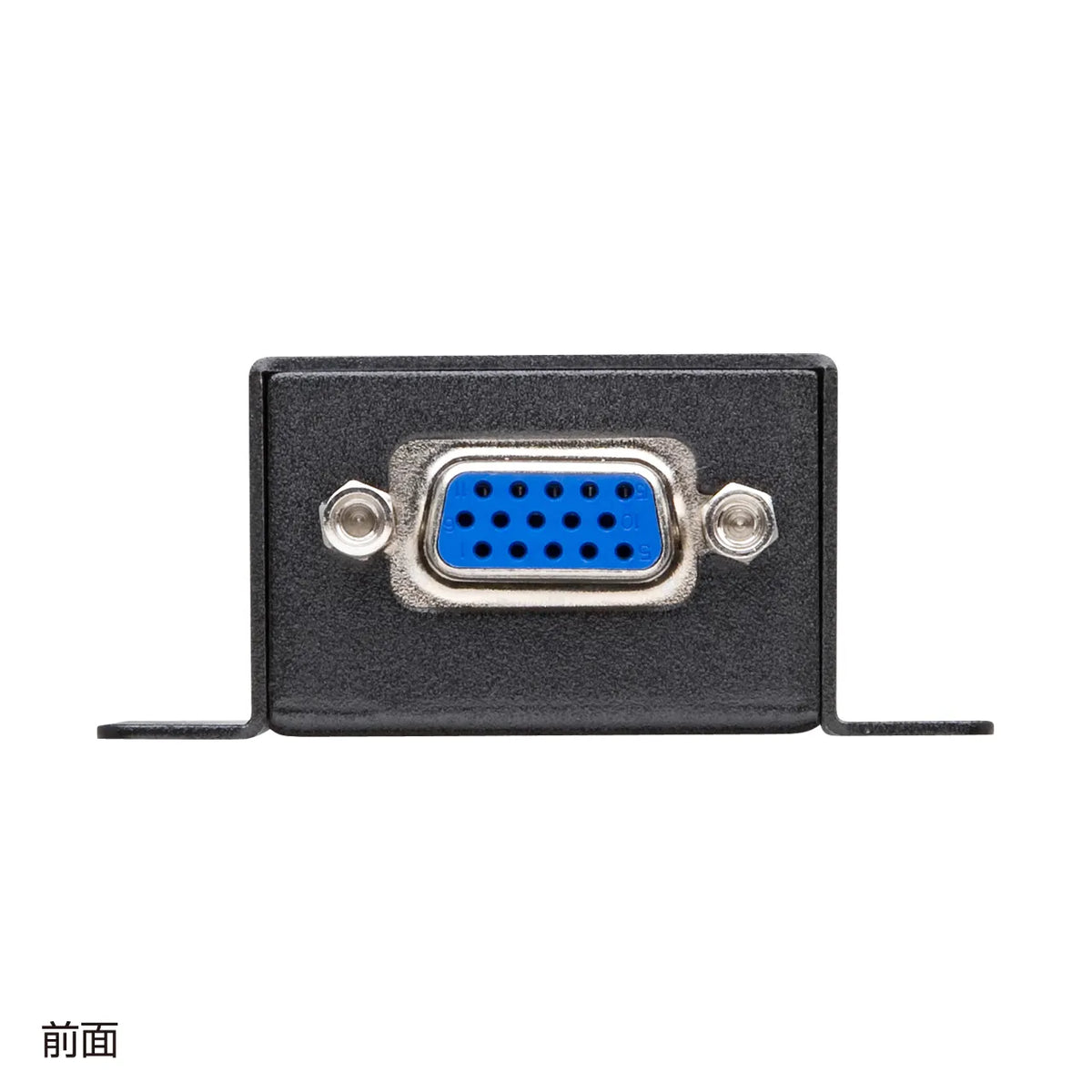

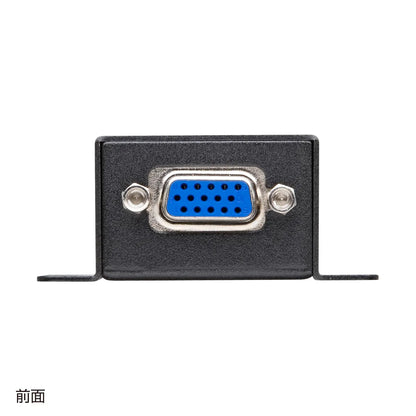

Input/Mini D-sub (HD) 15-pin female x1
Output/RJ-45 female x1
Input/RJ-45 female x1
Output/Mini D-sub (HD) 15-pin female x1
■Current Consumption:
Transmitter/1.2W
Receiver/4.5W
■Environmental Conditions:
Operating Temperature and Humidity/5 to 40 degrees Celsius, 10% to 80% or less (non-condensing)
Storage Temperature and Humidity/-20 to 60 degrees Celsius, 10% to 80% or less (no condensation)
■Material: Steel
■Size:
Transmitter/W104xD59xH25mm (main unit size)
Receiver/W104xD59xH25mm (main unit size)
■Weight:
Transmitter/153g
Receiver/155g

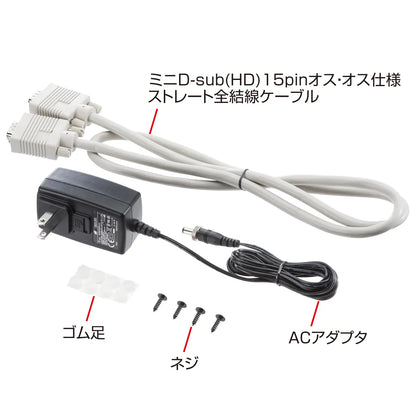

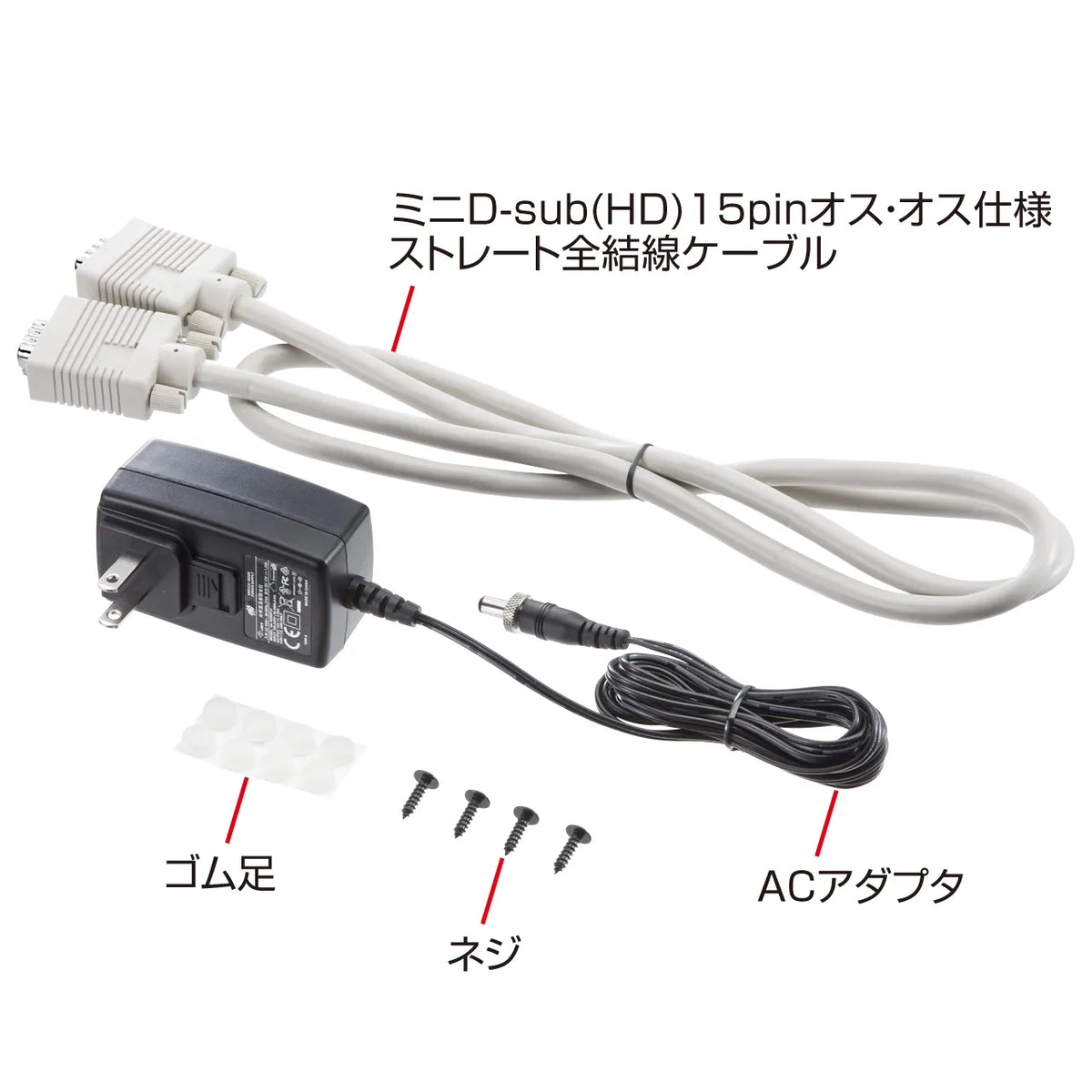

■Accessories: Transmitter x1, Receiver x1
Mini D-sub (HD) 15pin male-male straight full-connection cable 1.2m x1
AC adapter (DC12V 1.25A) x1
Rubber feet x8
Wall mounting screws x4
Instruction manual, warranty
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication.
It does not support connection via switching hubs or routers.
*It cannot be incorporated into an existing LAN environment.
*Distribution and extension output using switching hubs etc. is not possible.
*Wireless output using Wi-Fi, wireless routers, etc. is not possible.
●Since the receiver side does not require a power supply, this display extender is easy to install even in environments where it is difficult to secure a power source, such as ceiling-mounted displays.
●It can extend and output analog display signals to displays up to 80m away.
●It consists of a transmitter and a receiver set, and the units can be extended using UTP/STP Category 5e/5 straight cables.
●Because it uses Category 5e/5 cables, it is easier to handle and more cost-effective than regular display cables.
●The receiver unit is equipped with an image quality adjustment function, allowing for easy adjustment of the image signal.
●The AC adapter used on the transmitter side is secured with a screw to prevent accidental detachment.
＜Caution＞
※This product is powered by a LAN cable and operates on the receiver side, but it is not a PoE standard product.
※This product uses one UTP/STP Category 5e/5 straight cable. Please purchase separately.
*Although the receiver also has an AC adapter connection jack, it is not normally used. Depending on the quality of the LAN cable, power may not be supplied properly even at extension distances of up to 80m. In that case, please purchase the separately sold AC adapter (P-VGA-AC3).
*Mini D-sub (HD) 15pin = HD (3WAY) 15pin.
The power supply may not be sufficient depending on the quality of the LAN cable in your environment.
Please try a different LAN cable, or connect the separately sold AC adapter to the receiver to supply power.
*In this case, the receiver side will need to be connected to the AC adapter and will need to have a power source.
Optional AC adapter: Sanwa Supply P-VGA-AC3
■Maximum display resolution:
1920x1200 dots (WUXGA) *Extendable up to 50m
1920x1080 dots (Full HD/1080p) *Extendable up to 50m
1280x720 dots (720p) *Extendable up to 80m
■Extension cable length: 80m (maximum)
*Extendable distance varies depending on the resolution.
■VGA Bandwidth: 150MHz
■Interface:
Input/Mini D-sub (HD) 15-pin female x1
Output/RJ-45 female x1
Input/RJ-45 female x1
Output/Mini D-sub (HD) 15-pin female x1
■Current Consumption:
Transmitter/1.2W
Receiver/4.5W
■Environmental Conditions:
Operating Temperature and Humidity/5 to 40 degrees Celsius, 10% to 80% or less (non-condensing)
Storage Temperature and Humidity/-20 to 60 degrees Celsius, 10% to 80% or less (no condensation)
■Material: Steel
■Size:
Transmitter/W104xD59xH25mm (main unit size)
Receiver/W104xD59xH25mm (main unit size)
■Weight:
Transmitter/153g
Receiver/155g
■Accessories: Transmitter x1, Receiver x1
Mini D-sub (HD) 15pin male-male straight full-connection cable 1.2m x1
AC adapter (DC12V 1.25A) x1
Rubber feet x8
Wall mounting screws x4
Instruction manual, warranty
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication.
It does not support connection via switching hubs or routers.
*It cannot be incorporated into an existing LAN environment.
*Distribution and extension output using switching hubs etc. is not possible.
*Wireless output using Wi-Fi, wireless routers, etc. is not possible.
