SANWA SUPPLY
Display Extender (Set Model) VGA-EXSET2N
Display Extender (Set Model) VGA-EXSET2N
GTIN（JAN）：4969887593837
SKU：VGA-EXSET2N
Regular price
¥45,012 JPY
Regular price
Sale price
¥45,012 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[A display extender set model that can extend analog VGA video up to 180m at 720p resolution and up to 60m at 1080p resolution using a single LAN cable. Includes a local output that allows you to check the output video on your device.]
● Extends and outputs analog VGA images from your PC to a display up to 180m away, or up to 60m away at Full HD (1080p).

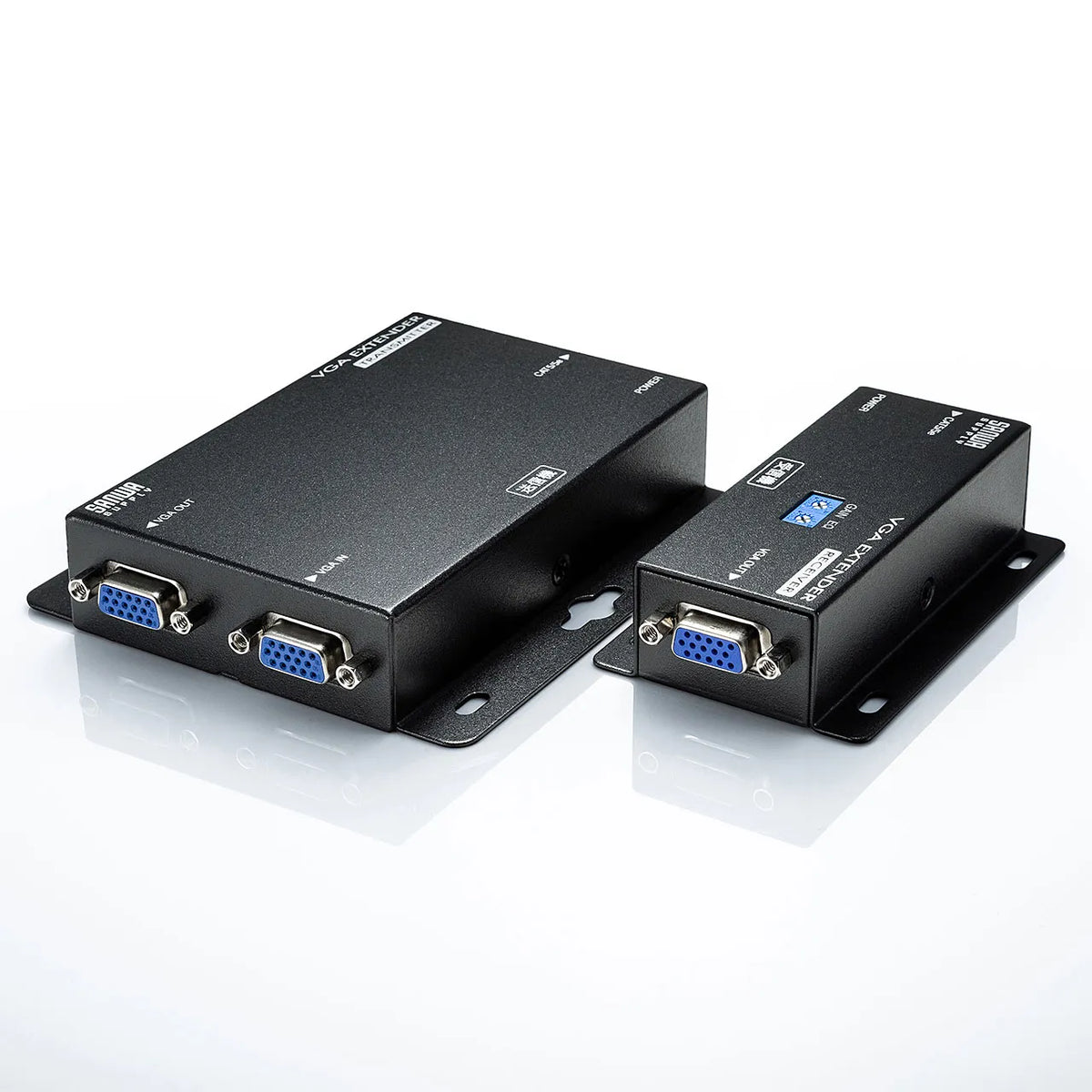

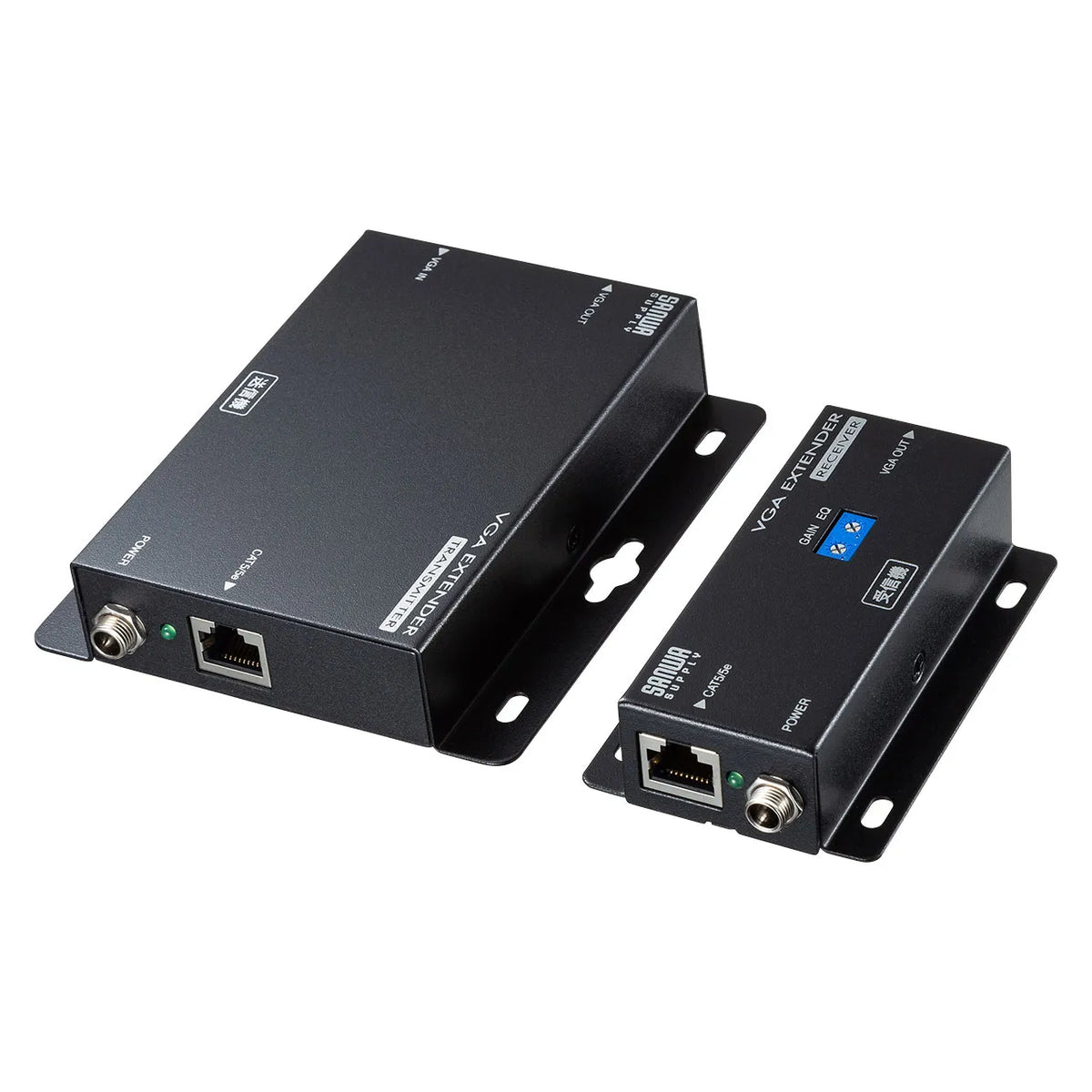

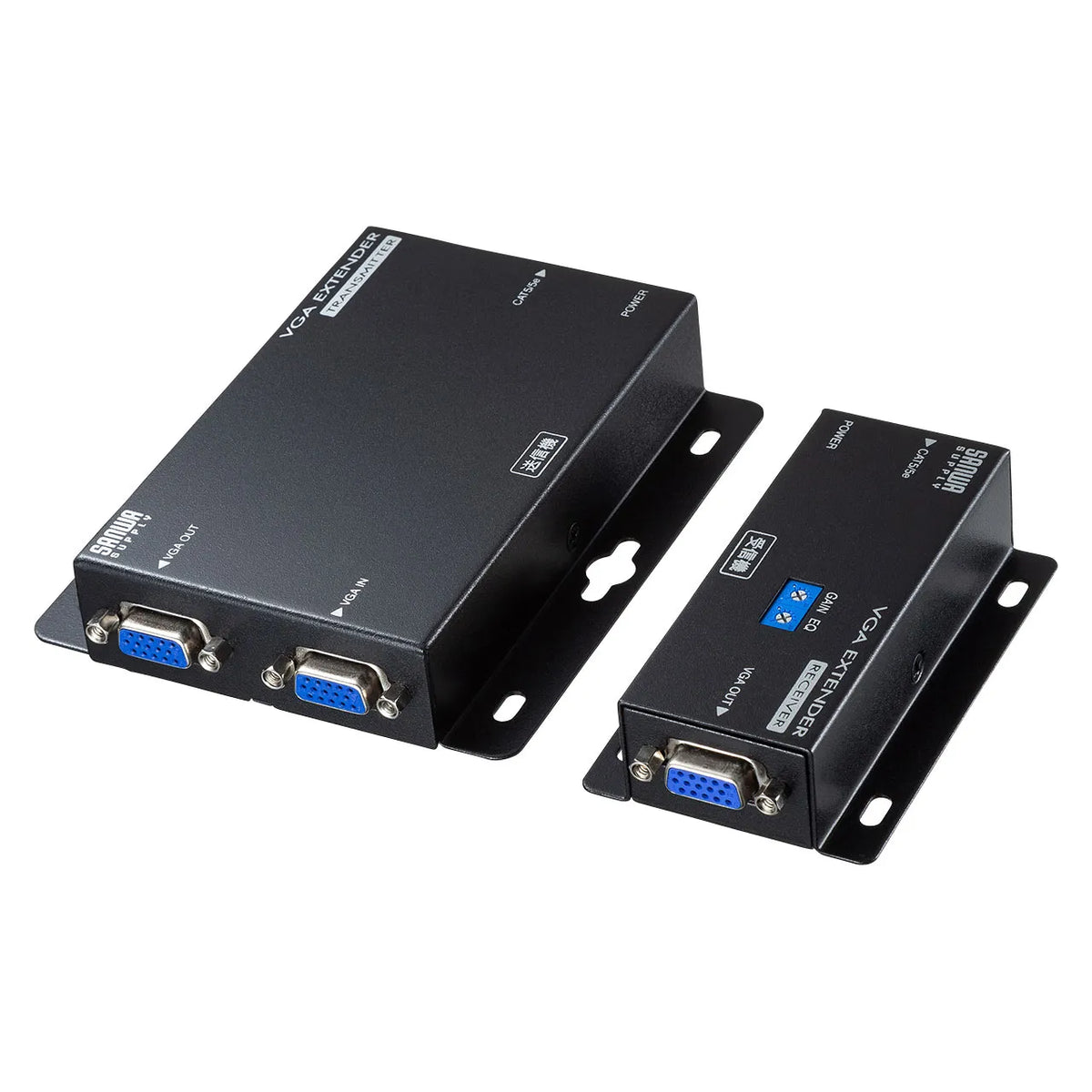

● Consists of a transmitter and receiver set, and the units can be extended using UTP/STP Category 5e/5 straight cable.
Recommended cables
・KB-T5T series (KB-T5T-50N, etc.)
・KB-10T5 series (KB-10T5-50N, etc.)

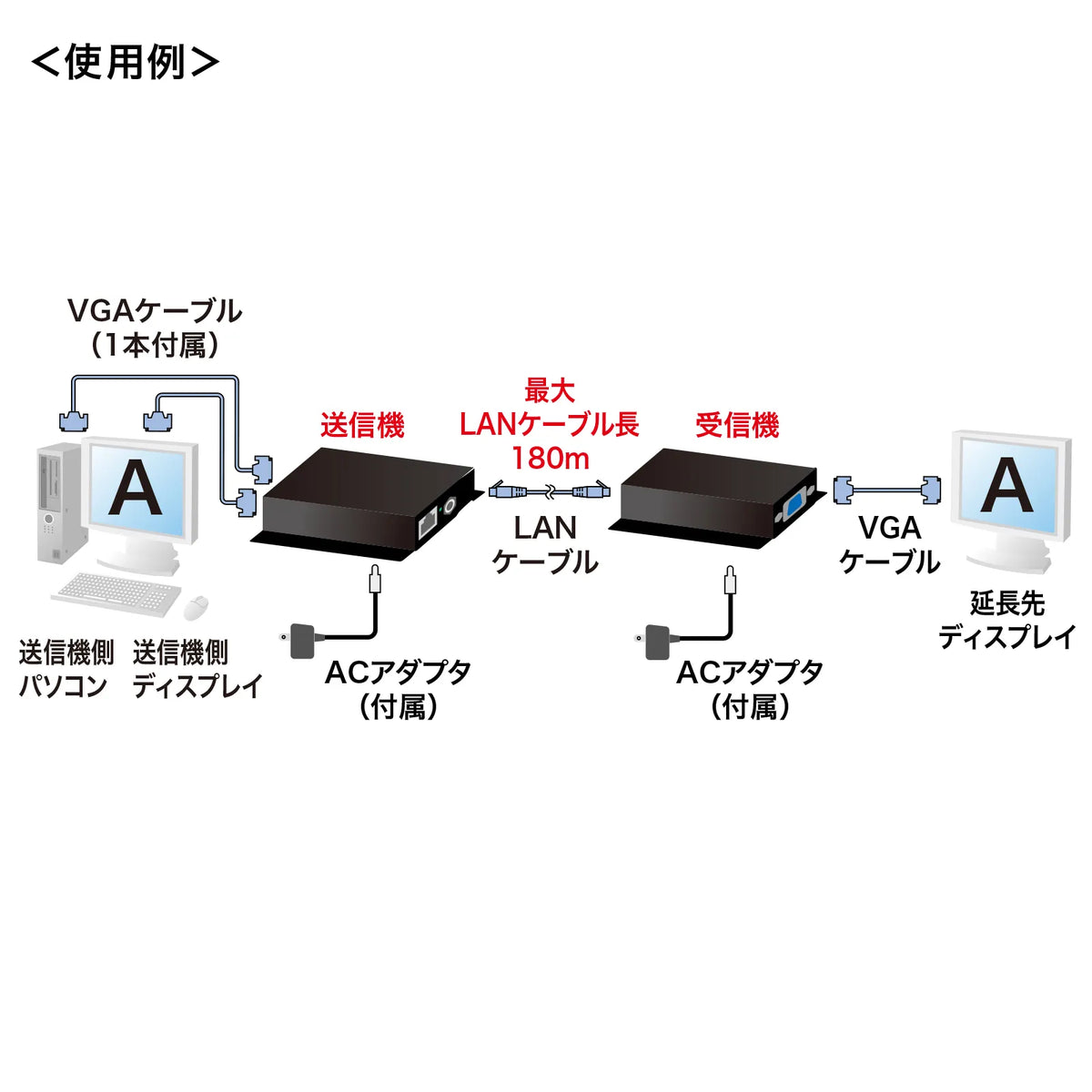

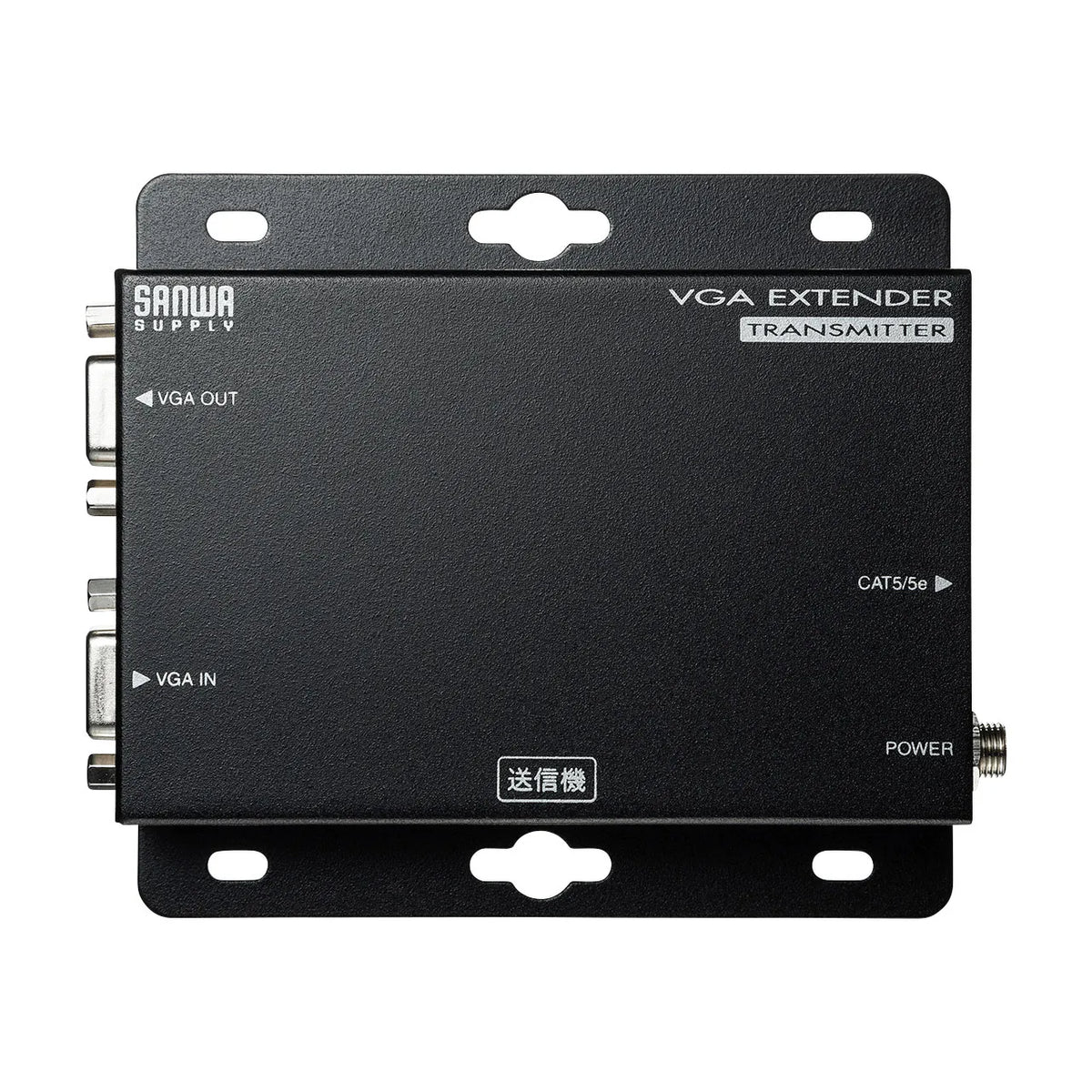

● The transmitter also has a VGA output, allowing you to check the video on your device while outputting VGA to the destination.
● Because it uses Category 5e/5 cable, it is easier to handle and more cost-effective than regular display cables.

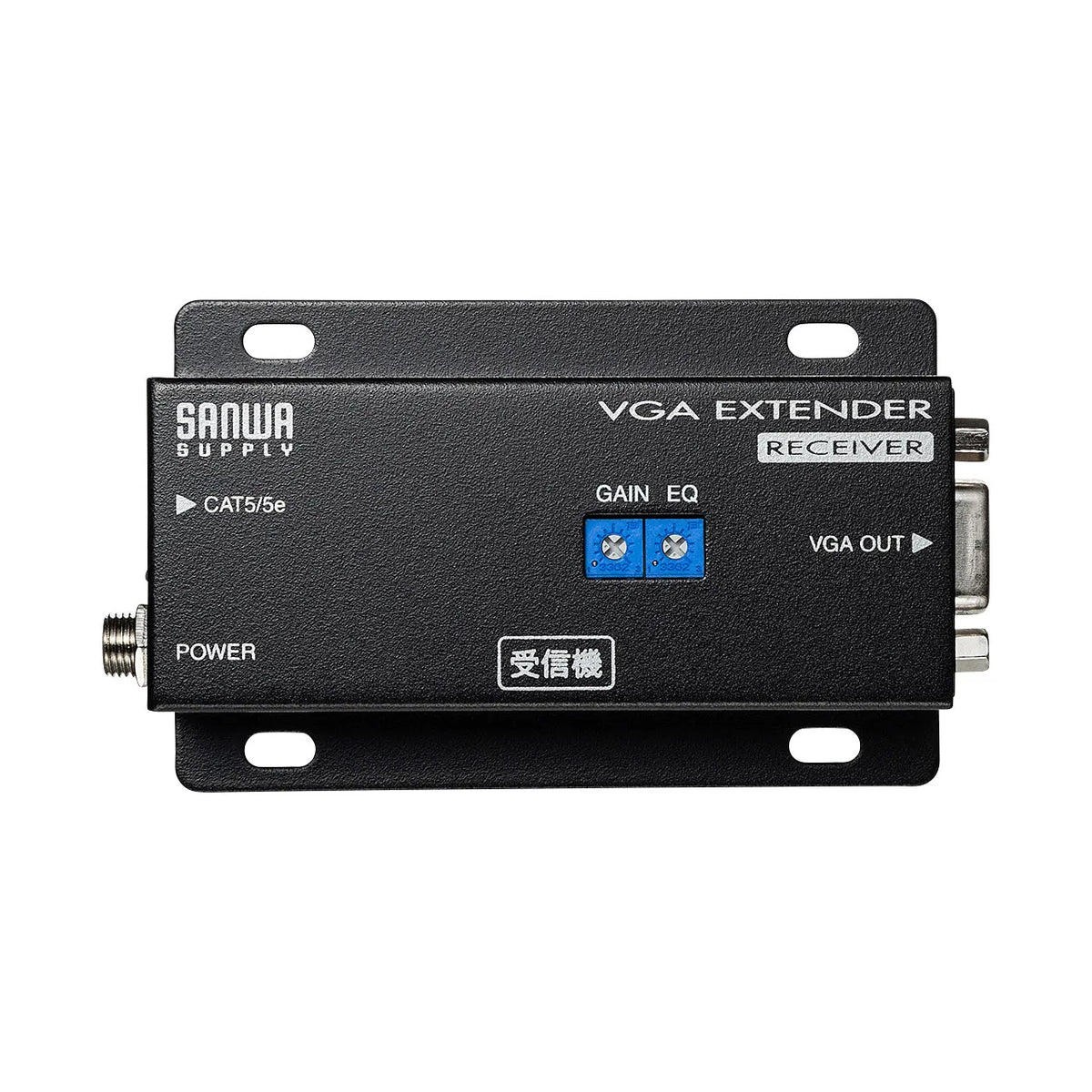

●The receiver unit is equipped with an image quality adjustment function, allowing for easy adjustment of the image signal.

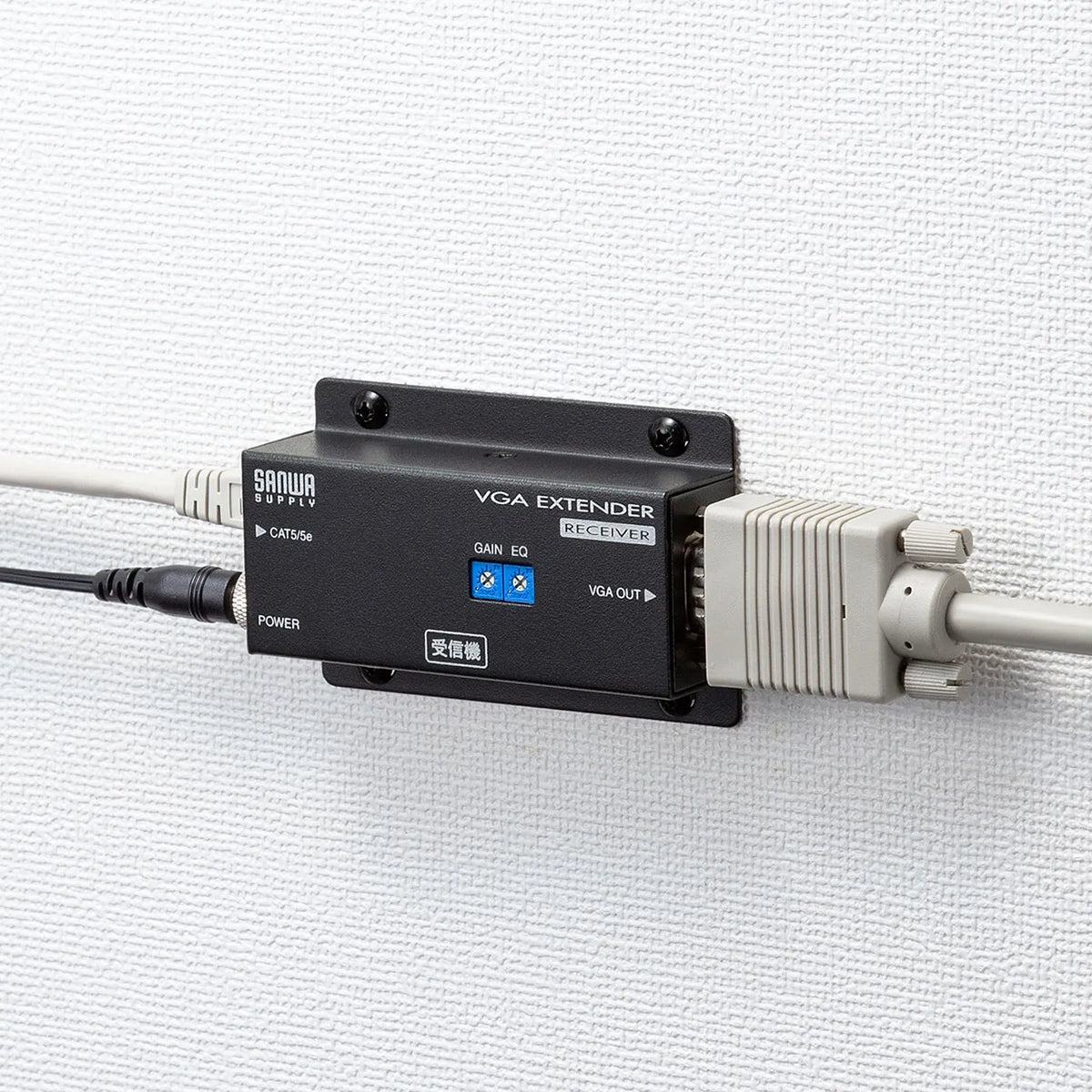

●The external structure is designed with wall mounting in mind.
●Ideal for situations where it is difficult to install a computer, such as in factories or construction sites, and only the display needs to be installed, with the computer equipment located in a different, more suitable location.
■Maximum display resolution: 1920x1080 (1080p, 60Hz) *Extendable up to 60m.
1280x1024 (60Hz) *Extendable up to 180m.
1280x720 (720p, 60Hz) *Extendable up to 180m.
■Extension cable length: 180m (maximum)
*The cable extension distance varies depending on the resolution.
■VGA Bandwidth: 250MHz

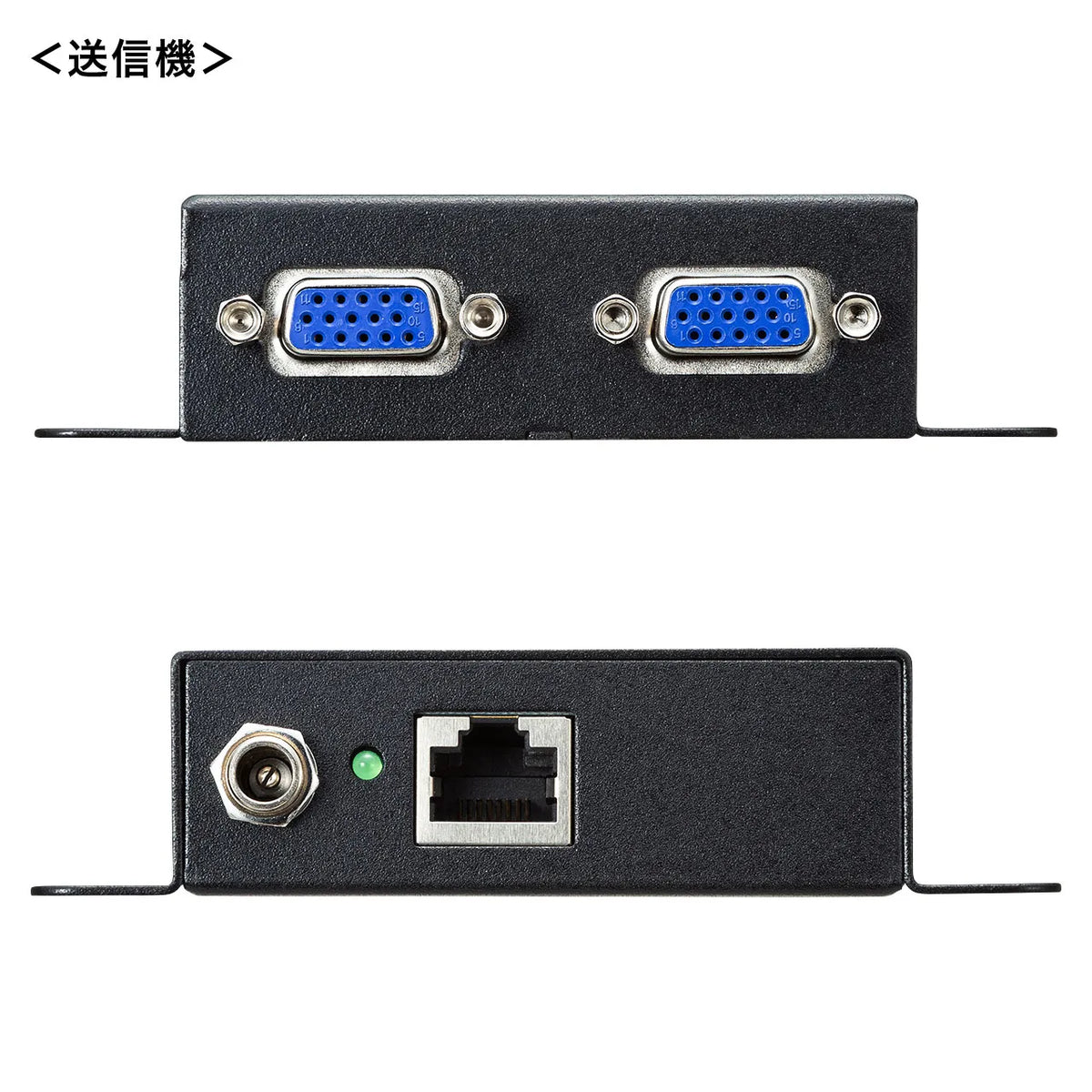

■Interface: Transmitter/Input: Mini D-sub (HD) 15-pin female x1, Output: RJ-45 female x1, Mini D-sub (HD) 15-pin female x1

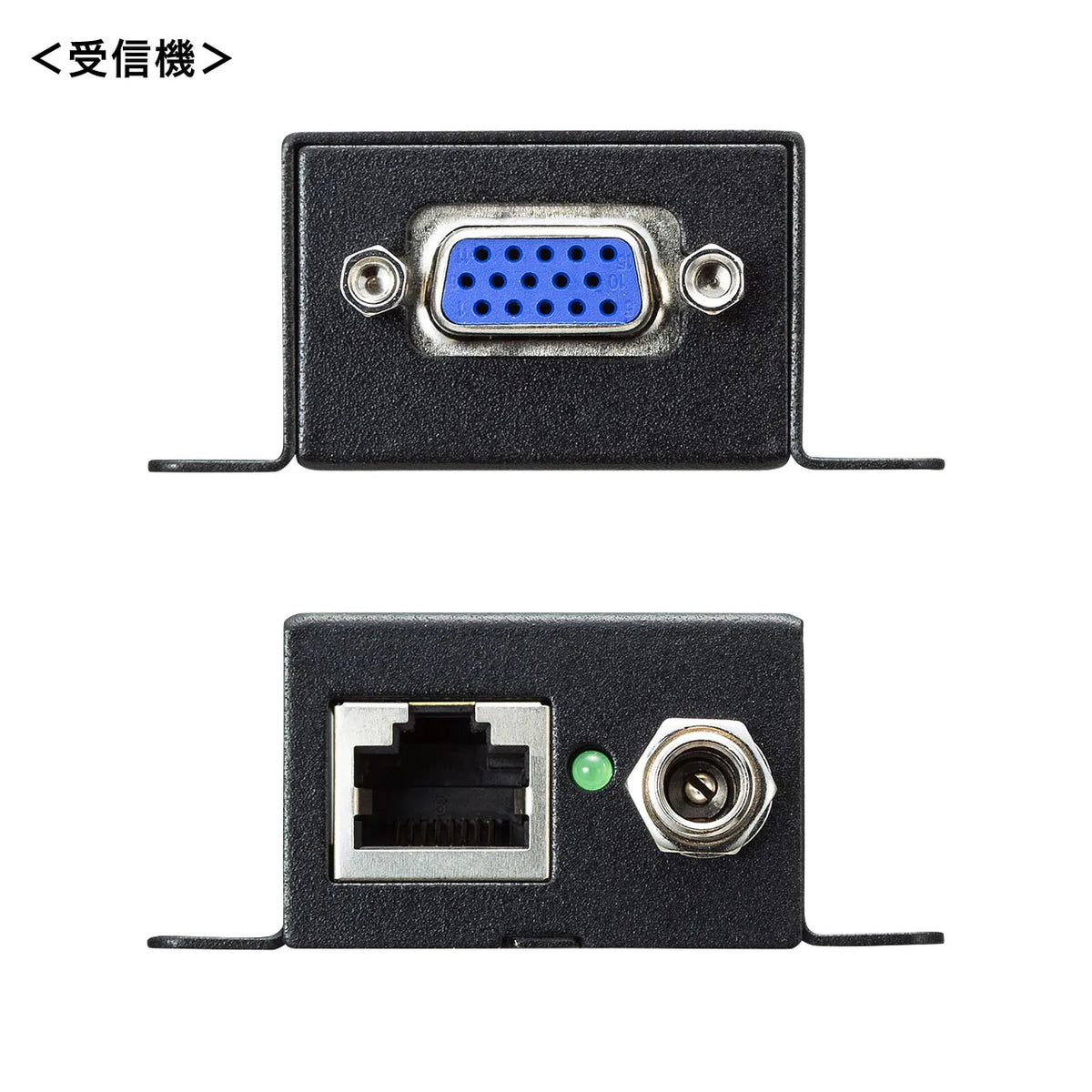

Receiver/Input: RJ-45 female x1, Output: Mini D-sub (HD) 15-pin female x1
■Power Consumption: Transmitter/1.92W (maximum)
Receiver/3W (maximum)
■Case Material: Steel
■Environmental Conditions: Operating/0 to 50 degrees Celsius, humidity 80% or less (no condensation)
Storage/-20 to 70 degrees Celsius Humidity 95% or less (no condensation)
■Size:
Transmitter/W129xD105xH25mm (main unit size)
Receiver/W104xD59xH25mm (main unit size)
■Weight:
Transmitter/288g
Receiver/155g

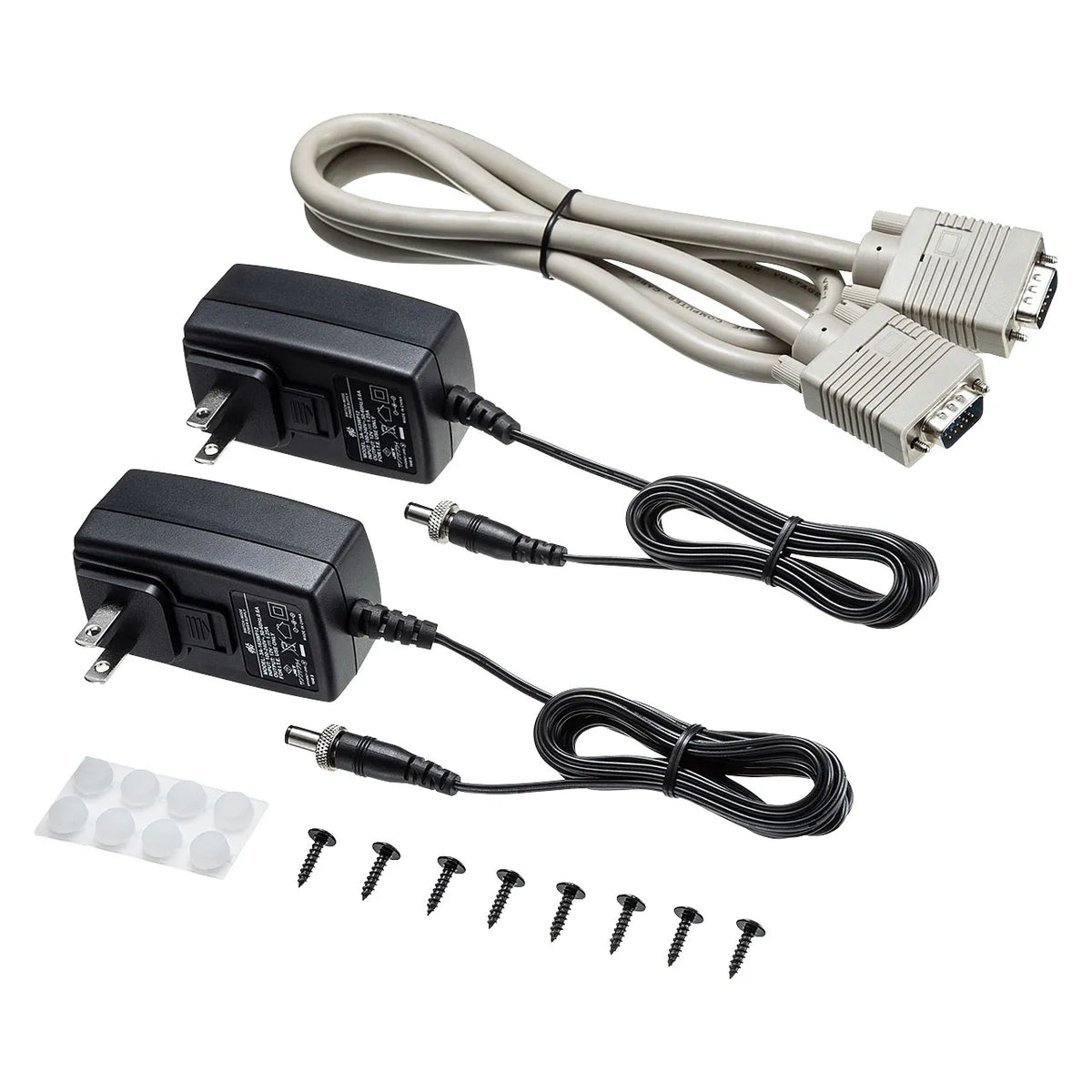

■Accessories: Display cable Mini D-sub (HD) 15pin male-male 1.2m x1, AC adapter (DC12V 1.25A) x2, rubber feet x8, wall mounting screws x8, instruction manual (with warranty)
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication.
It does not support connection via switching hubs or routers.
*It cannot be incorporated into an existing LAN environment.
*Distribution and extension output using switching hubs etc. is not possible.
*Wireless output using wireless LAN, wireless router etc. is not possible.
● Extends and outputs analog VGA images from your PC to a display up to 180m away, or up to 60m away at Full HD (1080p).
● Consists of a transmitter and receiver set, and the units can be extended using UTP/STP Category 5e/5 straight cable.
Recommended cables
・KB-T5T series (KB-T5T-50N, etc.)
・KB-10T5 series (KB-10T5-50N, etc.)
● The transmitter also has a VGA output, allowing you to check the video on your device while outputting VGA to the destination.
● Because it uses Category 5e/5 cable, it is easier to handle and more cost-effective than regular display cables.
●The receiver unit is equipped with an image quality adjustment function, allowing for easy adjustment of the image signal.
●The external structure is designed with wall mounting in mind.
●Ideal for situations where it is difficult to install a computer, such as in factories or construction sites, and only the display needs to be installed, with the computer equipment located in a different, more suitable location.
■Maximum display resolution: 1920x1080 (1080p, 60Hz) *Extendable up to 60m.
1280x1024 (60Hz) *Extendable up to 180m.
1280x720 (720p, 60Hz) *Extendable up to 180m.
■Extension cable length: 180m (maximum)
*The cable extension distance varies depending on the resolution.
■VGA Bandwidth: 250MHz
■Interface: Transmitter/Input: Mini D-sub (HD) 15-pin female x1, Output: RJ-45 female x1, Mini D-sub (HD) 15-pin female x1
Receiver/Input: RJ-45 female x1, Output: Mini D-sub (HD) 15-pin female x1
■Power Consumption: Transmitter/1.92W (maximum)
Receiver/3W (maximum)
■Case Material: Steel
■Environmental Conditions: Operating/0 to 50 degrees Celsius, humidity 80% or less (no condensation)
Storage/-20 to 70 degrees Celsius Humidity 95% or less (no condensation)
■Size:
Transmitter/W129xD105xH25mm (main unit size)
Receiver/W104xD59xH25mm (main unit size)
■Weight:
Transmitter/288g
Receiver/155g
■Accessories: Display cable Mini D-sub (HD) 15pin male-male 1.2m x1, AC adapter (DC12V 1.25A) x2, rubber feet x8, wall mounting screws x8, instruction manual (with warranty)
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication.
It does not support connection via switching hubs or routers.
*It cannot be incorporated into an existing LAN environment.
*Distribution and extension output using switching hubs etc. is not possible.
*Wireless output using wireless LAN, wireless router etc. is not possible.
