SANWA SUPPLY
Display Extender (Transmitter) (8-way splitter) VGA-EXL8N
Display Extender (Transmitter) (8-way splitter) VGA-EXL8N
GTIN（JAN）：4969887593844
SKU：VGA-EXL8N
Regular price
¥47,916 JPY
Regular price
Sale price
¥47,916 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[A display distribution extender (transmitter) that can distribute output to multiple displays. It has a local output that allows you to check the output video on your device.]

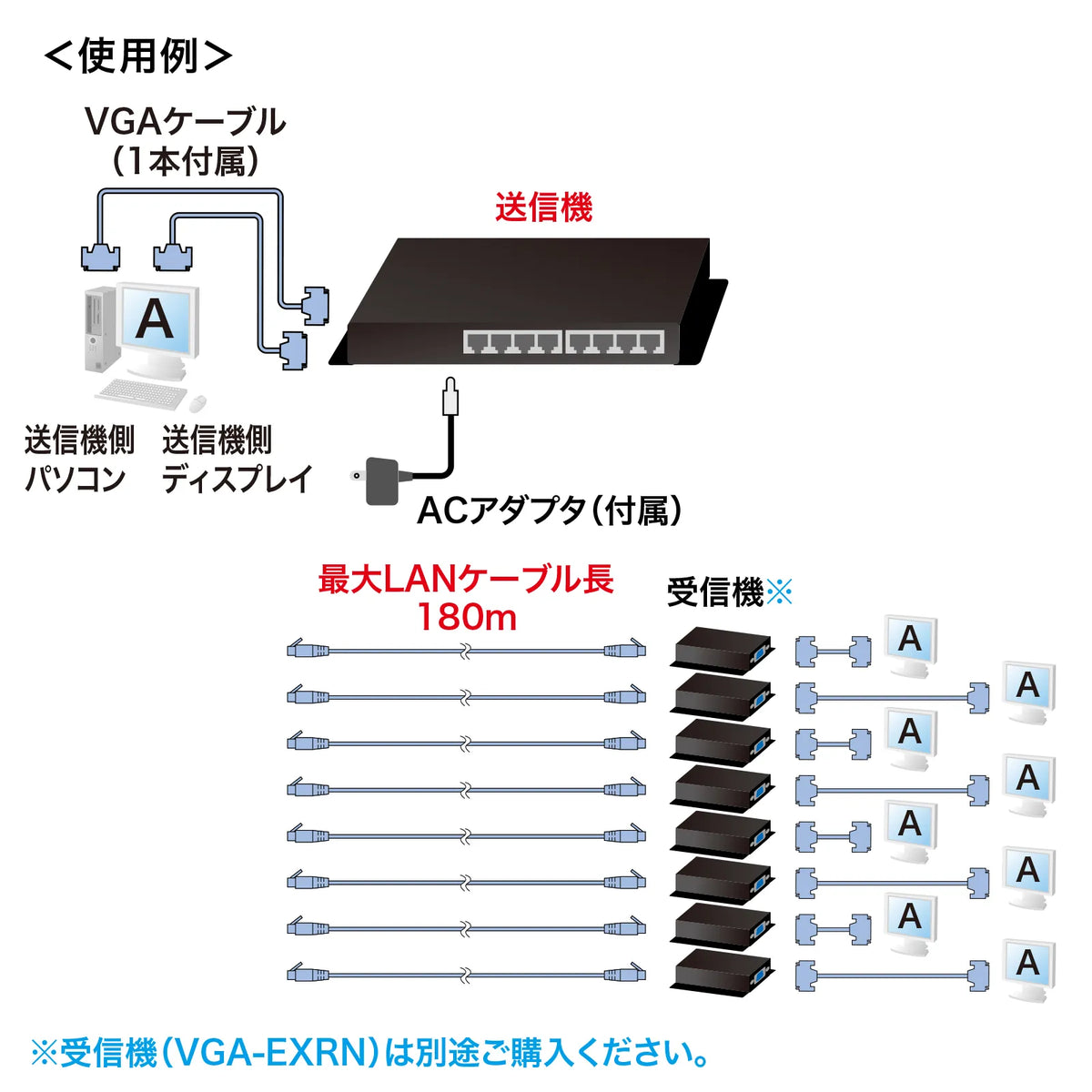

●This display distribution extender can distribute analog VGA images from a PC to up to 8 displays up to 180m away, or up to 60m away for Full HD (1080p) images.
●This transmitter can distribute images using UTP/STP Category 5e/5 straight cables. (A separate receiver VGA-EXRN is required for video reception.)
●Because it uses Category 5e/5 cables, it is easier to handle and more cost-effective than regular display cables.

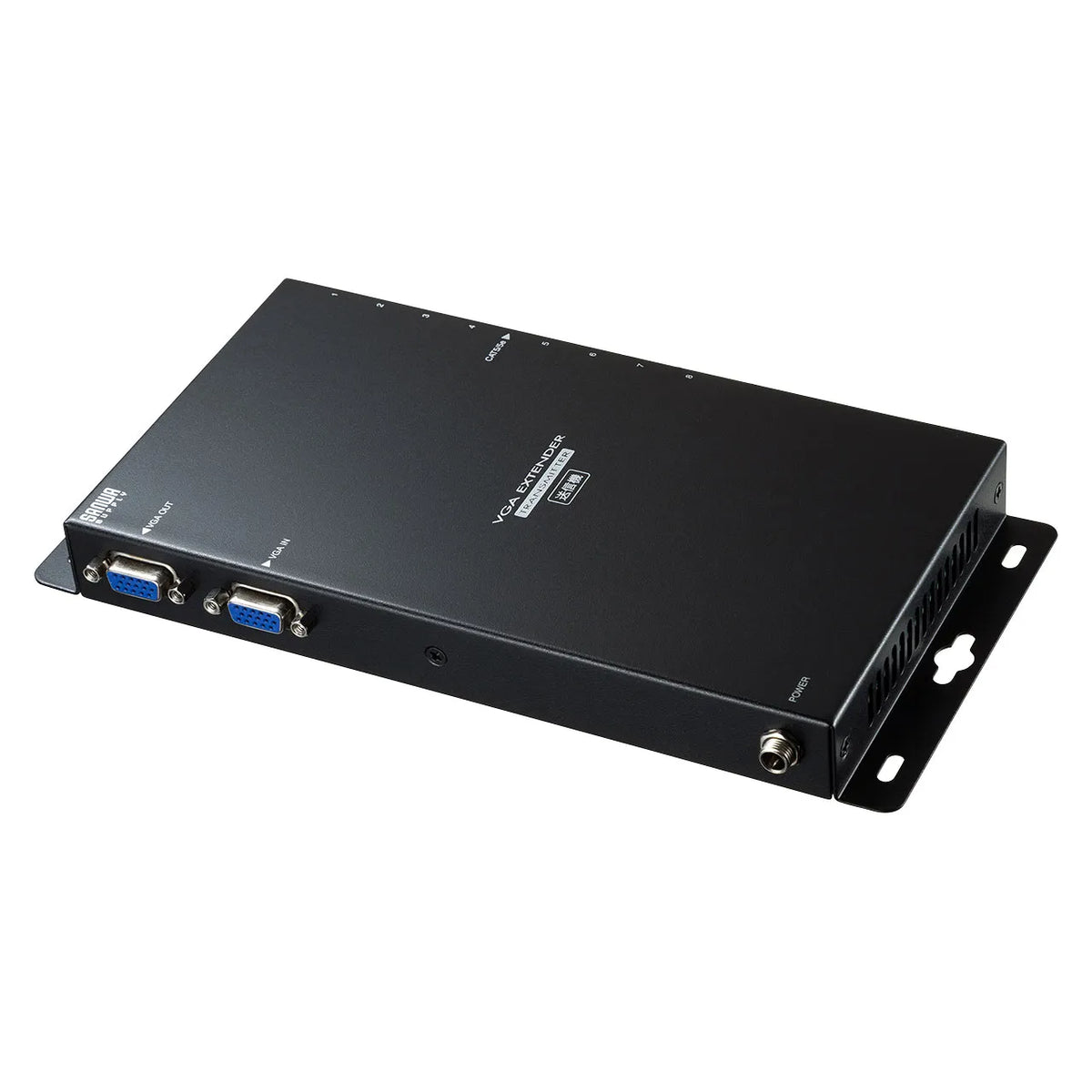

●The transmitter also has a VGA output, allowing you to check the video on your device while outputting VGA to the destination.

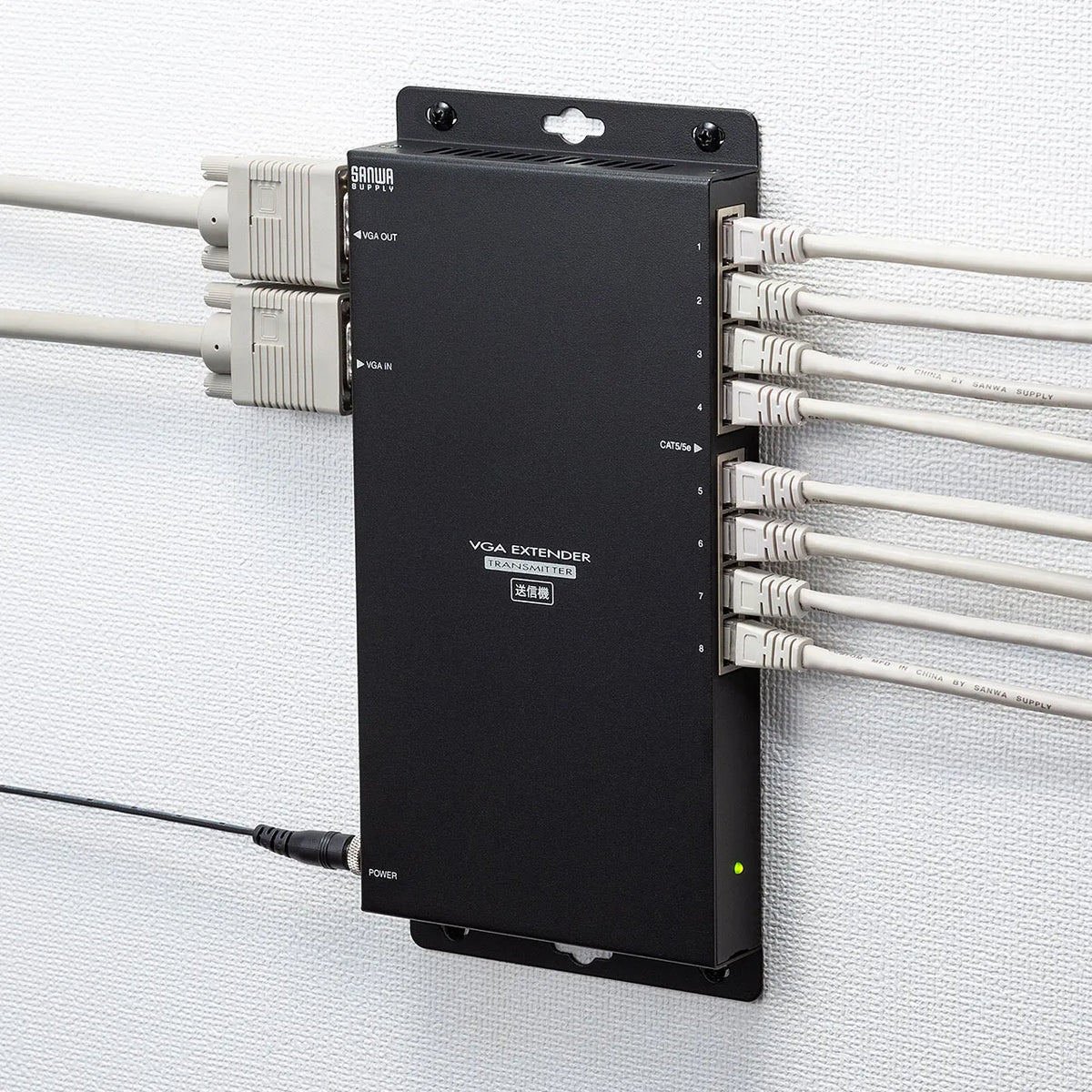

●The external structure is designed with wall mounting in mind.
●It is ideal for situations where it is difficult to install a PC, such as in factories or construction sites, and you want to install only the displays and the PC equipment in a different, better environment.
■Maximum display resolution:
1920x1080 (1080p, 60Hz) *Extendable up to 60m.
1280x1024 (60Hz) *Extendable up to 180m.
1280x720 (720p, 60Hz) *Extendable up to 180m.
■Extension cable length: 180m (maximum)
*The distance that can be extended with the cable varies depending on the resolution.
■VGA Bandwidth: 250MHz

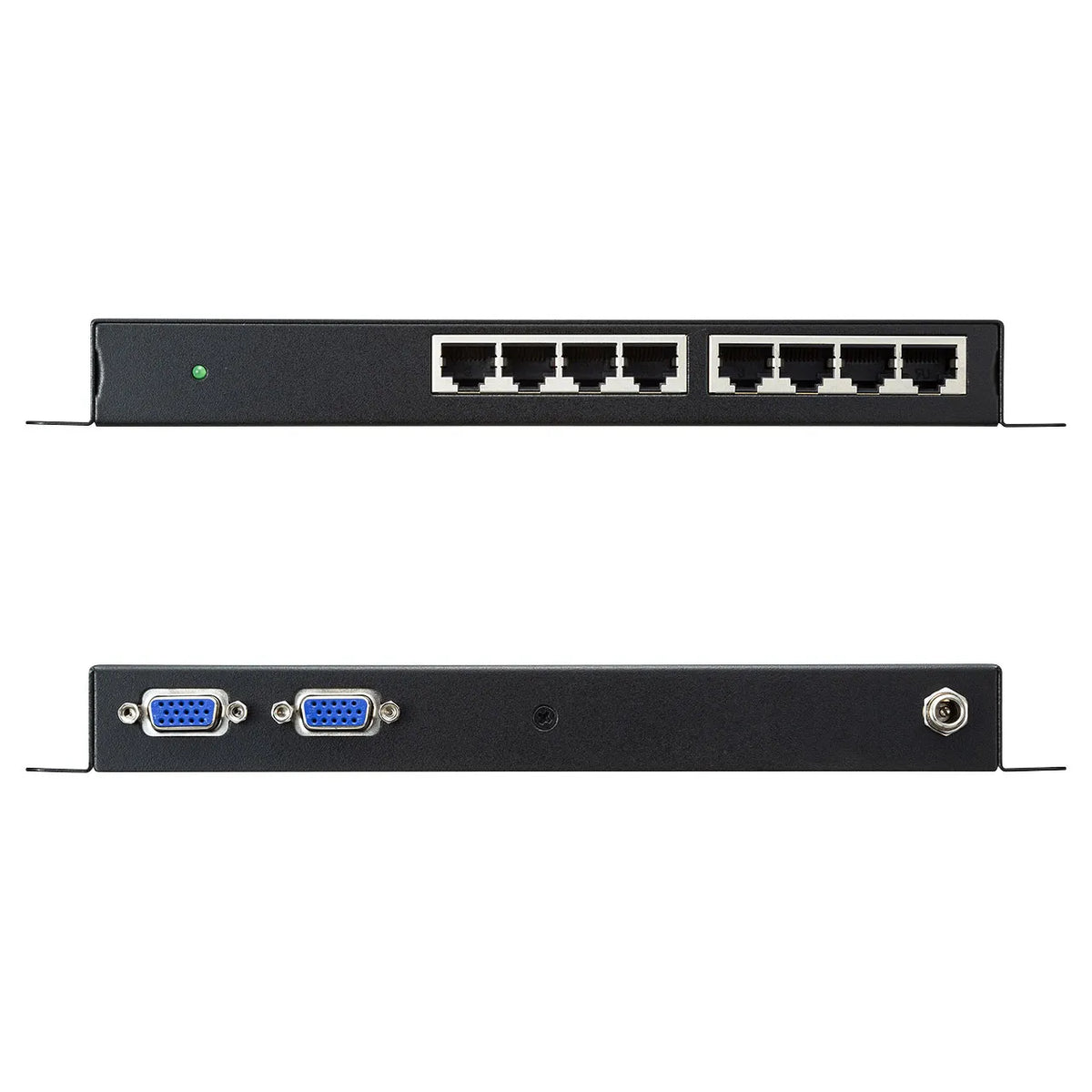

■Interface:
Input/Mini D-sub (HD) 15-pin female x1,
Output/RJ-45 female x8, Mini D-sub (HD) 15-pin female x1
■Distribution: 8-way
■Power Consumption: 6.5W (maximum)
■Case Material: Steel
■Environmental Conditions:
Operating/0 to 50 degrees Celsius, humidity 80% or less (non-condensing)
Storage/-20 to 70 degrees Celsius, humidity 95% or less (non-condensing)
■Size: W245 x D119 x H25mm (main unit size)
■Weight: 653g

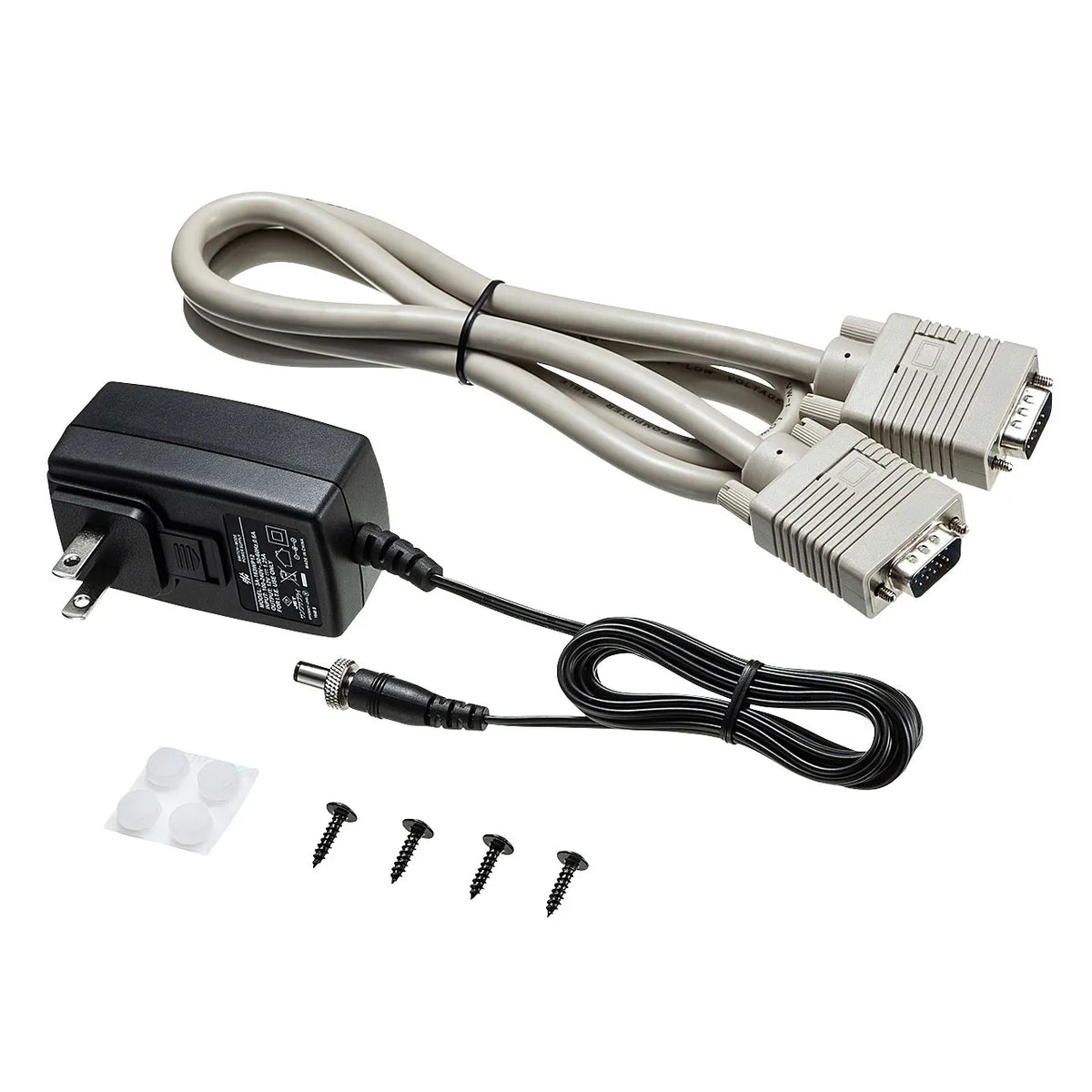

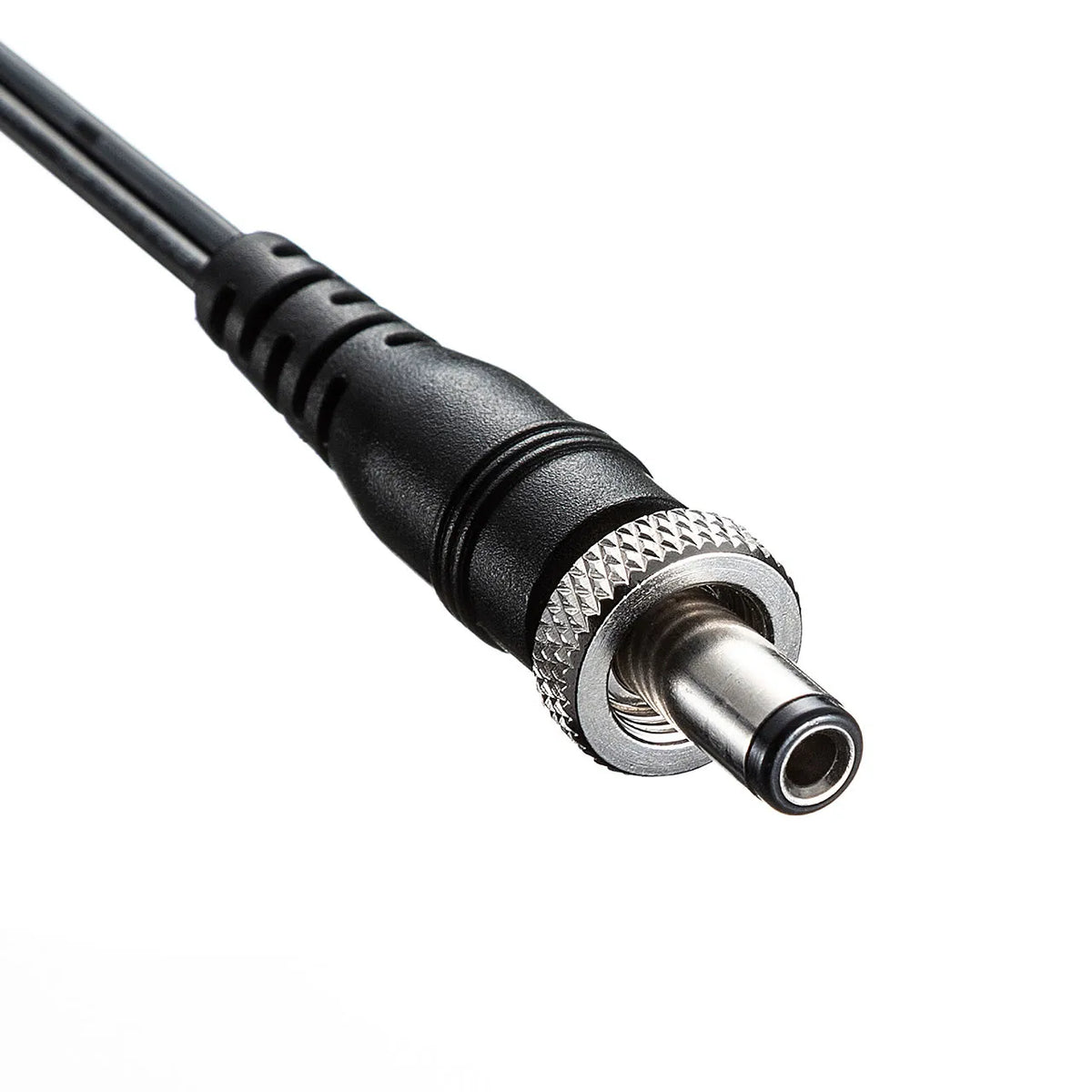

■Accessories: Display cable Mini D-sub (HD) 15-pin male-male 1.2m x1, AC adapter (DC12V 1.25A) x1, rubber feet x4, wall mounting screws x4, instruction manual (with warranty)
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication.
It does not support connections via switching hubs or routers.
*It cannot be integrated into an existing LAN environment.
*Distribution and extension output using switching hubs, etc. is not possible.
*Wireless output using wireless LAN, wireless routers, etc. is not possible.
