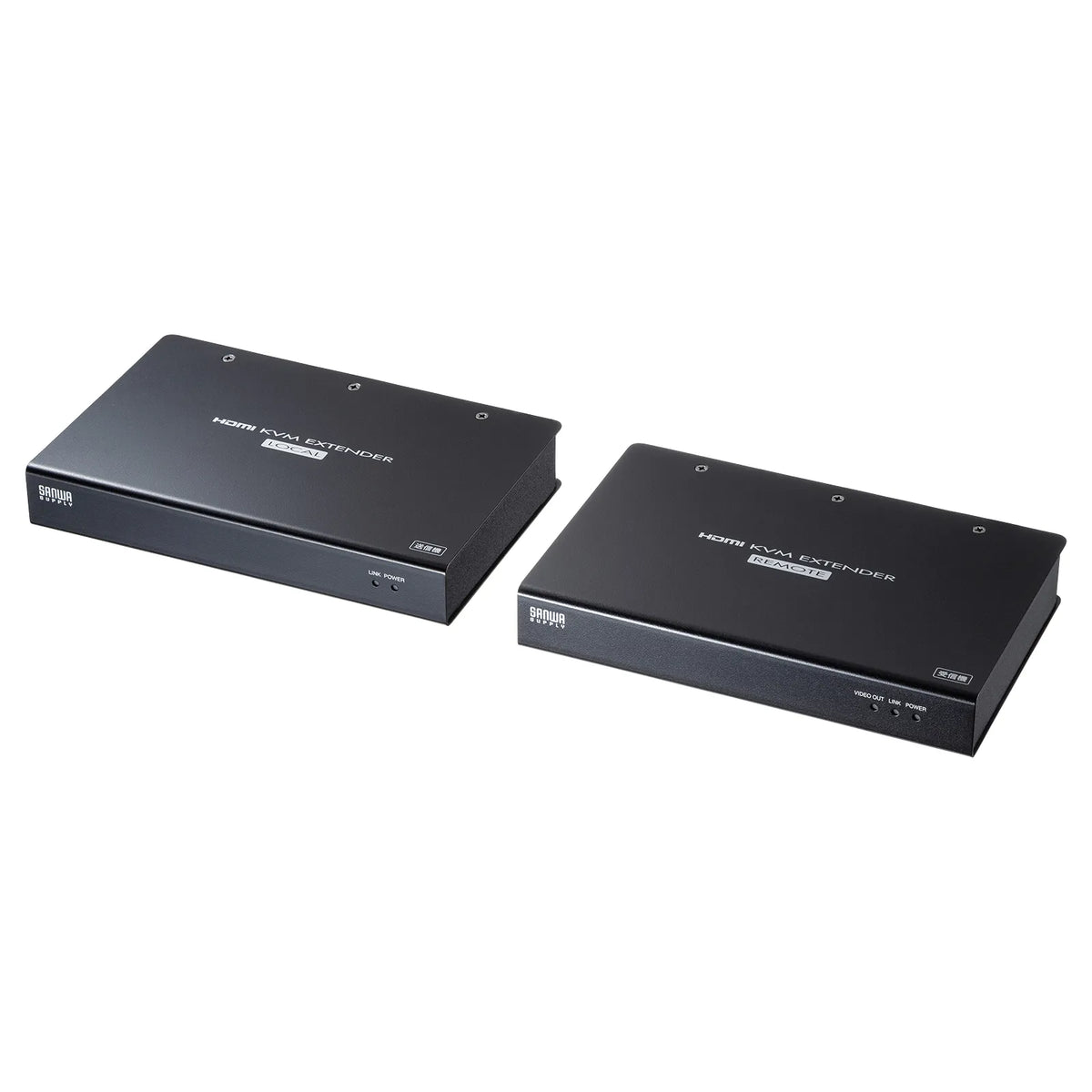

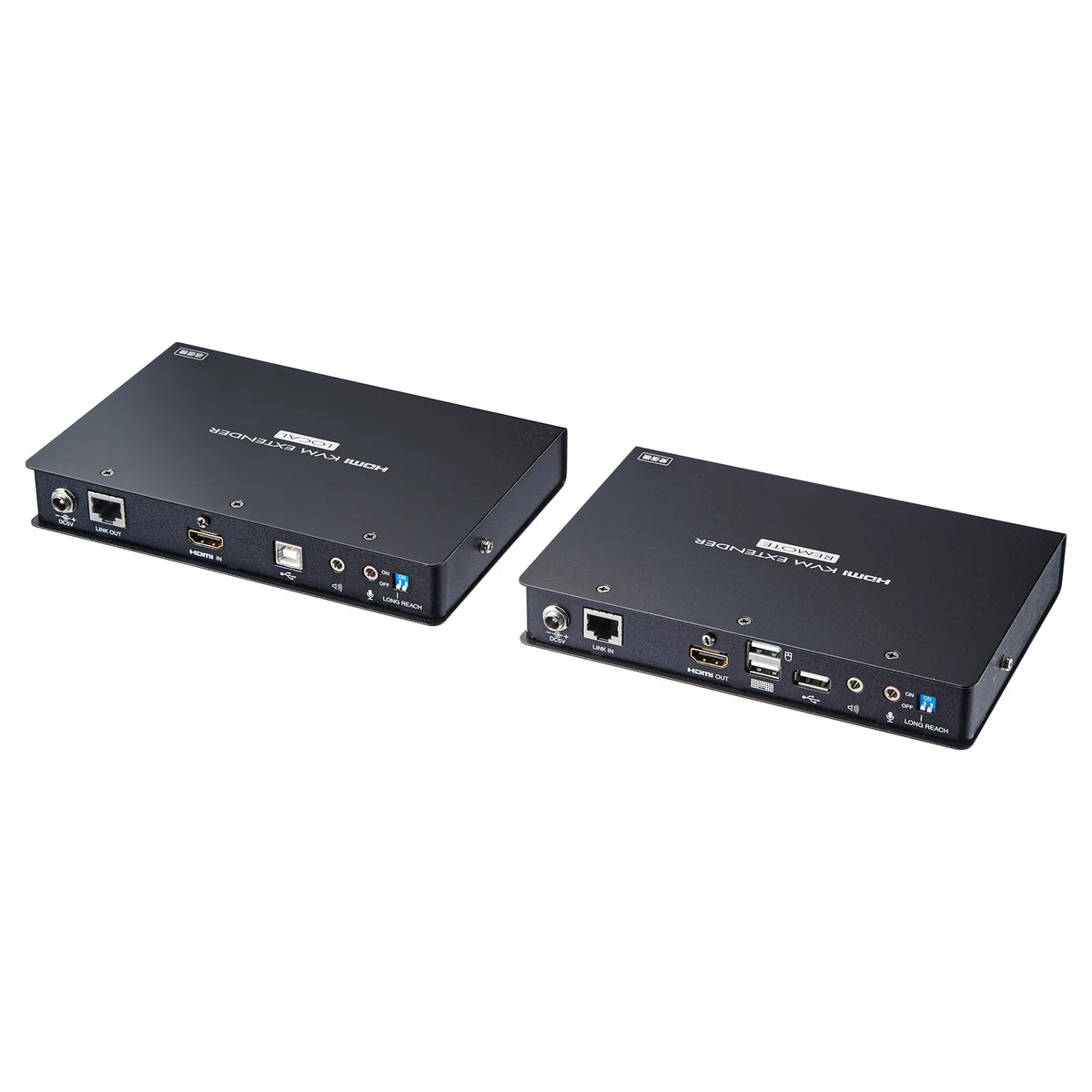

KVM Extender (for HDMI and USB) VGA-EXKVMHU2

[An HDMI-compatible KVM extender that can extend 4K resolution HDMI signals and USB 2.0 signals up to 100m with a single LAN cable, allowing operation from a console located remotely.]

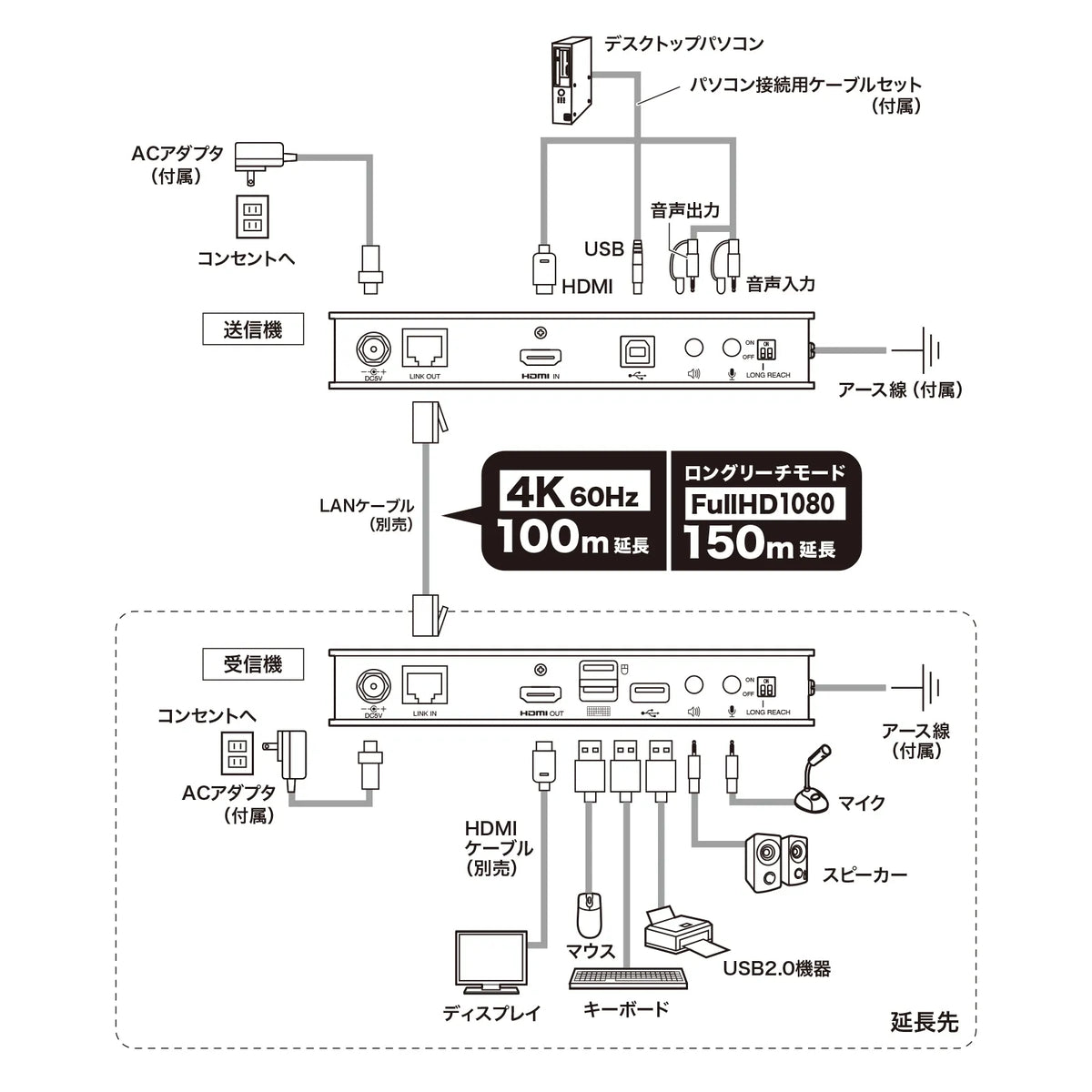

●This HDMI-compatible KVM extender extends HDMI and USB signals over long distances with a single LAN cable, allowing operation from a console installed in a remote location.
●It can extend up to 100m at 4K/60Hz resolution, and up to 150m at 1080p (1920x1080 pixels) resolution in long-reach mode.
●It can extend USB 2.0 signals, allowing you to remotely control a computer installed in a remote location using a keyboard and mouse.
●It supports HDMI-CEC PASS-Through (device control/link function).
*May not work depending on the connected device and function.

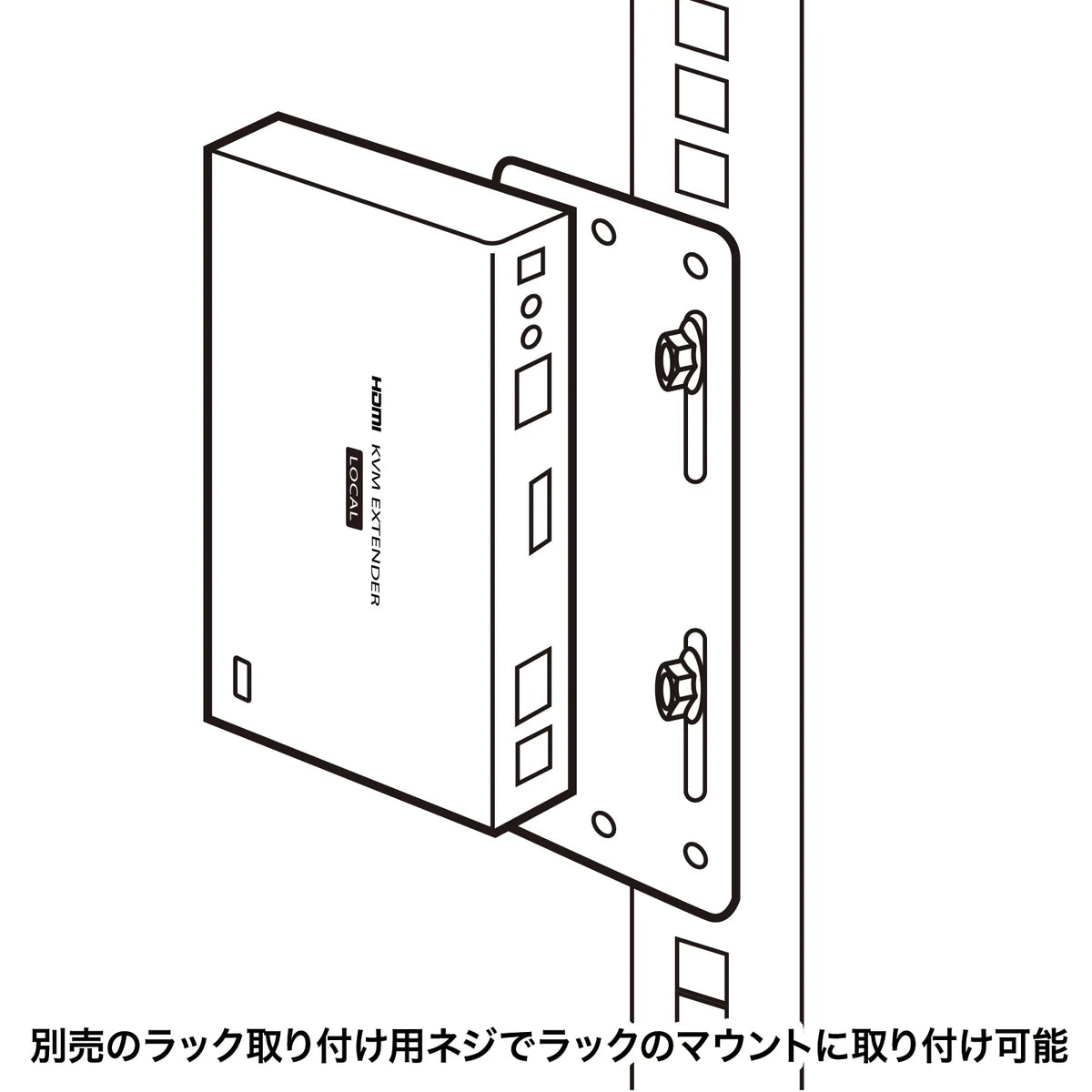

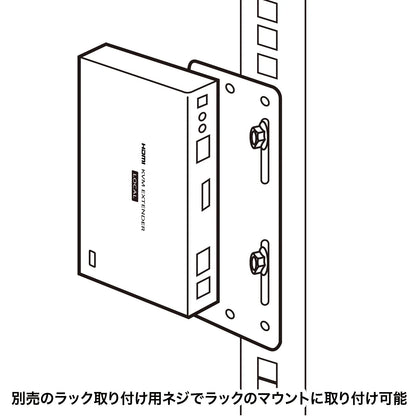

●A rack mount kit is included, allowing installation in a server rack.
●HDCP (High-bandwidth Digital Content Protection) compliant product.
*The display must also be HDCP compliant.
●This product conforms to the technical standards of the Electrical Appliances and Materials Safety Act (PSE).
≪Caution≫
*This product uses one Category 6/6a straight cable. Please purchase it separately.
*For LAN cables, please use products with a cable specification of 24AWG/23AWG solid wire.
≪Recommended Cables≫
Sanwa Supply
KB-T6TS series KB-T6TS-90N etc. (Category 6)
KB-T6ATS series KB-T6ATS-30W etc. (Category 6A)
KB-T6L-CB100N (100m) / KB-T6L-CB300N (300m) (Category 6)

■Supported Input Signal: HDMI
■Supported Output Signal: USB, HDMI
■Maximum Resolution:
【Category 6A/6】
4K (4096x2160) / 60Hz (4:2:0) 100m
4K (4096x2160) / 30Hz (4:4:4) 100m
4K (3840x2160) / 60Hz (4:2:0) 100m
4K (3840x2160) / 30Hz (4:4:4) 100m
1080P (1920x1080) 100m *Long reach mode / 150m
[Category 5e]
4K (4096x2160) / 60Hz (4:2:0) 90m
4K (4096x2160) / 30Hz (4:4:4) 90m
4K (3840x2160) / 60Hz (4:2:0) 90m
4K (3840x2160) / 30Hz (4:4:4) 90m
1080P (1920x1080) 100m *Long reach mode: 150m
[Caution]
*When using long reach mode, we recommend using a high-quality Cat6 or higher LAN cable.
■Interface:

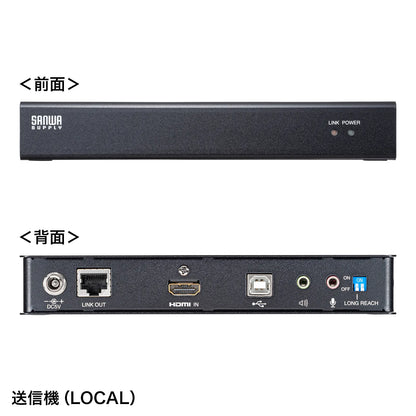

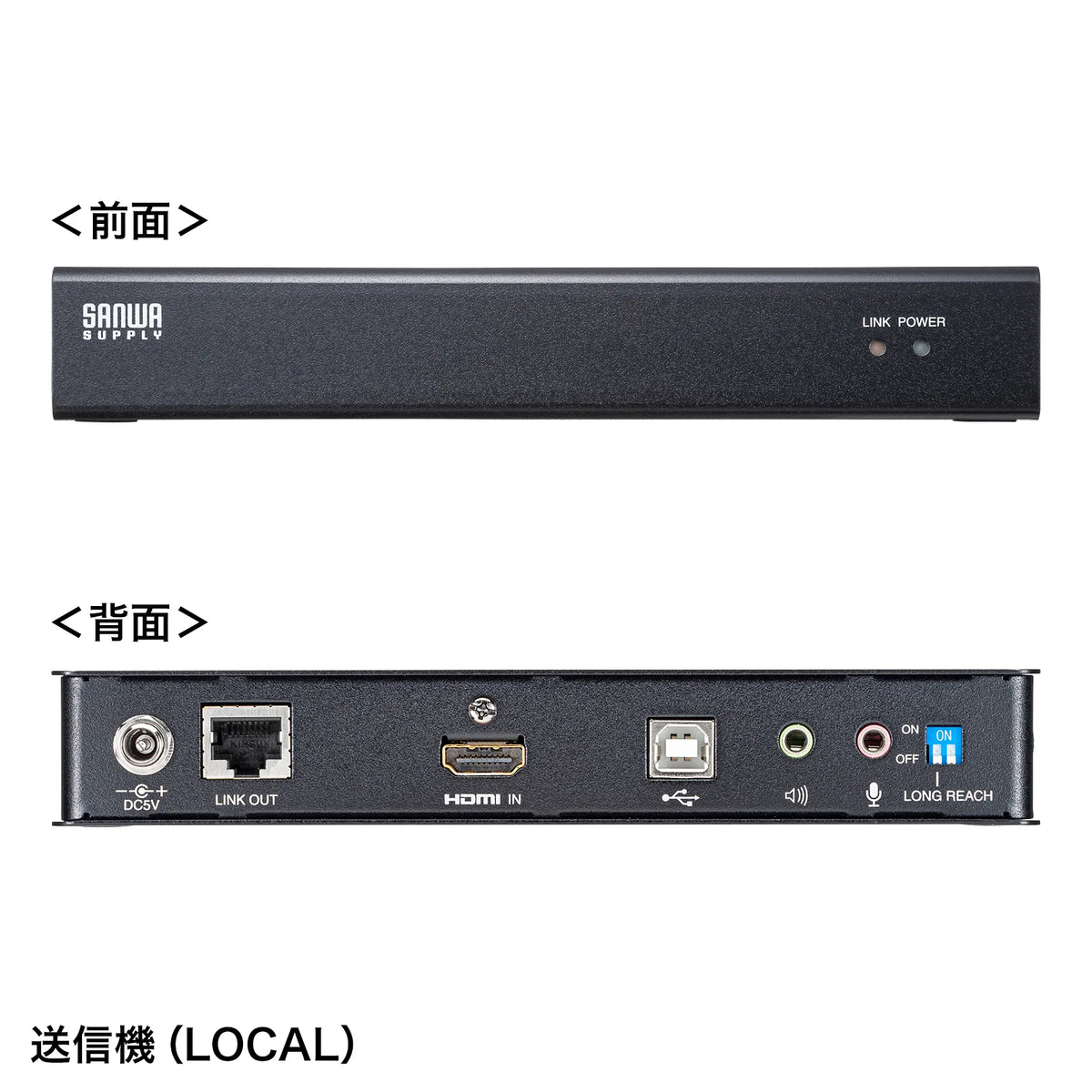

[Transmitter]
HDMI Type A (19pin) female x1
USB B connector female x1
RJ-45 female x1
3.5mm stereo mini jack x2

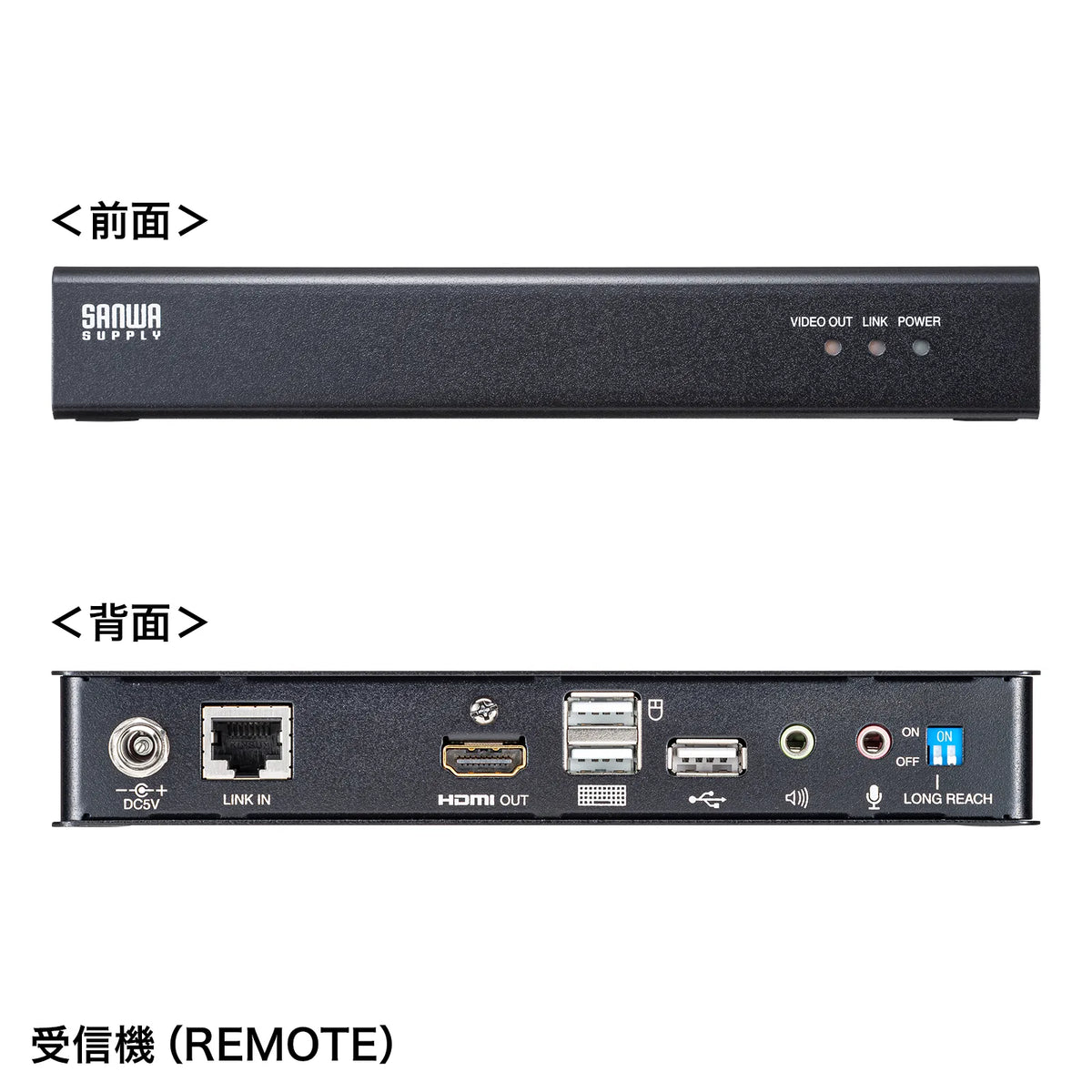

[Receiver]
HDMI Type A (19pin) female x1
USB A connector female x3
RJ-45 female x1
3.5mm stereo mini jack x2
■Power consumption:
[Transmitter] 2.87W
[Receiver] 5.37W
■Data rate (maximum): 10.2Gbps
■Compatible LAN cables: CAT6A straight, CAT6 straight, CAT5e straight, CAT5 straight
*Cable standard and extension distance vary depending on the resolution.
■Extension cable length: 100m
*Maximum 150m when using long reach mode
■Bandwidth: Single link 340MHz/3.4Gbps per channel (10.2Gbps all channel)
■USB standard: USB1.1 A connector, USB2.0 A connector
USB2.0 compatible (Up to Full Speed ​​mode [standard value]. High Speed ​​mode is not supported)
■HDCP: HDCP1.4, HDCP2.2
*The display must also be HDCP compatible.
■CEC (Customer Electronic Control): PASS Through
*May not work depending on the connected device and function.
■Supported audio format: LPCM
■Environmental conditions:
Operating temperature: 0 to 50 degrees Celsius, humidity: 0 to 80% (non-condensing)
Storage temperature: -20 to 60 degrees Celsius, humidity: 0 to 85% (non-condensing)

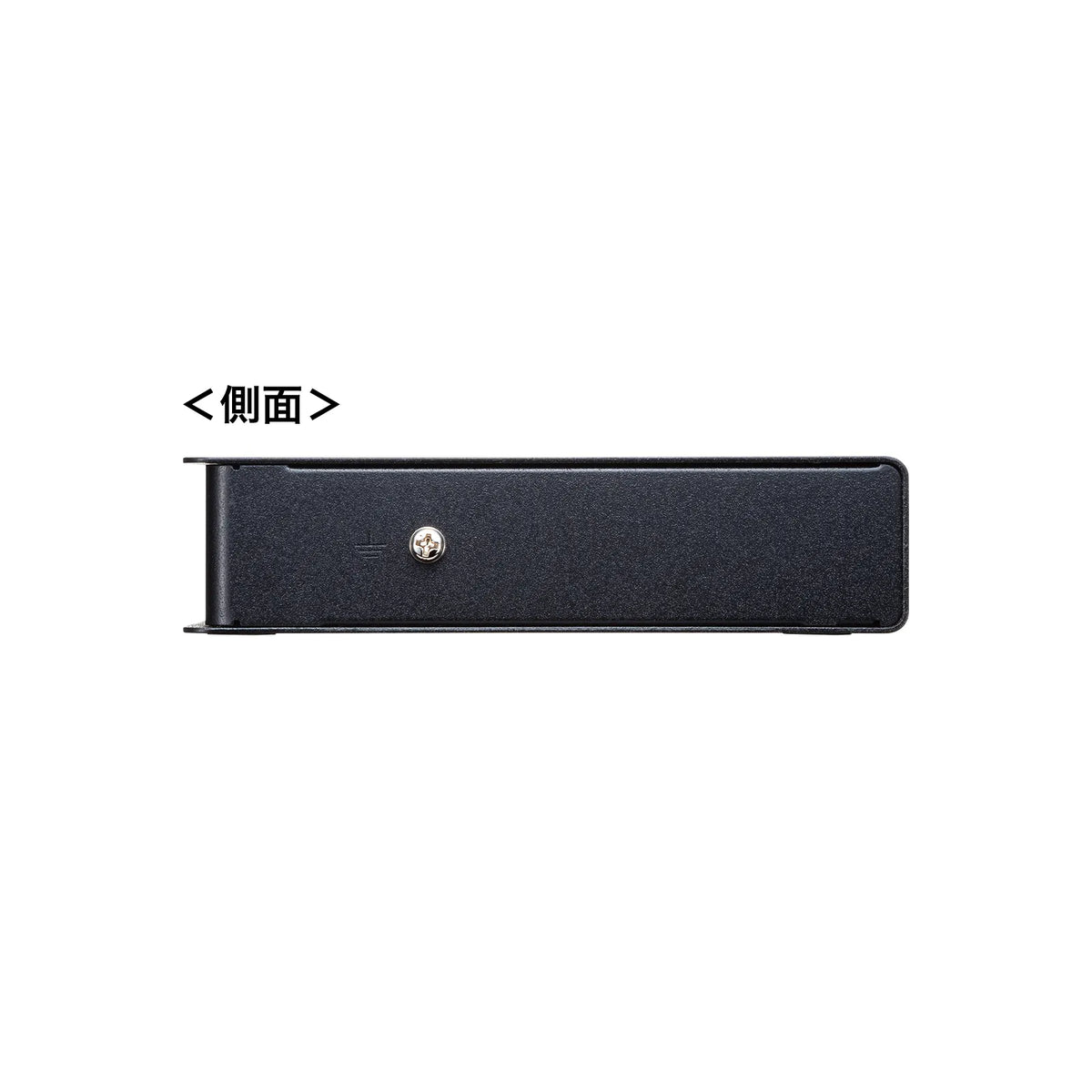

■Size: Transmitter/Receiver: W182 x D121.9 x H28.7 mm
■Weight:
[Transmitter] Approx. 630 g
[Receiver] Approx. 650 g

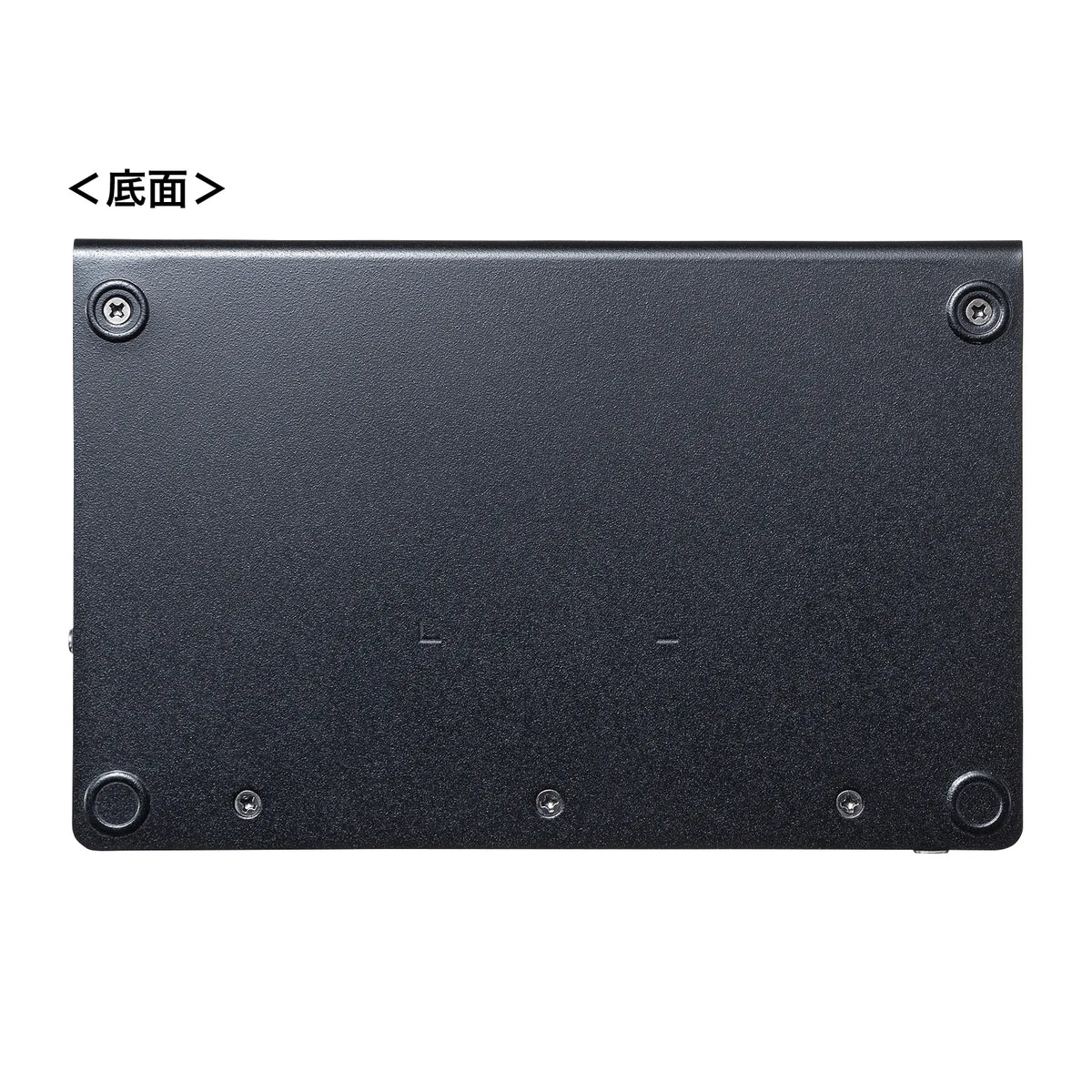

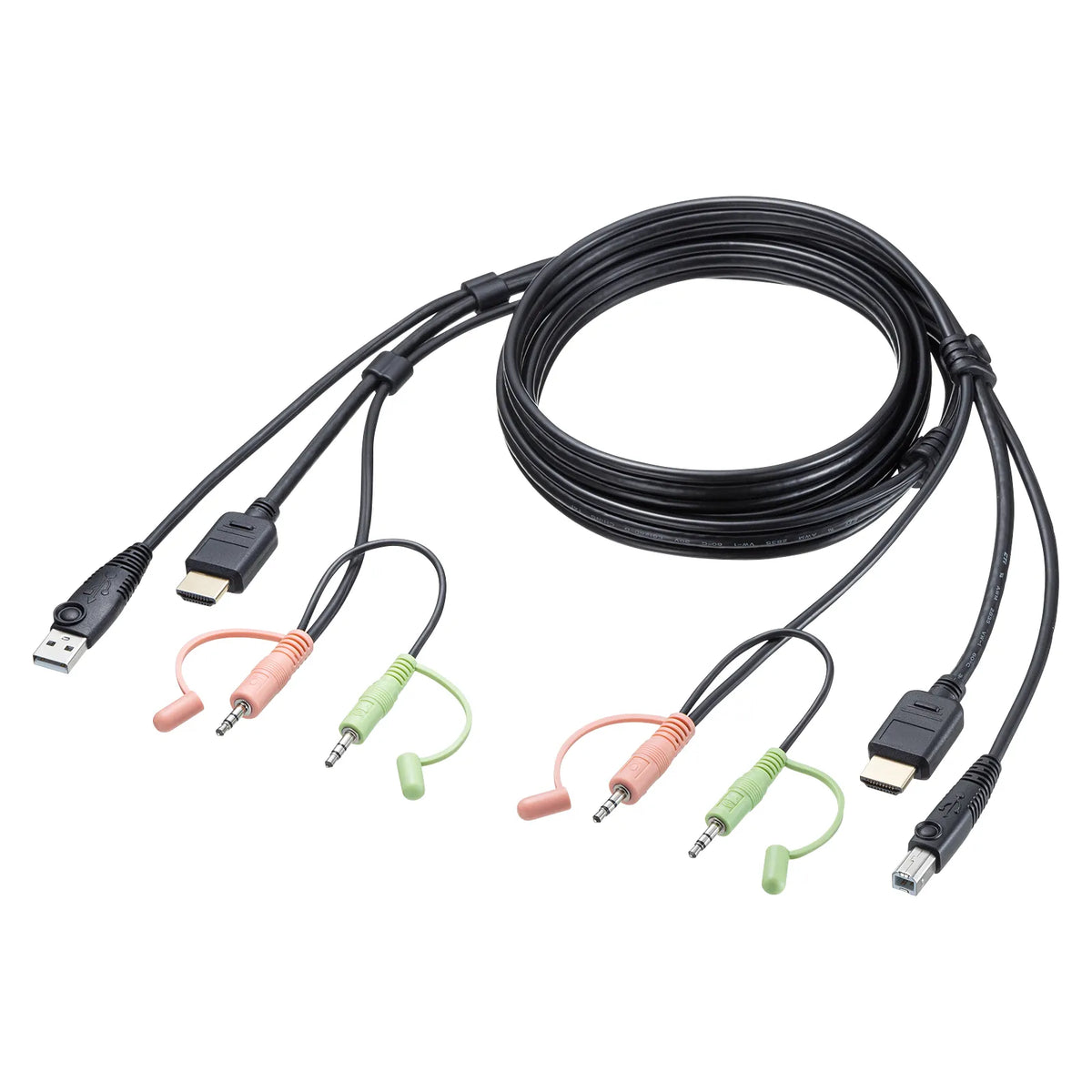

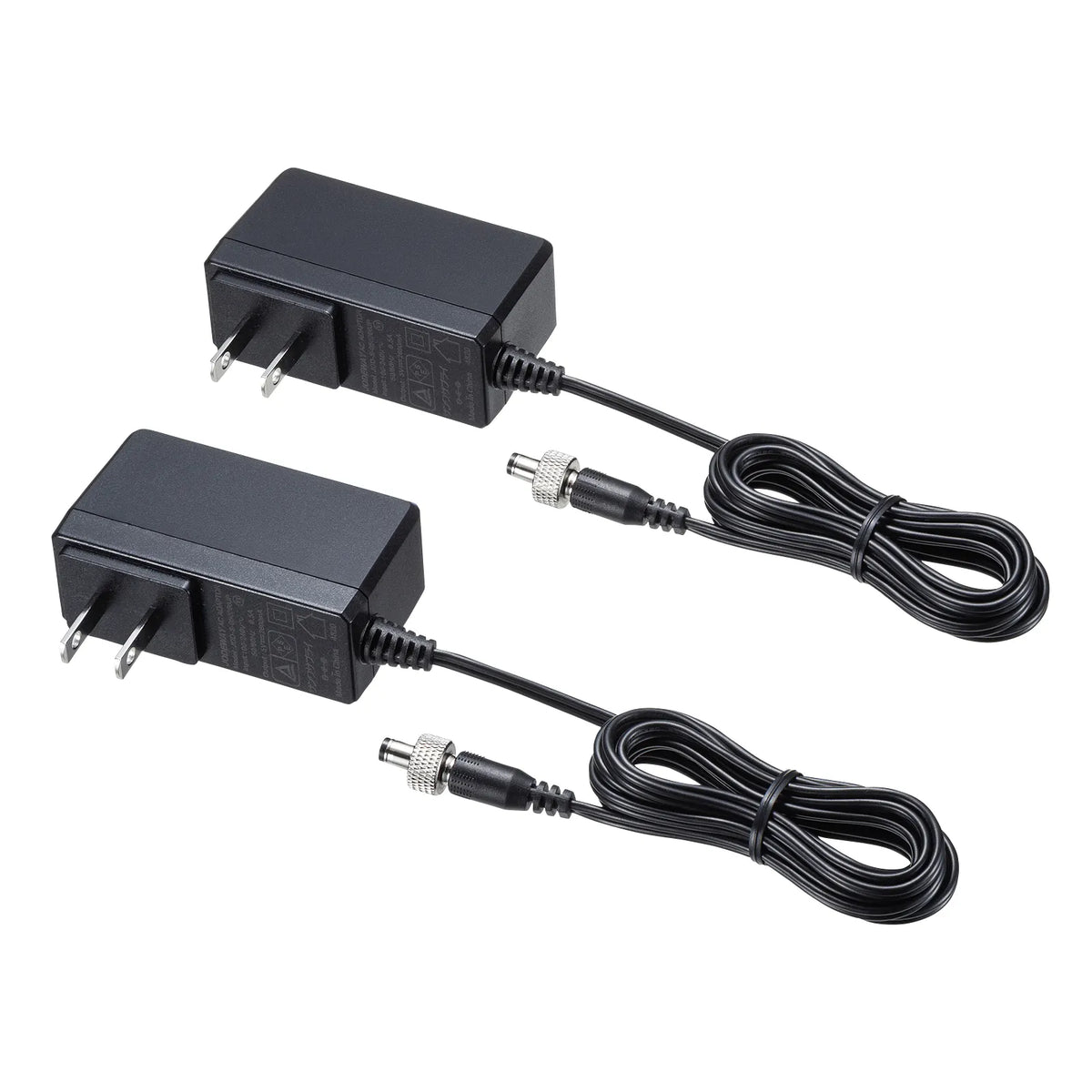

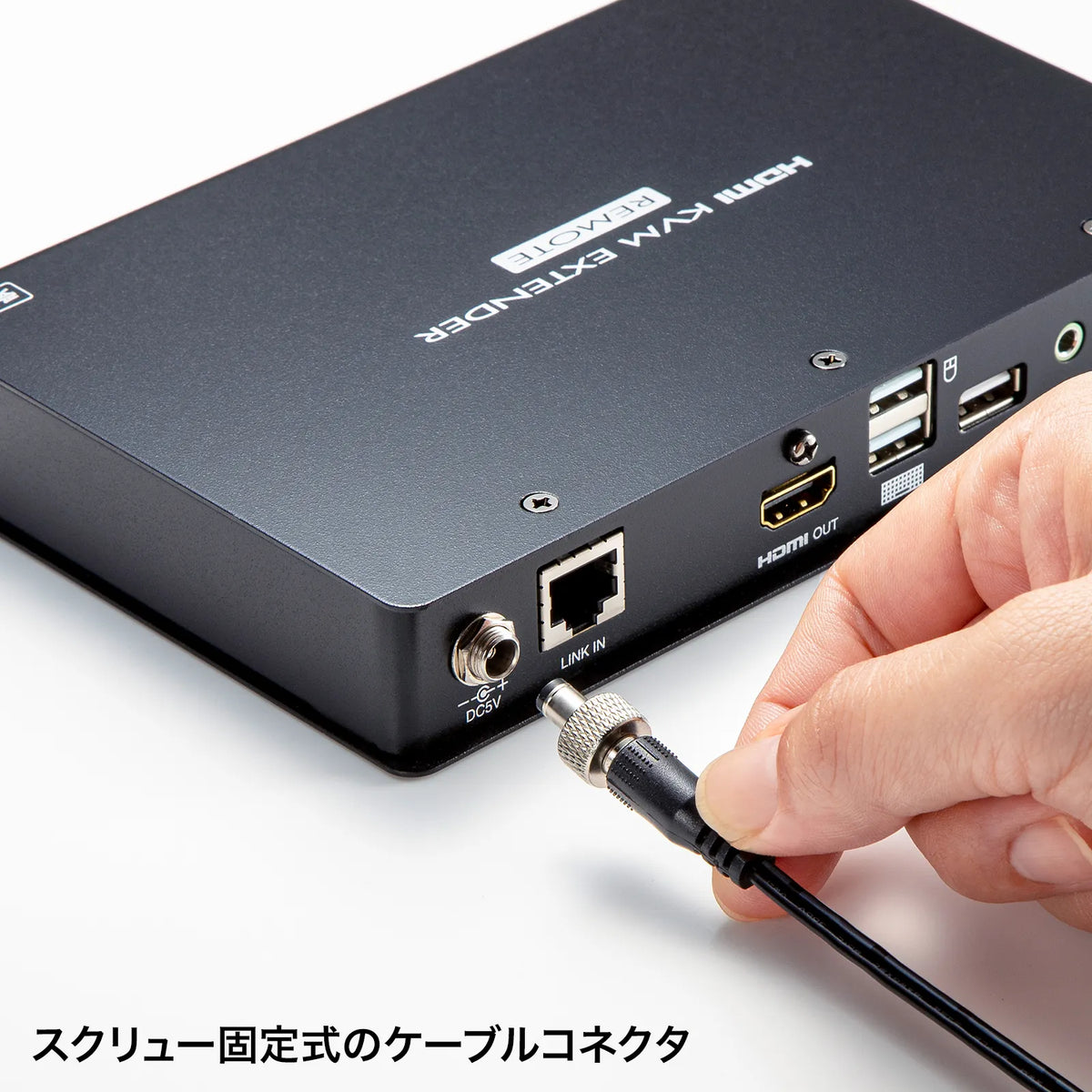

■Set contents: Transmitter x1, Receiver x1, AC adapter (DC5V/2.6A) x2, PC connection cable set (1.8m) x1, Rack mounting plate x2, Plate mounting screws x4, Rubber feet x8, Ground wire x2, Instruction manual (with warranty) x1
