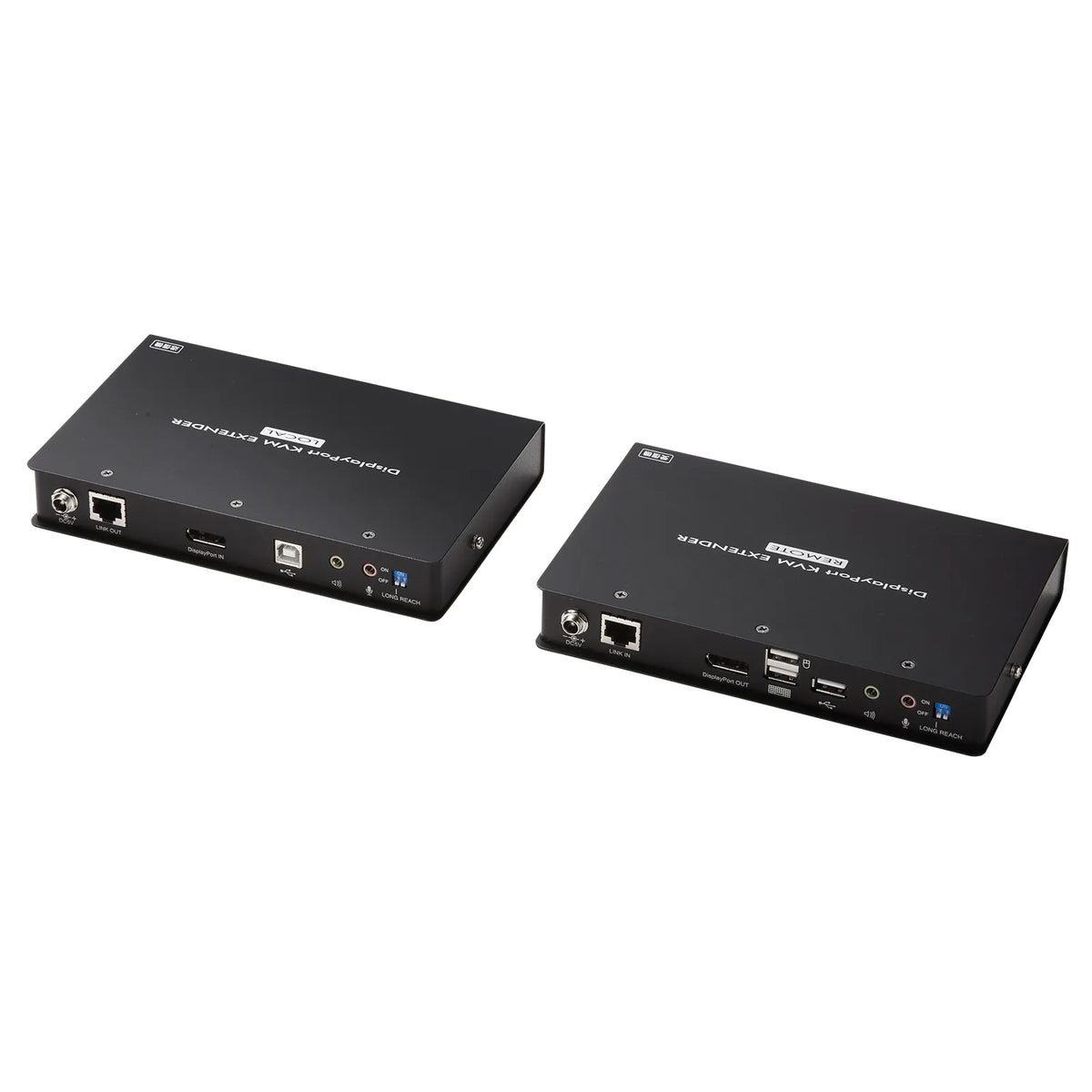

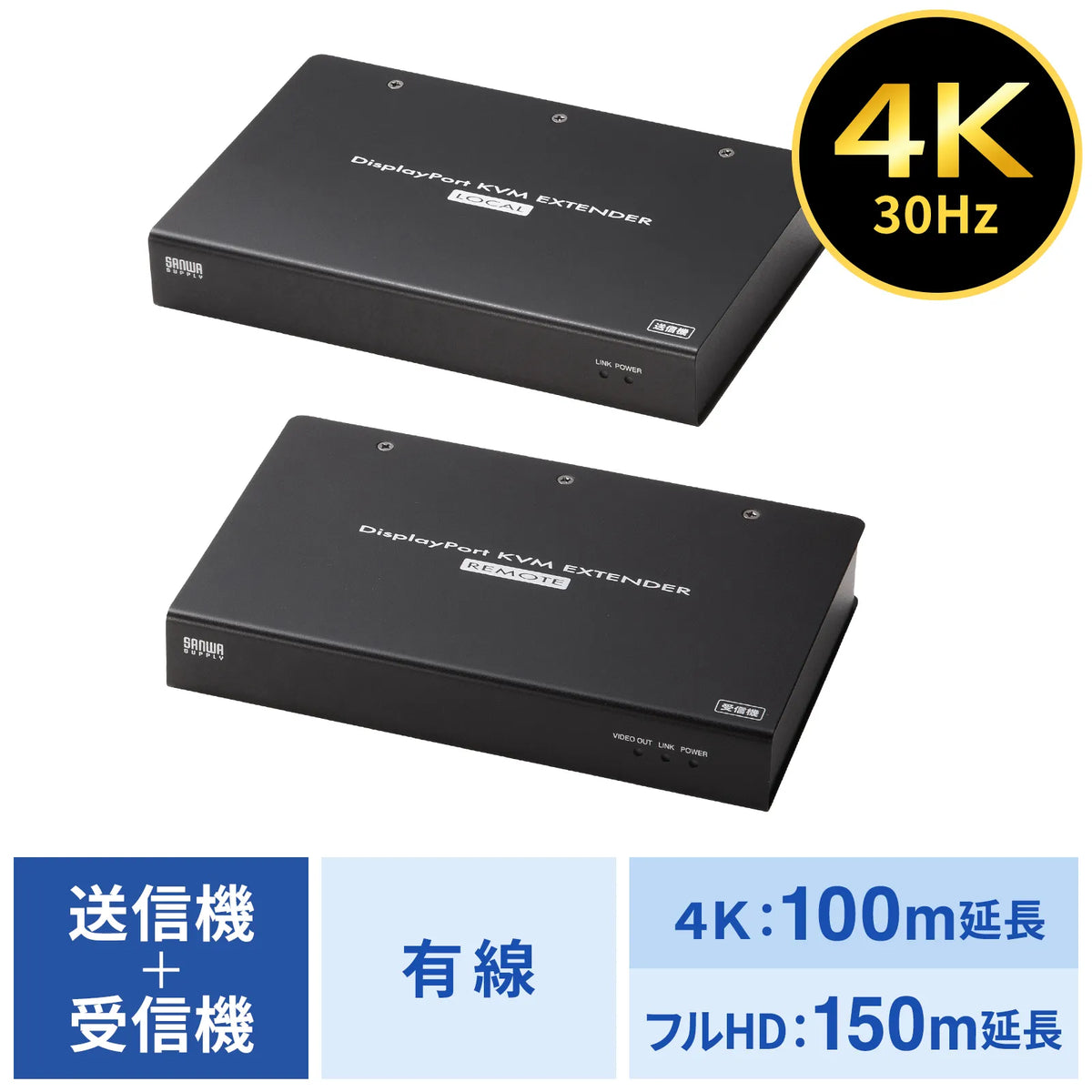

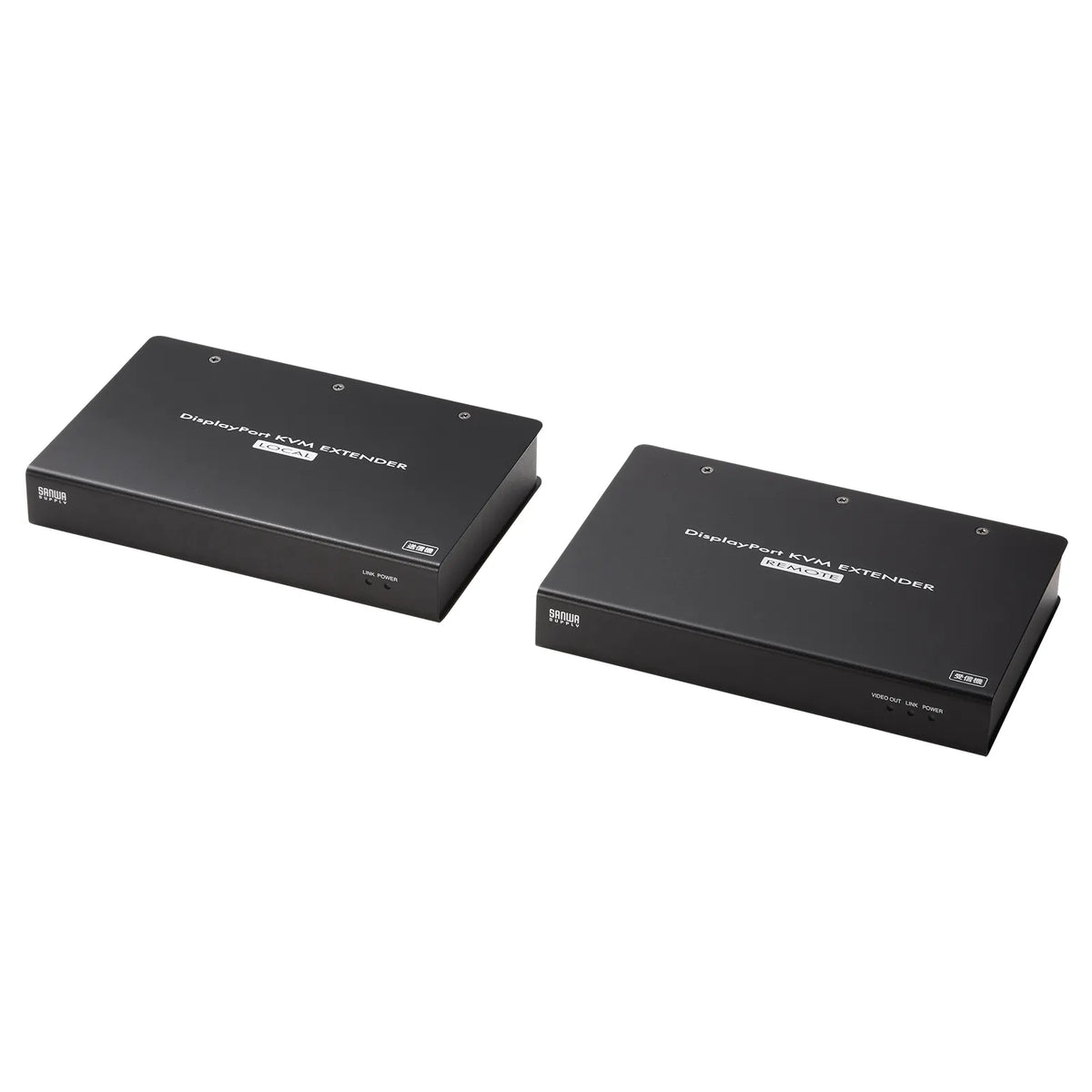

KVM Extender (for DisplayPort and USB) VGA-EXKVMDPU

[A DisplayPort-compatible KVM extender that can extend 4K resolution DisplayPort and USB 2.0 signals up to 100m with a single LAN cable, allowing operation from a console located remotely.]

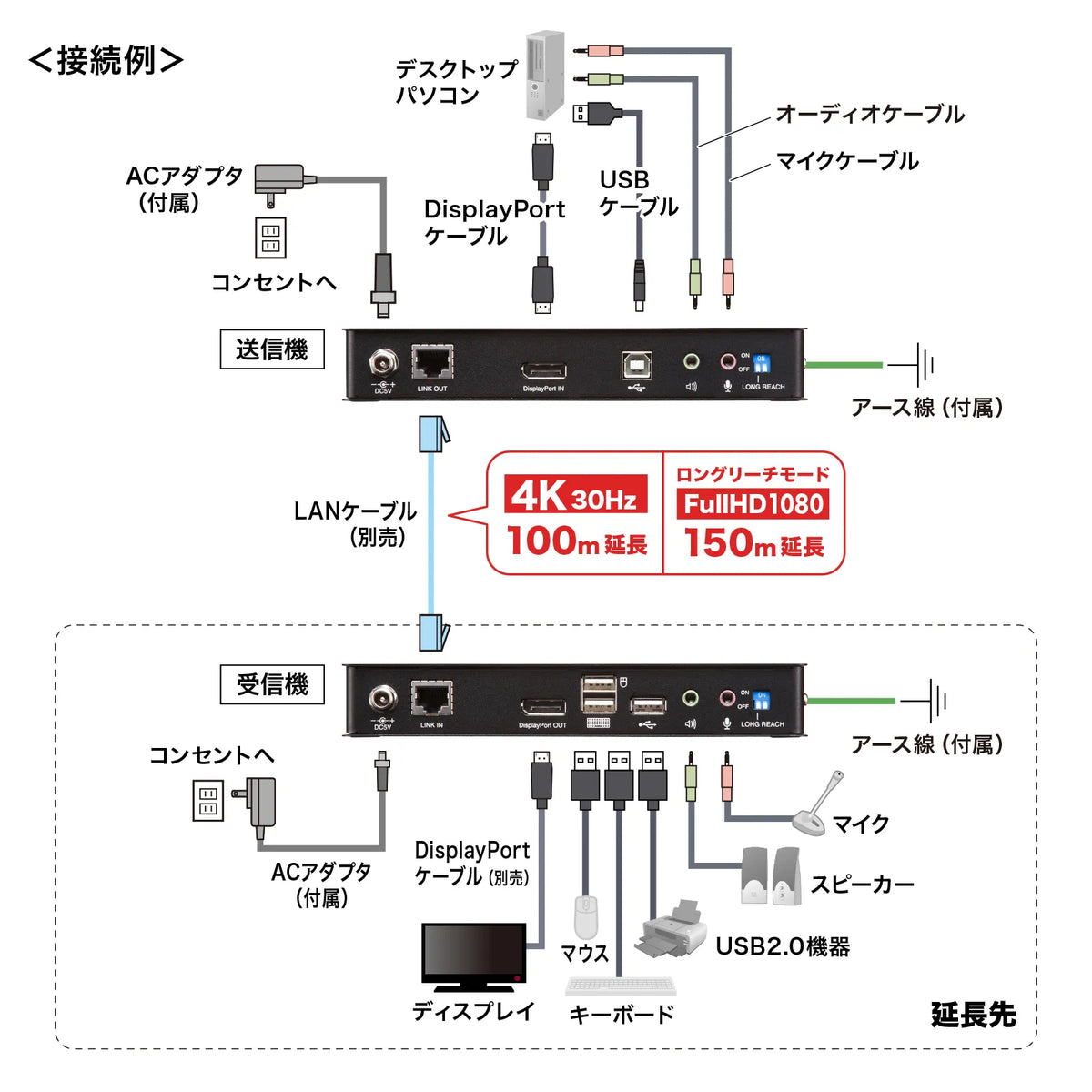

●This DisplayPort-compatible KVM extender extends DisplayPort and USB signals over long distances with a single LAN cable, allowing operation from a console installed remotely.
●It can extend up to 100m at 4K/30Hz resolution, and up to 150m at 1080p (1920x1080 pixels) resolution in long-reach mode.
●USB 2.0 signals can be extended, allowing you to remotely control a computer installed remotely using a keyboard and mouse.
●A rack mount kit is included, allowing installation in a server rack.
●HDCP (High-bandwidth Digital Content Protection) compliant product. *3

*1...This product uses one Category 6/6a straight cable. Please purchase separately.
[Caution] Please use LAN cables with a cable specification of 24AWG/23AWG solid wire.
Recommended cables
Sanwa Supply
KB-T6TS series (Category 6)
KB-T6ATS series (Category 6A)
KB-T6L-CB100N (100m) / 300N (300m) (Category 6)
*2... May not work depending on the connected equipment and functions.
*3... The display must also be HDCP compatible.




■ Compatible devices: PCs equipped with DisplayPort output terminals and USB (A connector female) as standard
■ Compatible consoles: TVs, PC displays, etc. equipped with DisplayPort input terminals as standard.
USB keyboards, USB mice.

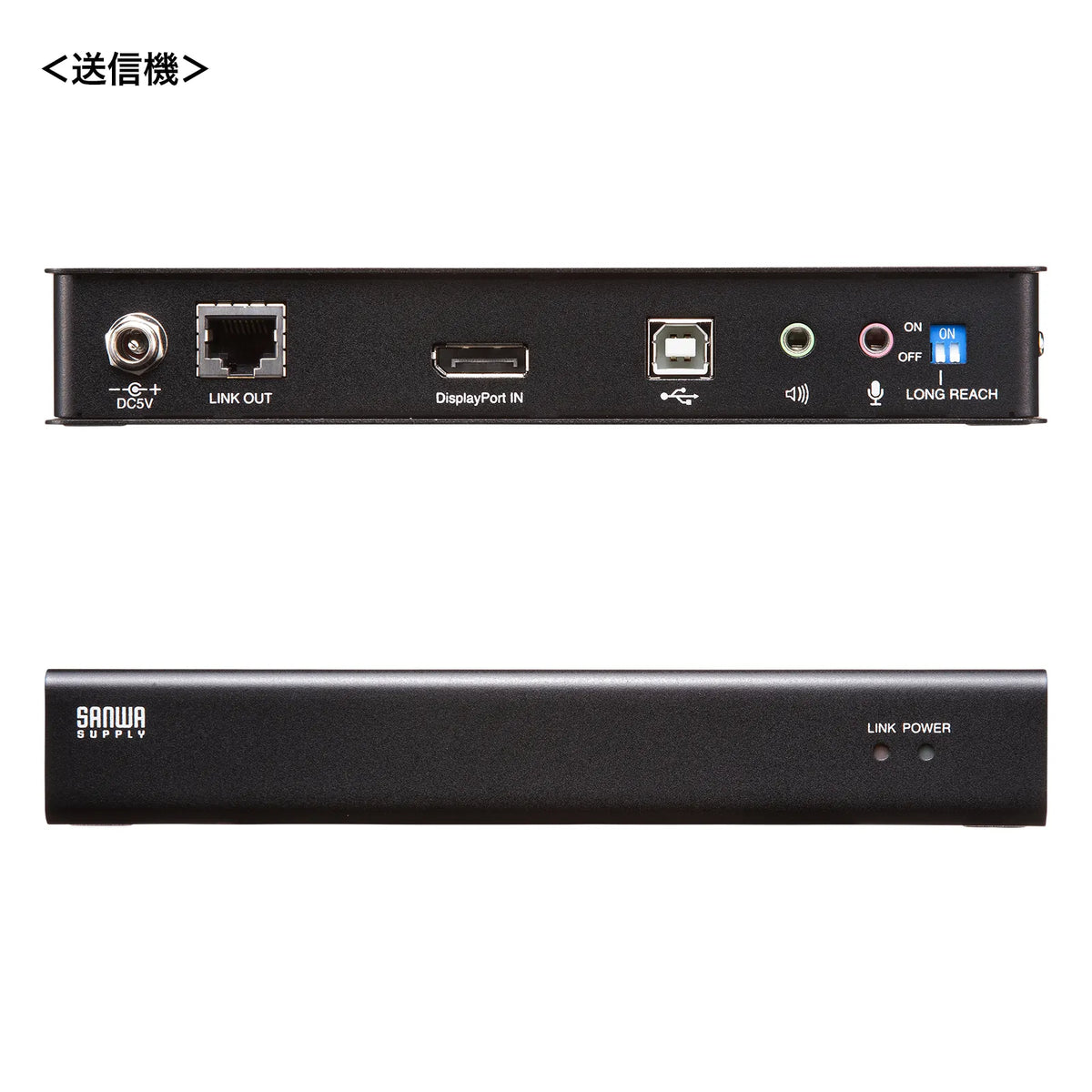

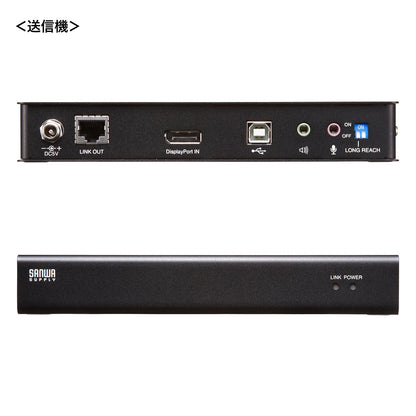

■Interface: Transmitter:
DisplayPort female x1
USB B connector female x1
RJ-45 female x1
3.5mm stereo mini jack x2

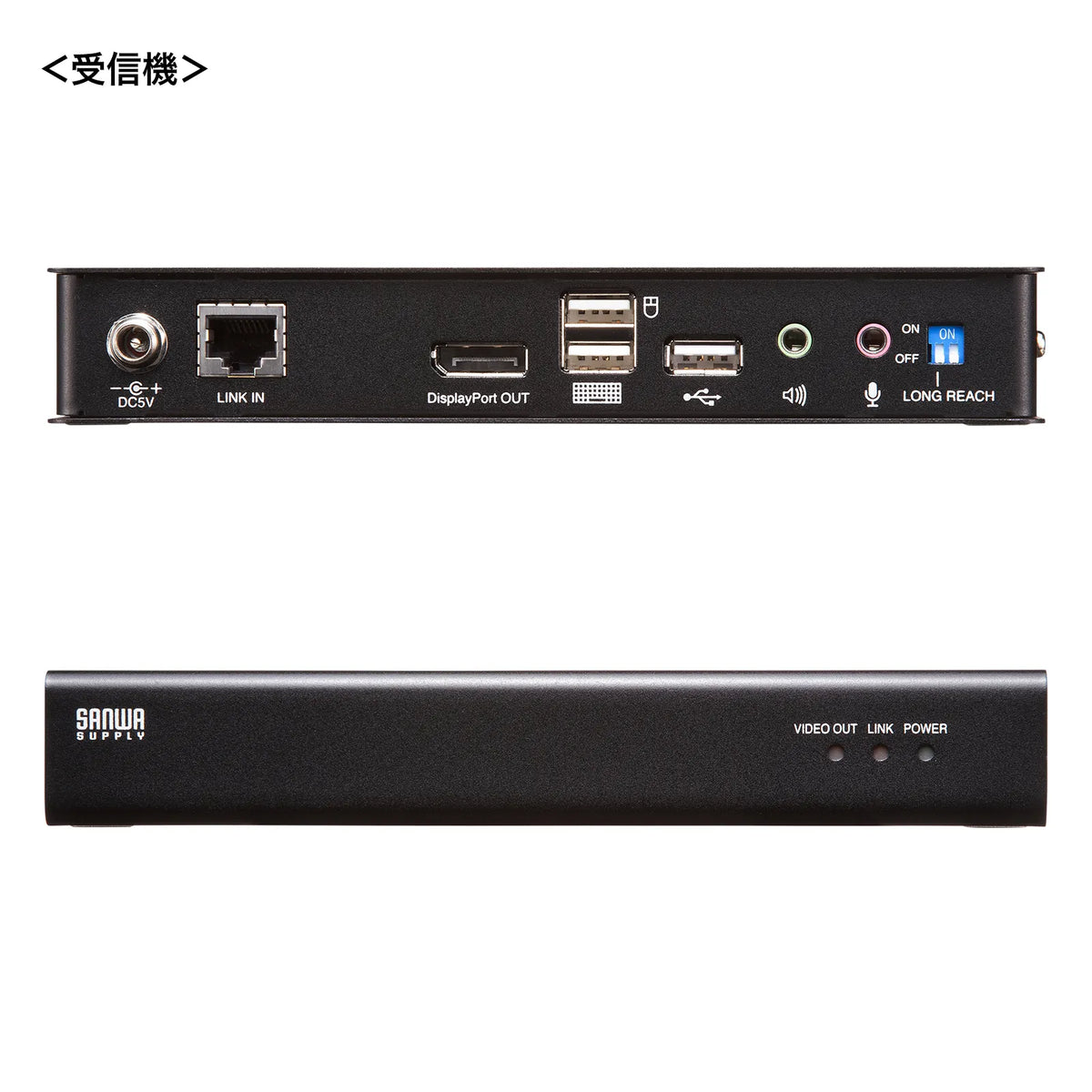

Receiver:
DisplayPort female x1
USB A connector female x3
RJ-45 female x1
3.5mm stereo mini jack x2
■Supported input signals: USB, DisplayPort, analog audio
■Supported output signals: USB, DisplayPort, analog audio
■Maximum resolution: 4K/4096x2160 (30Hz, 4:4:4)
4K/3840x2160 (30Hz, 4:4:4)
Up to 100m when using Category 6/6a
■Main supported resolutions: 4K/4096x2160 (30Hz, 4:4:4)
4K/3840x2160 (30Hz, 4:4:4)
1080p (1920x1080)
■Supported LAN cable: CAT6A straight, CAT6 straight, CAT5e straight, CAT5 straight
*Cable standard and extension distance vary depending on the resolution.
■Extension cable length: 100m
*Maximum 150m when using long reach mode
■Bandwidth: Maximum 10.2Gbps (2.55Gbps x 4 lanes)
■USB standard: USB2.0 A connector
(Up to Full Speed ​​mode [standard value]. High Speed ​​mode is not supported)
■HDCP: HDCP1.4
■Operating temperature: 0 to 40 degrees Celsius
■Storage temperature: -20 to 60 degrees Celsius
■Operating humidity: 0 to 80%
Non-condensing
■Storage humidity: 0 to 85%
Non-condensing
■Set contents: Transmitter x1, Receiver x1

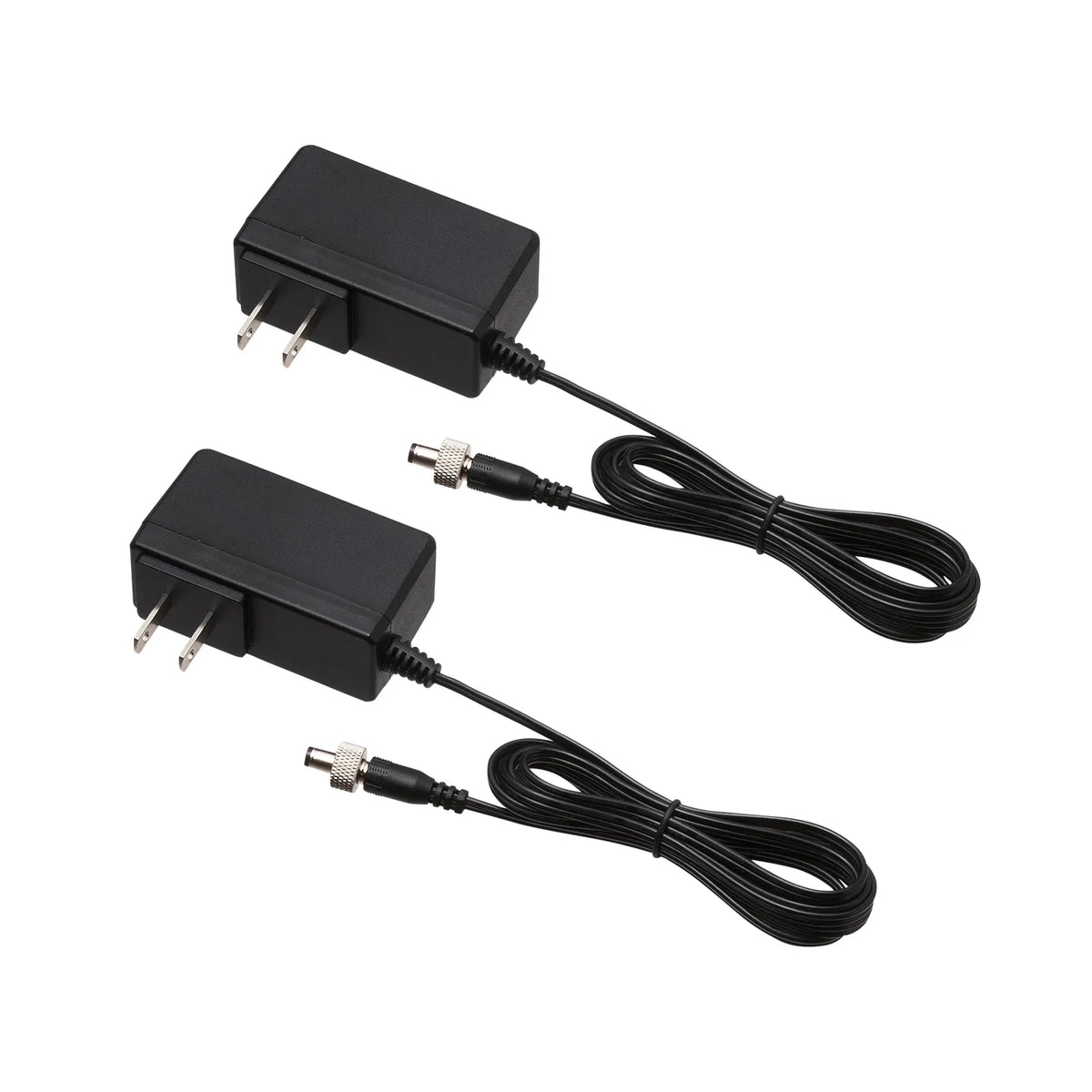

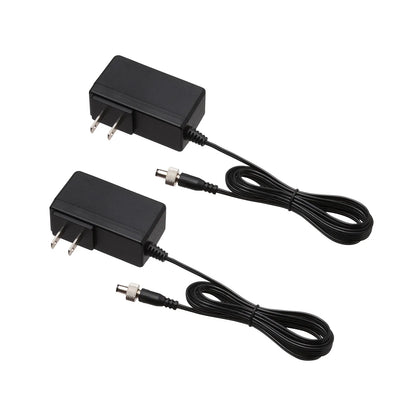

AC adapter (DC5V/3A) x2

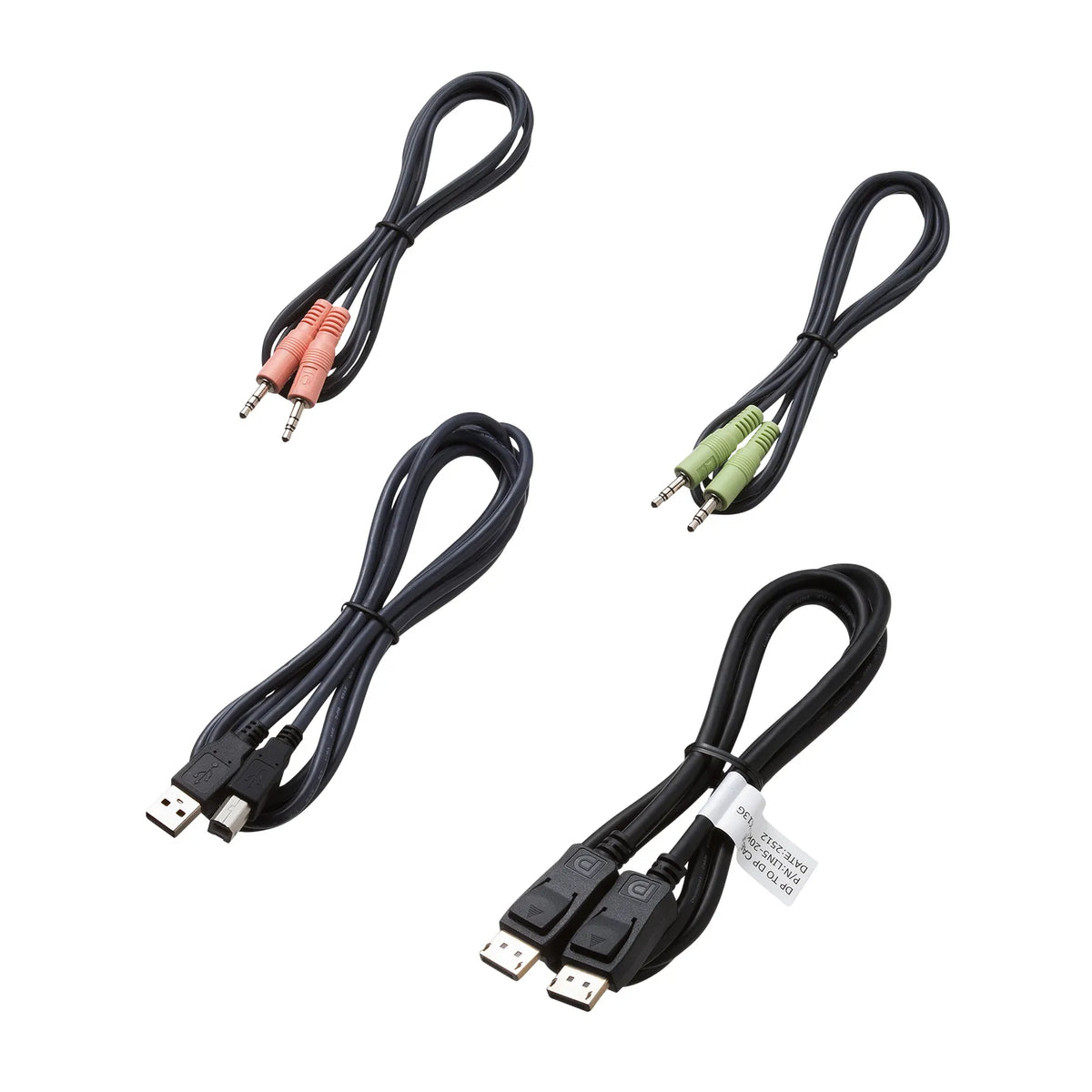

DisplayPort cable (1.5m) x1
USB cable (1.8m) x1
Audio cable (1.8m) x1
Microphone cable (1.8m) x1

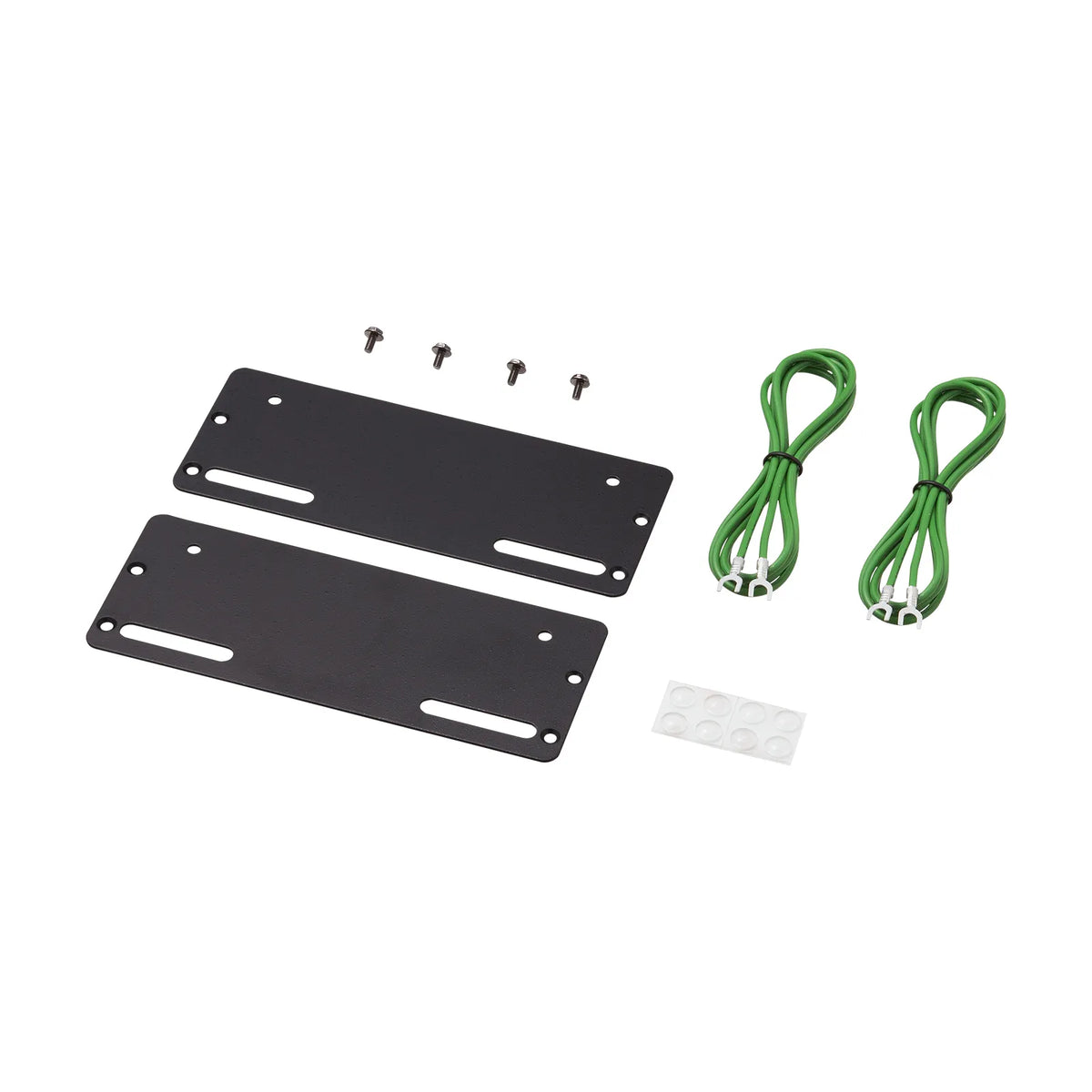

Rack mounting plate x2, rack mounting screws x4,

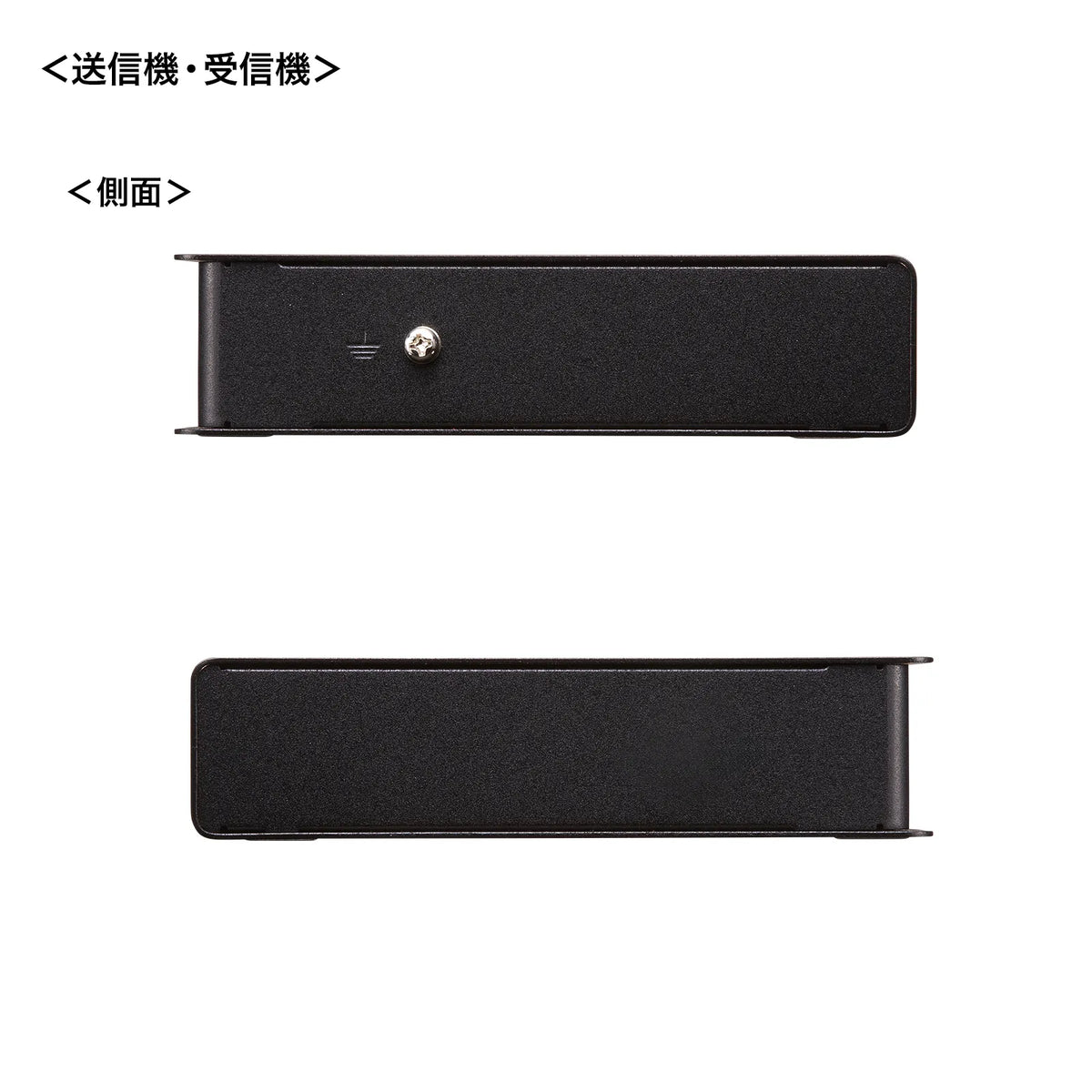

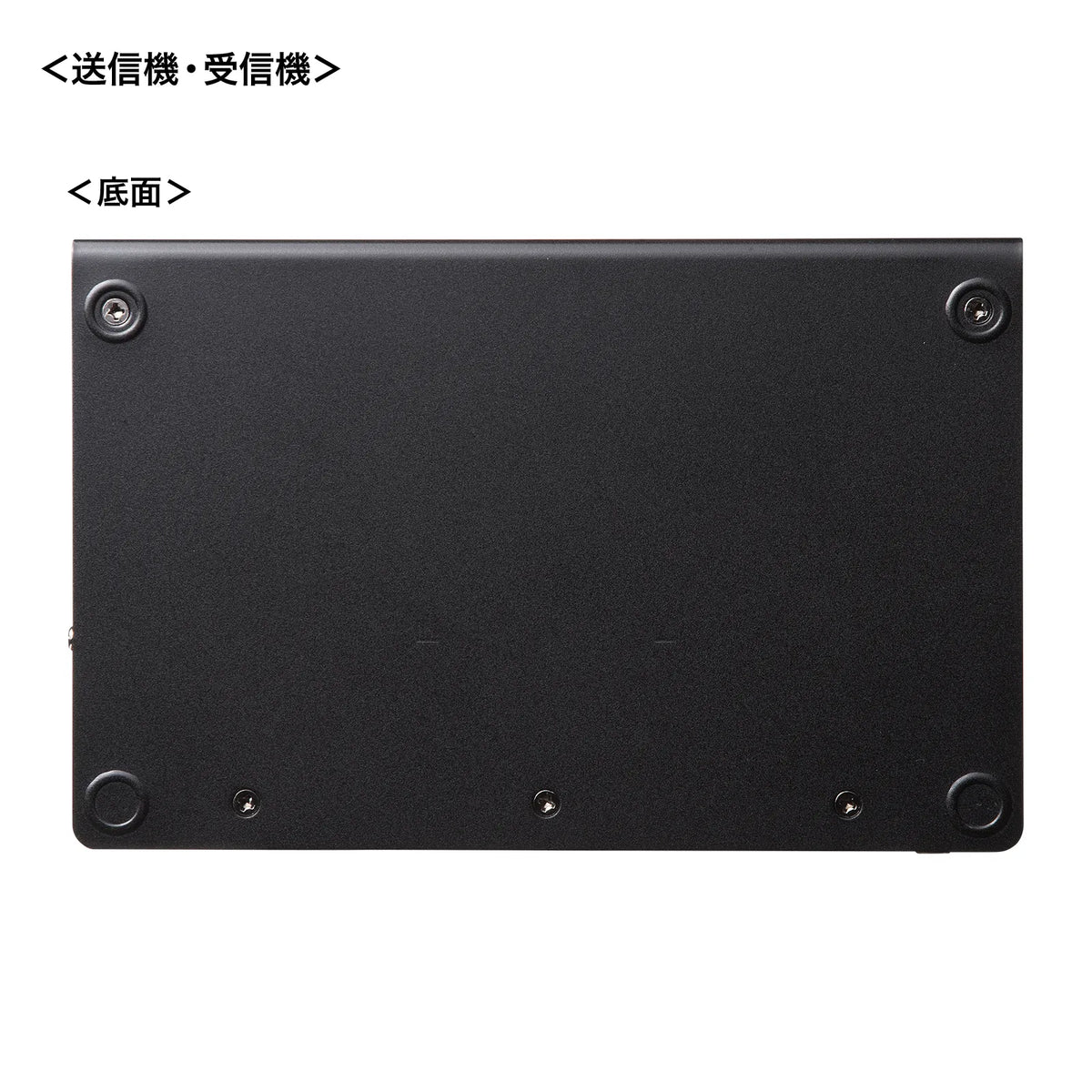

Rubber feet x8, ground wire x2
Instruction manual (with warranty) x1
■Material: Steel
■Extender classification: DisplayPort
■Connection configuration: 1:1
■Power consumption: Transmitter/3.99W Receiver/6.74W
■Cable standard/resolution/extendable distance:
Category 6A/6:
4K (4096x2160)/30Hz (4:4:4) 100m
4K (3840x2160)/30Hz (4:4:4) 100m
1080P (1920x1080) 100m. *Long reach mode: 150m

Category 5e:
4K (4096x2160)/30Hz (4:4:4) 90m
4K (3840x2160)/30Hz (4:4:4) 90m
1080P (1920x1080) 100m. *Long reach mode: 150m

*When using long reach mode, we recommend using a high-quality Cat6 or higher LAN cable.
