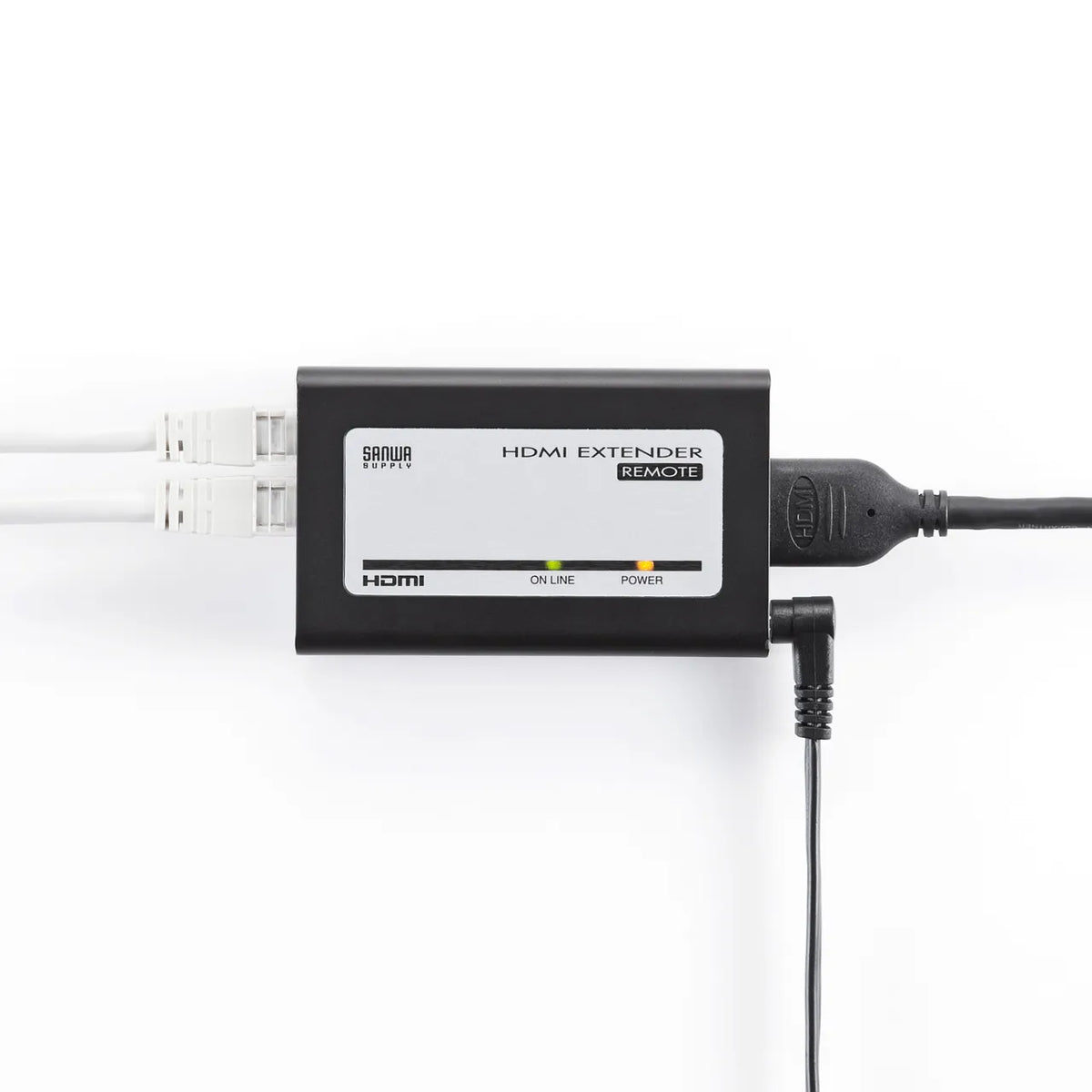

HDMI Extender (Receiver) VGA-EXHDR

[A dedicated receiver for receiving video and audio output from an HDMI extender transmitter.]

●This is a dedicated receiver for receiving video and audio signals output from a Sanwa Supply HDMI extender.

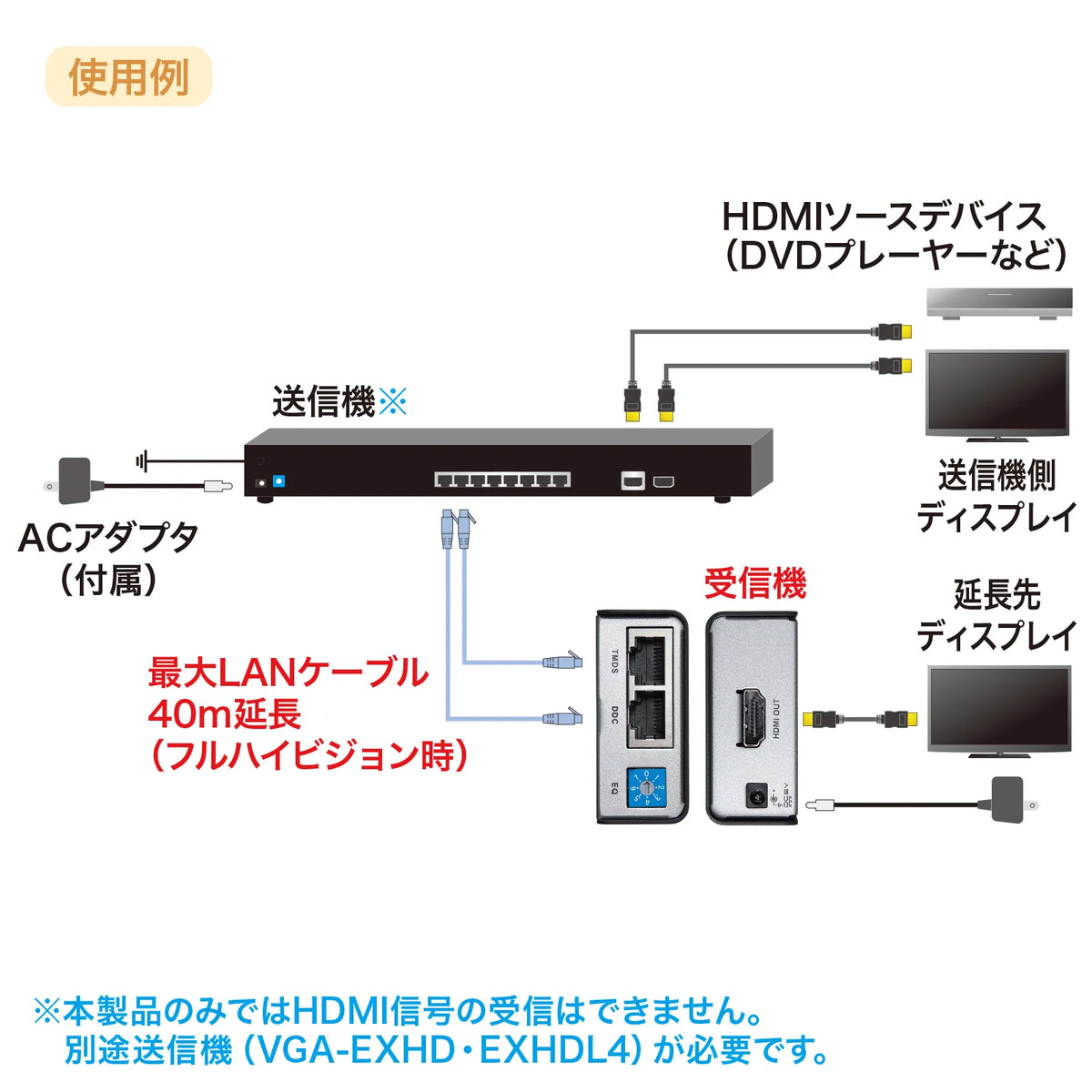

*This product alone cannot receive HDMI signals. A separate transmitter (VGA-EXHD/VGA-EXHDL4) is required.
●It can receive high-quality audio signals simultaneously with high-quality HDMI video signals.
●This product is HDCP (High-bandwidth Digital Content Protection) compliant.
*The display must also be HDCP compliant.
●Supports 3D signals.
●The receiver unit is equipped with an EQ (equalizer) function, which can adjust for the degradation of image quality that occurs due to the extension distance.
●By using a LAN cable (Category 6/6A, straight) with a transmission frequency bandwidth of 250MHz, high-quality HDMI signals can be transmitted over long distances with minimal signal loss.
●Because it uses a LAN cable (Category 6/6A, straight), it is easy to handle and offers excellent cost performance.
*This product requires two LAN cables (Category 6/6A, straight). Please purchase them separately.
Recommended cables (Sanwa Supply):
KB-T6TS series KB-T6TS-90N etc. (Category 6)
KB-T6ATS series KB-T6ATS-30W etc. (Category 6A)
KB-T6L-CB100N (100m) / KB-T6L-CB300N (300m) (Category 6)
●Ideal for situations where it is difficult to install HDMI equipment, such as factories or construction sites, and you want to install only the display and the HDMI equipment in a separate, better environment.

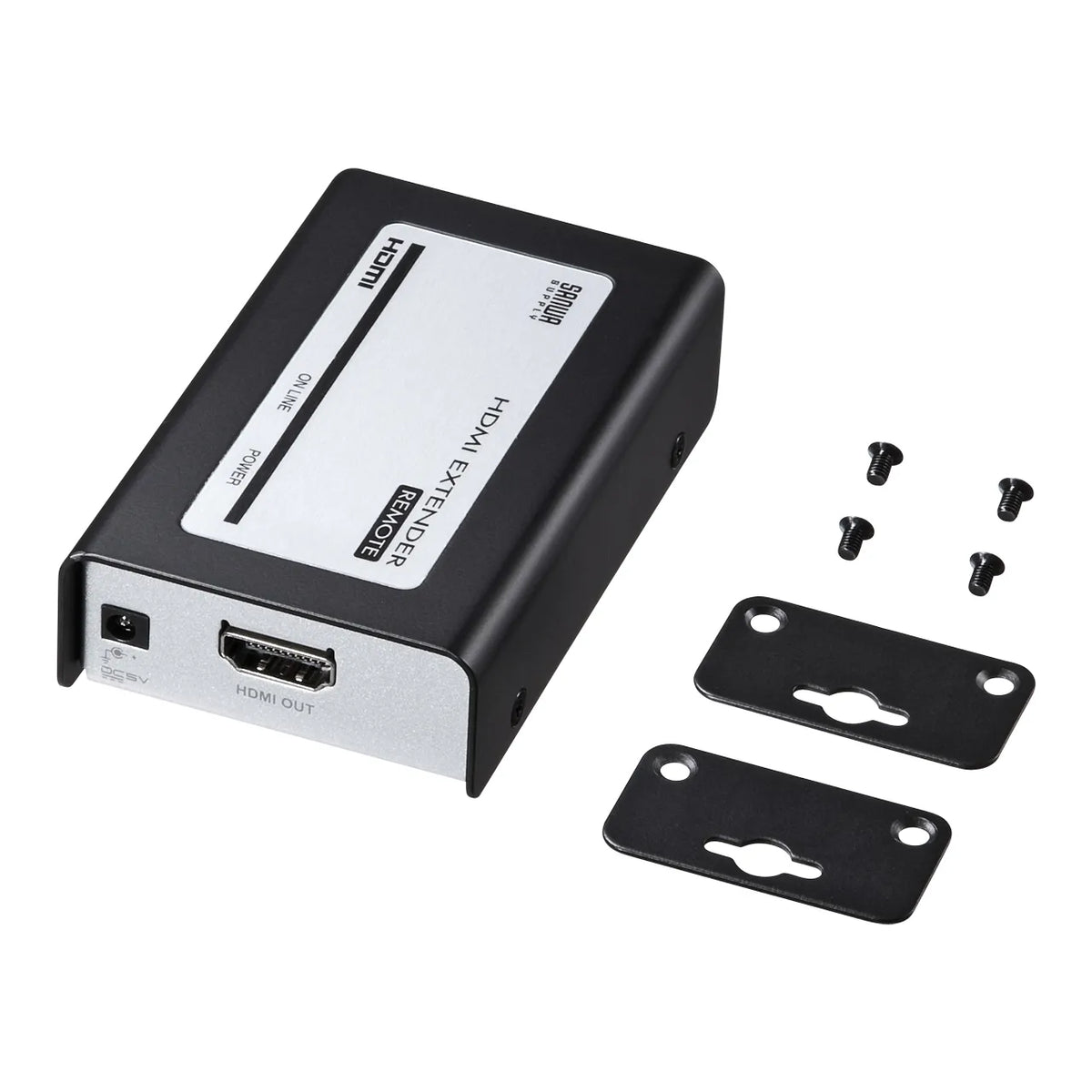

●A wall mount kit is included, allowing for wall mounting.

■Maximum resolution:
1920x1200 (WUXGA) *Extendable up to 40m.
1920x1080 (Full HD/1080p) *Extendable up to 40m.
1280x720 (720p) *Extendable up to 60m.
■Compatible LAN cables: CAT6A straight, CAT6 straight
Two LAN cables are required. Please purchase them separately.
■Extension cable length: 60m (maximum)
*The cable extension distance varies depending on the resolution.
■HDCP: HDCP1.2 compatible
*The display must also be HDCP compatible.
■Bandwidth: Maximum 2.25Gbps

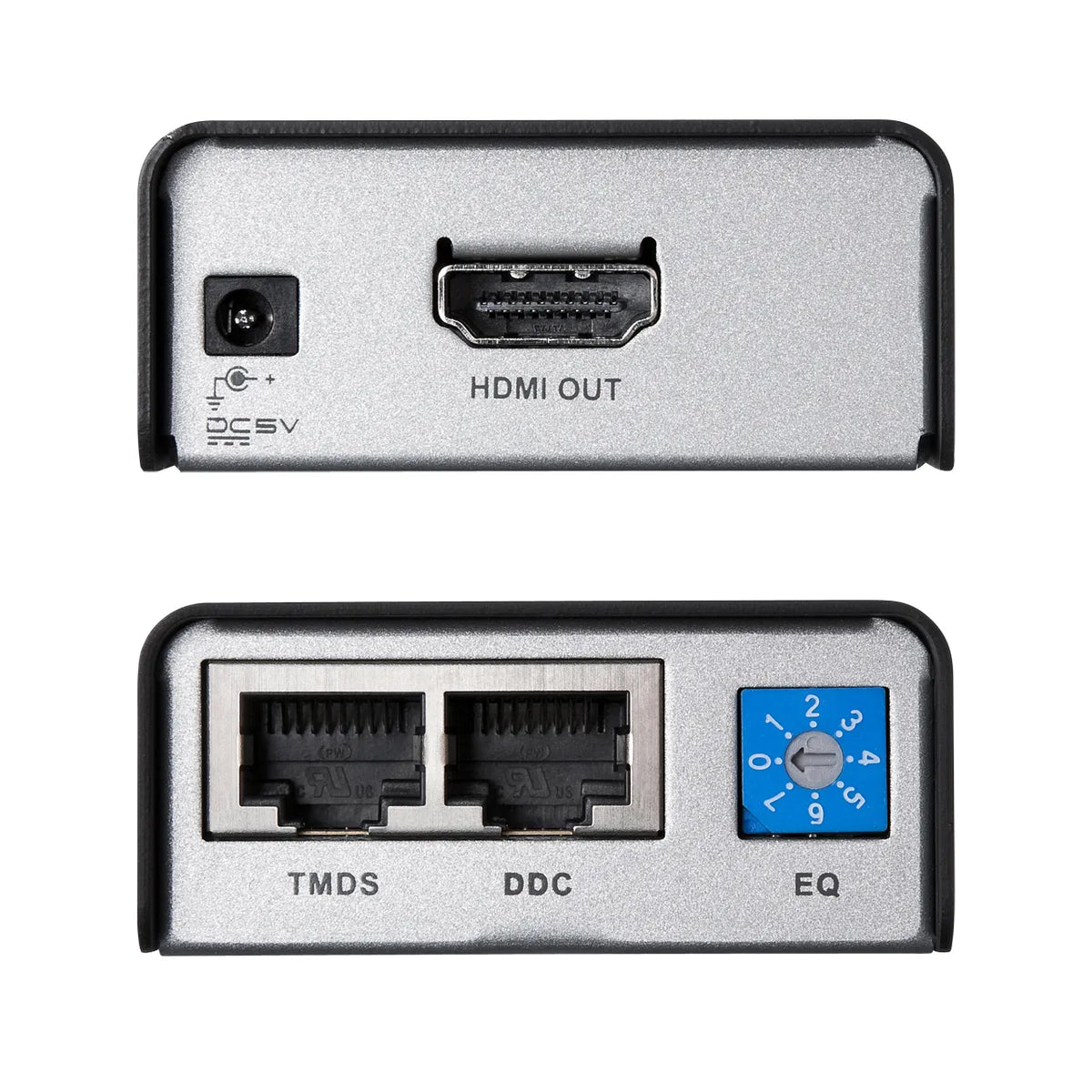

■Interface:
Input/RJ-45 female x2
Output/HDMI Type A (19pin) female x1
■Current Consumption: 0.95W (maximum)
■Environmental Conditions:
Operating Temperature and Humidity/0 to 50 degrees Celsius, 80% or less (non-condensing)
Storage Temperature and Humidity/-20 to 60 degrees Celsius, 85% or less (non-condensing)
■Material: Steel
■Size: W90 x D55 x H24mm (main unit size)
■Weight: 160g

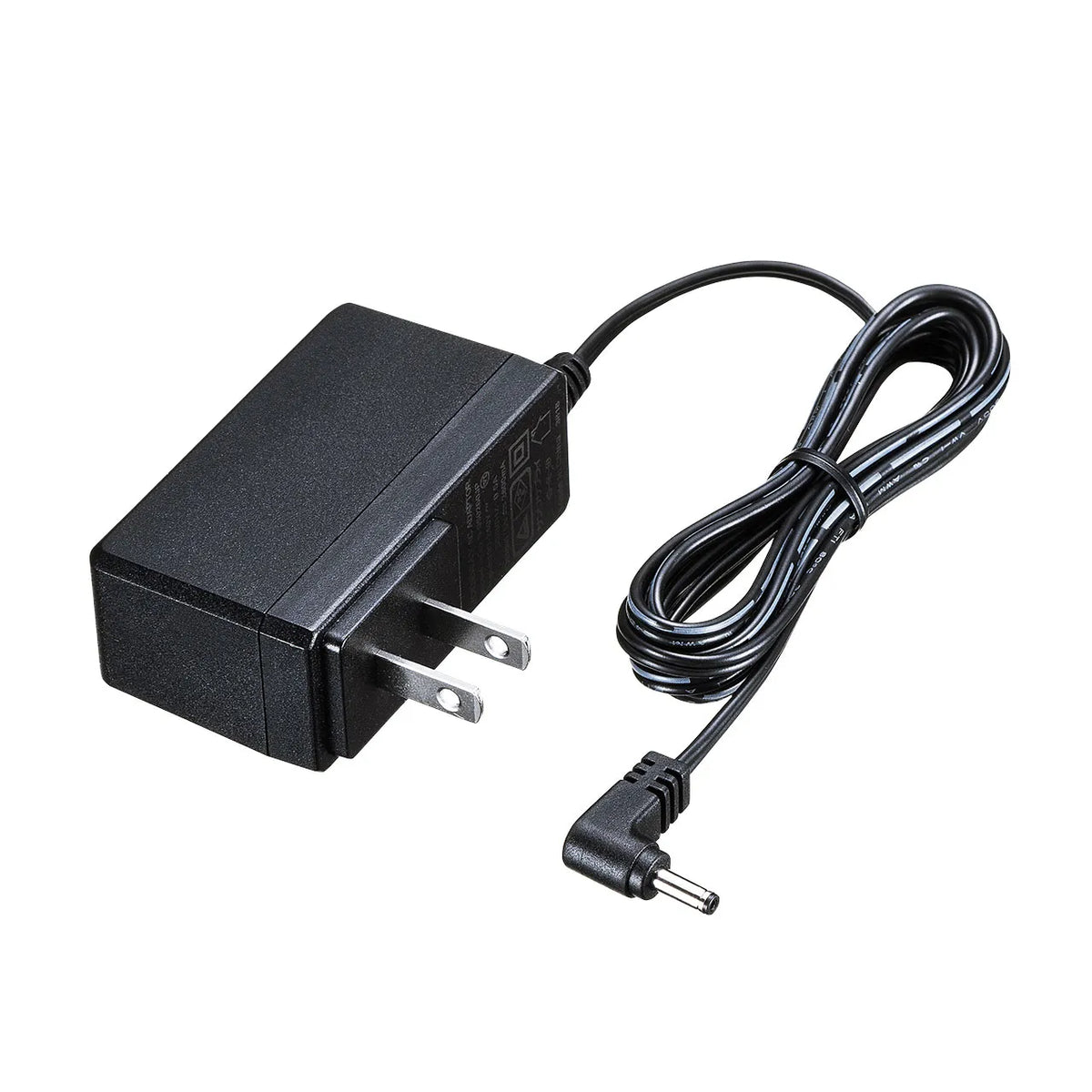

■Set Contents: Receiver x1, AC adapter (DC5V 2.6A) x1, Wall mount kit x1 set, Instruction manual (with warranty) x1
＜Audio＞
■Dolby Digital/DTS: Supported
■DVD Audio: Supported
■SACD: Supported
■Dolby Digital Plus: Supported
■Dolby True HD: Supported
■DTS-HD High Resolution Audio: Supported
■DTS-HD Master Audio: Supported
■PCM: 8ch (7.1ch)
＜Video＞
■Resolution: 1080p (1920x1020), WUXGA (1920x1200)
■Color Depth: 12bit/RGB36bit, Deep color
*The connected HDMI input/output device must support Deep Color.
■Color Gamut Standard: xvYCC Compatible
＜Functions＞
■Inter-device Control: Not Supported
■Lip Sync: Not Supported
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication.
Connection via switching hubs or routers is not supported.
*Cannot be integrated into an existing LAN environment.
*Distribution and extension output using switching hubs, etc. is not possible.
*Wireless output using wireless LAN, wireless routers, etc. is not possible.
