PoE-compatible HDMI extender (set model) VGA-EXHDPOE2

[An HDMI extender that supports PoE (Power over Ethernet) and does not require an AC adapter on the receiver side. It can extend up to 70m at 4K2K resolution and up to 100m at 1080p/Full HD resolution.]

●This HDMI extender can extend HDMI signals up to 70m at 4K2K (3840x2160 pixels) resolution and up to 100m at 1080p (1920x1080 pixels) resolution.
●The receiver side supports PoE (Power over Ethernet), so it can be easily installed without connecting an AC adapter.
●The transmitter side also has an HDMI output, so you can check the video on your device and output it to the destination via HDMI.

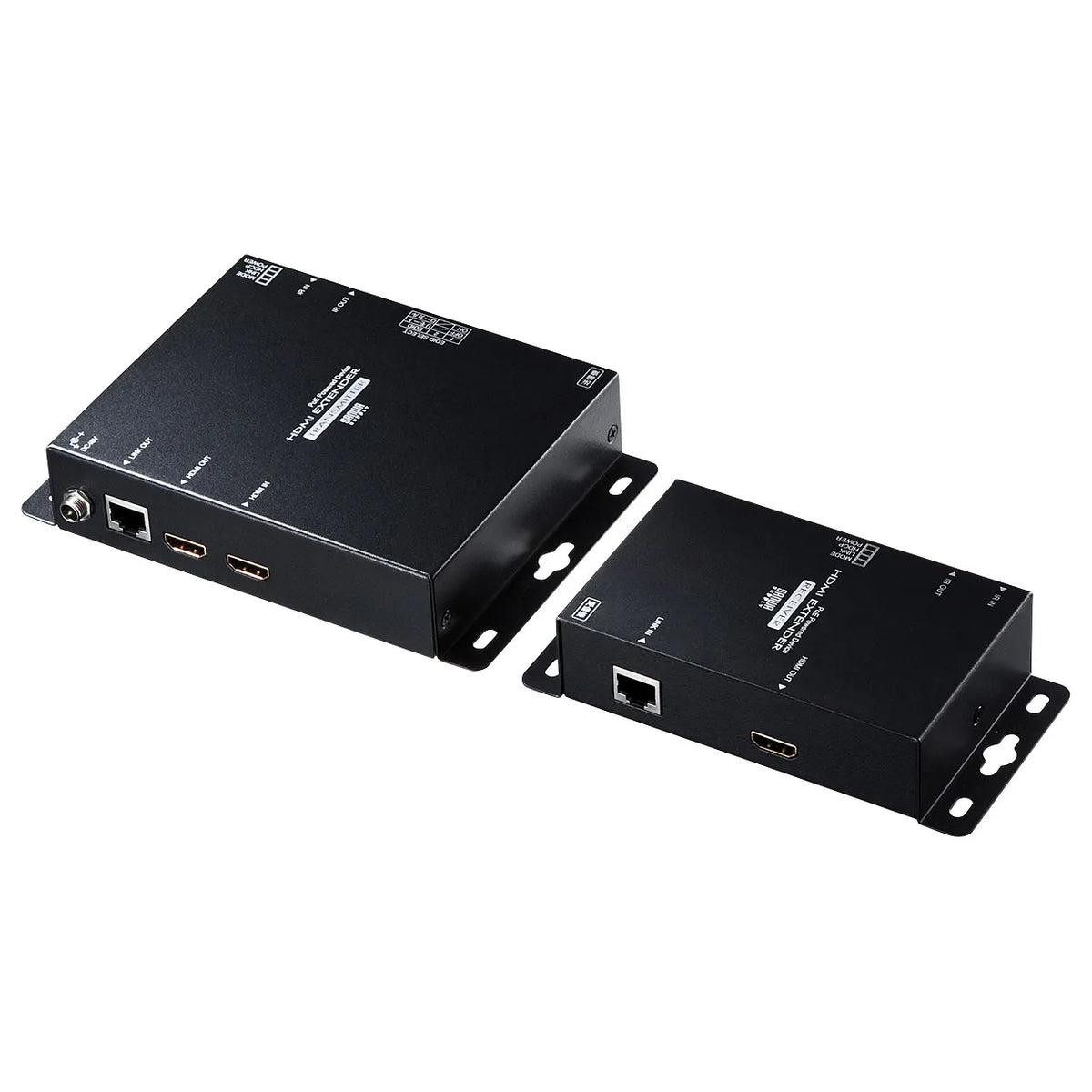

●It consists of a transmitter and a receiver set, and the units can be extended using one Category 7, 6, or 5e straight cable.
*This product uses one Category 7, 6, or 5e straight cable. Please purchase it separately.
*Please use LAN cables with a cable specification of 24AWG or 23AWG solid wire.
Recommended cables/Sanwa Supply products
KB-T7 series (Category 7/KB-T7-01WN, etc.)
KB-T6ATS series (Category 6A/KB-T6ATS-100BL, etc.)
KB-T6TS series (Category 6/KB-T6TS-90N, etc.)
KB-T6L-CB100N (100m)/300 (300m) (Category 6)
KB-T5T series (Category 5e/KB-T5T-50N, etc.)
●High-quality audio signals can be extended simultaneously with high-quality HDMI video signals.

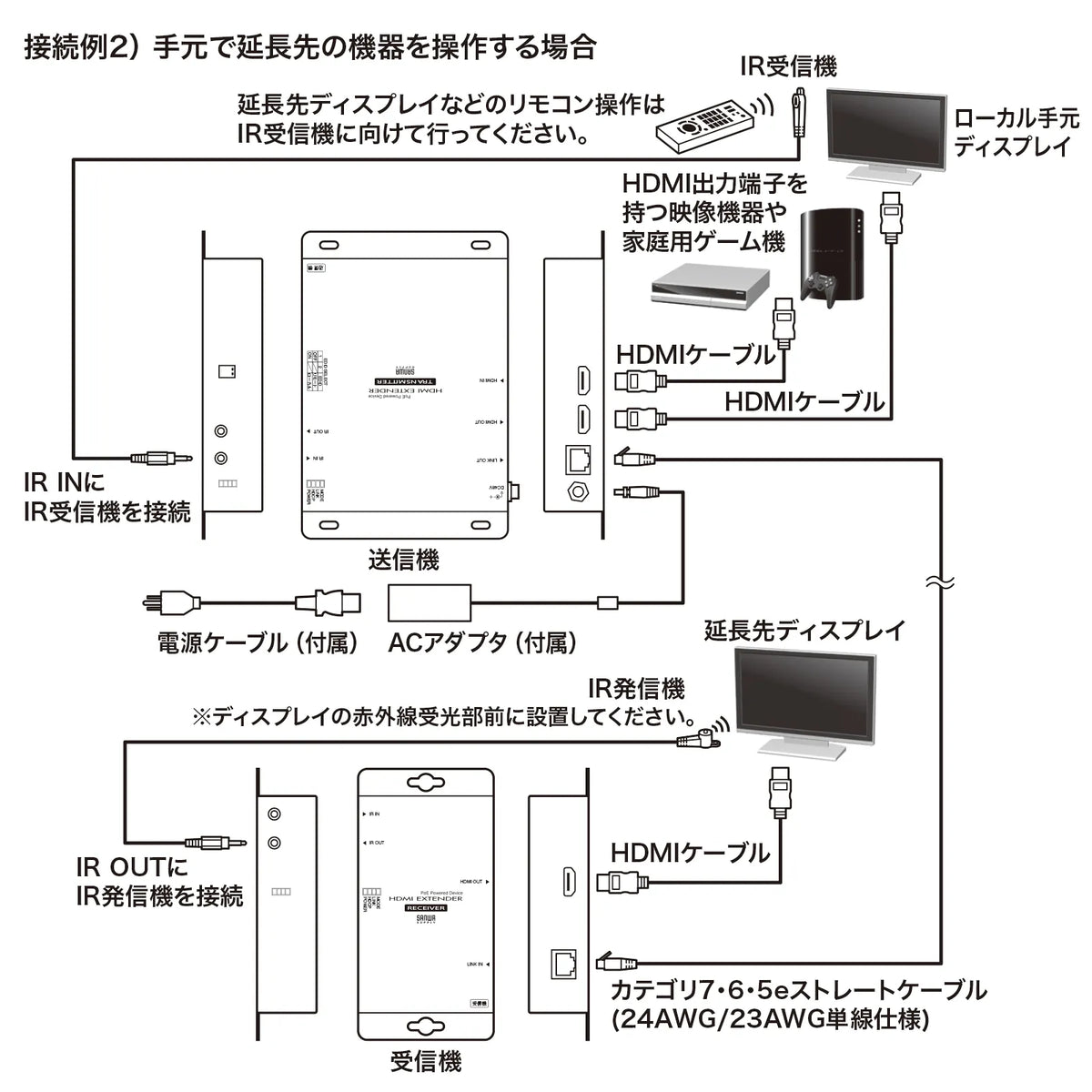

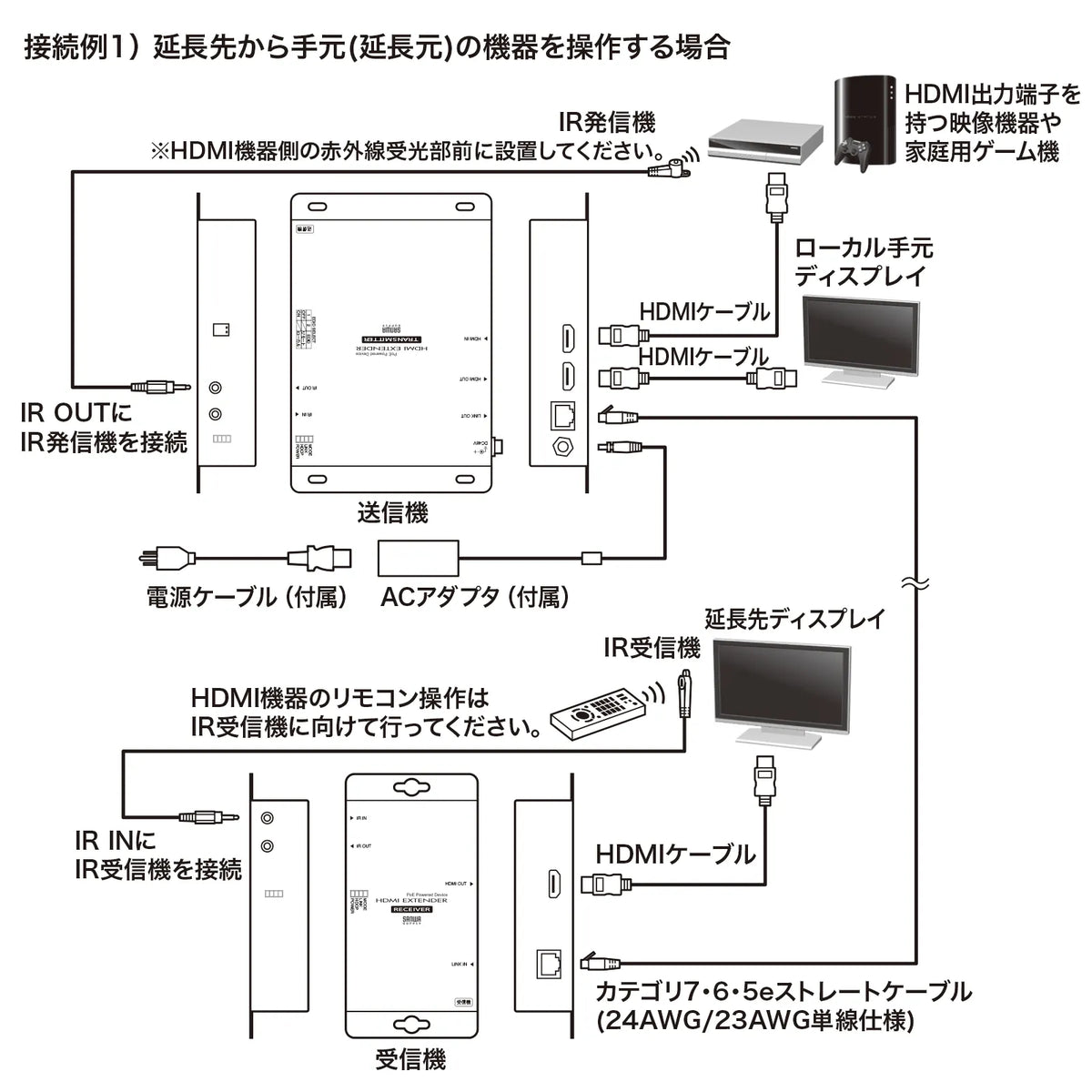

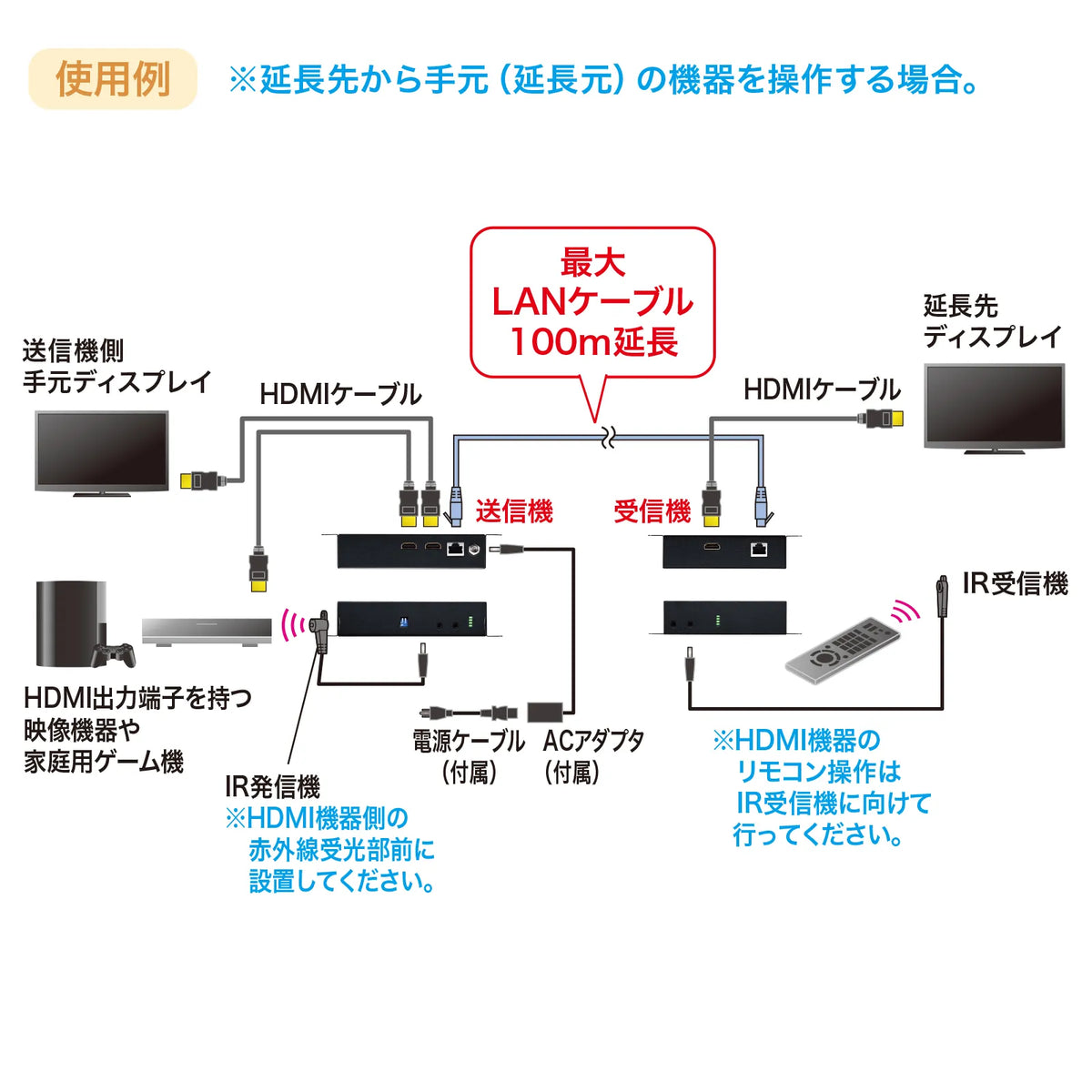

●Infrared signals can also be transmitted, so HDMI devices can be remotely controlled from the extension destination.
●Supports HDMI-CEC PASS-Through (device control: link function).
*May not work depending on the connected device and functions.
●Supports 3D signal transmission.
●Designed with wall-mount functionality in mind.
●Ideal for situations where it is difficult to install HDMI equipment, such as factories and construction sites, and you want to install only the display and the HDMI equipment in a separate, better environment.
●HDCP (High-bandwidth Digital Content Protection) compliant product.
*The display must also be HDCP compliant.

■Maximum display resolution: 4Kx2K (3840x2160 dots) / Category 7 (up to 70m)
4Kx2K (3840x2160 dots) / Category 6A, 6, 5e (up to 50m)
1080p (1920x1080 dots) / Category 7, 6A, 6, 5e (up to 100m)

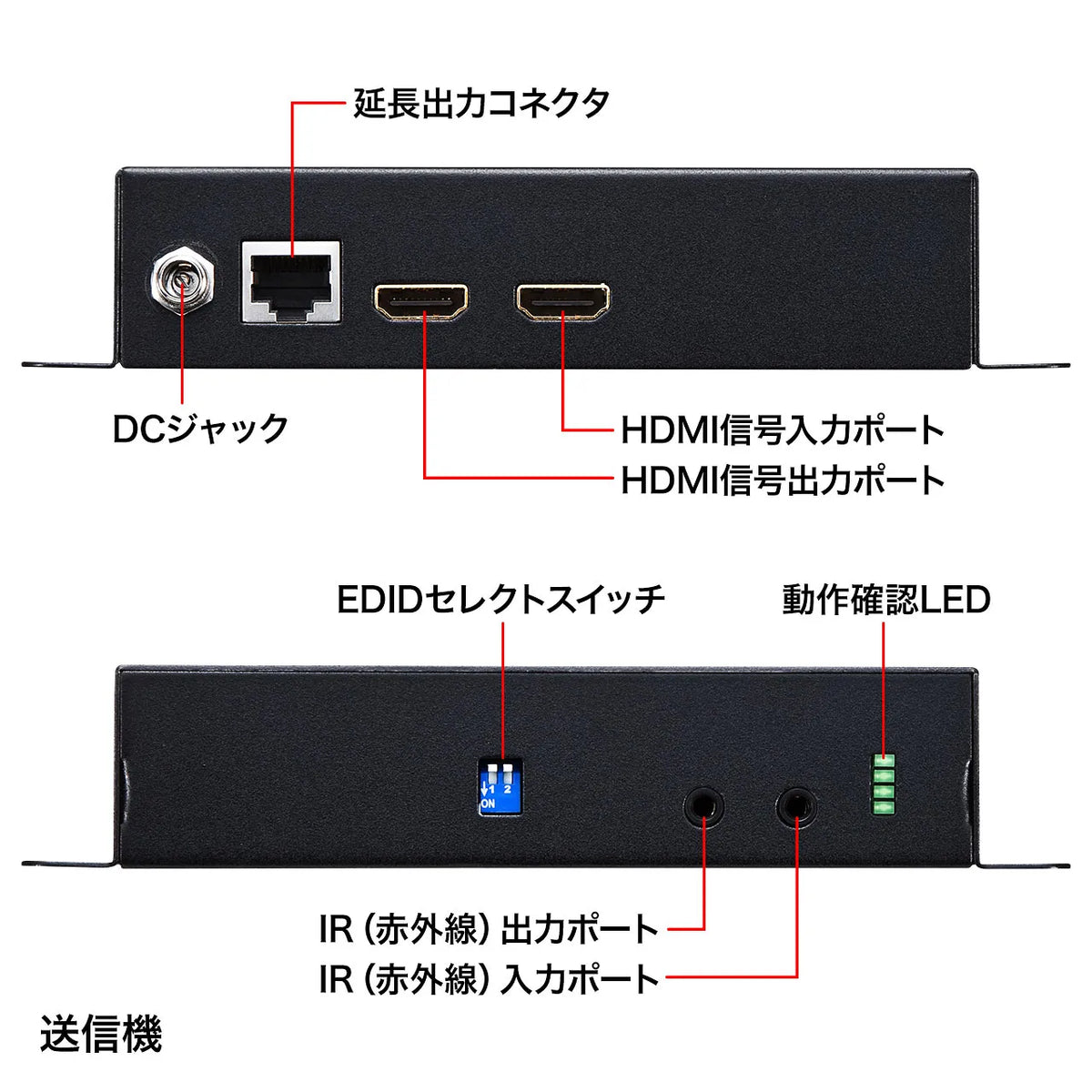

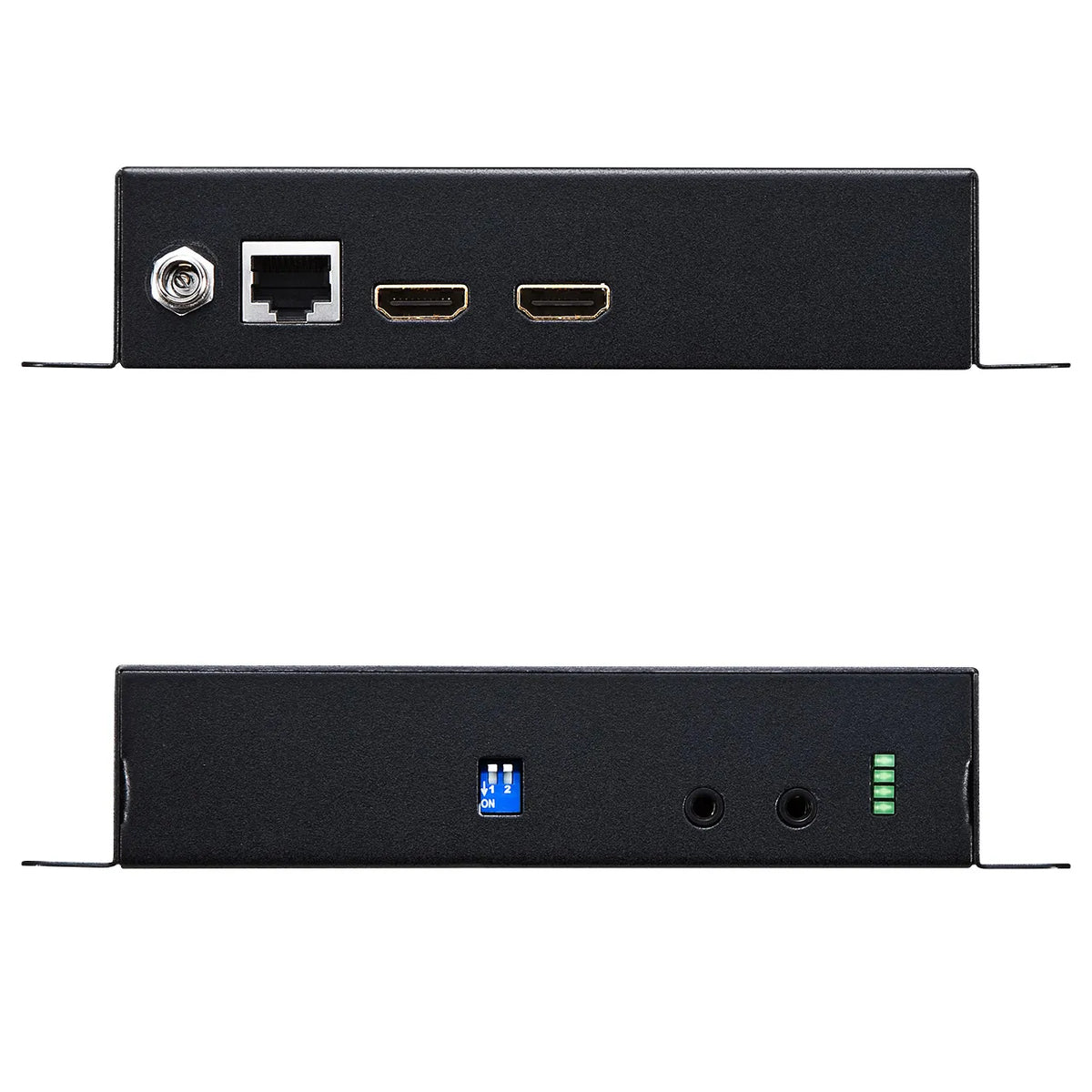

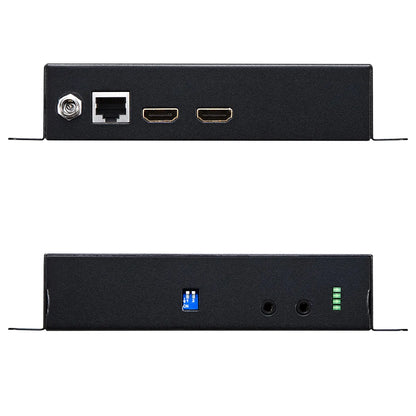

■Interface: Transmitter / HDMI Type A (19pin) female x2, RJ-45 female x1, IE/IR unit jack x2

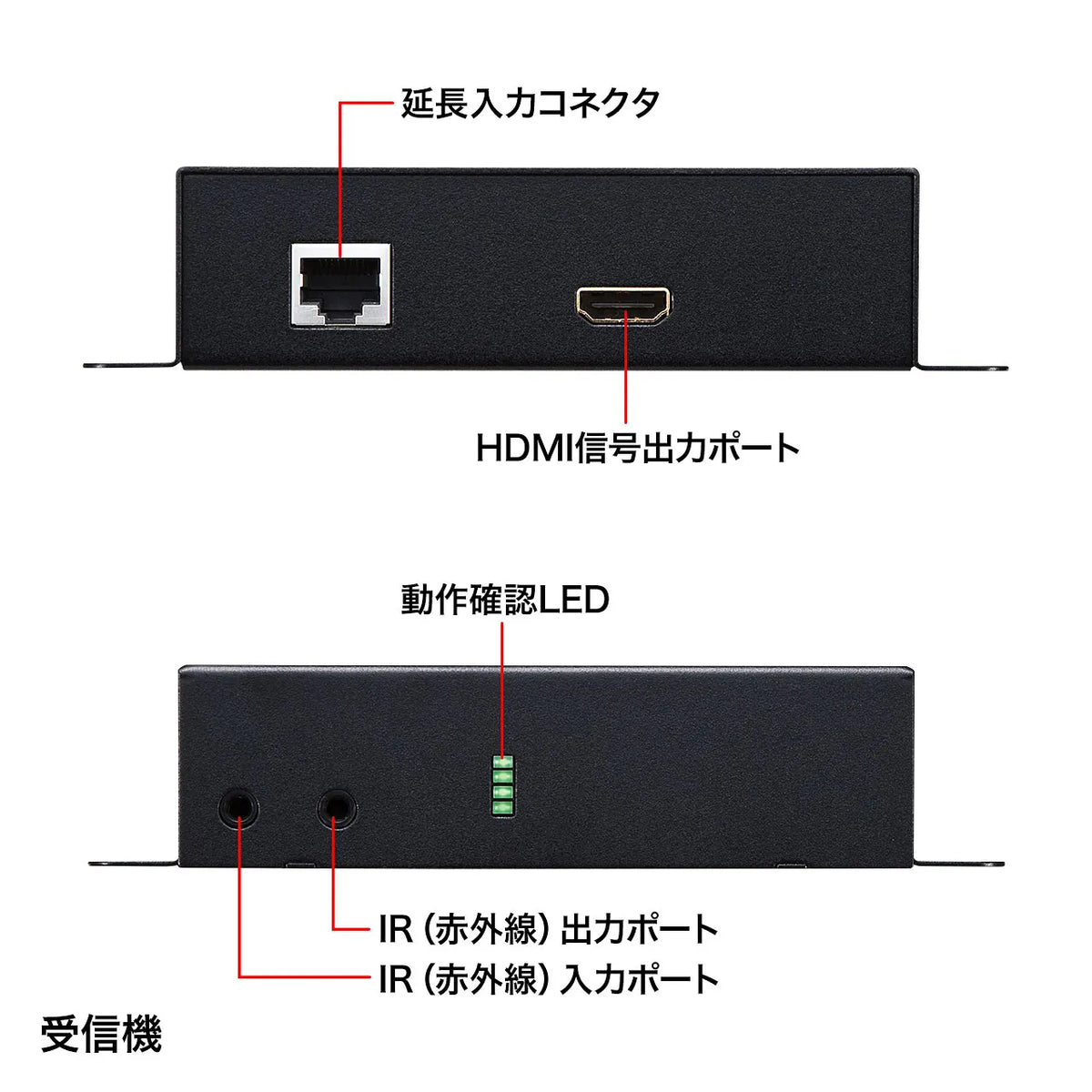

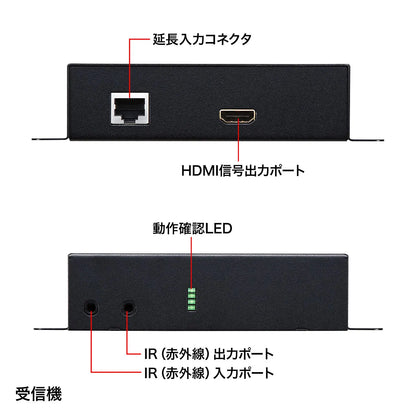

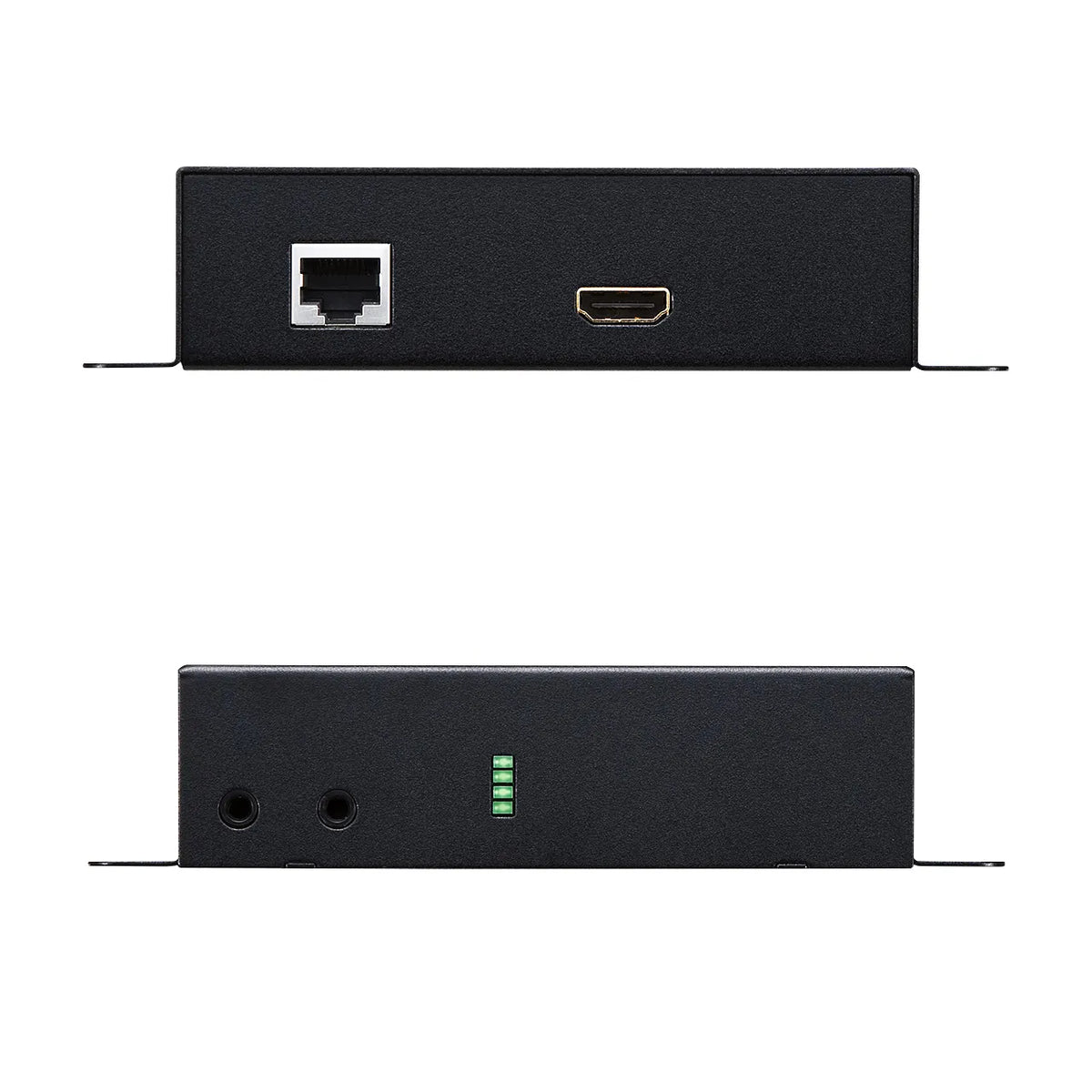

Receiver / HDMI Type A (19pin) female x1, RJ-45 female x1, IE/IR unit jack x2
■CEC: PASS Through
*May not work depending on connected devices and functions.
■HDCP: HDCP1.4 compatible
*The display must also be HDCP compatible.
■Supported audio signals: LPCM, DTS Digital, Dolby Digital, DTS-HD, Dolby True HD
■Extension cable length: 100m (maximum)
*The maximum extension distance varies depending on the resolution.
■Bandwidth: Single link 340MHz/3.4Gbps per channel (10.2Gbps all channels)
■Power consumption: 12W (maximum)
■Material: Steel
■Environmental conditions: Operating temperature and humidity/0 to 50 degrees Celsius, humidity 80% or less (non-condensing)
Storage temperature and humidity/-20 to 60 degrees Celsius Humidity 85% or less (no condensation)
■Size: Transmitter/W171xD114xH33mm (main unit size)
Receiver/W150xD75xH33mm (main unit size)
■Weight: Transmitter/approx. 514g
Receiver/approx. 328g

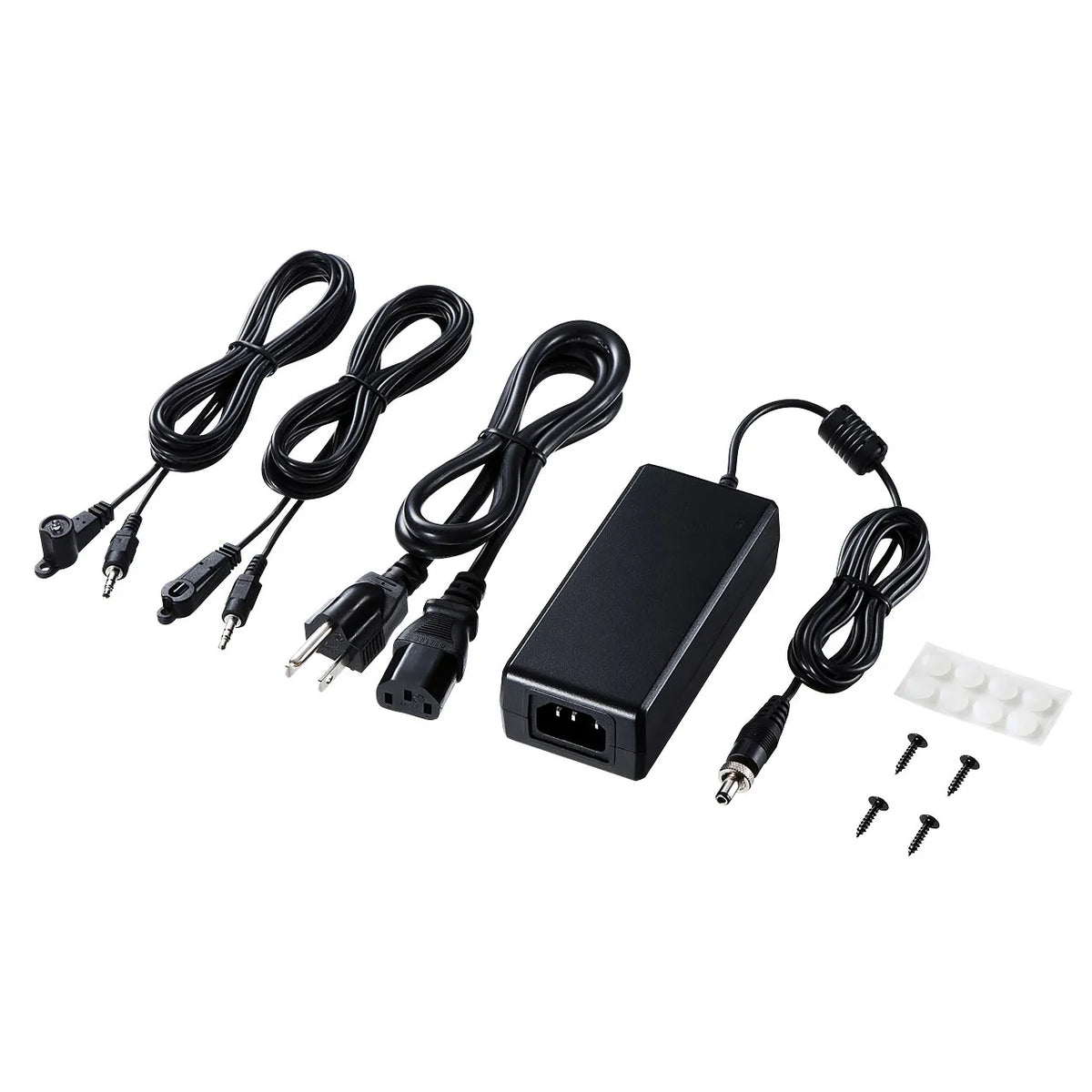

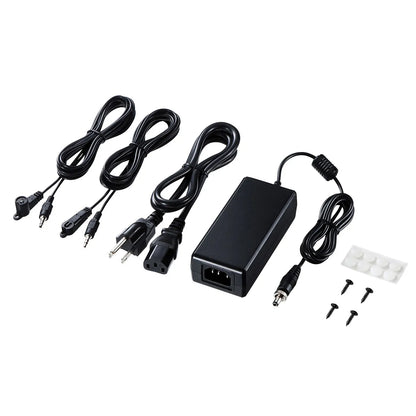

■Accessories: AC adapter (DC48V/1.05A) x1, power cable x1, IE unit x1, IR unit x1, rubber feet x8, screws x4, instruction manual, warranty card
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication.
It does not support connection via switching hubs or routers.
*It cannot be incorporated into an existing LAN environment.
*Distribution and extension output using switching hubs etc. is not possible.
*Wireless output using wireless LAN, wireless router etc. is not possible.
