SANWA SUPPLY

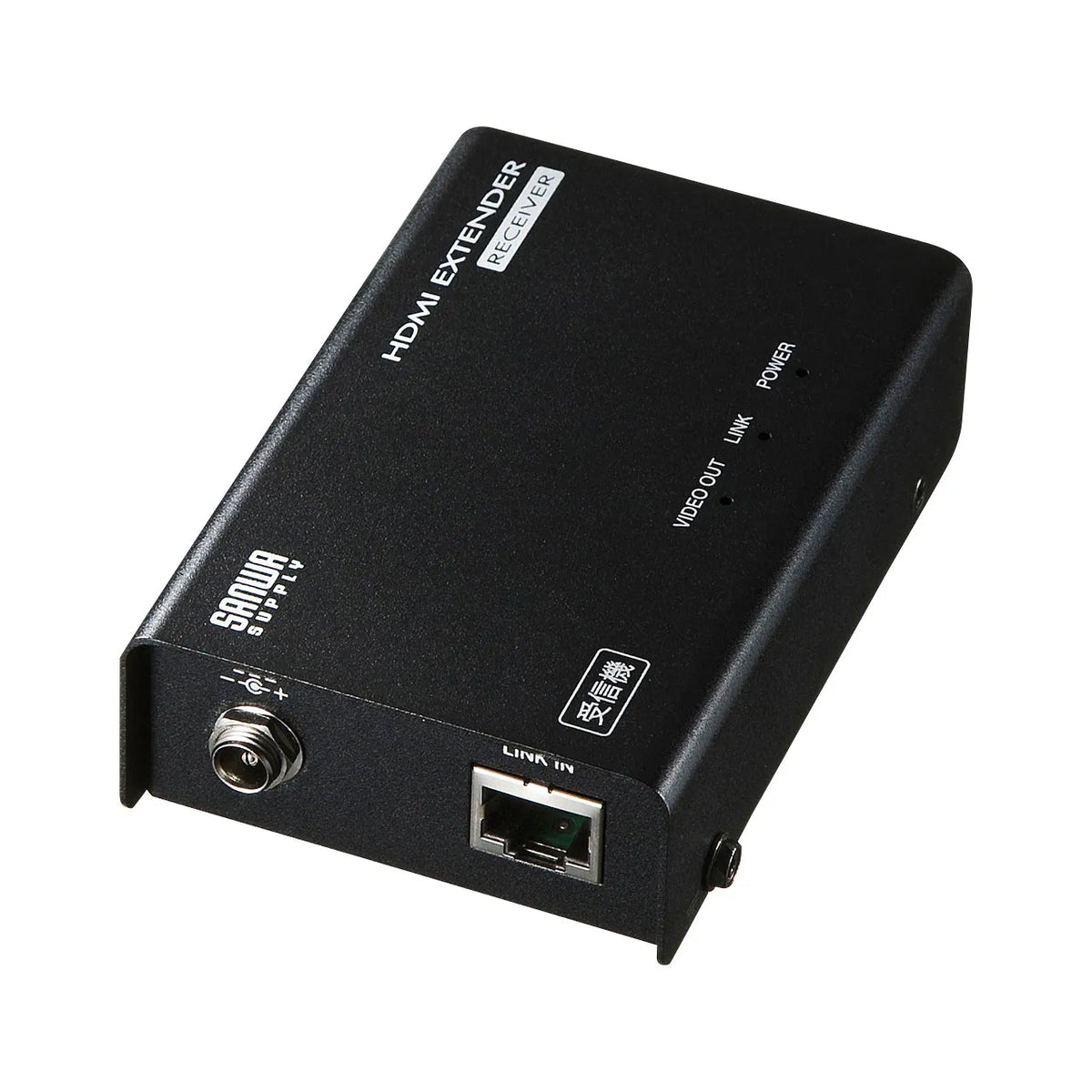

HDMI Extender (Receiver) VGA-EXHDLTR
HDMI Extender (Receiver) VGA-EXHDLTR
GTIN（JAN）：4969887593929
SKU：VGA-EXHDLTR
Regular price
¥28,314 JPY
Regular price
Sale price
¥28,314 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[A dedicated receiver for receiving video and audio output from an HDMI extender transmitter.]
●This is a dedicated receiver for receiving video and audio signals output from a Sanwa Supply HDMI extender.
*This product alone cannot receive HDMI signals. A separate transmitter (VGA-EXHDLT/EXHDLTL4) is required.

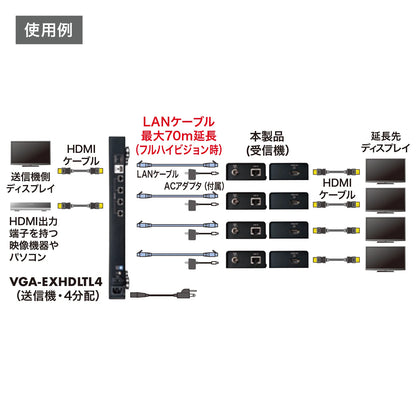

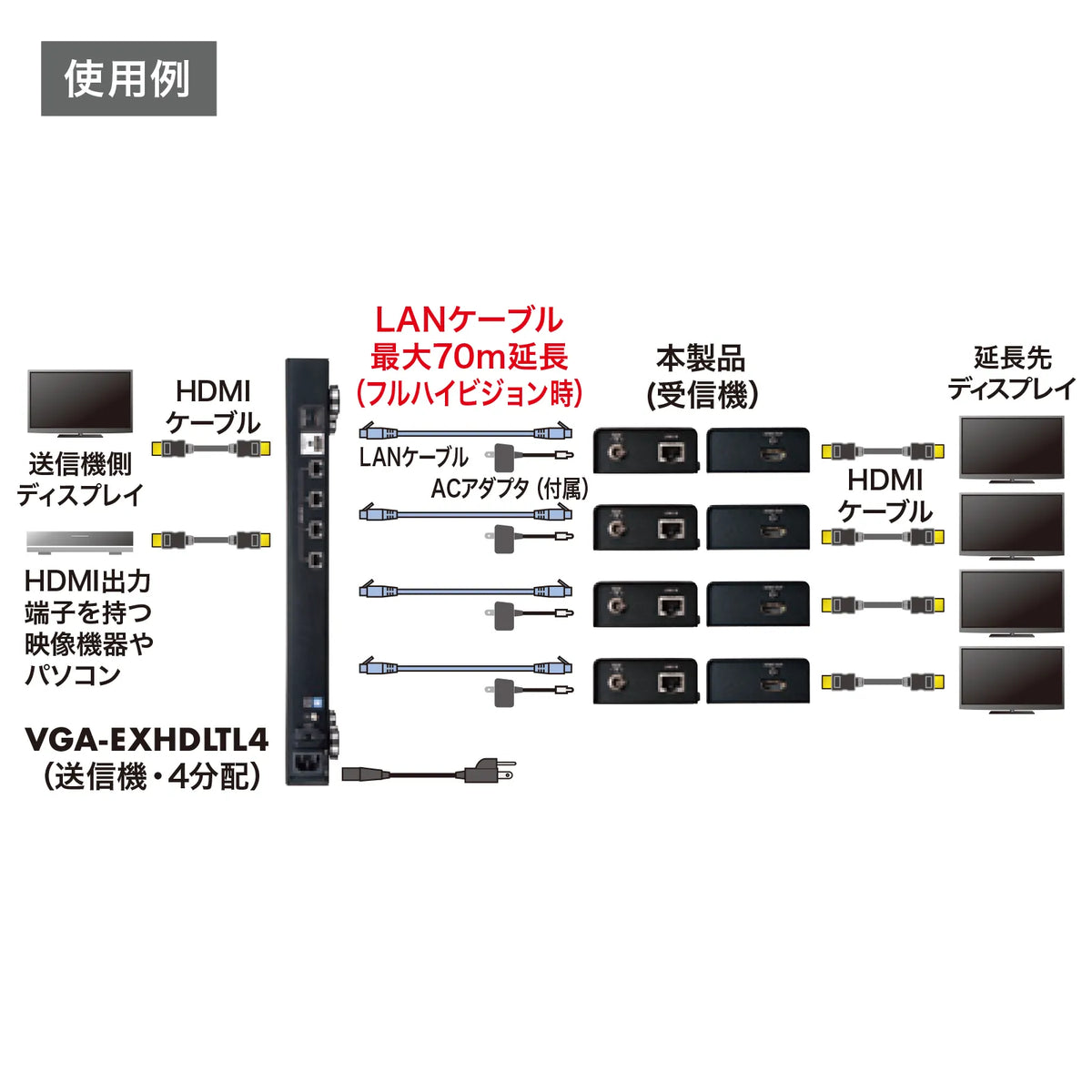

●This product (receiver) and the separately sold transmitter (VGA-EXHDLTL4) can be extended using a single Category 6A/6/5e straight cable.

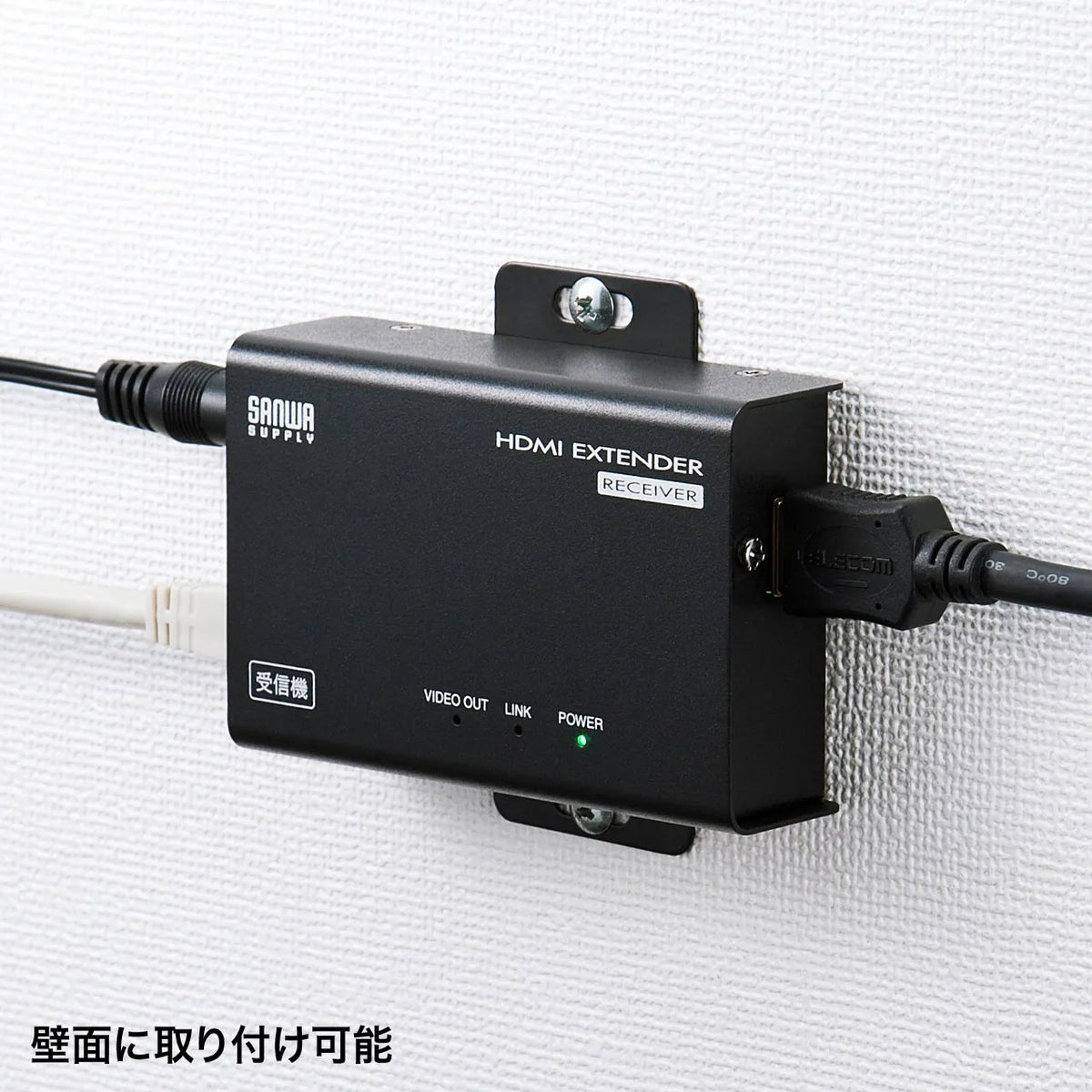

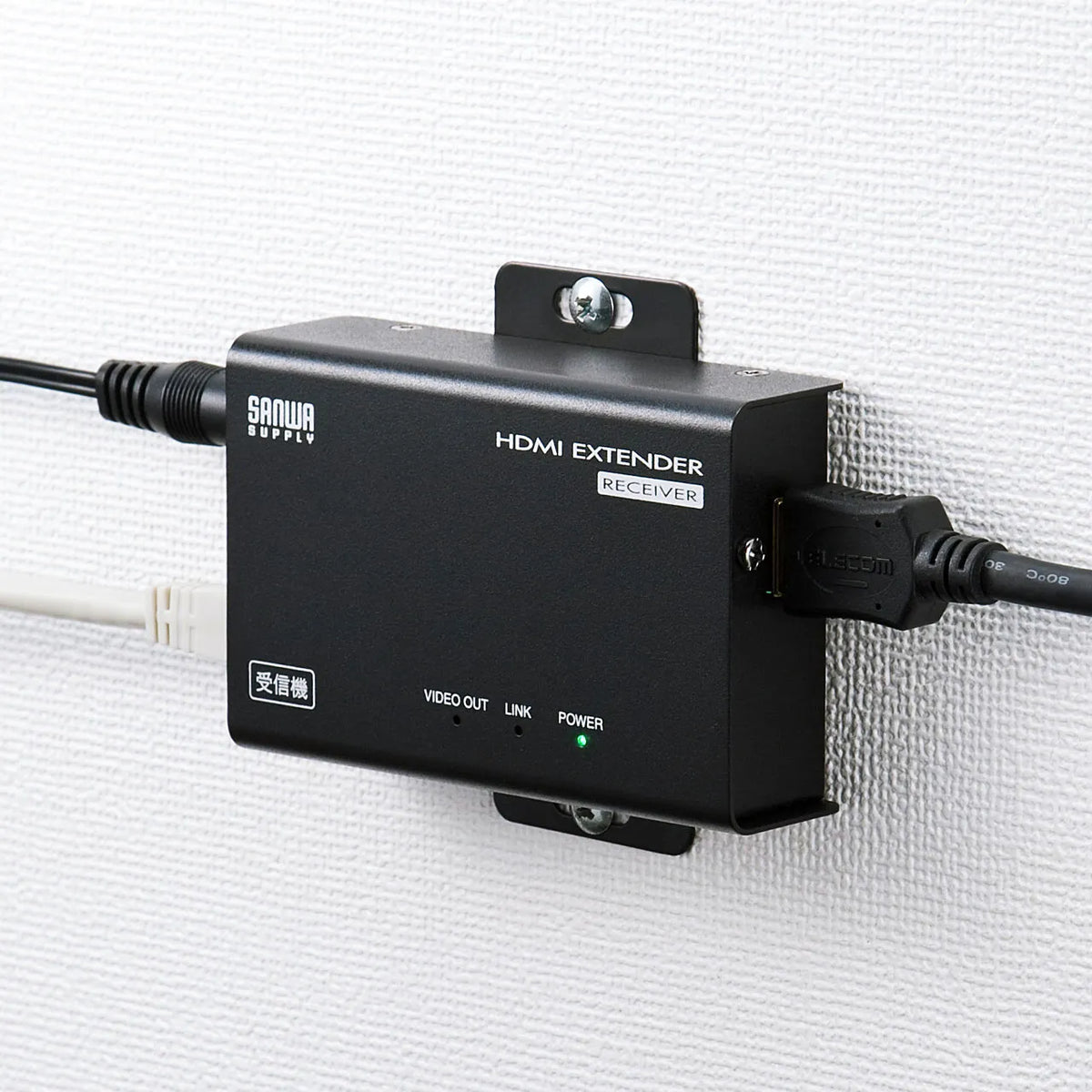

●A wall mount kit is included for wall mounting.
●This product is compatible with HDCP 1.4/2.2 (High-bandwidth Digital Content Protection).
*The display must also be HDCP compatible.

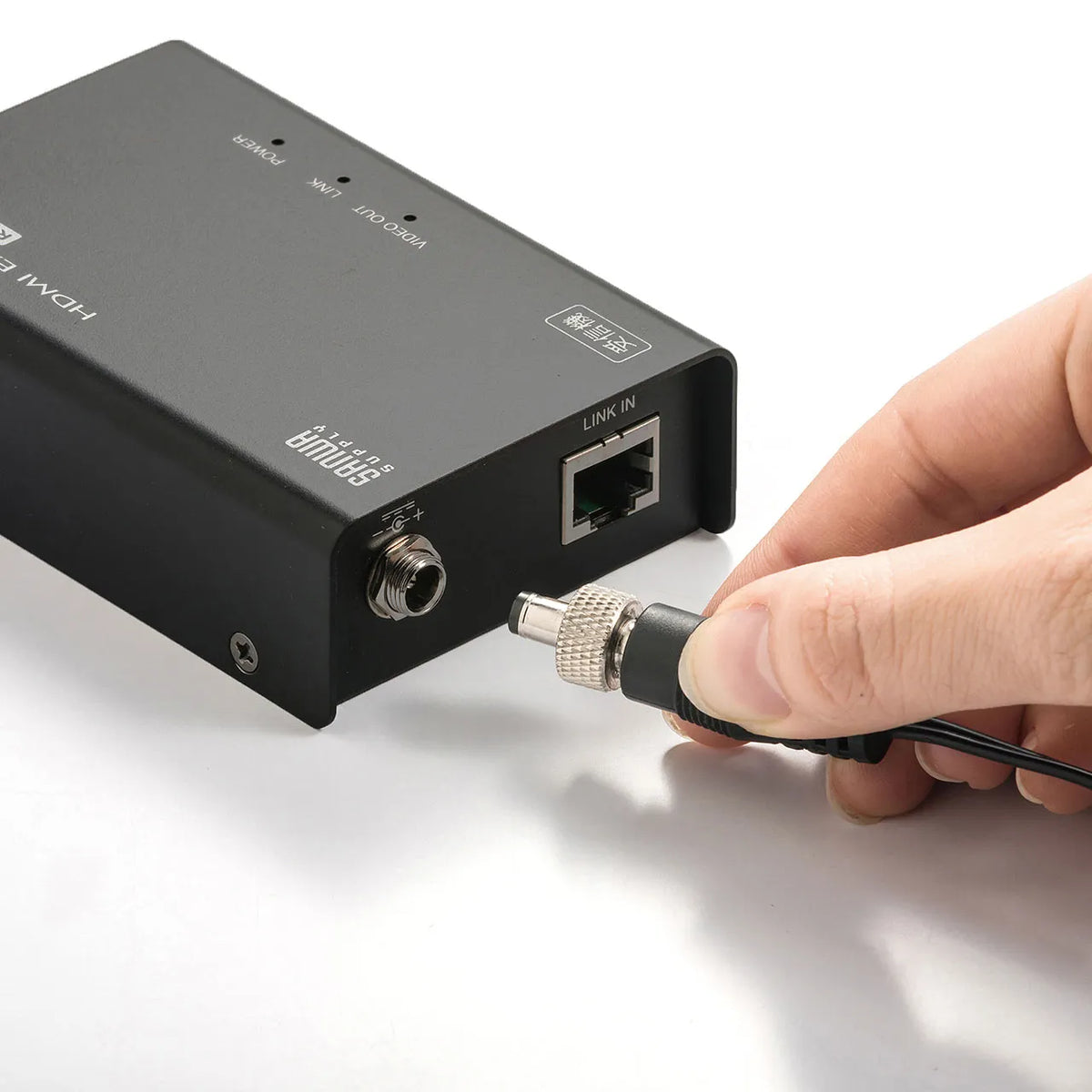

●The AC adapter uses a screw-type fixing system to prevent it from falling out.
■Maximum display resolution:

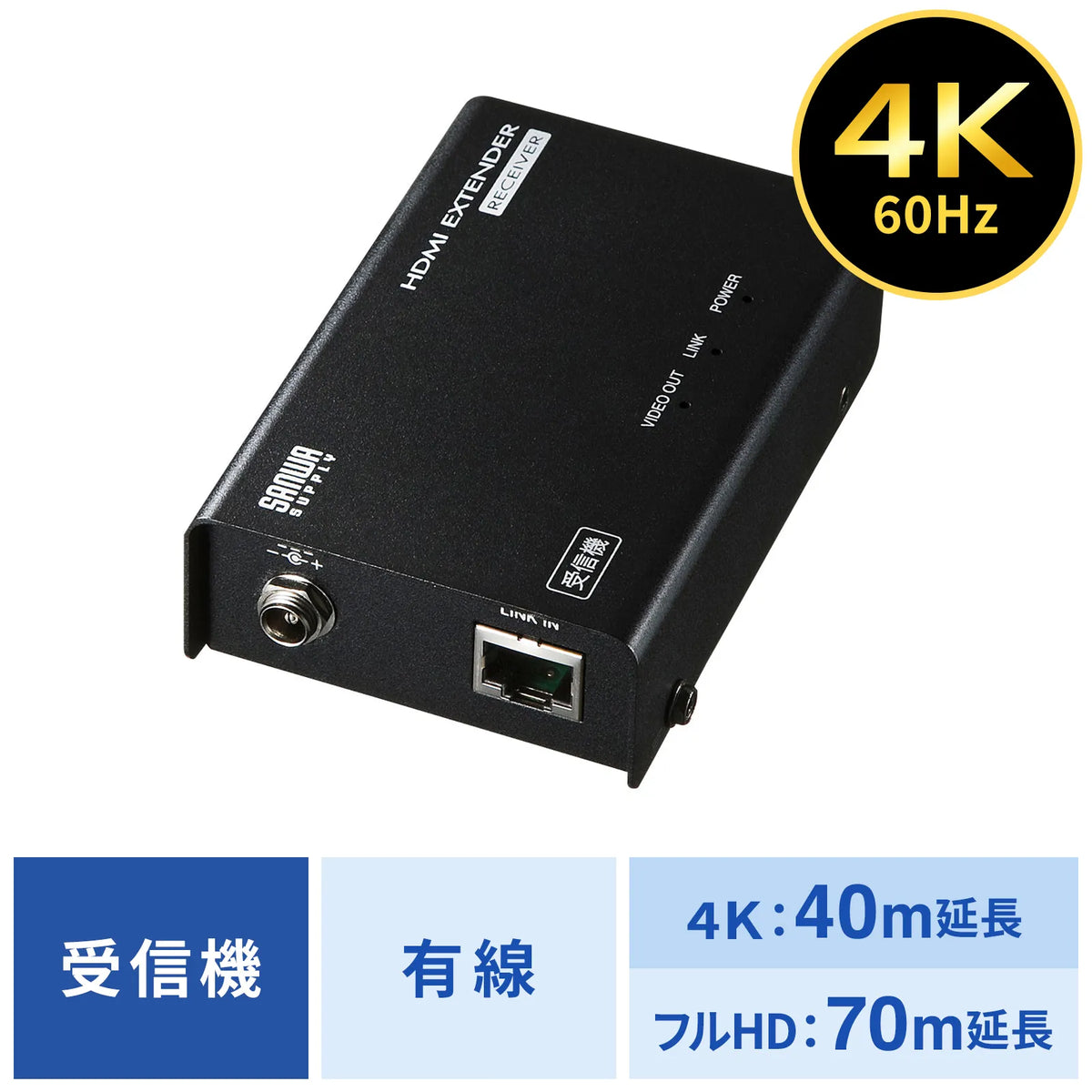

4K/4096x2160・3840x2160 (60Hz, 4:2:0) ... When using Category 6A (up to 40m)
4K/4096x2160・3840x2160 (30Hz, 4:4:4) ... When using Category 6A (up to 40m)
4K/4096x2160・3840x2160 (60Hz, 4:2:0) ... When using Category 6/5e (up to 35m)
4K/4096x2160・3840x2160 (30Hz, 4:4:4) ... When using Category 6/5e (up to 35m)
1080p (1920x1080) ... When using Category 6A (up to 70m)
1080p (1920x1080) ... When using Category 6/5e (up to 60m)

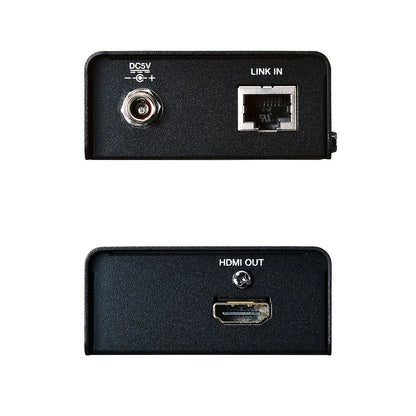

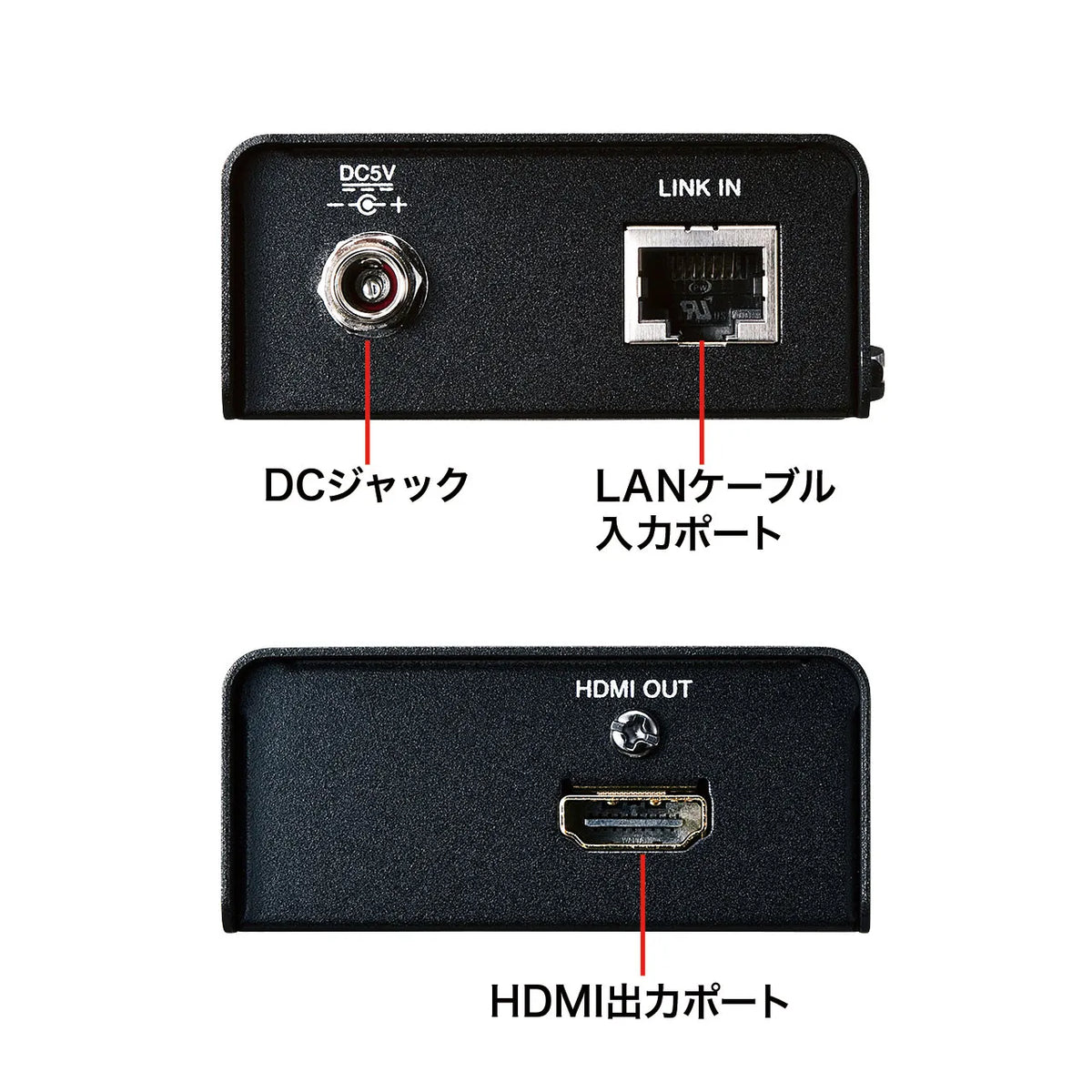

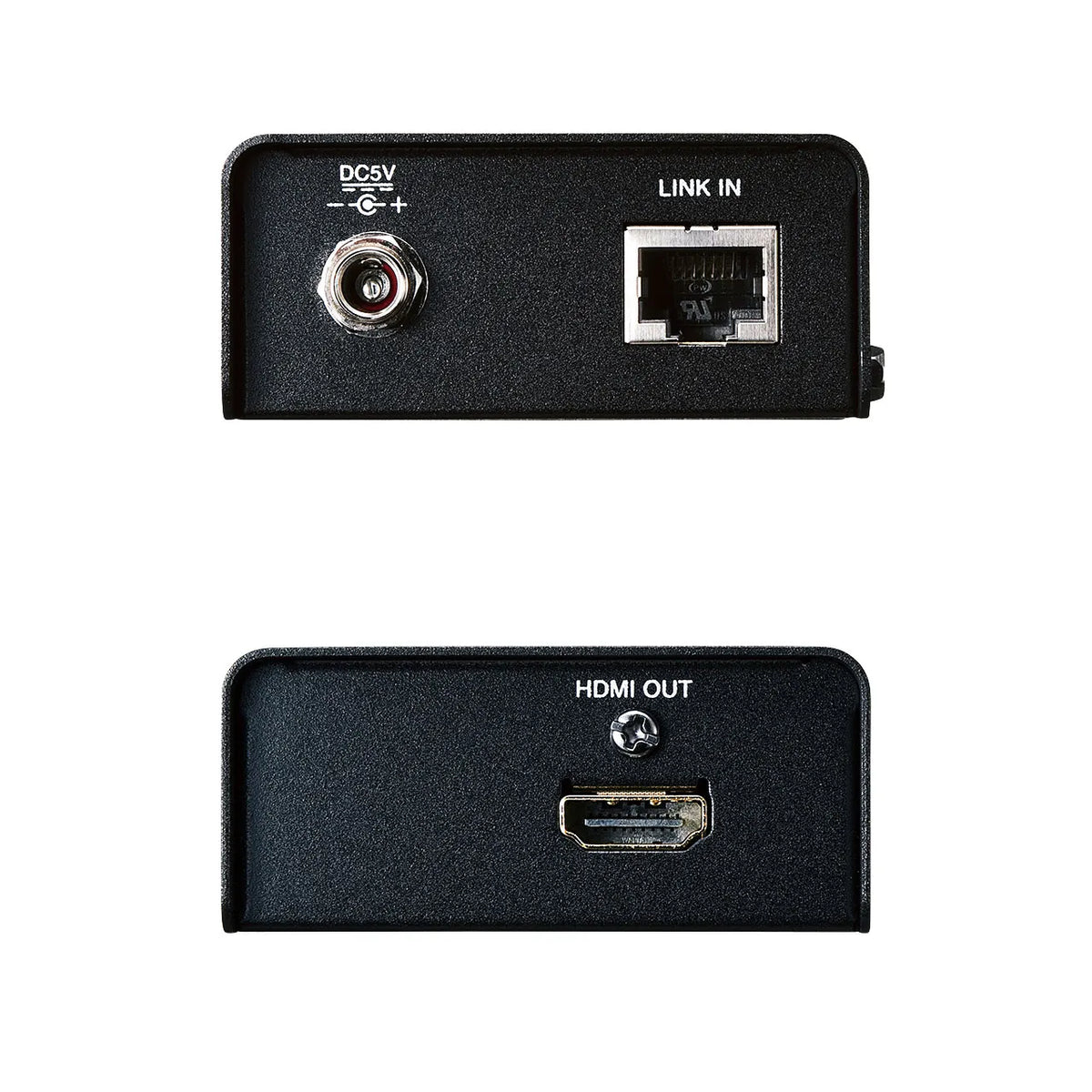

■Interface:
Input/RJ-45 female x1
Output/HDMI Type A (19pin) female x1
■HDCP: HDCP 1.4/2.2 compatible (PASS Through)
*The display must also be HDCP compatible.
*When combined with VGA-EXHDLTL4, it supports up to HDCP 1.4.
■Bandwidth: Single link 340MHz/3.4Gbps per channel (10.2Gbps all channel)
■Extension cable length: 70m (maximum)
*The extension distance varies depending on the resolution.
■Power Consumption: 4.24W (Maximum)
■Material: Steel
■Supported Audio Signals: LPCM, DTS Digital, Dolby Digital, DTS-HD, Dolby True HD
■Environmental Conditions:
Operating: 0 to 50 degrees Celsius, humidity 80% or less (non-condensing)
Storage: -20 to 60 degrees Celsius, humidity 80% or less (non-condensing)
■Size: W100.7 x D68.4 x H29 mm (Main Unit Size)
■Weight: 234g

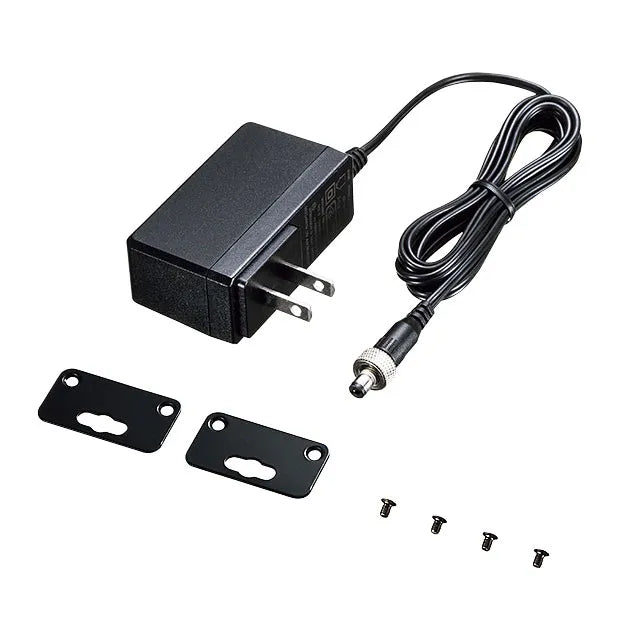

■Accessories: AC adapter (DC5V 2.6A) x1, wall mounting parts x2, mounting screws x4, ground wire x1, instruction manual x1
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication. It does not support connections via switching hubs or routers.
*It cannot be integrated into an existing LAN environment. * Distribution and extension output using switching hubs, etc. is not possible. * Wireless output using wireless LAN, wireless routers, etc. is not possible.
●This is a dedicated receiver for receiving video and audio signals output from a Sanwa Supply HDMI extender.
*This product alone cannot receive HDMI signals. A separate transmitter (VGA-EXHDLT/EXHDLTL4) is required.
●This product (receiver) and the separately sold transmitter (VGA-EXHDLTL4) can be extended using a single Category 6A/6/5e straight cable.
●A wall mount kit is included for wall mounting.
●This product is compatible with HDCP 1.4/2.2 (High-bandwidth Digital Content Protection).
*The display must also be HDCP compatible.
●The AC adapter uses a screw-type fixing system to prevent it from falling out.
■Maximum display resolution:
4K/4096x2160・3840x2160 (60Hz, 4:2:0) ... When using Category 6A (up to 40m)
4K/4096x2160・3840x2160 (30Hz, 4:4:4) ... When using Category 6A (up to 40m)
4K/4096x2160・3840x2160 (60Hz, 4:2:0) ... When using Category 6/5e (up to 35m)
4K/4096x2160・3840x2160 (30Hz, 4:4:4) ... When using Category 6/5e (up to 35m)
1080p (1920x1080) ... When using Category 6A (up to 70m)
1080p (1920x1080) ... When using Category 6/5e (up to 60m)
■Interface:
Input/RJ-45 female x1
Output/HDMI Type A (19pin) female x1
■HDCP: HDCP 1.4/2.2 compatible (PASS Through)
*The display must also be HDCP compatible.
*When combined with VGA-EXHDLTL4, it supports up to HDCP 1.4.
■Bandwidth: Single link 340MHz/3.4Gbps per channel (10.2Gbps all channel)
■Extension cable length: 70m (maximum)
*The extension distance varies depending on the resolution.
■Power Consumption: 4.24W (Maximum)
■Material: Steel
■Supported Audio Signals: LPCM, DTS Digital, Dolby Digital, DTS-HD, Dolby True HD
■Environmental Conditions:
Operating: 0 to 50 degrees Celsius, humidity 80% or less (non-condensing)
Storage: -20 to 60 degrees Celsius, humidity 80% or less (non-condensing)
■Size: W100.7 x D68.4 x H29 mm (Main Unit Size)
■Weight: 234g
■Accessories: AC adapter (DC5V 2.6A) x1, wall mounting parts x2, mounting screws x4, ground wire x1, instruction manual x1
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication. It does not support connections via switching hubs or routers.
*It cannot be integrated into an existing LAN environment. * Distribution and extension output using switching hubs, etc. is not possible. * Wireless output using wireless LAN, wireless routers, etc. is not possible.
