HDMI Extender (Transmitter/4-way Splitter) VGA-EXHDLTL4

[HDMI Extender that can distribute and extend an HDMI signal to 40m at 4K resolution and up to 70m at 1080P resolution using a single LAN cable]

●This is an HDMI distribution extender (transmitter) that can distribute an HDMI signal to 4 and extend it over long distances using a single LAN cable.

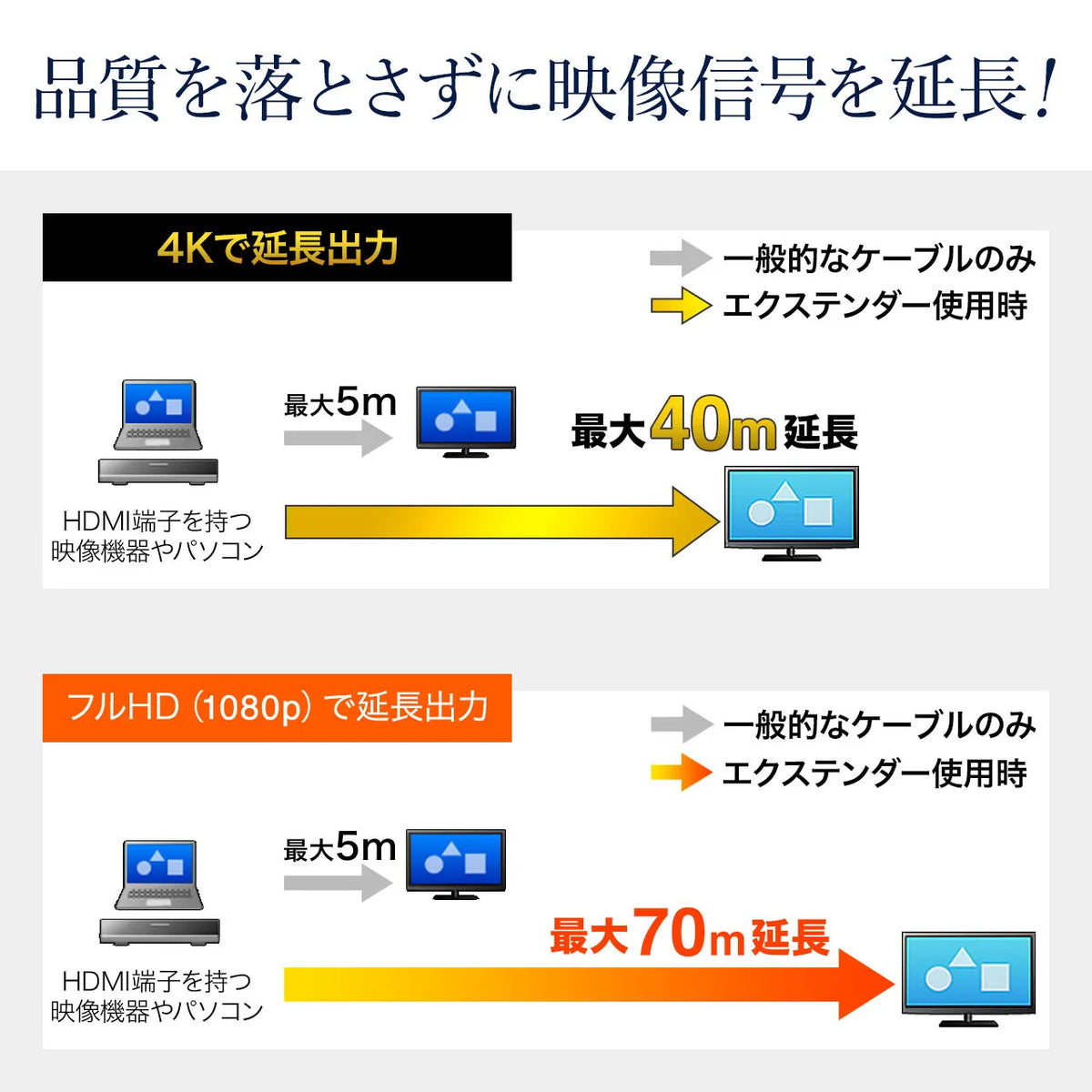

●It supports 4K resolution, and can extend the HDMI signal to 40m at 4K resolution and up to 70m at 1080p resolution using a single LAN cable.

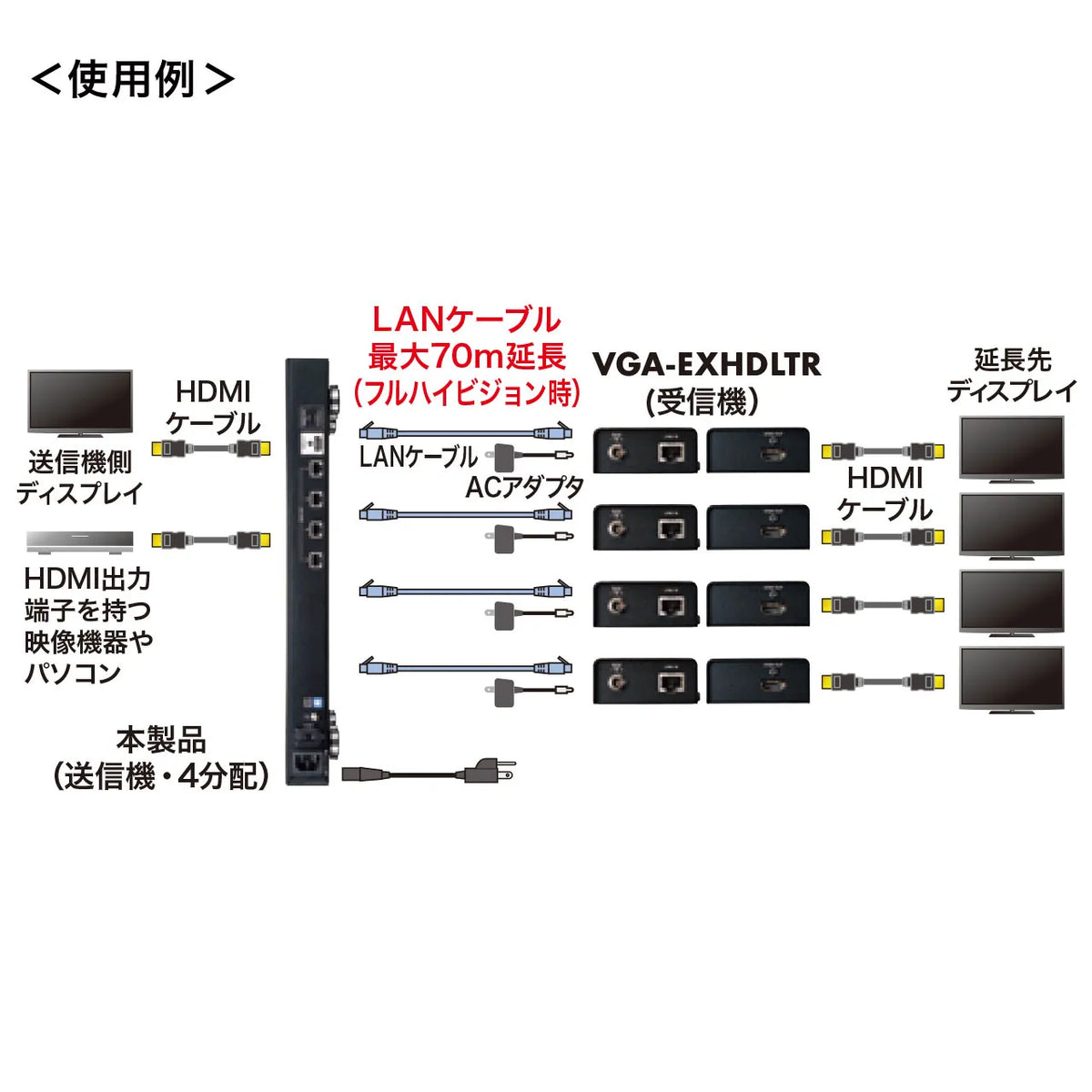

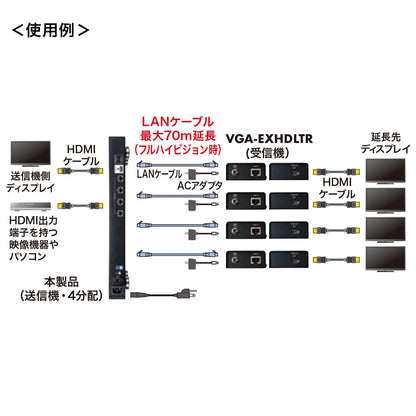

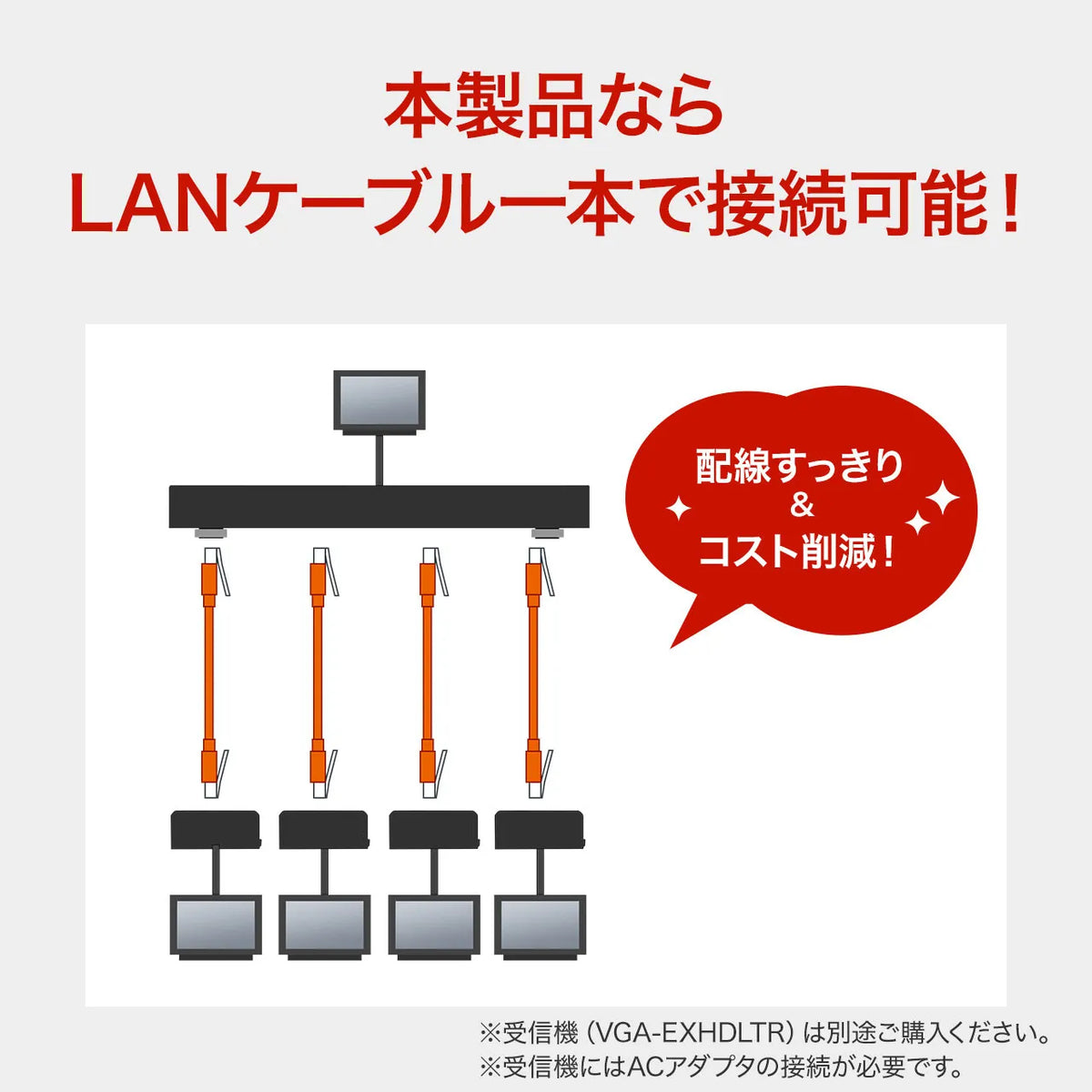

●This product (transmitter) and the separately sold receiver (VGA-EXHDLTR) can be extended using a single Category 6A/6/5e straight cable.
*This product alone cannot transmit an HDMI signal. A separate receiver (VGA-EXHDLTR) is required.
●High-quality audio signals can be extended simultaneously with high-quality HDMI video signals.
●Equipped with multiple EDID selection functions, it is possible to make HDMI devices recognize arbitrary EDID data.
●It is a 1U size that can be installed in a 19-inch server rack.
●This product is compatible with HDCP 1.4 (High-bandwidth Digital Content Protection).
*The display must also be HDCP compatible.
●It also supports 3-stage cascading.
*Cascading is not possible at 4K resolution. It only supports cascading and extension at 1080p (1920x1080) resolution.

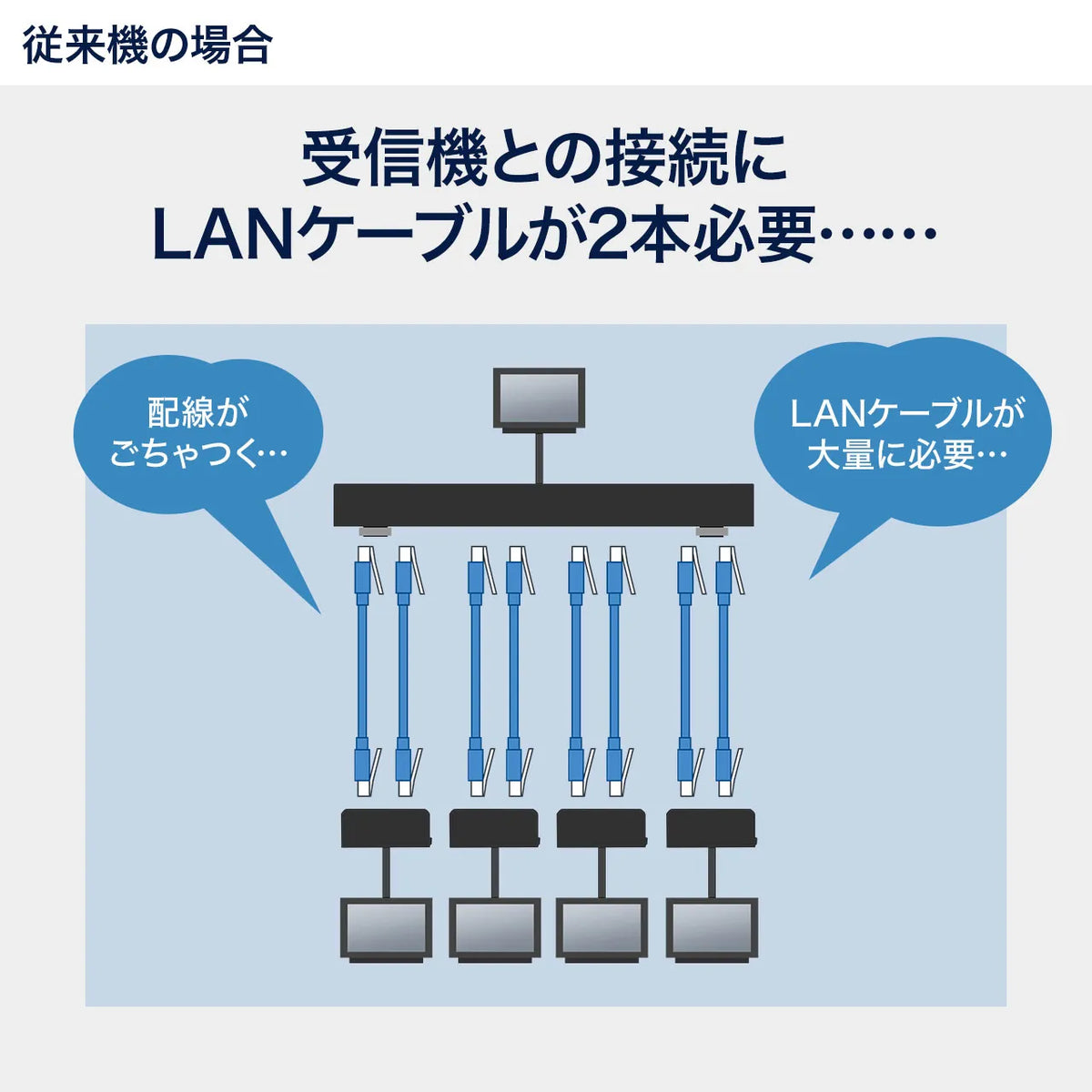

●It uses a Category 6 straight cable, making it easy to handle and cost-effective.
●It has a built-in power supply and does not require an AC adapter.

■Maximum display resolution:
4K/4096x2160・3840x2160 (60Hz, 4:2:0)・・・When using Category 6A (up to 40m)
4K/4096x2160・3840x2160 (30Hz, 4:4:4)・・・When using Category 6A (up to 40m)
4K/4096x2160・3840x2160 (60Hz, 4:2:0)・・・When using Category 6/5e (up to 35m)
4K/4096x2160・3840x2160 (30Hz, 4:4:4)・・・When using Category 6/5e (up to 35m)
1080p (1920x1080)・・・When using Category 6A (up to 70m)
1080p (1920x1080) ... When using Category 6/5e (up to 60m)
■Interface:
Input/HDMI Type A (19pin) Female x1
Output/RJ-45 Female x4 HDMI Type A (19pin) Female x1
■HDCP: HDCP 1.4 compatible
*The display must also be HDCP compatible.
■Bandwidth: Single link 340MHz/3.4Gbps per channel (10.2Gbps all channel)
■Extension cable length: 70m (maximum) *The extension distance varies depending on the resolution.
■Power Consumption: 18.2W (Maximum)
■Material: Steel
■Supported Audio Signals: LPCM, DTS Digital, Dolby Digital, DTS-HD, Dolby True HD
■Distribution: 4-way distribution
■Environmental Conditions:
Operating: 0 to 50 degrees Celsius, humidity 80% or less (no condensation)
Storage: -20 to 60 degrees Celsius, humidity 80% or less (no condensation)
■Size: W438 x D262 x H44 mm (Main Unit Size)
■Weight: 3470g

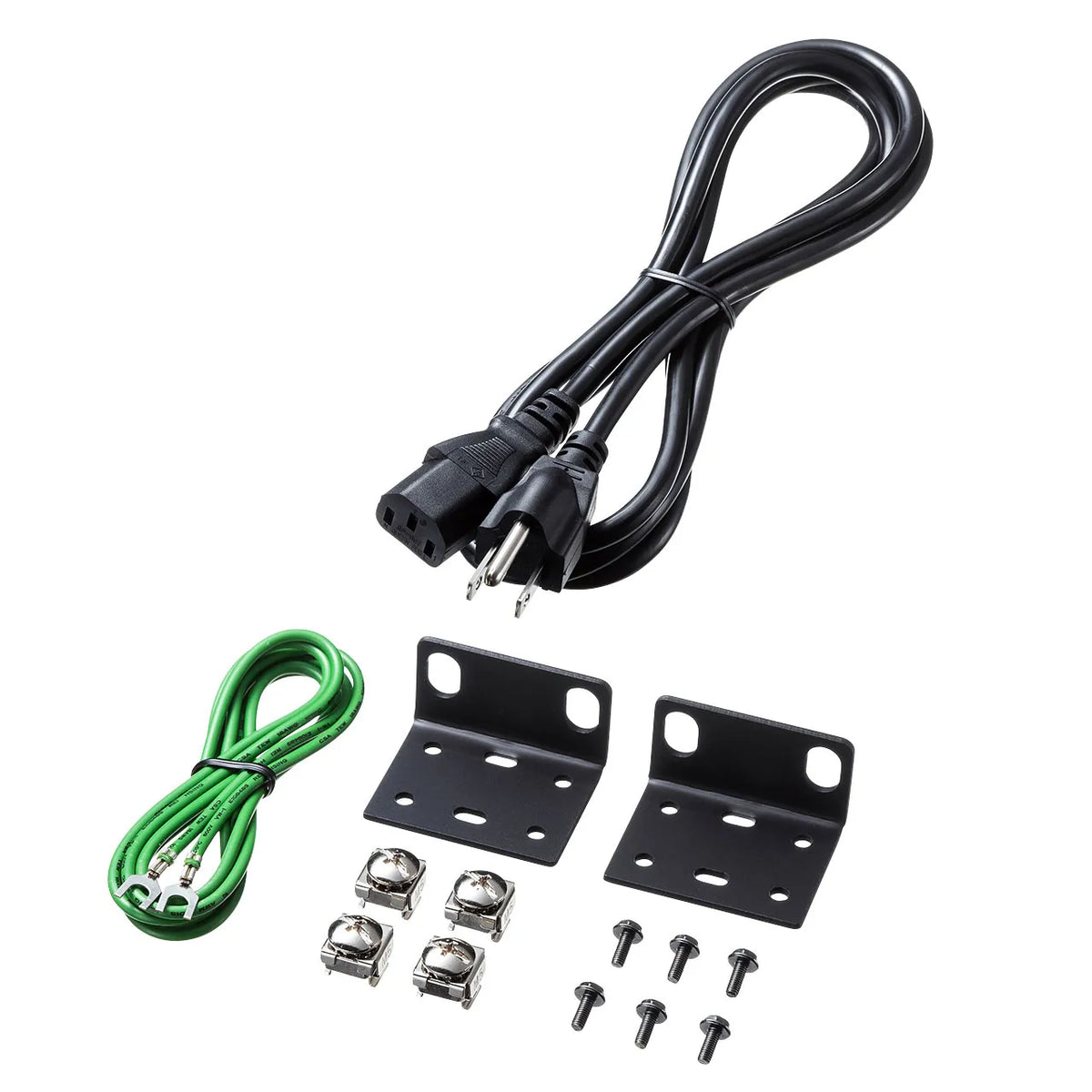

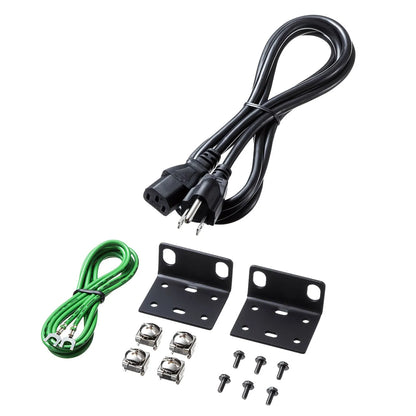

■Accessories: Power cable x1, ground wire x1, rack mount bracket x1, instruction manual, warranty
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication. It does not support connections via switching hubs or routers.
*It cannot be integrated into an existing LAN environment.
*Distribution extension output using switching hubs etc. is not possible.
*Wireless output using Wi-Fi, wireless routers, etc. is not possible.
