HDMI Extender (Set Model) VGA-EXHDLT

[HDMI Extender that can extend HDMI signals up to 40m for 4K resolution and up to 70m for 1080P resolution using a single LAN cable]

●This HDMI extender can extend HDMI signals up to 40m for 4K resolution and up to 70m for 1080p resolution.

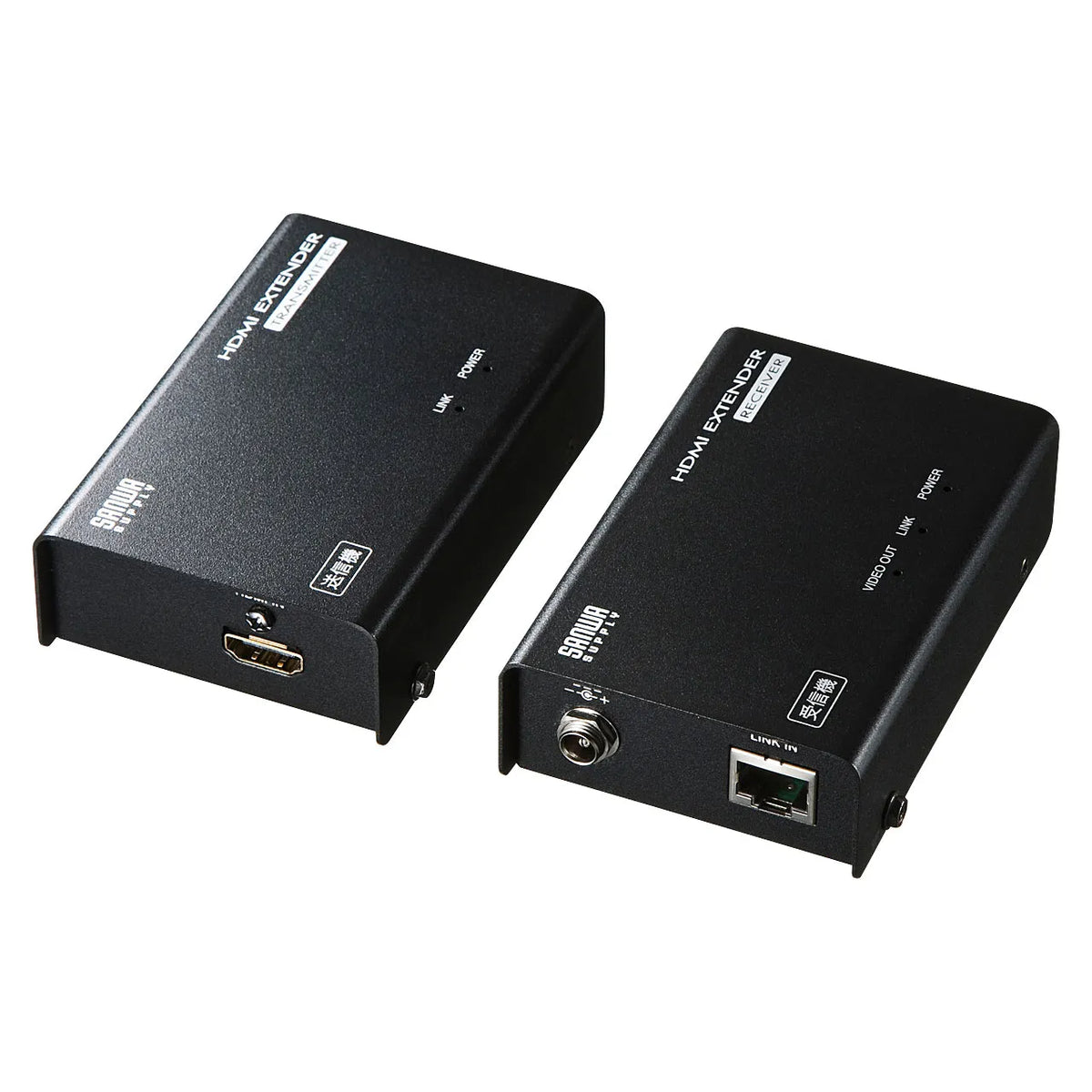

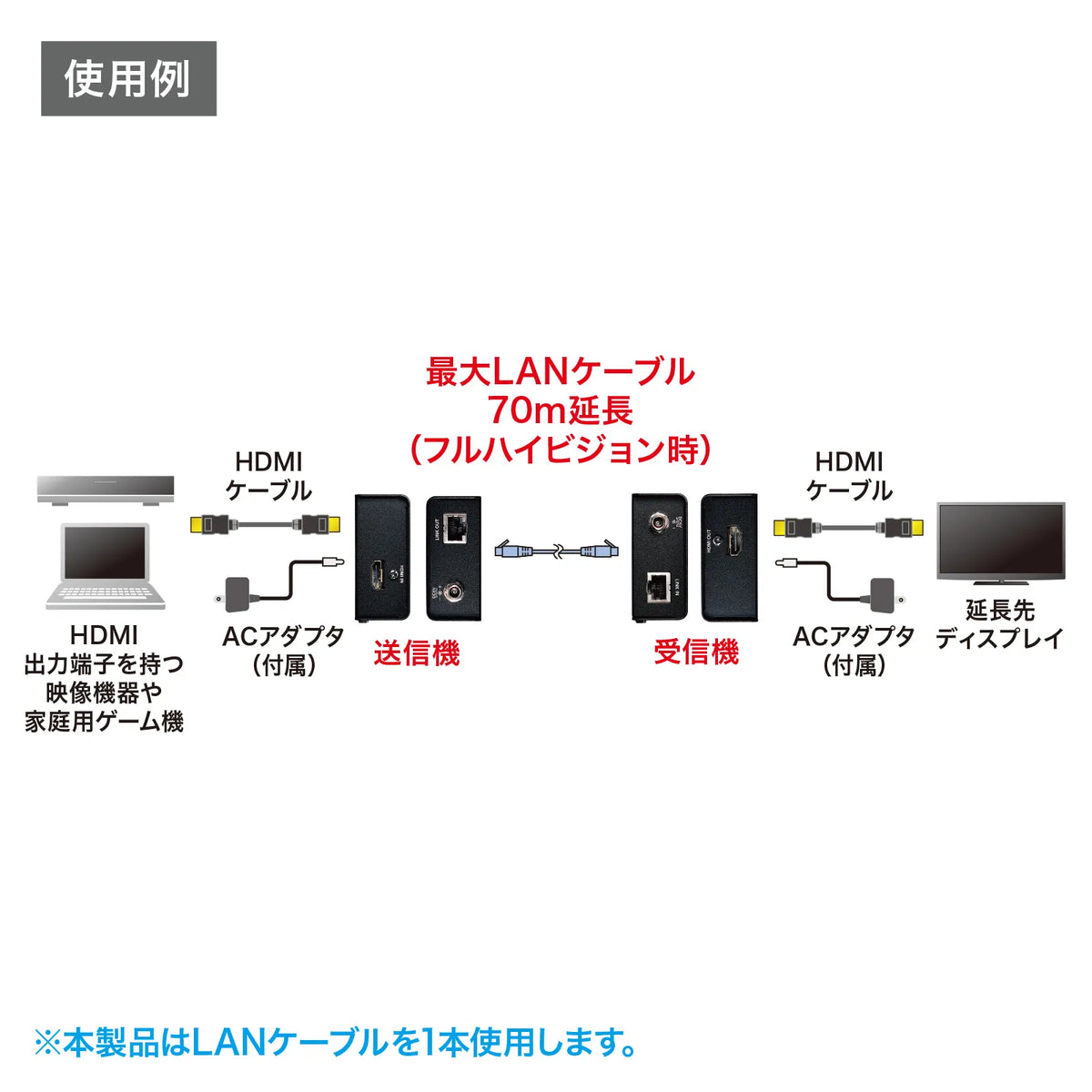

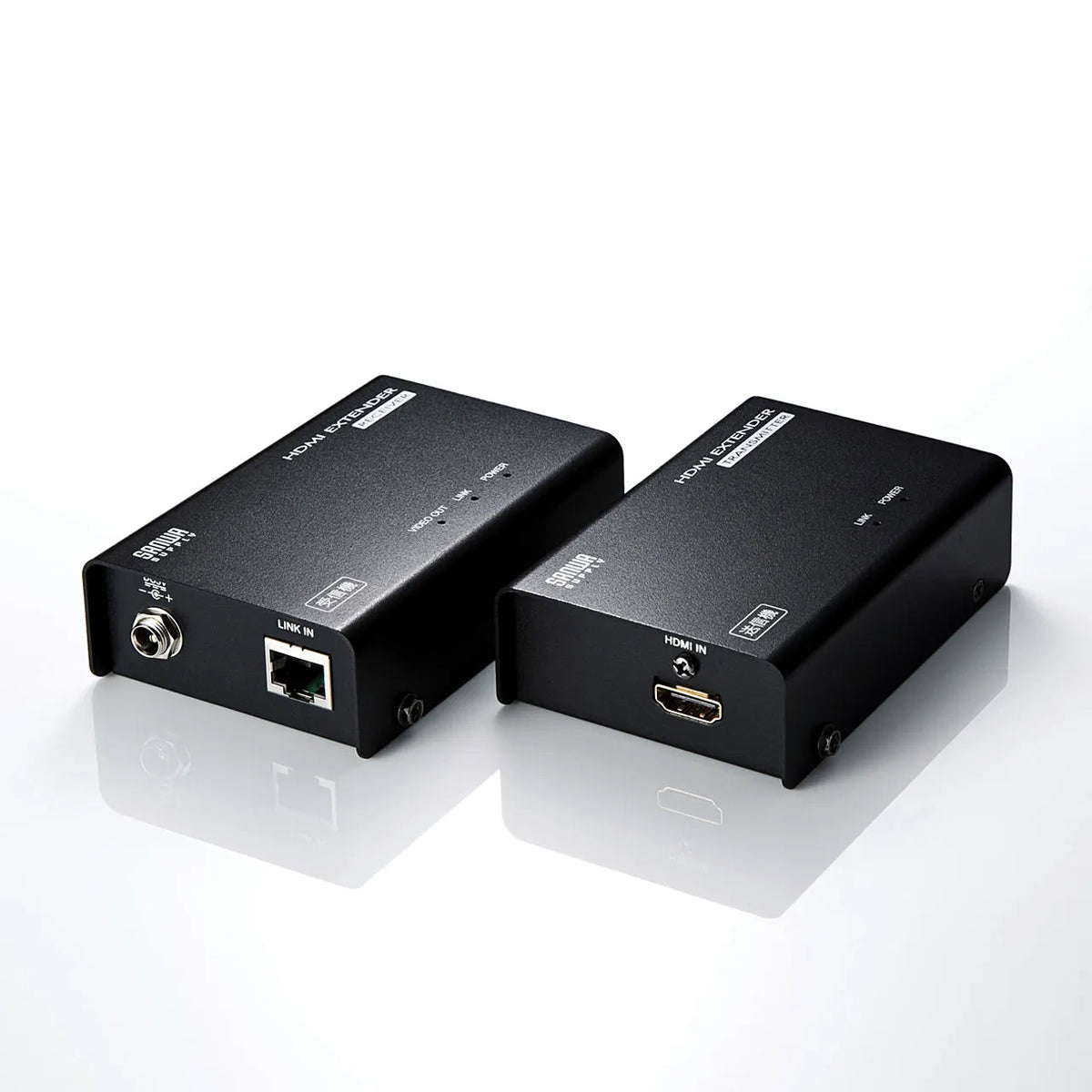

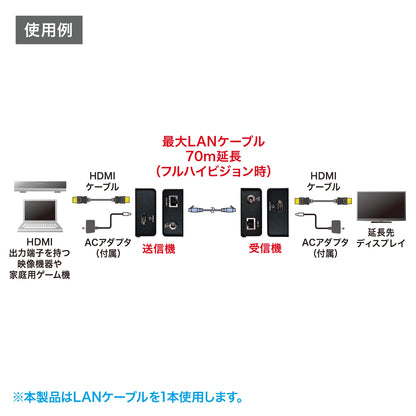

●It consists of a transmitter and receiver set, and the units can be extended using a single Category 6A/6/5e straight cable.
*This product uses one Category 6A/6/5e straight cable. Please purchase separately. Supported resolutions and extension distances vary depending on the cable standard.
●The AC adapter uses a screw-type fixing system to prevent accidental disconnection.
●This product is compatible with HDCP 1.4/2.2 (High-bandwidth Digital Content Protection).
*HDCP is compatible regardless of whether it is 1.4 or 2.2 because it has a pass-through structure. The display must also be HDCP compatible.

■Maximum display resolution:
4K/4096x2160・3840x2160 (60Hz, 4:2:0) ... When using Category 6A (up to 40m)
4K/4096x2160・3840x2160 (30Hz, 4:4:4) ... When using Category 6A (up to 40m)
4K/4096x2160・3840x2160 (60Hz, 4:2:0) ... Category When using Category 6/5e (up to 35m)
4K/4096x2160・3840x2160 (30Hz, 4:4:4)・・・When using Category 6/5e (up to 35m)
1080p (1920x1080)・・・When using Category 6A (up to 70m)
1080p (1920x1080)・・・When using Category 6/5e (up to 60m)
■Interface:

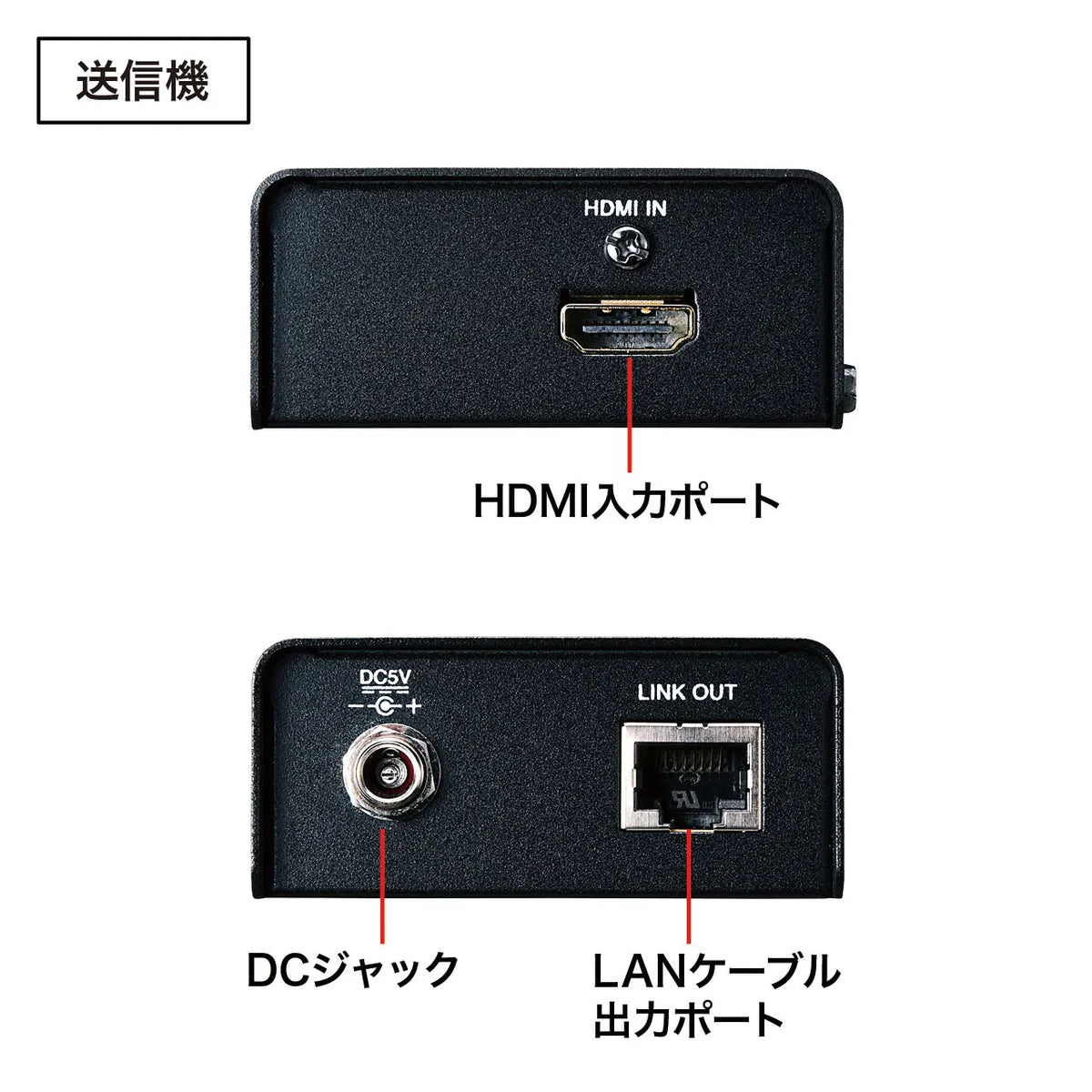

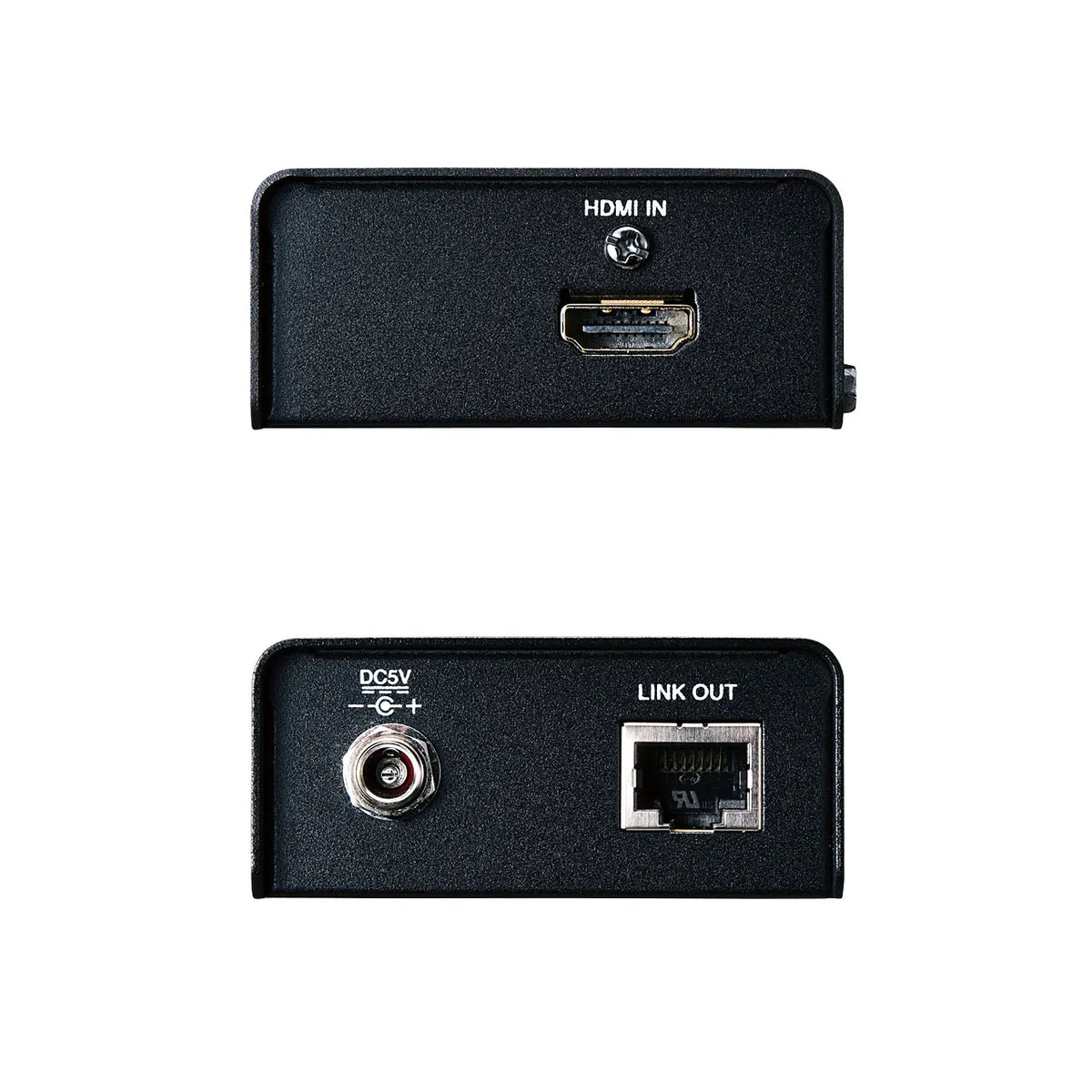

Transmitter Input/HDMI Type A (19pin) female x1, Output/RJ-45 female x1

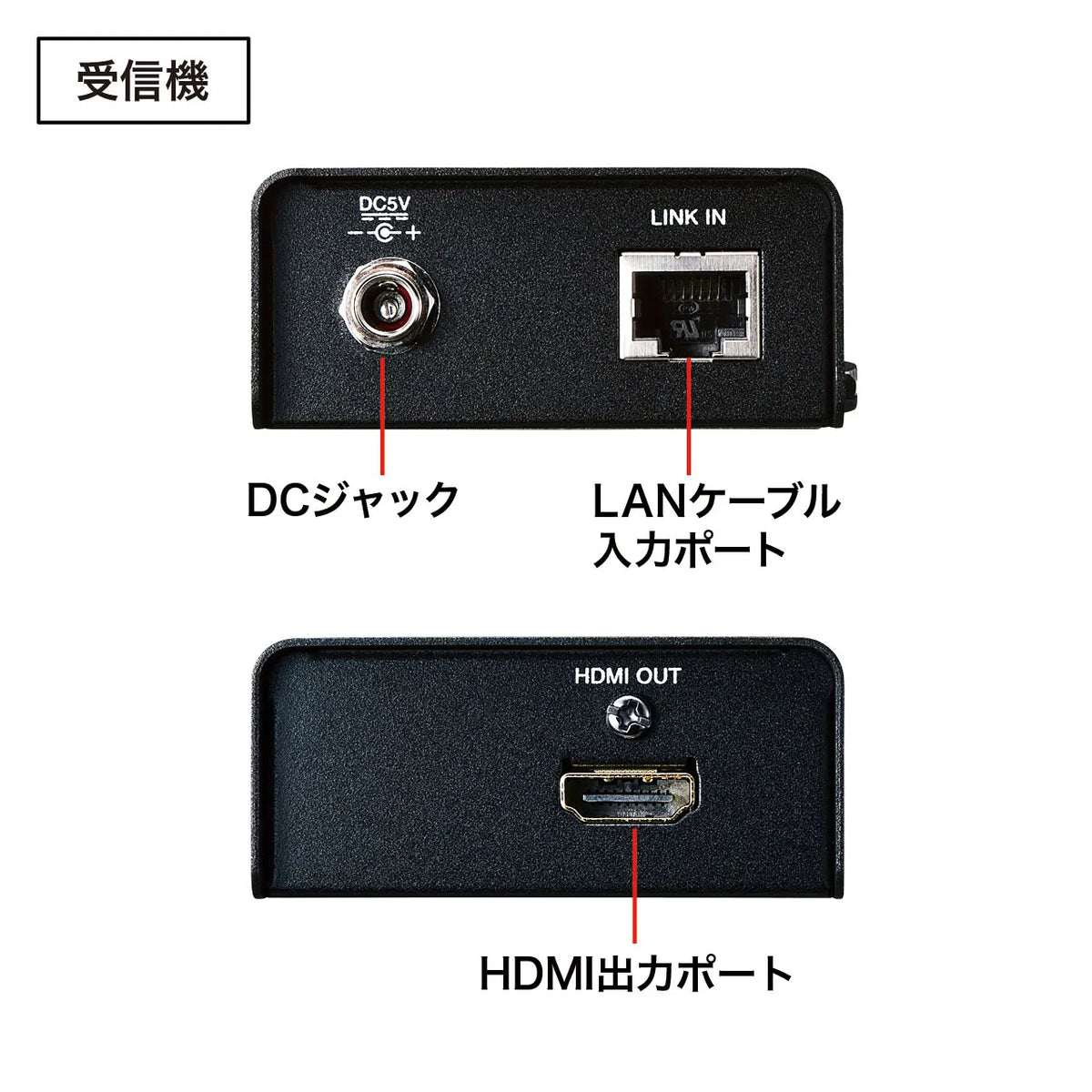

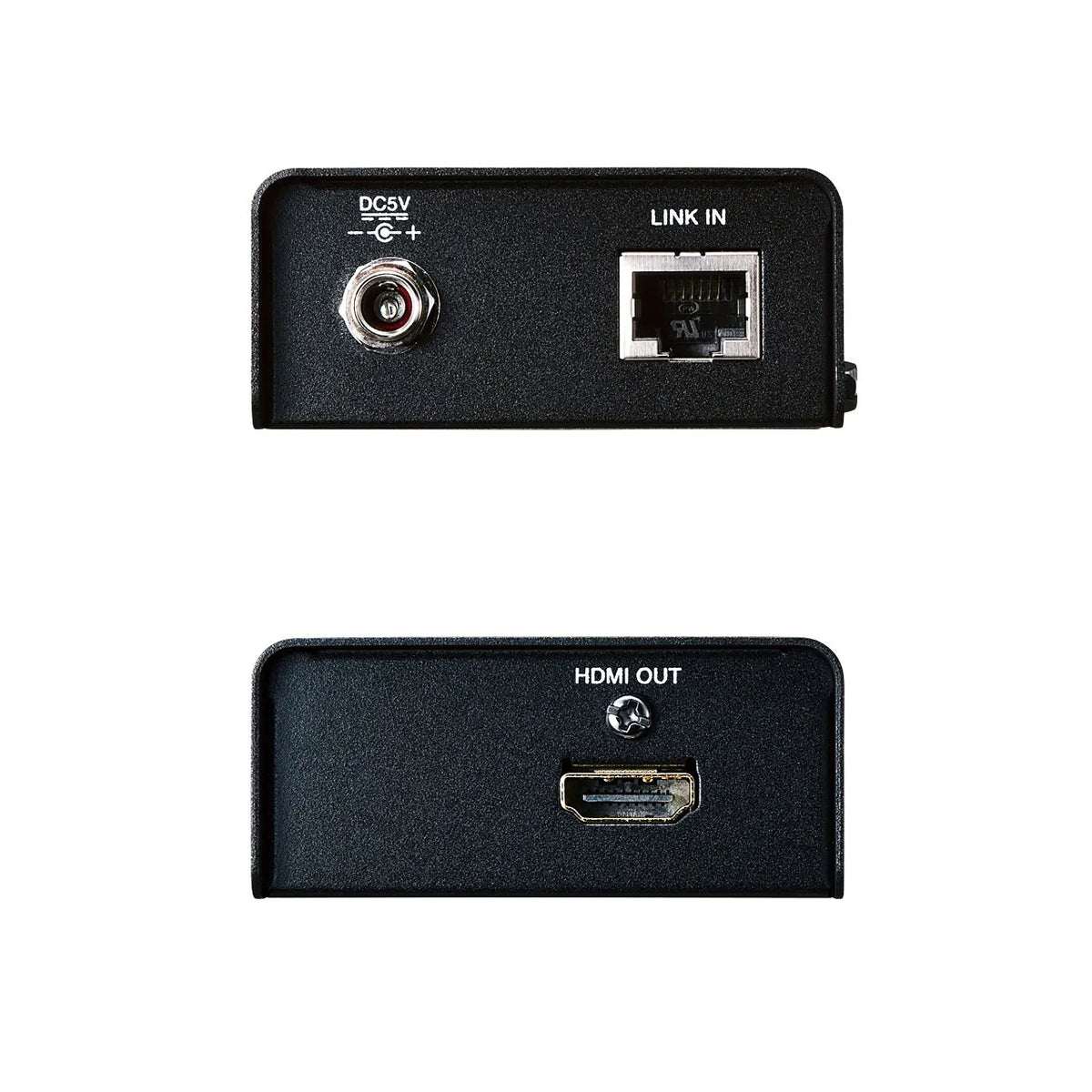

Receiver Input/RJ-45 female x1, Output/HDMI Type A (19pin) female x1
■HDCP: HDCP 1.4/2.2 compatible (PASS Through) *The display must also be HDCP compatible.
■Extension cable length: 70m (maximum) *The extension distance varies depending on the resolution.
■Current Consumption:
Transmitter 1.86W (Max)
Receiver 4.24W (Max)
■CEC: Pass-through
■Bandwidth: Single-link 340MHz/3.4Gbps per channel (10.2Gbps all channels)
■Supported Audio Signals: LPCM, DTS, Digital, Dolby Digital, DTS-HD, Dolby True HD
■Case Material: Steel
■Environmental Conditions:
Operating: 0 to 50 degrees Celsius, humidity 80% or less (non-condensing)
Storage: -20 to 60 degrees Celsius, humidity 80% or less (non-condensing)
■Size: W100.7 x D68.4 x H29mm (Main Unit Size)
■Weight: 234g

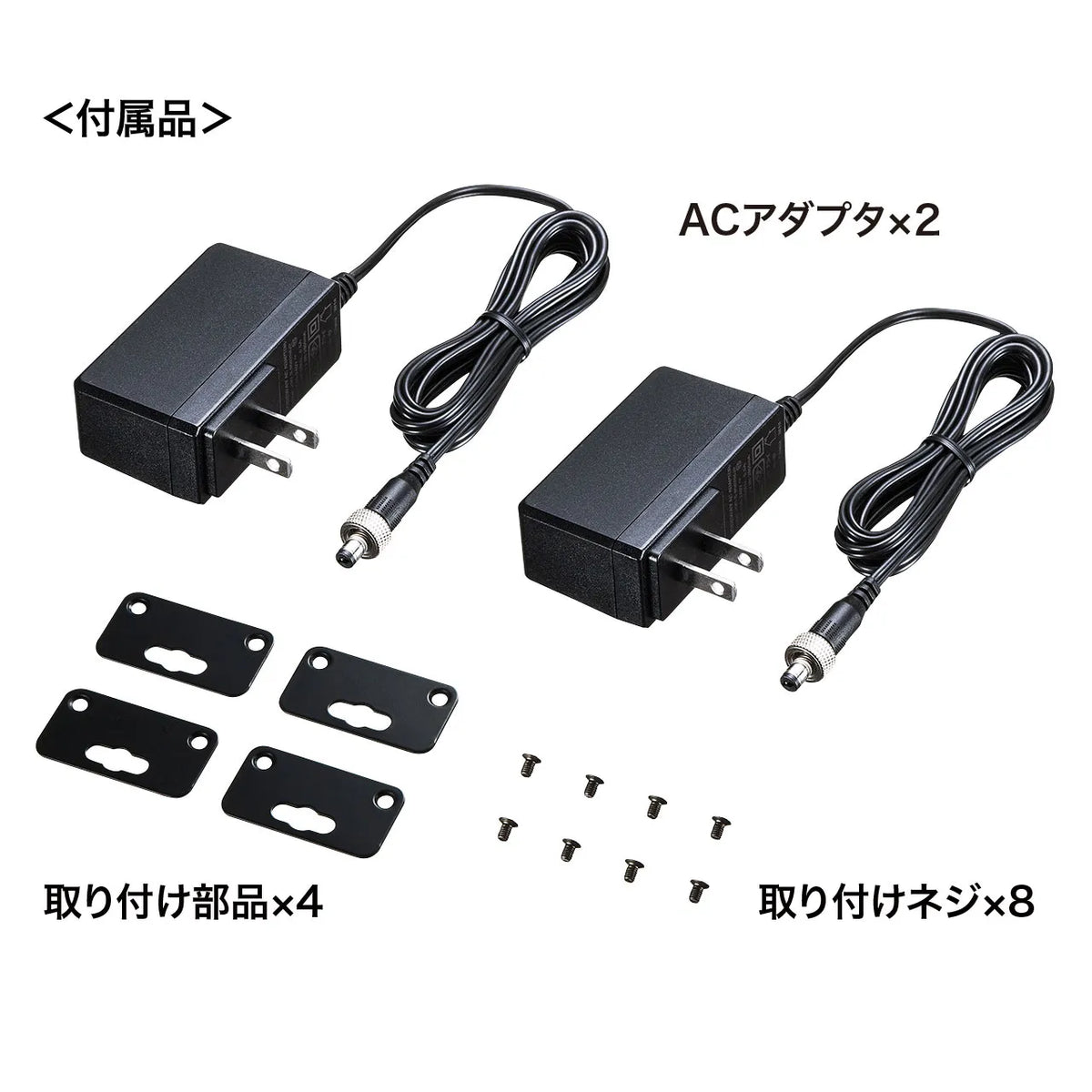

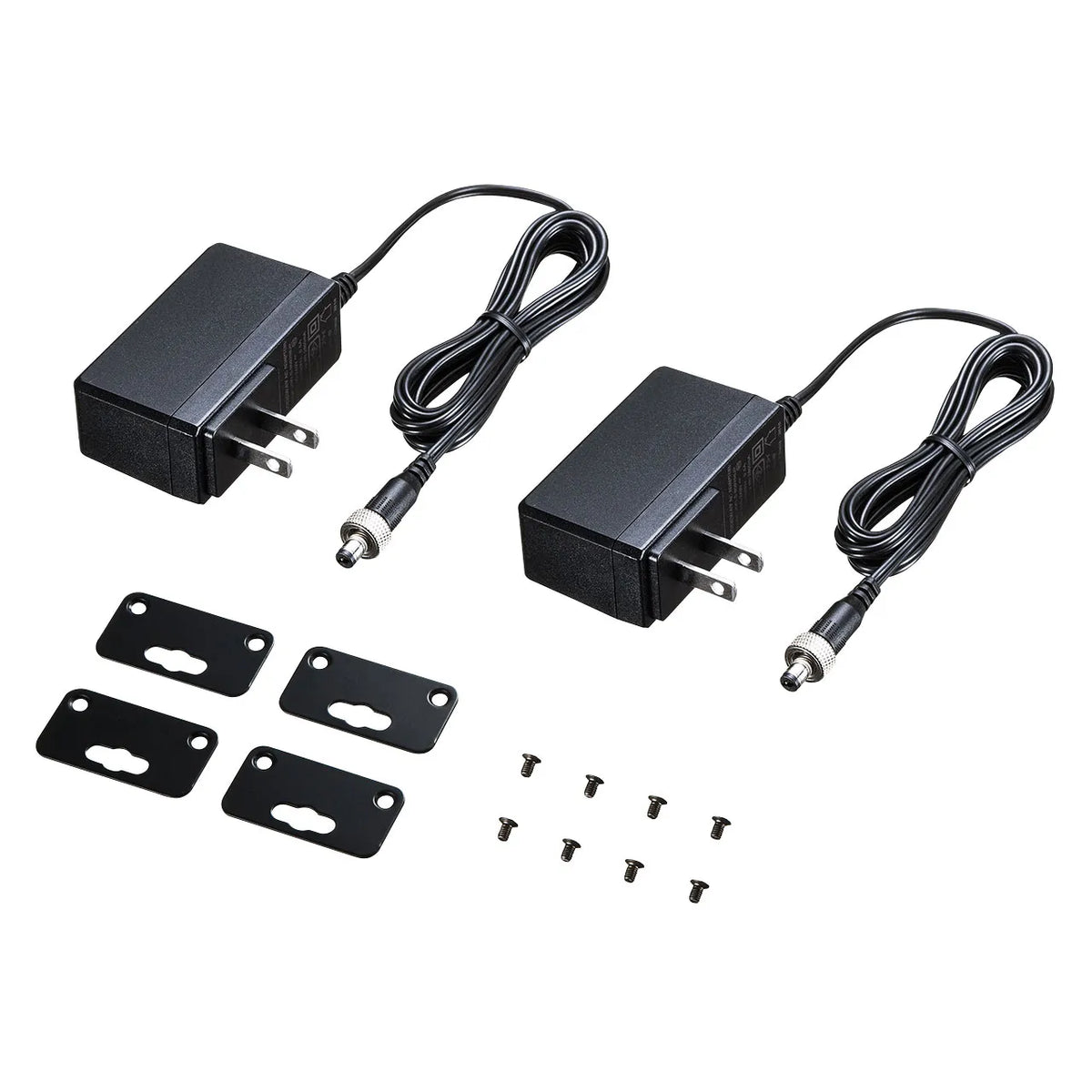

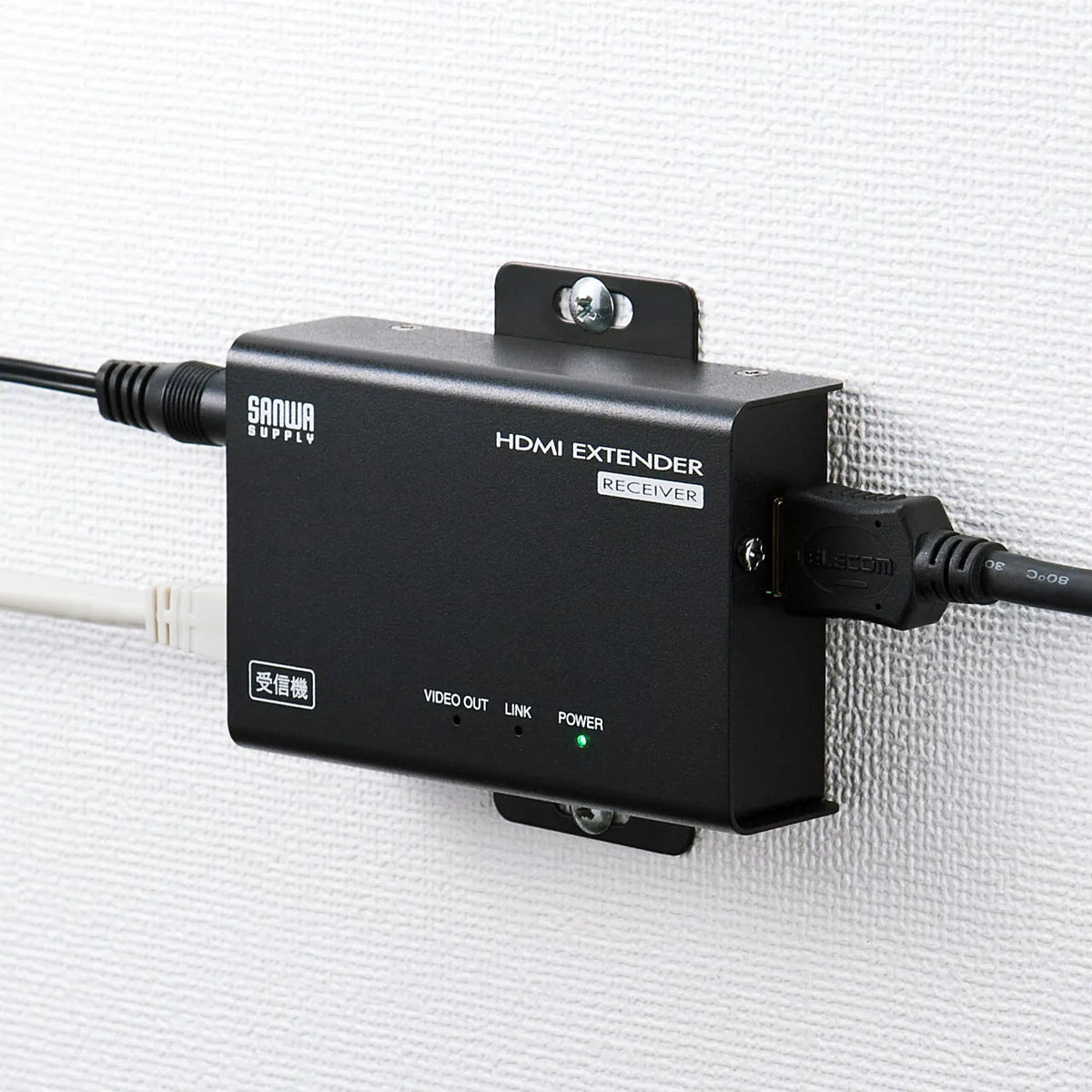

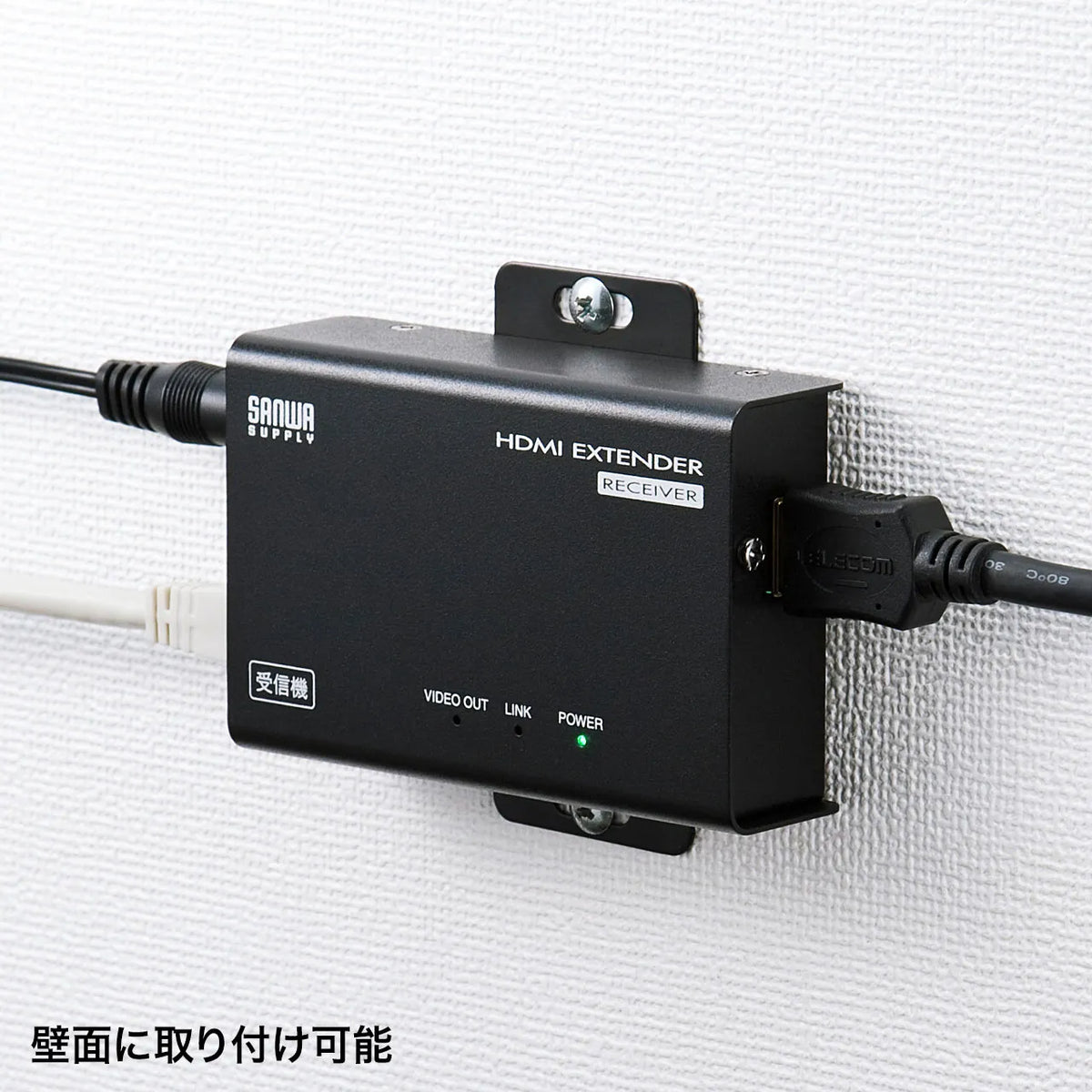

■Set Contents: Transmitter x1, Receiver x1, AC Adapter (DC5V) 2.6A) x2, mounting parts x4, mounting screws x8, ground wire x2, instruction manual
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication.
It does not support connections via switching hubs or routers.
*It cannot be incorporated into an existing LAN environment.
*Distribution and extension output using switching hubs, etc. is not possible.
*Wireless output using wireless LAN, wireless routers, etc. is not possible.
