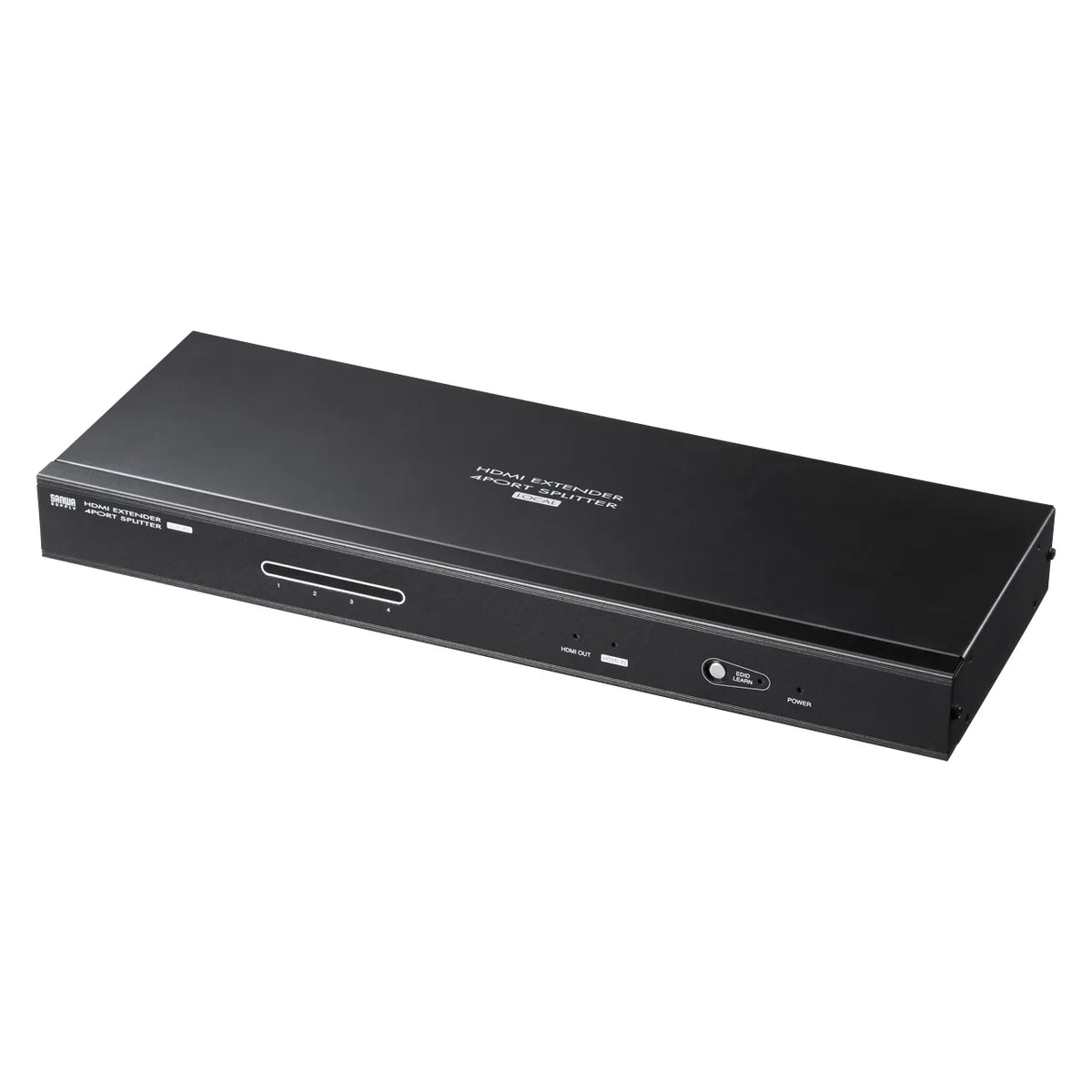

HDMI Extender (Transmitter/4-way Splitter) VGA-EXHDL4

[HDMI Extender that can distribute and extend an HDMI signal up to 40m at Full HD (1920x1080) resolution, and up to 60m at 720P (1280x780) resolution, to 4 displays]

●This HDMI extender (transmitter) can distribute and extend an HDMI signal up to 40m at WUXGA (1920x1200 dots) / Full HD (1920x1080 dots) resolution, and up to 60m at 720p (1280x720 dots), to 4 displays.
*This product alone cannot transmit HDMI signals. A separate receiver (VGA-EXHDR) is required.
●High-quality audio signals can be extended simultaneously with high-quality HDMI video signals.
●Supports 3D signals.
●HDCP (High-bandwidth Digital Content Protection) compliant product.
*The display must also be HDCP compliant.

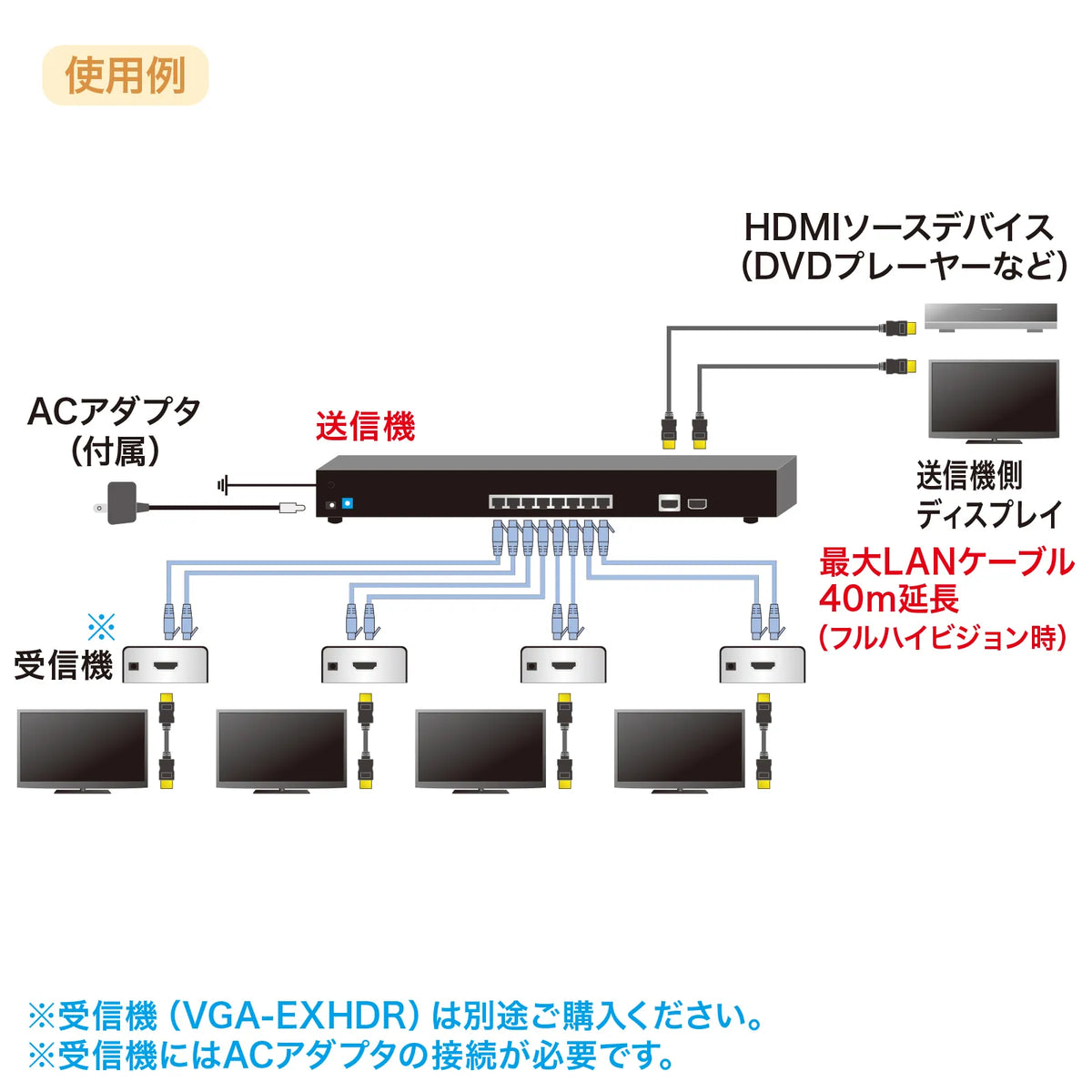

●By connecting this product (transmitter) and the separately sold receiver (VGA-EXHDR) with two LAN cables (Category 6/6A, straight), you can extend and transmit HDMI signals. (To ensure accurate device recognition, a method is adopted in which the DDC signal and video/audio signals are extended separately.)
●By using LAN cables (Category 6/6A, straight) with a transmission frequency bandwidth of 250MHz, high-quality HDMI signals can be transmitted over long distances with minimal signal loss.
●Because LAN cables (Category 6/6A, straight) are used, it is easy to handle and offers excellent cost performance.
※This product requires two LAN cables (Category 6/6A, straight). Please purchase them separately.
Recommended cables (Sanwa Supply)
KB-T6TS series KB-T6TS-90N etc. (Category 6)
KB-T6ATS series KB-T6ATS-30W etc. (Category 6A)
KB-T6L-CB100N (100m) / KB-T6L-CB300N (300m) (Category 6)
●1U size that can be installed in a 19-inch server rack.

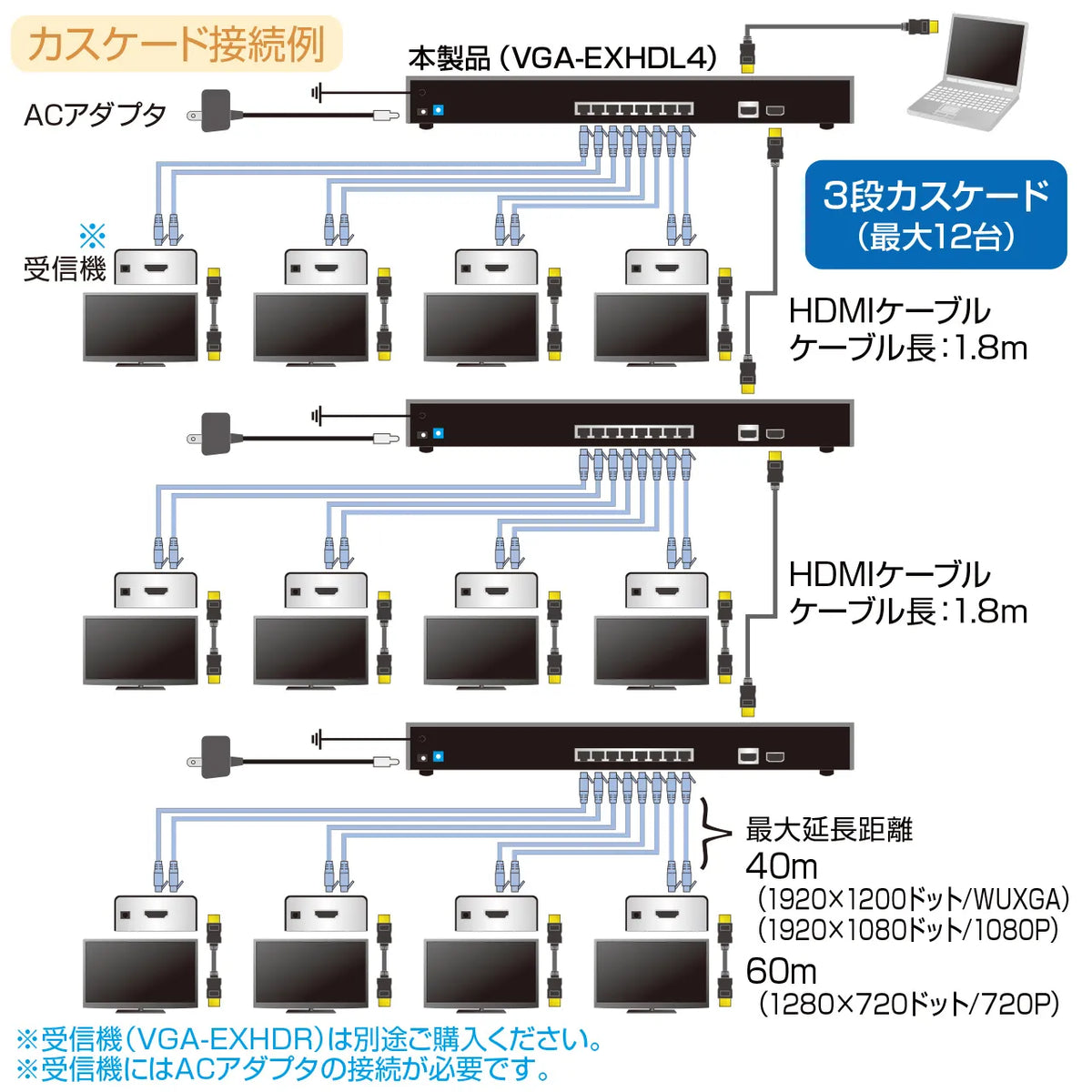

●Supports 3-stage daisy-chain connection.
●Ideal for situations where it is difficult to install HDMI equipment, such as in factories or construction sites, and you want to install only the display and install the HDMI equipment in a different, better environment.

■Maximum resolution: 1920x1200 (WUXGA) *Extendable up to 40m.
1920x1080 (Full HD/1080p) *Extendable up to 40m.
1280x720 (720p) *Extendable up to 60m.
■Compatible LAN cables: CAT6A straight, CAT6 straight
*This product uses two LAN cables. Please purchase them separately.
■Extension cable length: 60m (maximum)
*The distance that can be extended with the cable varies depending on the resolution.
*HDMI signals cannot be transmitted with this product alone. A separate receiver (VGA-EXHDR) is required.
■HDCP: HDCP1.2 compatible
*The display must also be HDCP compatible.
■Bandwidth: Maximum 2.25Gbps

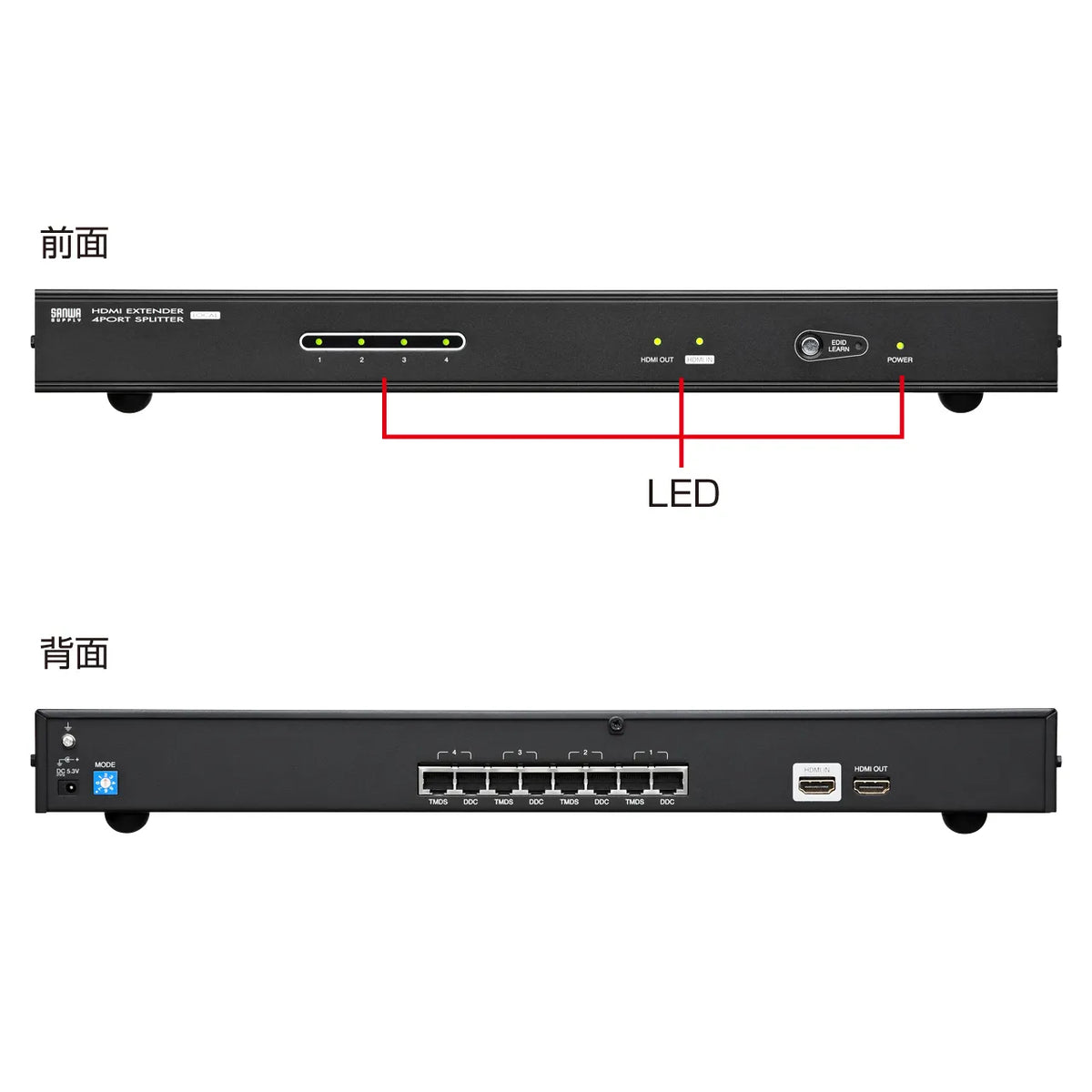

■Interface: Input/HDMI Type A (19pin) Female x1
Output/RJ-45 Female x8/HDMI Type A (19pin) Female x1
■Distribution: 4-way
■Power Consumption: 8W (Maximum)
■Environmental Conditions:
Operating Temperature and Humidity/0 to 50 degrees Celsius, 80% or less (non-condensing)
Storage Temperature and Humidity/-20 to 60 degrees Celsius, 85% or less (non-condensing)
■Material: Steel
■Size: W432 x D154 x H44mm (Main Unit Size)
■Weight: 2.13kg

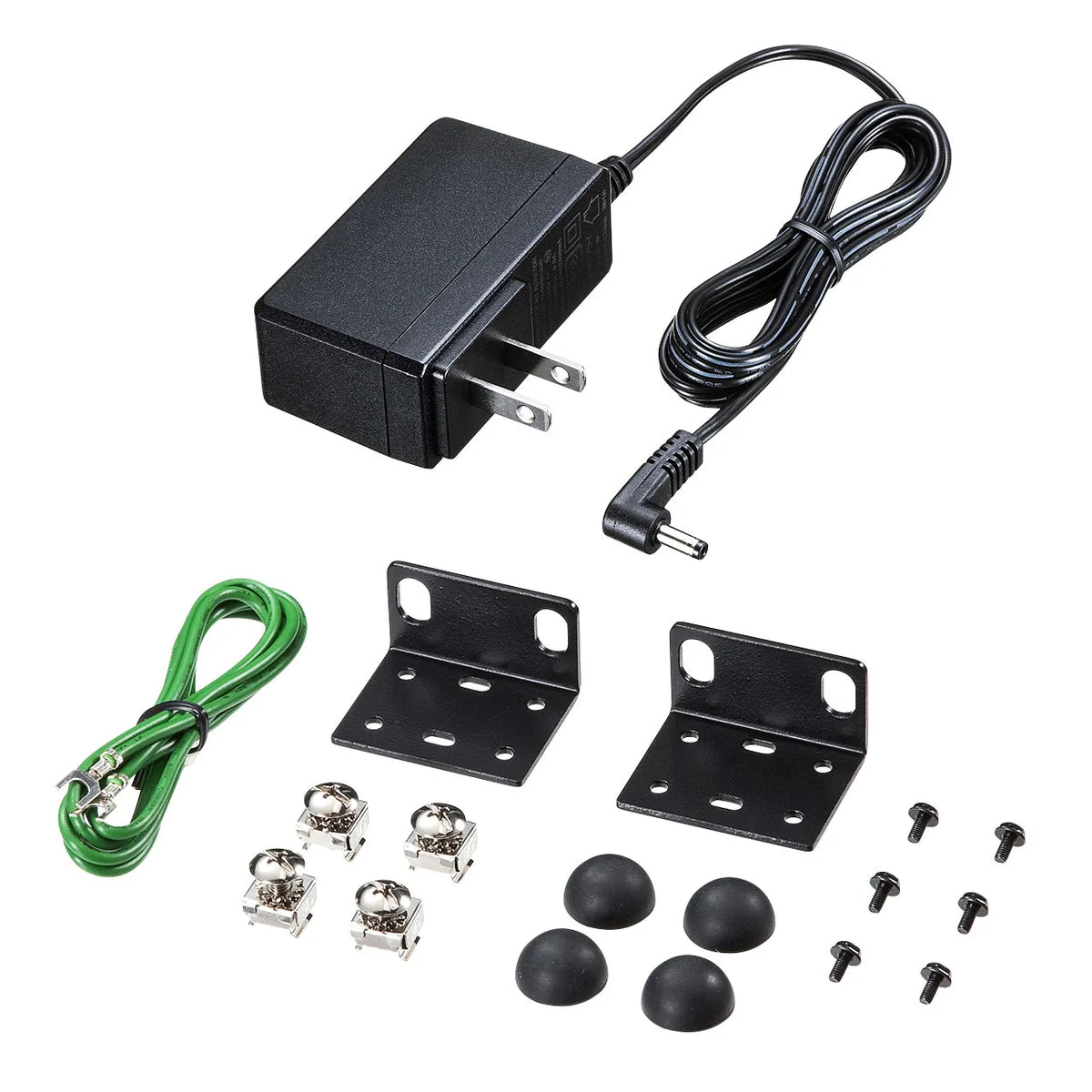

■Set Contents: Transmitter x1
AC Adapter (DC5.3V 2.4A) x1
Rubber feet x4, ground wire x1
Wall mount bracket x1 set
Instruction manual (with warranty) x1
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication.
It does not support connections via switching hubs, routers, etc.
*It cannot be incorporated into an existing LAN environment.
*Distribution and extension output using switching hubs, etc. is not possible.
*Wireless output using wireless LAN, wireless routers, etc. is not possible.
