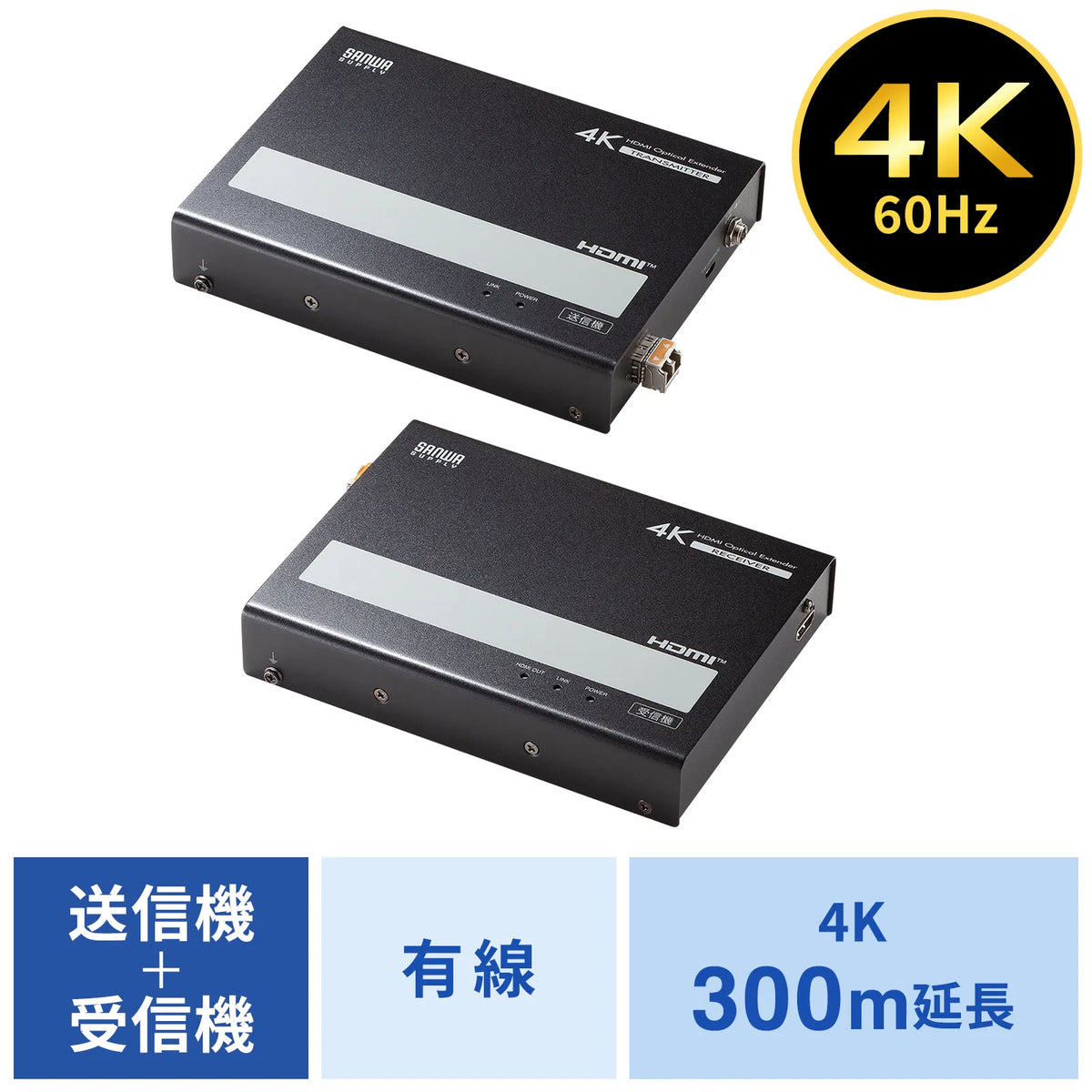

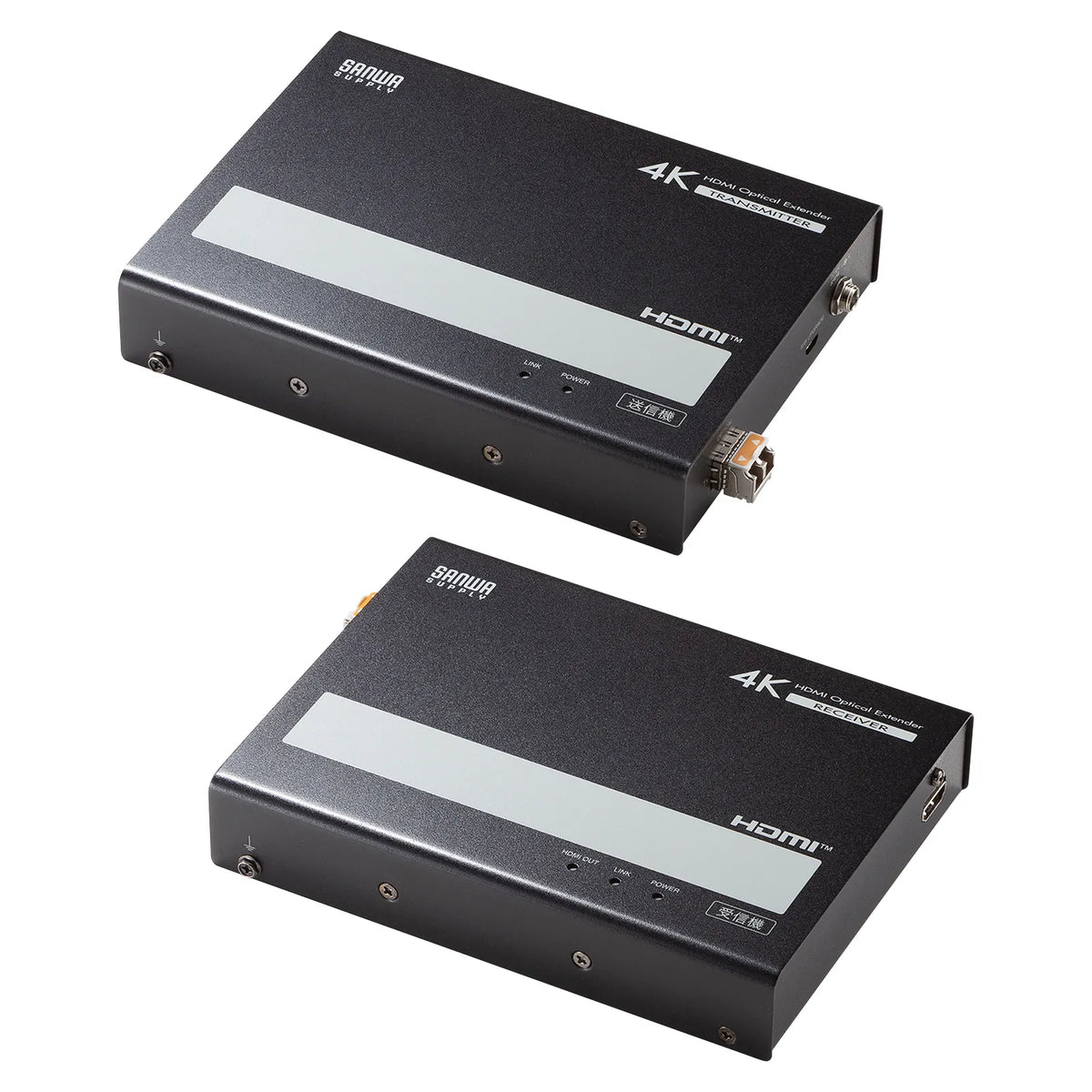

Fiber Optic HDMI Extender (4K compatible, 300m extension) VGA-EXHDFB

[A fiber optic HDMI extender that can transmit 4K/60Hz HDMI signals over long distances of up to 300m with no delay using a single fiber optic cable.]

●This fiber optic HDMI extender can extend high-definition 4K/60Hz resolution HDMI signals up to 300m.

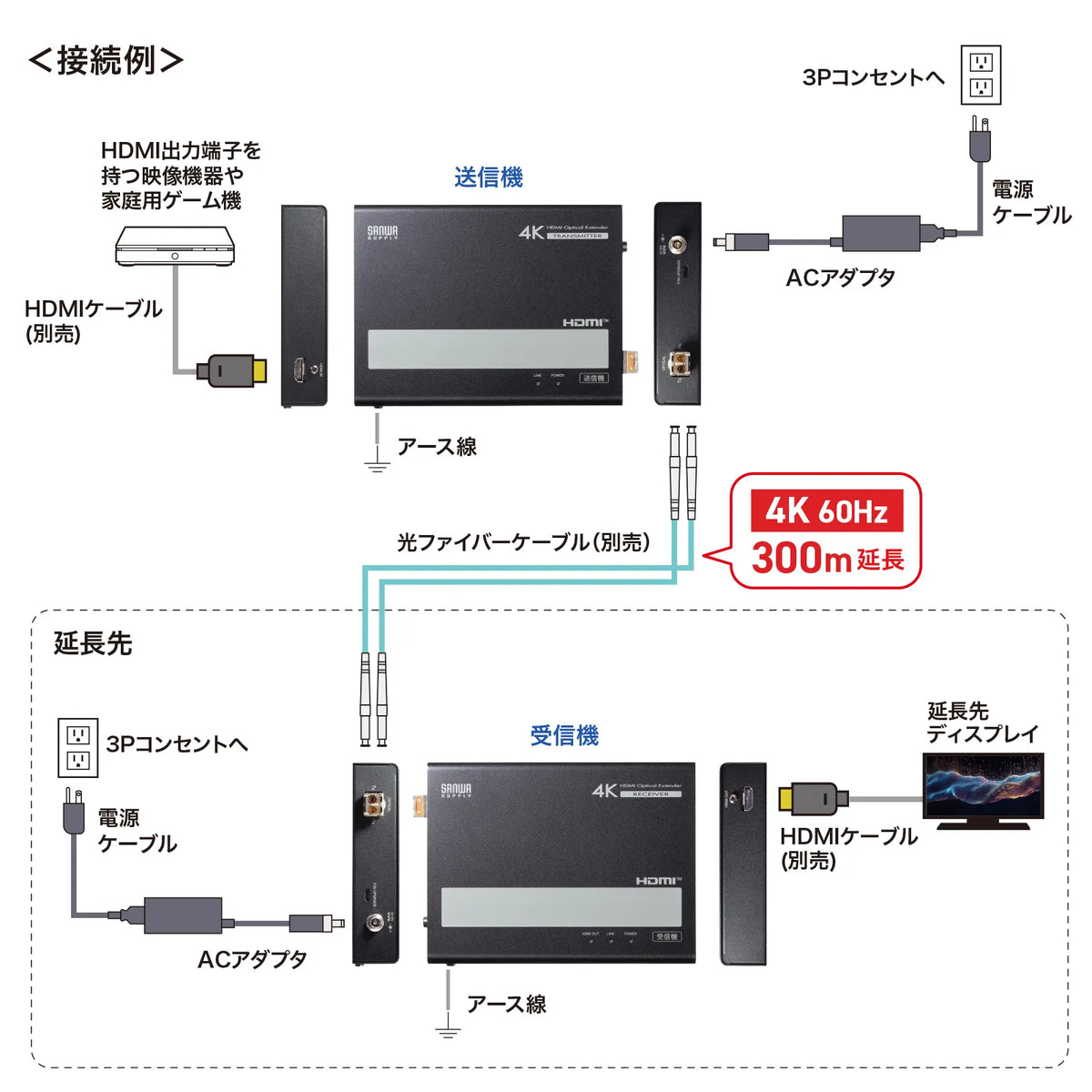

●It can be easily extended with a single fiber optic cable (multimode, OM3, LC-LC connector). *1
●Since the video signal is transmitted uncompressed, the delay is very low, about 40ms or less even at an extension distance of up to 300m, allowing for near real-time display of video.
●Compared to extension with wired LAN cables, it enables long-distance transmission, making it ideal for video transmission across floors and extensions within walls.

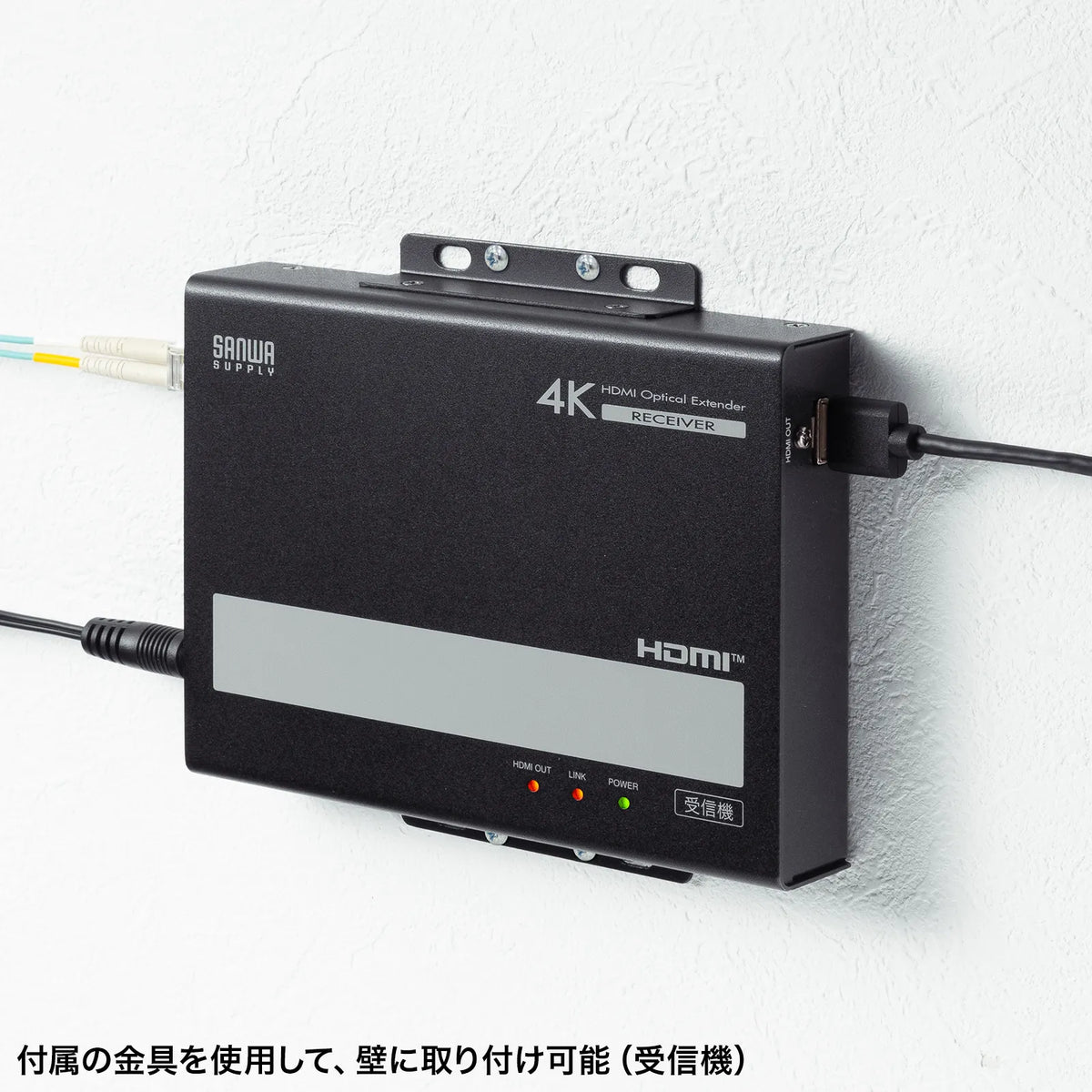

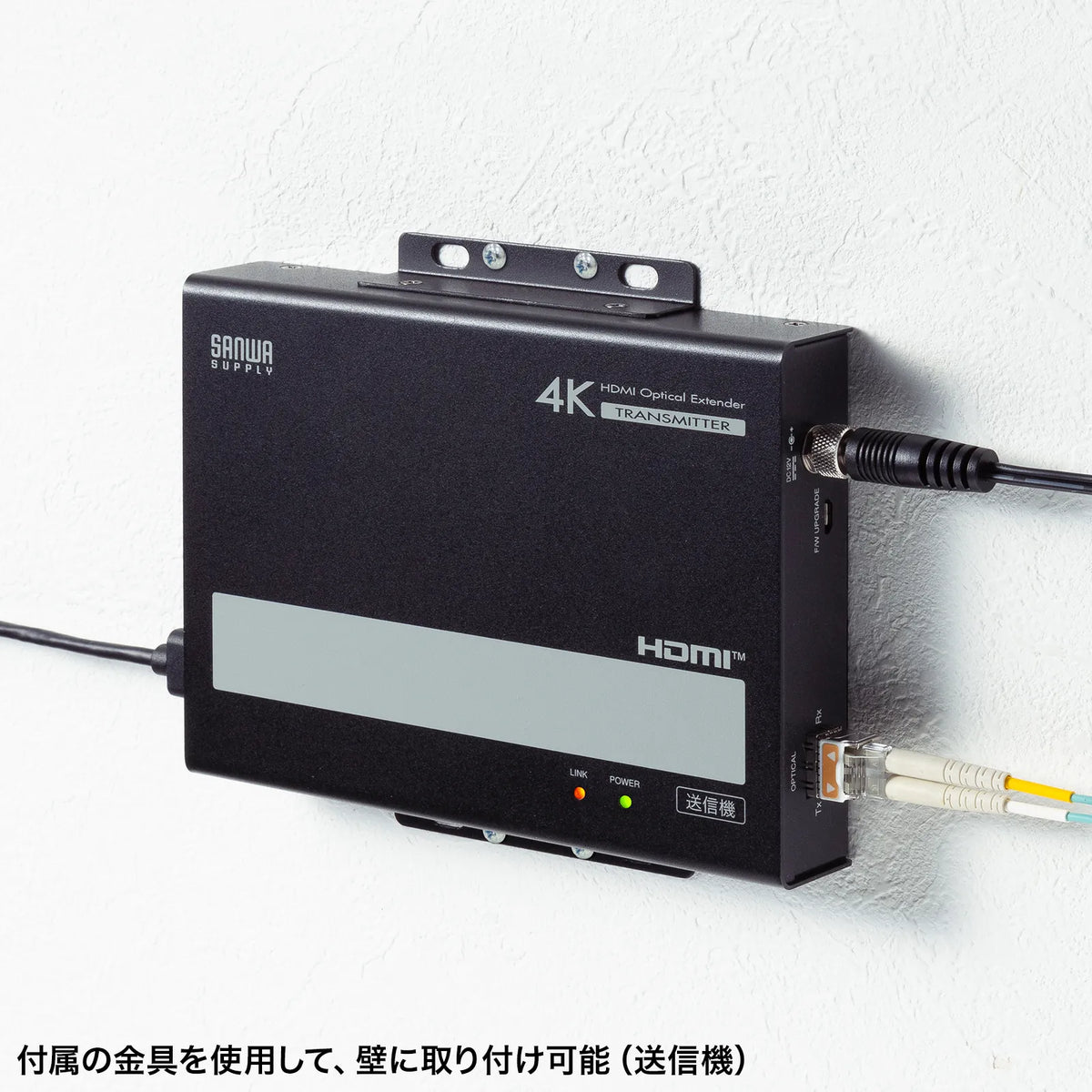

●The external structure is designed to accommodate 19-inch rack mounting and wall mounting.
●HDCP is pass-through, so it supports HDCP 1.4/2.2/2.3.

*1...This product uses one fiber optic cable (multimode, OM3, LC-LC connector). Please purchase separately.
Recommended cable
Sanwa Supply
HKB-CSOM3LCLC series
*Custom orders are available for lengths of 200m or more


■Compatible devices: Video equipment, home game consoles, and personal computers equipped with standard HDMI output terminals
■Compatible output devices: TVs, PC displays, etc. equipped with standard HDMI input terminals
*While EIZO monitors will generally work, operation is not guaranteed. Prior testing is recommended.
■Supported Input Signal: HDMI
■Supported Output Signal: HDMI

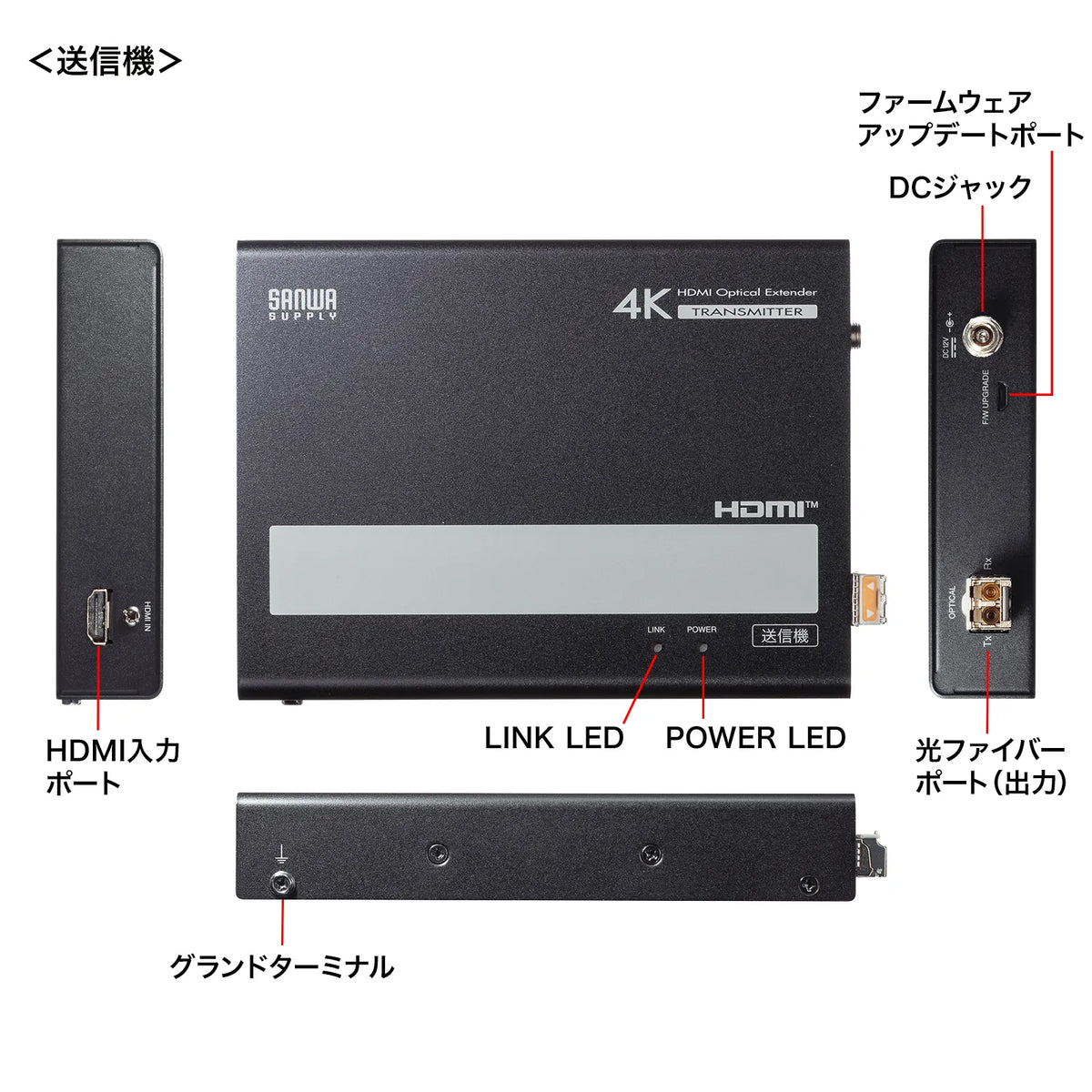

■Interface: Transmitter
Input/HDMI Type A (19-pin) Female 1
Output/SFP Port (Device Side) 1,
LC Connector (Duplex) (Included Converter Side) 1

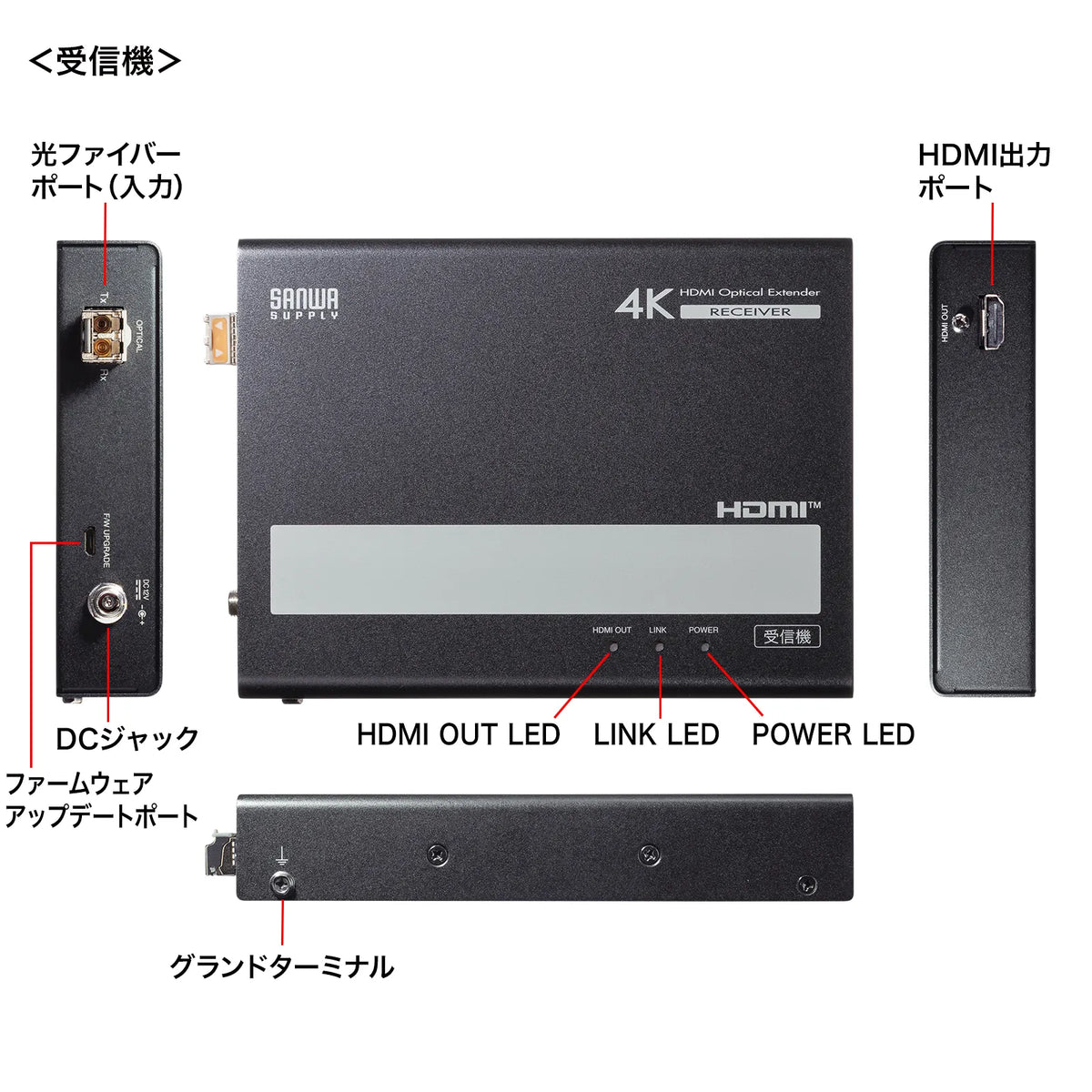

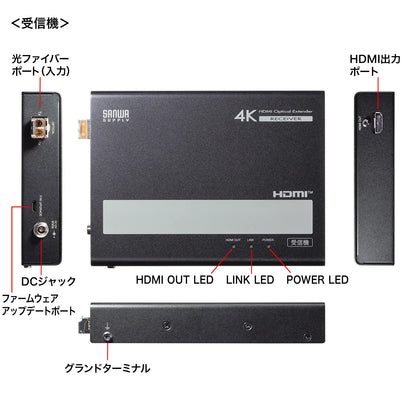

Receiver
Input/SFP Port (Device Side) 1,
LC connector (duplex) (included converter side) 1
Output/HDMI Type A (19pin) female 1
■Maximum resolution: 4K/4096·3840·2160 (60Hz, 4:4:4)
Up to 300m
■Main supported resolutions:
4K/4096·3840·2160 (60Hz, 4:4:4)
4K/4096·3840·2160 (30Hz, 4:4:4)
1080p (1920·1080)
720p (1280 x 720)
■Data Rate (Max): 18Gbit/s
■Extension Cable Length: 300m
Max
■HDMI Standard: HDMI Ver2.0b
■HDCP: HDCP1.4, HDCP2.2, HDCP2.3
*PASS Through (The display must also be HDCP compatible.)
■CEC (Custom Electronic Control): Not supported
■Supported Audio Format: LPCM2.0
■Operating Temperature: 0 to 40 degrees Celsius
■Storage Temperature: -20 to 60 degrees Celsius
■Operating Humidity: 0 to 80%
Non-condensing
■Storage Humidity: 0 to 80%
Non-condensing

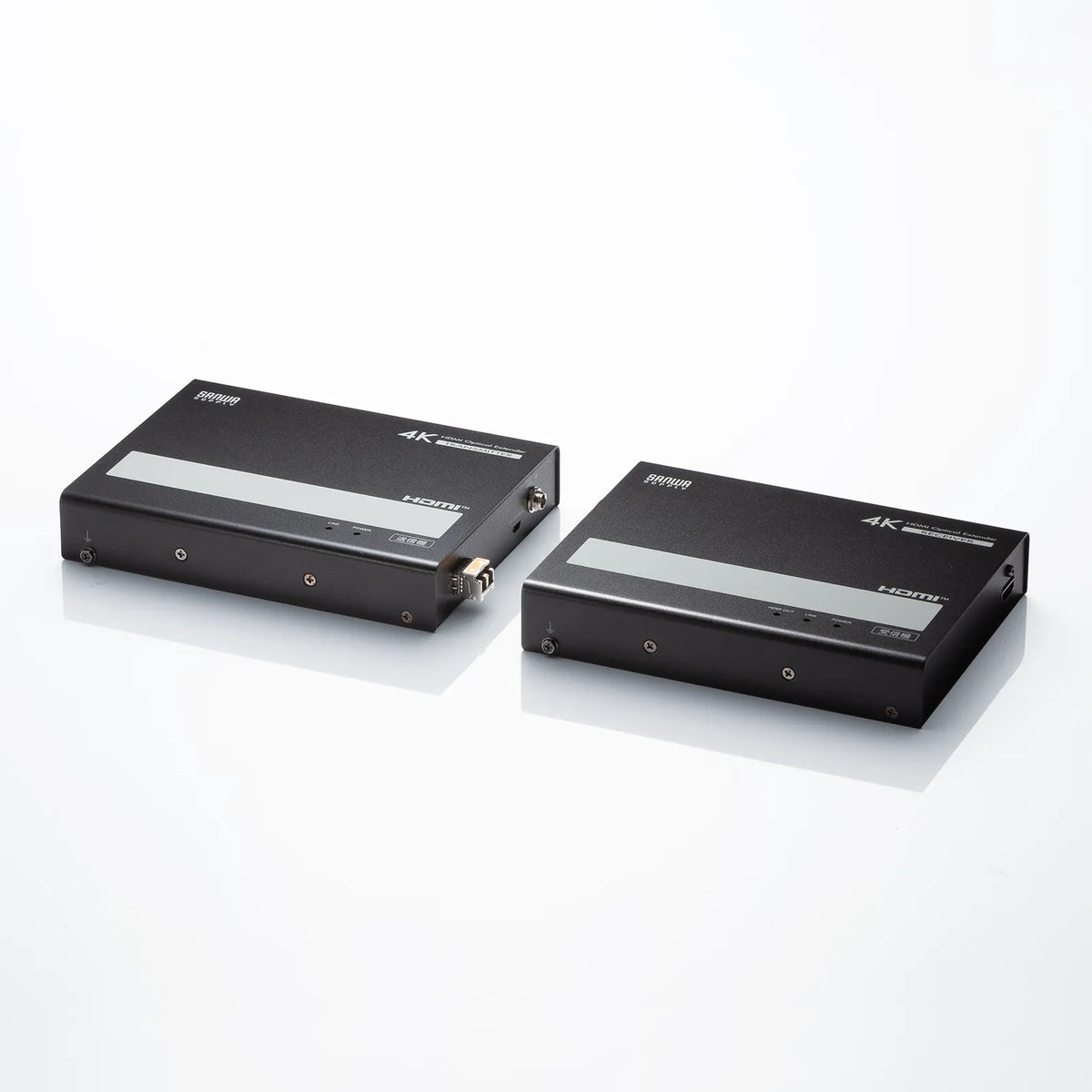

■Set Contents: Transmitter x1, Receiver x1

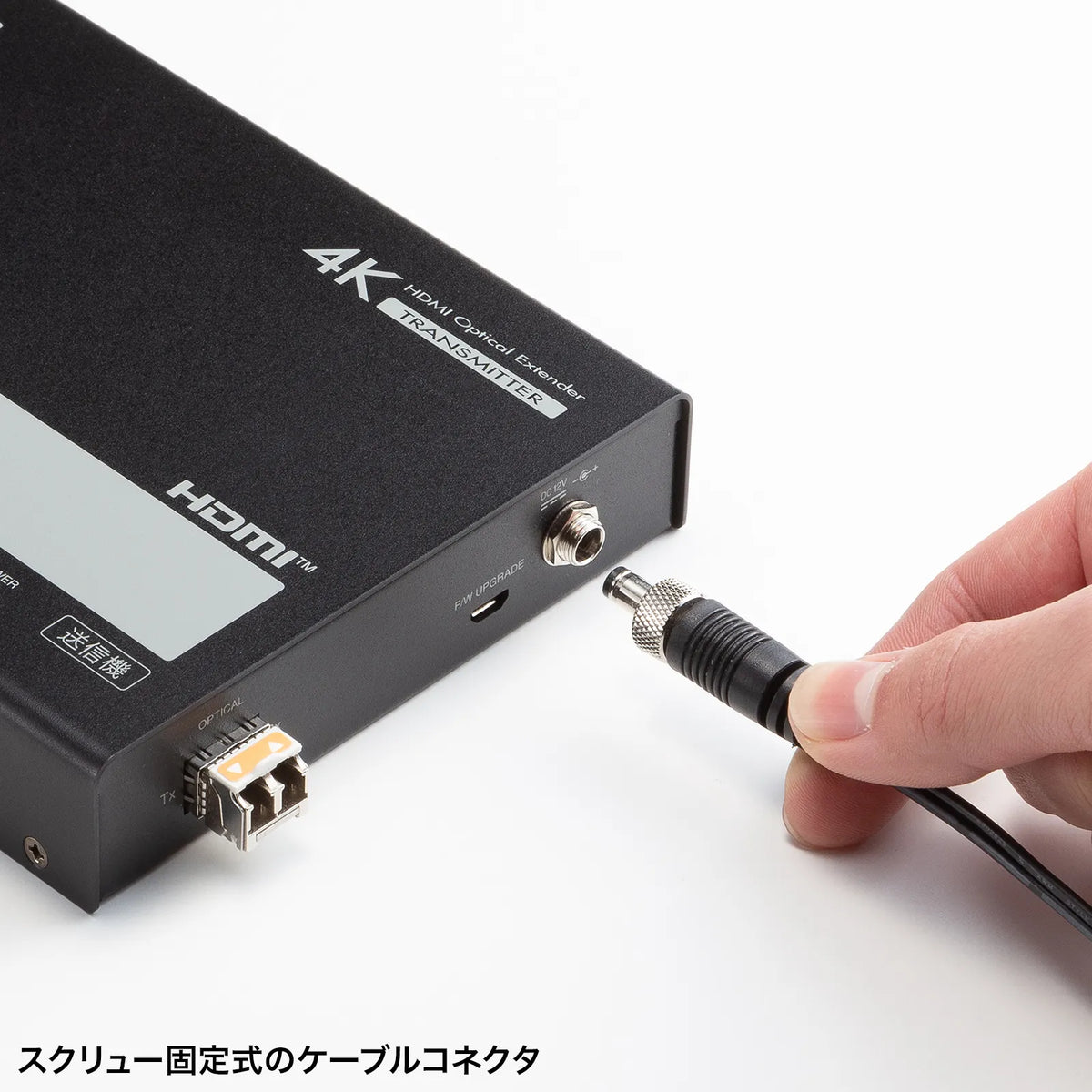

AC adapter (DC12V/3.33A) 2
Power cable (1.8m) 2
Rubber feet 8
Rack mount bracket set (2 sets)
SFP module 2 (pre-installed)
Instruction manual (with warranty) 1
■Wired extender classification: HDMI
■Compatible fiber optic cable: Multimode, OM3, LC-LC connector (duplex)
■Compatible fiber optic core diameter: 50um/125um (OM3)
■Wavelength: 850 nm
■Transmission speed: 10.3Gbps
■Compatible HDMI bandwidth: 18Gbps (6Gbps Per Lane)
