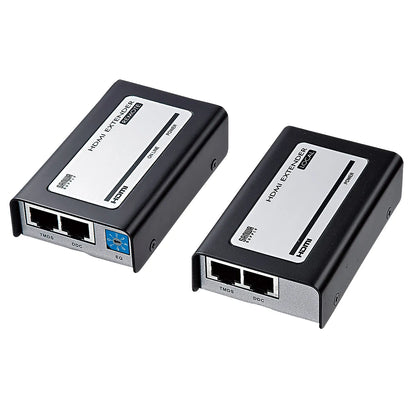

HDMI Extender VGA-EXHD

[HDMI Extender that can extend HDMI signals up to 40m at Full HD (1920x1080) resolution and up to 60m at 720P (1280x780)]

●This HDMI extender can extend HDMI signals up to 40m at WUXGA (1920x1200 dots) / Full HD (1920x1080 dots) resolution and up to 60m at 720p (1280x720 dots) resolution.
●It can extend high-quality audio signals simultaneously with high-quality HDMI video signals.
●This product is HDCP (High-bandwidth Digital Content Protection) compliant.
*The display must also be HDCP compliant.

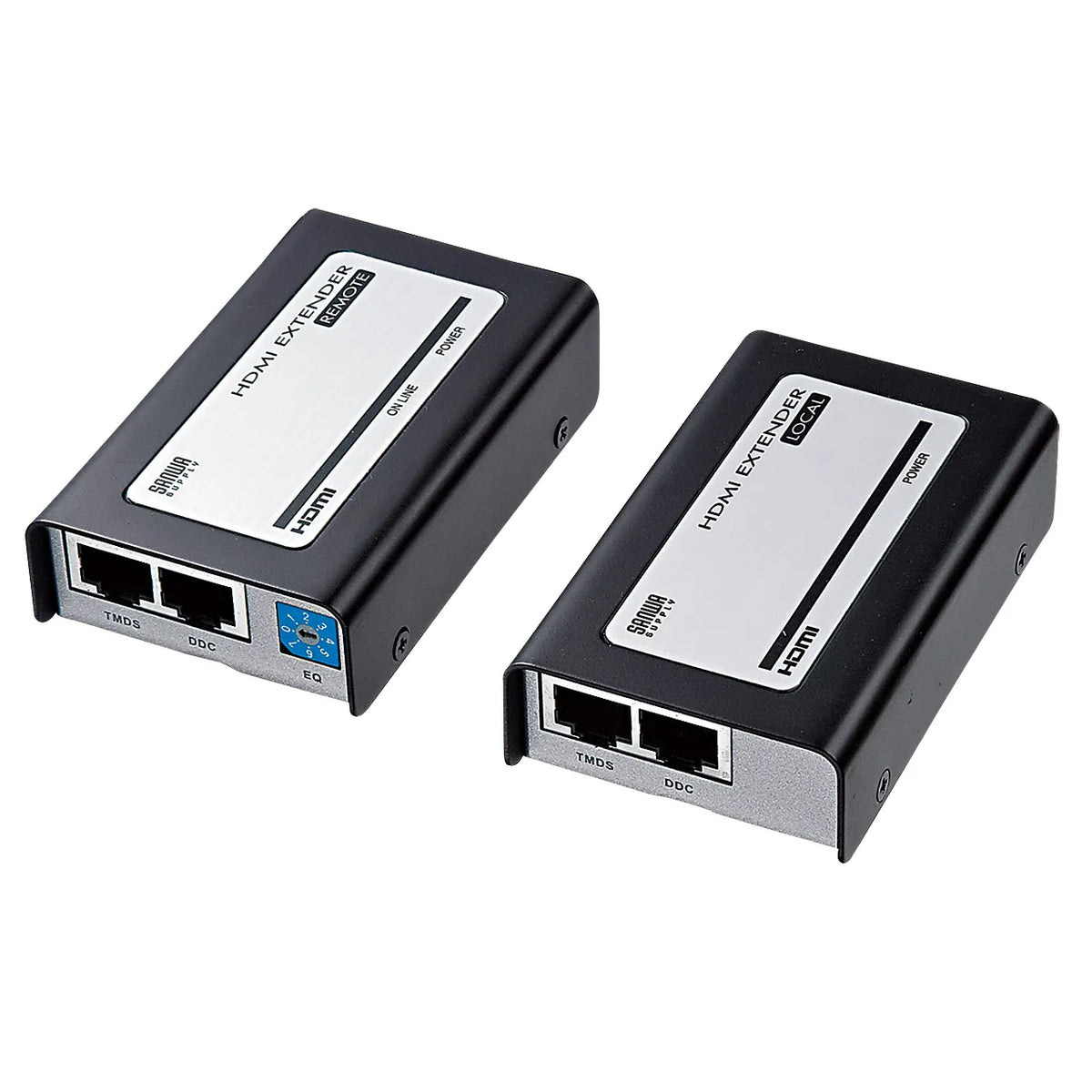

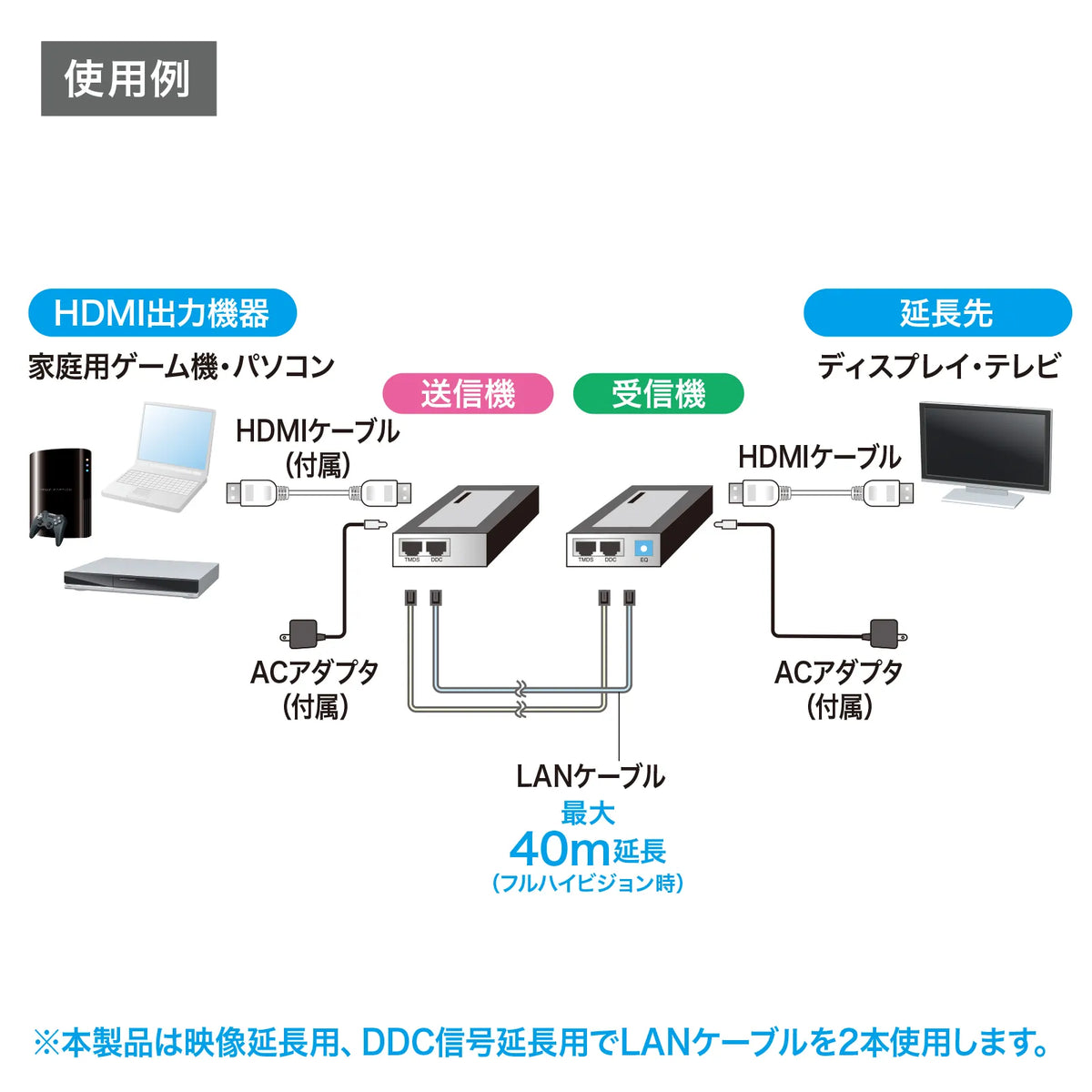

●It consists of a transmitter and receiver set, and can be extended using two LAN cables between the units.
●By using a LAN cable (Category 6/6A) with a transmission frequency bandwidth of 250MHz, high-quality HDMI signals can be transmitted over long distances with minimal signal loss.
●Uses LAN cables (Category 6/6A), making it easy to handle and cost-effective. *This product requires two LAN cables (Category 6/6A). (Not included. Please purchase separately.)
Recommended cables (Sanwa Supply)
KB-T6TS series KB-T6TS-90N etc. (Category 6)
KB-T6ATS series KB-T6ATS-30W etc. (Category 6A)
KB-T6L-CB100N (100m) / KB-T6L-CB300N (300m) (Category 6)
●Supports HDMI Ver.1.3b and is compatible with Deep Color and Dolby TrueHD.
●Ideal for environments where it is difficult to install HDMI equipment, such as factories and construction sites, where only the display at the extension point is installed, and the HDMI output device is installed in a separate location with a better environment.
●A wall mount kit is included, allowing for wall mounting.

■Maximum Resolution:
1920x1200 (WUXGA) *Extendable up to 40m
1920x1080 (Full HD/1080p) *Extendable up to 40m
1280x720 (720p) *Extendable up to 60m
■Compatible LAN Cables: CAT6A straight, CAT6 straight
Two LAN cables are required. Please purchase them separately.
■Extension Cable Length: 60m (maximum)
*The cable extension distance varies depending on the resolution.
■HDCP: HDCP1.2 compatible
*The display must also be HDCP compatible.
■Bandwidth: Maximum 2.25Gbps

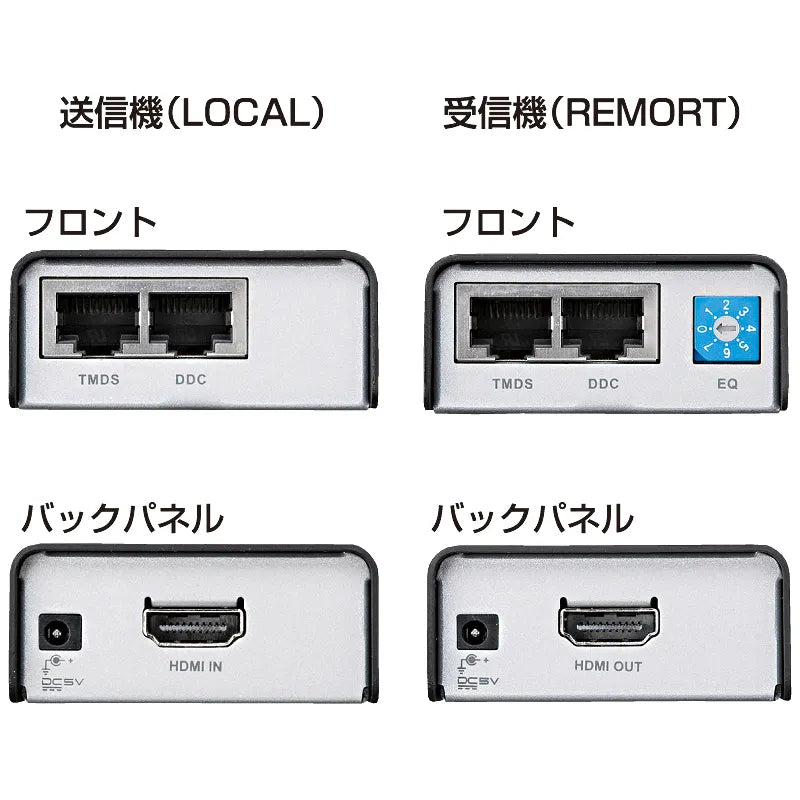

■Interface:

Input/ HDMI Type A (19pin) Female x1
Output/ RJ-45 Female x2

Input/ RJ-45 Female x2
Output/ HDMI Type A (19pin) Female x1
■Standard: HDMI Ver.1.3b/DVI Ver.1.0
■Current Consumption:
Transmitter/1.22W (Max)
Receiver/0.95W (Max)
■Environmental Conditions:
Operating Temperature and Humidity/0 to 50 degrees Celsius, 80% or less (non-condensing)
Storage Temperature and Humidity/-20 to 60 degrees Celsius, 85% or less (non-condensing)
■Material: Steel (case)
■Size:
Transmitter/W90 x D55 x H24mm (body size)
Receiver/W90xD55xH24mm (main unit size)
■Weight:
Transmitter/160g
Receiver/160g
■HDMI specifications: HDMI Ver.1.3b

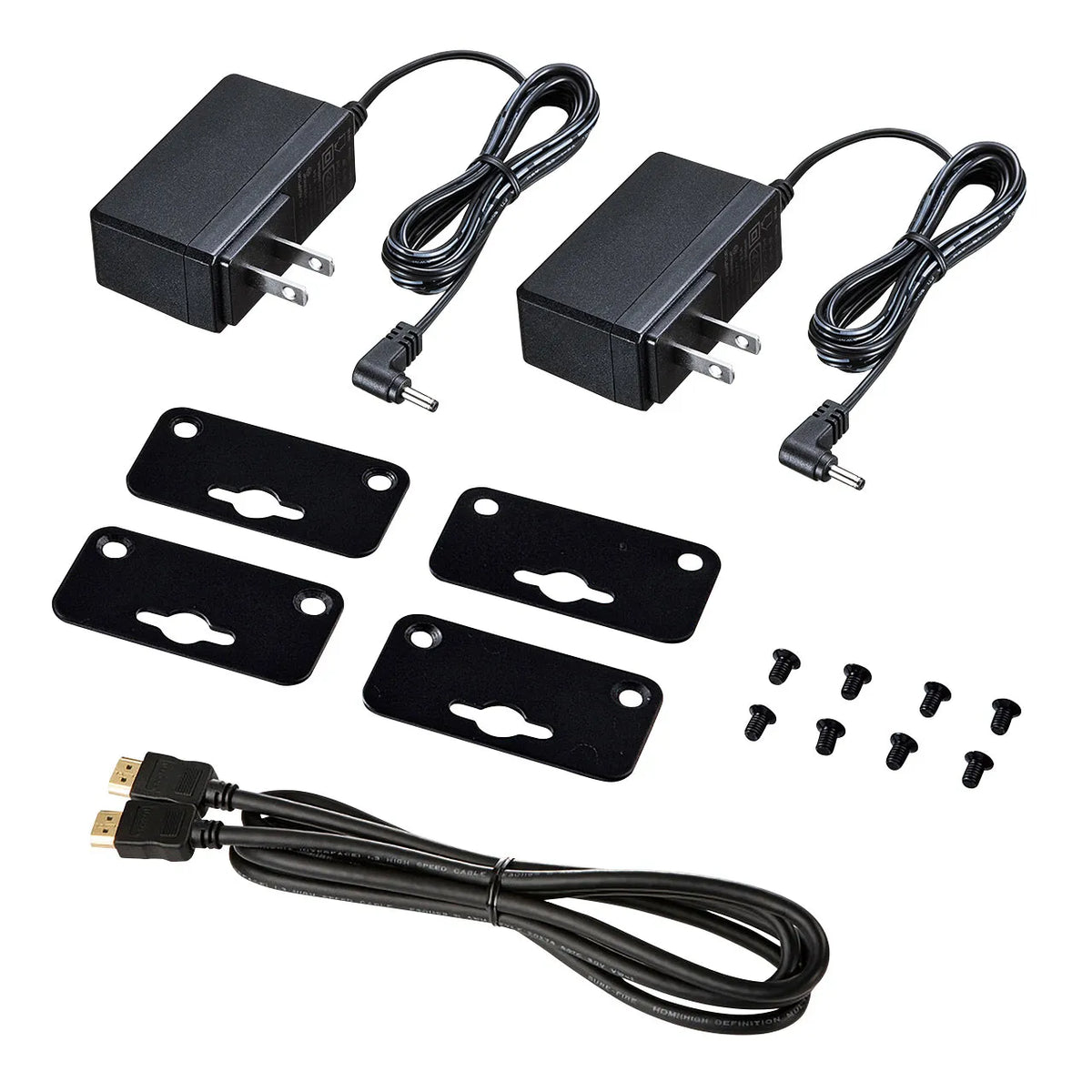

■Set contents: Transmitter x1, receiver x1, AC adapter (DC5V 2.6A) x2
HDMI cable (1.8m) x1, wall mount kit x4
Instruction manual (with warranty) x1

＜Audio＞
■PCM: 8ch (7.1ch)
■Dolby Digital/DTS: Supported
■DVD Audio: Supported
■SACD: Supported
■Other specifications:
※Dolby Digital Plus, Dolby True HD support
※DTS-HD High Resolution Audio, DTS-HD Master Audio support

＜Video＞
■Resolution: 1080p (1920x1080), WUXGA (1920x1200)
■Color Depth: 12bit/RGB36bit, Deep color *Only if the connected HDMI input/output device supports Deep Color.
■Color Gamut Standard: xvYCC compatible

＜Functions＞
■Inter-device control: Not supported.
■Lip sync: Not supported. *Requires the connected HDMI input/output device to support Deep Color.
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication.
Connection via switching hubs, routers, etc. is not supported.
*Cannot be integrated into an existing LAN environment.
*Distribution and extension output using switching hubs, etc. is not possible.
*Wireless output using wireless LAN, wireless routers, etc. is not possible.
