PoE-compatible DVI extender (set model) VGA-EXDVPOE

[A DVI extender that supports PoE (Power over Ethernet) and does not require an AC adapter on the receiver side. It can extend up to 70m at 1080p Full HD resolution and up to 100m at 1080p Full HD resolution.]

●This DVI extender can extend a DVI signal up to 100m at 1080p (1920x1080 pixels) resolution.
●The receiver side is PoE (Power over Ethernet) compatible, so it can be easily installed without connecting an AC adapter.
●The transmitter side also has a DVI output, so you can check the video on your end and output the DVI to the destination.

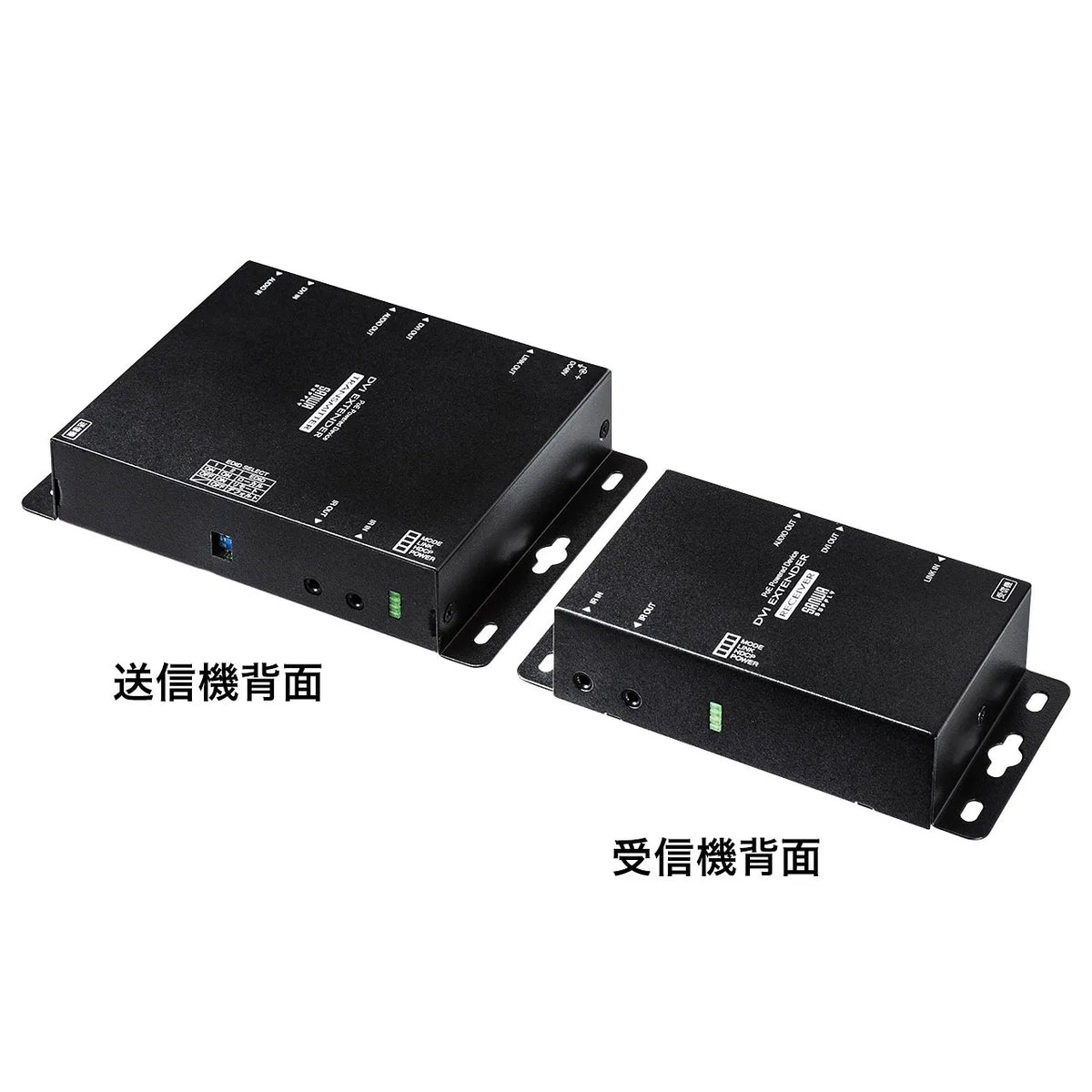

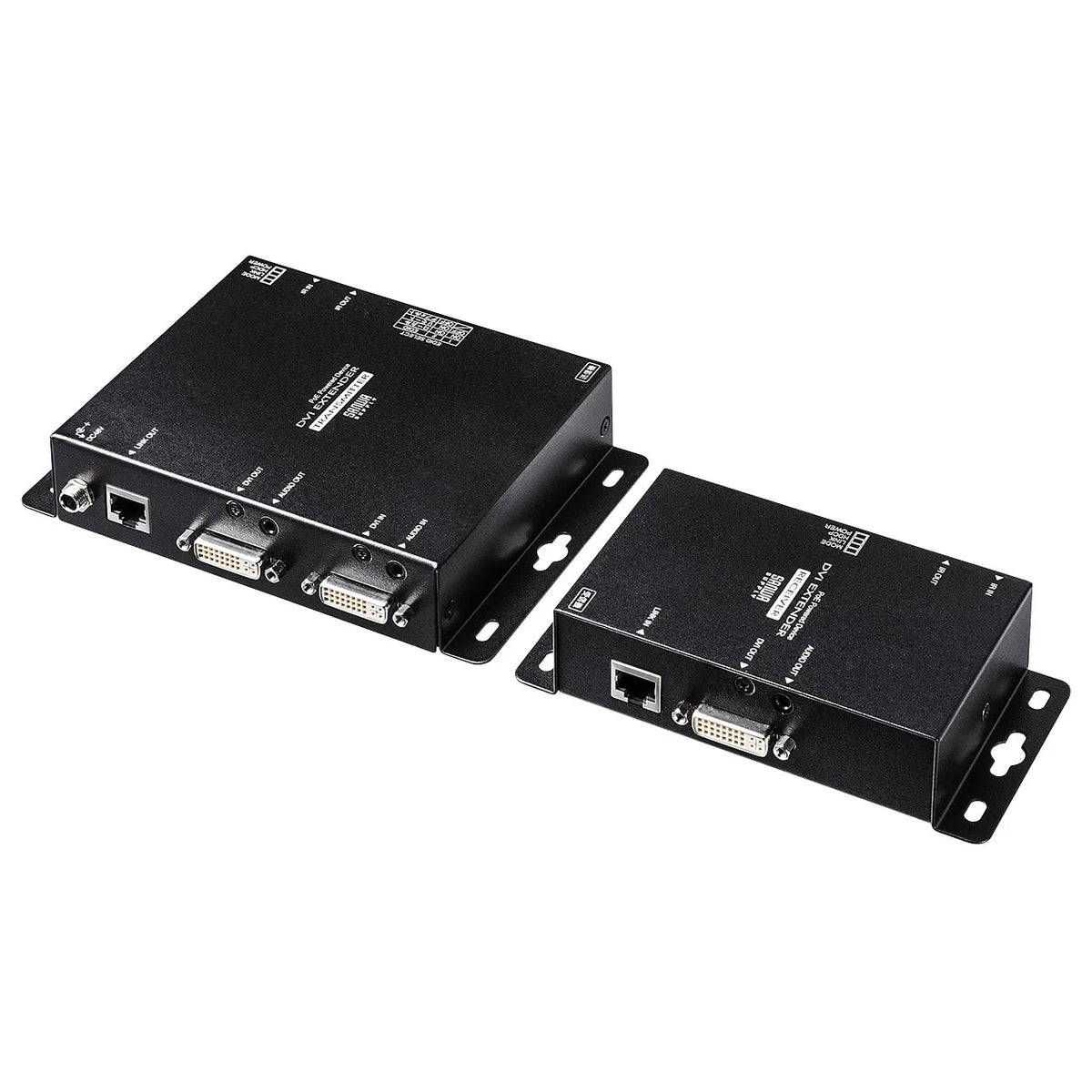

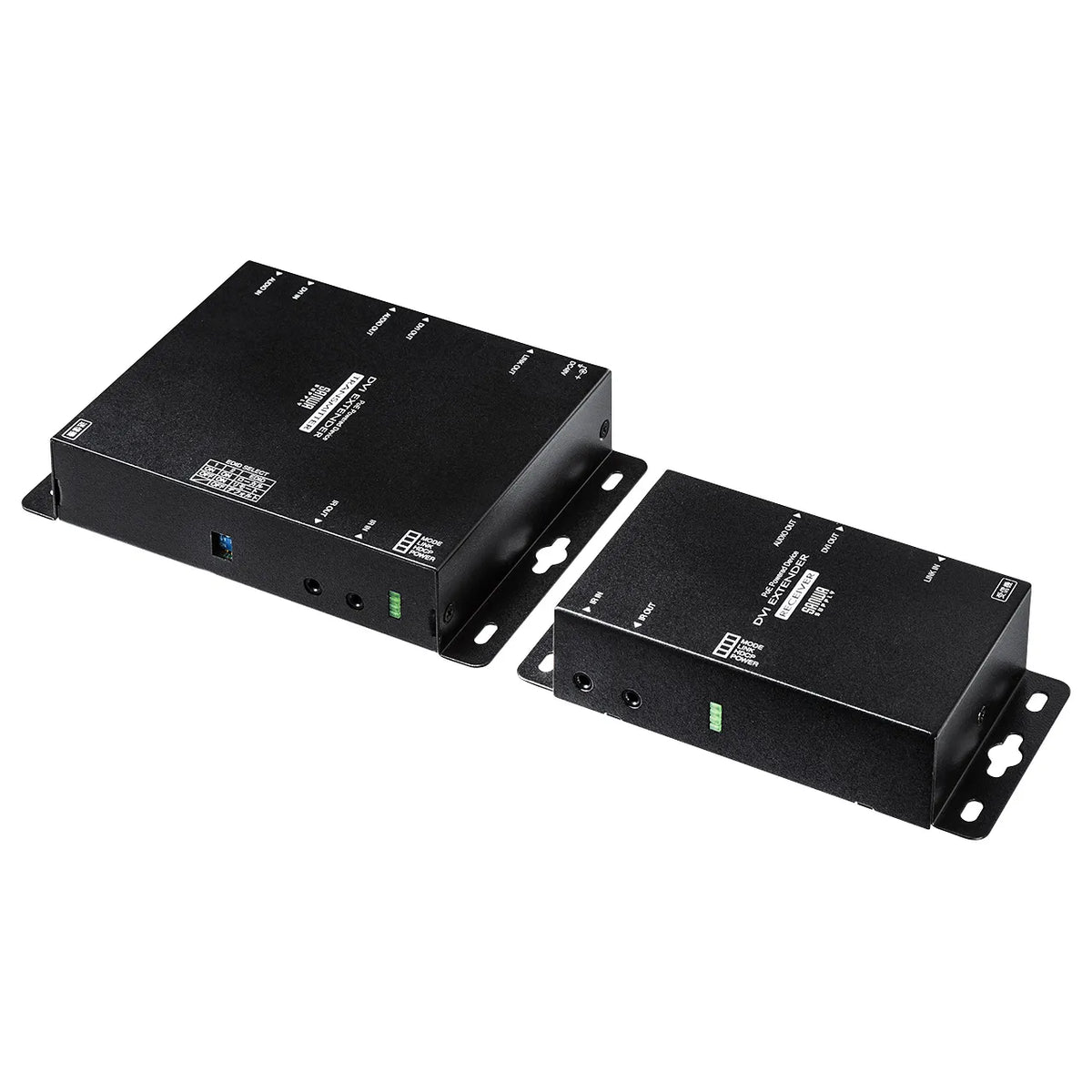

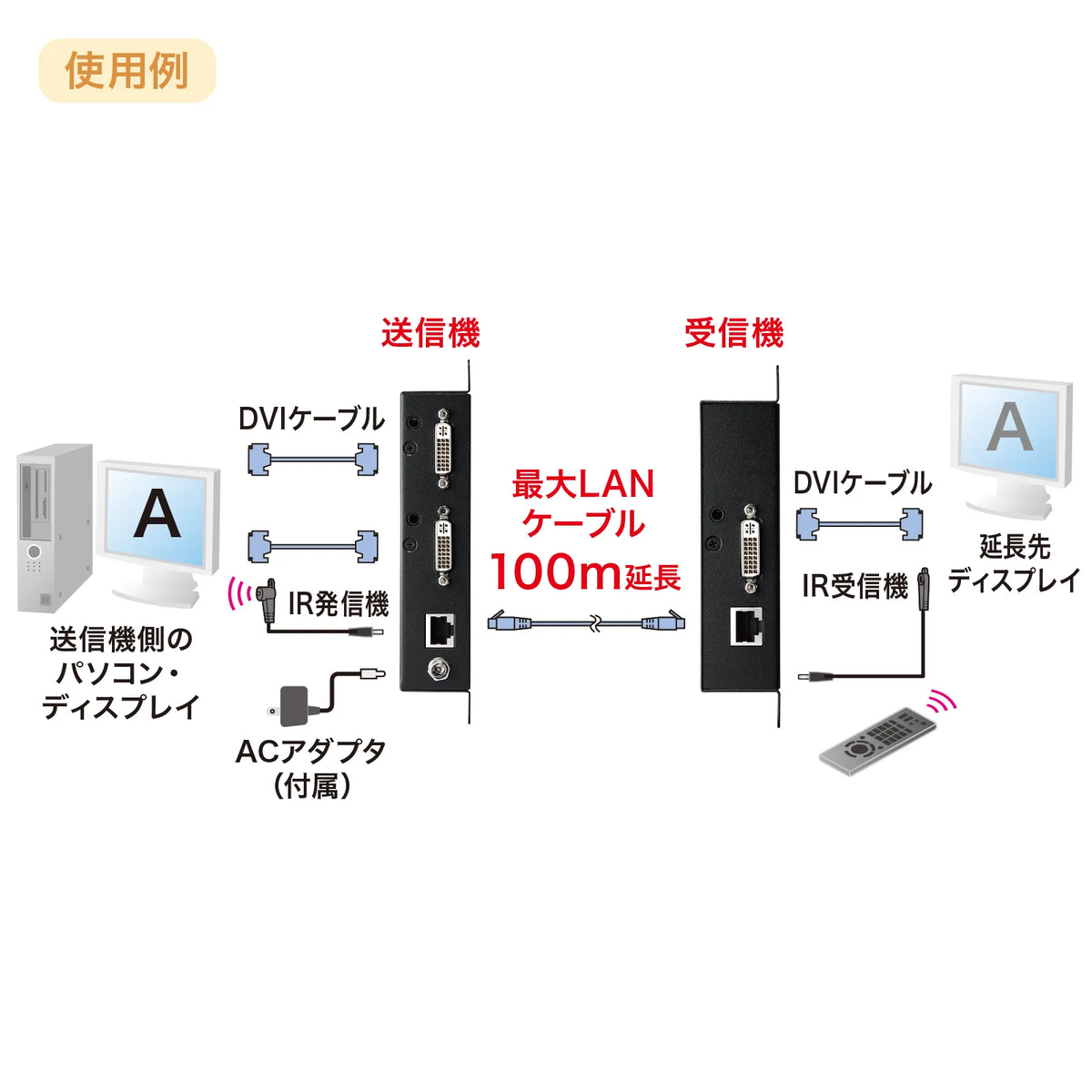

●It consists of a transmitter and a receiver set, and the units can be extended using one Category 7, 6A, 6, or 5e straight cable.
*This product uses one Category 7, 6A, 6, or 5e straight cable. Please purchase separately.
*For LAN cables, please use products with a cable specification of 24AWG or 23AWG solid wire.
Recommended Cables (Sanwa Supply)
・KB-T7 series (Category 7)
・KB-T6TS series (Category 6)
・KB-T6L-CB100 (100m) / 300 (300m) (Category 6)
・KB-T5T series (Category 5e)
● Infrared signals can also be transmitted, so DVI devices can be remotely controlled from the extension port.
● The external structure is designed with wall mounting functionality (wall mounting) in mind.
● Ideal for situations where it is difficult to install DVI devices, such as in factories or construction sites, and only the display is installed, with the DVI devices being installed in a different, more suitable location.
* May not work depending on the connected devices and functions.

■Maximum resolution: 1920x1080 pixels (Full HD/1080p)
*When using Category 7, 6, or 5e (up to 100m)
■Extension cable length: 100m (maximum)
■Bandwidth: Single link 165MHz/1.65Gbps per channel (4.95 Gbps all (channel)

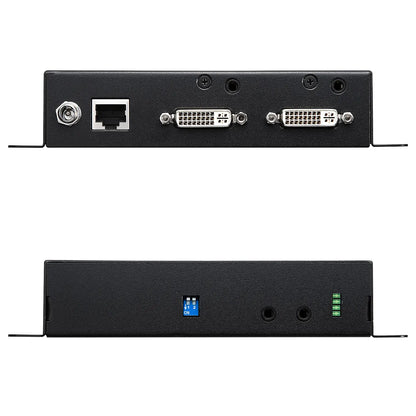

■Interface:

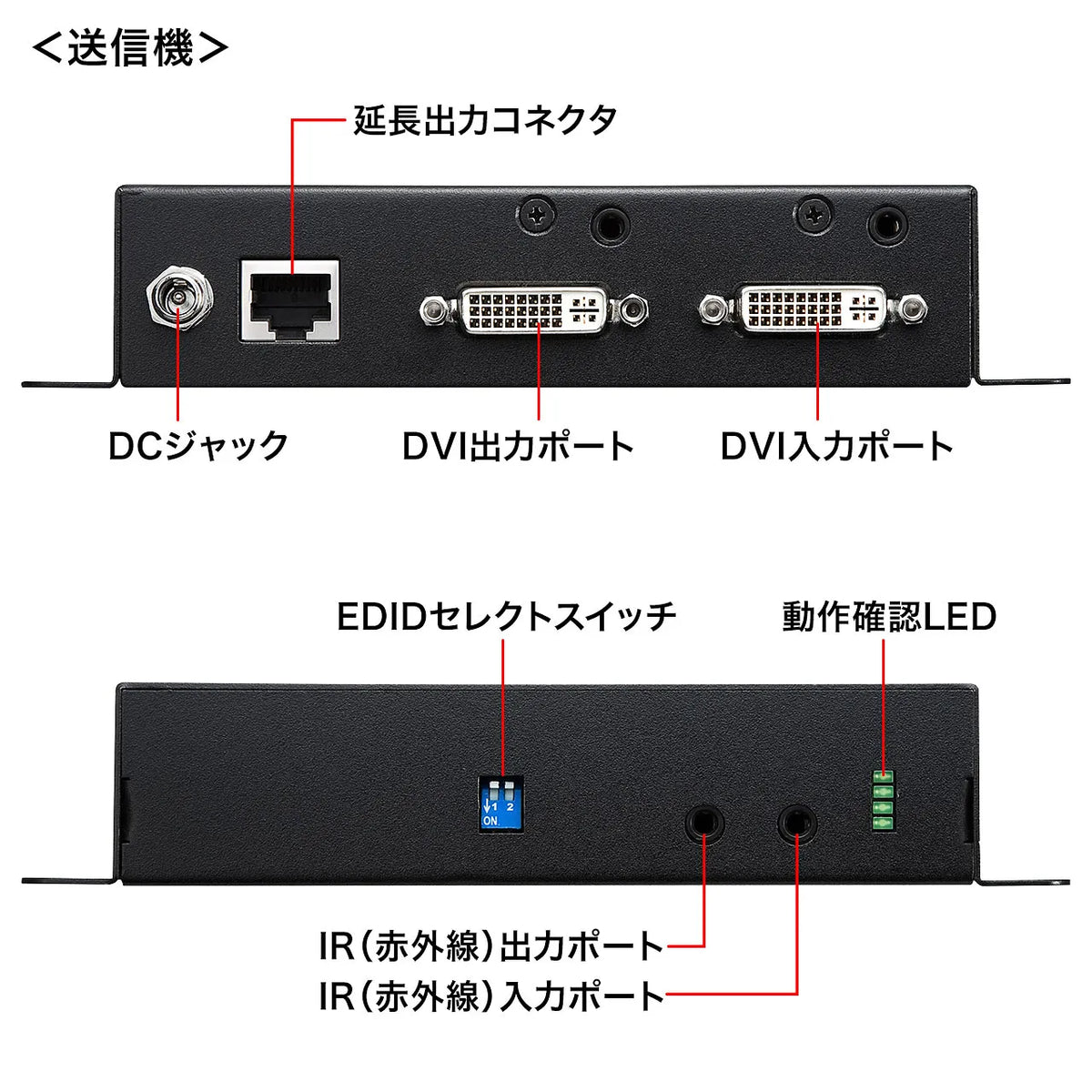

Input/DVI (24pin) female x1, 3.5mm stereo mini jack x1

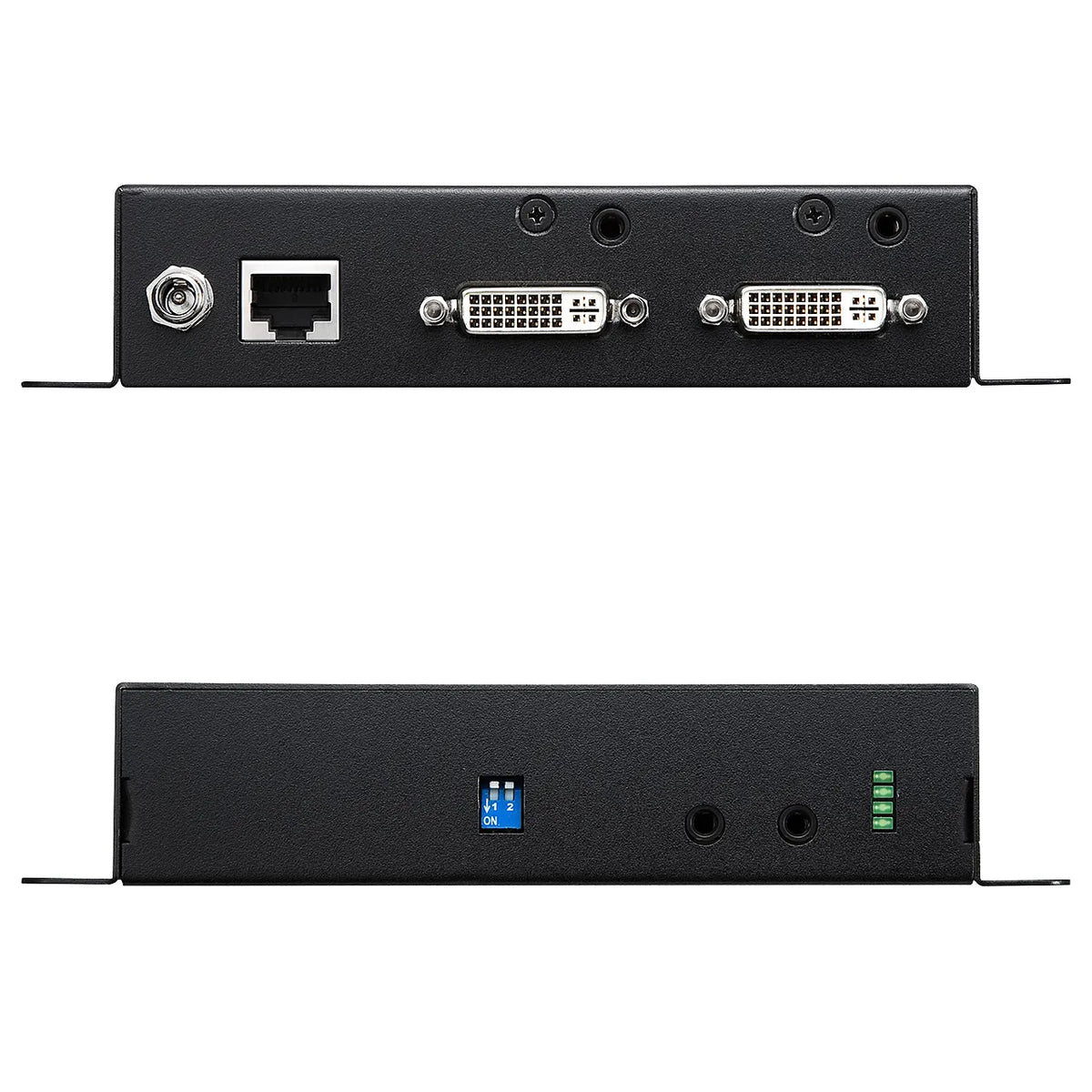

Output/DVI (24pin) female x1, 3.5mm stereo mini jack x1, RJ-45 female x1, IE/IR unit jack x2
>

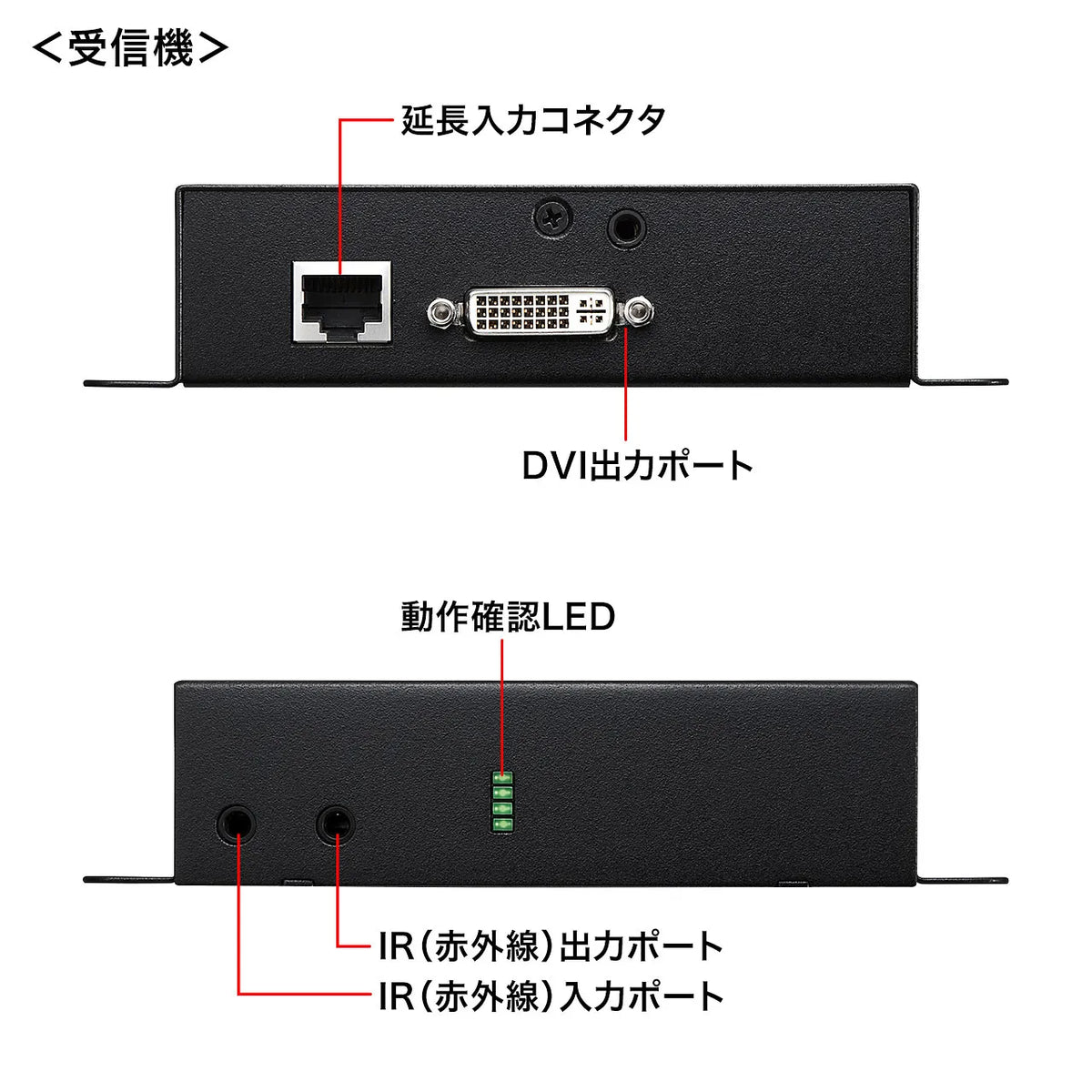

Input/RJ-45 female x1

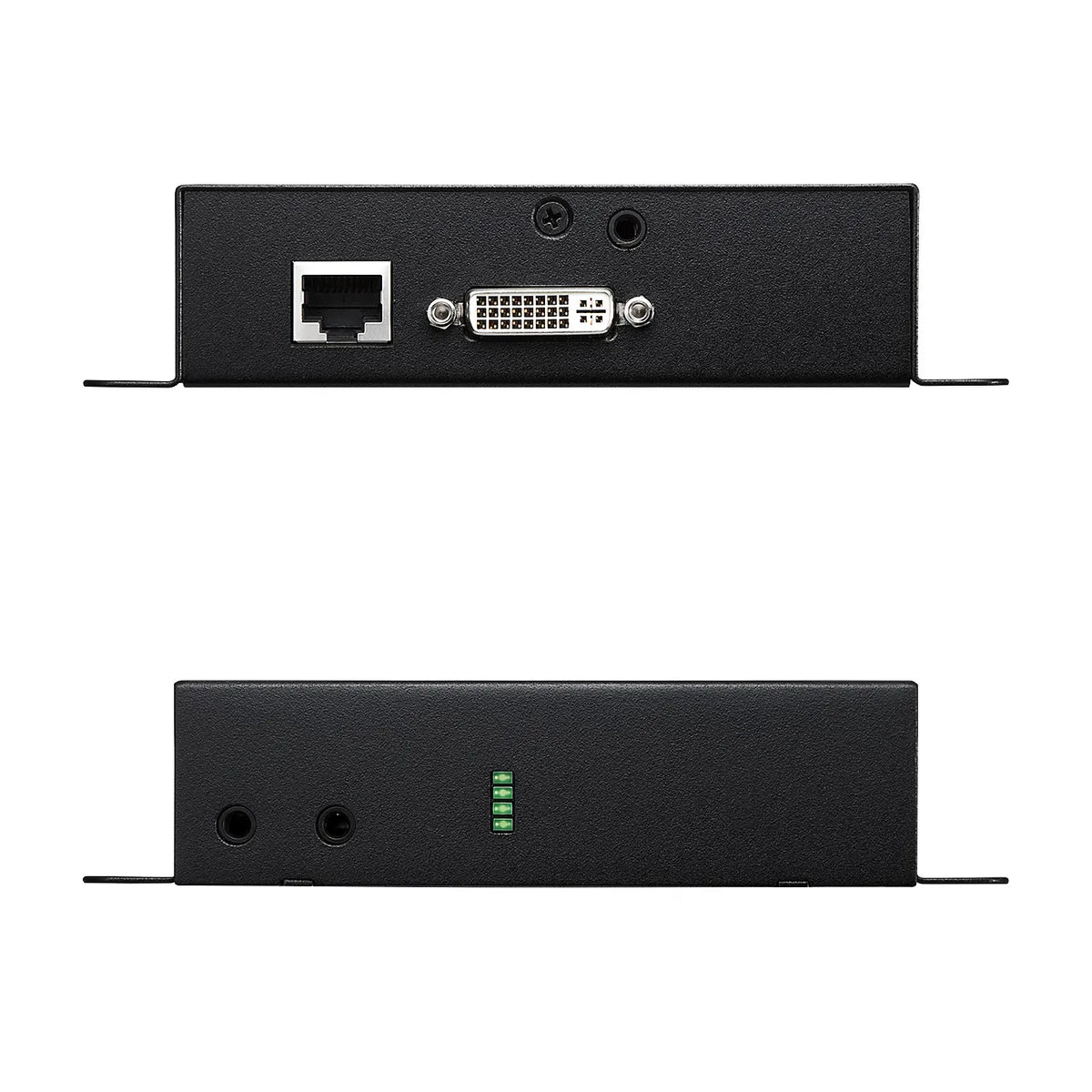

Output/DVI (24pin) female x1, 3.5mm stereo mini jack x1, IE/IR unit jack x2
■Power Consumption: 11.4W (maximum)
■Environmental Conditions: Operating temperature and humidity/5 to 40 degrees Celsius, 80% or less (non-condensing)
Storage temperature and humidity/-20 to 60 degrees Celsius and 80% humidity or less (non-condensing)
■Material: Steel
■Size: Transmitter/W140xD113xH32mm
Receiver/W120xD73xH32mm
■Weight: Transmitter/523g
Receiver/348g

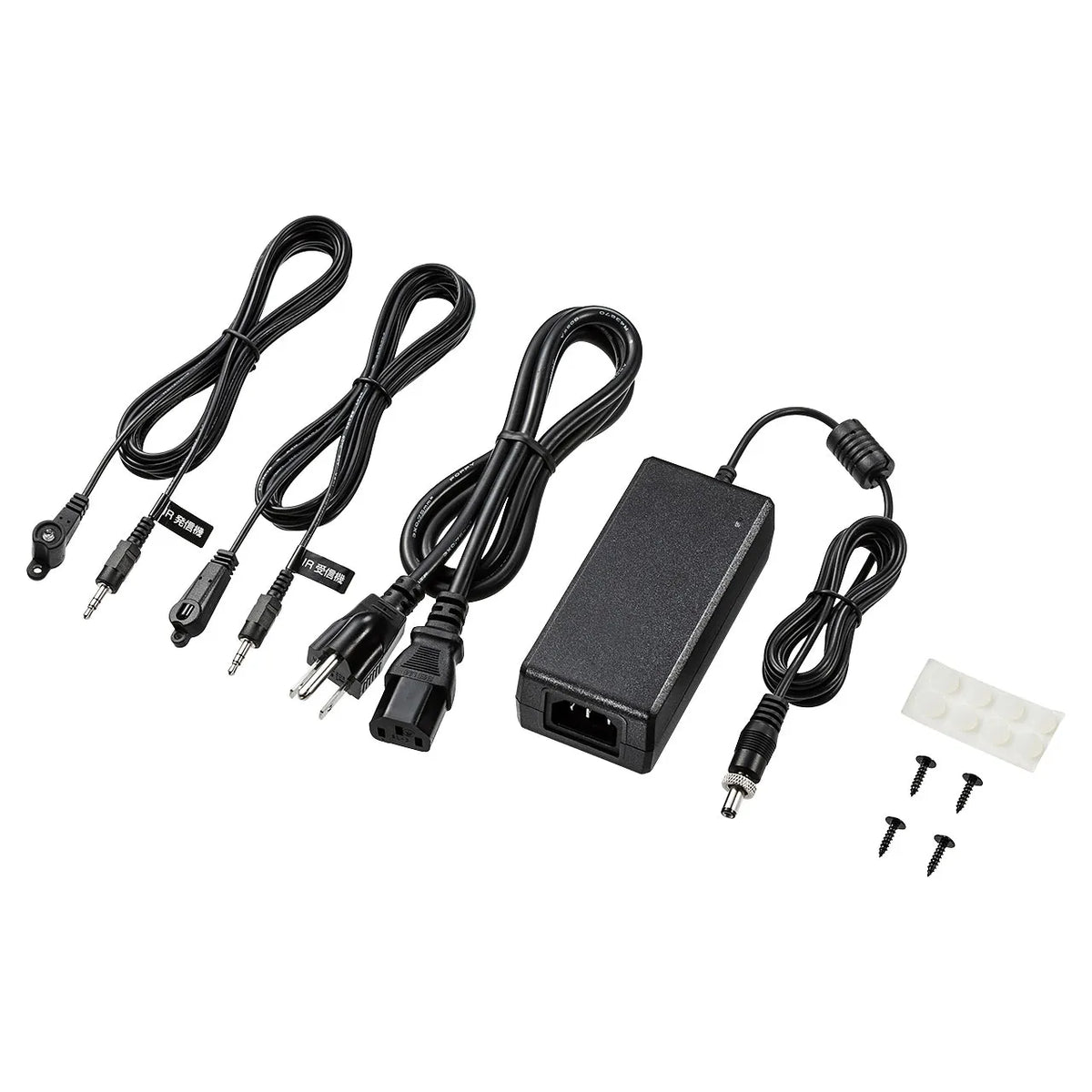

■Accessories: AC adapter (DC48V/1.05A) x1, power cable x1, IE unit x1, IR unit x1, rubber feet x8, instruction manual, warranty
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication.
It does not support connections via switching hubs or routers.
*It cannot be incorporated into an existing LAN environment.
*Distribution and extension output using switching hubs etc. is not possible.
*Wireless output using wireless LAN, wireless router etc. is not possible.
