DisplayPort Extender VGA-EXDP

[DisplayPort Extender that can extend DisplayPort signals up to 40m at 4K resolution and up to 70m at 1080P resolution]

●This DisplayPort extender can extend DisplayPort signals up to 40m at 4K resolution and up to 70m at 1080p resolution.

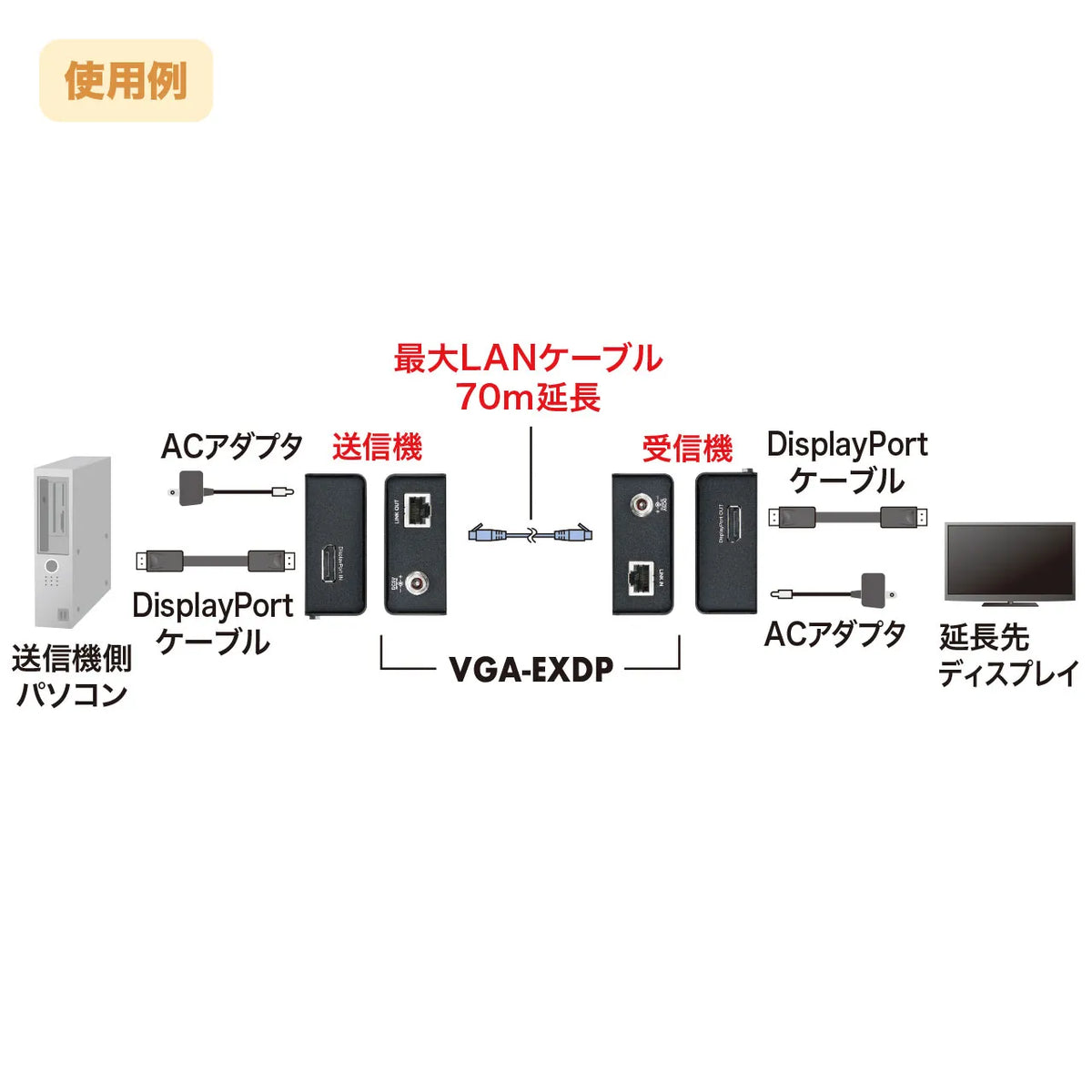

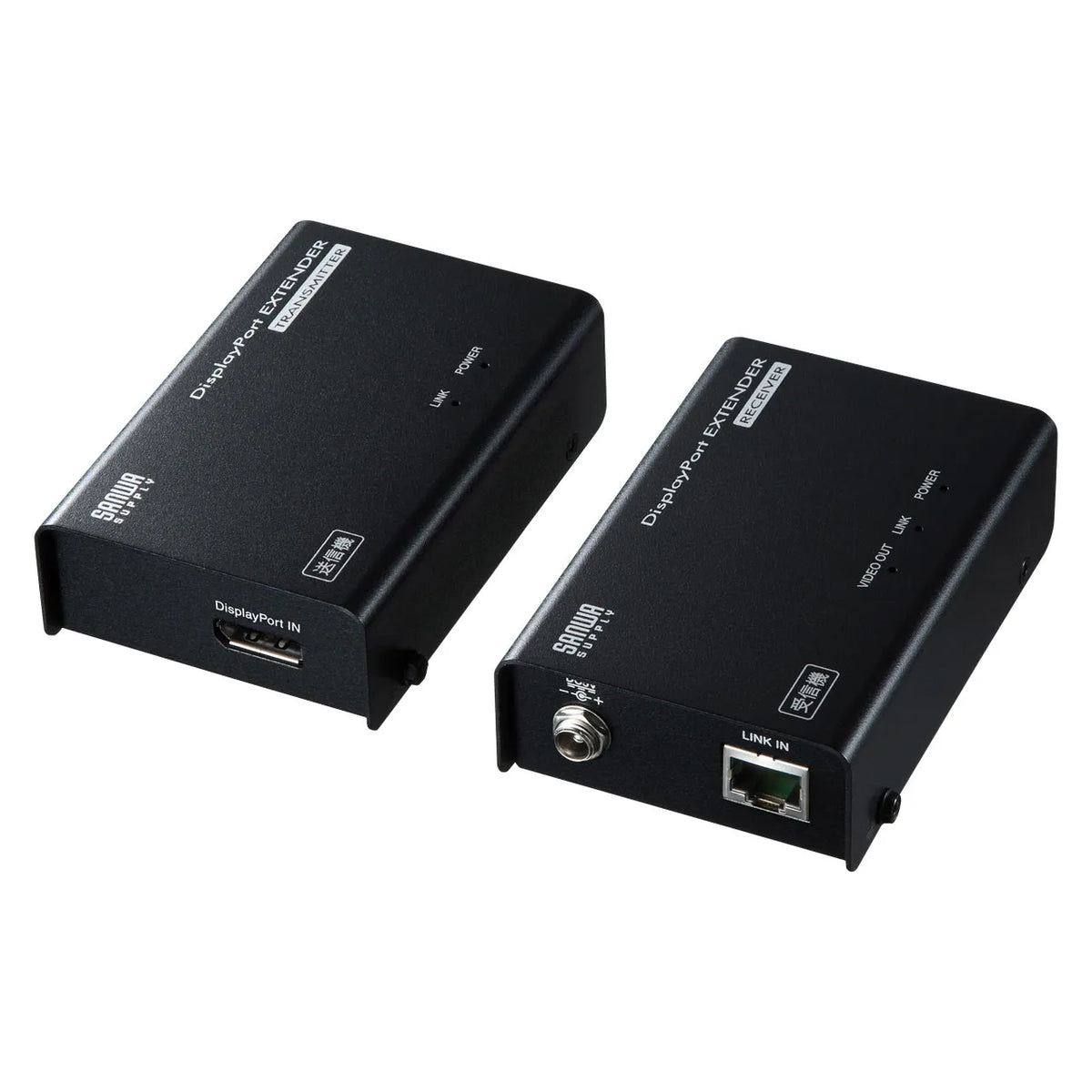

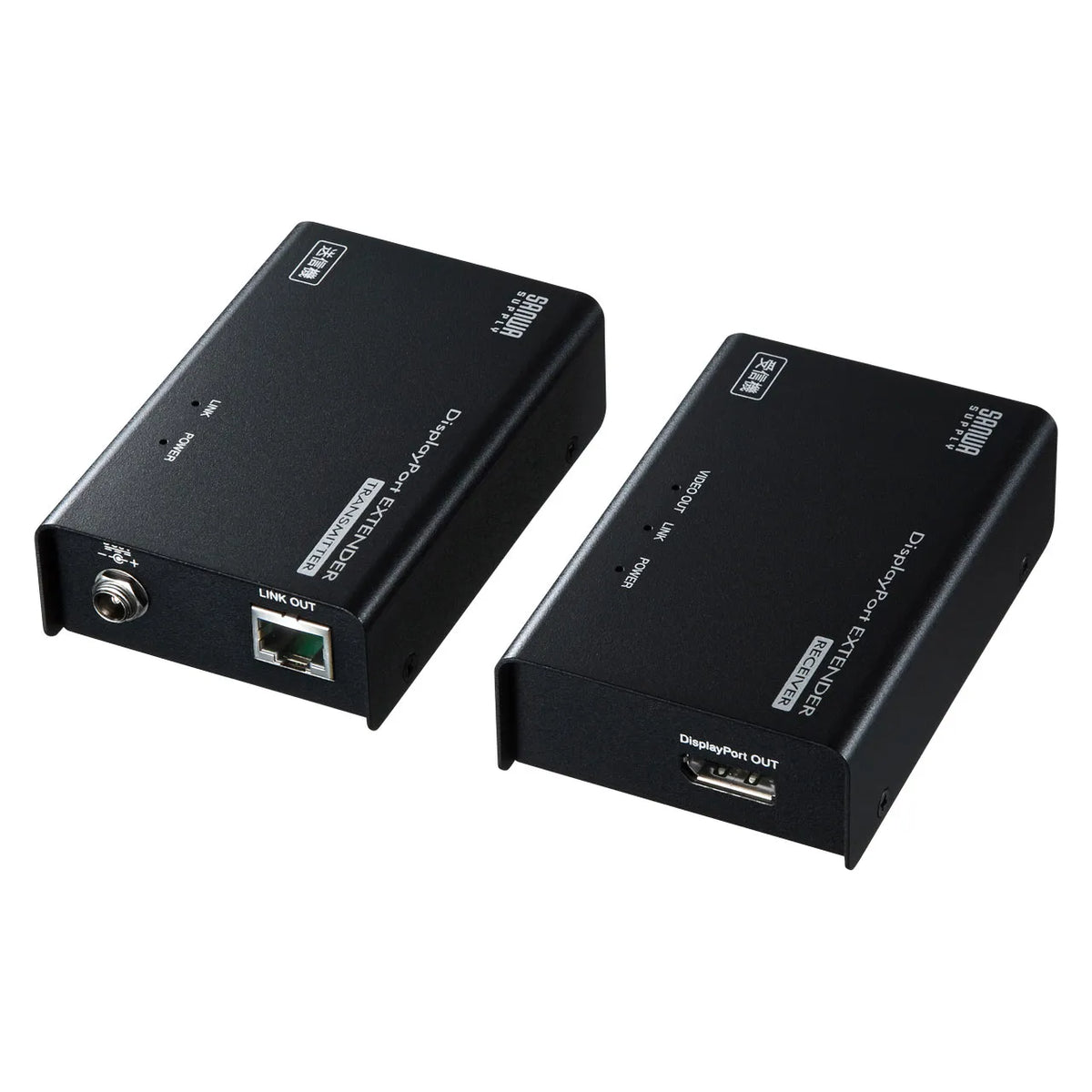

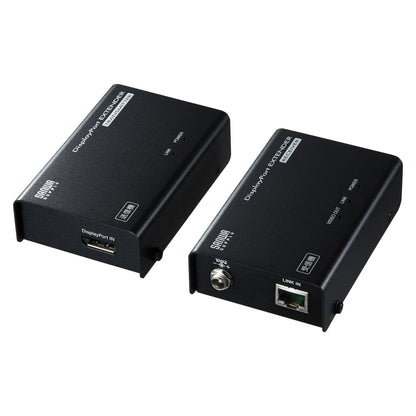

●It consists of a transmitter and receiver set, and the units can be extended using one Category 6a/6/5e straight cable.
*This product uses one Category 6A/6/5e straight cable. Please purchase separately.
*Supported resolution and extension distance vary depending on the cable standard used.
●The AC adapter uses a screw-type fixing system to prevent accidental disconnection.
●This product is HDCP1.4 (High-bandwidth Digital Content Protection) compliant.
*The display must also be HDCP compliant.

■Interface:

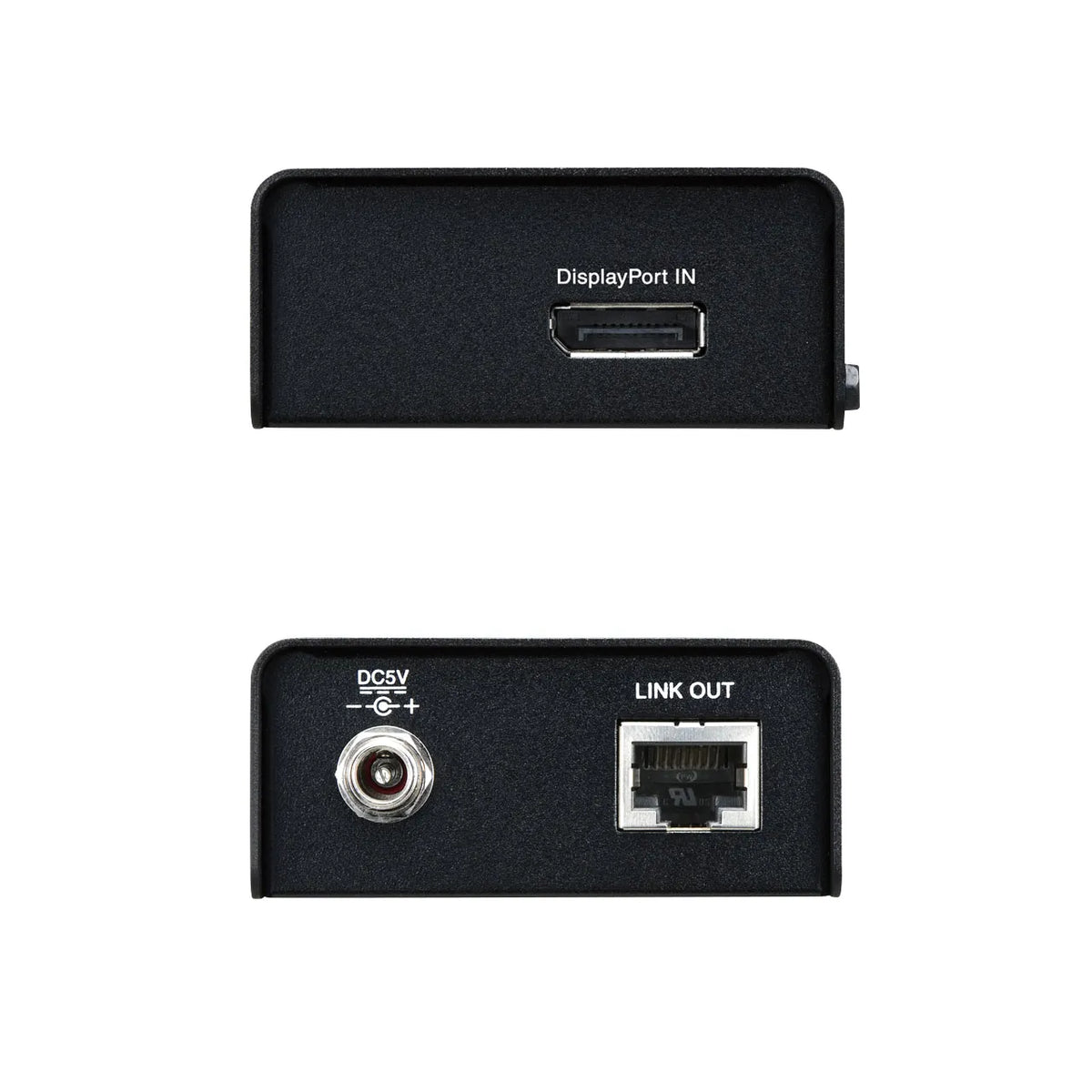

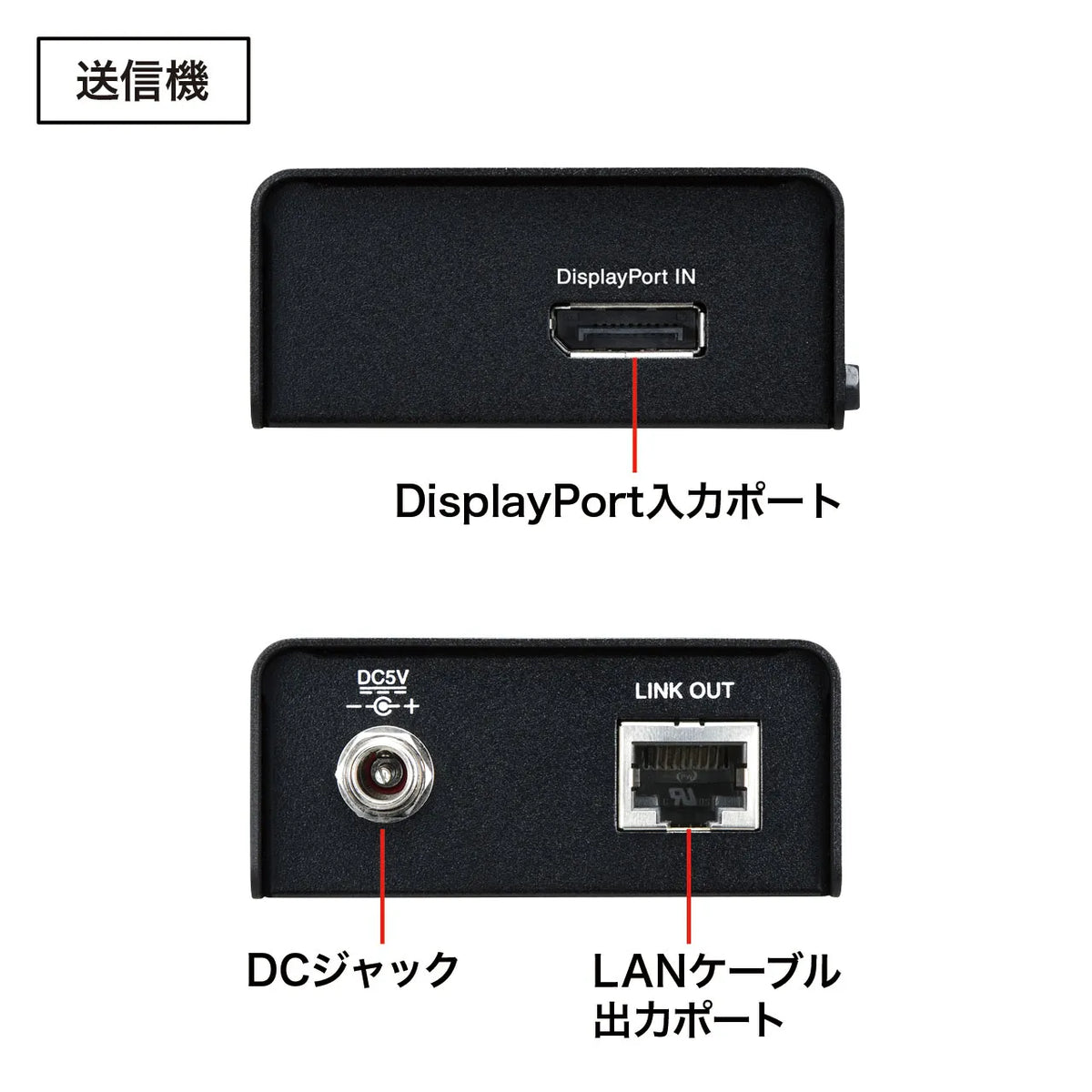

【Transmitter】
Input/DisplayPort female x1, Output/RJ-45 female x1

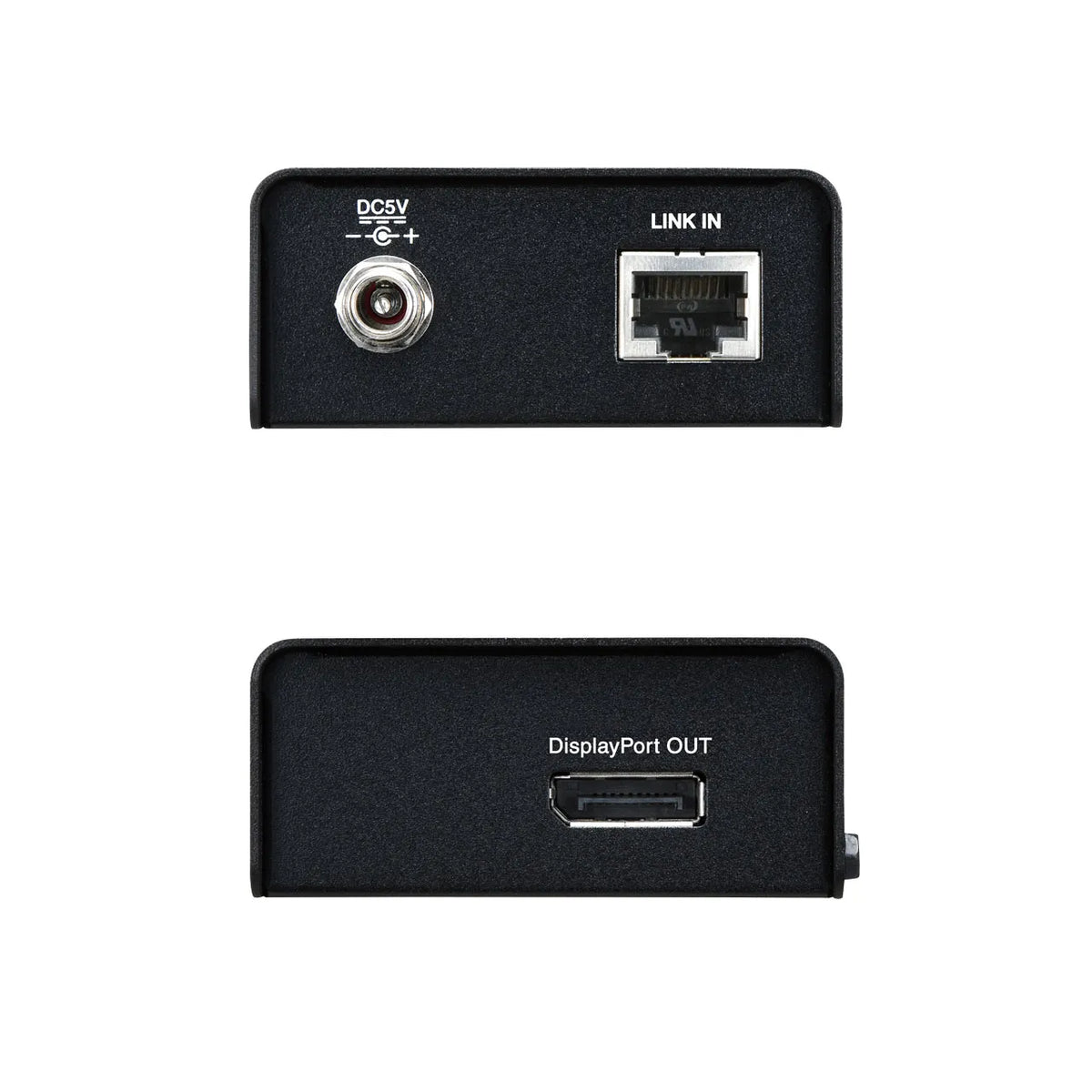

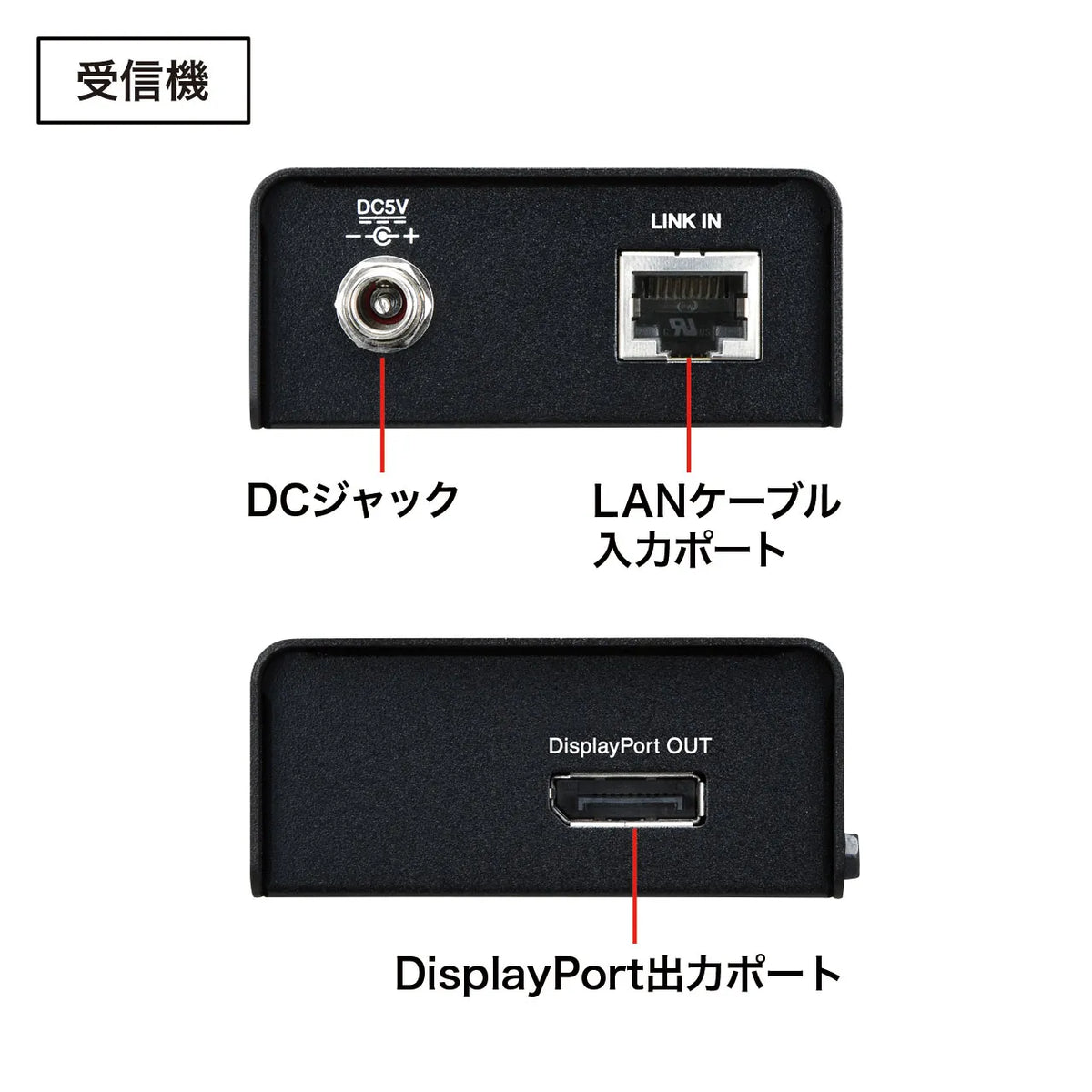

【Receiver】
Input/RJ-45 female x1, Output/DisplayPort female x1
■DisplayPort standard: DisplayPort 1.2a
■HDCP: HDCP1.4 compatible
*The display must also be HDCP compatible.
■Maximum display resolution:
・4K/4096x2160・3840x2160 (60Hz, 4:2:0)……When using Category 6A (up to 40m)
・4K/4096x2160・3840x2160 (30Hz, 4:4:4)……When using Category 6A (up to 40m)
・4K/4096x2160・3840x2160 (60Hz, 4:2:0)……When using Category 6/5e (up to 35m)
・4K/4096x 2160・3840x2160 (30Hz, 4:4:4)……When using Category 6/5e (up to 35m)
・1080p (1920x1080)……When using Category 6a (up to 70m)
・1080p (1920x1080)……When using Category 6/5e (up to 60m)
■Compatible LAN cable:
Category 6A/6/5e straight cable (solid wire)
*Cable specifications and extension distance vary depending on the resolution.
■Extension cable length:
70m (maximum)
*Extension distance varies depending on the resolution.
■Bandwidth: Maximum 10.2Gbps
■Current Consumption:
Transmitter 3.13W (Max)
Receiver 7.95W (Max)
■Case Material: Steel
■Environmental Conditions:
Operating: 0 to 40 degrees Celsius, humidity 80% or less (non-condensing)
Storage: -20 to 60 degrees Celsius, humidity 80% or less (non-condensing)
■Dimensions:
Transmitter: W103 x D68.4 x H29mm (body size)
Receiver: W103 x D68.4 x H29mm (body size)
■Weight:
Transmitter: 226g
Receiver: 262g

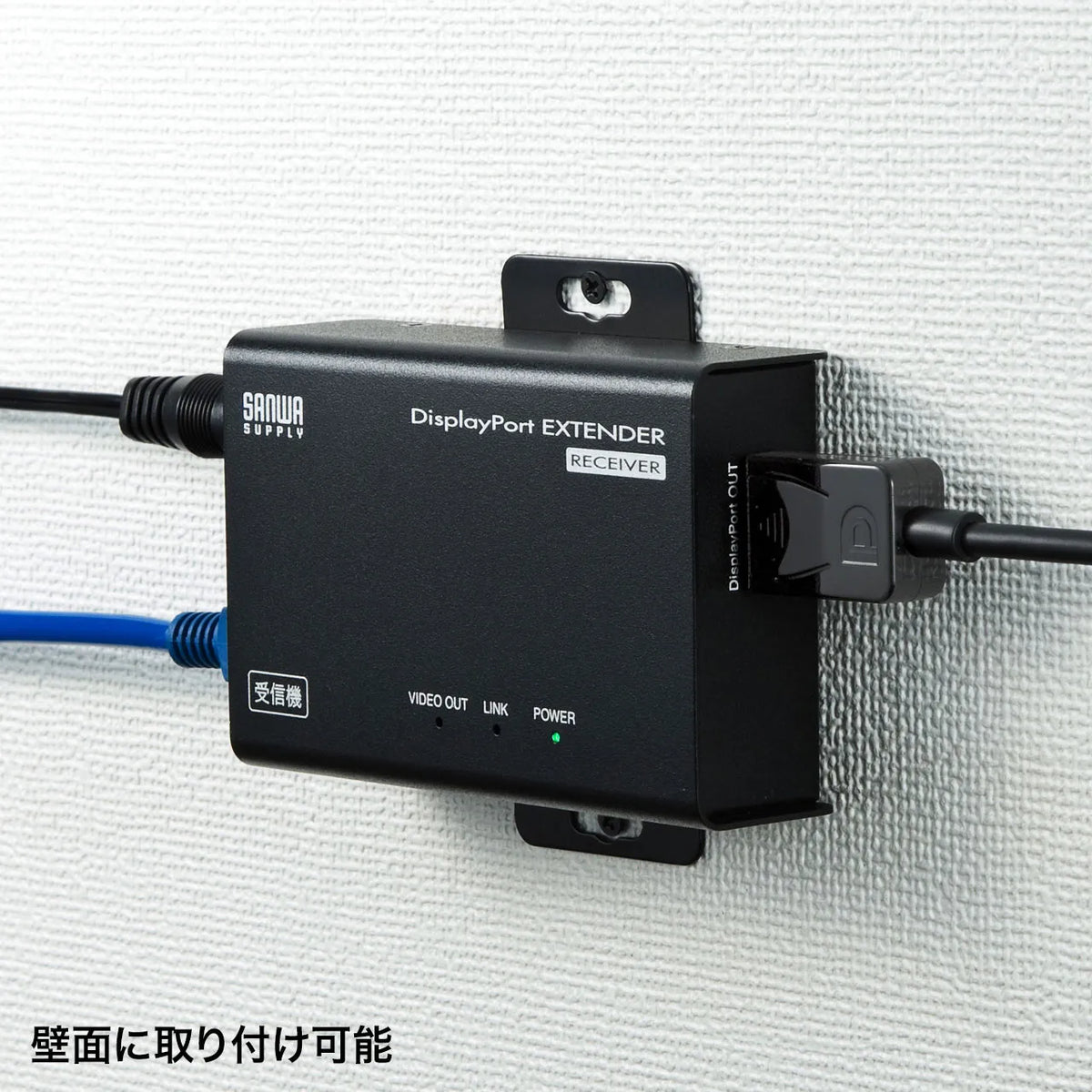

■Accessories: Transmitter x1, Receiver x1, AC adapter (DC5V) 2.6A) x2, mounting parts x4, mounting screws x8, instruction manual, warranty card
≪Notes≫
*This product transmits video using a LAN cable and is not a product that performs network communication.
It does not support connections via switching hubs or routers.
*It cannot be incorporated into an existing LAN environment.
*Distribution and extension output using switching hubs, etc. is not possible.
*Wireless output using wireless LAN, wireless routers, etc. is not possible.
