SANWA SUPPLY

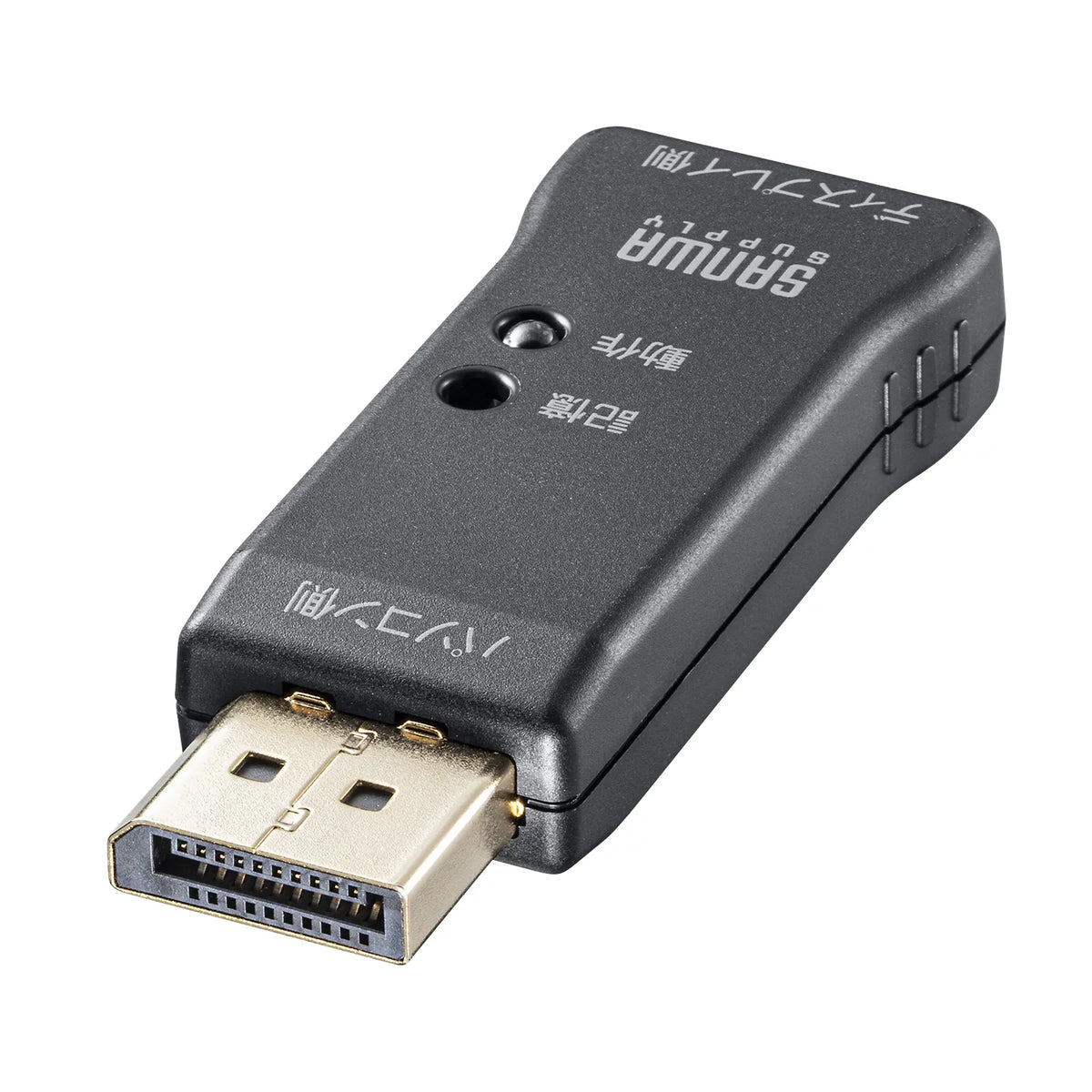

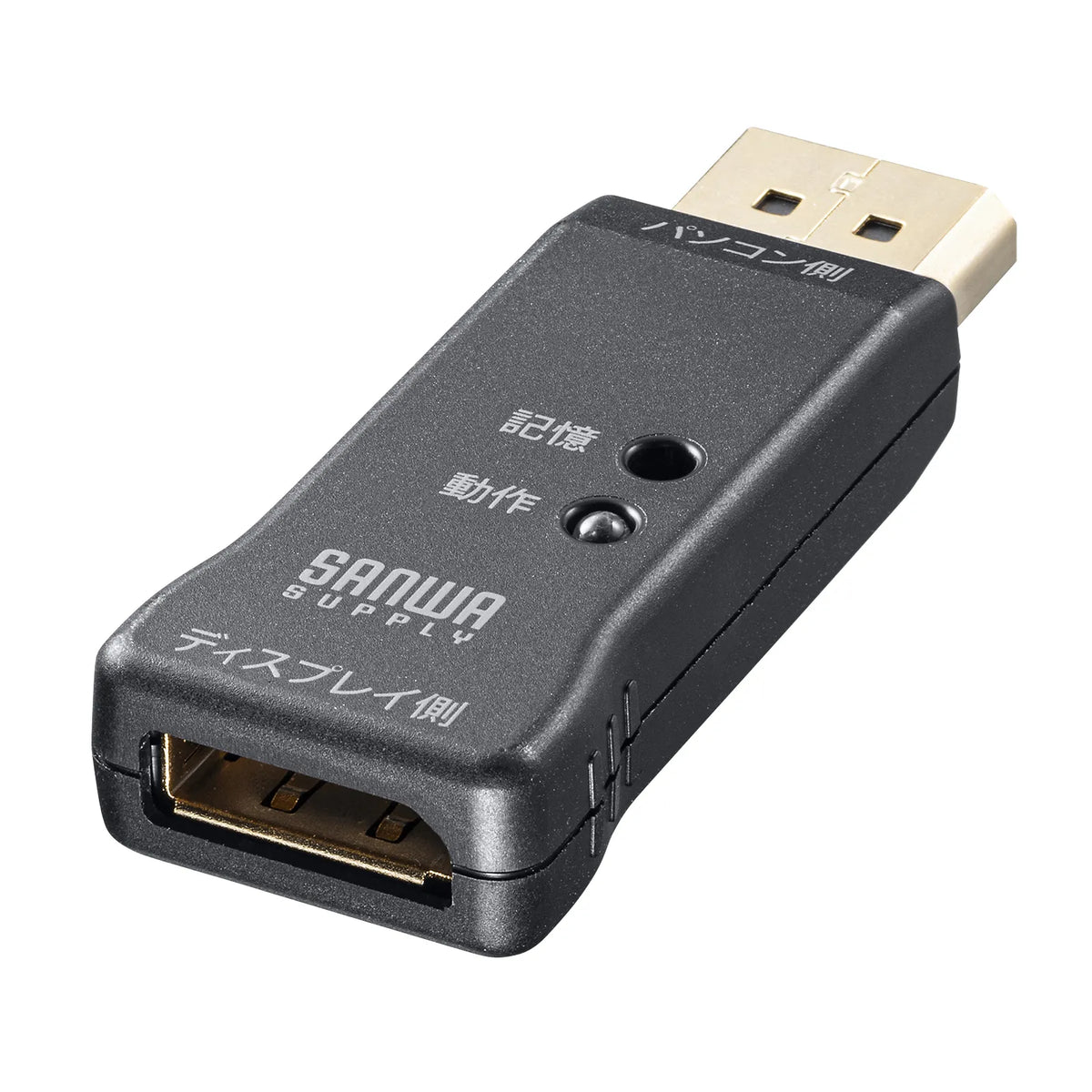

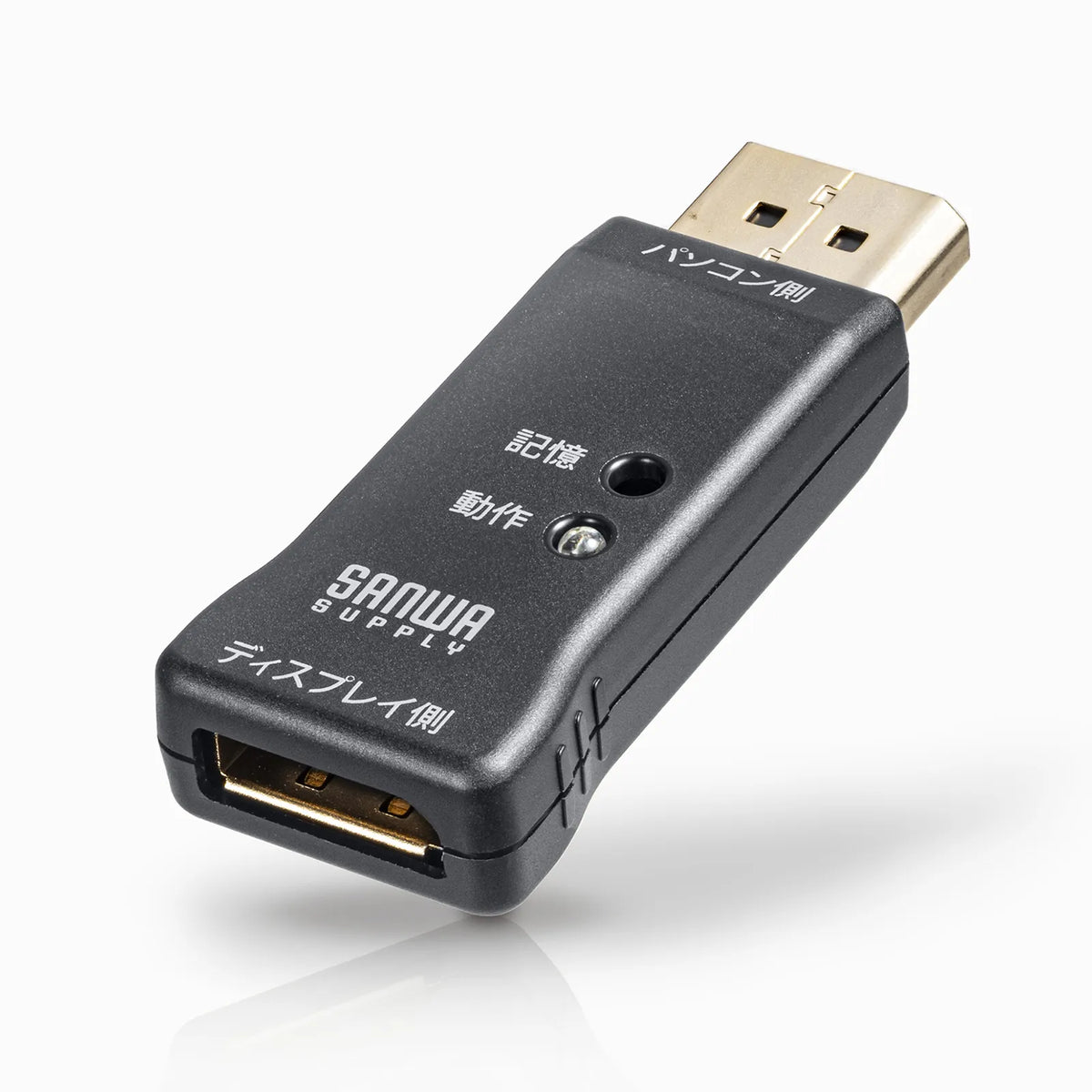

EDID holder (for DisplayPort) VGA-EDID2
EDID holder (for DisplayPort) VGA-EDID2
GTIN（JAN）：4969887595688
SKU：VGA-EDID2
Regular price
¥9,438 JPY
Regular price
Sale price
¥9,438 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[An EDID retainer for DisplayPort that can learn the EDID information (display information) of a display and allow the connected computer to correctly recognize the EDID information.]
●It can learn the EDID information of displays with DisplayPort input, and by installing it between connected devices, it can recognize the display information with high accuracy.

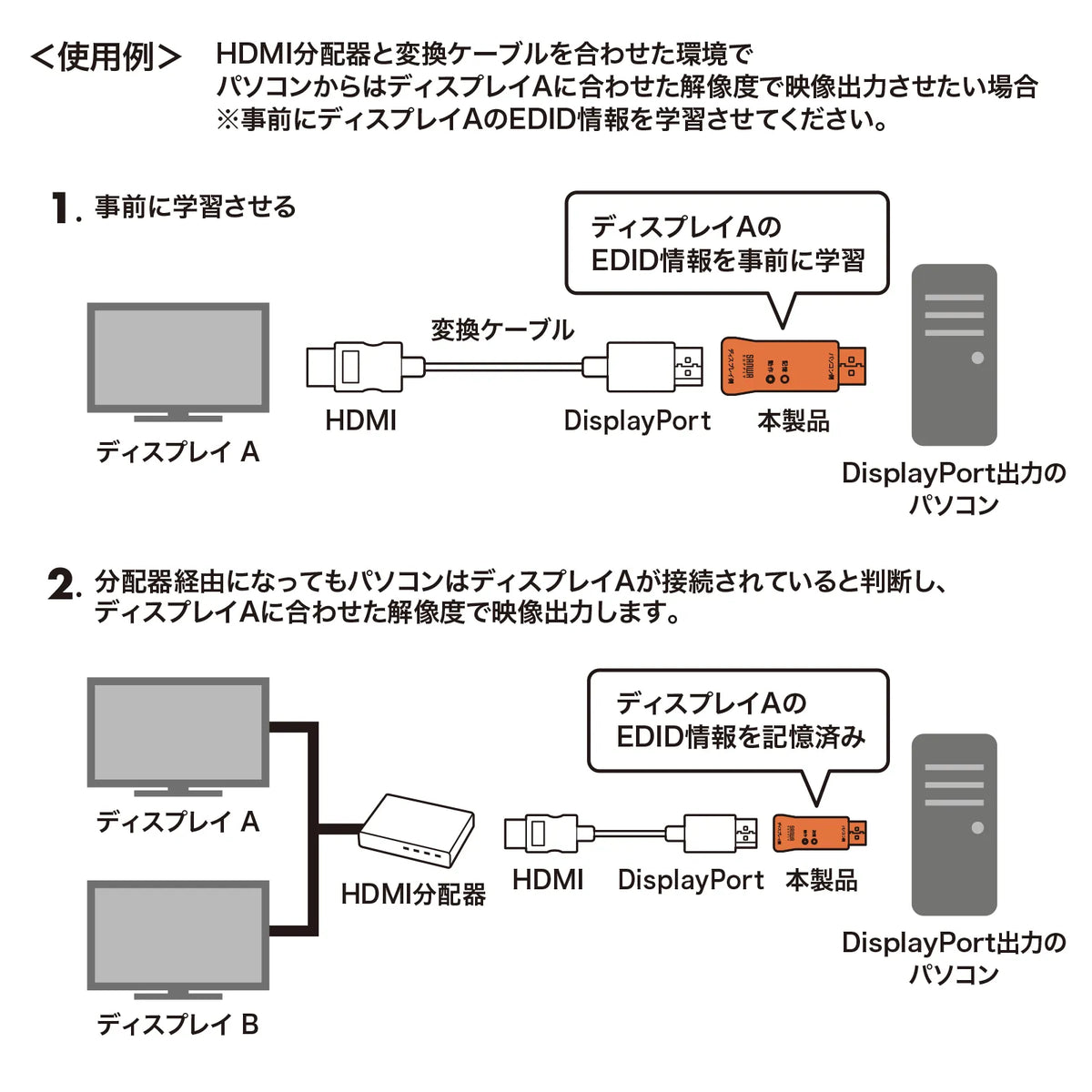

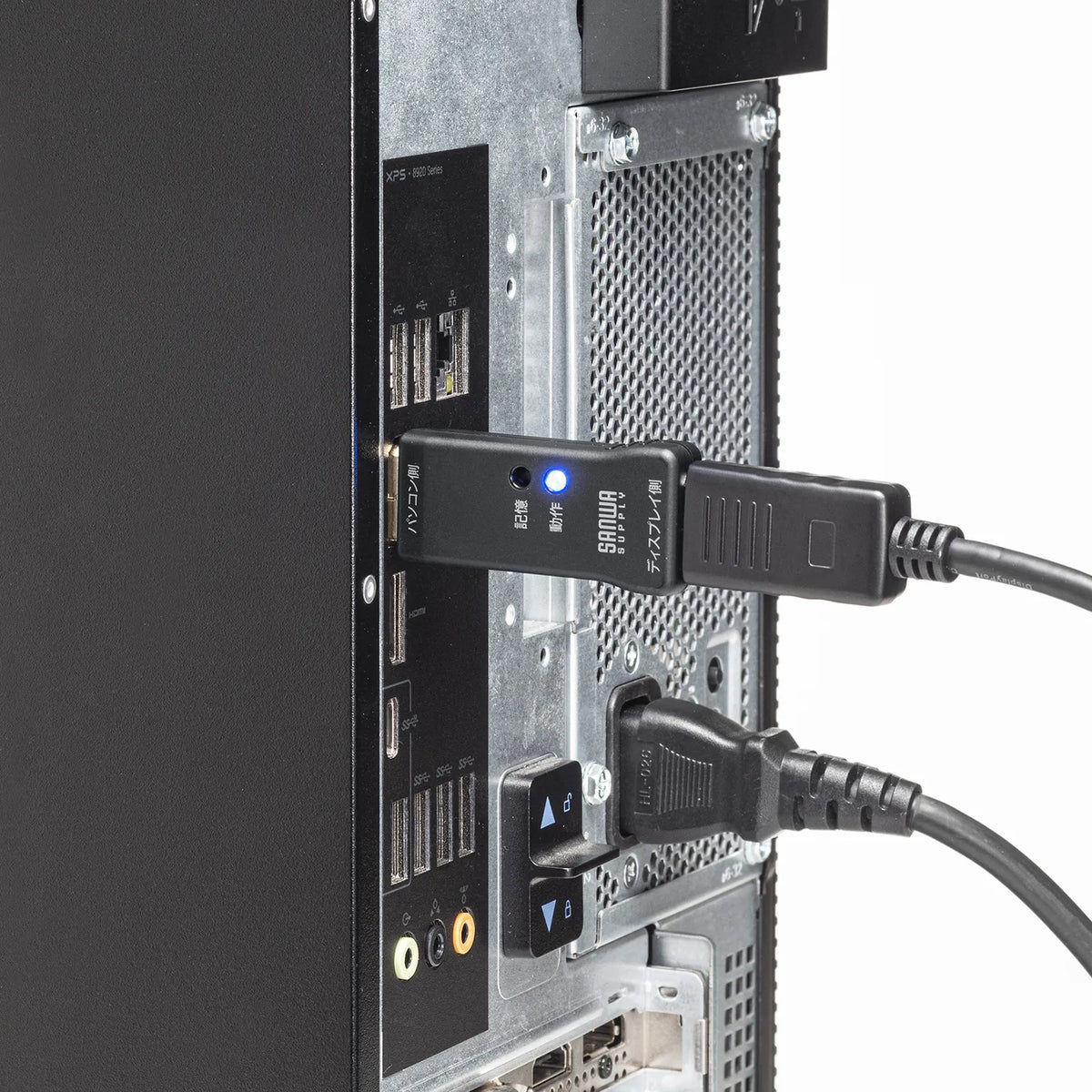

●In complex connection environments consisting of multiple devices, by connecting this product to the DisplayPort output side of the computer and allowing it to recognize the EDID information of the DisplayPort display that has been learned in advance, it enables smooth video output. (Operation is not guaranteed in all environments)

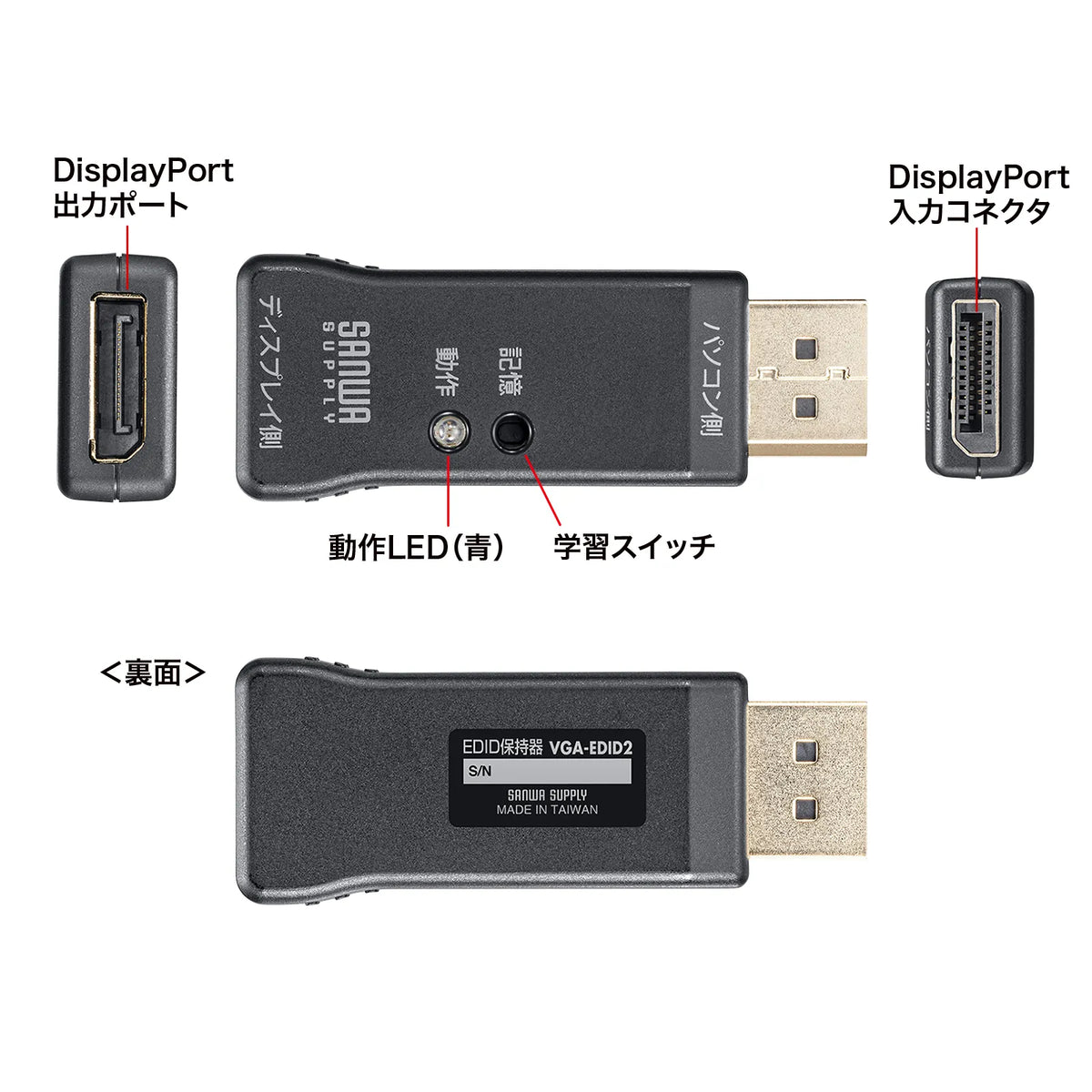

●EDID information can be efficiently learned/saved from the connected DisplayPort display with a single button.
●8K/30Hz compatible, HDCP2.2 compatible

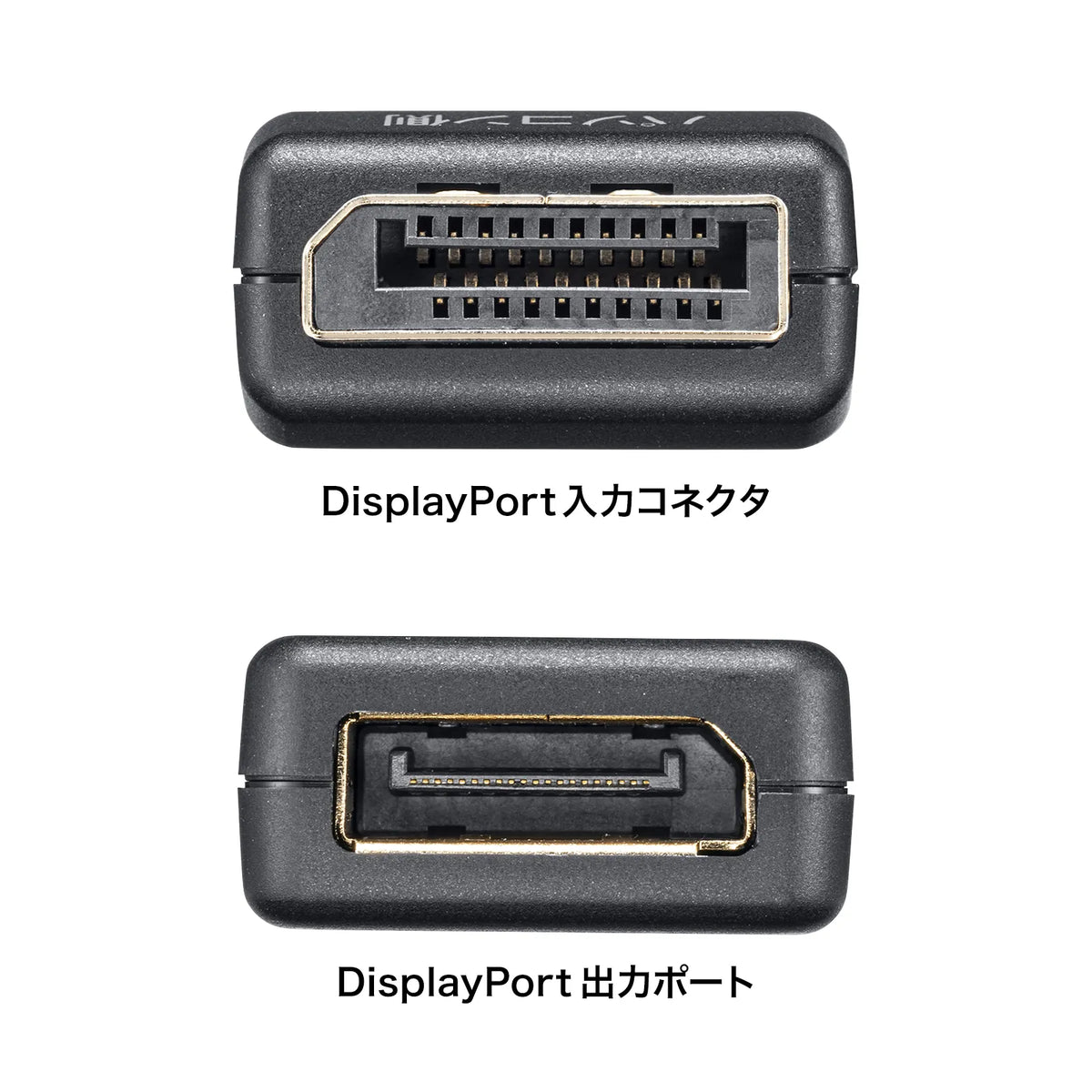

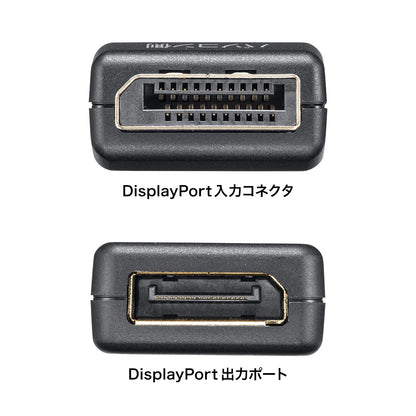

■Interface: Input/DisplayPort male x1
Output/DisplayPort female x1
■Power consumption (maximum): 0.33W (3.3V 0.1A)
■Environmental conditions: Operating/Temperature 0 to 50 degrees, humidity 0 to 85% (non-condensing)
Storage/Temperature -20 to 80 degrees, humidity 0 to 90% (non-condensing)
■Maximum resolution: 7680x4320 (30Hz compatible)
■Main supported resolutions: 7680x4320 (30/24Hz, 4:4:4/4:2:2/4:2:0)
5120x2880 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
4096x2160 (120/60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
3840x2160 (120/60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
2560x1440 (240/144/120/60/30Hz)
1920x1080p (240/144/120/60/50/30/24Hz)
1920x1080i (60/50/30/24Hz)
1280x720p (60/50Hz)
640x480p (60/50Hz)
*Depends on the resolution of the connected display.
*10-bit support for 4K, 8-bit support for 8K
■DisplayPort standard: DisplayPort Ver1.4
■HDCP: HDCP1.4, HDCP2.2
■CEC (Customer Electronic Control): Supported
■Supported audio formats: Dolby Digital 2/5.1ch, Dolby Digital Plus2/5.1/7.1ch, Dolby TrueHD 2/5.1/7.1ch, DTS5.1ch, DTS HD Master Audio, LPCM2/5.1/7.1ch
■HDR: Supported

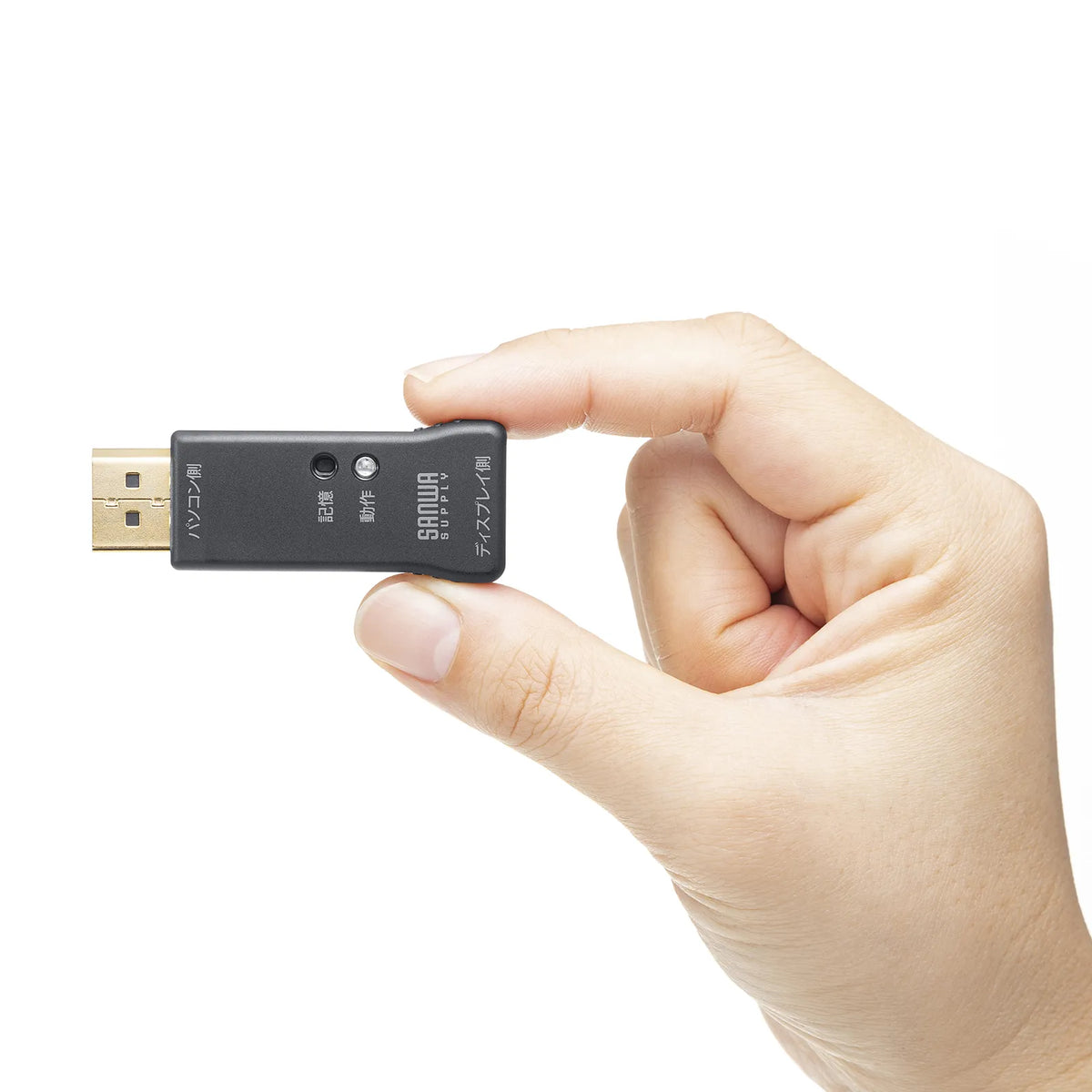

■Size: Approx. W63.4 x D25 x H12mm
■Weight: Approx. 13g
■Set contents: Main unit x1, Instruction manual
●It can learn the EDID information of displays with DisplayPort input, and by installing it between connected devices, it can recognize the display information with high accuracy.
●In complex connection environments consisting of multiple devices, by connecting this product to the DisplayPort output side of the computer and allowing it to recognize the EDID information of the DisplayPort display that has been learned in advance, it enables smooth video output. (Operation is not guaranteed in all environments)
●EDID information can be efficiently learned/saved from the connected DisplayPort display with a single button.
●8K/30Hz compatible, HDCP2.2 compatible
■Interface: Input/DisplayPort male x1
Output/DisplayPort female x1
■Power consumption (maximum): 0.33W (3.3V 0.1A)
■Environmental conditions: Operating/Temperature 0 to 50 degrees, humidity 0 to 85% (non-condensing)
Storage/Temperature -20 to 80 degrees, humidity 0 to 90% (non-condensing)
■Maximum resolution: 7680x4320 (30Hz compatible)
■Main supported resolutions: 7680x4320 (30/24Hz, 4:4:4/4:2:2/4:2:0)
5120x2880 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
4096x2160 (120/60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
3840x2160 (120/60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
2560x1440 (240/144/120/60/30Hz)
1920x1080p (240/144/120/60/50/30/24Hz)
1920x1080i (60/50/30/24Hz)
1280x720p (60/50Hz)
640x480p (60/50Hz)
*Depends on the resolution of the connected display.
*10-bit support for 4K, 8-bit support for 8K
■DisplayPort standard: DisplayPort Ver1.4
■HDCP: HDCP1.4, HDCP2.2
■CEC (Customer Electronic Control): Supported
■Supported audio formats: Dolby Digital 2/5.1ch, Dolby Digital Plus2/5.1/7.1ch, Dolby TrueHD 2/5.1/7.1ch, DTS5.1ch, DTS HD Master Audio, LPCM2/5.1/7.1ch
■HDR: Supported
■Size: Approx. W63.4 x D25 x H12mm
■Weight: Approx. 13g
■Set contents: Main unit x1, Instruction manual
