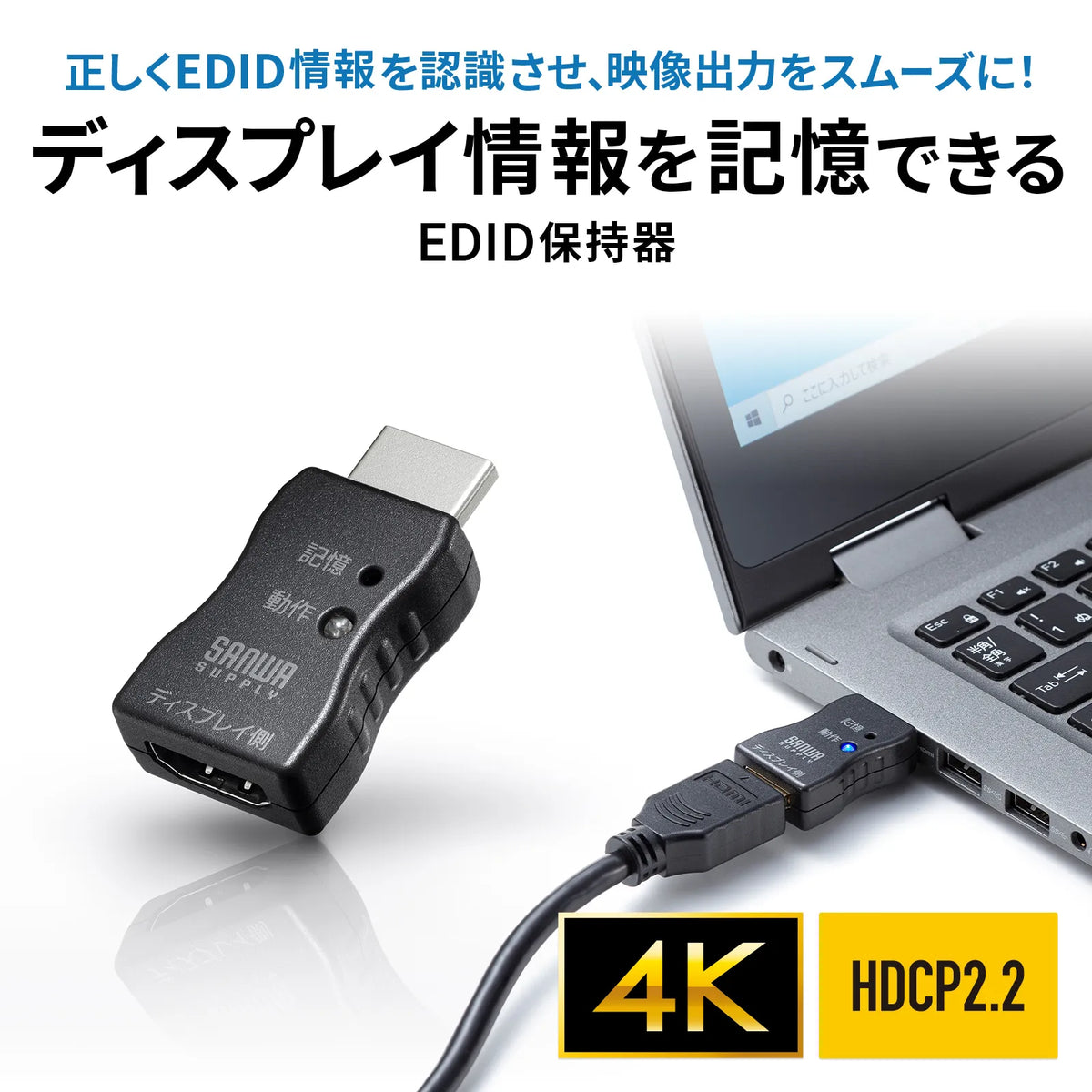

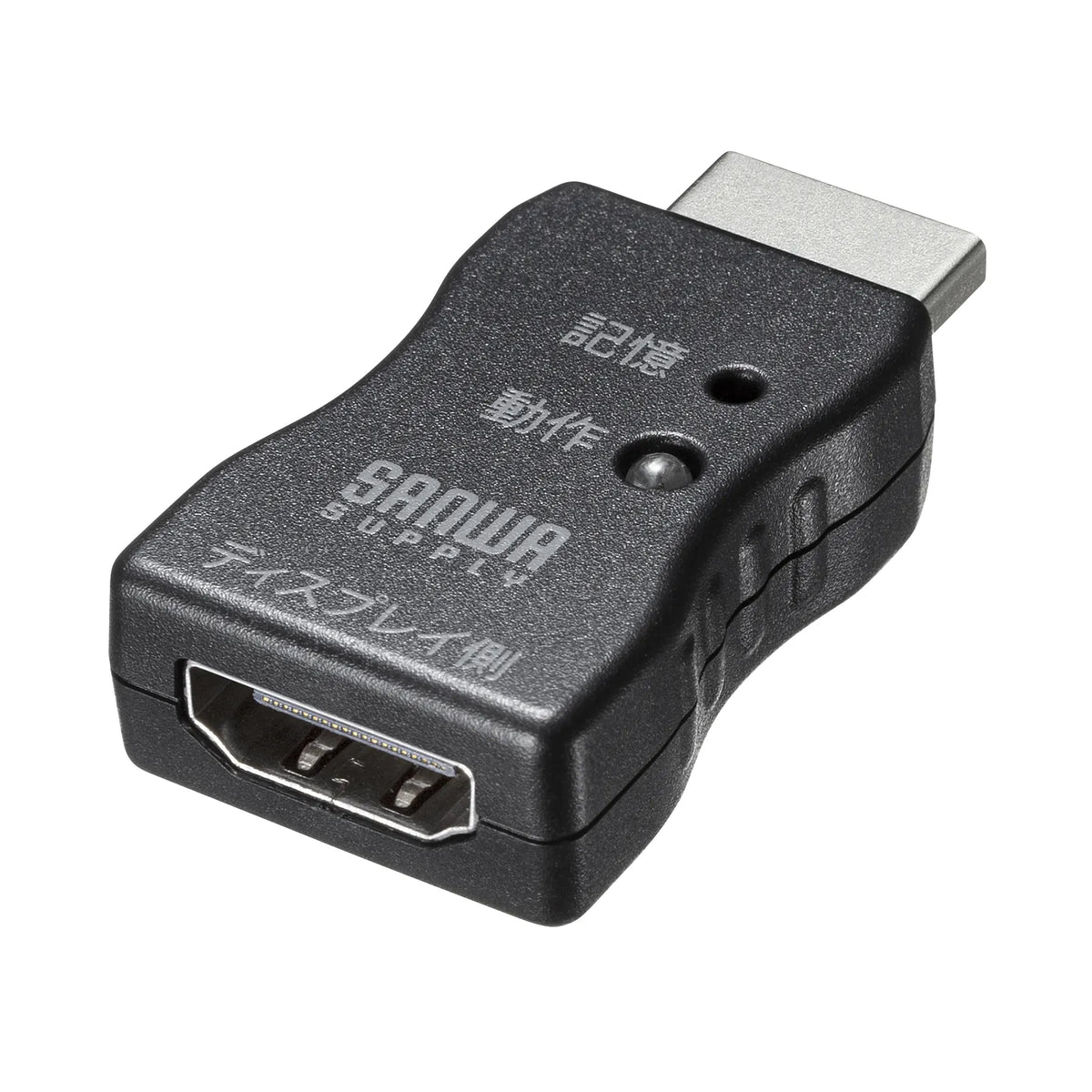

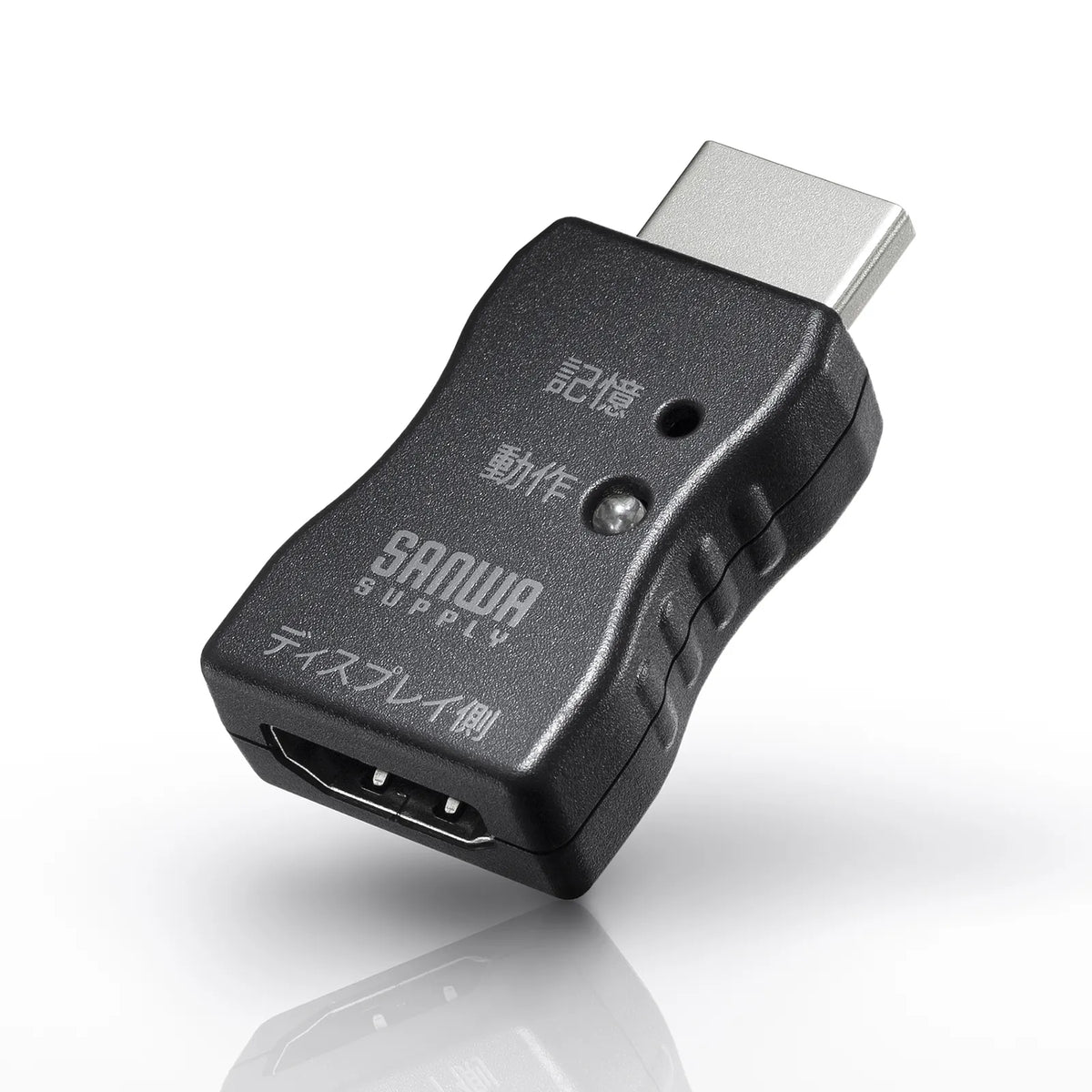

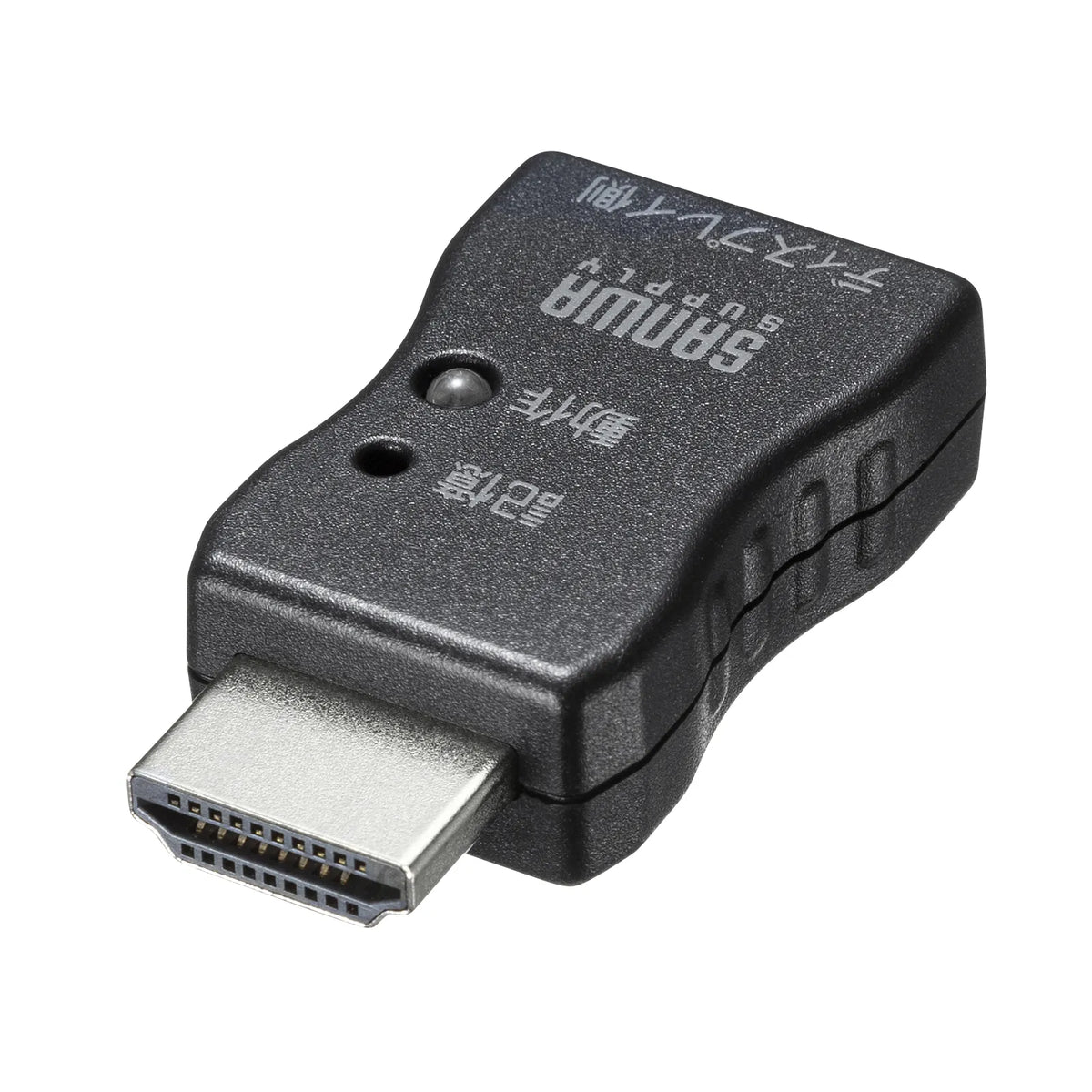

[An EDID retainer that can learn display information (EDID) and allow PCs and HDMI devices to correctly recognize the display information.]

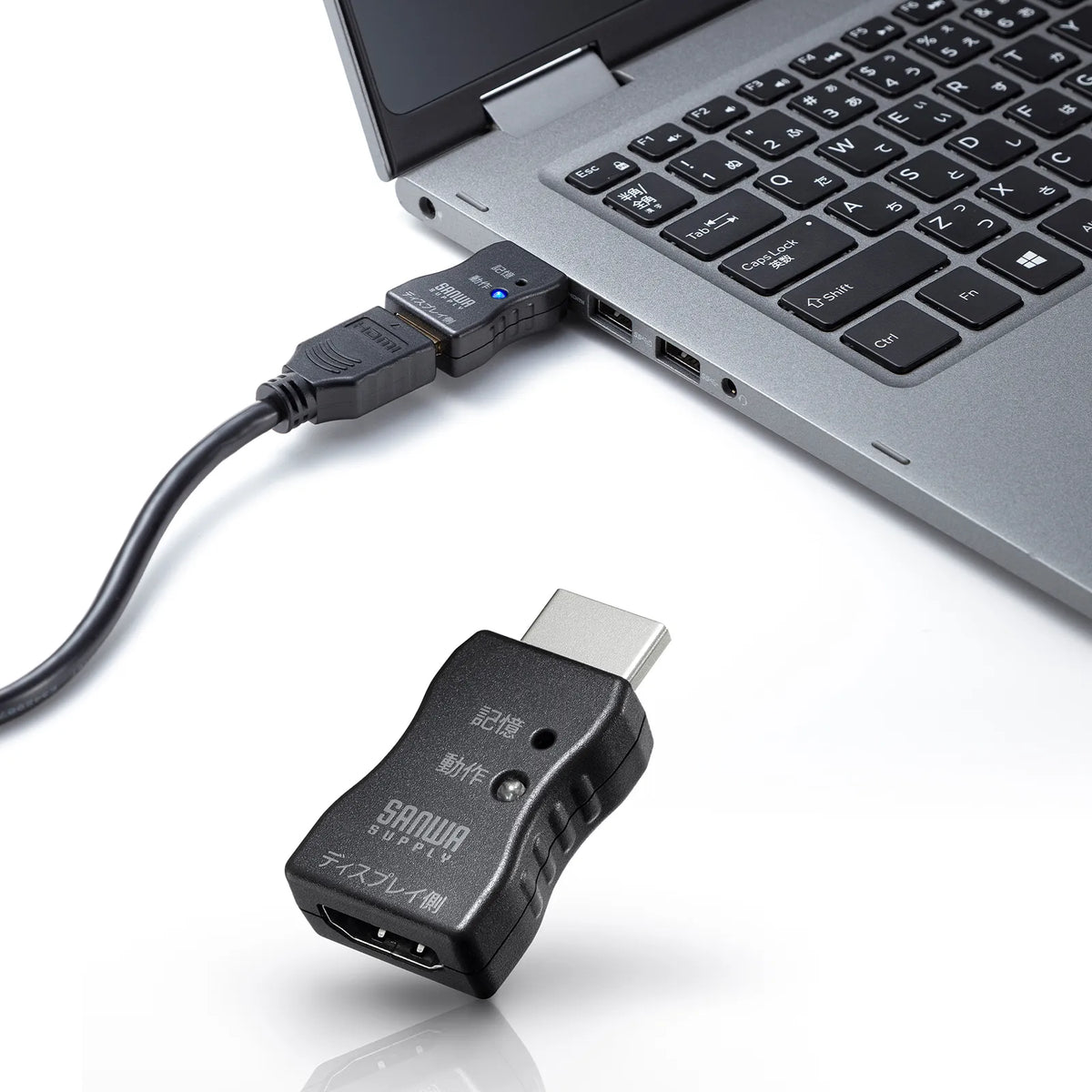

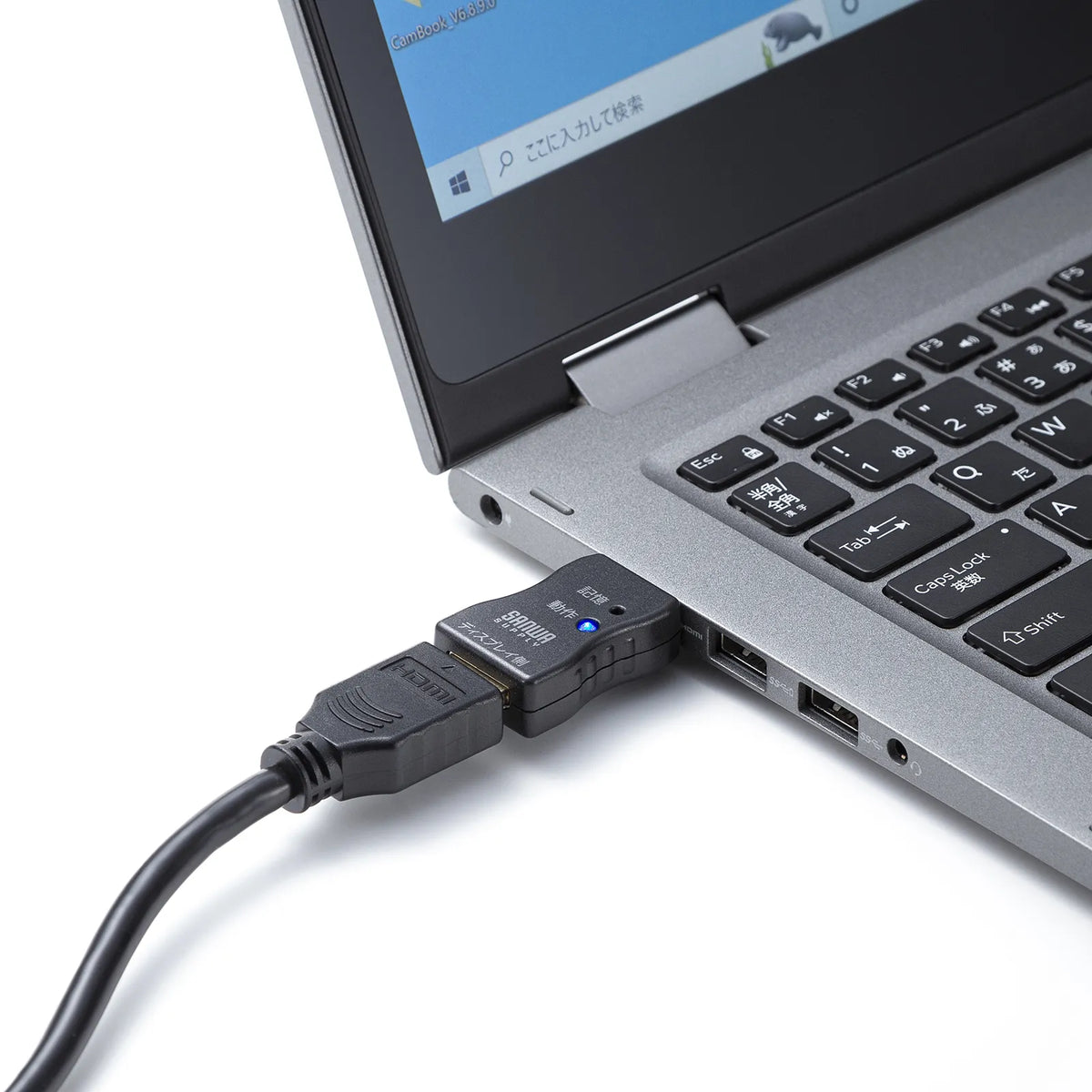

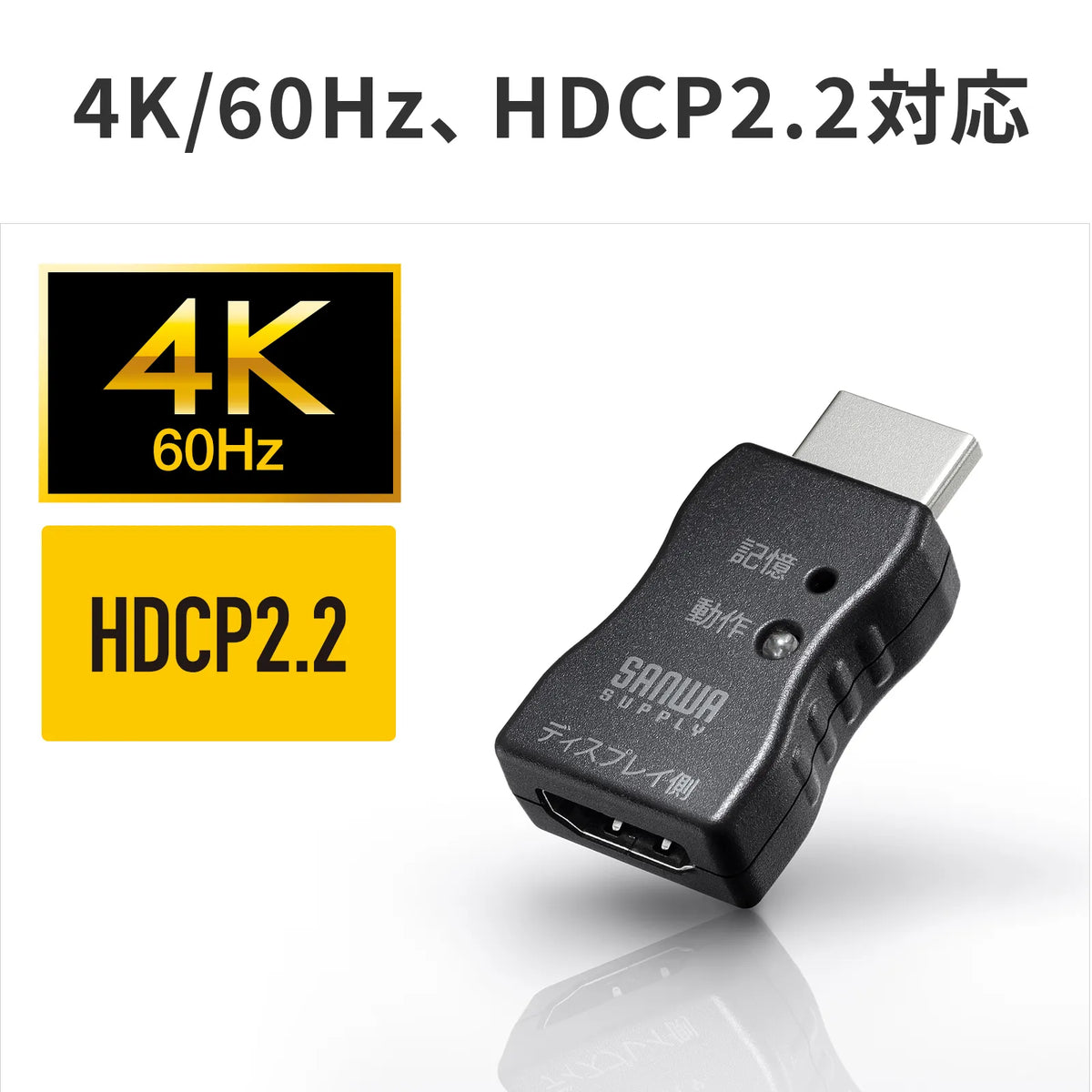

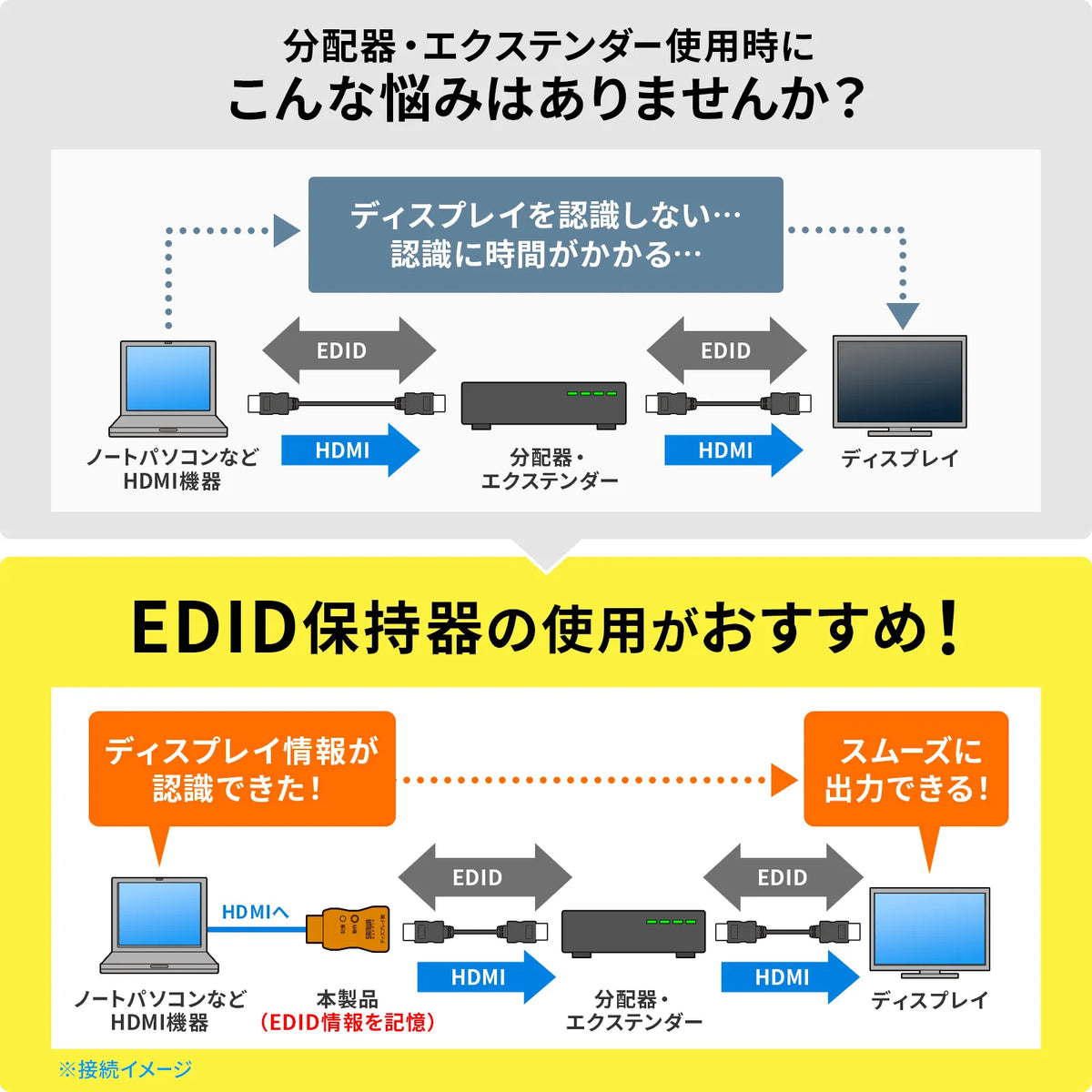

●It can learn the EDID information of a display and, when installed between connected devices, can recognize the display information with high accuracy. ●In complex connection environments consisting of multiple devices, by connecting this product to the HDMI source side and allowing it to recognize the EDID information of the display that has been learned in advance, it enables smooth video output. (Operation is not guaranteed in all environments) ●EDID information can be efficiently learned/saved from the connected HDMI display with a single button. ●4K/60Hz compatible, HDCP2.2 compatible

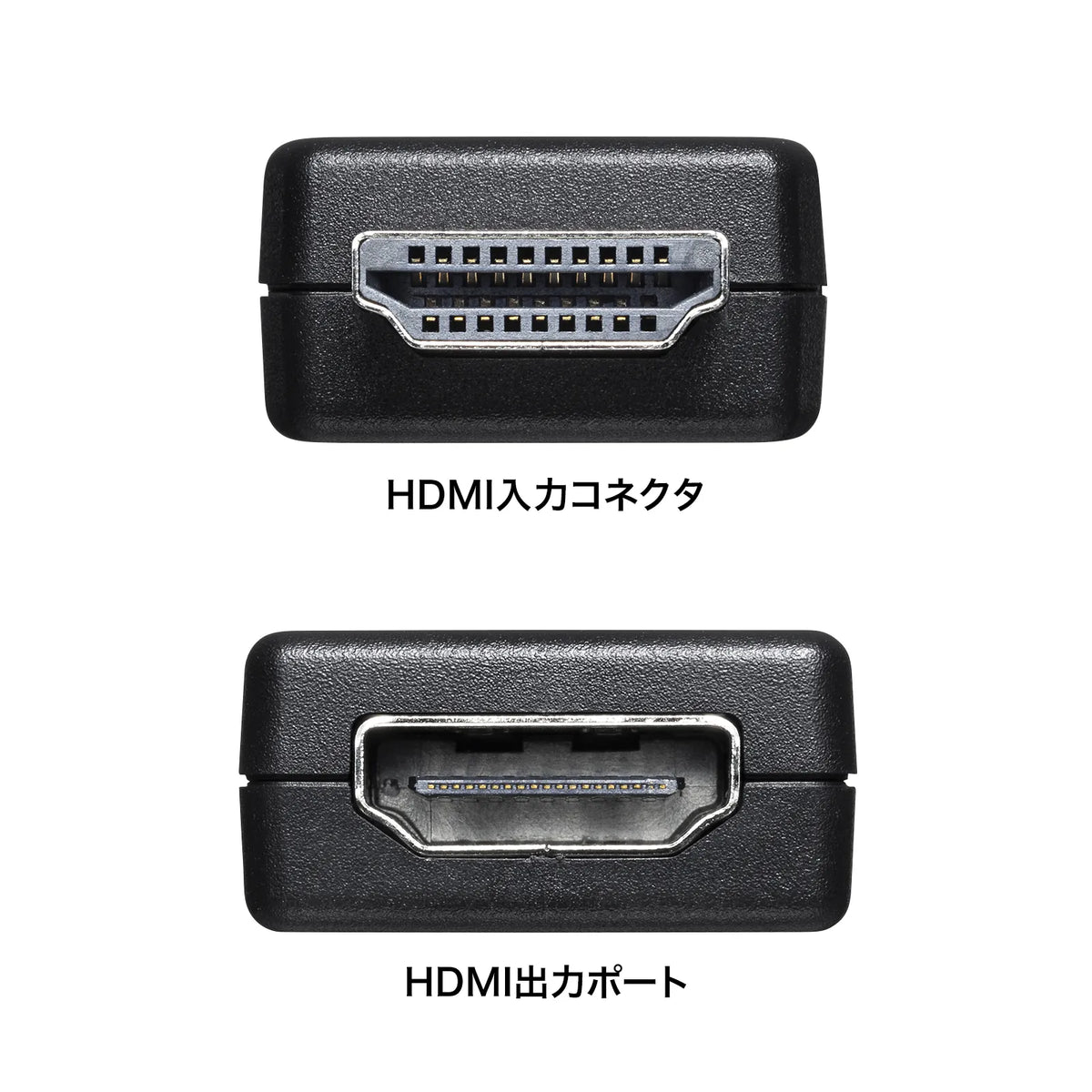

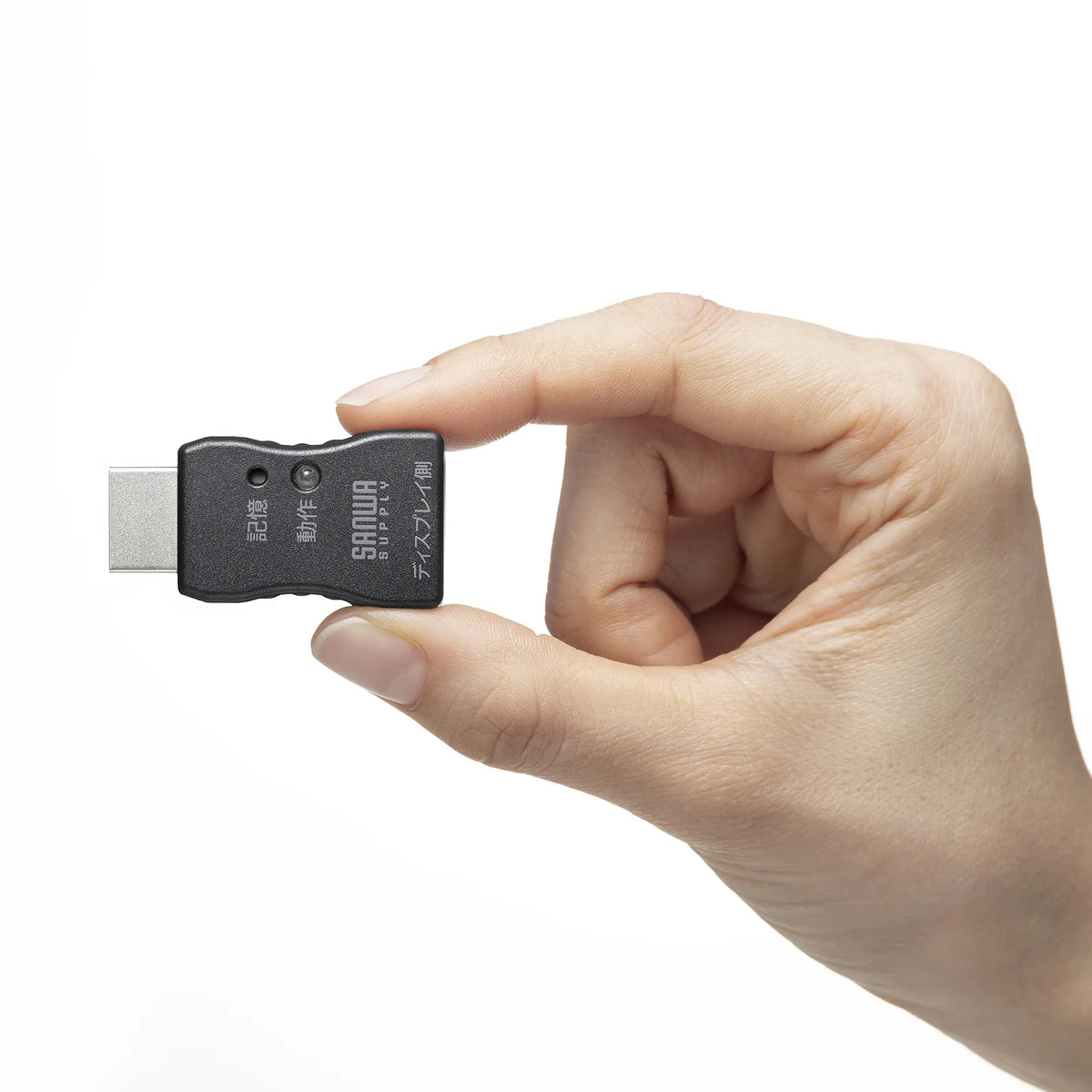

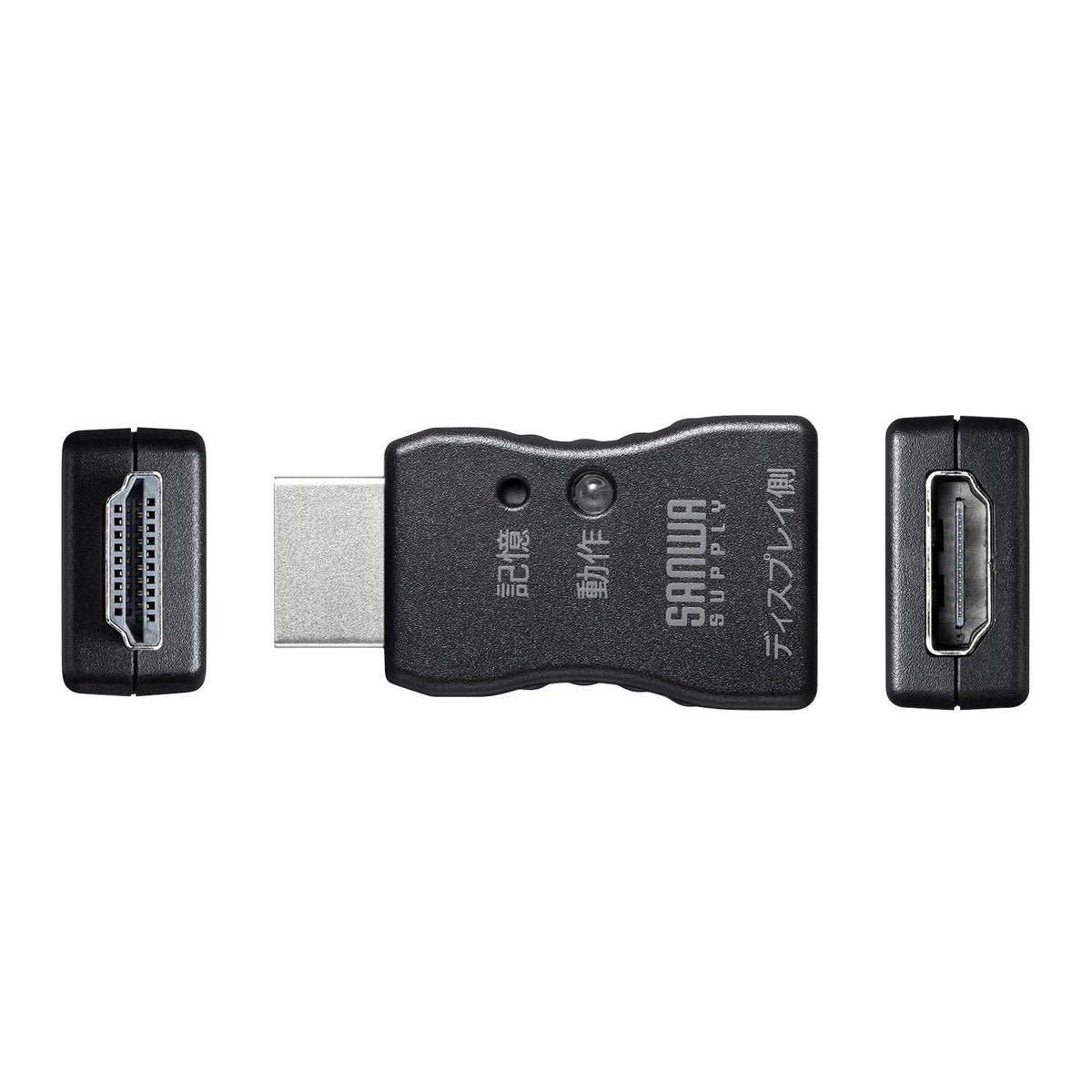

■Interface: Input/HDMI Type A (19PIN) Male x1 Output/HDMI Type A (19PIN) Female x1 ■Power Consumption: 0.17W (Maximum) ■Environmental Conditions: Operating/Temperature 0 to 50 degrees, Humidity 0 to 85% (non-condensing) Storage/Temperature -20 to 80 degrees, Humidity 0 to 90% (non-condensing) ■Maximum resolution: 4096x2160 (60Hz compatible) ■Supported resolutions: 4096x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0) 3840x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0) 1920x1080p (60/50/30/24Hz) 1920x1080i (60/50/30/24Hz) 1280x720p (60/50Hz) 640x480p (60/50Hz) *Depends on the resolution of the connected TV or monitor. ■HDMI Standard: HDMI Ver2.0b ■HDCP: HDCP1.4, HDCP2.2 ■Input DDC Signal: 5V ■CEC (Connected Electronic Control): Supported ■Supported Audio Formats: Dolby Digital 2/5.1ch, Dolby Digital Plus2/5.1/7.1ch, Dolby TrueHD 2/5.1/7.1ch, DTS5.1ch, DTS HD Master Audio, LPCM2/5.1/7.1ch ■HDR: Supported ■Size: Approx. W44 x D24 x H11.8mm ■Weight: Approx. 8g ■Set Contents: Main unit x1, Instruction manual ≪Caution≫ This product does not support EDID copying when connected to an HDMI port with ARC functionality. Furthermore, even if this product, after EDID copying is complete, is connected to an HDMI port with ARC functionality, the EDID information cannot be correctly recognized. This is because this product does not support the audio signal of the ARC function, and this is a specification of this product. In the case of the Mac Mini, the HDMI port supports the ARC function, so it is not recognized correctly.
