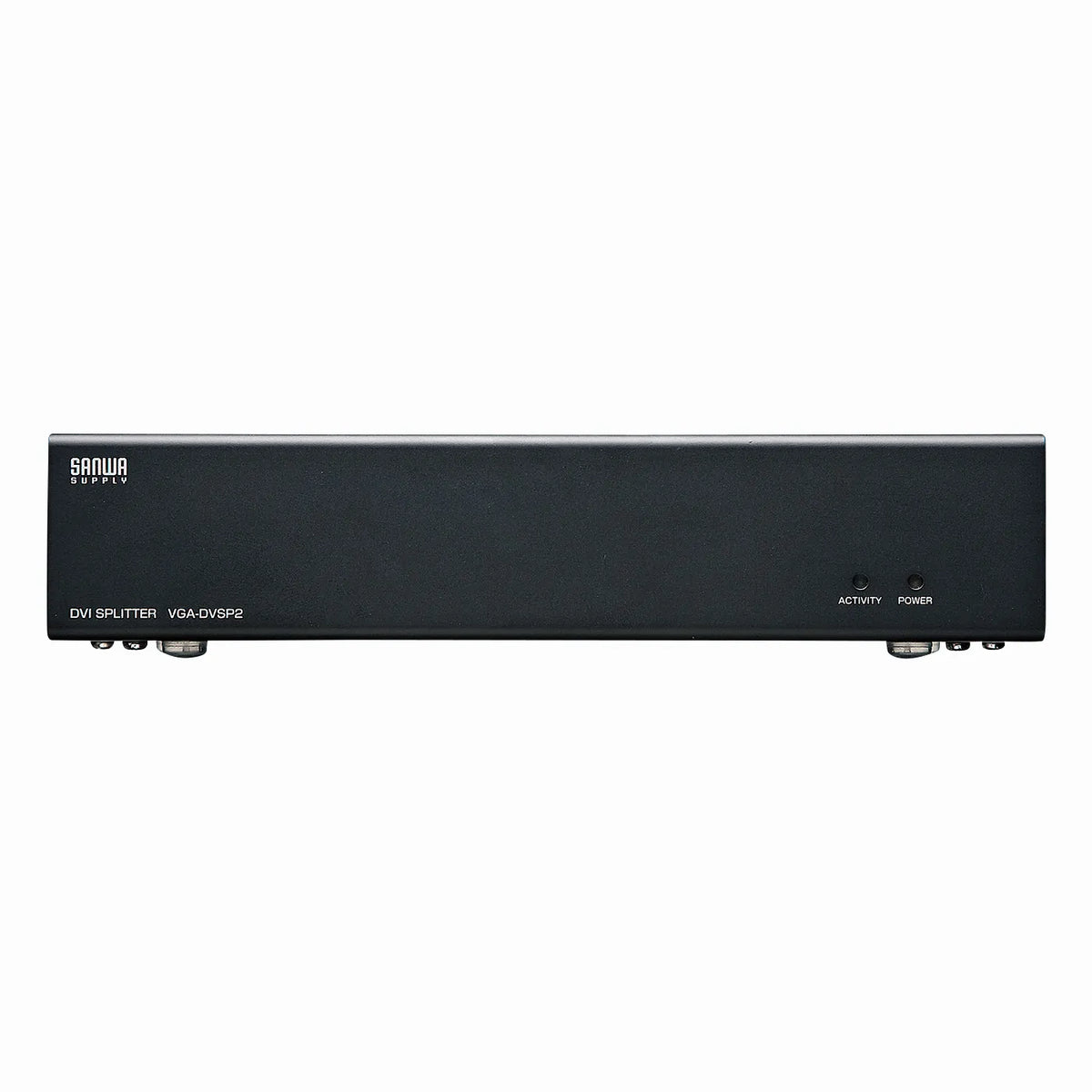

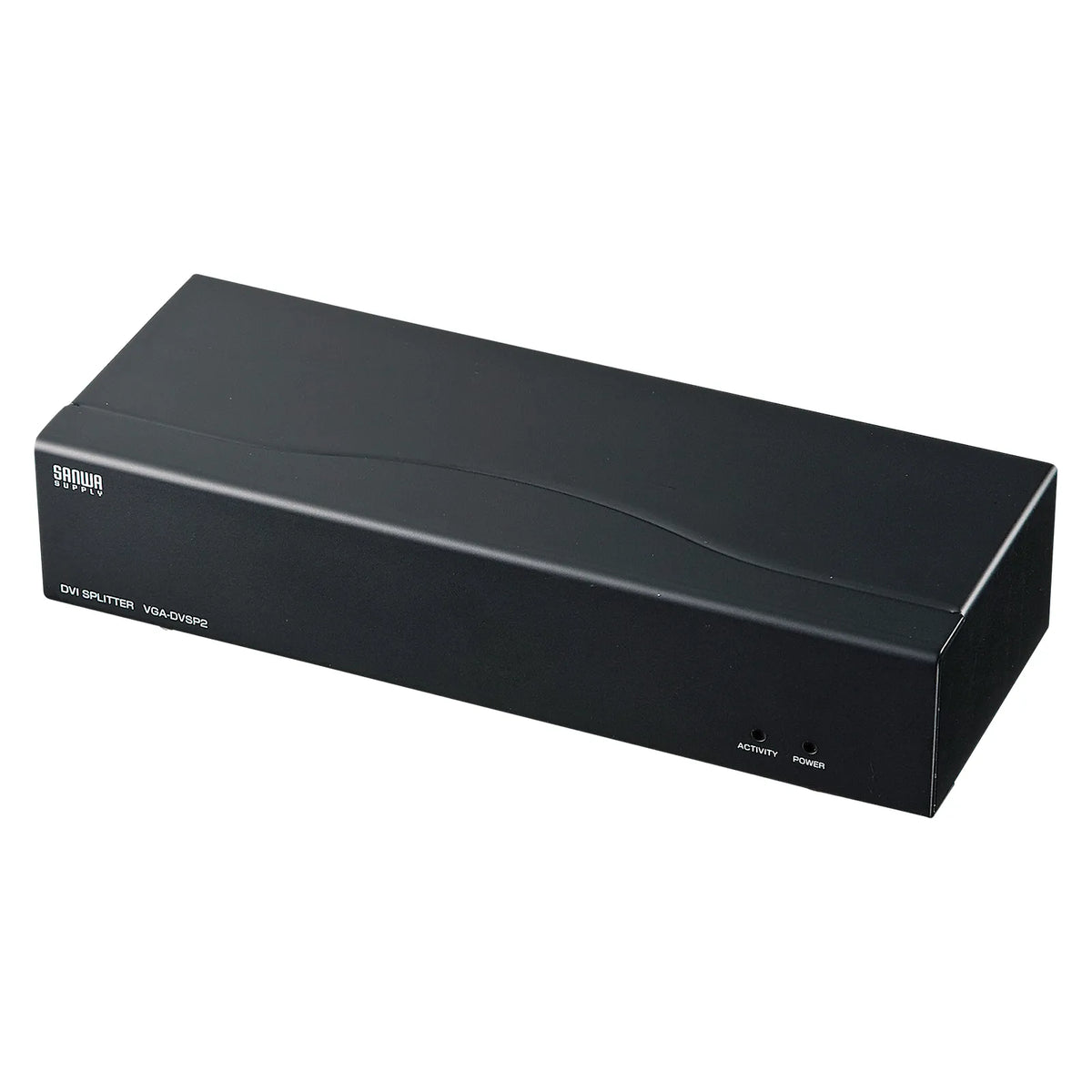

Full HD compatible DVI display splitter (2-way) VGA-DVSP2
Full HD compatible DVI display splitter (2-way) VGA-DVSP2
GTIN（JAN）：4969887592373
SKU：VGA-DVSP2
Regular price
¥27,588 JPY
Regular price
Sale price
¥27,588 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[DVI splitter that supports Full HD (1920x1080 pixels) and WUXGA (1920x1200 pixels) and can simultaneously distribute audio]
●Supports 1080p (1920x1080 pixels) Full HD video and WUXGA (1920x1200 pixels).
●HDCP (High-bandwidth Digital Content Protection) compliant product.

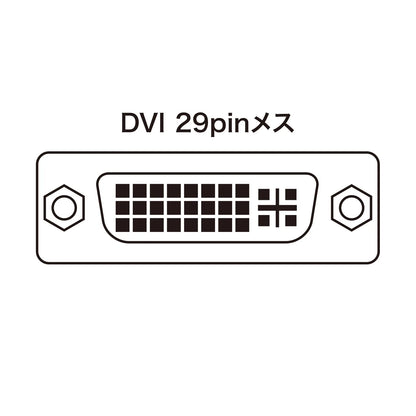

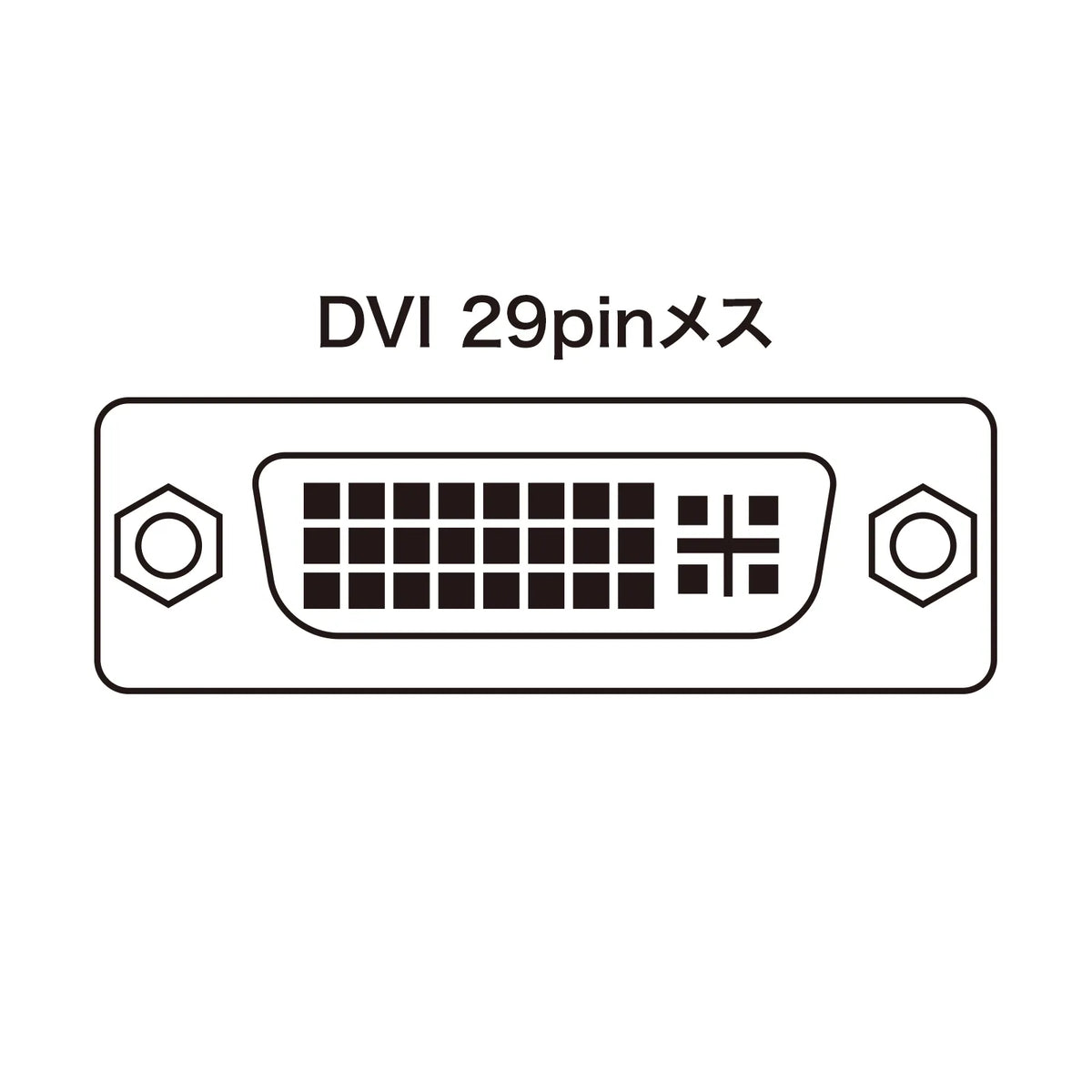

●Supports DVI-I (29pin) and DVI-D (24pin).
●Compares the EDID of the displays connected to each port and determines the optimal maximum resolution that can be displayed on all connected displays, then requests output to the PC.
●Uses a steel case that is less susceptible to electromagnetic waves and noise.
●Cascading connection is possible (up to 3 levels).
＜Caution＞
※The distributed DVI output will be the same signal, so the displays to which the signal is distributed must support the same resolution and other signals. Please be aware of this in advance.
*For cascaded connections, please ensure that the distance between the DVI output device and the splitter is 1.8m, the distance between the splitter and the second-stage splitter is 1.8m, the distance between the second-stage splitter and the third-stage splitter is 1.8m, and the distance between the third-stage splitter and the display is within 5m. (When the maximum display resolution is set to 1920x1200)
*When using cascaded connections, the increased number of contacts will make you more susceptible to noise than usual. Please use the shortest possible total distance from the DVI output device to the furthest display.
*The cable included with this product is a DVI-D (24-pin) cable. It is for digital signals, so if you are using it to convert analog signals, please prepare a separate DVI-I (29-pin) cable.
■Maximum display resolution: 1920x1200 dots (60Hz compatible)
■HDCP: HDCP1.1 compatible
*The display must also be HDCP compatible.

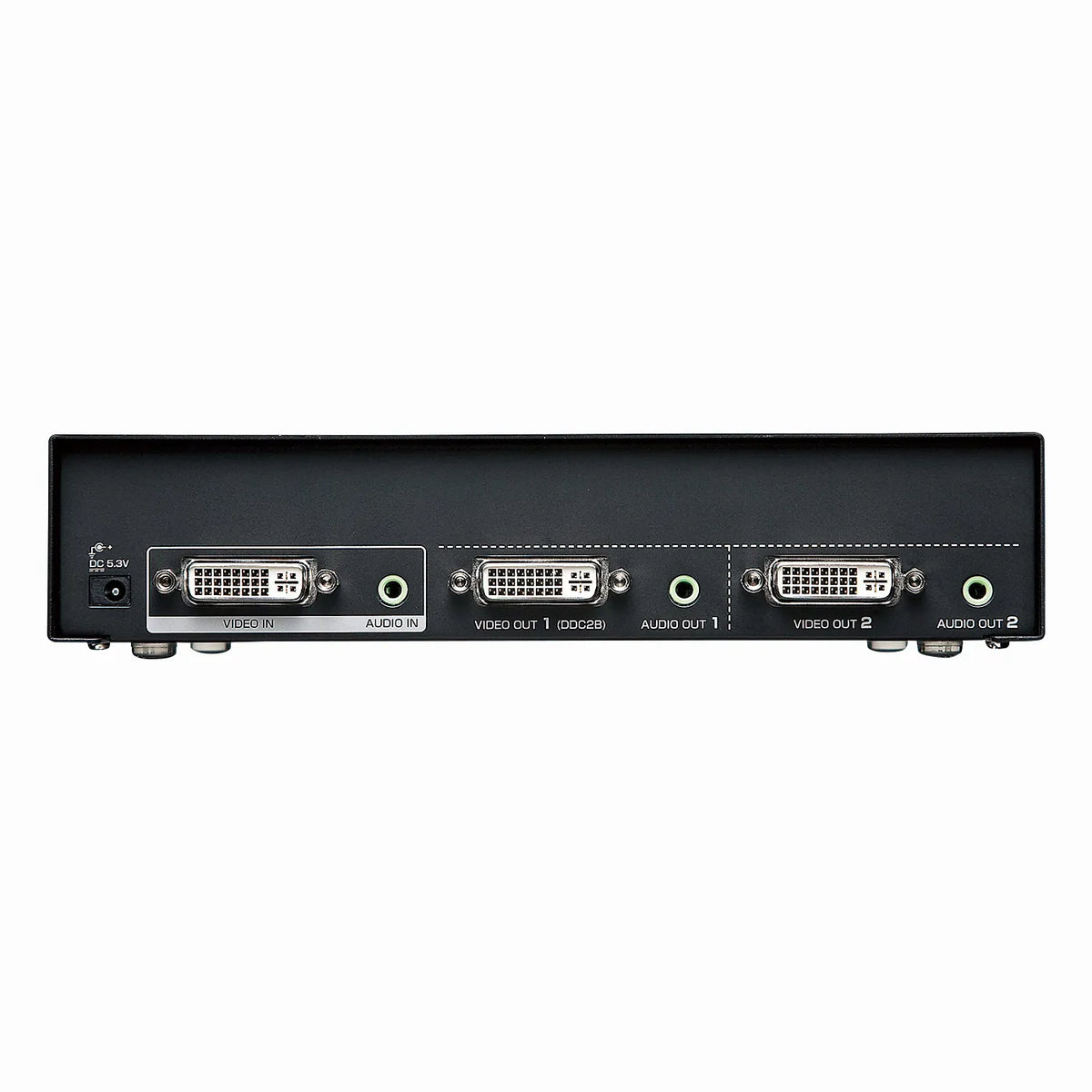

■Interface:
Input: DVI (24/29pin) female x1, 3.5mm stereo mini jack x1
Output: DVI (24/29pin) female x2, 3.5mm stereo mini jack x2
■Distribution: 2-way splitter
■Power Consumption: 2.8W 69mA
■Environmental Conditions:
Operating Temperature: 0 to 50 degrees Celsius
Storage Temperature: -20 to 60 degrees Celsius
Storage Humidity: 0 to 80% (non-condensing)
■Material: Steel
■Size: W200 x D75 x H42mm
■Weight: 584g

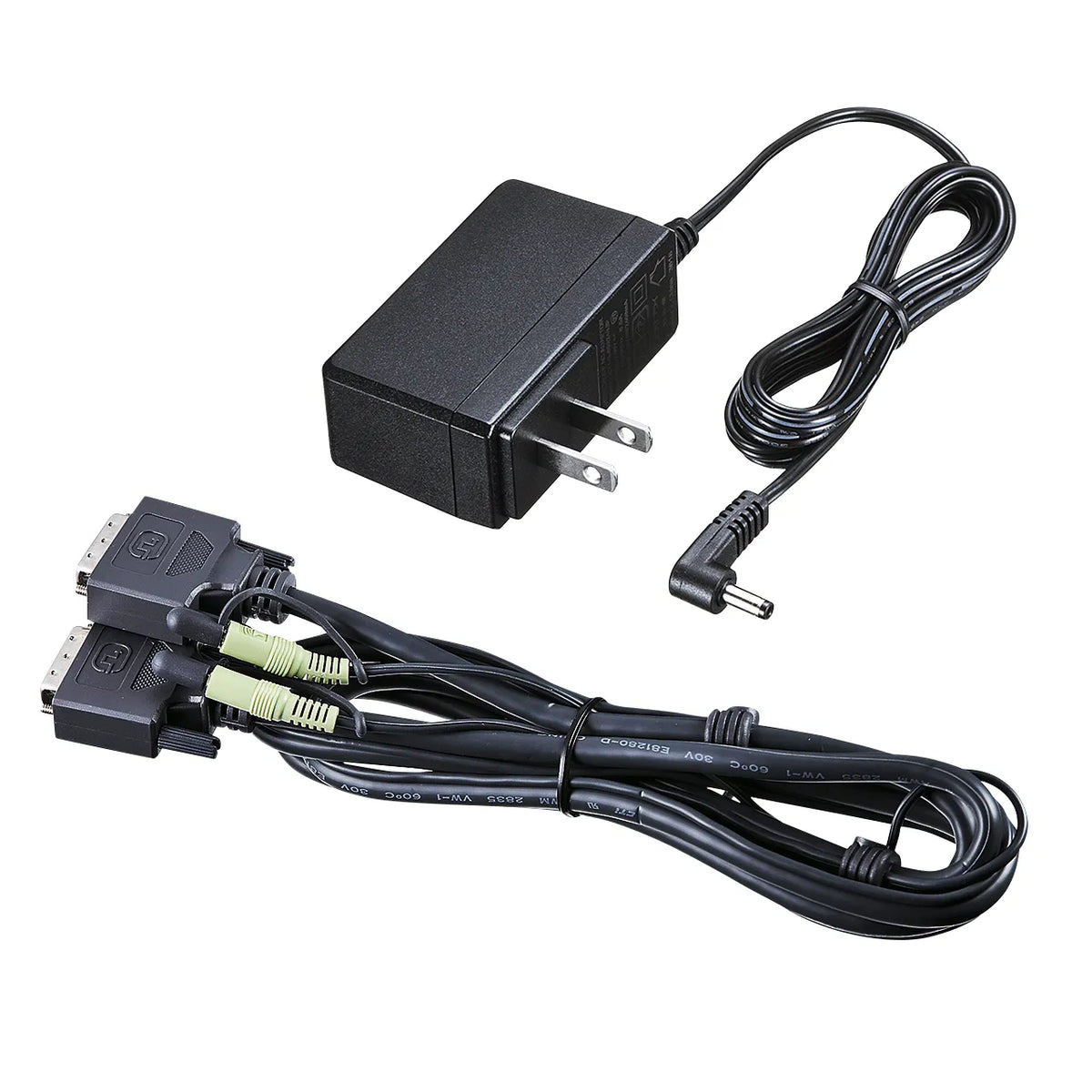

■Accessories: 1.8m x1 cable for connecting PC and splitter
[DVI (24pin) male-to-male cable + 3.5mm stereo mini jack male-to-male cable],
AC adapter (DC5.3V 2.4A) x1, instruction manual, warranty card,
●Supports 1080p (1920x1080 pixels) Full HD video and WUXGA (1920x1200 pixels).
●HDCP (High-bandwidth Digital Content Protection) compliant product.
●Supports DVI-I (29pin) and DVI-D (24pin).
●Compares the EDID of the displays connected to each port and determines the optimal maximum resolution that can be displayed on all connected displays, then requests output to the PC.
●Uses a steel case that is less susceptible to electromagnetic waves and noise.
●Cascading connection is possible (up to 3 levels).
＜Caution＞
※The distributed DVI output will be the same signal, so the displays to which the signal is distributed must support the same resolution and other signals. Please be aware of this in advance.
*For cascaded connections, please ensure that the distance between the DVI output device and the splitter is 1.8m, the distance between the splitter and the second-stage splitter is 1.8m, the distance between the second-stage splitter and the third-stage splitter is 1.8m, and the distance between the third-stage splitter and the display is within 5m. (When the maximum display resolution is set to 1920x1200)
*When using cascaded connections, the increased number of contacts will make you more susceptible to noise than usual. Please use the shortest possible total distance from the DVI output device to the furthest display.
*The cable included with this product is a DVI-D (24-pin) cable. It is for digital signals, so if you are using it to convert analog signals, please prepare a separate DVI-I (29-pin) cable.
■Maximum display resolution: 1920x1200 dots (60Hz compatible)
■HDCP: HDCP1.1 compatible
*The display must also be HDCP compatible.
■Interface:
Input: DVI (24/29pin) female x1, 3.5mm stereo mini jack x1
Output: DVI (24/29pin) female x2, 3.5mm stereo mini jack x2
■Distribution: 2-way splitter
■Power Consumption: 2.8W 69mA
■Environmental Conditions:
Operating Temperature: 0 to 50 degrees Celsius
Storage Temperature: -20 to 60 degrees Celsius
Storage Humidity: 0 to 80% (non-condensing)
■Material: Steel
■Size: W200 x D75 x H42mm
■Weight: 584g
■Accessories: 1.8m x1 cable for connecting PC and splitter
[DVI (24pin) male-to-male cable + 3.5mm stereo mini jack male-to-male cable],
AC adapter (DC5.3V 2.4A) x1, instruction manual, warranty card,
