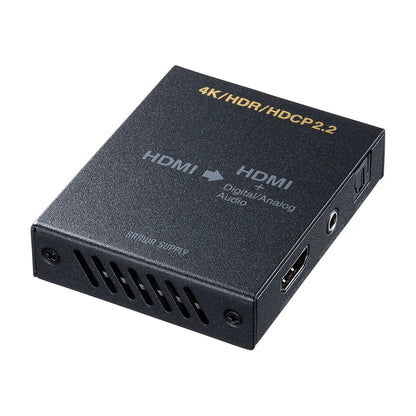

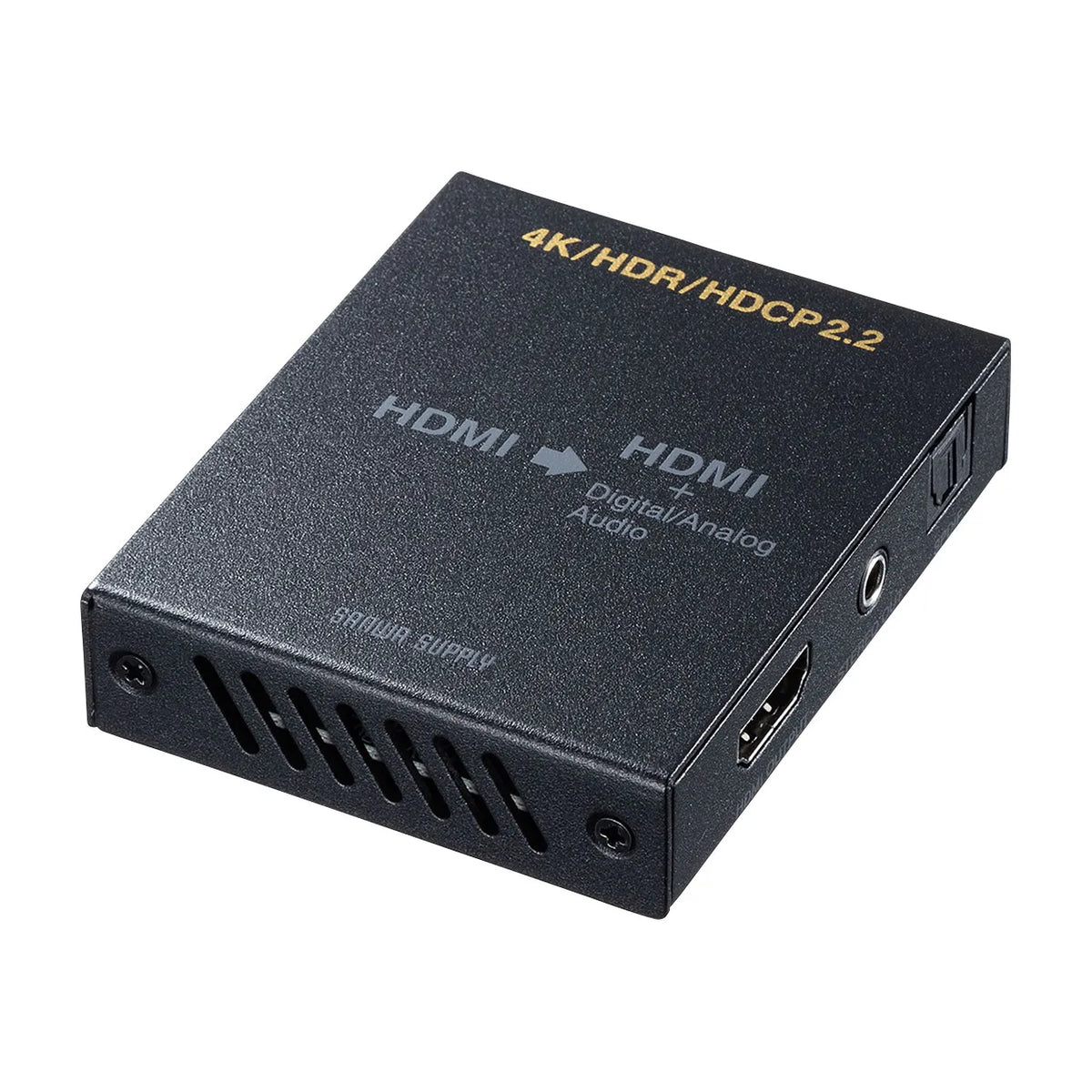

4K/HDR compatible HDMI signal audio splitter (optical digital/analog compatible) VGA-CVHD8
4K/HDR compatible HDMI signal audio splitter (optical digital/analog compatible) VGA-CVHD8
GTIN（JAN）：4969887594216
SKU：VGA-CVHD8
Regular price
¥9,002 JPY
Regular price
Sale price
¥9,002 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[An HDMI signal audio splitter that can separate the audio signal from an HDMI signal (video and audio) compatible with 4K/HDR signals and convert it to optical digital output and analog audio output.]
●This HDMI signal audio splitter can separate the audio signal from the HDMI signal of a PC or HDMI video device and convert it to an optical digital signal and analog audio signal for output.
●It supports 4K/4096x2160 (60Hz, 4:4:4, 24bit (maximum)), high brightness HDR (High Dynamic Range), and HDCP2.2.

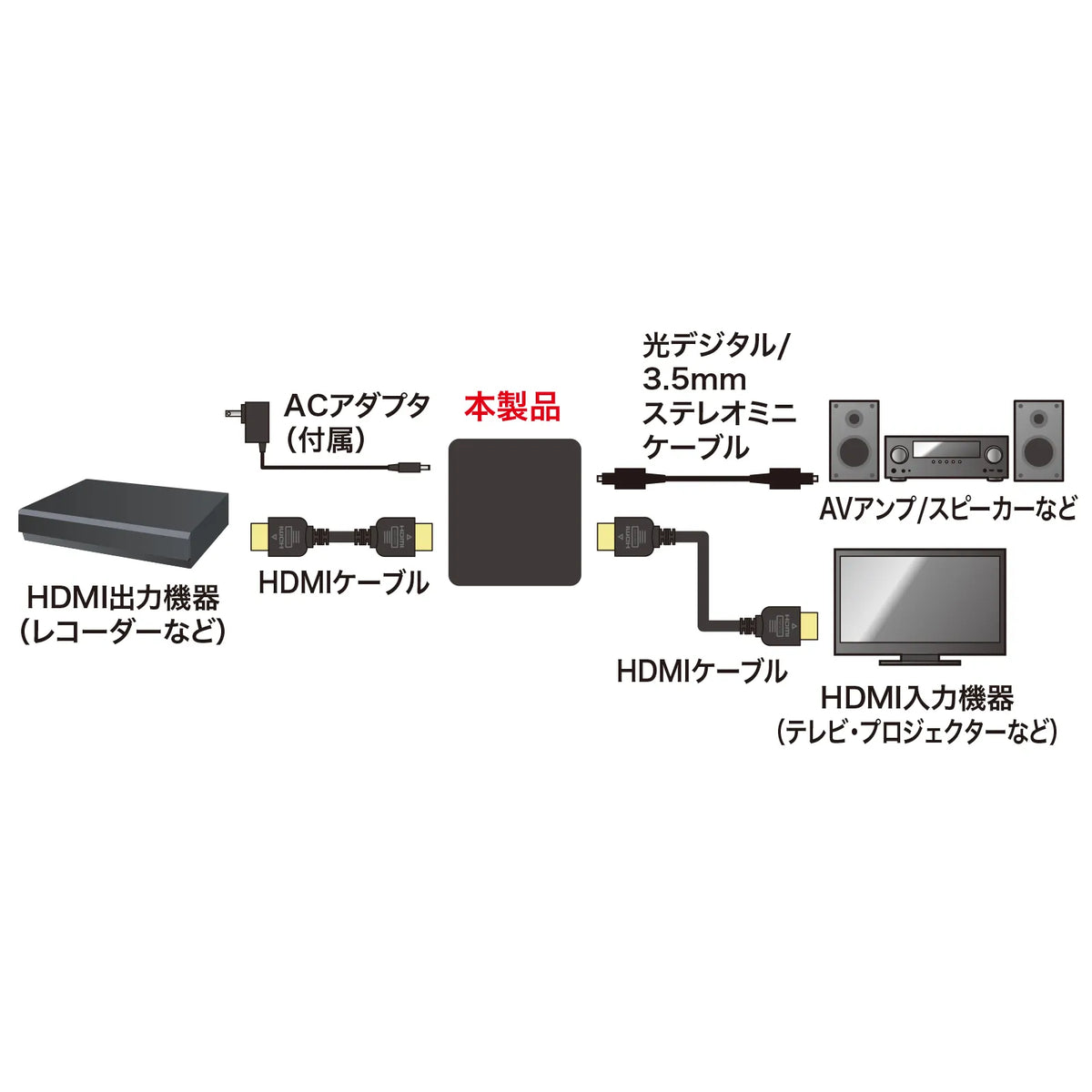

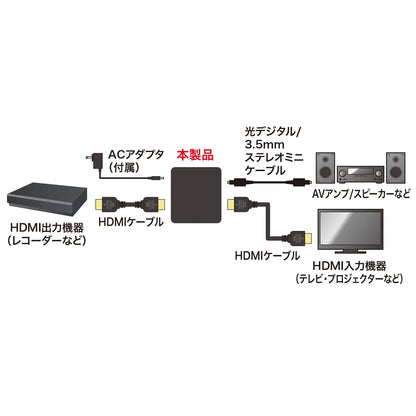

●By separating the HDMI audio and outputting it to an AV amplifier or speakers while outputting the original HDMI signal (video and audio) as is to a display, you can enjoy powerful sound.
●It is also ideal for use with displays that do not have audio output and when you want to output audio from external speakers.
●It is possible to output via optical digital (square type) and output high-quality digital audio to AV amplifiers, etc.
●It also supports 4K/HDR output from Nintendo Switch™ and PlayStation 4 Pro(R).
■Supported Resolutions:
4K/4096x2160 (60Hz, 4:4:4)
4096x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
3840x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
1920x1080p (60/50/30/24Hz)
1920x1080i (60/50/30/24Hz)
1280x720p (60/50Hz)
640x480p (60/50Hz)
*Depends on the resolution of the connected TV or monitor.

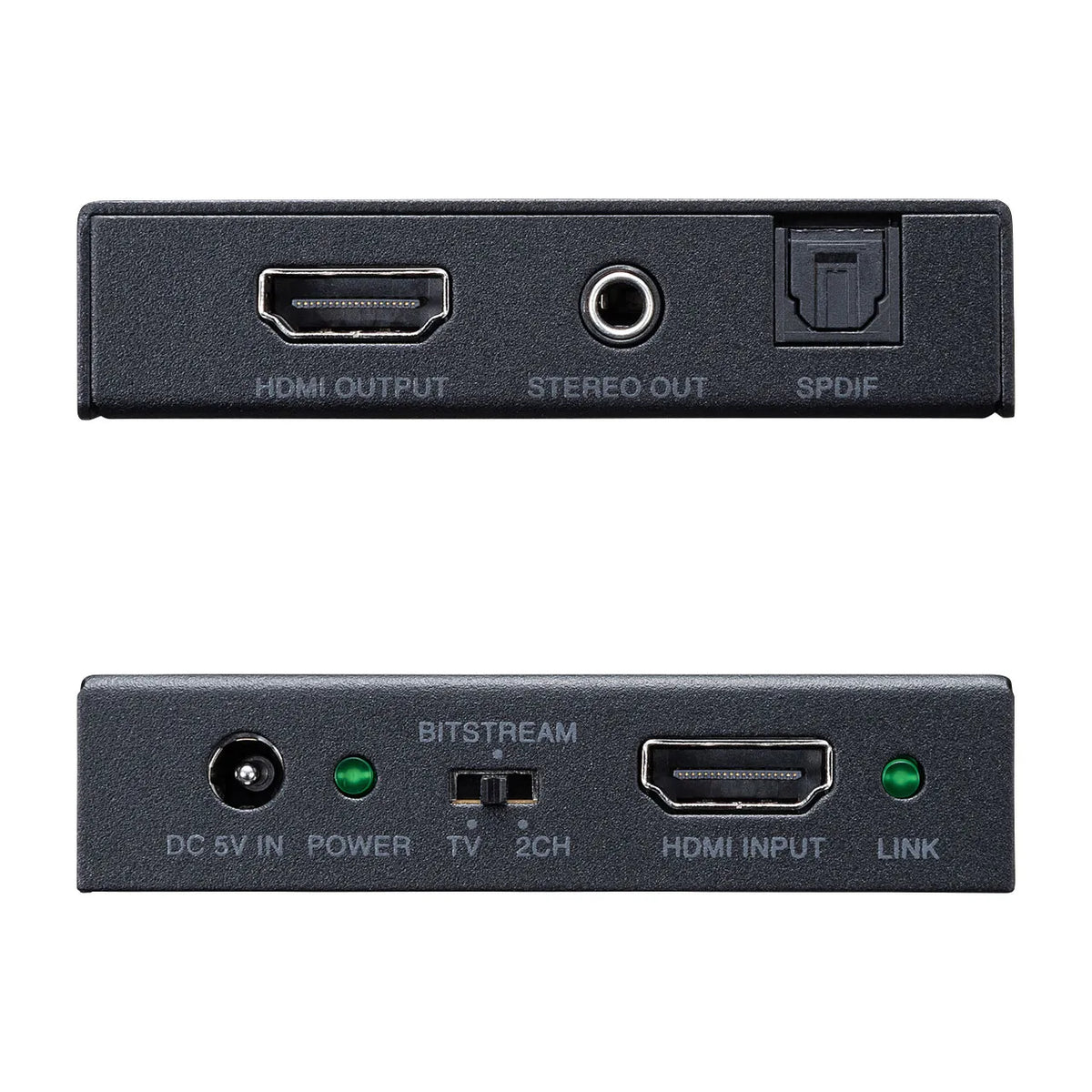

■Interface:
Input: HDMI Type A (19-pin) female x1
Output: HDMI Type A (19-pin) female x1, Toslink x1, 3.5mm stereo mini jack x1
■Supported audio formats:
HDMI input/output: Dolby Digital 2/5.1ch, Dolby Digital Plus2/5.1/7.1ch, Dolby TrueHD 2/5.1/7.1ch, DTS5.1ch, DTS HD Master Audio, LPCM2/5.1/7.1ch
Optical digital output: Dolby Digital 2ch/5.1ch, DTS 2/5.1ch, LPCM2ch
Analog output: LPCM2ch (24bit/48kHz)
■Data rate: 18Gbit/s (maximum)
■Pixel clock: 600MHz (maximum)
■HDMI standard: HDMI Ver2.0b
■Input DDC signal: 5V
■HDCP: HDCP2.2/1.4 compliant
■CEC (Connected Electronic Control): Supported
■Power consumption: Maximum 1W
■Environmental conditions: Operating temperature/0 to 40 degrees, Operating humidity/80% or less (non-condensing)
Storage temperature/-20 to 60 degrees, Storage humidity/80% or less (non-condensing)
■Material: Steel
■Size: Approx. W60.7 x D73.5 x H17 mm
■Weight: Approx. 130 g

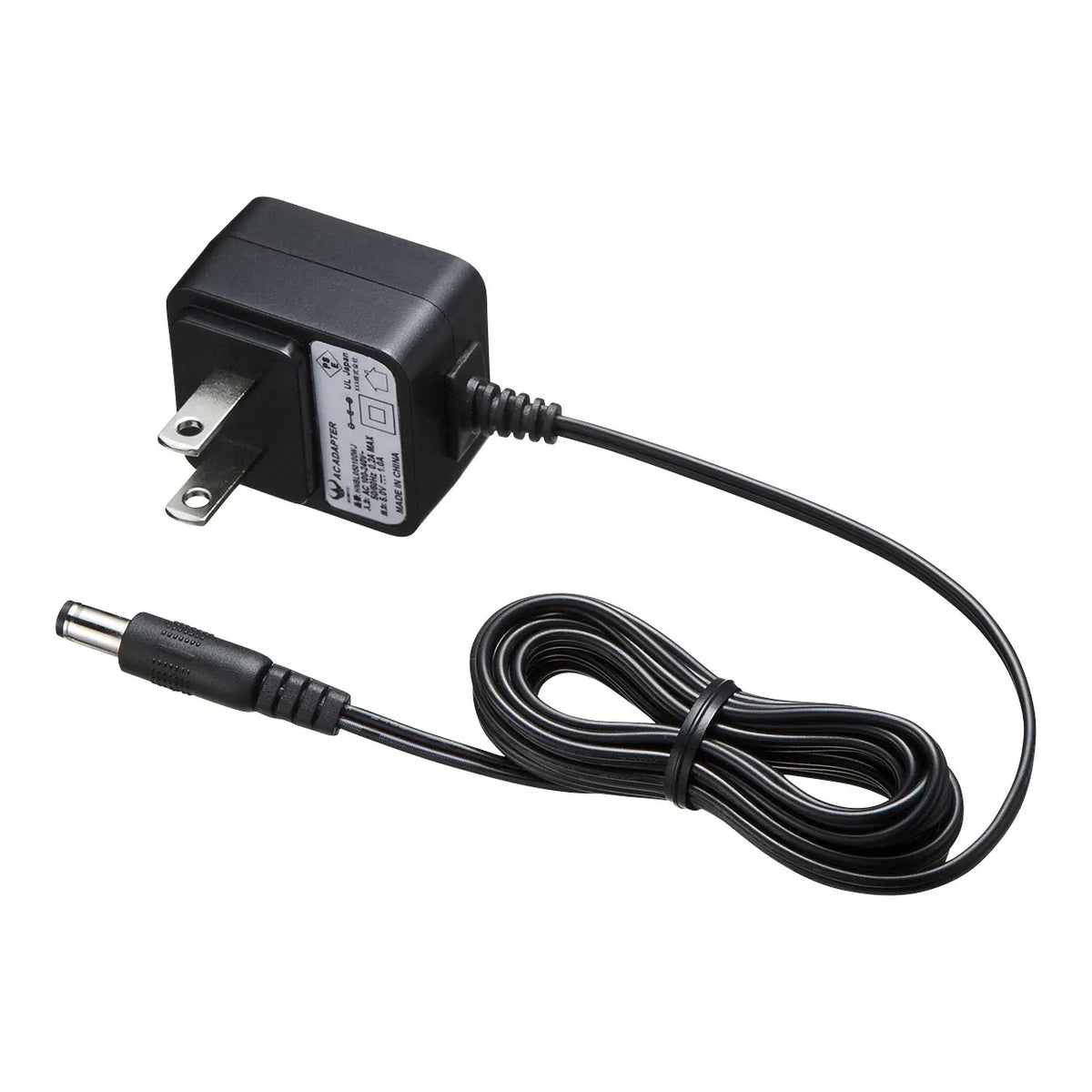

■Accessories: AC adapter x1, Instruction manual, Warranty
●This HDMI signal audio splitter can separate the audio signal from the HDMI signal of a PC or HDMI video device and convert it to an optical digital signal and analog audio signal for output.
●It supports 4K/4096x2160 (60Hz, 4:4:4, 24bit (maximum)), high brightness HDR (High Dynamic Range), and HDCP2.2.
●By separating the HDMI audio and outputting it to an AV amplifier or speakers while outputting the original HDMI signal (video and audio) as is to a display, you can enjoy powerful sound.
●It is also ideal for use with displays that do not have audio output and when you want to output audio from external speakers.
●It is possible to output via optical digital (square type) and output high-quality digital audio to AV amplifiers, etc.
●It also supports 4K/HDR output from Nintendo Switch™ and PlayStation 4 Pro(R).
■Supported Resolutions:
4096x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
3840x2160 (60/50/30/25/24Hz, 4:4:4/4:2:2/4:2:0)
1920x1080p (60/50/30/24Hz)
1920x1080i (60/50/30/24Hz)
1280x720p (60/50Hz)
640x480p (60/50Hz)
*Depends on the resolution of the connected TV or monitor.
■Interface:
Input: HDMI Type A (19-pin) female x1
Output: HDMI Type A (19-pin) female x1, Toslink x1, 3.5mm stereo mini jack x1
■Supported audio formats:
HDMI input/output: Dolby Digital 2/5.1ch, Dolby Digital Plus2/5.1/7.1ch, Dolby TrueHD 2/5.1/7.1ch, DTS5.1ch, DTS HD Master Audio, LPCM2/5.1/7.1ch
Optical digital output: Dolby Digital 2ch/5.1ch, DTS 2/5.1ch, LPCM2ch
Analog output: LPCM2ch (24bit/48kHz)
■Data rate: 18Gbit/s (maximum)
■Pixel clock: 600MHz (maximum)
■HDMI standard: HDMI Ver2.0b
■Input DDC signal: 5V
■HDCP: HDCP2.2/1.4 compliant
■CEC (Connected Electronic Control): Supported
■Power consumption: Maximum 1W
■Environmental conditions: Operating temperature/0 to 40 degrees, Operating humidity/80% or less (non-condensing)
Storage temperature/-20 to 60 degrees, Storage humidity/80% or less (non-condensing)
■Material: Steel
■Size: Approx. W60.7 x D73.5 x H17 mm
■Weight: Approx. 130 g
■Accessories: AC adapter x1, Instruction manual, Warranty
