SANWA SUPPLY

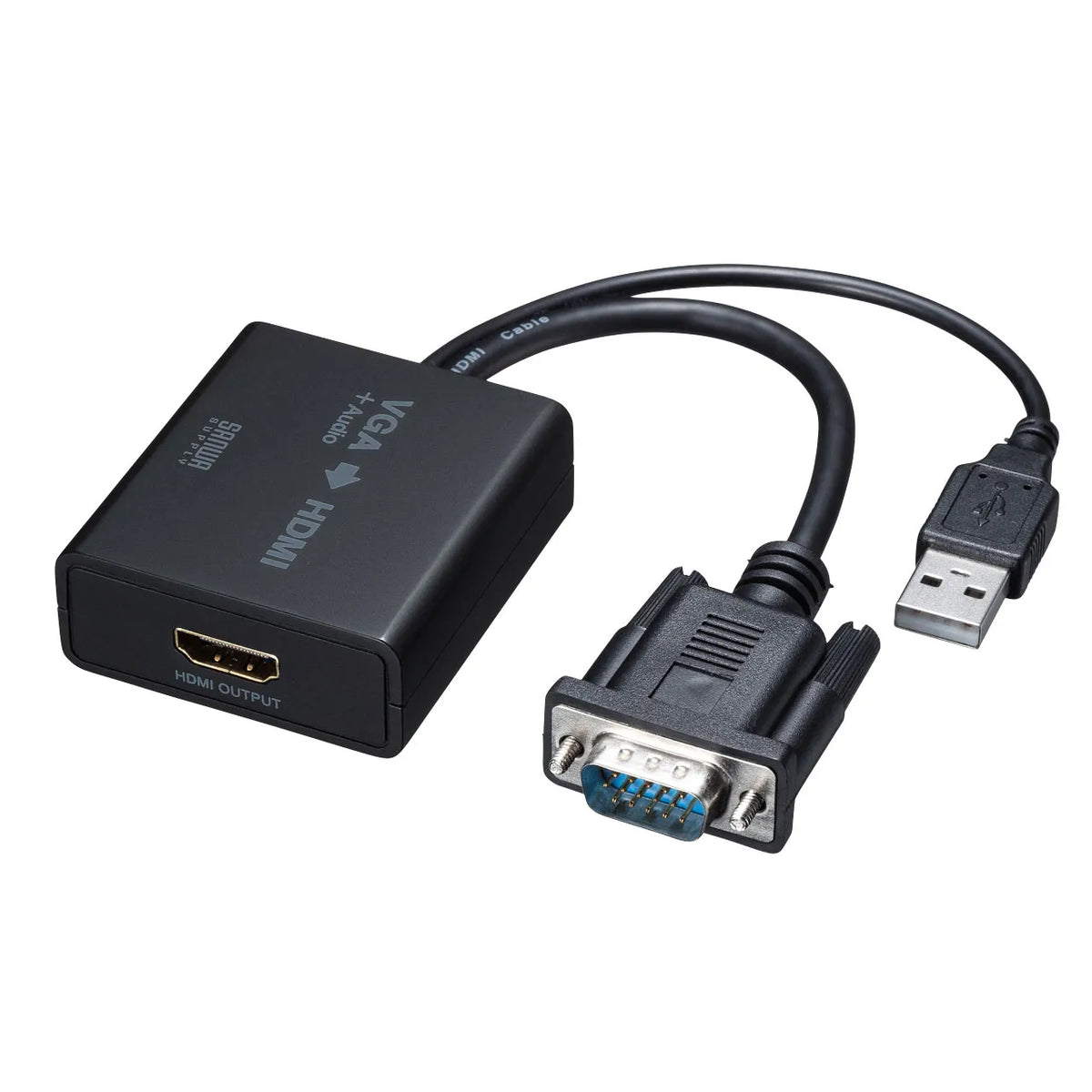

VGA to HDMI Converter VGA-CVHD7
VGA to HDMI Converter VGA-CVHD7
GTIN（JAN）：4969887594162
SKU：VGA-CVHD7
Regular price
¥4,937 JPY
Regular price
Sale price
¥4,937 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)

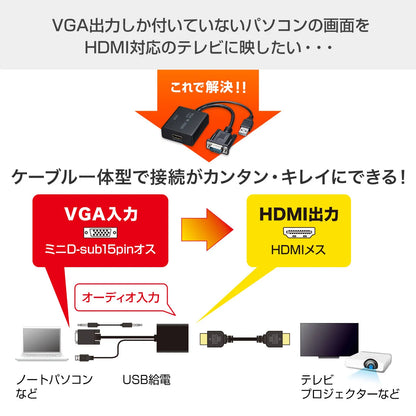

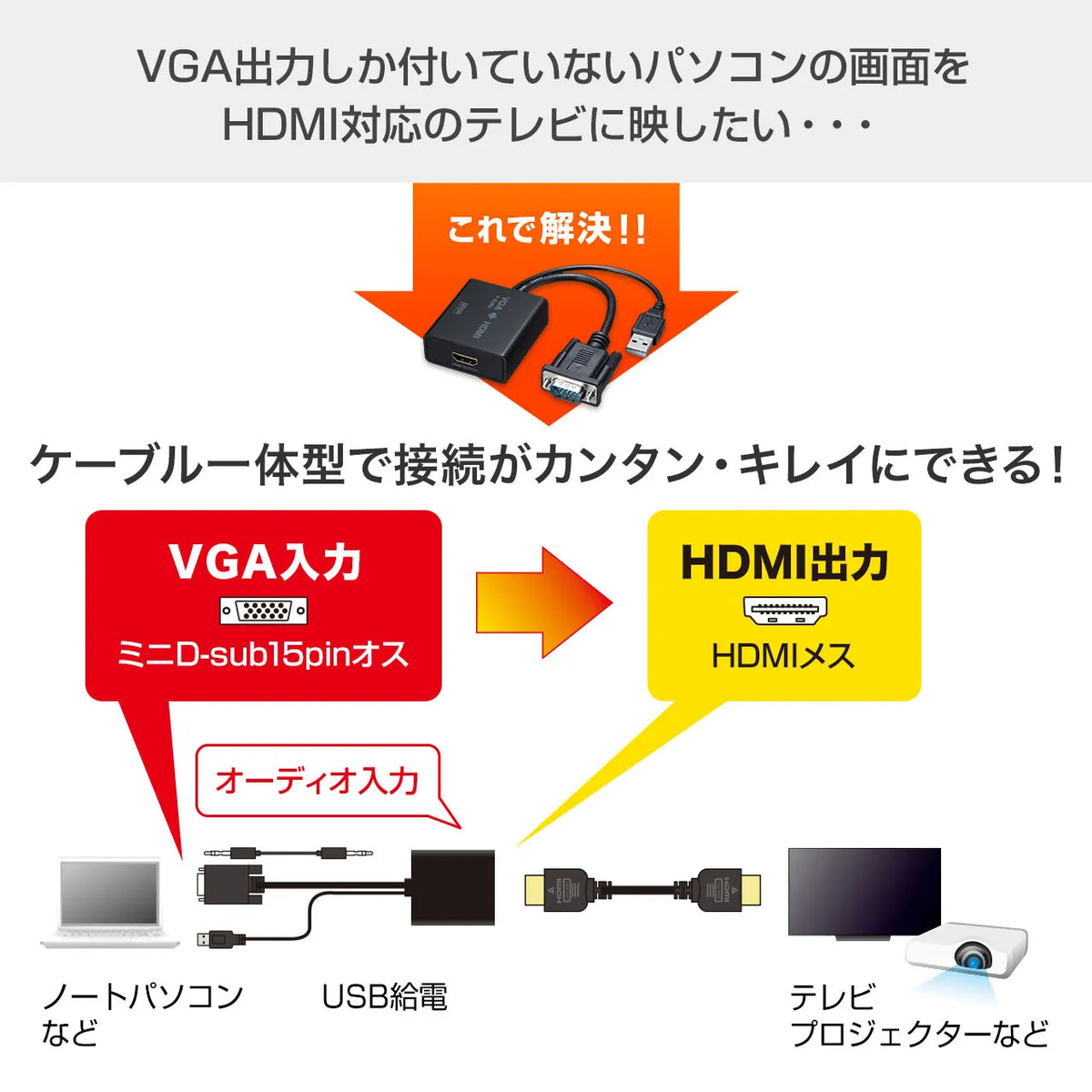

[Cable-integrated converter that can convert Mini D-sub (HD) 15-pin analog signal (VGA) and audio signal to HDMI signal]
●This converter converts Mini D-sub (HD) 15-pin analog signal (VGA) to an HDMI signal.

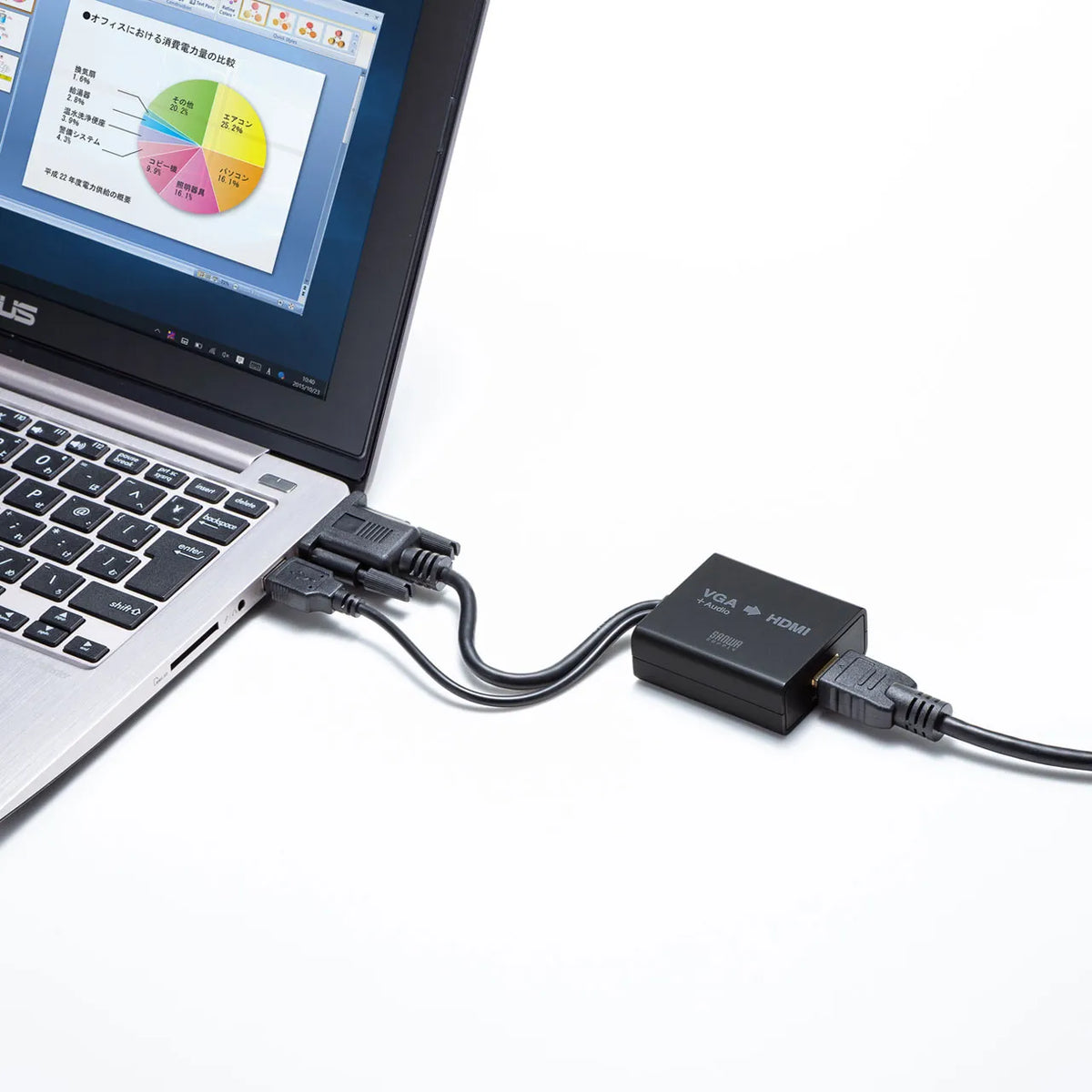

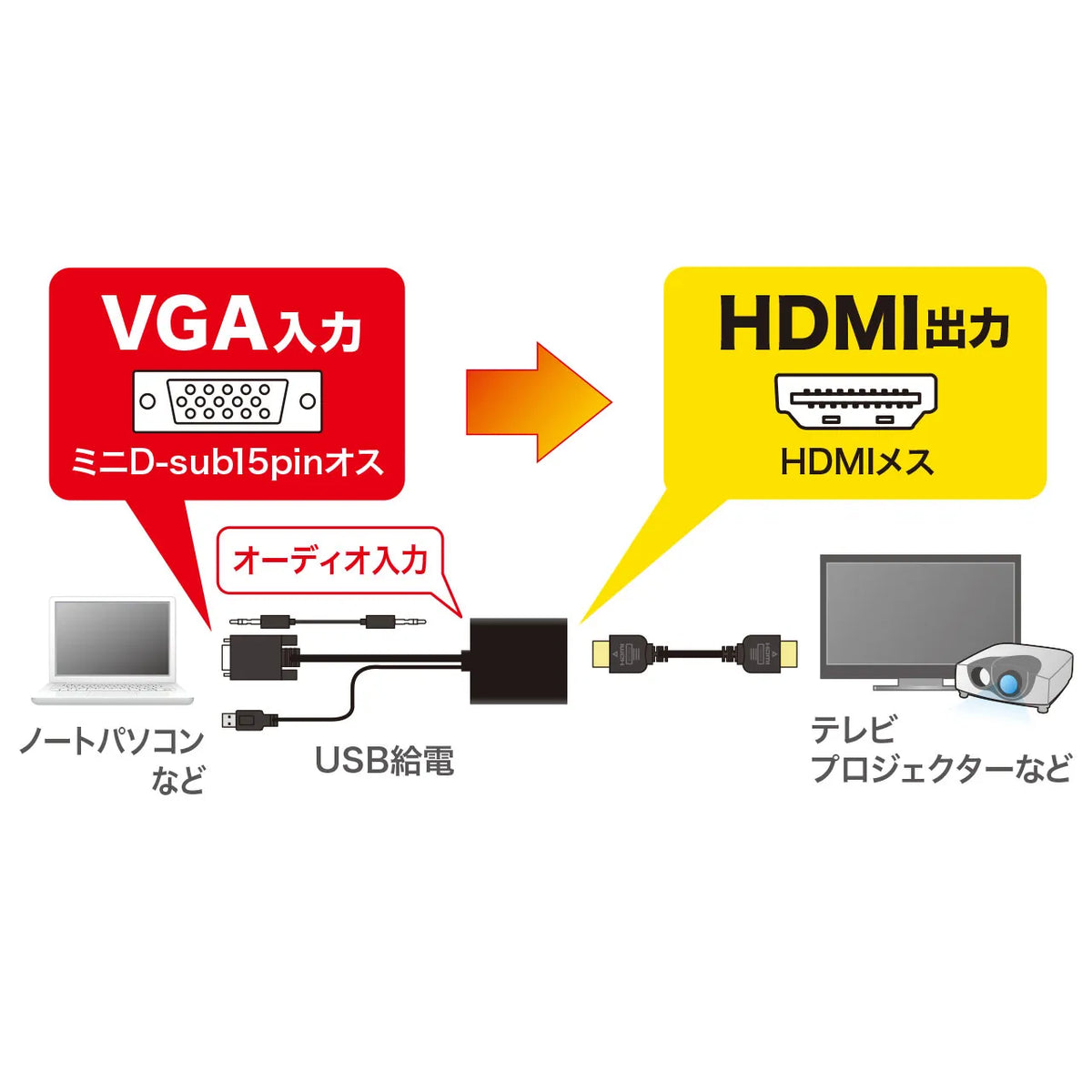

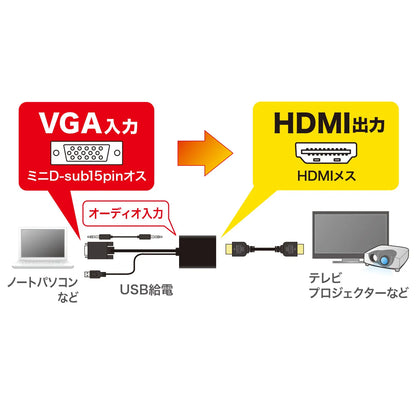

●Ideal for connecting and displaying from a computer equipped with a Mini D-Sub (HD) 15-pin analog VGA port to an HDMI-equipped display.
●It can also convert a 3.5mm stereo mini audio signal at the same time, so you can output both video and audio from an HDMI display.

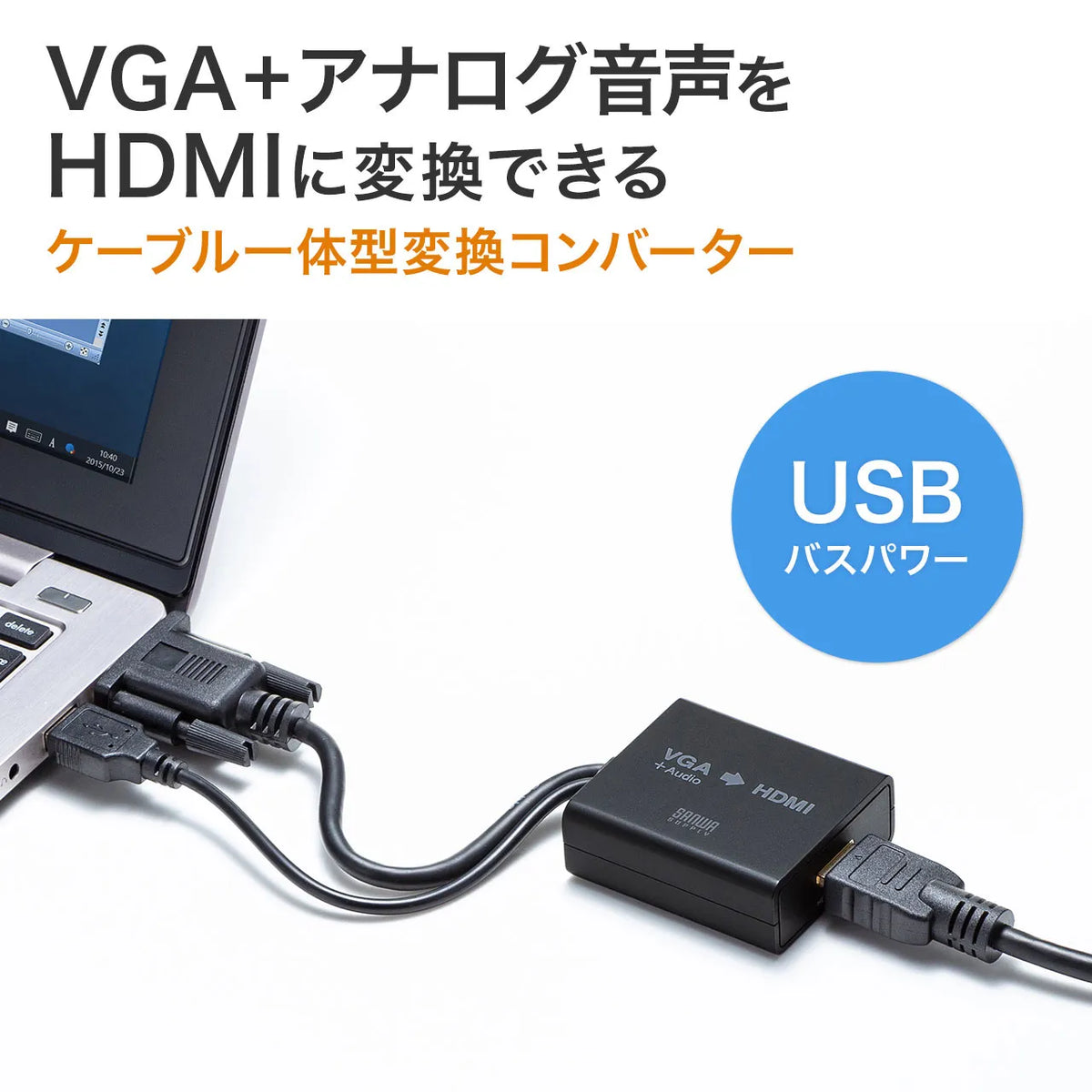

●It operates using USB bus power, so it can be easily set up even in a mobile environment.
●No driver installation is required. Just connect it and it's ready to use.
●The cable is integrated for easy connection.
＜Please check before purchasing＞
※LCD TVs, projectors, and computer displays must also support the above resolution and refresh rate.
※1920x1200 resolution is not supported.
※Even with a supported resolution, please note that it may not display correctly if the refresh rate is different.
*This product converts signals from analog VGA to digital HDMI, but compatibility issues such as the device not recognizing or displaying the image may occur depending on the device.
*Operation is not guaranteed with all devices.
*A 3.5mm stereo mini cable is not included.
■Supported resolutions:
1920x1080(60Hz)
1680x1050(60Hz)
1600x900(60Hz)
1600x1200(60Hz)
1440x900(60Hz)
1400x1050(60Hz)
1366x768(60Hz)
1360x768(60Hz)
1280x960(85Hz/60Hz)
1280x800(85Hz/75Hz/60Hz)
1280x768 (85Hz/75Hz/60Hz)
1280x720 (60Hz)
1280x1024 (75Hz/60Hz)
1152x864 (75Hz)
1024x768 (85Hz/75Hz/70Hz/60Hz)
800x600 (85Hz/75Hz/72Hz/60Hz)
640x480 (85Hz/75Hz/72Hz/60Hz)
*1920x1200 resolution is not supported.

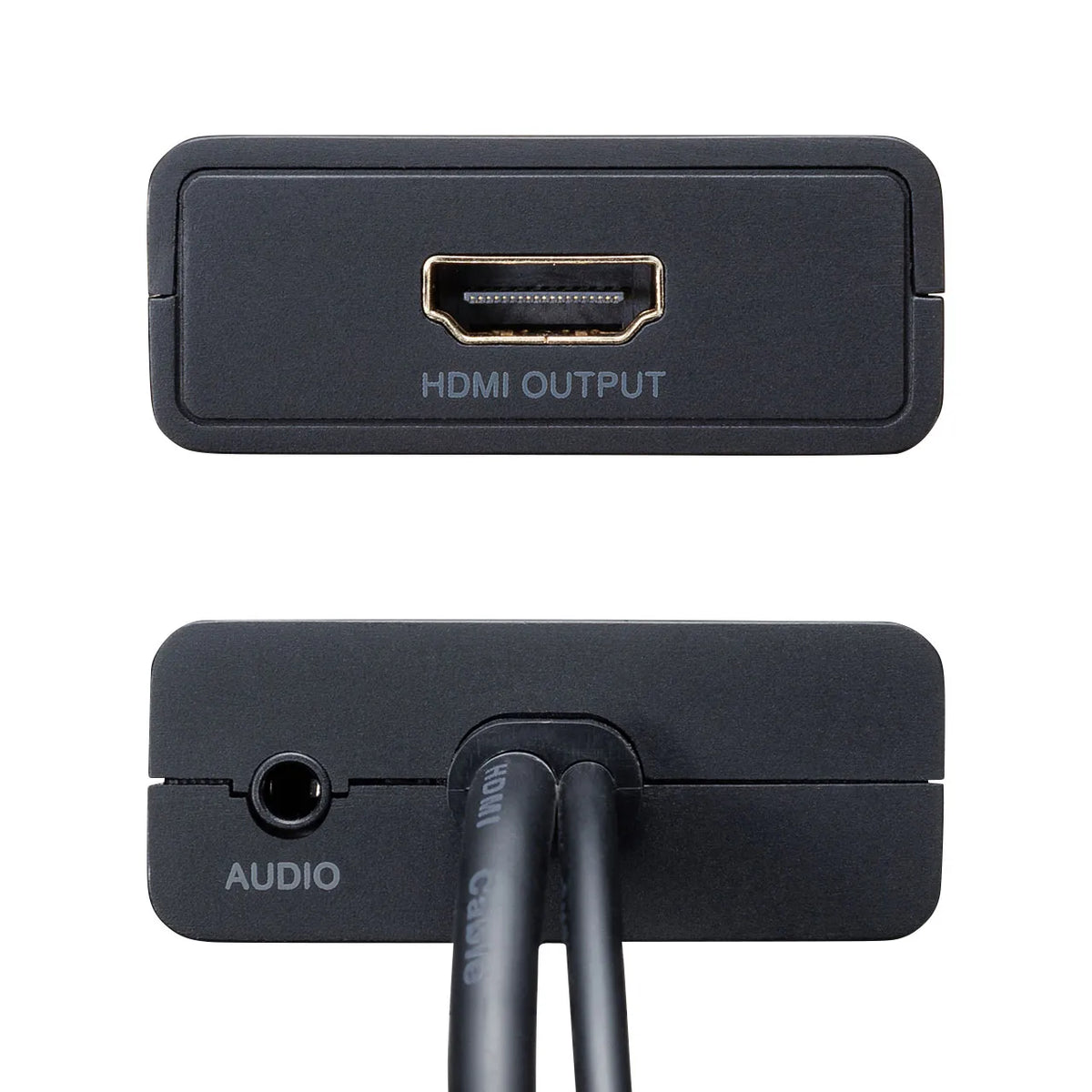

■Interface:
Input: Mini D-sub (HD) 15-pin male x1, 3.5mm stereo mini jack x1
Output: HDMI Type A (19-pin) female x1
■Supported audio format: Linear PCM 2 channel (48kHz)
■Input DDC signal: 5V
■Power consumption: 0.5W
■Operating environment: Operating temperature 0 to 40 degrees Celsius, operating humidity 80% or less (non-condensing)
Storage temperature -20 to 60 degrees Celsius, storage humidity 80% or less (non-condensing)
■Material: ABS resin

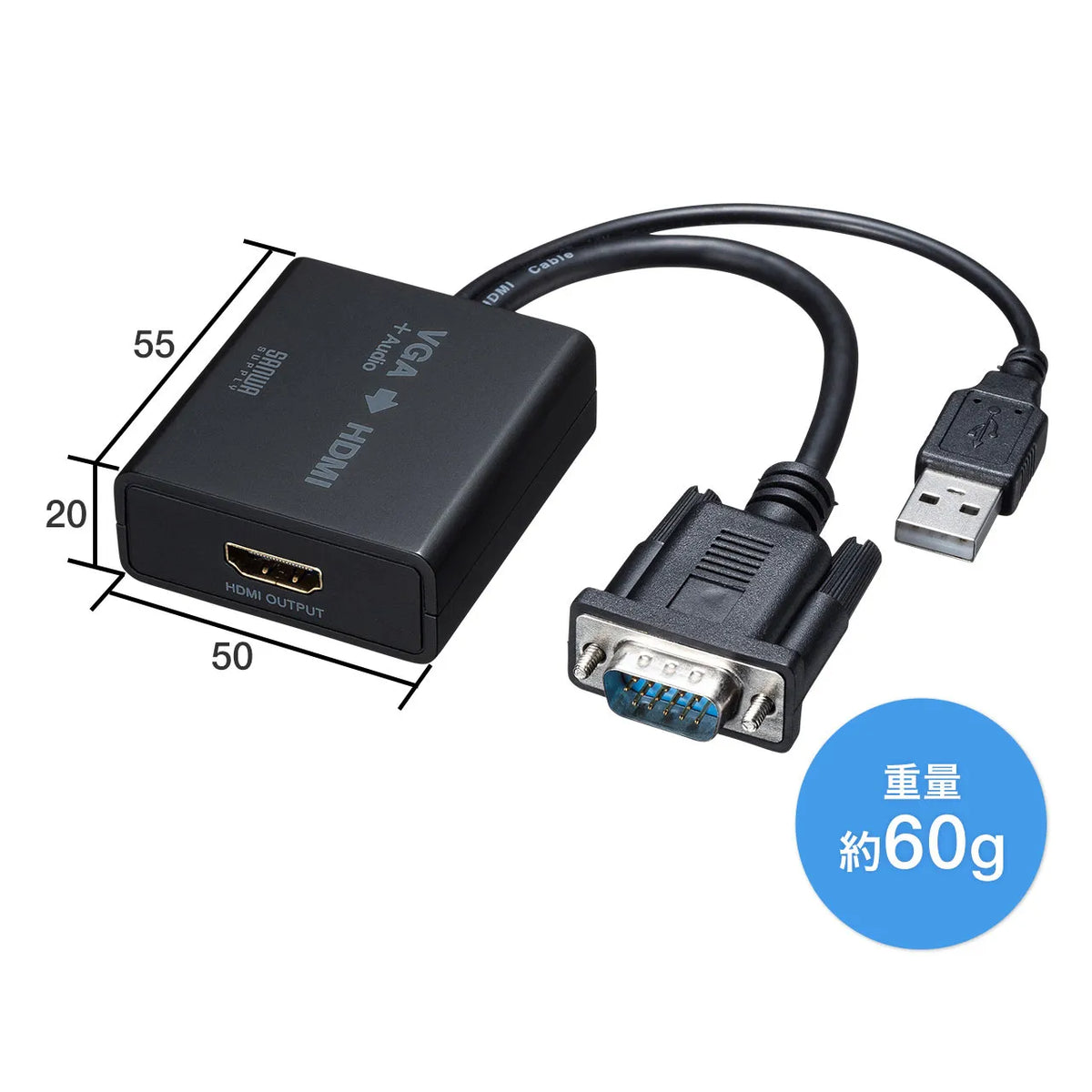

■Size: W50 x D55 x H20 mm
■Weight: Approx. 60g
■Accessories: Instruction manual, warranty card
