SANWA SUPPLY

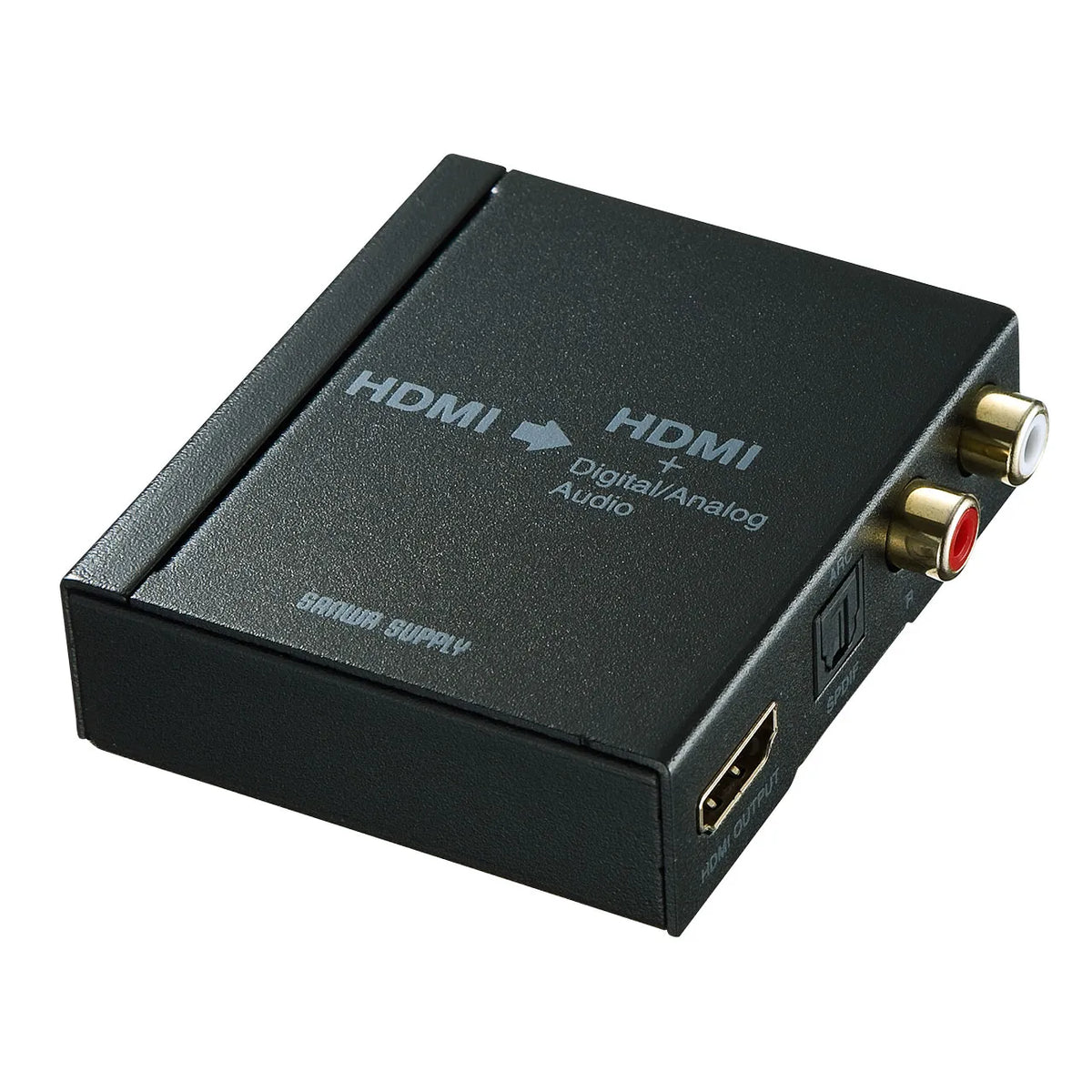

HDMI signal audio splitter (optical digital/analog compatible) VGA-CVHD5
HDMI signal audio splitter (optical digital/analog compatible) VGA-CVHD5
GTIN（JAN）：4969887593554
SKU：VGA-CVHD5
Regular price
¥9,002 JPY
Regular price
Sale price
¥9,002 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[HDMI Signal Audio Splitter that Separates Audio Signals from HDMI Signals (Video and Audio) and Converts them to Optical Digital Output and Analog Audio Output]
●This HDMI signal audio splitter can separate audio signals from HDMI signals from PCs and HDMI video devices and convert them to optical digital signals and analog audio signals for output.

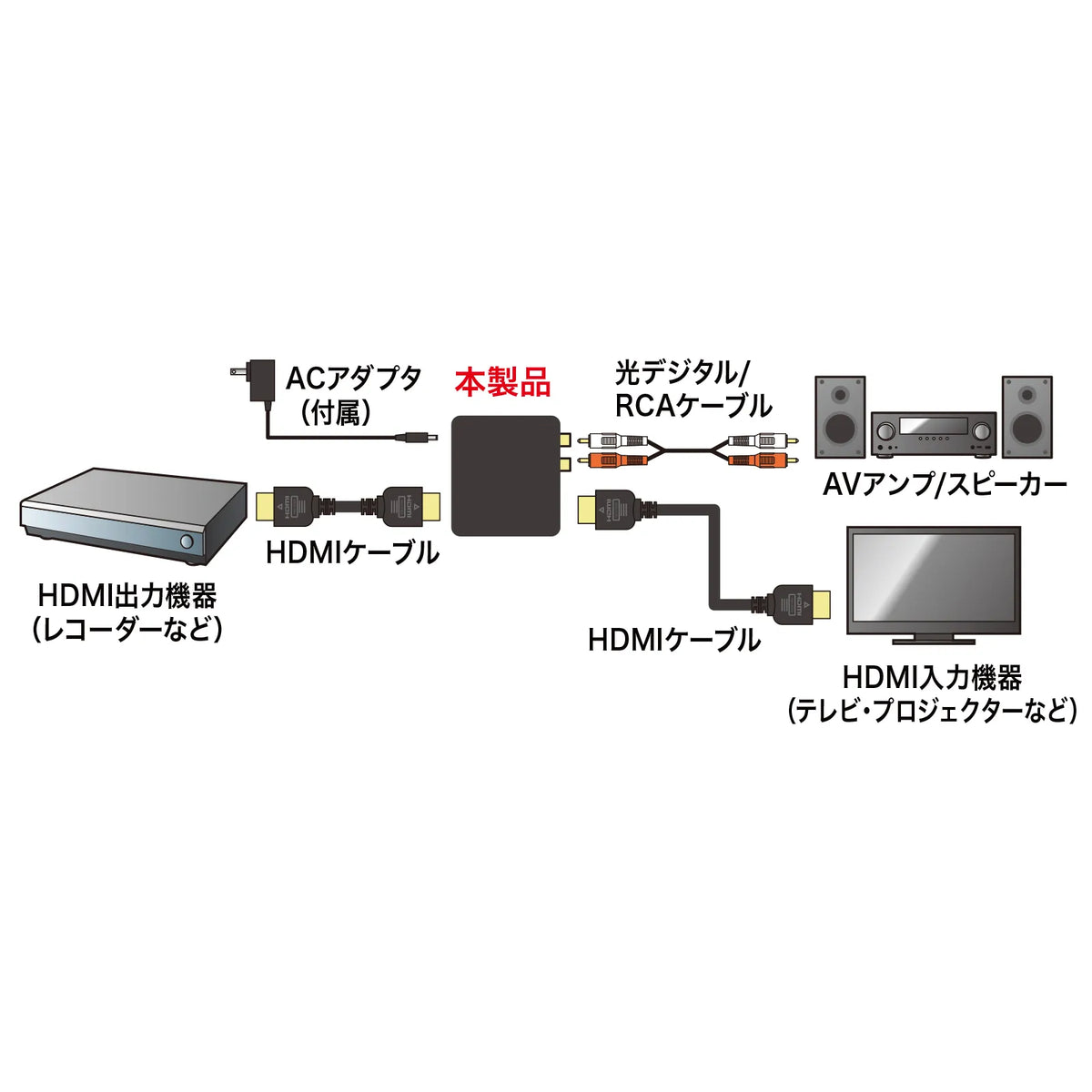

●While the original HDMI signal (video and audio) is output as is to a display or projector, you can separate the HDMI audio and output it to an AV amplifier or speakers to enjoy powerful sound.
●It is also ideal for use with displays that do not have audio output and when you want to output audio from external speakers.
●It is possible to output via optical digital (square type) and output high-quality digital audio to AV amplifiers, etc.
●It also supports ARC mode, and when ARC mode is turned ON, it is possible to output TV broadcast audio through this product to AV amplifiers, speakers, etc.
※When in ARC mode, only optical digital audio output is supported. Analog audio is not output.
●Supports resolutions up to 4K2K (4096x2160 pixels) (30Hz), allowing for beautiful, high-definition HDMI signal passthrough output.
*Operation is not guaranteed with all HDMI and AV equipment.
*An HDMI cable of approximately 2m between this product and the display is recommended.
■Supported Resolutions:
4096x2160 pixels (30Hz) (4:4:4)
3840x2160 pixels (30Hz) (4:4:4)
3840x2160 pixels (30Hz) (4:2:2)
1920x1200 pixels (60Hz)
1920x1080 pixels (60Hz)

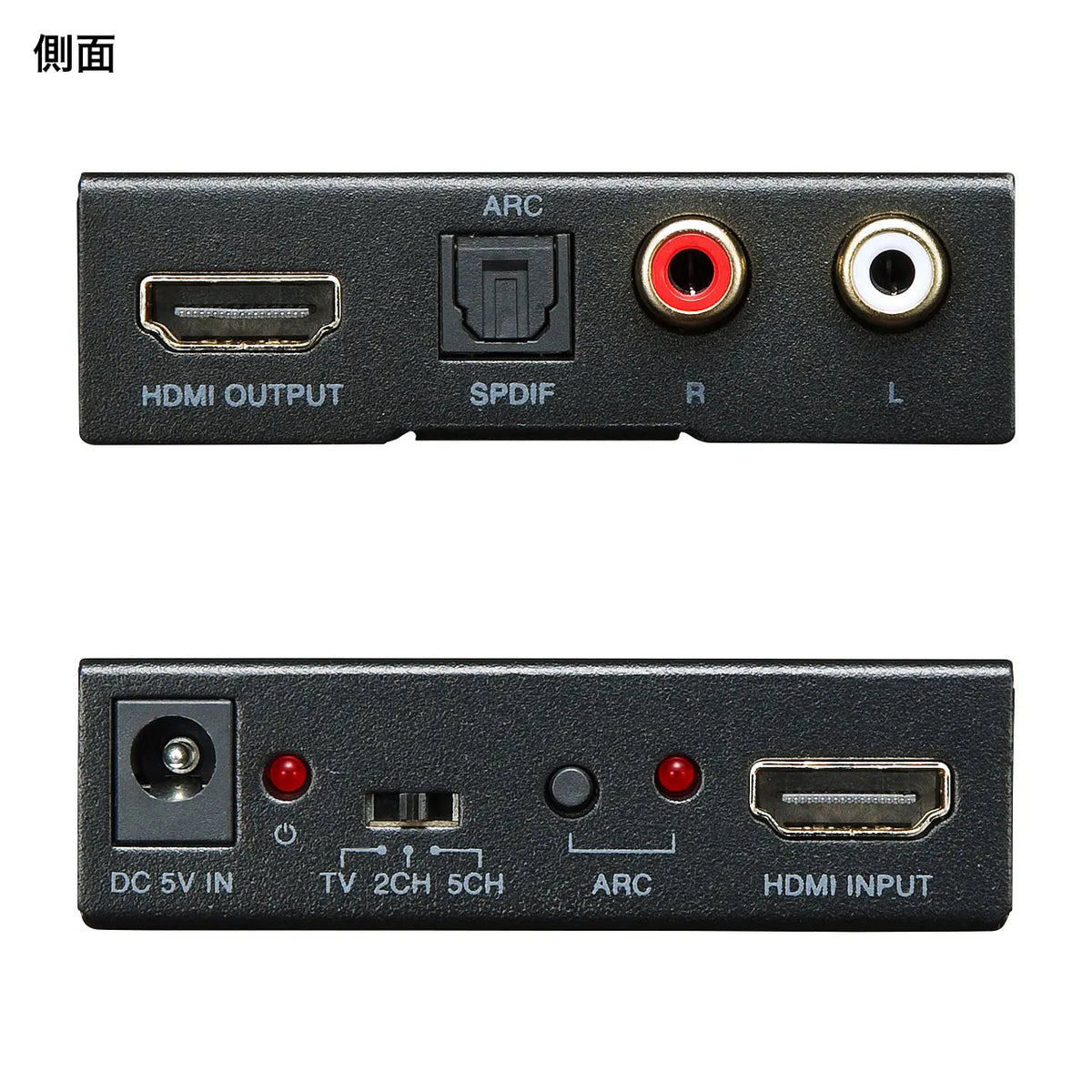

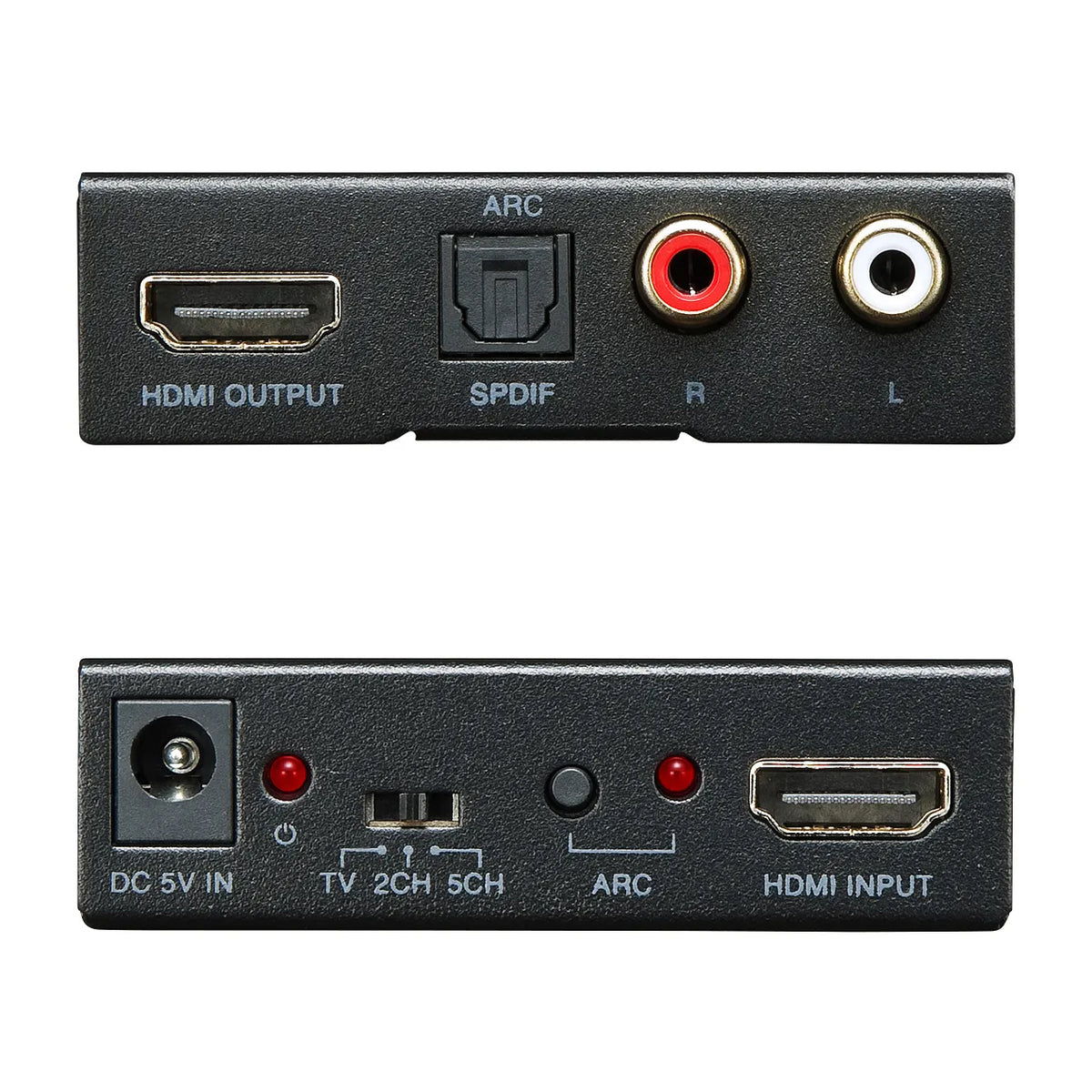

■Interface: Input/HDMI Type A (19pin) female x1
Output/HDMI Type A (19pin) female x1, Toslink x1, RCA pin jack (red/white) x1
■Supported Audio Formats: HDMI input/output/Dolby Digital 2.0ch/5.1ch, Dolby Digital Plus 2.0ch/5.1ch/7.1ch, Dolby TrueHD 2.0ch/5.1ch/7.1ch, DTS5.1ch, DTS HD5.1ch, LPCM2ch (up to 24bit 192kHz)
Optical digital output side/Dolby Digital 2.0ch/5.1ch, DTS5.1ch, LPCM2ch (up to 24bit 192kHz)
Analog output side/LPCM2ch (up to 24bit 48kHz)
■HDCP: HDCP1.4 compliant
■CEC (Customer Electronic Control): Supported
*Operation is not guaranteed with all devices.
■Power Consumption: 1W
■Environmental Conditions: Operating Temperature/0 to 40 degrees Celsius, Operating Humidity/80% or less (no condensation)
Storage Temperature/-20 to 60 degrees Celsius, Storage Humidity/80% or less (no condensation)
■Size: W60 x D70 x H20 mm
■Weight: Approx. 125g

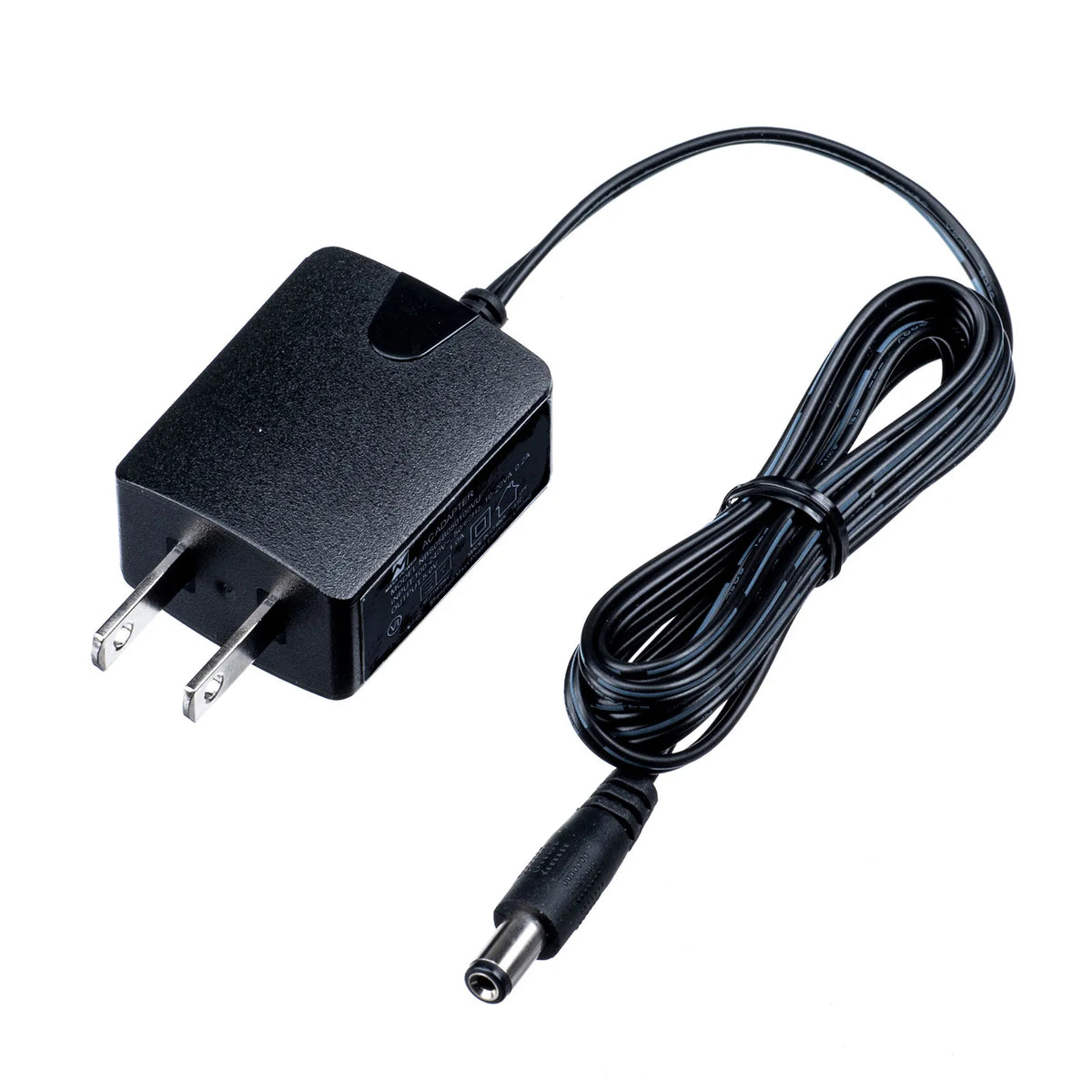

■Accessories: AC adapter x1, Instruction manual, Warranty
●This HDMI signal audio splitter can separate audio signals from HDMI signals from PCs and HDMI video devices and convert them to optical digital signals and analog audio signals for output.
●While the original HDMI signal (video and audio) is output as is to a display or projector, you can separate the HDMI audio and output it to an AV amplifier or speakers to enjoy powerful sound.
●It is also ideal for use with displays that do not have audio output and when you want to output audio from external speakers.
●It is possible to output via optical digital (square type) and output high-quality digital audio to AV amplifiers, etc.
●It also supports ARC mode, and when ARC mode is turned ON, it is possible to output TV broadcast audio through this product to AV amplifiers, speakers, etc.
※When in ARC mode, only optical digital audio output is supported. Analog audio is not output.
●Supports resolutions up to 4K2K (4096x2160 pixels) (30Hz), allowing for beautiful, high-definition HDMI signal passthrough output.
*Operation is not guaranteed with all HDMI and AV equipment.
*An HDMI cable of approximately 2m between this product and the display is recommended.
■Supported Resolutions:
4096x2160 pixels (30Hz) (4:4:4)
3840x2160 pixels (30Hz) (4:4:4)
3840x2160 pixels (30Hz) (4:2:2)
1920x1200 pixels (60Hz)
1920x1080 pixels (60Hz)
■Interface: Input/HDMI Type A (19pin) female x1
Output/HDMI Type A (19pin) female x1, Toslink x1, RCA pin jack (red/white) x1
■Supported Audio Formats: HDMI input/output/Dolby Digital 2.0ch/5.1ch, Dolby Digital Plus 2.0ch/5.1ch/7.1ch, Dolby TrueHD 2.0ch/5.1ch/7.1ch, DTS5.1ch, DTS HD5.1ch, LPCM2ch (up to 24bit 192kHz)
Optical digital output side/Dolby Digital 2.0ch/5.1ch, DTS5.1ch, LPCM2ch (up to 24bit 192kHz)
Analog output side/LPCM2ch (up to 24bit 48kHz)
■HDCP: HDCP1.4 compliant
■CEC (Customer Electronic Control): Supported
*Operation is not guaranteed with all devices.
■Power Consumption: 1W
■Environmental Conditions: Operating Temperature/0 to 40 degrees Celsius, Operating Humidity/80% or less (no condensation)
Storage Temperature/-20 to 60 degrees Celsius, Storage Humidity/80% or less (no condensation)
■Size: W60 x D70 x H20 mm
■Weight: Approx. 125g
■Accessories: AC adapter x1, Instruction manual, Warranty
