SANWA SUPPLY
VGA to HDMI Converter VGA-CVHD2
VGA to HDMI Converter VGA-CVHD2
GTIN（JAN）：4969887592960
SKU：VGA-CVHD2
Regular price
¥7,405 JPY
Regular price
Sale price
¥7,405 JPY
Quantity
Couldn't load pickup availability
Important: Return Policy
Please review your order carefully before completing the purchase. We do not accept returns or exchanges for customer errors (e.g., wrong size, color, or accidental purchase)
[Converter that can convert Mini D-sub (HD) 15-pin analog signal (VGA) to HDMI signal]

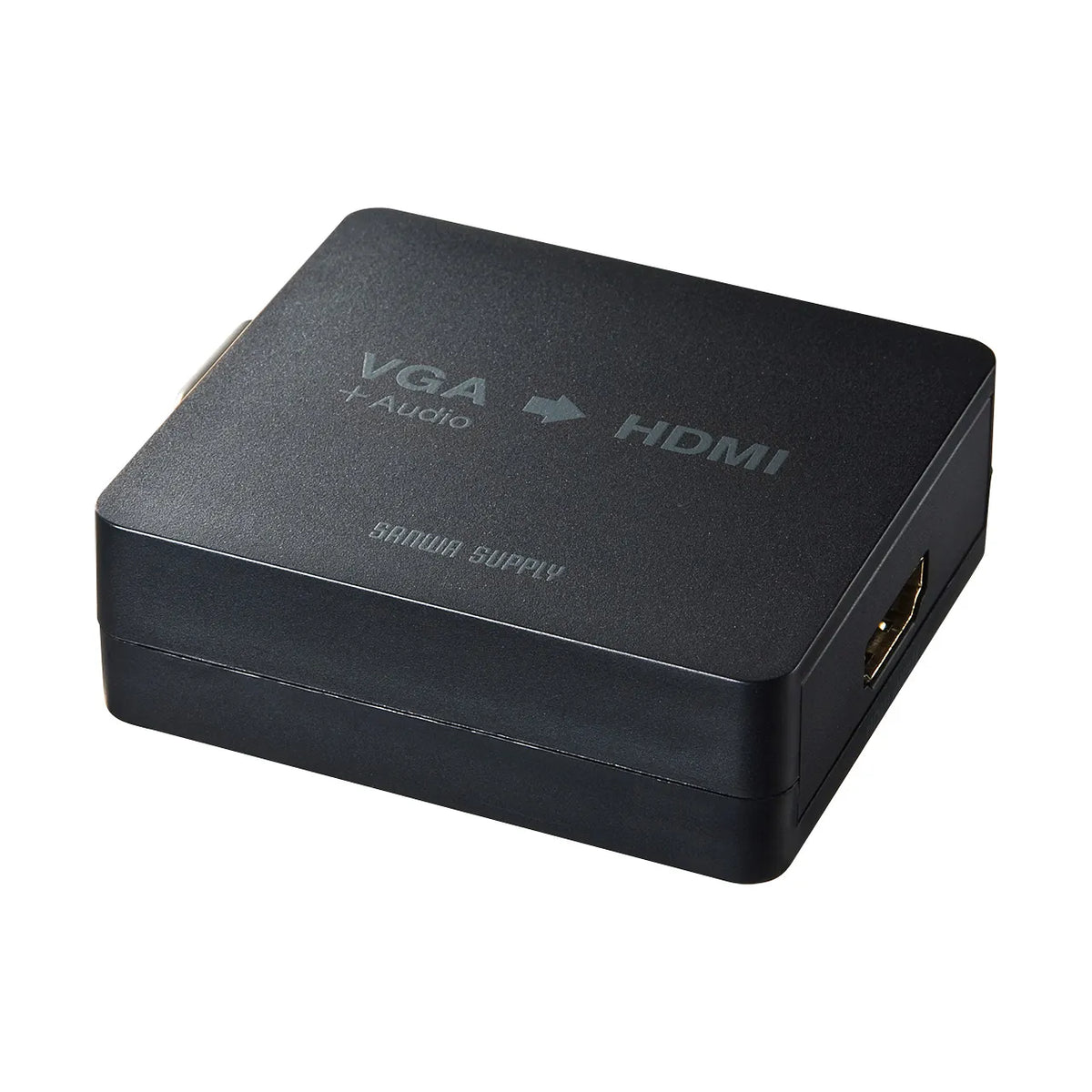

●This is a converter that converts Mini D-sub (HD) 15-pin analog signal (VGA) to an HDMI signal.

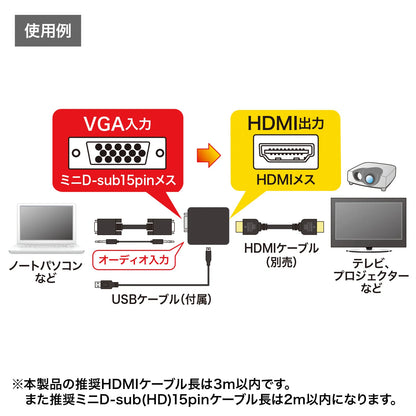

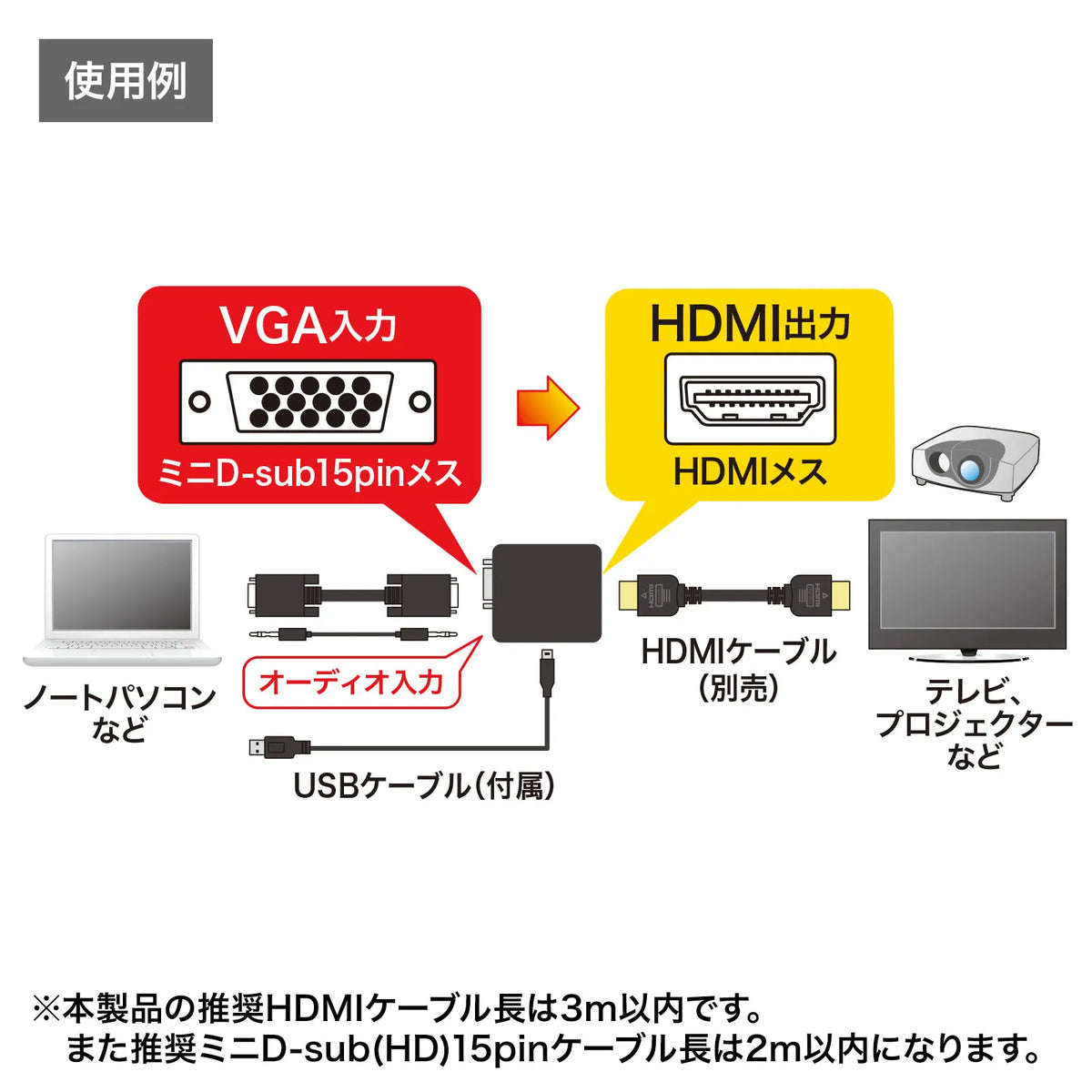

●Ideal for connecting and displaying from a computer equipped with a Mini D-sub (HD) 15-pin analog VGA port to an HDMI-equipped display.
●It can also convert 3.5mm stereo audio signals at the same time, so you can output both video and audio from an HDMI display.

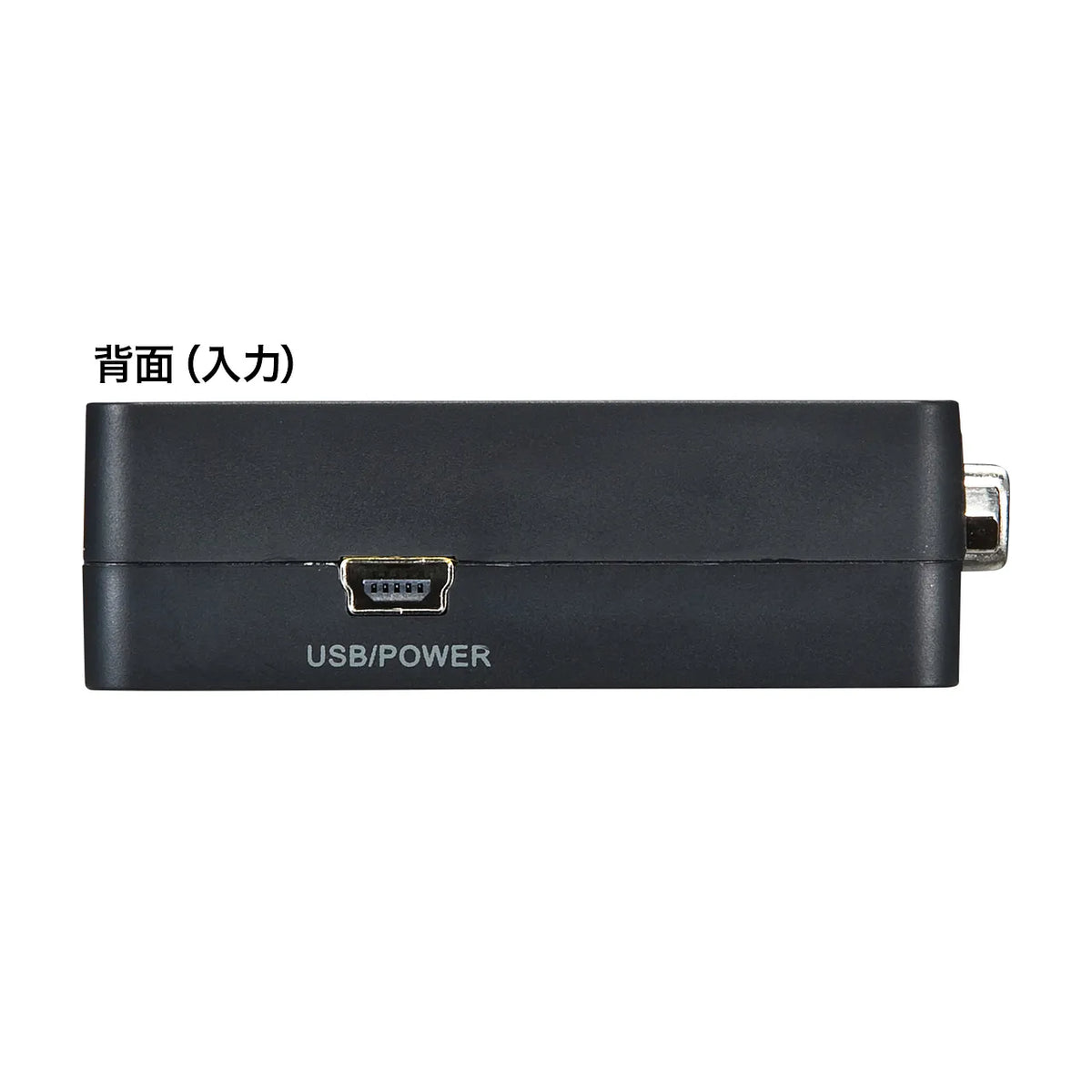

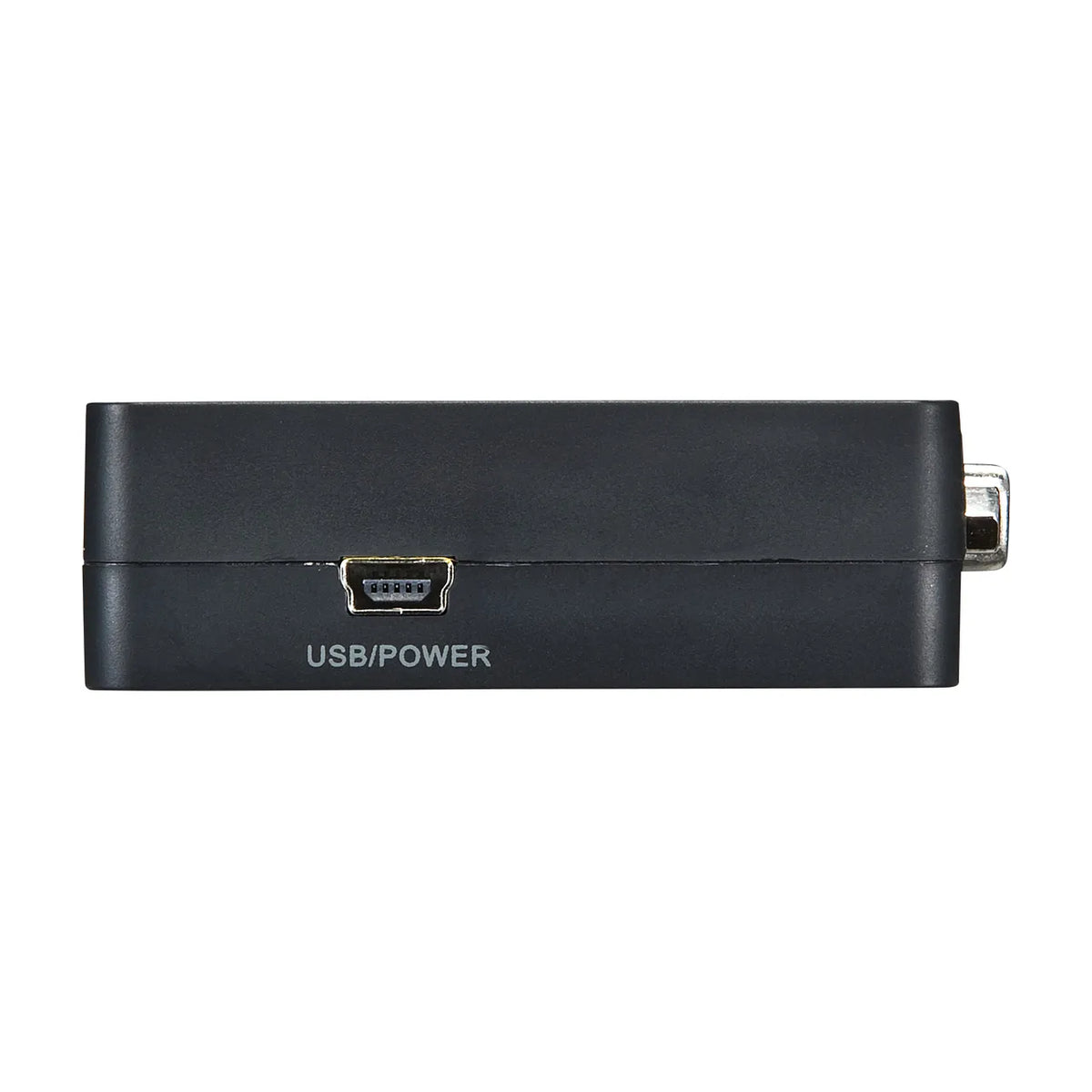

●It is a USB bus-powered system that operates using USB power supply, so it can be easily set up even in a mobile environment.
●No driver installation is required. Just connect it and you can use it.
＜Caution＞
※LCD TVs, projectors, and computer displays must also support the resolution and refresh rate listed below.
※1920x1200 resolution is not supported.
※Displays that support 1920x1200 resolution may not display correctly.
※Even with the supported resolutions listed below, please note that if the refresh rate is different, it may not display correctly.
*This product converts signals from analog VGA to digital HDMI, but compatibility issues such as the device not recognizing or displaying the signal may occur depending on the device.
*The recommended HDMI cable length for this product is 3m or less. The recommended mini D-Sub (HD) 15-pin cable length is 2m or less.
*Operation is not guaranteed with all devices.
■Supported Resolutions and Refresh Rates:
1920x1080 (60Hz)
1680x1050 (60Hz)
1600x1200 (60Hz)
1600x900 (60Hz)
1440x900 (60Hz)
1400x1050 (60Hz)
1366x768 (60Hz)
1360x768 (60Hz)
1280x1024 (60/75Hz)
1280x960 (60Hz)
1280 x800 (60/75/85Hz)
1280x768 (60/75/85Hz)
1280x720 (60Hz)
1152x864 (75Hz)
1024x768 (60/70/75/85Hz)
800x600 (60/72/75/85Hz)
640x480 (60/72/75Hz)
■Interface:

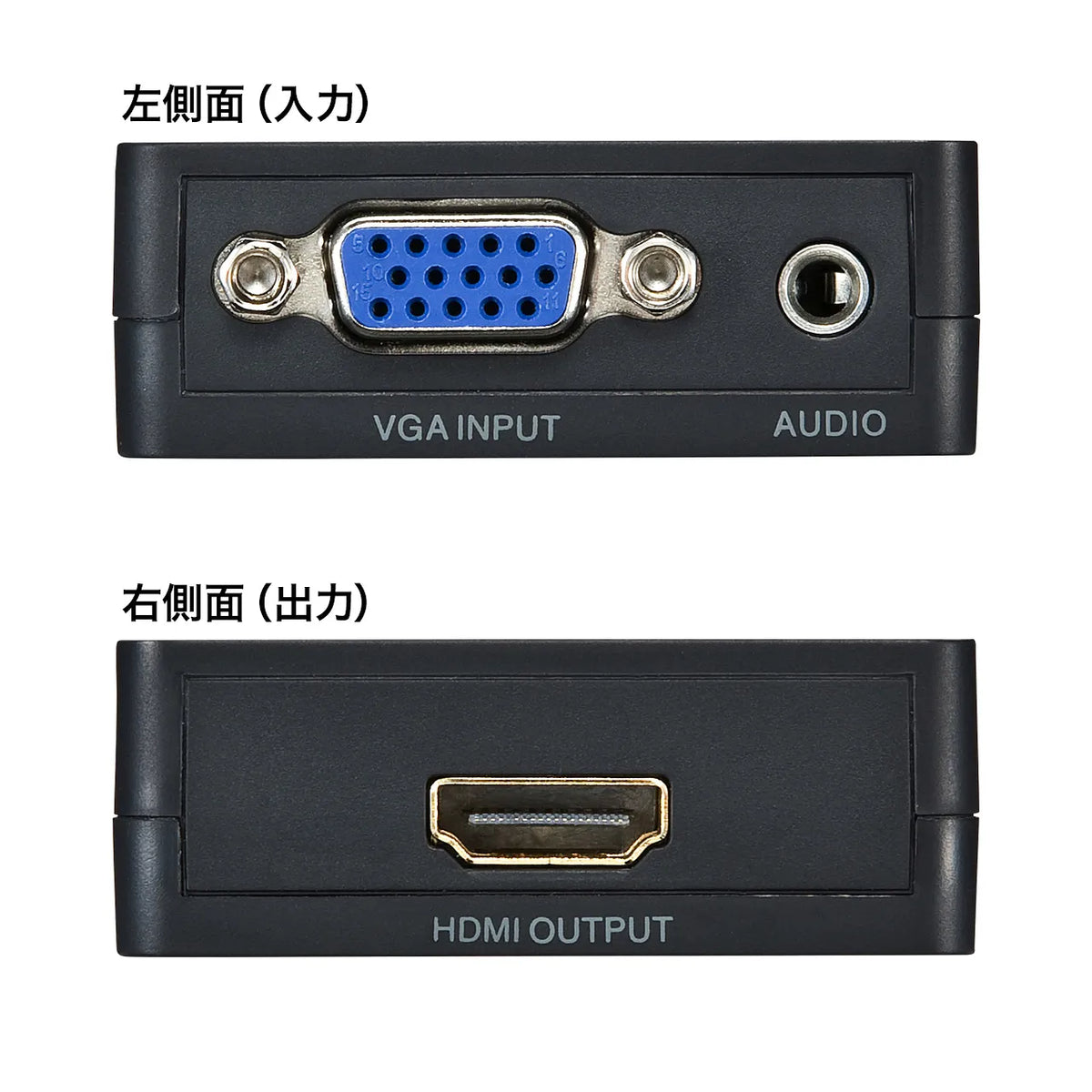

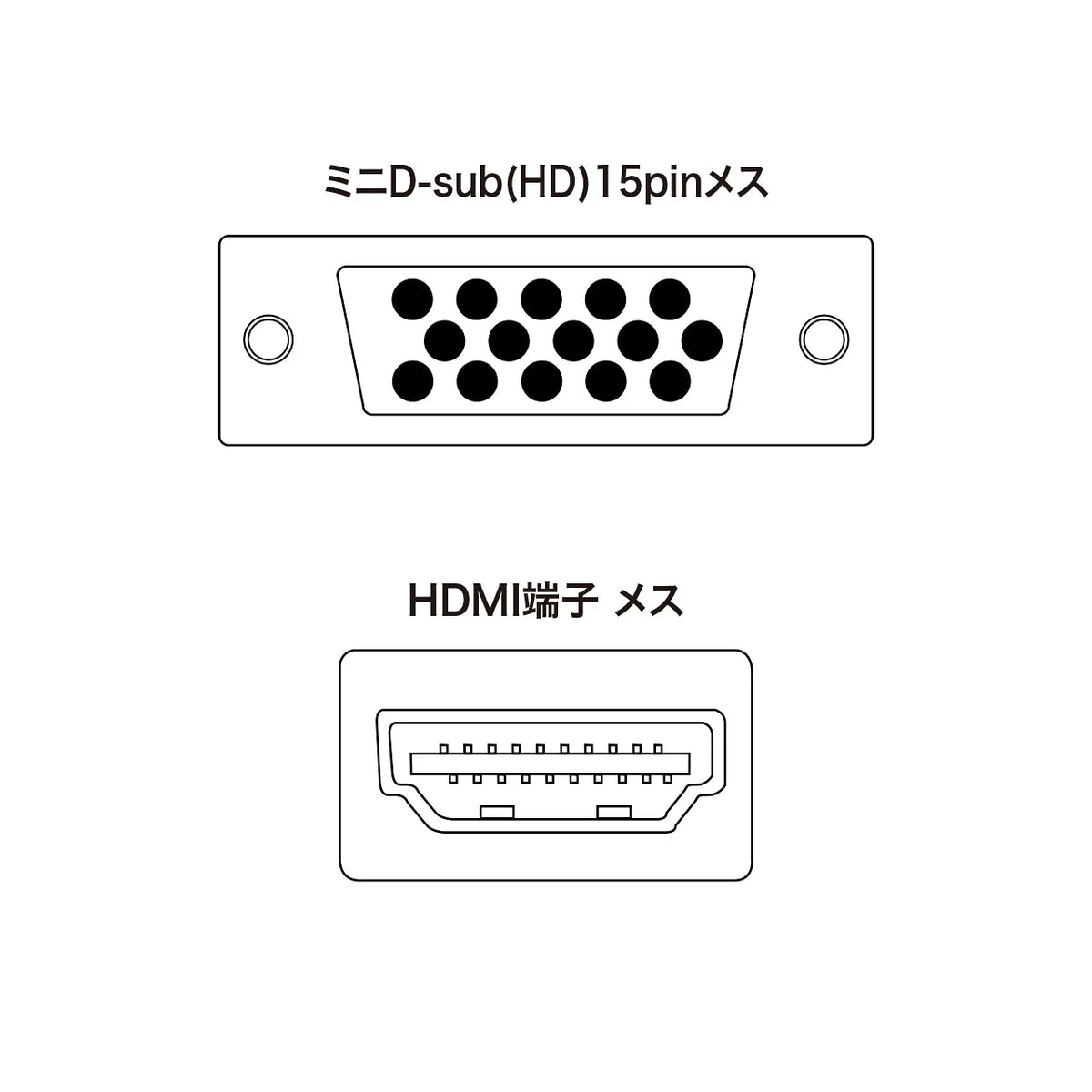

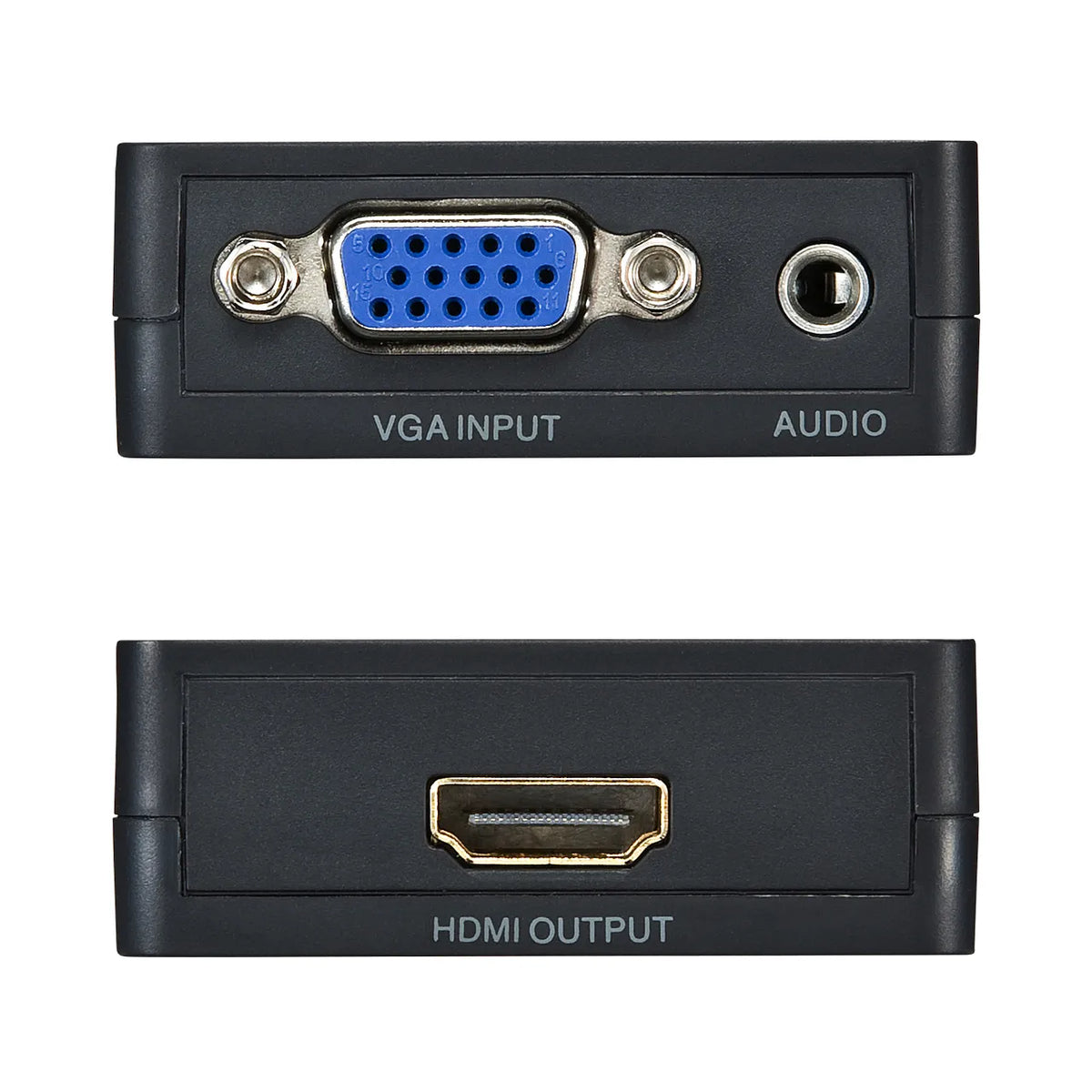

Input: Mini D-sub (HD) 15-pin female x1, 3.5mm stereo mini jack x1
Output: HDMI Type A (19-pin) female x1
■Supported audio format: Linear PCM 2 channel (48kHz)
■Input DDC signal: 5.3V
■Power consumption: 2W
■Operating environment: Operating temperature/0 to 50 degrees, humidity/80% or less (non-condensing)
Storage temperature/-20 to 60 degrees, humidity/80% or less (non-condensing)
■Dimensions: W60 x D54 x H20mm
■Weight: 42g
■Cable length: 75cm (USB cable)

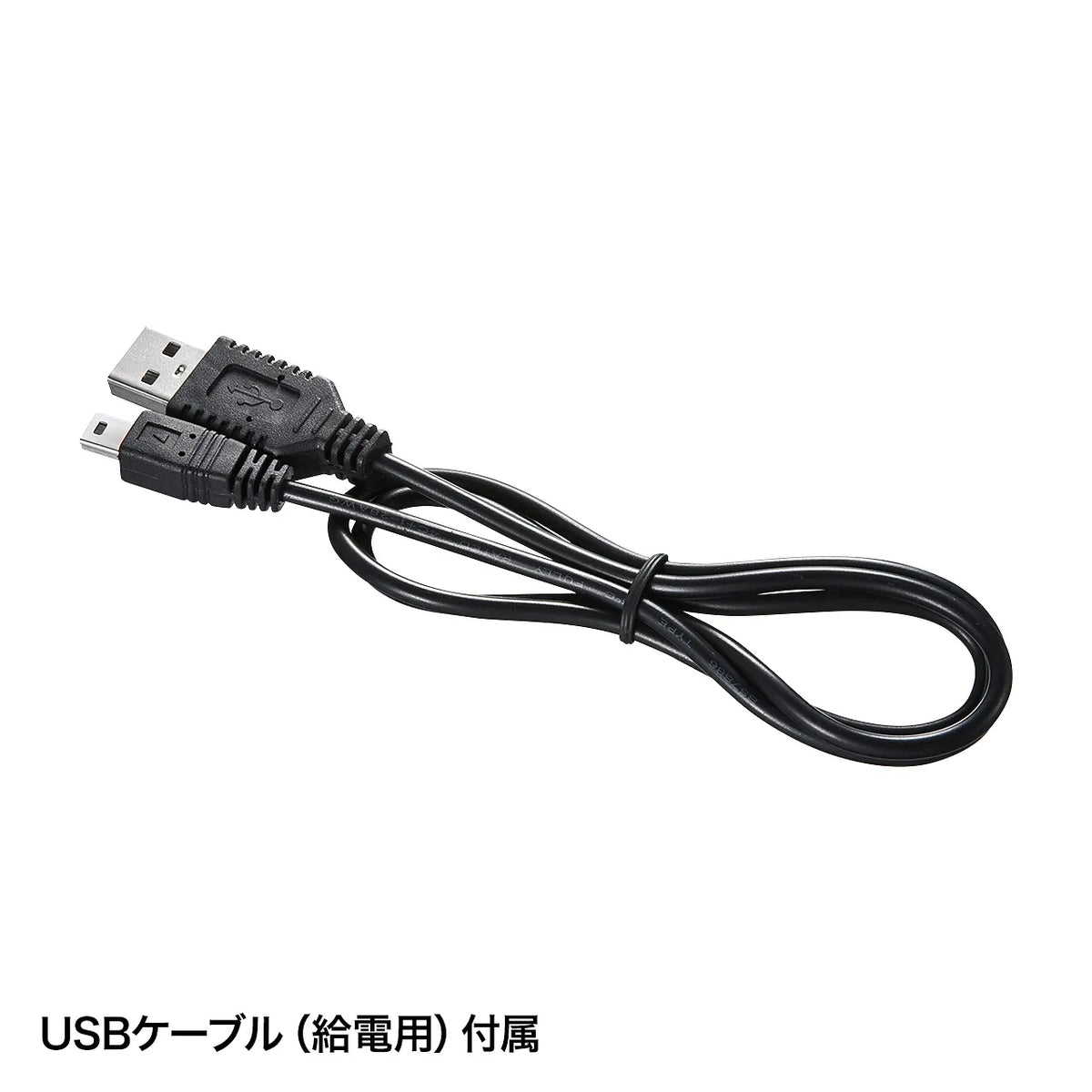

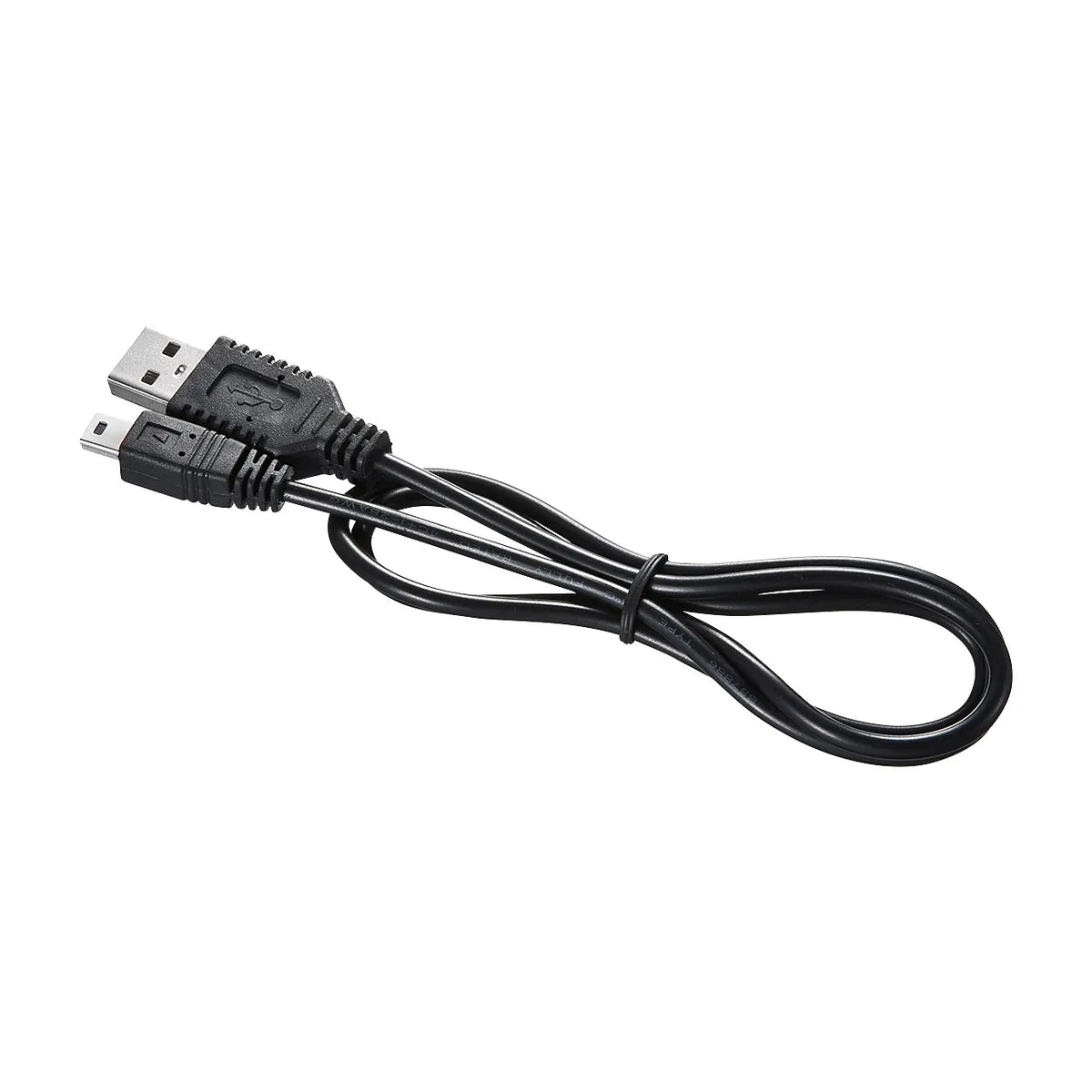

■Accessories: USB cable (for power supply) x1, instruction manual, warranty card
